#include <lte-test-fdmt-ff-mac-scheduler.h>

Inheritance diagram for LenaFdMtFfMacSchedulerTestCase:

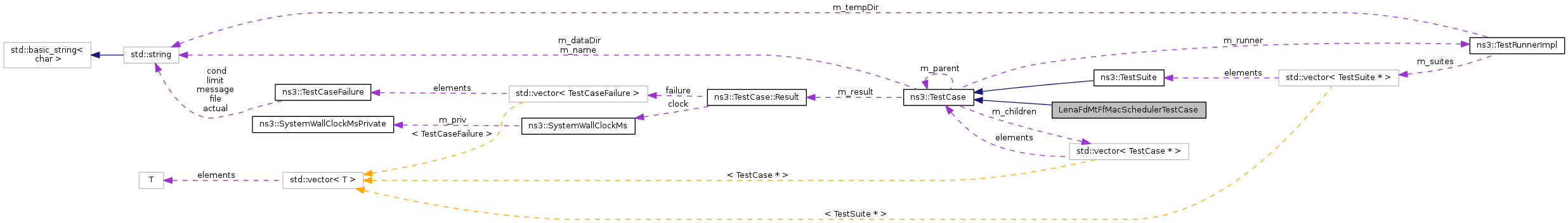

Collaboration diagram for LenaFdMtFfMacSchedulerTestCase:

Public Member Functions
	LenaFdMtFfMacSchedulerTestCase (uint16_t nUser, uint16_t nLc, uint16_t dist, double thrRefDl, double thrRefUl)
virtual	~LenaFdMtFfMacSchedulerTestCase ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()

Private Member Functions
virtual void	DoRun (void)

Static Private Member Functions
static std::string	BuildNameString (uint16_t nUser, uint16_t dist)

Private Attributes
uint16_t	m_dist
uint16_t	m_nLc
uint16_t	m_nUser
double	m_thrRefDl
double	m_thrRefUl

Additional Inherited Members
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase)
	Add an individual test case to this test suite.
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)
bool	GetErrorStatus (void) const NS_DEPRECATED
std::string	GetName (void) const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
void	SetDataDir (std::string directory)

Detailed Description

This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. In each test case, the UEs see the same SINR from the eNB; different test cases are implemented obtained by using different SINR values and different numbers of UEs. The test consists on checking that the obtained throughput performance is consistent with the definition of maximum throughput scheduling

Definition at line 42 of file lte-test-fdmt-ff-mac-scheduler.h.

Constructor & Destructor Documentation

LenaFdMtFfMacSchedulerTestCase::LenaFdMtFfMacSchedulerTestCase	(	uint16_t	nUser,
		uint16_t	nLc,
		uint16_t	dist,
		double	thrRefDl,
		double	thrRefUl
	)

Definition at line 172 of file lte-test-fdmt-ff-mac-scheduler.cc.

LenaFdMtFfMacSchedulerTestCase::~LenaFdMtFfMacSchedulerTestCase ( )

virtual

Definition at line 182 of file lte-test-fdmt-ff-mac-scheduler.cc.

Member Function Documentation

std::string LenaFdMtFfMacSchedulerTestCase::BuildNameString	(	uint16_t	nUser,
		uint16_t	dist
	)

staticprivate

Definition at line 165 of file lte-test-fdmt-ff-mac-scheduler.cc.

void LenaFdMtFfMacSchedulerTestCase::DoRun ( void )

privatevirtual

Initialize Simulation Scenario: 1 eNB and m_nUser UEs

Check that the downlink assignation is done in a "maximum throughput" manner

Check that the assignation is done in a "maximum throughput" manner among users with equal SINRs: all bandwidth should be allocated to the first UE in script

Check that the uplink assignation is done in a "maximum throughput" manner

Check that the assignation is done in a "maximum throughput" manner among users with equal SINRs: the bandwidht should be distributed according to the ratio of the estimated throughput per TTI of each user; therefore equally partitioning the whole bandwidth achievable from a single users in a TTI

Definition at line 187 of file lte-test-fdmt-ff-mac-scheduler.cc.

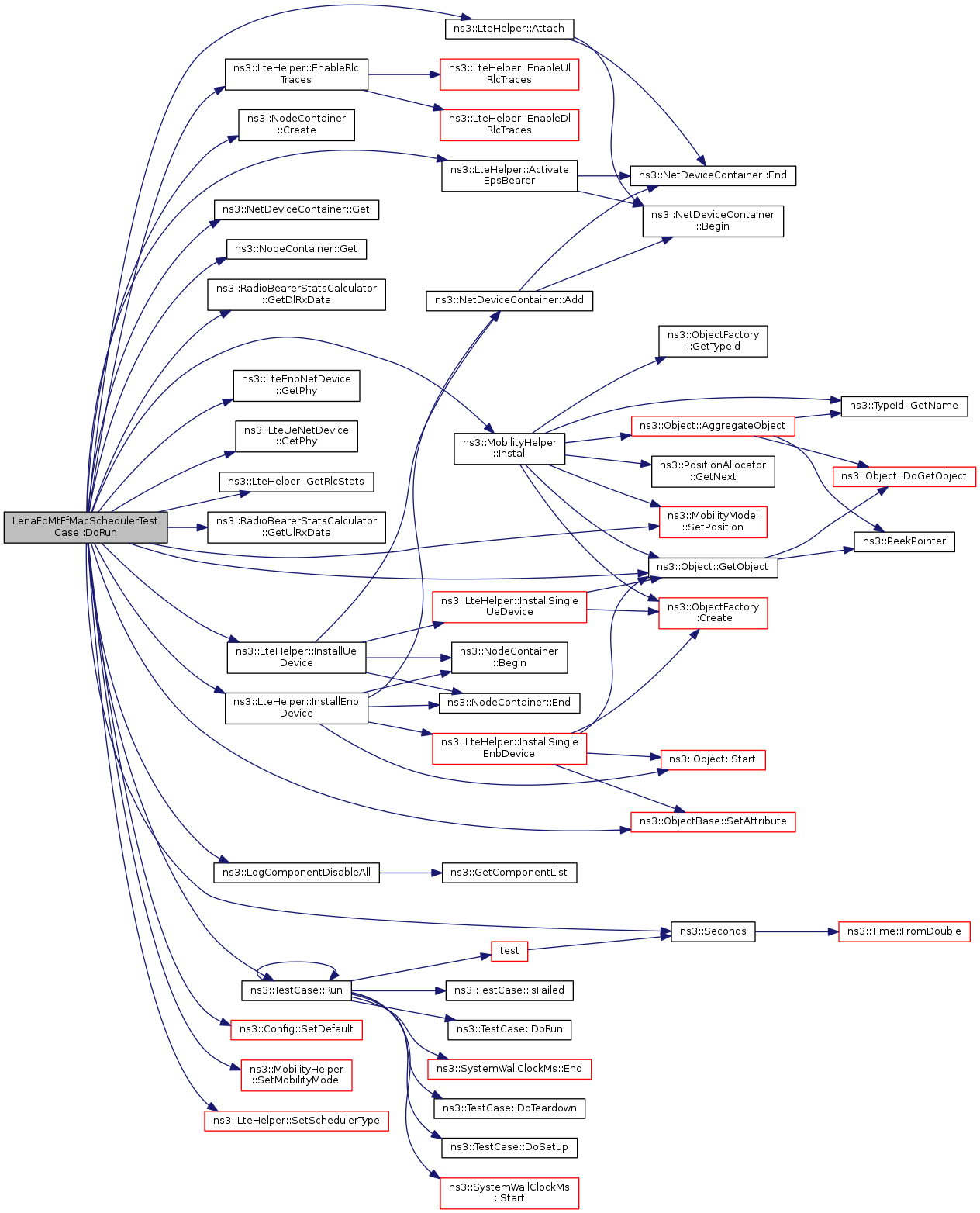

References ns3::LteHelper::ActivateEpsBearer(), ns3::LteHelper::Attach(), ns3::NodeContainer::Create(), ns3::LteHelper::EnableRlcTraces(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::RadioBearerStatsCalculator::GetDlRxData(), ns3::Object::GetObject(), ns3::LteEnbNetDevice::GetPhy(), ns3::LteUeNetDevice::GetPhy(), ns3::LteHelper::GetRlcStats(), ns3::RadioBearerStatsCalculator::GetUlRxData(), ns3::MobilityHelper::Install(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), ns3::LOG_LEVEL_ALL, ns3::LogComponentDisableAll(), m_dist, m_nUser, m_thrRefDl, m_thrRefUl, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::TestCase::Run(), ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::MobilityHelper::SetMobilityModel(), ns3::MobilityModel::SetPosition(), and ns3::LteHelper::SetSchedulerType().
