ns3::DataOutputCallback Class Reference
Statistics

#include <data-output-interface.h>

+ Inheritance diagram for ns3::DataOutputCallback:

Public Member Functions

virtual ~DataOutputCallback ()
virtual void OutputSingleton (std::string key, std::string variable, int val)=0
virtual void OutputSingleton (std::string key, std::string variable, uint32_t val)=0
virtual void OutputSingleton (std::string key, std::string variable, double val)=0
virtual void OutputSingleton (std::string key, std::string variable, std::string val)=0
virtual void OutputSingleton (std::string key, std::string variable, Time val)=0
virtual void OutputStatistic (std::string key, std::string variable, const StatisticalSummary *statSum)=0

Detailed Description

Definition at line 60 of file data-output-interface.h.

Constructor & Destructor Documentation

virtual ns3::DataOutputCallback::~DataOutputCallback ( )
inlinevirtual

Definition at line 62 of file data-output-interface.h.

Member Function Documentation

virtual void ns3::DataOutputCallback::OutputSingleton ( std::string  key,
std::string  variable,
int  val
)
pure virtual

Implemented in ns3::SqliteDataOutput::SqliteOutputCallback, and ns3::OmnetDataOutput::OmnetOutputCallback.

Referenced by ns3::TimeMinMaxAvgTotalCalculator::Output(), and ns3::CounterCalculator< T >::Output().

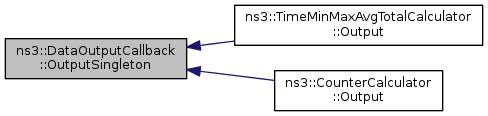

+ Here is the caller graph for this function:

virtual void ns3::DataOutputCallback::OutputSingleton ( std::string  key,
std::string  variable,
uint32_t  val
)
pure virtual

Implemented in ns3::SqliteDataOutput::SqliteOutputCallback, and ns3::OmnetDataOutput::OmnetOutputCallback.

virtual void ns3::DataOutputCallback::OutputSingleton ( std::string  key,
std::string  variable,
double  val
)
pure virtual

Implemented in ns3::SqliteDataOutput::SqliteOutputCallback, and ns3::OmnetDataOutput::OmnetOutputCallback.

virtual void ns3::DataOutputCallback::OutputSingleton ( std::string  key,
std::string  variable,
std::string  val
)
pure virtual

Implemented in ns3::SqliteDataOutput::SqliteOutputCallback, and ns3::OmnetDataOutput::OmnetOutputCallback.

virtual void ns3::DataOutputCallback::OutputSingleton ( std::string  key,
std::string  variable,
Time  val
)
pure virtual

Implemented in ns3::SqliteDataOutput::SqliteOutputCallback, and ns3::OmnetDataOutput::OmnetOutputCallback.

virtual void ns3::DataOutputCallback::OutputStatistic ( std::string  key,
std::string  variable,
const StatisticalSummary *  statSum
)
pure virtual

Implemented in ns3::SqliteDataOutput::SqliteOutputCallback, and ns3::OmnetDataOutput::OmnetOutputCallback.

Referenced by ns3::MinMaxAvgTotalCalculator< T >::Output().

+ Here is the caller graph for this function:
