a simple class to generate gnuplot-ready plotting commands from a set of datasets. More...
#include <gnuplot.h>

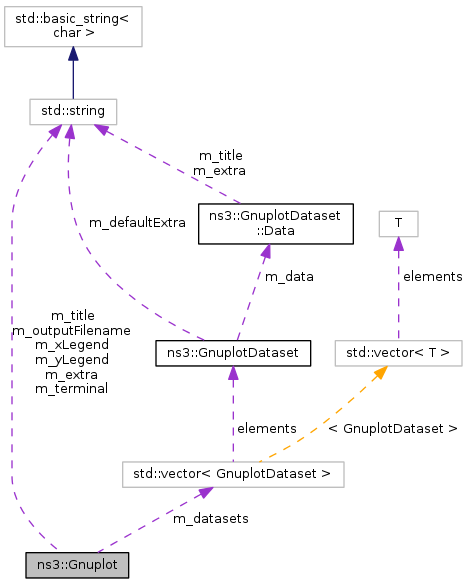

Public Member Functions | |
Gnuplot (const std::string &outputFilename="", const std::string &title="") | |
void | AddDataset (const GnuplotDataset &dataset) |
void | AppendExtra (const std::string &extra) |
void | GenerateOutput (std::ostream &os) const |
void | SetExtra (const std::string &extra) |
void | SetLegend (const std::string &xLegend, const std::string &yLegend) |
void | SetTerminal (const std::string &terminal) |
void | SetTitle (const std::string &title) |
Static Public Member Functions | |
static std::string | DetectTerminal (const std::string &filename) |
Private Types | |
typedef std::vector < GnuplotDataset > | Datasets |
Private Attributes | |
Datasets | m_datasets |
std::string | m_extra |
std::string | m_outputFilename |
std::string | m_terminal |
std::string | m_title |
std::string | m_xLegend |
std::string | m_yLegend |
a simple class to generate gnuplot-ready plotting commands from a set of datasets.
This class really represents a single graph on which multiple datasets can be plotted.
|
private |
ns3::Gnuplot::Gnuplot | ( | const std::string & | outputFilename = "" , |
const std::string & | title = "" |
||
) |
outputFilename | the name of the file where the rendering of the graph will be generated if you feed the command stream output by Gnuplot::GenerateOutput to the gnuplot program. |
title | title line of the plot page |
Definition at line 565 of file gnuplot.cc.
void ns3::Gnuplot::AddDataset | ( | const GnuplotDataset & | dataset | ) |
dataset | add a dataset to the graph to be plotted. |
Definition at line 620 of file gnuplot.cc.
References m_datasets.

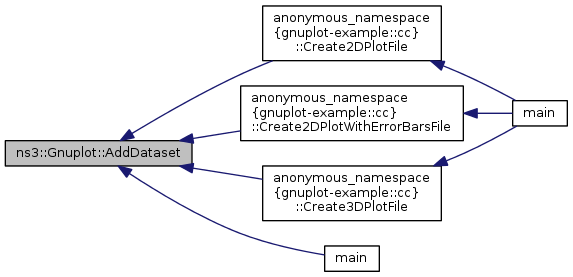

Referenced by anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile(), anonymous_namespace{gnuplot-example.cc}::Create3DPlotFile(), and main().
void ns3::Gnuplot::AppendExtra | ( | const std::string & | extra | ) |
extra | append extra gnuplot directive for output. |
Definition at line 613 of file gnuplot.cc.
References m_extra.

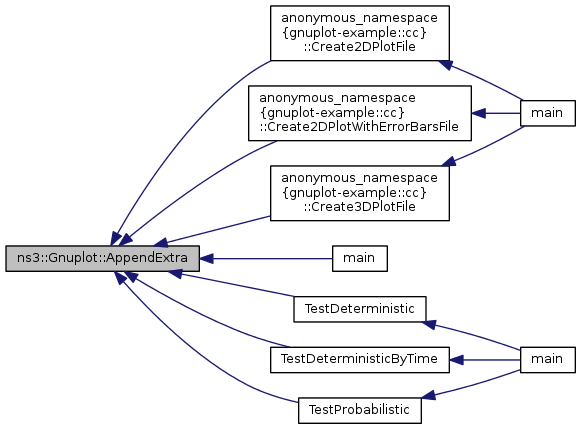

Referenced by anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile(), anonymous_namespace{gnuplot-example.cc}::Create3DPlotFile(), main(), TestDeterministic(), TestDeterministicByTime(), and TestProbabilistic().
|
static |
Crude attempt to auto-detect the correct terminal setting by inspecting the filename's extension.
filename | output file name |
Definition at line 572 of file gnuplot.cc.
void ns3::Gnuplot::GenerateOutput | ( | std::ostream & | os | ) | const |
os | the output stream on which the relevant gnuplot commands should be generated. Including output file and terminal headers. |
Definition at line 626 of file gnuplot.cc.
References m_datasets, m_extra, m_outputFilename, m_terminal, m_title, m_xLegend, m_yLegend, and NS_ASSERT_MSG.

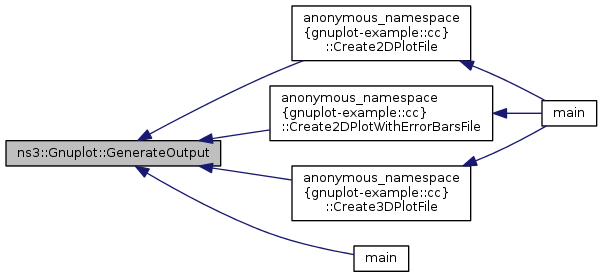

Referenced by anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile(), anonymous_namespace{gnuplot-example.cc}::Create3DPlotFile(), and main().
void ns3::Gnuplot::SetExtra | ( | const std::string & | extra | ) |
extra | set extra gnuplot directive for output. |
Definition at line 607 of file gnuplot.cc.
References m_extra.
void ns3::Gnuplot::SetLegend | ( | const std::string & | xLegend, |
const std::string & | yLegend | ||
) |
xLegend | the legend for the x horizontal axis |
yLegend | the legend for the y vertical axis |
Definition at line 600 of file gnuplot.cc.
References m_xLegend, and m_yLegend.

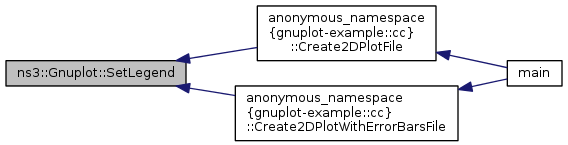

Referenced by anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), and anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile().
void ns3::Gnuplot::SetTerminal | ( | const std::string & | terminal | ) |
terminal | terminal setting string for output. The default terminal string is "png" |
Definition at line 588 of file gnuplot.cc.
References m_terminal.
Referenced by anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile(), and anonymous_namespace{gnuplot-example.cc}::Create3DPlotFile().
void ns3::Gnuplot::SetTitle | ( | const std::string & | title | ) |
title | set new plot title string to use for this plot. |
Definition at line 594 of file gnuplot.cc.
References m_title.
Referenced by anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile(), anonymous_namespace{gnuplot-example.cc}::Create3DPlotFile(), and main().
|
private |
Definition at line 405 of file gnuplot.h.
Referenced by AddDataset(), and GenerateOutput().
|
private |
Definition at line 410 of file gnuplot.h.
Referenced by AppendExtra(), GenerateOutput(), and SetExtra().
|
private |
Definition at line 402 of file gnuplot.h.
Referenced by GenerateOutput().
|
private |
Definition at line 403 of file gnuplot.h.
Referenced by GenerateOutput(), and SetTerminal().
|
private |
Definition at line 407 of file gnuplot.h.
Referenced by GenerateOutput(), and SetTitle().
|
private |
Definition at line 408 of file gnuplot.h.
Referenced by GenerateOutput(), and SetLegend().
|
private |
Definition at line 409 of file gnuplot.h.
Referenced by GenerateOutput(), and SetLegend().
