ns3::Icmpv6Echo Class Reference

ICMPv6 Echo message. More...

#include <icmpv6-header.h>

+ Inheritance diagram for ns3::Icmpv6Echo:
+ Collaboration diagram for ns3::Icmpv6Echo:

Public Member Functions

 Icmpv6Echo ()
 Default constructor.
 Icmpv6Echo (bool request)
 Constructor.
virtual ~Icmpv6Echo ()
 Destructor.
virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet.
uint16_t GetId () const
 Get the ID of the packet.
virtual TypeId GetInstanceTypeId () const
 Get the instance type ID.
uint16_t GetSeq () const
 Get the sequence number.
virtual uint32_t GetSerializedSize () const
 Get the serialized size.
virtual void Print (std::ostream &os) const
 Print informations.
virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet.
void SetId (uint16_t id)
 Set the ID of the packet.
void SetSeq (uint16_t seq)
 Set the sequence number.
- Public Member Functions inherited from ns3::Icmpv6Header
 Icmpv6Header ()
 Constructor.
virtual ~Icmpv6Header ()
 Destructor.
void CalculatePseudoHeaderChecksum (Ipv6Address src, Ipv6Address dst, uint16_t length, uint8_t protocol)
 Calculate pseudo header checksum for IPv6.
uint16_t GetChecksum () const
 Get the checksum.
uint8_t GetCode () const
 Get the code field.
uint8_t GetType () const
 Get the type field.
void SetChecksum (uint16_t checksum)
 Set the checksum.
void SetCode (uint8_t code)
 Set the code field.
void SetType (uint8_t type)
 Set the type.
- Public Member Functions inherited from ns3::Header
virtual ~Header ()

Static Public Member Functions

static TypeId GetTypeId ()
 Get the UID of this class.

Private Attributes

uint16_t m_id
 ID of the packet (to distinguish response between many ping program).
uint16_t m_seq
 Sequence number (to distinguish response).

Additional Inherited Members

- Public Types inherited from ns3::Icmpv6Header
enum  ErrorDestinationUnreachable_e {
  ICMPV6_NO_ROUTE = 0, ICMPV6_ADM_PROHIBITED, ICMPV6_NOT_NEIGHBOUR, ICMPV6_ADDR_UNREACHABLE,
  ICMPV6_PORT_UNREACHABLE
}
 ICMPv6 error code : Destination Unreachable. More...
enum  ErrorParameterError_e { ICMPV6_MALFORMED_HEADER = 0, ICMPV6_UNKNOWN_NEXT_HEADER, ICMPV6_UNKNOWN_OPTION }
 ICMPv6 error code : Parameter Error. More...
enum  ErrorTimeExceeded_e { ICMPV6_HOPLIMIT = 0, ICMPV6_FRAGTIME }
 ICMPv6 error code : Time Exceeded. More...
enum  OptionType_e {
  ICMPV6_OPT_LINK_LAYER_SOURCE = 1, ICMPV6_OPT_LINK_LAYER_TARGET, ICMPV6_OPT_PREFIX, ICMPV6_OPT_REDIRECTED,
  ICMPV6_OPT_MTU
}
 ICMPv6 Option type code. More...
enum  Type_e {
  ICMPV6_ERROR_DESTINATION_UNREACHABLE = 1, ICMPV6_ERROR_PACKET_TOO_BIG, ICMPV6_ERROR_TIME_EXCEEDED, ICMPV6_ERROR_PARAMETER_ERROR,
  ICMPV6_ECHO_REQUEST = 128, ICMPV6_ECHO_REPLY, ICMPV6_SUBSCRIBE_REQUEST, ICMPV6_SUBSCRIBE_REPORT,
  ICMPV6_SUBSCRIVE_END, ICMPV6_ND_ROUTER_SOLICITATION, ICMPV6_ND_ROUTER_ADVERTISEMENT, ICMPV6_ND_NEIGHBOR_SOLICITATION,
  ICMPV6_ND_NEIGHBOR_ADVERTISEMENT, ICMPV6_ND_REDIRECTION, ICMPV6_ROUTER_RENUMBER, ICMPV6_INFORMATION_REQUEST,
  ICMPV6_INFORMATION_RESPONSE, ICMPV6_INVERSE_ND_SOLICITATION, ICMPV6_INVERSE_ND_ADVERSTISEMENT, ICMPV6_MLDV2_SUBSCRIBE_REPORT,
  ICMPV6_MOBILITY_HA_DISCOVER_REQUEST, ICMPV6_MOBILITY_HA_DISCOVER_RESPONSE, ICMPV6_MOBILITY_MOBILE_PREFIX_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_SOLICITATION,
  ICMPV6_SECURE_ND_CERTIFICATE_PATH_ADVERTISEMENT, ICMPV6_EXPERIMENTAL_MOBILITY
}
 ICMPv6 type code. More...
- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
virtual void NotifyConstructionCompleted (void)
- Protected Attributes inherited from ns3::Icmpv6Header
bool m_calcChecksum
 Checksum enable or not.
uint16_t m_checksum
 The checksum.

Detailed Description

ICMPv6 Echo message.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 941 of file icmpv6-header.h.

Constructor & Destructor Documentation

ns3::Icmpv6Echo::Icmpv6Echo ( )

Default constructor.

Definition at line 848 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_ECHO_REQUEST, ns3::Icmpv6Header::m_checksum, ns3::Icmpv6Header::SetCode(), SetId(), SetSeq(), and ns3::Icmpv6Header::SetType().

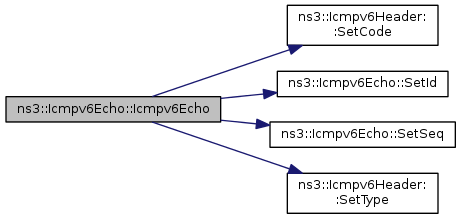

+ Here is the call graph for this function:

ns3::Icmpv6Echo::Icmpv6Echo ( bool  request)

Constructor.

Parameters
requestrequest or reply message

Definition at line 857 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_ECHO_REPLY, ns3::Icmpv6Header::ICMPV6_ECHO_REQUEST, ns3::Icmpv6Header::m_checksum, ns3::Icmpv6Header::SetCode(), SetId(), SetSeq(), and ns3::Icmpv6Header::SetType().

+ Here is the call graph for this function:

ns3::Icmpv6Echo::~Icmpv6Echo ( )
virtual

Destructor.

Definition at line 866 of file icmpv6-header.cc.

Member Function Documentation

uint32_t ns3::Icmpv6Echo::Deserialize ( Buffer::Iterator  start)
virtual

Deserialize the packet.

Parameters
startstart offset
Returns
length of packet

Reimplemented from ns3::Icmpv6Header.

Definition at line 924 of file icmpv6-header.cc.

References GetSerializedSize(), ns3::Icmpv6Header::m_checksum, m_id, m_seq, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), ns3::Icmpv6Header::SetCode(), ns3::Icmpv6Header::SetType(), and visualizer.core::start().

+ Here is the call graph for this function:

uint16_t ns3::Icmpv6Echo::GetId ( void  ) const

Get the ID of the packet.

Returns
id

Definition at line 870 of file icmpv6-header.cc.

References m_id.

Referenced by ns3::Icmpv6L4Protocol::HandleEchoRequest(), and ns3::Ping6::HandleRead().

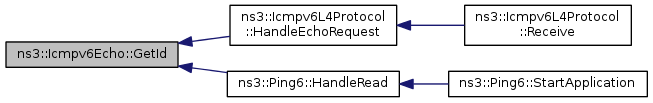

+ Here is the caller graph for this function:

TypeId ns3::Icmpv6Echo::GetInstanceTypeId ( void  ) const
virtual

Get the instance type ID.

Returns
instance type ID

Reimplemented from ns3::Icmpv6Header.

Definition at line 843 of file icmpv6-header.cc.

References GetTypeId().

+ Here is the call graph for this function:

uint16_t ns3::Icmpv6Echo::GetSeq ( void  ) const

Get the sequence number.

Returns
sequence number

Definition at line 880 of file icmpv6-header.cc.

References m_seq.

Referenced by ns3::Icmpv6L4Protocol::HandleEchoRequest(), and ns3::Ping6::HandleRead().

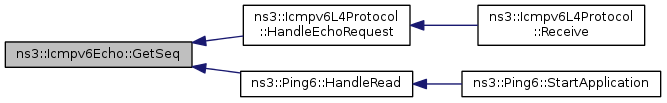

+ Here is the caller graph for this function:

uint32_t ns3::Icmpv6Echo::GetSerializedSize ( void  ) const
virtual

Get the serialized size.

Returns
serialized size

Reimplemented from ns3::Icmpv6Header.

Definition at line 897 of file icmpv6-header.cc.

Referenced by Deserialize(), ns3::Icmpv6L4Protocol::SendEchoReply(), and ns3::Ipv6RawSocketImpl::SendTo().

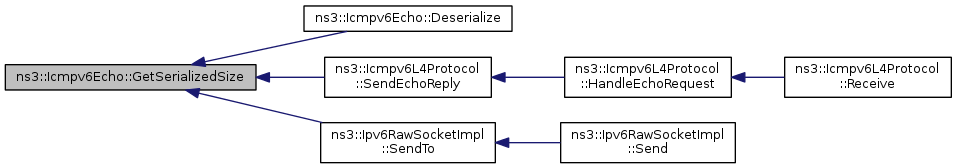

+ Here is the caller graph for this function:

TypeId ns3::Icmpv6Echo::GetTypeId ( void  )
static

Get the UID of this class.

Returns
UID

Reimplemented from ns3::Icmpv6Header.

Definition at line 834 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::Icmpv6Echo::Print ( std::ostream &  os) const
virtual

Print informations.

Parameters
osoutput stream

Reimplemented from ns3::Icmpv6Header.

Definition at line 890 of file icmpv6-header.cc.

References ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), and ns3::Icmpv6Header::GetType().

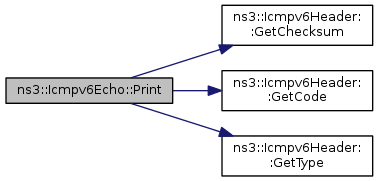

+ Here is the call graph for this function:

void ns3::Icmpv6Echo::Serialize ( Buffer::Iterator  start) const
virtual

Serialize the packet.

Parameters
startstart offset

Reimplemented from ns3::Icmpv6Header.

Definition at line 902 of file icmpv6-header.cc.

References ns3::Buffer::Iterator::CalculateIpChecksum(), ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), ns3::Buffer::Iterator::GetSize(), ns3::Icmpv6Header::GetType(), ns3::Icmpv6Header::m_calcChecksum, m_id, m_seq, ns3::Buffer::Iterator::Next(), visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

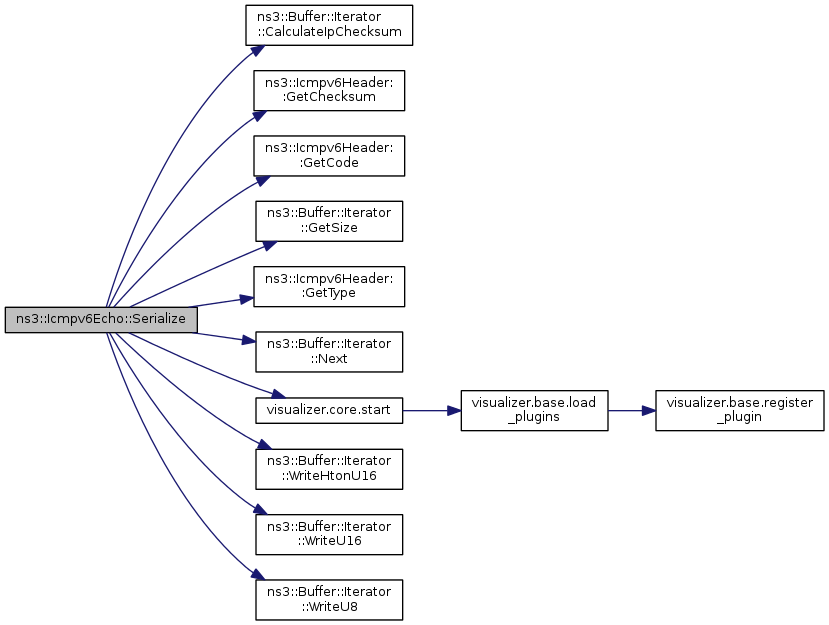

+ Here is the call graph for this function:

void ns3::Icmpv6Echo::SetId ( uint16_t  id)

Set the ID of the packet.

Parameters
idid to set

Definition at line 875 of file icmpv6-header.cc.

References m_id.

Referenced by ns3::Icmpv6L4Protocol::ForgeEchoRequest(), Icmpv6Echo(), ns3::Ping6::Send(), and ns3::Icmpv6L4Protocol::SendEchoReply().

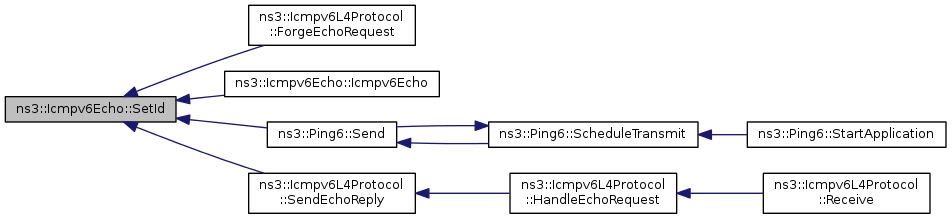

+ Here is the caller graph for this function:

void ns3::Icmpv6Echo::SetSeq ( uint16_t  seq)

Set the sequence number.

Parameters
seqsequence to set

Definition at line 885 of file icmpv6-header.cc.

References m_seq.

Referenced by ns3::Icmpv6L4Protocol::ForgeEchoRequest(), Icmpv6Echo(), ns3::Ping6::Send(), and ns3::Icmpv6L4Protocol::SendEchoReply().

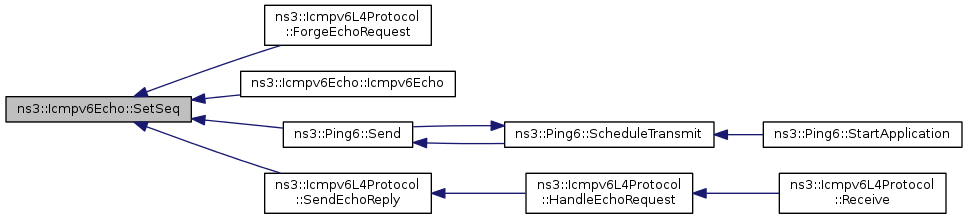

+ Here is the caller graph for this function:

Member Data Documentation

uint16_t ns3::Icmpv6Echo::m_id
private

ID of the packet (to distinguish response between many ping program).

Definition at line 1025 of file icmpv6-header.h.

Referenced by Deserialize(), GetId(), Serialize(), and SetId().

uint16_t ns3::Icmpv6Echo::m_seq
private

Sequence number (to distinguish response).

Definition at line 1030 of file icmpv6-header.h.

Referenced by Deserialize(), GetSeq(), Serialize(), and SetSeq().
