ns3::Icmpv6OptionHeader Class Reference

ICMPv6 option header. More...

#include <icmpv6-header.h>

Inheritance diagram for ns3::Icmpv6OptionHeader:

Collaboration diagram for ns3::Icmpv6OptionHeader:

Public Member Functions
	Icmpv6OptionHeader ()
	Constructor.
virtual	~Icmpv6OptionHeader ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
uint8_t	GetLength () const
	Get the length of the option in 8 bytes unit.
virtual uint32_t	GetSerializedSize () const
	Get the serialized size.
uint8_t	GetType () const
	Get the type of the option.
virtual void	Print (std::ostream &os) const
	Print informations.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
void	SetLength (uint8_t len)
	Set the length of the option.
void	SetType (uint8_t type)
	Set the type of the option.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class.

Private Attributes
uint8_t	m_len
	The length.
uint8_t	m_type
	The type.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

ICMPv6 option header.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 241 of file icmpv6-header.h.

Constructor & Destructor Documentation

ns3::Icmpv6OptionHeader::Icmpv6OptionHeader

(

)

Constructor.

Definition at line 1328 of file icmpv6-header.cc.

References m_len, and m_type.

ns3::Icmpv6OptionHeader::~Icmpv6OptionHeader ( )

virtual

Destructor.

Definition at line 1335 of file icmpv6-header.cc.

Member Function Documentation

uint32_t ns3::Icmpv6OptionHeader::Deserialize ( Buffer::Iterator  start )

virtual

Deserialize the packet.

Parameters

start

start offset

Returns

length of packet

Implements ns3::Header.

Reimplemented in ns3::Icmpv6OptionRedirected, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionPrefixInformation, and ns3::Icmpv6OptionMtu.

Definition at line 1373 of file icmpv6-header.cc.

References GetSerializedSize().

Here is the call graph for this function:

TypeId ns3::Icmpv6OptionHeader::GetInstanceTypeId ( void  ) const

virtual

Get the instance type ID.

Returns

instance type ID

Implements ns3::ObjectBase.

Reimplemented in ns3::Icmpv6OptionRedirected, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionPrefixInformation, and ns3::Icmpv6OptionMtu.

Definition at line 1322 of file icmpv6-header.cc.

References GetTypeId().

Here is the call graph for this function:

uint8_t ns3::Icmpv6OptionHeader::GetLength

(

)

const

Get the length of the option in 8 bytes unit.

Returns

length of the option

Definition at line 1351 of file icmpv6-header.cc.

References m_len, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6OptionLinkLayerAddress::Deserialize(), ns3::Icmpv6OptionRedirected::Deserialize(), Print(), ns3::Icmpv6OptionMtu::Print(), ns3::Icmpv6OptionPrefixInformation::Print(), ns3::Icmpv6OptionLinkLayerAddress::Print(), ns3::Icmpv6OptionRedirected::Print(), ns3::Icmpv6OptionMtu::Serialize(), ns3::Icmpv6OptionPrefixInformation::Serialize(), ns3::Icmpv6OptionLinkLayerAddress::Serialize(), and ns3::Icmpv6OptionRedirected::Serialize().

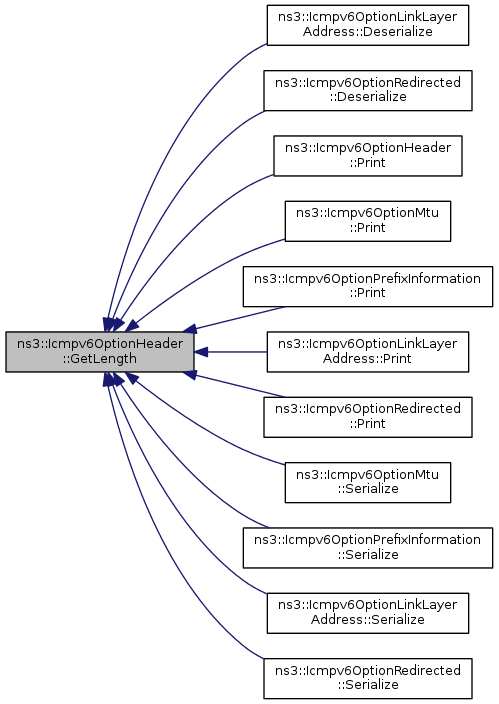

Here is the caller graph for this function:

uint32_t ns3::Icmpv6OptionHeader::GetSerializedSize ( void  ) const

virtual

Get the serialized size.

Returns

serialized size

Implements ns3::Header.

Reimplemented in ns3::Icmpv6OptionRedirected, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionPrefixInformation, and ns3::Icmpv6OptionMtu.

Definition at line 1368 of file icmpv6-header.cc.

References m_len.

Referenced by Deserialize().

Here is the caller graph for this function:

uint8_t ns3::Icmpv6OptionHeader::GetType

(

void

)

const

Get the type of the option.

Returns

type

Definition at line 1339 of file icmpv6-header.cc.

References m_type, and NS_LOG_FUNCTION_NOARGS.

Referenced by Print(), ns3::Icmpv6OptionMtu::Print(), ns3::Icmpv6OptionPrefixInformation::Print(), ns3::Icmpv6OptionLinkLayerAddress::Print(), ns3::Icmpv6OptionRedirected::Print(), ns3::Icmpv6OptionMtu::Serialize(), ns3::Icmpv6OptionPrefixInformation::Serialize(), ns3::Icmpv6OptionLinkLayerAddress::Serialize(), and ns3::Icmpv6OptionRedirected::Serialize().

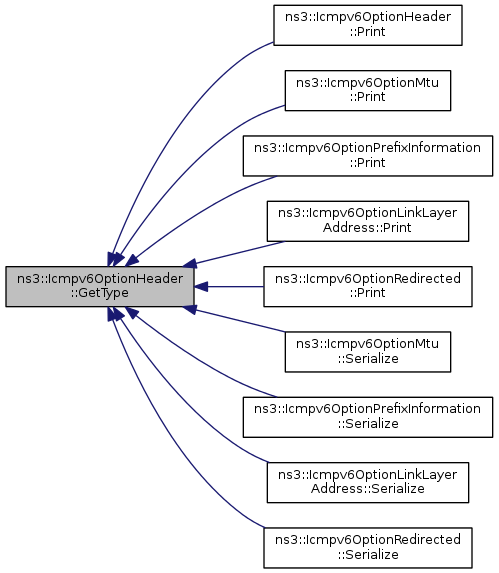

Here is the caller graph for this function:

TypeId ns3::Icmpv6OptionHeader::GetTypeId ( void  )

static

Get the UID of this class.

Returns

UID

Reimplemented from ns3::Header.

Reimplemented in ns3::Icmpv6OptionRedirected, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionPrefixInformation, and ns3::Icmpv6OptionMtu.

Definition at line 1313 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6OptionHeader::Print ( std::ostream &  os ) const

virtual

Print informations.

Parameters

os	output stream

Implements ns3::Header.

Reimplemented in ns3::Icmpv6OptionRedirected, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionPrefixInformation, and ns3::Icmpv6OptionMtu.

Definition at line 1363 of file icmpv6-header.cc.

References GetLength(), and GetType().

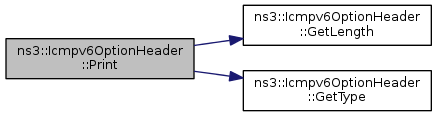

Here is the call graph for this function:

void ns3::Icmpv6OptionHeader::Serialize ( Buffer::Iterator  start ) const

virtual

Serialize the packet.

Parameters

start

start offset

Implements ns3::Header.

Reimplemented in ns3::Icmpv6OptionRedirected, ns3::Icmpv6OptionLinkLayerAddress, ns3::Icmpv6OptionPrefixInformation, and ns3::Icmpv6OptionMtu.

Definition at line 1378 of file icmpv6-header.cc.

void ns3::Icmpv6OptionHeader::SetLength

(

uint8_t

len

)

Set the length of the option.

Parameters

len	length value to set

Definition at line 1357 of file icmpv6-header.cc.

References m_len, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6OptionMtu::Deserialize(), ns3::Icmpv6OptionPrefixInformation::Deserialize(), ns3::Icmpv6OptionLinkLayerAddress::Deserialize(), ns3::Icmpv6OptionRedirected::Deserialize(), ns3::Icmpv6OptionLinkLayerAddress::Icmpv6OptionLinkLayerAddress(), ns3::Icmpv6OptionMtu::Icmpv6OptionMtu(), ns3::Icmpv6OptionPrefixInformation::Icmpv6OptionPrefixInformation(), and ns3::Icmpv6OptionRedirected::SetPacket().

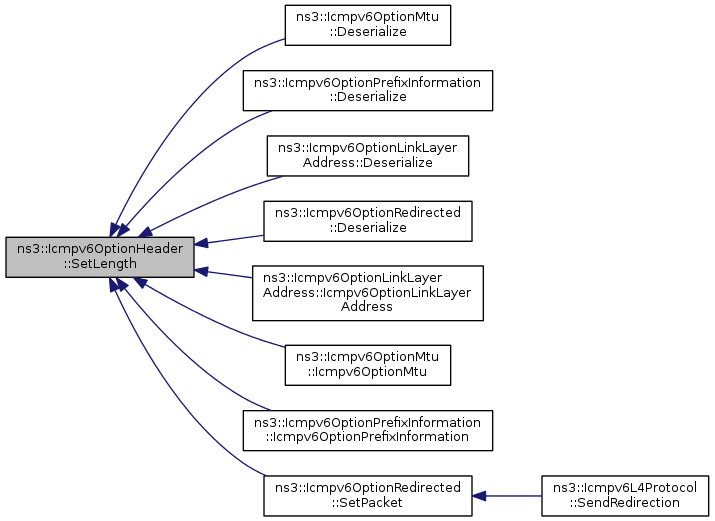

Here is the caller graph for this function:

void ns3::Icmpv6OptionHeader::SetType

(

uint8_t

type

)

Set the type of the option.

Parameters

type	the type to set

Definition at line 1345 of file icmpv6-header.cc.

References m_type, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6OptionMtu::Deserialize(), ns3::Icmpv6OptionPrefixInformation::Deserialize(), ns3::Icmpv6OptionLinkLayerAddress::Deserialize(), ns3::Icmpv6OptionRedirected::Deserialize(), ns3::Icmpv6OptionLinkLayerAddress::Icmpv6OptionLinkLayerAddress(), ns3::Icmpv6OptionMtu::Icmpv6OptionMtu(), ns3::Icmpv6OptionPrefixInformation::Icmpv6OptionPrefixInformation(), and ns3::Icmpv6OptionRedirected::Icmpv6OptionRedirected().

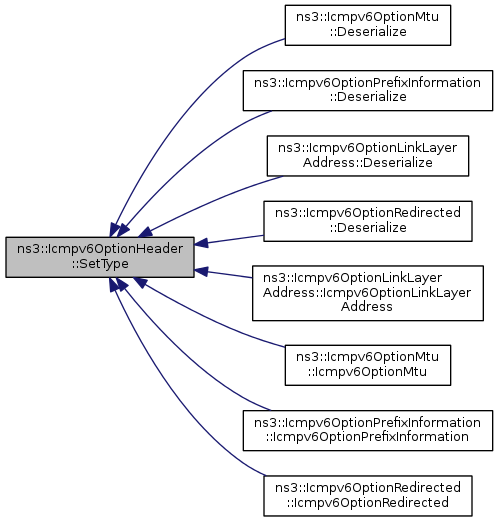

Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::Icmpv6OptionHeader::m_len

private

The length.

Definition at line 324 of file icmpv6-header.h.

Referenced by GetLength(), GetSerializedSize(), Icmpv6OptionHeader(), and SetLength().

uint8_t ns3::Icmpv6OptionHeader::m_type

private

The type.

Definition at line 319 of file icmpv6-header.h.

Referenced by GetType(), Icmpv6OptionHeader(), and SetType().

---

The documentation for this class was generated from the following files:

• src/internet/model/icmpv6-header.h
• src/internet/model/icmpv6-header.cc
