IPv6 Extension Routing Demux. More...

#include <ipv6-extension.h>

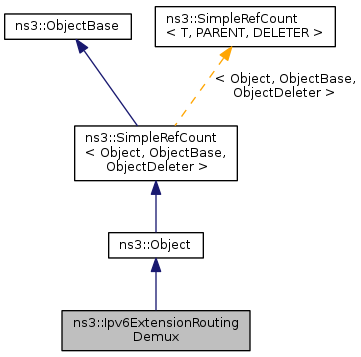

Inheritance diagram for ns3::Ipv6ExtensionRoutingDemux:

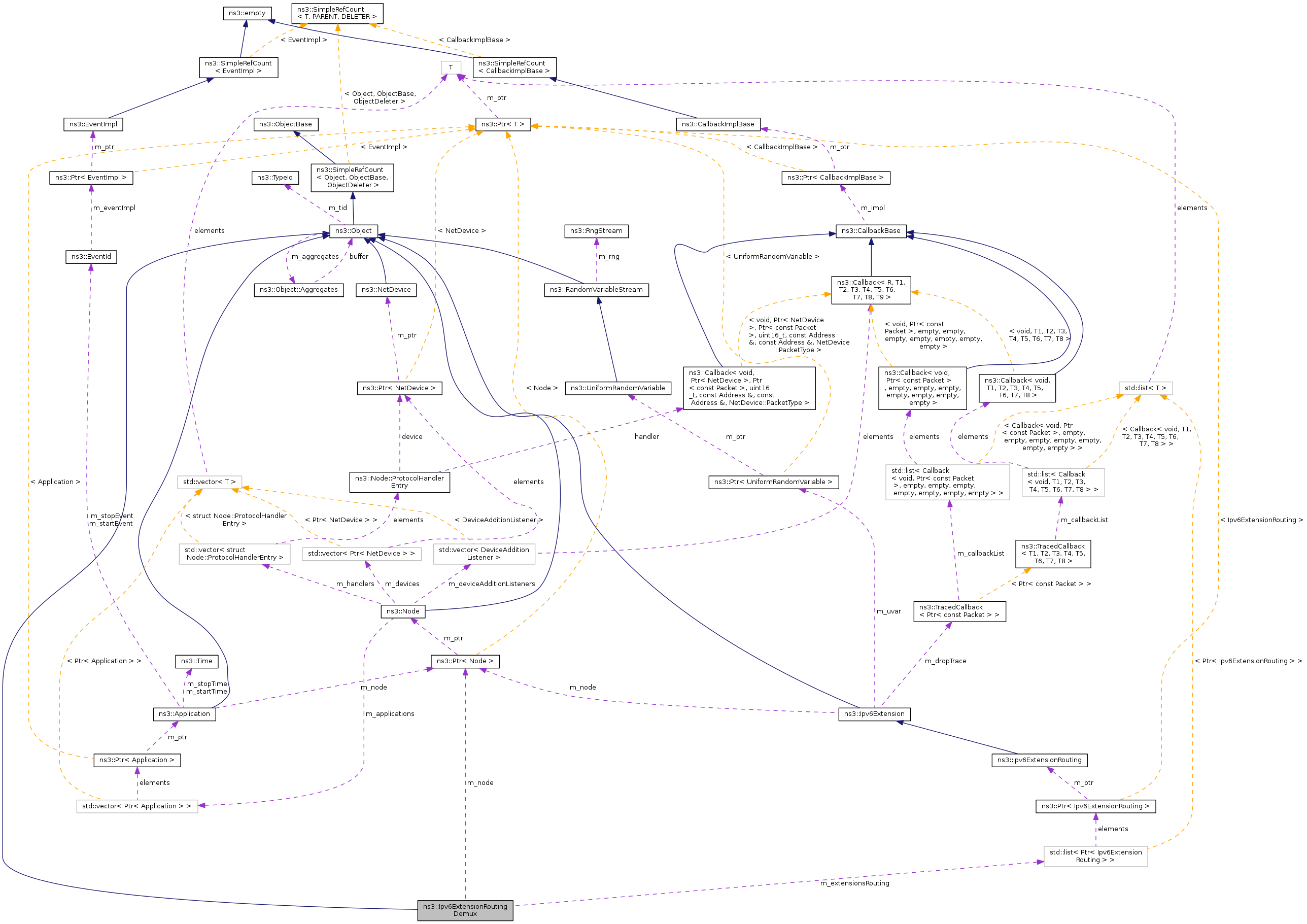

Collaboration diagram for ns3::Ipv6ExtensionRoutingDemux:

Public Member Functions
	Ipv6ExtensionRoutingDemux ()
	Constructor.
virtual	~Ipv6ExtensionRoutingDemux ()
	Destructor.
Ptr< Ipv6ExtensionRouting >	GetExtensionRouting (uint8_t typeRouting)
	Get the routing extension corresponding to typeRouting.
void	Insert (Ptr< Ipv6ExtensionRouting > extensionRouting)
	Insert a new IPv6 Routing Extension.
void	Remove (Ptr< Ipv6ExtensionRouting > extensionRouting)
	Remove a routing extension from this demux.
void	SetNode (Ptr< Node > node)
	Set the node.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	The interface ID.

Protected Member Functions
virtual void	DoDispose ()
	Dispose this object.
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Private Types
typedef std::list< Ptr < Ipv6ExtensionRouting > >	Ipv6ExtensionRoutingList_t

Private Attributes
Ipv6ExtensionRoutingList_t	m_extensionsRouting
	List of IPv6 Routing Extensions supported.
Ptr< Node >	m_node
	The node.

Detailed Description

IPv6 Extension Routing Demux.

This type is not accessible from the Config system.

Attributes

Routing Extensions: The set of IPv6 Routing extensions registered with this demux.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::Ipv6ExtensionRouting >
- Flags: read

No TraceSources are defined for this type.

Definition at line 473 of file ipv6-extension.h.

Member Typedef Documentation

typedef std::list<Ptr<Ipv6ExtensionRouting> > ns3::Ipv6ExtensionRoutingDemux::Ipv6ExtensionRoutingList_t

private

Definition at line 524 of file ipv6-extension.h.

Constructor & Destructor Documentation

ns3::Ipv6ExtensionRoutingDemux::Ipv6ExtensionRoutingDemux ( )

Constructor.

Definition at line 797 of file ipv6-extension.cc.

ns3::Ipv6ExtensionRoutingDemux::~Ipv6ExtensionRoutingDemux ( )

virtual

Destructor.

Definition at line 801 of file ipv6-extension.cc.

Member Function Documentation

void ns3::Ipv6ExtensionRoutingDemux::DoDispose ( void )

protectedvirtual

Dispose this object.

Reimplemented from ns3::Object.

Definition at line 805 of file ipv6-extension.cc.

References ns3::Ipv6ExtensionFragment::DoDispose(), and ns3::Ipv6Extension::m_node.

Here is the call graph for this function:

Ptr< Ipv6ExtensionRouting > ns3::Ipv6ExtensionRoutingDemux::GetExtensionRouting ( uint8_t typeRouting )

Get the routing extension corresponding to typeRouting.

Parameters

typeRouting the number of the routing extension to retrieve

Returns: a matching IPv6 routing extension

Definition at line 827 of file ipv6-extension.cc.

TypeId ns3::Ipv6ExtensionRoutingDemux::GetTypeId ( void )

static

The interface ID.

Returns: type ID

Reimplemented from ns3::Object.

Definition at line 785 of file ipv6-extension.cc.

References m_extensionsRouting, ns3::MakeObjectVectorAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::Ipv6ExtensionRoutingDemux::Insert ( Ptr< Ipv6ExtensionRouting > extensionRouting )

Insert a new IPv6 Routing Extension.

Parameters

extensionRouting the routing extension to insert

Definition at line 822 of file ipv6-extension.cc.

void ns3::Ipv6ExtensionRoutingDemux::Remove ( Ptr< Ipv6ExtensionRouting > extensionRouting )

Remove a routing extension from this demux.

Parameters

extensionRouting pointer on the extension to remove

Definition at line 839 of file ipv6-extension.cc.

void ns3::Ipv6ExtensionRoutingDemux::SetNode ( Ptr< Node > node )

Set the node.

Parameters

node	the node to set

Definition at line 817 of file ipv6-extension.cc.

References ns3::Ipv6Extension::m_node.

Member Data Documentation

Ipv6ExtensionRoutingList_t ns3::Ipv6ExtensionRoutingDemux::m_extensionsRouting

private

List of IPv6 Routing Extensions supported.

Definition at line 529 of file ipv6-extension.h.

Referenced by GetTypeId().

Ptr<Node> ns3::Ipv6ExtensionRoutingDemux::m_node

private

The node.

Definition at line 534 of file ipv6-extension.h.

The documentation for this class was generated from the following files:

src/internet/model/ipv6-extension.h
src/internet/model/ipv6-extension.cc
