Header of IPv6 Extension Routing. More...

#include <ipv6-extension-header.h>

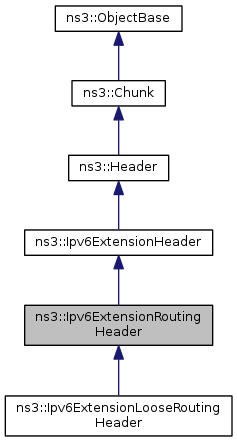

Inheritance diagram for ns3::Ipv6ExtensionRoutingHeader:

Collaboration diagram for ns3::Ipv6ExtensionRoutingHeader:

Public Member Functions
	Ipv6ExtensionRoutingHeader ()
	Constructor.
virtual	~Ipv6ExtensionRoutingHeader ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
uint8_t	GetSegmentsLeft () const
	Get the field "Segments left".
virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet.
uint8_t	GetTypeRouting () const
	Get the field "Type of Routing".
virtual void	Print (std::ostream &os) const
	Print some informations about the packet.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
void	SetSegmentsLeft (uint8_t segmentsLeft)
	Set the "Segments left" field.
void	SetTypeRouting (uint8_t typeRouting)
	Set the "Type of Routing" field.
Public Member Functions inherited from ns3::Ipv6ExtensionHeader
	Ipv6ExtensionHeader ()
	Constructor.
virtual	~Ipv6ExtensionHeader ()
	Destructor.
uint16_t	GetLength () const
	Get the length of the extension.
uint8_t	GetNextHeader () const
	Get the next header.
void	SetLength (uint16_t length)
void	SetNextHeader (uint8_t nextHeader)
	Set the "Next header" field.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.

Private Attributes
uint8_t	m_segmentsLeft
	Number of left segments.
uint8_t	m_typeRouting
	Type of routing.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Header of IPv6 Extension Routing.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 432 of file ipv6-extension-header.h.

Constructor & Destructor Documentation

ns3::Ipv6ExtensionRoutingHeader::Ipv6ExtensionRoutingHeader ( )

Constructor.

Definition at line 420 of file ipv6-extension-header.cc.

ns3::Ipv6ExtensionRoutingHeader::~Ipv6ExtensionRoutingHeader ( )

virtual

Destructor.

Definition at line 426 of file ipv6-extension-header.cc.

Member Function Documentation

uint32_t ns3::Ipv6ExtensionRoutingHeader::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 471 of file ipv6-extension-header.cc.

References GetSerializedSize(), m_segmentsLeft, m_typeRouting, ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6ExtensionHeader::SetLength(), ns3::Ipv6ExtensionHeader::SetNextHeader(), and visualizer.core::start().

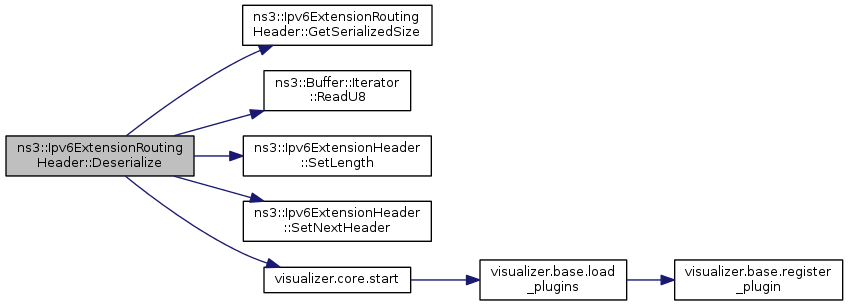

Here is the call graph for this function:

TypeId ns3::Ipv6ExtensionRoutingHeader::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 415 of file ipv6-extension-header.cc.

References GetTypeId().

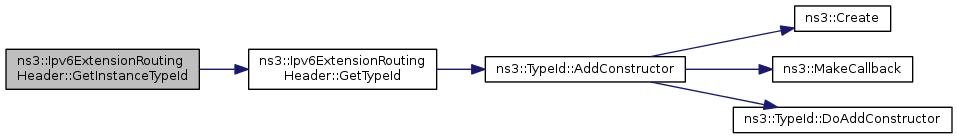

Here is the call graph for this function:

uint8_t ns3::Ipv6ExtensionRoutingHeader::GetSegmentsLeft ( ) const

Get the field "Segments left".

Returns: the number of segments left

Definition at line 445 of file ipv6-extension-header.cc.

References m_segmentsLeft.

Referenced by ns3::Ipv6ExtensionLooseRoutingHeader::Print(), ns3::Ipv6ExtensionLooseRouting::Process(), and ns3::Ipv6ExtensionLooseRoutingHeader::Serialize().

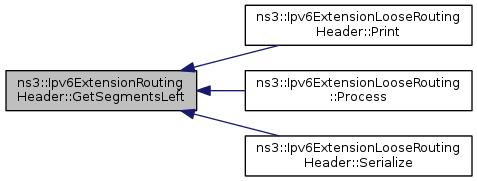

Here is the caller graph for this function:

uint32_t ns3::Ipv6ExtensionRoutingHeader::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 456 of file ipv6-extension-header.cc.

Referenced by Deserialize().

Here is the caller graph for this function:

TypeId ns3::Ipv6ExtensionRoutingHeader::GetTypeId ( void )

static

Get the type identificator.

Returns: type identificator

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 406 of file ipv6-extension-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::Ipv6ExtensionRoutingHeader::GetTypeRouting ( ) const

Get the field "Type of Routing".

Returns: the type of routing

Definition at line 435 of file ipv6-extension-header.cc.

References m_typeRouting.

Referenced by ns3::Ipv6ExtensionLooseRoutingHeader::Print(), and ns3::Ipv6ExtensionLooseRoutingHeader::Serialize().

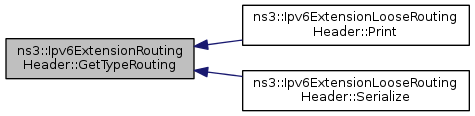

Here is the caller graph for this function:

void ns3::Ipv6ExtensionRoutingHeader::Print ( std::ostream & os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns: info about this packet

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 450 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetLength(), ns3::Ipv6ExtensionHeader::GetNextHeader(), m_segmentsLeft, and m_typeRouting.

Here is the call graph for this function:

void ns3::Ipv6ExtensionRoutingHeader::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start Buffer iterator

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 461 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetLength(), ns3::Ipv6ExtensionHeader::GetNextHeader(), m_segmentsLeft, m_typeRouting, visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

void ns3::Ipv6ExtensionRoutingHeader::SetSegmentsLeft ( uint8_t segmentsLeft )

Set the "Segments left" field.

Parameters

segmentsLeft the number of segments left

Definition at line 440 of file ipv6-extension-header.cc.

References m_segmentsLeft.

Referenced by ns3::Ipv6ExtensionLooseRoutingHeader::Deserialize(), ns3::Ipv6ExtensionLooseRouting::Process(), and ns3::Ping6::Send().

Here is the caller graph for this function:

void ns3::Ipv6ExtensionRoutingHeader::SetTypeRouting ( uint8_t typeRouting )

Set the "Type of Routing" field.

Parameters

typeRouting the type of routing

Definition at line 430 of file ipv6-extension-header.cc.

References m_typeRouting.

Referenced by ns3::Ipv6ExtensionLooseRoutingHeader::Deserialize(), and ns3::Ping6::Send().

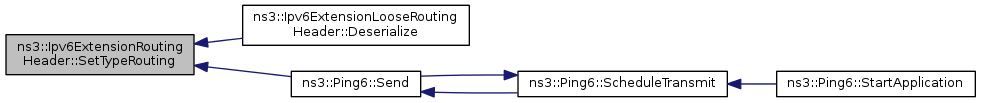

Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::Ipv6ExtensionRoutingHeader::m_segmentsLeft

private

Number of left segments.

Definition at line 516 of file ipv6-extension-header.h.

Referenced by Deserialize(), GetSegmentsLeft(), Print(), Serialize(), and SetSegmentsLeft().

uint8_t ns3::Ipv6ExtensionRoutingHeader::m_typeRouting

private

Type of routing.

Definition at line 511 of file ipv6-extension-header.h.

Referenced by Deserialize(), GetTypeRouting(), Print(), Serialize(), and SetTypeRouting().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-extension-header.h
src/internet/model/ipv6-extension-header.cc
