ns3::Ipv6OptionDemux Class Reference

IPv6 Option Demux. More...

#include <ipv6-option-demux.h>

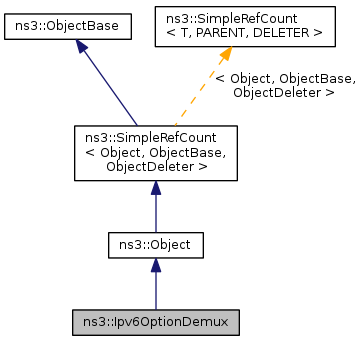

Inheritance diagram for ns3::Ipv6OptionDemux:

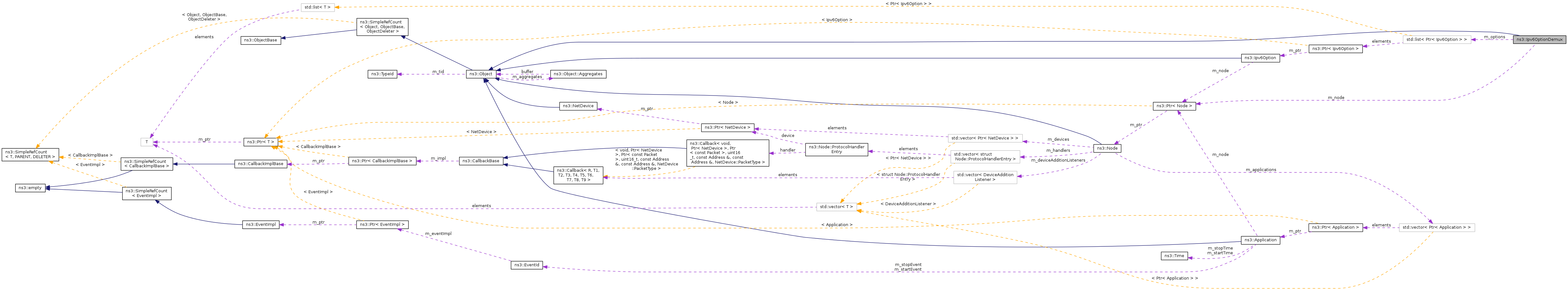

Collaboration diagram for ns3::Ipv6OptionDemux:

Public Member Functions
	Ipv6OptionDemux ()
	Constructor.
virtual	~Ipv6OptionDemux ()
	Destructor.
Ptr< Ipv6Option >	GetOption (int optionNumber)
	Get the option corresponding to optionNumber.
void	Insert (Ptr< Ipv6Option > option)
	Insert a new IPv6 Option.
void	Remove (Ptr< Ipv6Option > option)
	Remove an option from this demux.
void	SetNode (Ptr< Node > node)
	Set the node.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	The interface ID.

Protected Member Functions
virtual void	DoDispose ()
	Dispose this object.
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Private Types
typedef std::list< Ptr < Ipv6Option > >	Ipv6OptionList_t

Private Attributes
Ptr< Node >	m_node
	The node.
Ipv6OptionList_t	m_options
	List of IPv6 Options supported.

Detailed Description

IPv6 Option Demux.

This type is not accessible from the Config system.

Attributes

• Options: The set of IPv6 options registered with this demux.
  • Set with class: ns3::ObjectPtrContainerValue
  • Underlying type: ns3::Ptr< ns3::Ipv6Option >
  • Flags: read

No TraceSources are defined for this type.

Definition at line 38 of file ipv6-option-demux.h.

Member Typedef Documentation

typedef std::list<Ptr<Ipv6Option> > ns3::Ipv6OptionDemux::Ipv6OptionList_t

private

Definition at line 89 of file ipv6-option-demux.h.

Constructor & Destructor Documentation

ns3::Ipv6OptionDemux::Ipv6OptionDemux

(

)

Constructor.

Definition at line 45 of file ipv6-option-demux.cc.

ns3::Ipv6OptionDemux::~Ipv6OptionDemux ( )

virtual

Destructor.

Definition at line 49 of file ipv6-option-demux.cc.

Member Function Documentation

void ns3::Ipv6OptionDemux::DoDispose ( void  )

protectedvirtual

Dispose this object.

Reimplemented from ns3::Object.

Definition at line 53 of file ipv6-option-demux.cc.

References m_node, and m_options.

Ptr< Ipv6Option > ns3::Ipv6OptionDemux::GetOption

(

int

optionNumber

)

Get the option corresponding to optionNumber.

Parameters

optionNumber

the option number of the option to retrieve

Returns

a matching IPv6 option

Definition at line 75 of file ipv6-option-demux.cc.

References m_options.

TypeId ns3::Ipv6OptionDemux::GetTypeId ( void  )

static

The interface ID.

Returns

type ID

Reimplemented from ns3::Object.

Definition at line 33 of file ipv6-option-demux.cc.

References m_options, ns3::MakeObjectVectorAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::Ipv6OptionDemux::Insert

(

Ptr< Ipv6Option >

option

)

Insert a new IPv6 Option.

Parameters

option

the option to insert

Definition at line 70 of file ipv6-option-demux.cc.

References m_options.

void ns3::Ipv6OptionDemux::Remove

(

Ptr< Ipv6Option >

option

)

Remove an option from this demux.

Parameters

option

pointer on the option to remove

Definition at line 87 of file ipv6-option-demux.cc.

References m_options.

void ns3::Ipv6OptionDemux::SetNode

(

Ptr< Node >

node

)

Set the node.

Parameters

node	the node to set

Definition at line 65 of file ipv6-option-demux.cc.

References m_node.

Member Data Documentation

Ptr<Node> ns3::Ipv6OptionDemux::m_node

private

The node.

Definition at line 99 of file ipv6-option-demux.h.

Referenced by DoDispose(), and SetNode().

Ipv6OptionList_t ns3::Ipv6OptionDemux::m_options

private

List of IPv6 Options supported.

Definition at line 94 of file ipv6-option-demux.h.

Referenced by DoDispose(), GetOption(), GetTypeId(), Insert(), and Remove().

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6-option-demux.h
• src/internet/model/ipv6-option-demux.cc
