ns3::Ipv6OptionPadnHeader Class Reference

Header of IPv6 Option Padn. More...

#include <ipv6-option-header.h>

Inheritance diagram for ns3::Ipv6OptionPadnHeader:

Collaboration diagram for ns3::Ipv6OptionPadnHeader:

Public Member Functions
	Ipv6OptionPadnHeader (uint32_t pad=2)
	Constructor.
virtual	~Ipv6OptionPadnHeader ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet.
virtual void	Print (std::ostream &os) const
	Print some informations about the packet.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
Public Member Functions inherited from ns3::Ipv6OptionHeader
	Ipv6OptionHeader ()
	Constructor.
virtual	~Ipv6OptionHeader ()
	Destructor.
virtual Alignment	GetAlignment () const
	Get the Alignment requirement of this option header.
uint8_t	GetLength () const
	Get the option length.
uint8_t	GetType () const
	Get the type of the option.
void	SetLength (uint8_t length)
	Set the option length.
void	SetType (uint8_t type)
	Set the type of the option.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Header of IPv6 Option Padn.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 210 of file ipv6-option-header.h.

Constructor & Destructor Documentation

ns3::Ipv6OptionPadnHeader::Ipv6OptionPadnHeader

(

uint32_t

pad = 2

)

Constructor.

Parameters

pad	Number of bytes to pad (>=2)

Definition at line 186 of file ipv6-option-header.cc.

References NS_ASSERT_MSG, ns3::Ipv6OptionHeader::SetLength(), and ns3::Ipv6OptionHeader::SetType().

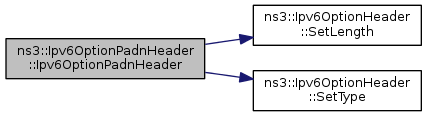

Here is the call graph for this function:

ns3::Ipv6OptionPadnHeader::~Ipv6OptionPadnHeader ( )

virtual

Destructor.

Definition at line 193 of file ipv6-option-header.cc.

Member Function Documentation

uint32_t ns3::Ipv6OptionPadnHeader::Deserialize ( Buffer::Iterator  start )

virtual

Deserialize the packet.

Parameters

start

Buffer iterator

Returns

size of the packet

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 220 of file ipv6-option-header.cc.

References GetSerializedSize(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6OptionHeader::SetLength(), ns3::Ipv6OptionHeader::SetType(), and visualizer.core::start().

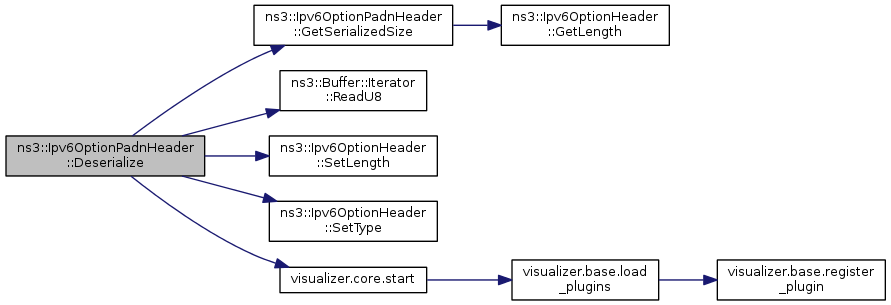

Here is the call graph for this function:

TypeId ns3::Ipv6OptionPadnHeader::GetInstanceTypeId ( void  ) const

virtual

Get the instance type ID.

Returns

instance type ID

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 181 of file ipv6-option-header.cc.

References GetTypeId().

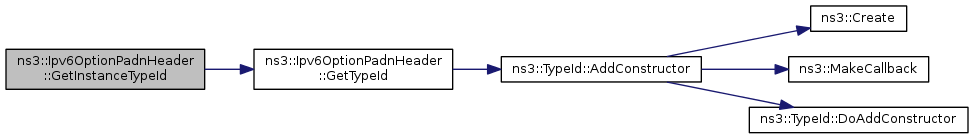

Here is the call graph for this function:

uint32_t ns3::Ipv6OptionPadnHeader::GetSerializedSize ( void  ) const

virtual

Get the serialized size of the packet.

Returns

size

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 202 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::GetLength().

Referenced by Deserialize(), and ns3::Ipv6OptionPadn::Process().

Here is the call graph for this function:

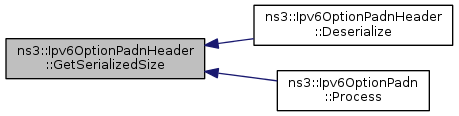

Here is the caller graph for this function:

TypeId ns3::Ipv6OptionPadnHeader::GetTypeId ( void  )

static

Get the type identificator.

Returns

type identificator

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 172 of file ipv6-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

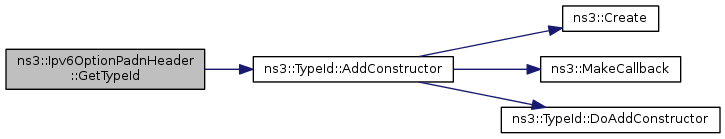

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6OptionPadnHeader::Print ( std::ostream &  os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns

info about this packet

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 197 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::GetLength(), and ns3::Ipv6OptionHeader::GetType().

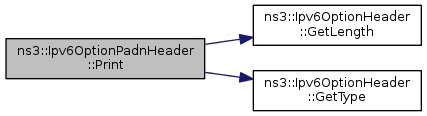

Here is the call graph for this function:

void ns3::Ipv6OptionPadnHeader::Serialize ( Buffer::Iterator  start ) const

virtual

Serialize the packet.

Parameters

start

Buffer iterator

Reimplemented from ns3::Ipv6OptionHeader.

Definition at line 207 of file ipv6-option-header.cc.

References ns3::Ipv6OptionHeader::GetLength(), ns3::Ipv6OptionHeader::GetType(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::OptionField::Serialize().

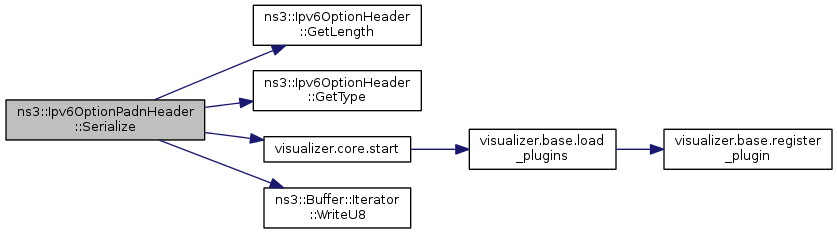

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6-option-header.h
• src/internet/model/ipv6-option-header.cc
