#include <lte-test-fdbet-ff-mac-scheduler.h>

Inheritance diagram for ns3::LenaFdBetFfMacSchedulerTestCase2:

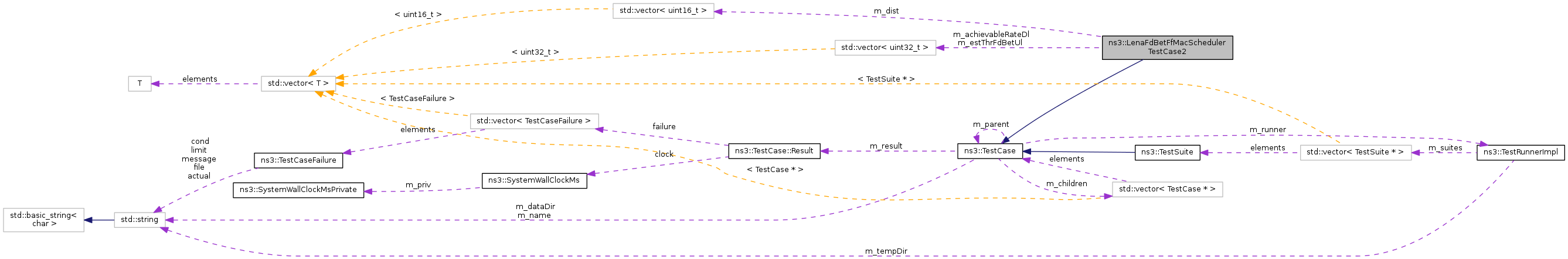

Collaboration diagram for ns3::LenaFdBetFfMacSchedulerTestCase2:

Public Member Functions
	LenaFdBetFfMacSchedulerTestCase2 (std::vector< uint16_t > dist, std::vector< uint32_t > m_achievableRateDl, std::vector< uint32_t > estThrFdBetUl)
virtual	~LenaFdBetFfMacSchedulerTestCase2 ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()

Private Member Functions
virtual void	DoRun (void)

Static Private Member Functions
static std::string	BuildNameString (uint16_t nUser, std::vector< uint16_t > dist)

Private Attributes
std::vector< uint32_t >	m_achievableRateDl
std::vector< uint16_t >	m_dist
std::vector< uint32_t >	m_estThrFdBetUl
uint16_t	m_nUser

Additional Inherited Members
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase)
	Add an individual test case to this test suite.
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)
bool	GetErrorStatus (void) const NS_DEPRECATED
std::string	GetName (void) const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
void	SetDataDir (std::string directory)

Detailed Description

Definition at line 59 of file lte-test-fdbet-ff-mac-scheduler.h.

Constructor & Destructor Documentation

ns3::LenaFdBetFfMacSchedulerTestCase2::LenaFdBetFfMacSchedulerTestCase2	(	std::vector< uint16_t >	dist,
		std::vector< uint32_t >	m_achievableRateDl,
		std::vector< uint32_t >	estThrFdBetUl
	)

Definition at line 336 of file lte-test-fdbet-ff-mac-scheduler.cc.

ns3::LenaFdBetFfMacSchedulerTestCase2::~LenaFdBetFfMacSchedulerTestCase2 ( )

virtual

Definition at line 345 of file lte-test-fdbet-ff-mac-scheduler.cc.

Member Function Documentation

std::string ns3::LenaFdBetFfMacSchedulerTestCase2::BuildNameString	(	uint16_t	nUser,
		std::vector< uint16_t >	dist
	)

staticprivate

Definition at line 323 of file lte-test-fdbet-ff-mac-scheduler.cc.

void ns3::LenaFdBetFfMacSchedulerTestCase2::DoRun ( void )

privatevirtual

Initialize Simulation Scenario: 1 eNB and m_nUser UEs

Check that the assignation is done in a "FD blind equal throughput" manner among users with different SINRs: the bandwidth should be distributed equally in long term

Check that the assignation in uplink is done in a round robin manner.

Definition at line 350 of file lte-test-fdbet-ff-mac-scheduler.cc.

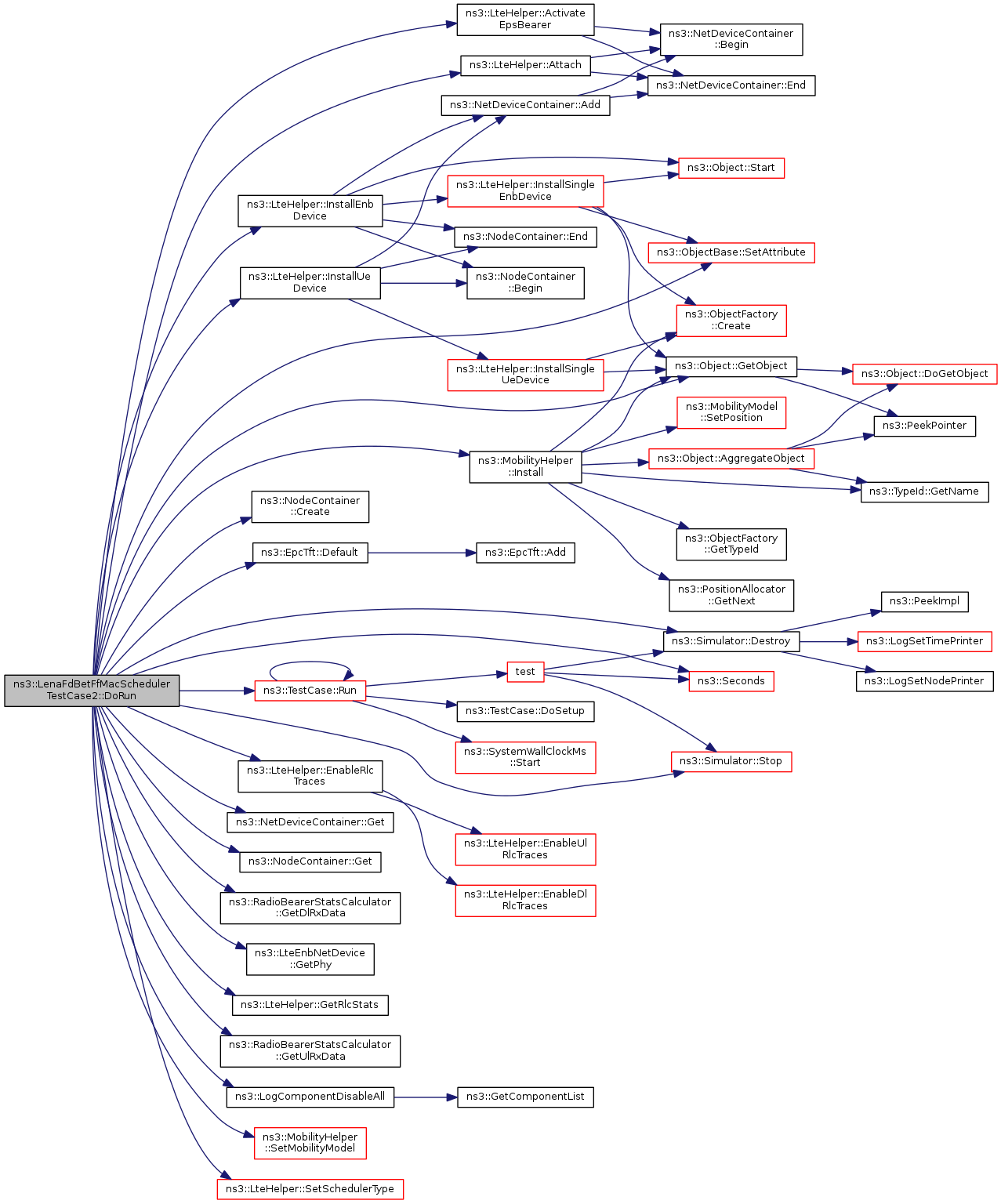

References ns3::LteHelper::ActivateEpsBearer(), ns3::LteHelper::Attach(), ns3::NodeContainer::Create(), ns3::EpcTft::Default(), ns3::Simulator::Destroy(), ns3::LteHelper::EnableRlcTraces(), ns3::EpsBearer::GBR_CONV_VOICE, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::RadioBearerStatsCalculator::GetDlRxData(), ns3::Object::GetObject(), ns3::LteEnbNetDevice::GetPhy(), ns3::LteHelper::GetRlcStats(), ns3::RadioBearerStatsCalculator::GetUlRxData(), ns3::MobilityHelper::Install(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), ns3::LOG_LEVEL_ALL, ns3::LogComponentDisableAll(), m_achievableRateDl, m_dist, m_estThrFdBetUl, m_nUser, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::TestCase::Run(), ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::MobilityHelper::SetMobilityModel(), ns3::LteHelper::SetSchedulerType(), and ns3::Simulator::Stop().
