ns3::MapScheduler Class Reference

a std::map event scheduler More...

#include <map-scheduler.h>

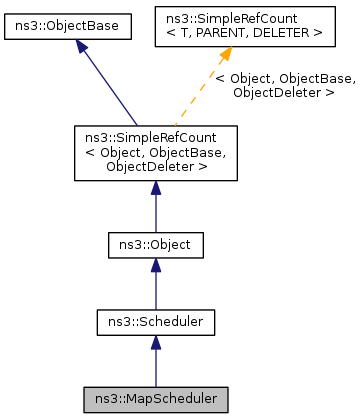

Inheritance diagram for ns3::MapScheduler:

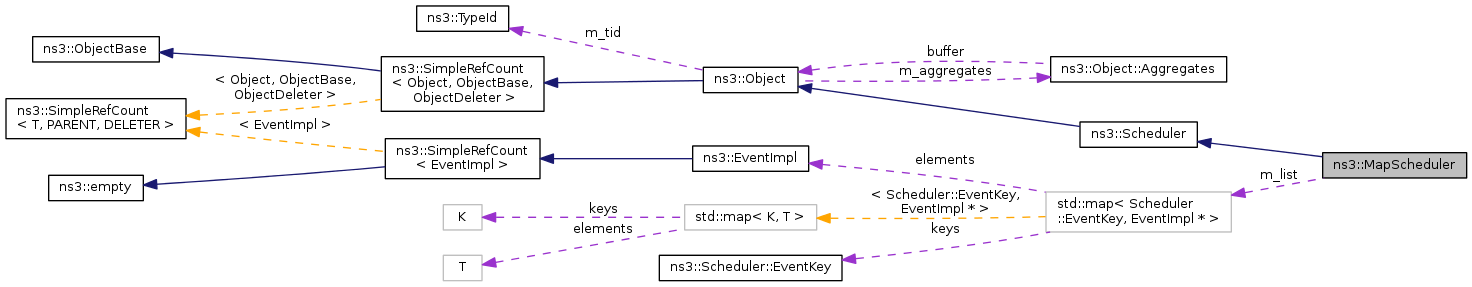

Collaboration diagram for ns3::MapScheduler:

Public Member Functions
	MapScheduler ()
virtual	~MapScheduler ()
virtual void	Insert (const Event &ev)
virtual bool	IsEmpty (void) const
virtual Event	PeekNext (void) const
virtual void	Remove (const Event &ev)
virtual Event	RemoveNext (void)
Public Member Functions inherited from ns3::Scheduler
virtual	~Scheduler ()=0
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Types
typedef std::map < Scheduler::EventKey, EventImpl * >	EventMap
typedef std::map < Scheduler::EventKey, EventImpl * >::const_iterator	EventMapCI
typedef std::map < Scheduler::EventKey, EventImpl * >::iterator	EventMapI

Private Attributes
EventMap	m_list

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

a std::map event scheduler

This class implements the an event scheduler using an std::map data structure.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 38 of file map-scheduler.h.

Member Typedef Documentation

typedef std::map<Scheduler::EventKey, EventImpl*> ns3::MapScheduler::EventMap

private

Definition at line 52 of file map-scheduler.h.

typedef std::map<Scheduler::EventKey, EventImpl*>::const_iterator ns3::MapScheduler::EventMapCI

private

Definition at line 54 of file map-scheduler.h.

typedef std::map<Scheduler::EventKey, EventImpl*>::iterator ns3::MapScheduler::EventMapI

private

Definition at line 53 of file map-scheduler.h.

Constructor & Destructor Documentation

ns3::MapScheduler::MapScheduler

(

)

Definition at line 44 of file map-scheduler.cc.

References NS_LOG_FUNCTION.

ns3::MapScheduler::~MapScheduler ( )

virtual

Definition at line 48 of file map-scheduler.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

TypeId ns3::MapScheduler::GetTypeId ( void  )

static

Reimplemented from ns3::Scheduler.

Definition at line 35 of file map-scheduler.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::MapScheduler::Insert ( const Event &  ev )

virtual

Parameters

ev	event to store in the event list

Implements ns3::Scheduler.

Definition at line 54 of file map-scheduler.cc.

References ns3::Scheduler::Event::impl, ns3::Scheduler::Event::key, m_list, ns3::Scheduler::EventKey::m_ts, ns3::Scheduler::EventKey::m_uid, NS_ASSERT, and NS_LOG_FUNCTION.

bool ns3::MapScheduler::IsEmpty ( void  ) const

virtual

Returns

true if the event list is empty and false otherwise.

Implements ns3::Scheduler.

Definition at line 63 of file map-scheduler.cc.

References m_list, and NS_LOG_FUNCTION.

Scheduler::Event ns3::MapScheduler::PeekNext ( void  ) const

virtual

Returns

a pointer to the next earliest event. The caller takes ownership of the returned pointer.

This method cannot be invoked if the list is empty.

Implements ns3::Scheduler.

Definition at line 70 of file map-scheduler.cc.

References ns3::Scheduler::Event::impl, m_list, NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

void ns3::MapScheduler::Remove ( const Event &  ev )

virtual

Parameters

ev	the event to remove

This methods cannot be invoked if the list is empty.

Implements ns3::Scheduler.

Definition at line 97 of file map-scheduler.cc.

References ns3::Scheduler::Event::impl, ns3::Scheduler::Event::key, m_list, ns3::Scheduler::EventKey::m_ts, ns3::Scheduler::EventKey::m_uid, NS_ASSERT, and NS_LOG_FUNCTION.

Scheduler::Event ns3::MapScheduler::RemoveNext ( void  )

virtual

This method cannot be invoked if the list is empty. Remove the next earliest event from the event list.

Implements ns3::Scheduler.

Definition at line 83 of file map-scheduler.cc.

References ns3::Scheduler::Event::impl, m_list, NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Member Data Documentation

EventMap ns3::MapScheduler::m_list

private

Definition at line 57 of file map-scheduler.h.

Referenced by Insert(), IsEmpty(), PeekNext(), Remove(), and RemoveNext().

---

The documentation for this class was generated from the following files:

• src/core/model/map-scheduler.h
• src/core/model/map-scheduler.cc
