#include <mgt-headers.h>

Inheritance diagram for ns3::MgtProbeRequestHeader:

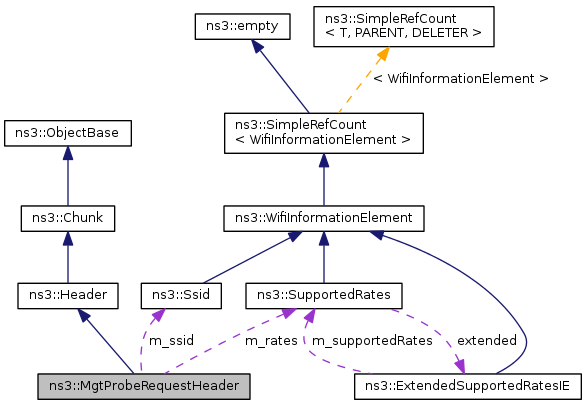

Collaboration diagram for ns3::MgtProbeRequestHeader:

Public Member Functions
	~MgtProbeRequestHeader ()
virtual uint32_t	Deserialize (Buffer::Iterator start)
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize (void) const
Ssid	GetSsid (void) const
SupportedRates	GetSupportedRates (void) const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (Buffer::Iterator start) const
void	SetSsid (Ssid ssid)
void	SetSupportedRates (SupportedRates rates)
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Attributes
SupportedRates	m_rates
Ssid	m_ssid

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Implement the header for management frames of type probe request.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 103 of file mgt-headers.h.

Constructor & Destructor Documentation

ns3::MgtProbeRequestHeader::~MgtProbeRequestHeader ( )

Definition at line 34 of file mgt-headers.cc.

Member Function Documentation

uint32_t ns3::MgtProbeRequestHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 97 of file mgt-headers.cc.

References ns3::WifiInformationElement::Deserialize(), ns3::WifiInformationElement::DeserializeIfPresent(), ns3::SupportedRates::extended, ns3::Buffer::Iterator::GetDistanceFrom(), m_rates, m_ssid, and visualizer.core::start().

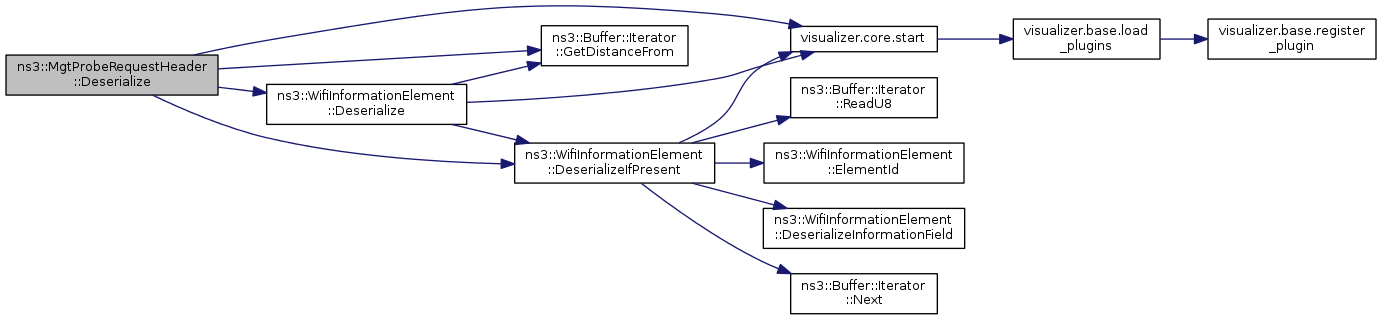

Here is the call graph for this function:

TypeId ns3::MgtProbeRequestHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 78 of file mgt-headers.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::MgtProbeRequestHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 60 of file mgt-headers.cc.

References ns3::SupportedRates::extended, ns3::ExtendedSupportedRatesIE::GetSerializedSize(), ns3::WifiInformationElement::GetSerializedSize(), m_rates, and m_ssid.

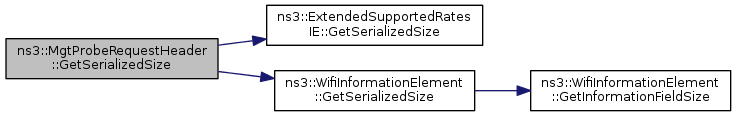

Here is the call graph for this function:

Ssid ns3::MgtProbeRequestHeader::GetSsid ( void ) const

Definition at line 44 of file mgt-headers.cc.

References m_ssid.

SupportedRates ns3::MgtProbeRequestHeader::GetSupportedRates ( void ) const

Definition at line 55 of file mgt-headers.cc.

References m_rates.

TypeId ns3::MgtProbeRequestHeader::GetTypeId ( void )

static

Reimplemented from ns3::Header.

Definition at line 69 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::MgtProbeRequestHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 83 of file mgt-headers.cc.

References m_rates, and m_ssid.

void ns3::MgtProbeRequestHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 89 of file mgt-headers.cc.

References ns3::SupportedRates::extended, m_rates, m_ssid, ns3::ExtendedSupportedRatesIE::Serialize(), ns3::WifiInformationElement::Serialize(), and visualizer.core::start().

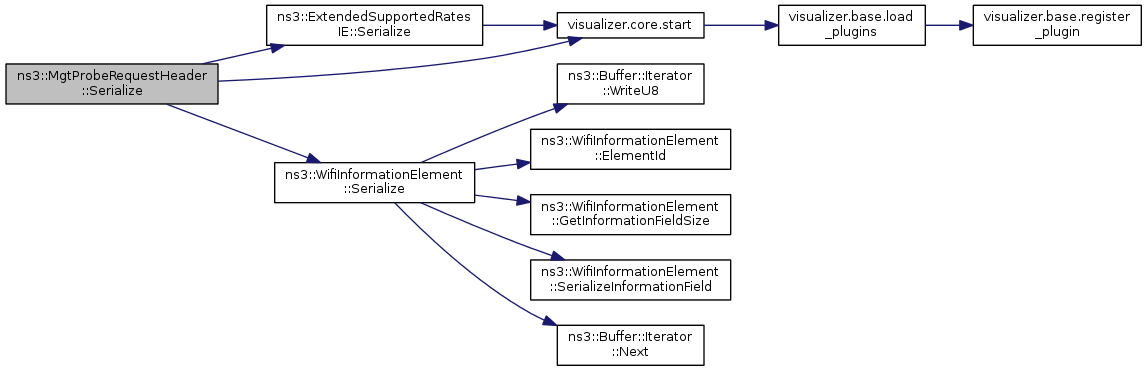

Here is the call graph for this function:
