ns3::NistErrorRateModel Class Reference
Wifi Models

#include <nist-error-rate-model.h>

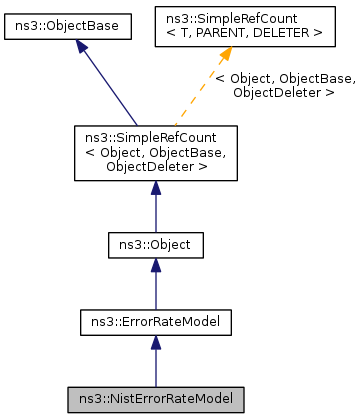

+ Inheritance diagram for ns3::NistErrorRateModel:

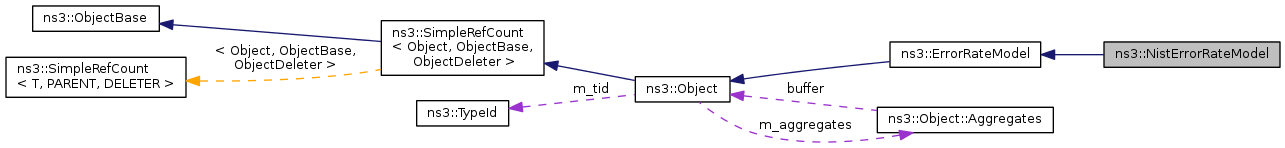

+ Collaboration diagram for ns3::NistErrorRateModel:

Public Member Functions

 NistErrorRateModel ()
virtual double GetChunkSuccessRate (WifiMode mode, double snr, uint32_t nbits) const
- Public Member Functions inherited from ns3::ErrorRateModel
double CalculateSnr (WifiMode txMode, double ber) const
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Start (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)

Private Member Functions

double CalculatePe (double p, uint32_t bValue) const
double Get16QamBer (double snr) const
double Get64QamBer (double snr) const
double GetBpskBer (double snr) const
double GetFec16QamBer (double snr, uint32_t nbits, uint32_t bValue) const
double GetFec64QamBer (double snr, uint32_t nbits, uint32_t bValue) const
double GetFecBpskBer (double snr, double nbits, uint32_t bValue) const
double GetFecQpskBer (double snr, double nbits, uint32_t bValue) const
double GetQpskBer (double snr) const

Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void DoDispose (void)
virtual void DoStart (void)
virtual void NotifyNewAggregate (void)

Detailed Description

A model for the error rate for different modulations. For OFDM modulation, the model description and validation can be found in http://www.nsnam.org/~pei/80211ofdm.pdf. For DSSS modulations (802.11b), the model uses the DsssErrorRateModel.

This type is not accessible from the Config system.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 38 of file nist-error-rate-model.h.

Constructor & Destructor Documentation

ns3::NistErrorRateModel::NistErrorRateModel ( )

Definition at line 42 of file nist-error-rate-model.cc.

Member Function Documentation

double ns3::NistErrorRateModel::CalculatePe ( double  p,
uint32_t  bValue
) const
private

Definition at line 107 of file nist-error-rate-model.cc.

References NS_ASSERT.

Referenced by GetFec16QamBer(), GetFec64QamBer(), GetFecBpskBer(), and GetFecQpskBer().

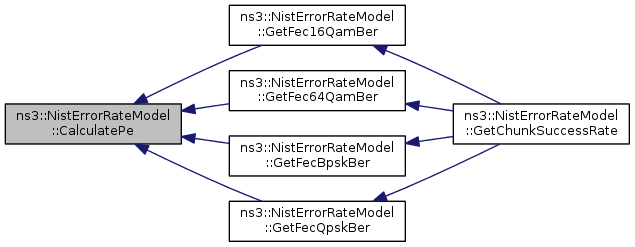

+ Here is the caller graph for this function:

double ns3::NistErrorRateModel::Get16QamBer ( double  snr) const
private

Definition at line 63 of file nist-error-rate-model.cc.

References NS_LOG_INFO.

Referenced by GetFec16QamBer().

+ Here is the caller graph for this function:

double ns3::NistErrorRateModel::Get64QamBer ( double  snr) const
private

Definition at line 71 of file nist-error-rate-model.cc.

References NS_LOG_INFO.

Referenced by GetFec64QamBer().

+ Here is the caller graph for this function:

double ns3::NistErrorRateModel::GetBpskBer ( double  snr) const
private

Definition at line 47 of file nist-error-rate-model.cc.

References NS_LOG_INFO.

Referenced by GetFecBpskBer().

+ Here is the caller graph for this function:

double ns3::NistErrorRateModel::GetChunkSuccessRate ( WifiMode  mode,
double  snr,
uint32_t  nbits
) const
virtual

Implements ns3::ErrorRateModel.

Definition at line 193 of file nist-error-rate-model.cc.

References ns3::WifiMode::GetCodeRate(), ns3::WifiMode::GetConstellationSize(), ns3::WifiMode::GetDataRate(), ns3::DsssErrorRateModel::GetDsssDbpskSuccessRate(), ns3::DsssErrorRateModel::GetDsssDqpskCck11SuccessRate(), ns3::DsssErrorRateModel::GetDsssDqpskCck5_5SuccessRate(), ns3::DsssErrorRateModel::GetDsssDqpskSuccessRate(), GetFec16QamBer(), GetFec64QamBer(), GetFecBpskBer(), GetFecQpskBer(), ns3::WifiMode::GetModulationClass(), ns3::WIFI_CODE_RATE_1_2, ns3::WIFI_CODE_RATE_2_3, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_ERP_OFDM, and ns3::WIFI_MOD_CLASS_OFDM.

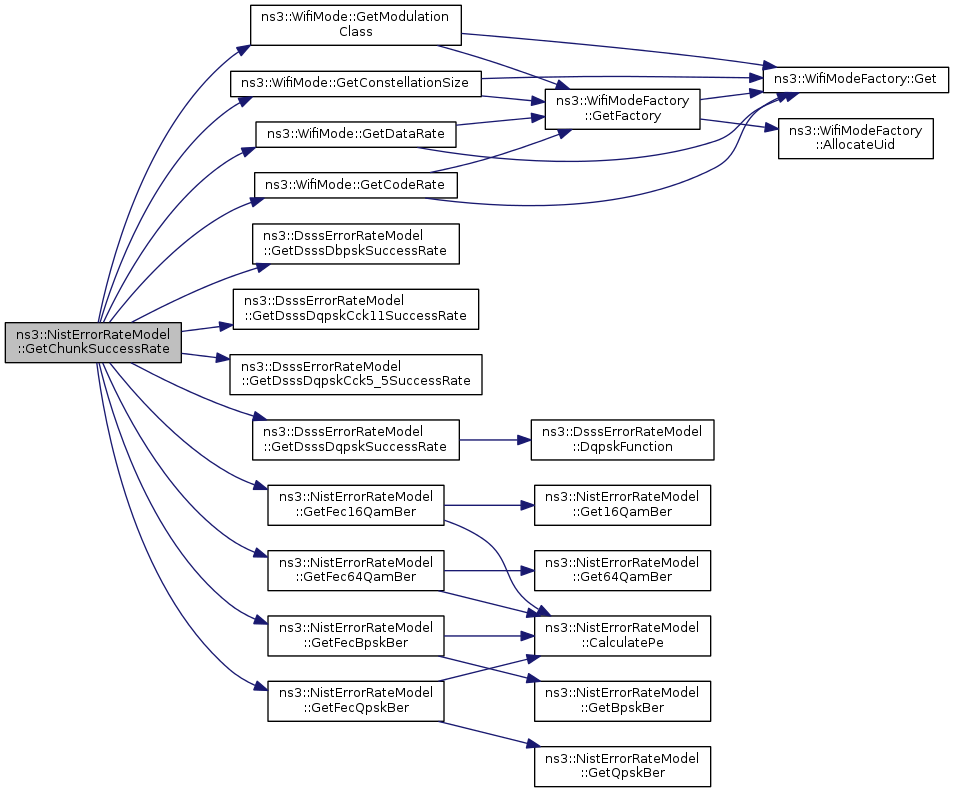

+ Here is the call graph for this function:

double ns3::NistErrorRateModel::GetFec16QamBer ( double  snr,
uint32_t  nbits,
uint32_t  bValue
) const
private

Definition at line 165 of file nist-error-rate-model.cc.

References CalculatePe(), and Get16QamBer().

Referenced by GetChunkSuccessRate().

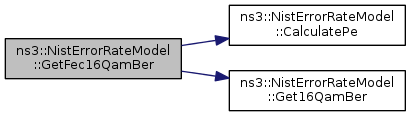

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::NistErrorRateModel::GetFec64QamBer ( double  snr,
uint32_t  nbits,
uint32_t  bValue
) const
private

Definition at line 179 of file nist-error-rate-model.cc.

References CalculatePe(), and Get64QamBer().

Referenced by GetChunkSuccessRate().

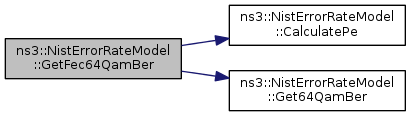

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::NistErrorRateModel::GetFecBpskBer ( double  snr,
double  nbits,
uint32_t  bValue
) const
private

Definition at line 79 of file nist-error-rate-model.cc.

References CalculatePe(), and GetBpskBer().

Referenced by GetChunkSuccessRate().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::NistErrorRateModel::GetFecQpskBer ( double  snr,
double  nbits,
uint32_t  bValue
) const
private

Definition at line 93 of file nist-error-rate-model.cc.

References CalculatePe(), and GetQpskBer().

Referenced by GetChunkSuccessRate().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::NistErrorRateModel::GetQpskBer ( double  snr) const
private

Definition at line 55 of file nist-error-rate-model.cc.

References NS_LOG_INFO.

Referenced by GetFecQpskBer().

+ Here is the caller graph for this function:

TypeId ns3::NistErrorRateModel::GetTypeId ( void  )
static

Reimplemented from ns3::ErrorRateModel.

Definition at line 33 of file nist-error-rate-model.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

The documentation for this class was generated from the following files:
