Random direction mobility model. More...

#include <random-direction-2d-mobility-model.h>

Inheritance diagram for ns3::RandomDirection2dMobilityModel:

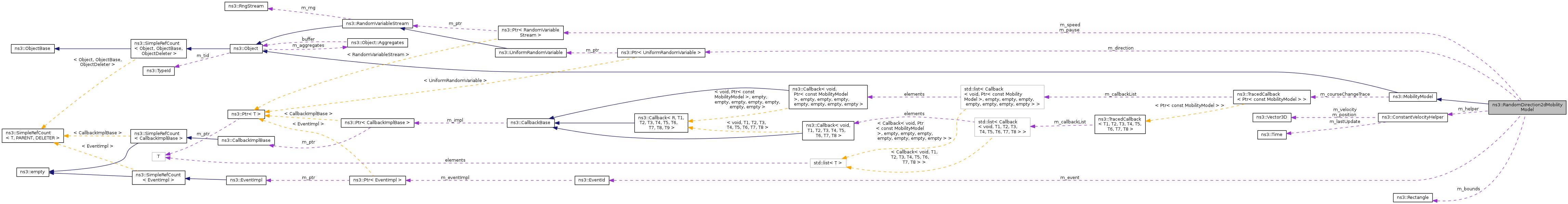

Collaboration diagram for ns3::RandomDirection2dMobilityModel:

Public Member Functions
	RandomDirection2dMobilityModel ()
Public Member Functions inherited from ns3::MobilityModel
	MobilityModel ()
virtual	~MobilityModel ()=0
int64_t	AssignStreams (int64_t stream)
double	GetDistanceFrom (Ptr< const MobilityModel > position) const
Vector	GetPosition (void) const
double	GetRelativeSpeed (Ptr< const MobilityModel > other) const
Vector	GetVelocity (void) const
void	SetPosition (const Vector &position)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions

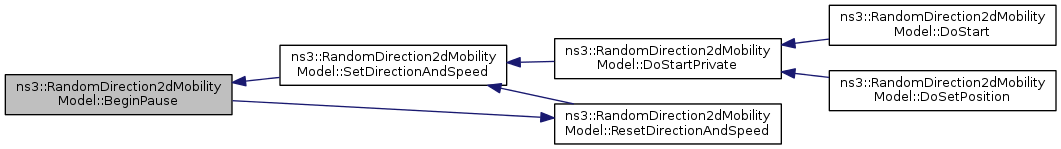

void	BeginPause (void)
virtual int64_t	DoAssignStreams (int64_t)
virtual void	DoDispose (void)
virtual Vector	DoGetPosition (void) const
virtual Vector	DoGetVelocity (void) const
virtual void	DoSetPosition (const Vector &position)
virtual void	DoStart (void)
void	DoStartPrivate (void)
void	InitializeDirectionAndSpeed (void)
void	ResetDirectionAndSpeed (void)

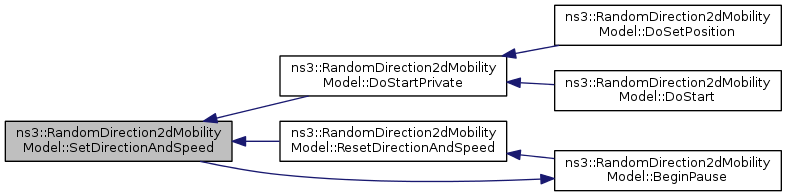

void	SetDirectionAndSpeed (double direction)

Private Attributes
Rectangle	m_bounds
Ptr< UniformRandomVariable >	m_direction
EventId	m_event
ConstantVelocityHelper	m_helper
Ptr< RandomVariableStream >	m_pause
Ptr< RandomVariableStream >	m_speed

Static Private Attributes
static const double	PI = 3.14159265358979323846

Additional Inherited Members
Protected Member Functions inherited from ns3::MobilityModel
void	NotifyCourseChange (void) const

Detailed Description

Random direction mobility model.

The movement of objects is based on random directions: each object pauses for a specific delay, chooses a random direction and speed and then travels in the specific direction until it reaches one of the boundaries of the model. When it reaches the boundary, it pauses, selects a new direction and speed, aso.

Config Paths

ns3::RandomDirection2dMobilityModel is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel

Attributes

Bounds: The 2d bounding area
- Set with class: RectangleValue
- Underlying type: Rectangle
- Initial value: -100|100|-100|100
- Flags: construct write read
Speed: A random variable to control the speed (m/s).
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::RandomVariableStream >
- Initial value: ns3::UniformRandomVariable[Min=1.0|Max=2.0]
- Flags: construct write read
Pause: A random variable to control the pause (s).
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::RandomVariableStream >
- Initial value: ns3::ConstantRandomVariable[Constant=2.0]
- Flags: construct write read

Attributes defined in parent class ns3::MobilityModel

Position: The current position of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: write read
Velocity: The current velocity of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: read
