ns3::UeInfo Class Reference

#include <lte-enb-rrc.h>

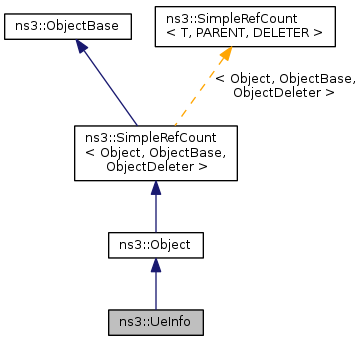

Inheritance diagram for ns3::UeInfo:

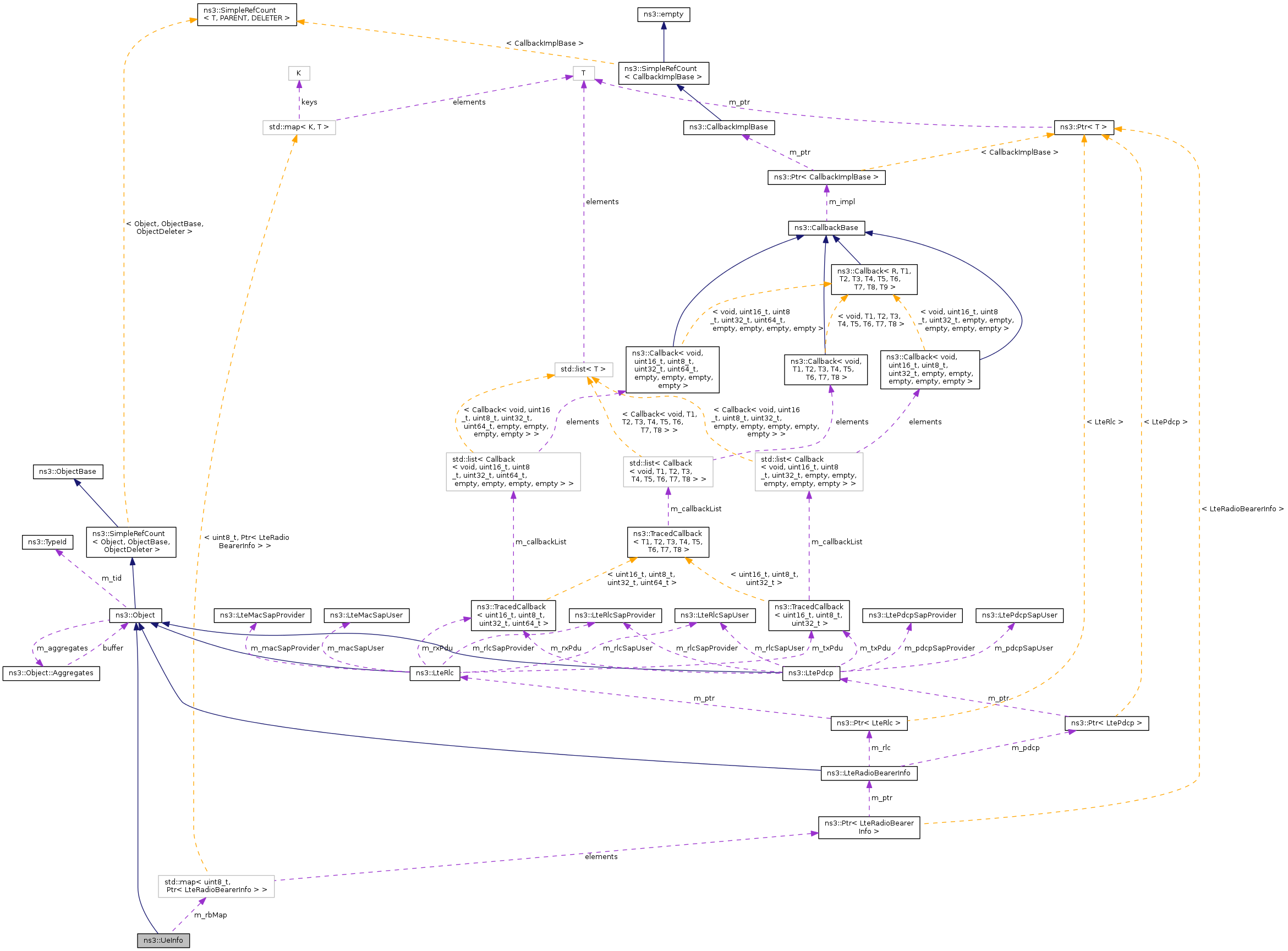

Collaboration diagram for ns3::UeInfo:

Public Member Functions
	UeInfo (void)
	UeInfo (uint64_t imsi)
	UeInfo (uint64_t imsi, uint16_t srsConfIndex)
virtual	~UeInfo (void)
uint8_t	AddRadioBearer (Ptr< LteRadioBearerInfo > radioBearerInfo)
uint64_t	GetImsi (void)
Ptr< LteRadioBearerInfo >	GetRadioBearer (uint8_t lcid)
uint16_t	GetSrsConfigurationIndex (void)
uint8_t	GetTransmissionMode (void)
void	RemoveRadioBearer (uint8_t lcid)
void	SetSrsConfigurationIndex (uint16_t srsConfIndex)
void	SetTransmissionMode (uint8_t txMode)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Attributes
uint64_t	m_imsi
uint8_t	m_lastAllocatedId
std::map< uint8_t, Ptr < LteRadioBearerInfo > >	m_rbMap
uint16_t	m_srsConfigurationIndex
uint8_t	m_transmissionMode

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Manages all the radio bearer information possessed by the ENB RRC for a single UE

Config Paths

ns3::UeInfo is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]
• /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]

Attributes

• RadioBearerMap: List of UE RadioBearerInfo by LCID.
  • Set with class: ns3::ObjectPtrContainerValue
  • Underlying type: ns3::Ptr< ns3::LteRadioBearerInfo >
  • Flags: read

No TraceSources are defined for this type.

Definition at line 49 of file lte-enb-rrc.h.

Constructor & Destructor Documentation

ns3::UeInfo::UeInfo

(

void

)

Definition at line 127 of file lte-enb-rrc.cc.

References m_imsi, m_srsConfigurationIndex, and m_transmissionMode.

ns3::UeInfo::UeInfo

(

uint64_t

imsi

)

Definition at line 135 of file lte-enb-rrc.cc.

References m_imsi, m_srsConfigurationIndex, and m_transmissionMode.

ns3::UeInfo::UeInfo	(	uint64_t	imsi,
		uint16_t	srsConfIndex
	)

Definition at line 143 of file lte-enb-rrc.cc.

References m_imsi, m_srsConfigurationIndex, and m_transmissionMode.

ns3::UeInfo::~UeInfo ( void  )

virtual

Definition at line 153 of file lte-enb-rrc.cc.

Member Function Documentation

uint8_t ns3::UeInfo::AddRadioBearer

(

Ptr< LteRadioBearerInfo >

radioBearerInfo

)

Parameters

radioBearerInfo

Returns

the allocated logical channel id; 0 is returned if it is not possible to allocate a channel id (e.g., id space exausted).

Definition at line 202 of file lte-enb-rrc.cc.

References m_lastAllocatedId, m_rbMap, NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by ns3::LteEnbRrc::SetupRadioBearer().

Here is the caller graph for this function:

uint64_t ns3::UeInfo::GetImsi

(

void

)

Definition at line 172 of file lte-enb-rrc.cc.

References m_imsi.

Referenced by ns3::FindImsiFromEnbRlcPath().

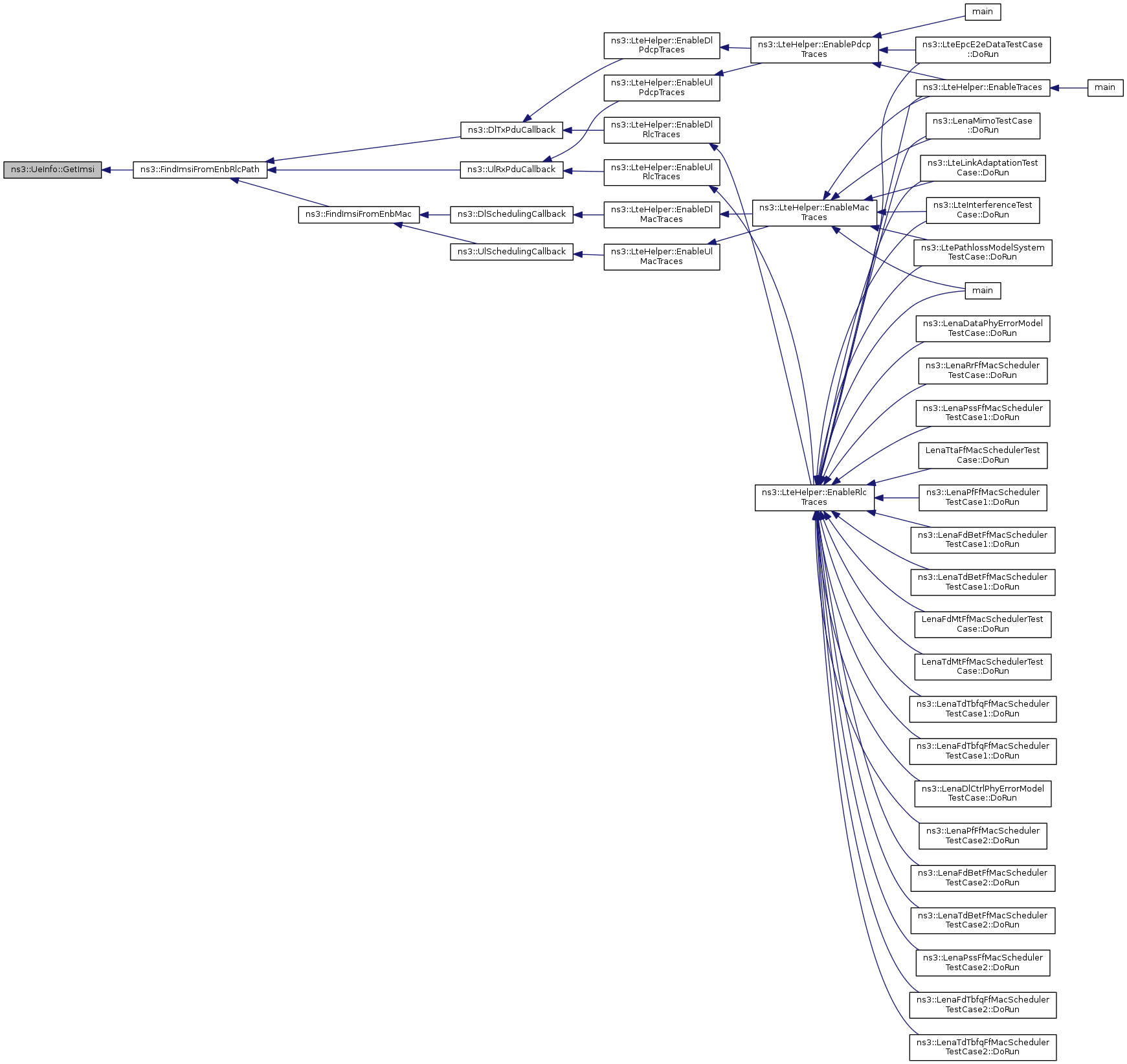

Here is the caller graph for this function:

Ptr< LteRadioBearerInfo > ns3::UeInfo::GetRadioBearer

(

uint8_t

lcid

)

Parameters

uint8_t

the logical channel id

Returns

the LteRadioBearerInfo of the selected radio bearer

Definition at line 222 of file lte-enb-rrc.cc.

References m_rbMap, NS_ABORT_IF, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::LteEnbRrc::GetLtePdcpSapProvider().

Here is the caller graph for this function:

uint16_t ns3::UeInfo::GetSrsConfigurationIndex

(

void

)

Definition at line 178 of file lte-enb-rrc.cc.

References m_srsConfigurationIndex.

Referenced by ns3::LteEnbRrc::CreateUeInfo().

Here is the caller graph for this function:

uint8_t ns3::UeInfo::GetTransmissionMode

(

void

)

Definition at line 184 of file lte-enb-rrc.cc.

References m_transmissionMode.

TypeId ns3::UeInfo::GetTypeId ( void  )

static

Reimplemented from ns3::Object.

Definition at line 158 of file lte-enb-rrc.cc.

References m_rbMap, ns3::MakeObjectMapAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::UeInfo::RemoveRadioBearer

(

uint8_t

lcid

)

delete the entry of the given radio bearer

Parameters

lcid	the logical channel id of the radio bearer

Definition at line 233 of file lte-enb-rrc.cc.

References m_rbMap, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::LteEnbRrc::ReleaseRadioBearer().

Here is the caller graph for this function:

void ns3::UeInfo::SetSrsConfigurationIndex

(

uint16_t

srsConfIndex

)

Definition at line 190 of file lte-enb-rrc.cc.

References m_srsConfigurationIndex.

void ns3::UeInfo::SetTransmissionMode

(

uint8_t

txMode

)

Definition at line 196 of file lte-enb-rrc.cc.

References m_transmissionMode.

Member Data Documentation

uint64_t ns3::UeInfo::m_imsi

private

Definition at line 94 of file lte-enb-rrc.h.

Referenced by GetImsi(), and UeInfo().

uint8_t ns3::UeInfo::m_lastAllocatedId

private

Definition at line 93 of file lte-enb-rrc.h.

Referenced by AddRadioBearer().

std::map<uint8_t, Ptr<LteRadioBearerInfo> > ns3::UeInfo::m_rbMap

private

Definition at line 92 of file lte-enb-rrc.h.

Referenced by AddRadioBearer(), GetRadioBearer(), GetTypeId(), and RemoveRadioBearer().

uint16_t ns3::UeInfo::m_srsConfigurationIndex

private

Definition at line 95 of file lte-enb-rrc.h.

Referenced by GetSrsConfigurationIndex(), SetSrsConfigurationIndex(), and UeInfo().

uint8_t ns3::UeInfo::m_transmissionMode

private

Definition at line 96 of file lte-enb-rrc.h.

Referenced by GetTransmissionMode(), SetTransmissionMode(), and UeInfo().

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-enb-rrc.h
• src/lte/model/lte-enb-rrc.cc
