Interface to network animator. More...

#include <animation-interface.h>

Collaboration diagram for ns3::AnimationInterface:

Public Types
typedef void(*	AnimWriteCallback )(const char *str)
	typedef for WriteCallBack used for listening to AnimationInterface write messages More...

Public Member Functions
	AnimationInterface (const std::string filename, uint64_t maxPktsPerFile=MAX_PKTS_PER_TRACE_FILE, bool usingXML=true)
	Constructor. More...

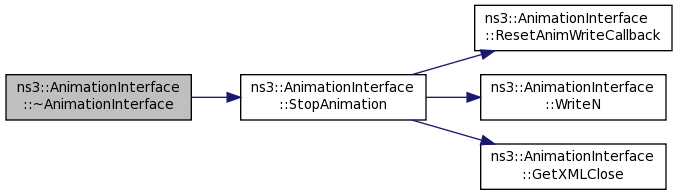

	~AnimationInterface ()
	Destructor for the animator interface. More...

AnimationInterface &	AddSourceDestination (uint32_t fromNodeId, std::string destinationIpv4Address)
	Helper function to print the routing path from a source node to destination IP. More...

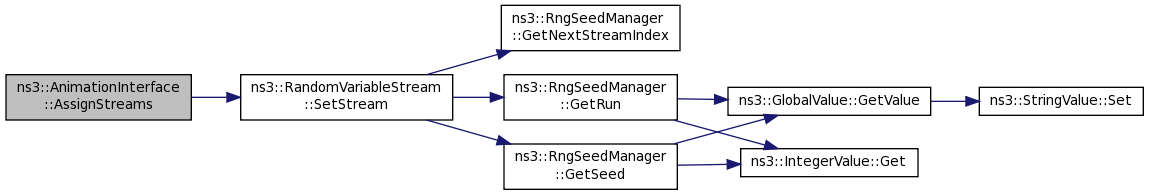

int64_t	AssignStreams (int64_t stream)

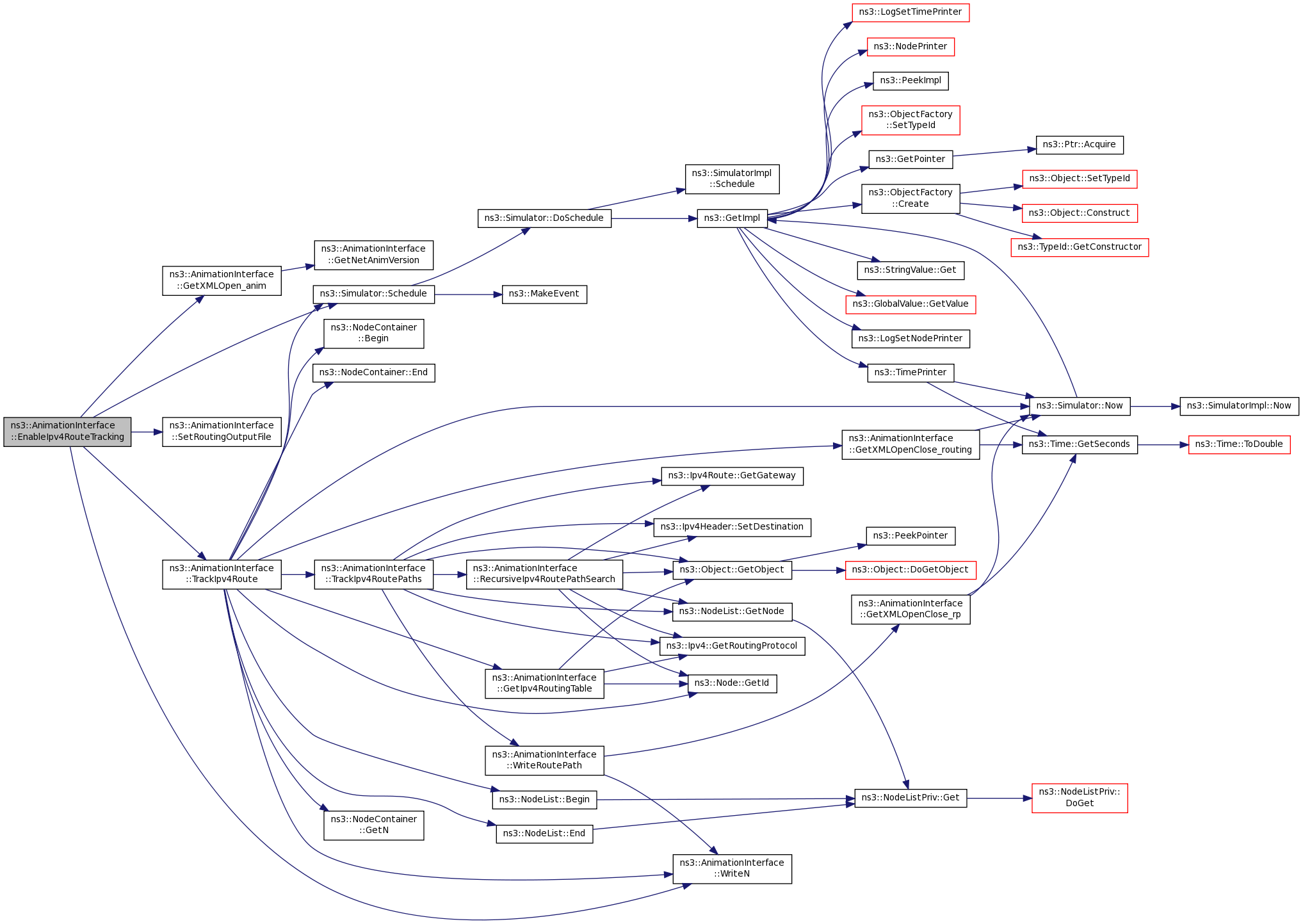

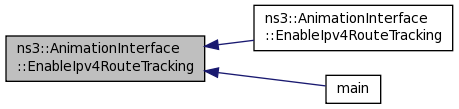

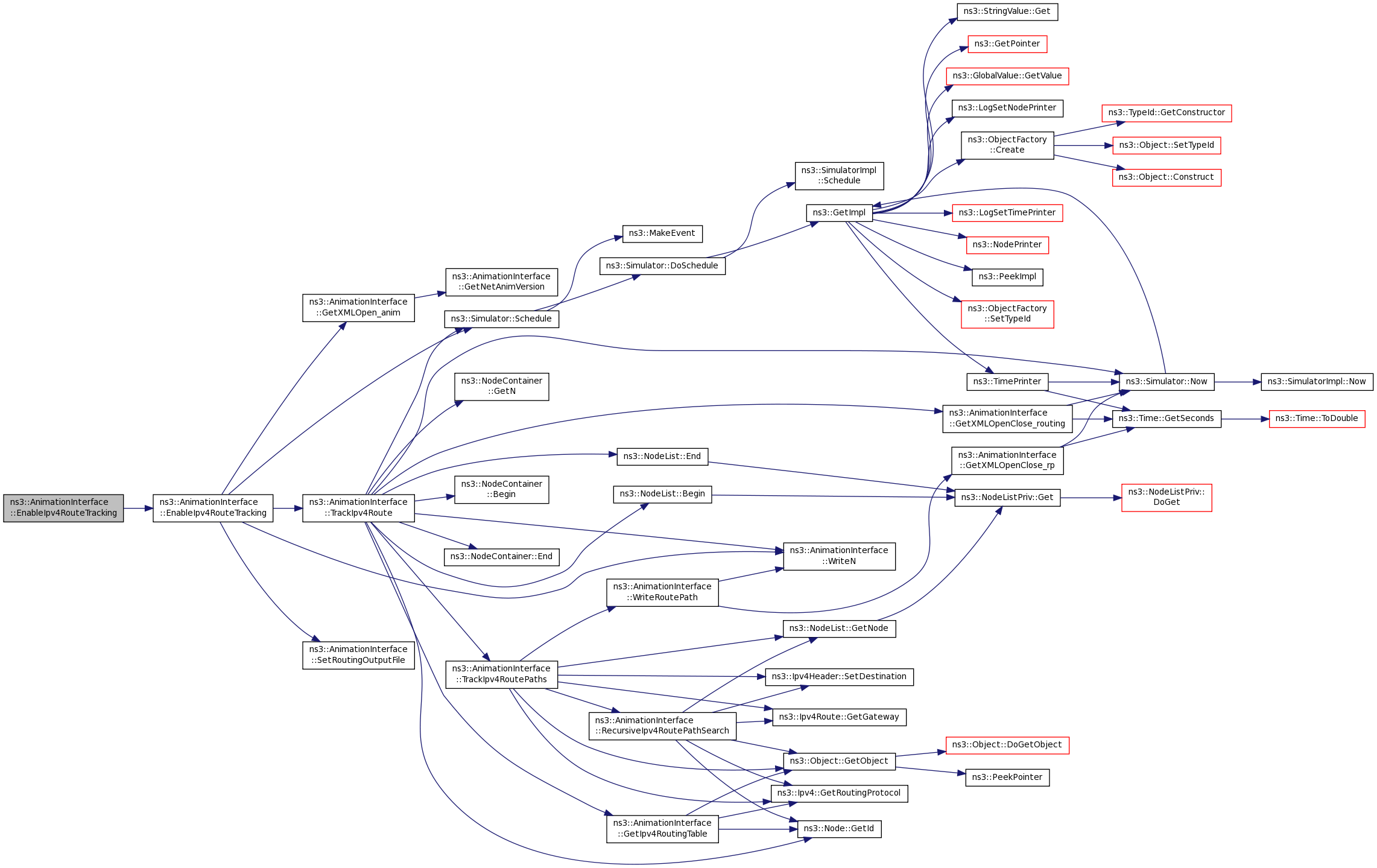

AnimationInterface &	EnableIpv4RouteTracking (std::string fileName, Time startTime, Time stopTime, Time pollInterval=Seconds(5))
	Enable tracking of the Ipv4 routing table for all Nodes. More...

AnimationInterface &	EnableIpv4RouteTracking (std::string fileName, Time startTime, Time stopTime, NodeContainer nc, Time pollInterval=Seconds(5))
	Enable tracking of the Ipv4 routing table for a set of Nodes. More...

void	EnablePacketMetadata (bool enable)
	Enable Packet metadata. More...

uint64_t	GetTracePktCount ()
	Get trace file packet count (This used only for testing) More...

bool	IsStarted (void)
	Is AnimationInterface started. More...

void	ResetAnimWriteCallback ()
	Reset the write callback function. More...

void	SetAnimWriteCallback (AnimWriteCallback cb)
	Set a callback function to listen to AnimationInterface write events. More...

void	SetMobilityPollInterval (Time t)
	Set mobility poll interval:WARNING: setting a low interval can cause slowness. More...

void	SetRandomPosition (bool setRandPos)
	Set random position if a Mobility Model does not exists for the node. More...

void	SetStartTime (Time t)
	Specify the time at which capture should start. More...

void	SetStopTime (Time t)
	Specify the time at which capture should stop. More...

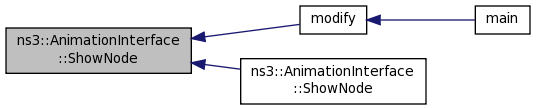

void	ShowNode (uint32_t nodeId, bool show=true)
	Helper function to show/hide a node. More...

void	ShowNode (Ptr< Node > n, bool show=true)
	Helper function to show/hide a node. More...

void	UpdateLinkDescription (uint32_t fromNode, uint32_t toNode, std::string linkDescription)
	Helper function to update the description for a link. More...

void	UpdateLinkDescription (Ptr< Node > fromNode, Ptr< Node > toNode, std::string linkDescription)
	Helper function to update the description for a link. More...

void	UpdateNodeColor (Ptr< Node > n, uint8_t r, uint8_t g, uint8_t b)
	Helper function to update the node color. More...

void	UpdateNodeColor (uint32_t nodeId, uint8_t r, uint8_t g, uint8_t b)
	Helper function to update the node color. More...

void	UpdateNodeDescription (Ptr< Node > n, std::string descr)
	Helper function to update the description for a given node. More...

void	UpdateNodeDescription (uint32_t nodeId, std::string descr)
	Helper function to update the description for a given node. More...

Static Public Member Functions
static bool	IsInitialized (void)
	Check if AnimationInterface is initialized. More...

static void	SetBoundary (double minX, double minY, double maxX, double maxY)
	Helper function to set the topology boundary rectangle. More...

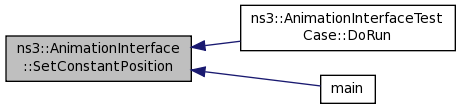

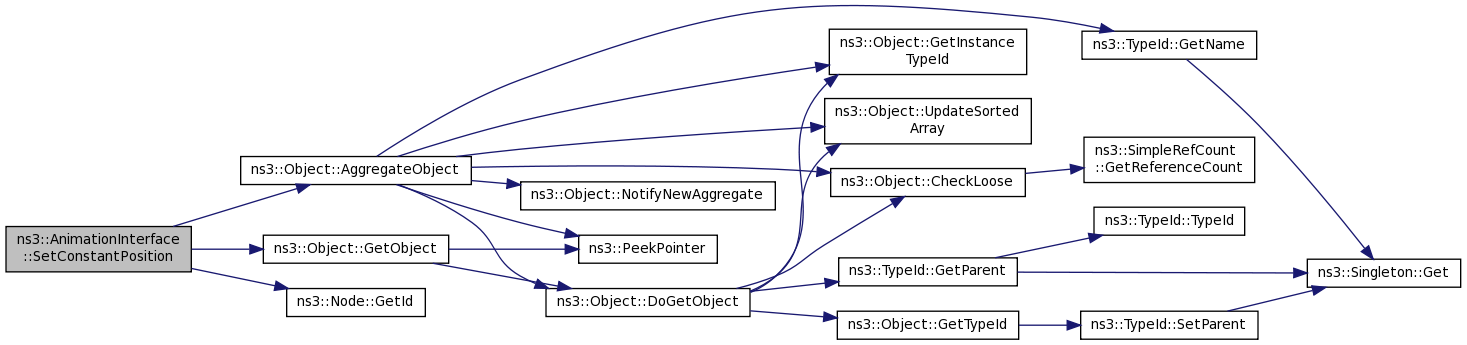

static void	SetConstantPosition (Ptr< Node > n, double x, double y, double z=0)
	Helper function to set Constant Position for a given node. More...

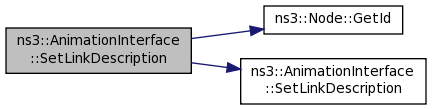

static void	SetLinkDescription (uint32_t fromNode, uint32_t toNode, std::string linkDescription, std::string fromNodeDescription="", std::string toNodeDescription="")
	Helper function to set the description for a link. More...

static void	SetLinkDescription (Ptr< Node > fromNode, Ptr< Node > toNode, std::string linkDescription, std::string fromNodeDescription="", std::string toNodeDescription="")
	Helper function to set the description for a link. More...

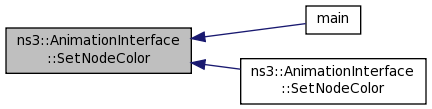

static void	SetNodeColor (Ptr< Node > n, uint8_t r, uint8_t g, uint8_t b)
	Helper function to set the node color. More...

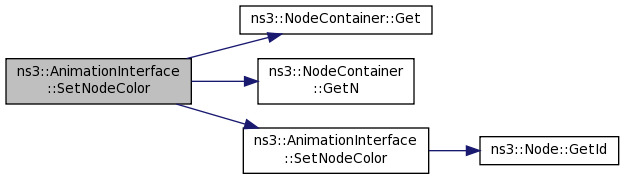

static void	SetNodeColor (NodeContainer nc, uint8_t r, uint8_t g, uint8_t b)
	Helper function to set the color of nodes in a container. More...

static void	SetNodeDescription (Ptr< Node > n, std::string descr)
	Helper function to set a brief description for a given node. More...

static void	SetNodeDescription (NodeContainer nc, std::string descr)
	Helper function to set a brief description for nodes in a Node Container. More...

Private Types
typedef std::vector < Ipv4RoutePathElement >	Ipv4RoutePathElements

Private Member Functions

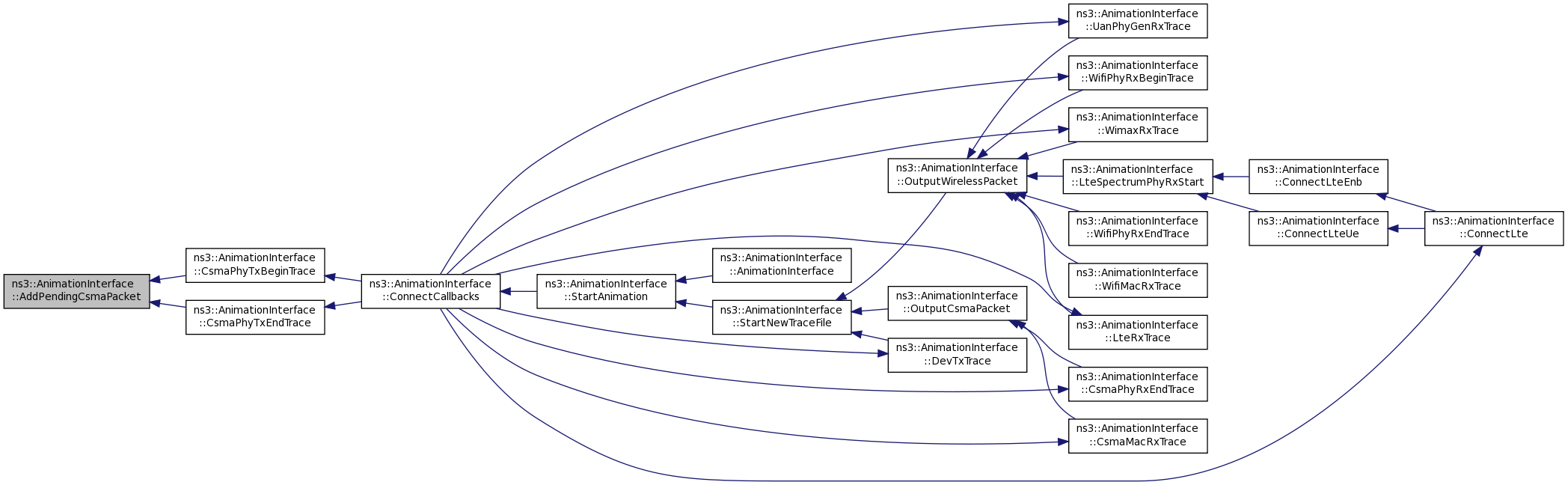

void	AddPendingCsmaPacket (uint64_t AnimUid, AnimPacketInfo &)

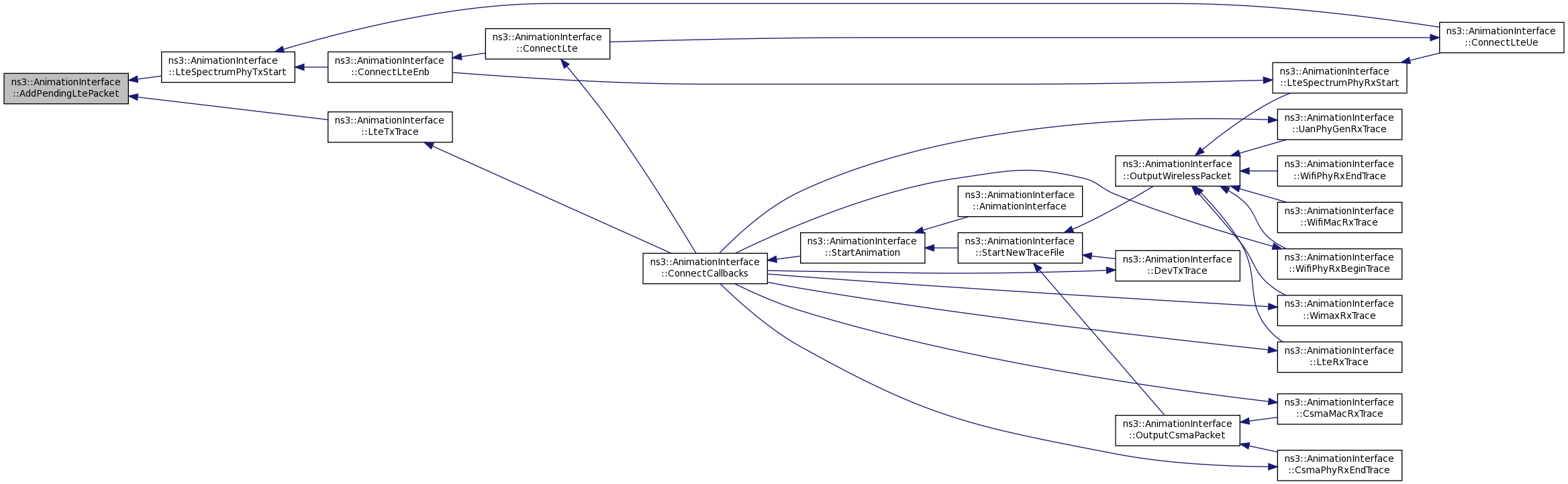

void	AddPendingLtePacket (uint64_t AnimUid, AnimPacketInfo &)

void	AddPendingUanPacket (uint64_t AnimUid, AnimPacketInfo &)

void	AddPendingWifiPacket (uint64_t AnimUid, AnimPacketInfo &)

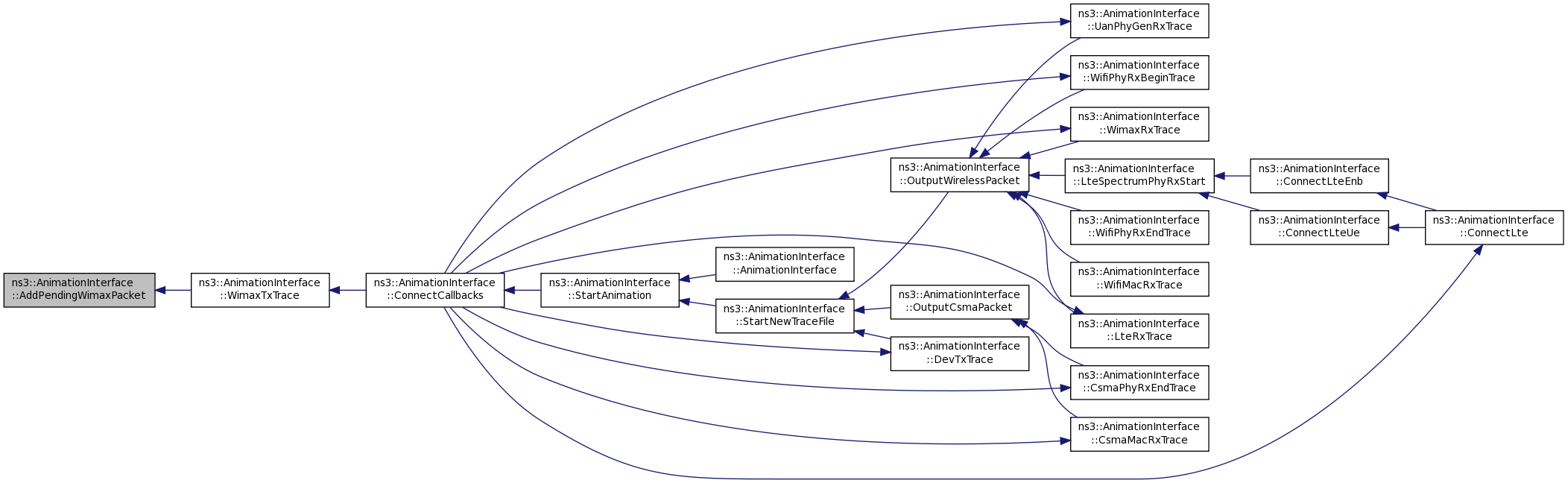

void	AddPendingWimaxPacket (uint64_t AnimUid, AnimPacketInfo &)

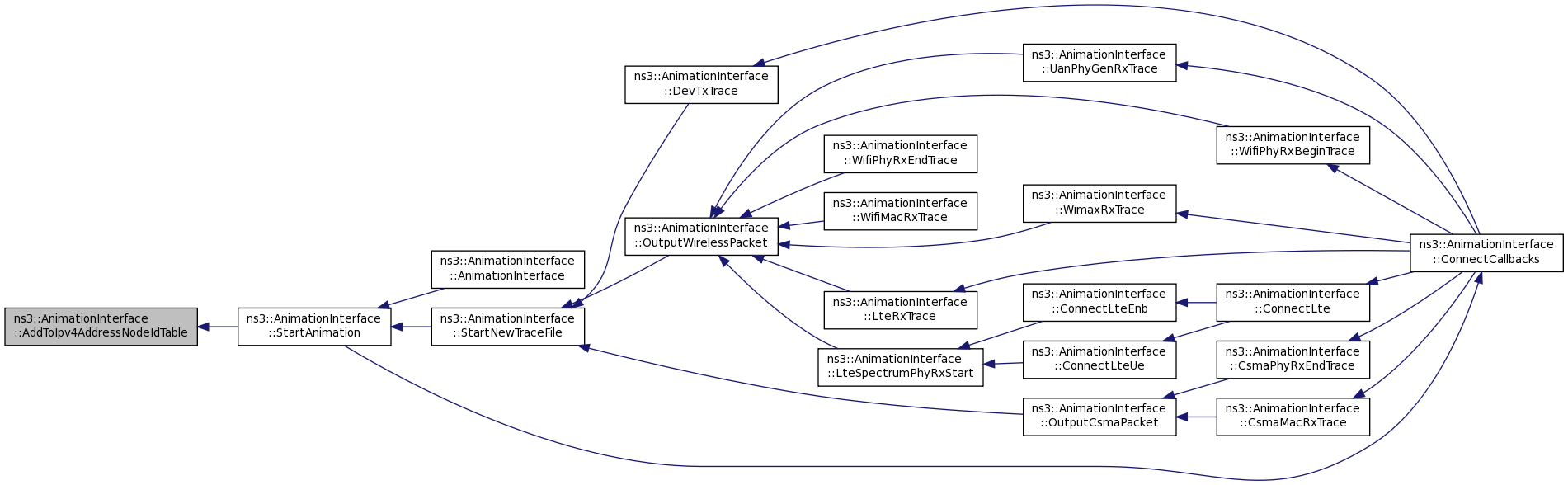

void	AddToIpv4AddressNodeIdTable (std::string, uint32_t)

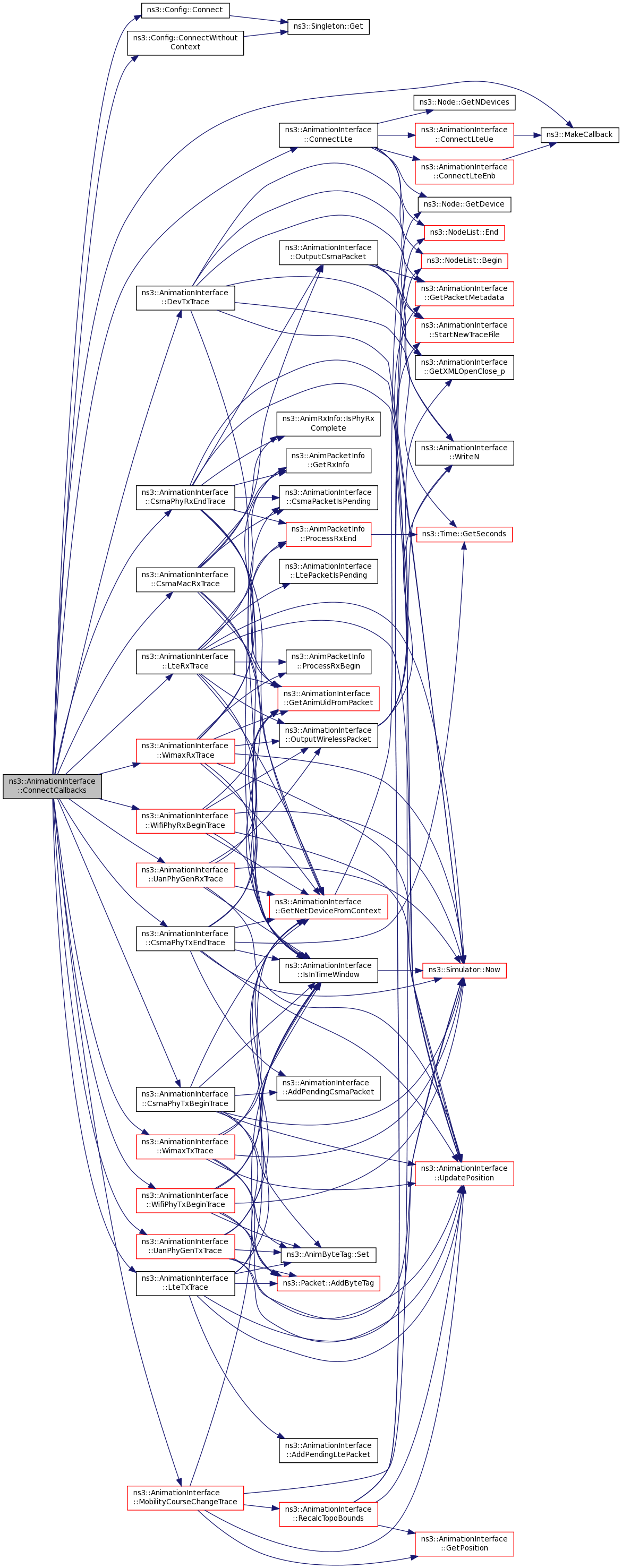

void	ConnectCallbacks ()

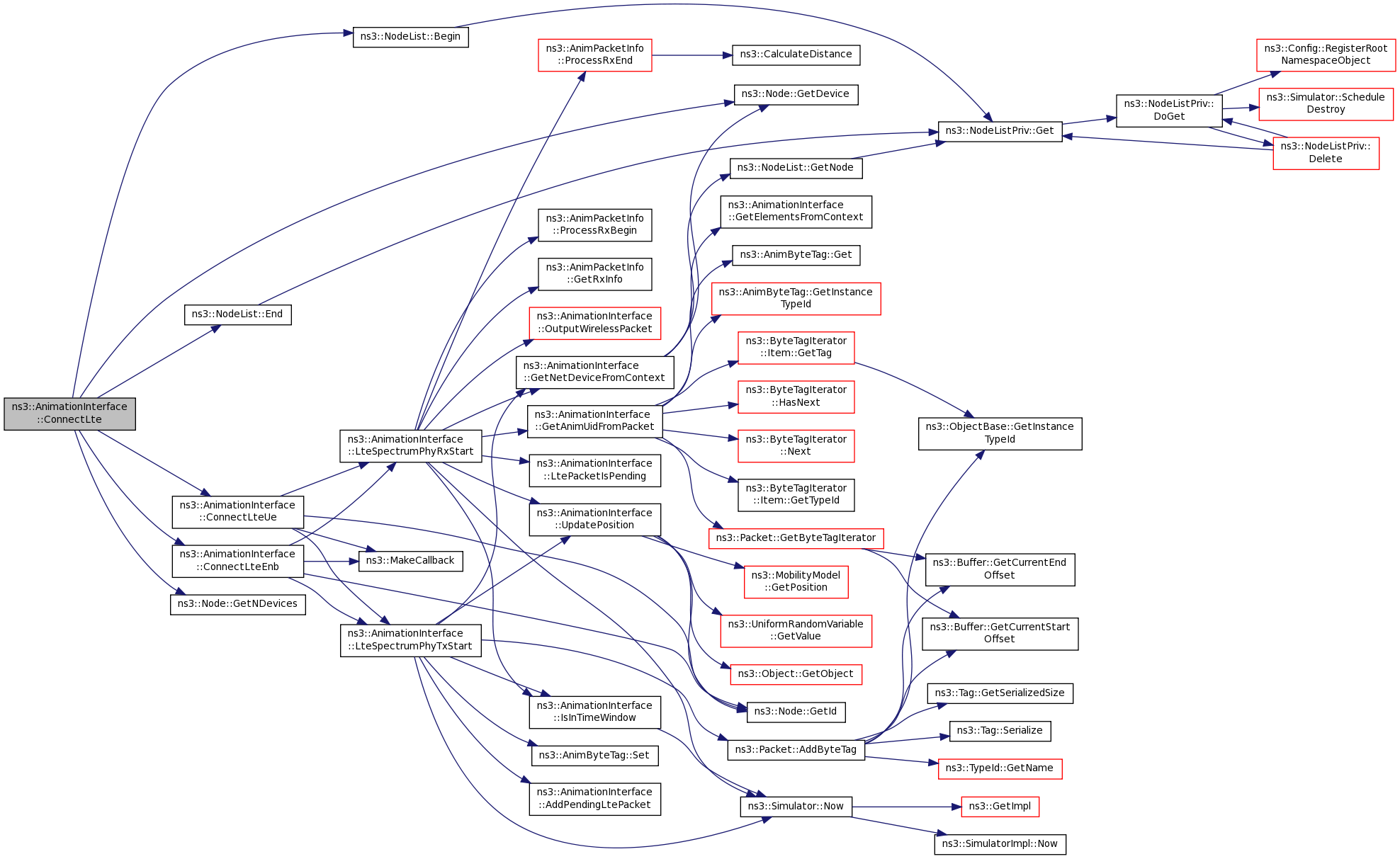

void	ConnectLte ()

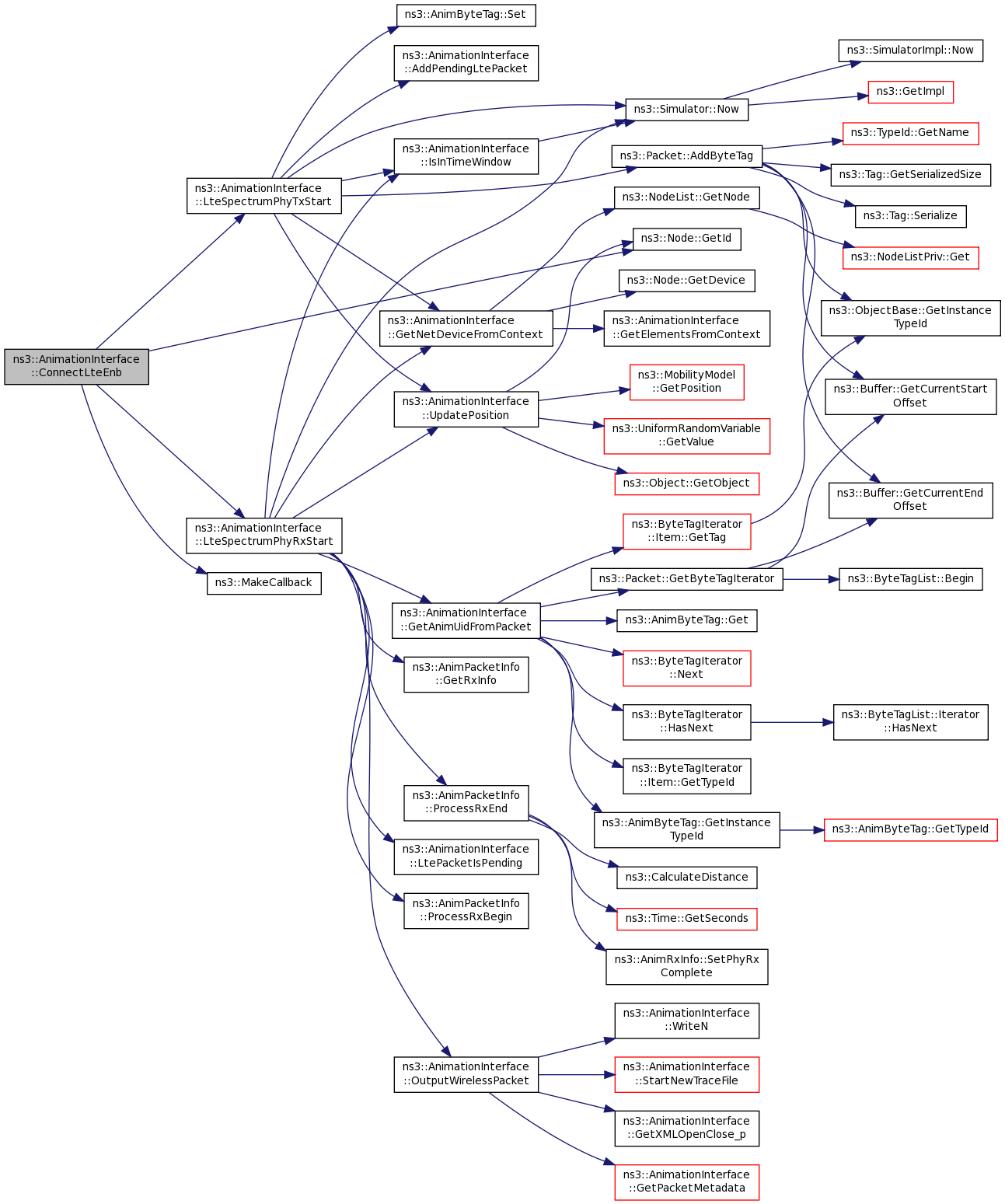

void	ConnectLteEnb (Ptr< Node > n, Ptr< LteEnbNetDevice > nd, uint32_t devIndex)

void	ConnectLteUe (Ptr< Node > n, Ptr< LteUeNetDevice > nd, uint32_t devIndex)

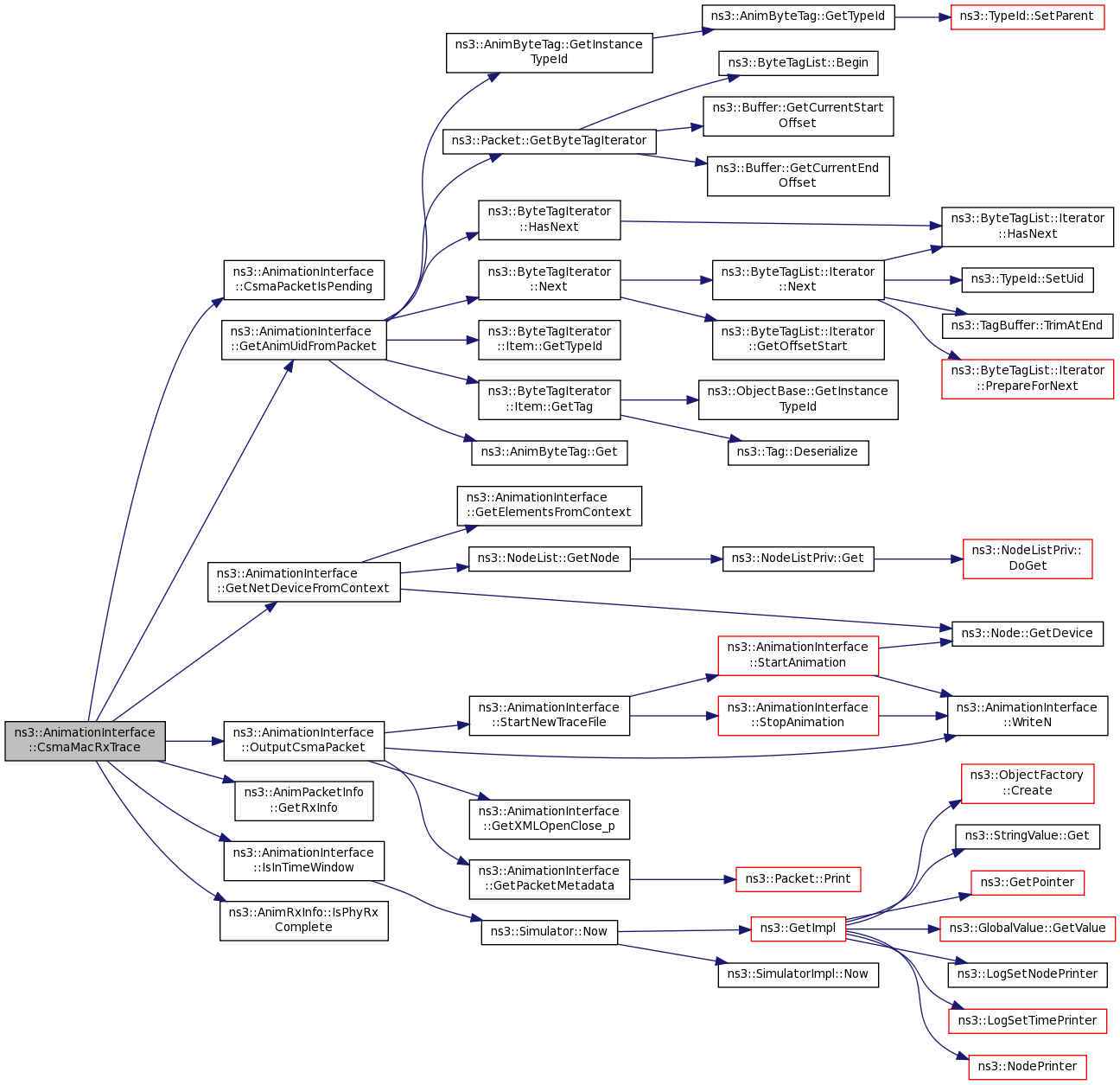

void	CsmaMacRxTrace (std::string context, Ptr< const Packet > p)

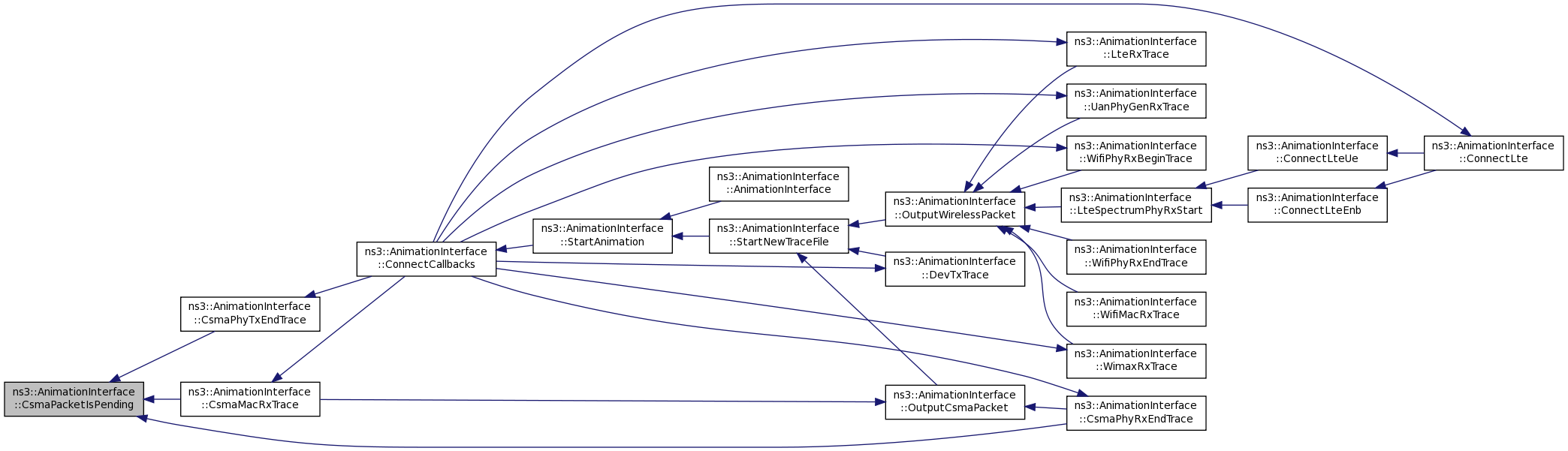

bool	CsmaPacketIsPending (uint64_t AnimUid)

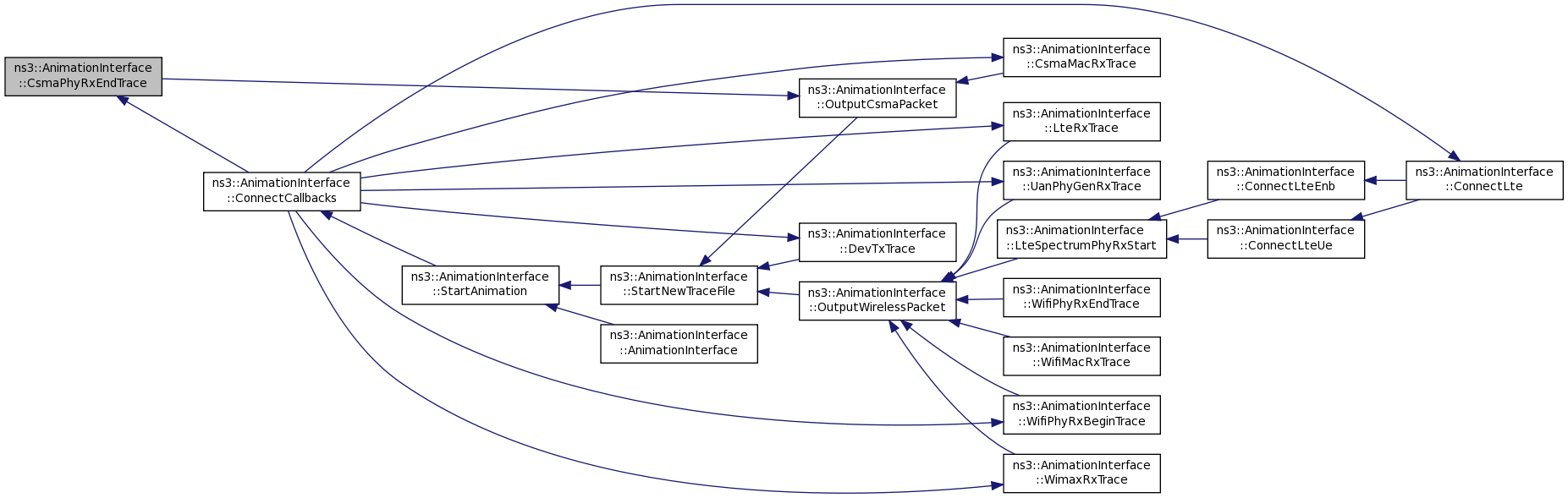

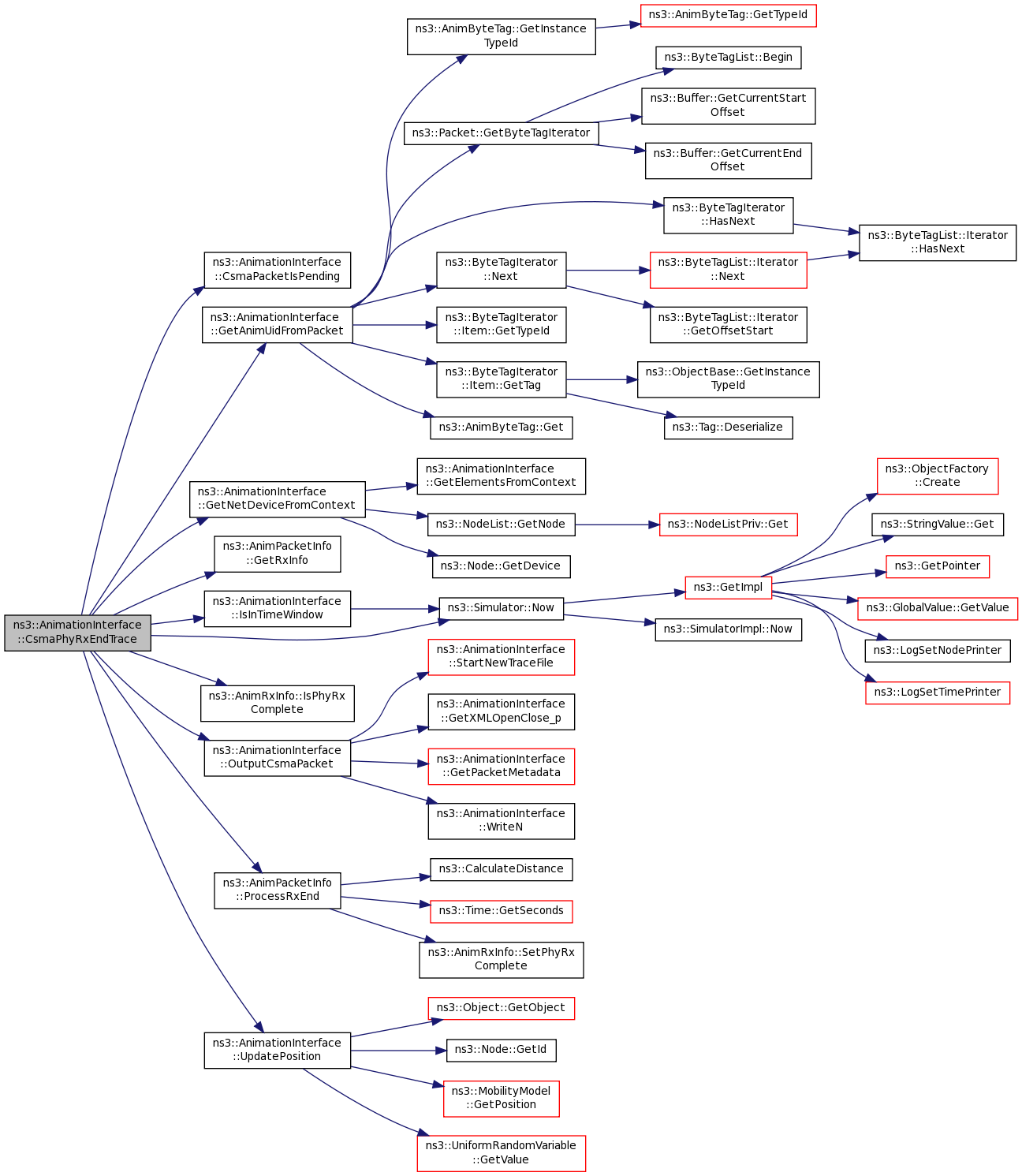

void	CsmaPhyRxEndTrace (std::string context, Ptr< const Packet > p)

void	CsmaPhyTxBeginTrace (std::string context, Ptr< const Packet > p)

void	CsmaPhyTxEndTrace (std::string context, Ptr< const Packet > p)

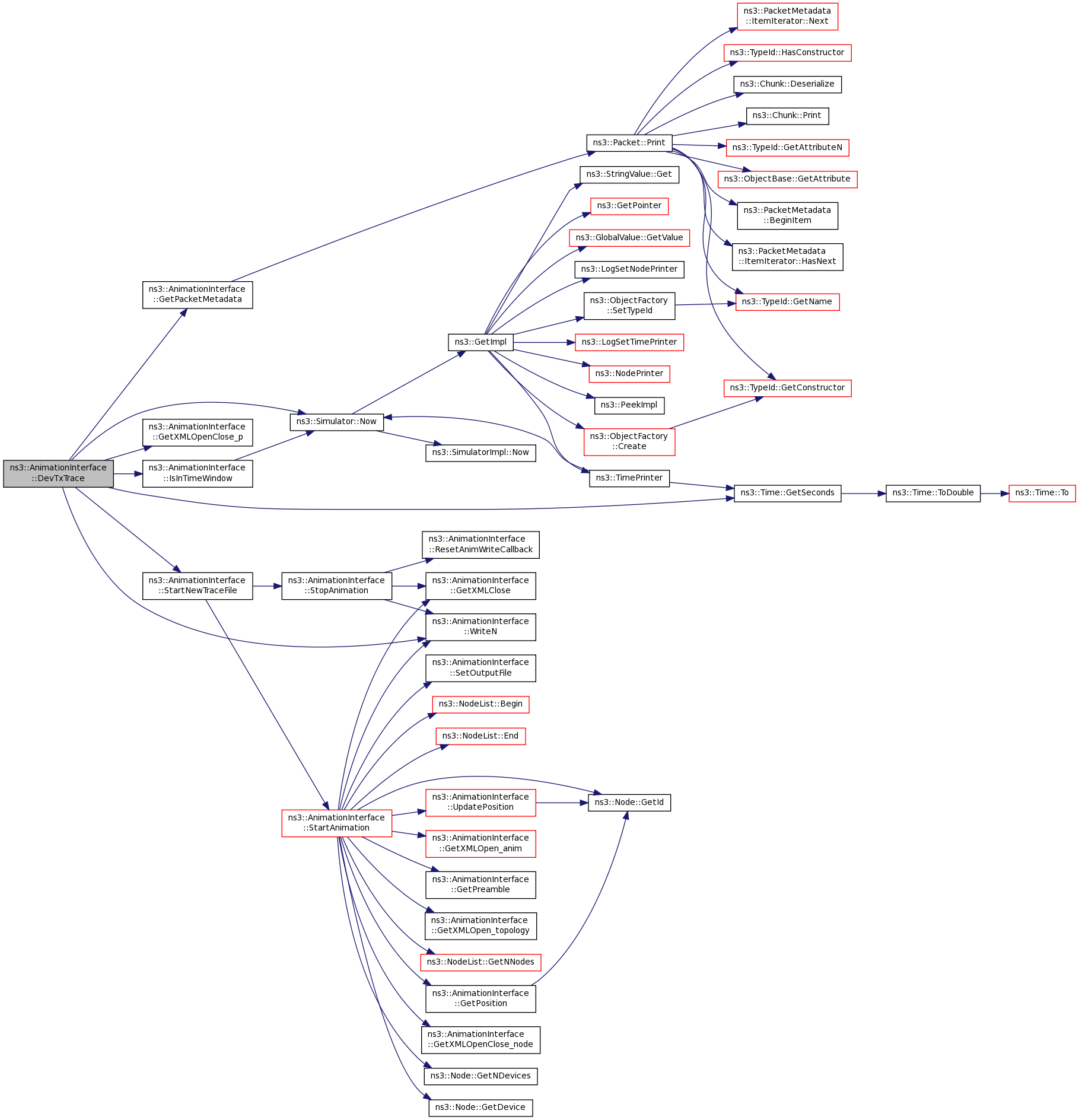

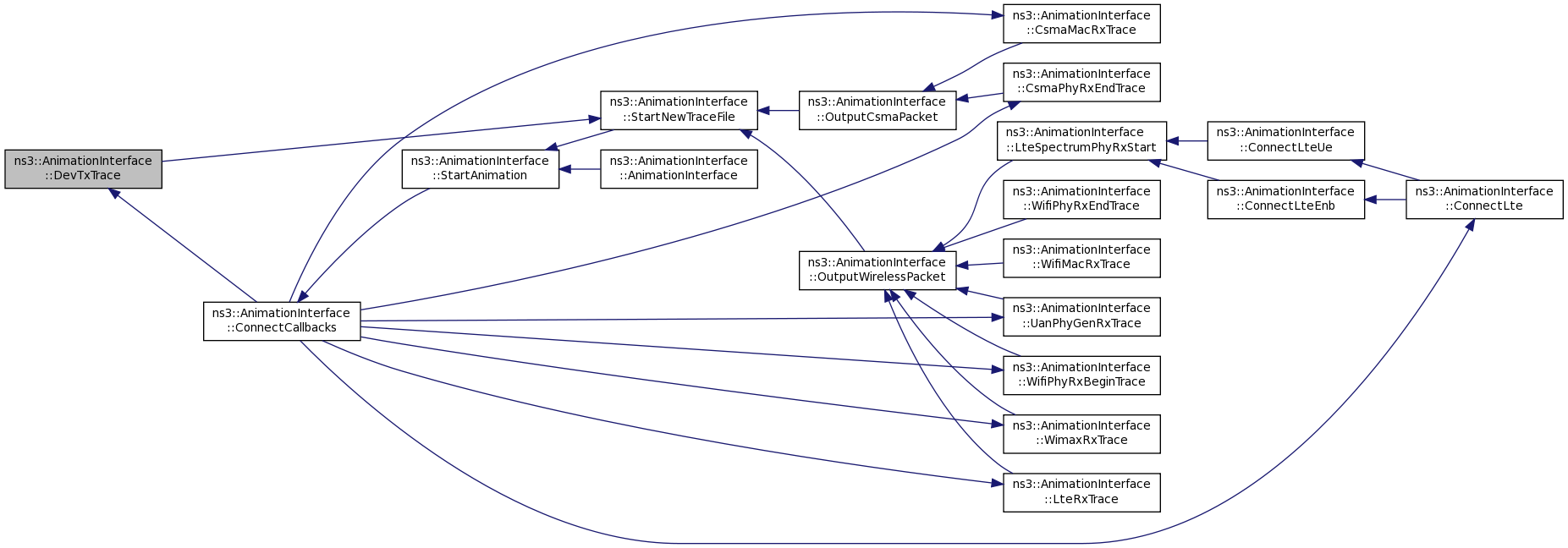

void	DevTxTrace (std::string context, Ptr< const Packet > p, Ptr< NetDevice > tx, Ptr< NetDevice > rx, Time txTime, Time rxTime)

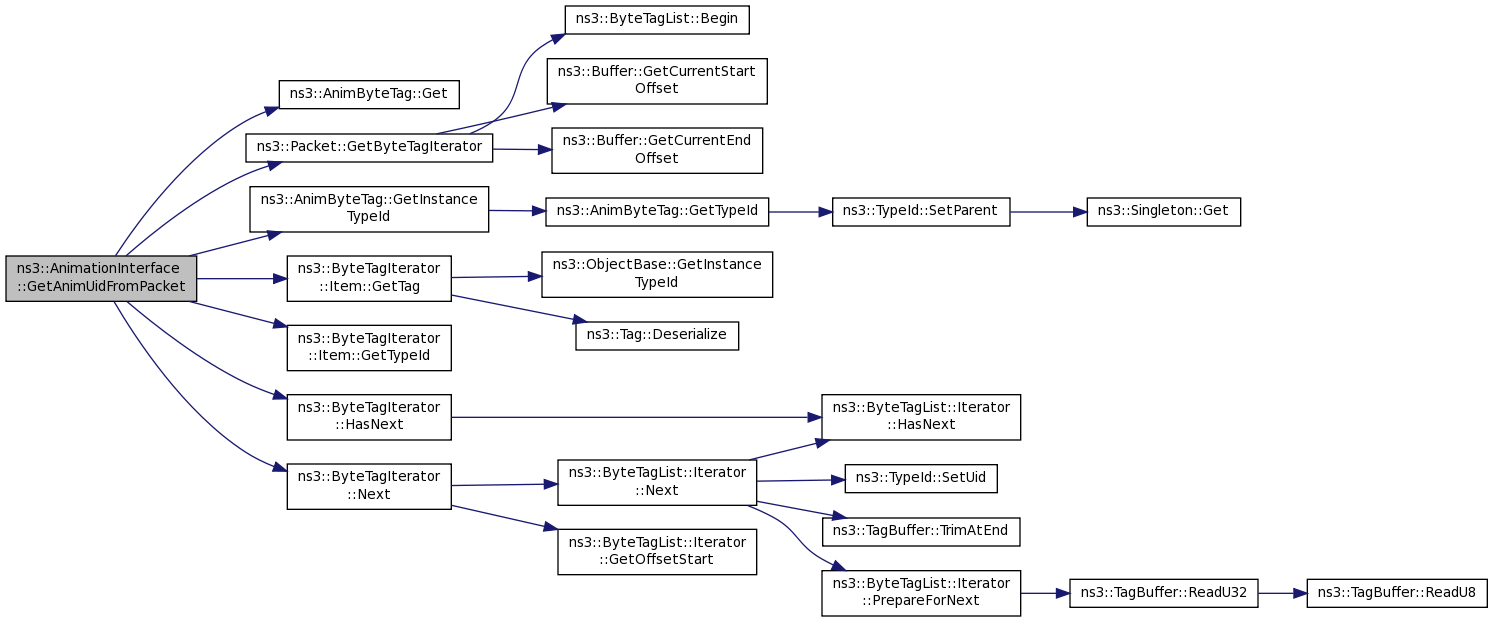

uint64_t	GetAnimUidFromPacket (Ptr< const Packet >)

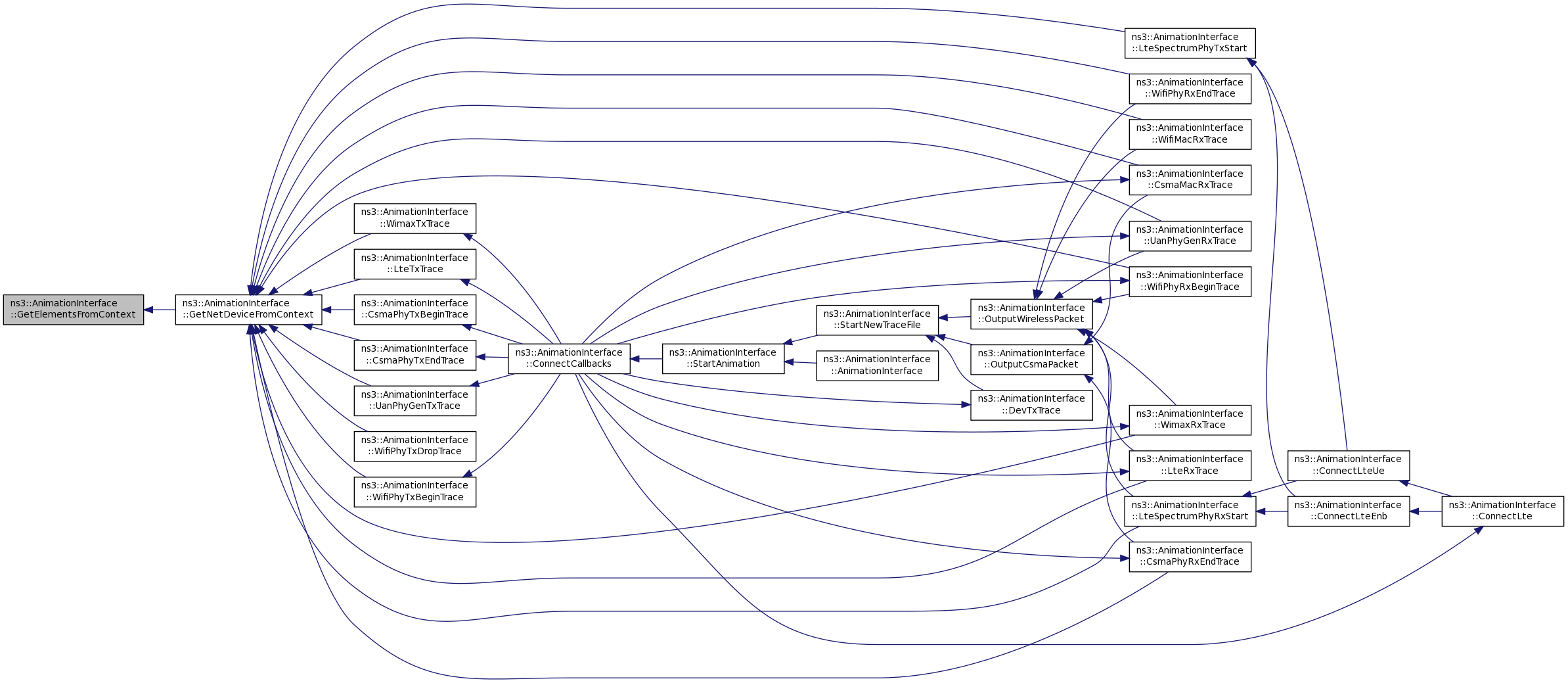

std::vector< std::string >	GetElementsFromContext (std::string context)

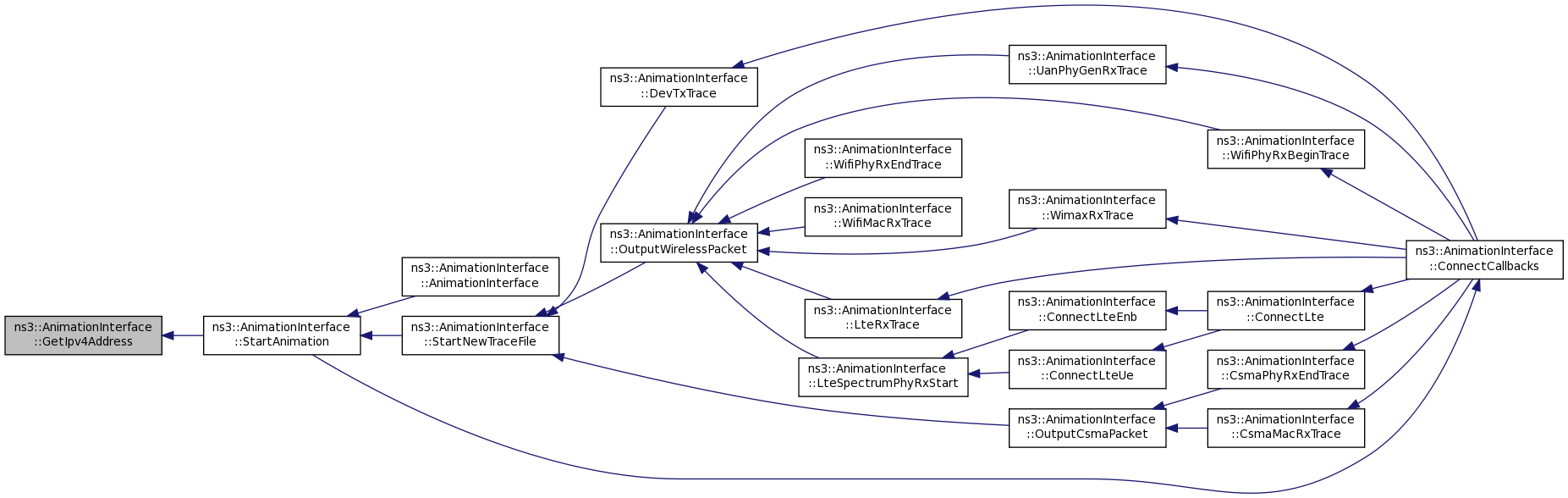

std::string	GetIpv4Address (Ptr< NetDevice > nd)

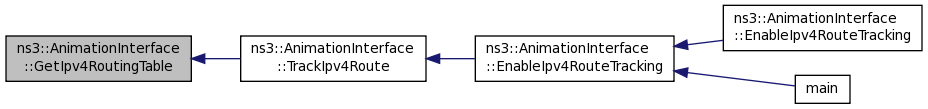

std::string	GetIpv4RoutingTable (Ptr< Node > n)

std::string	GetMacAddress (Ptr< NetDevice > nd)

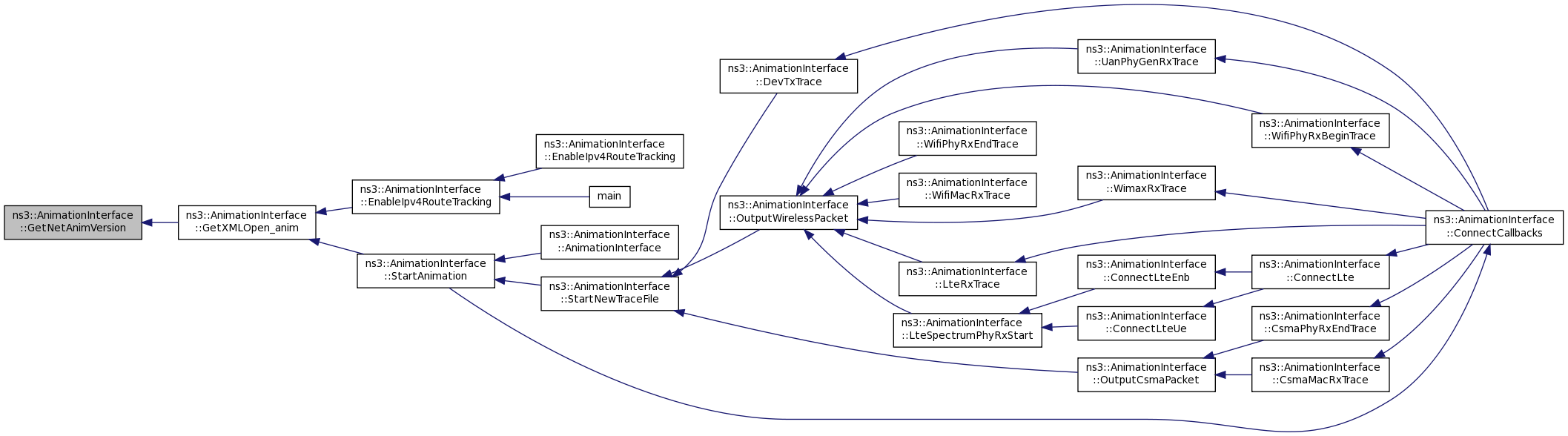

std::string	GetNetAnimVersion ()

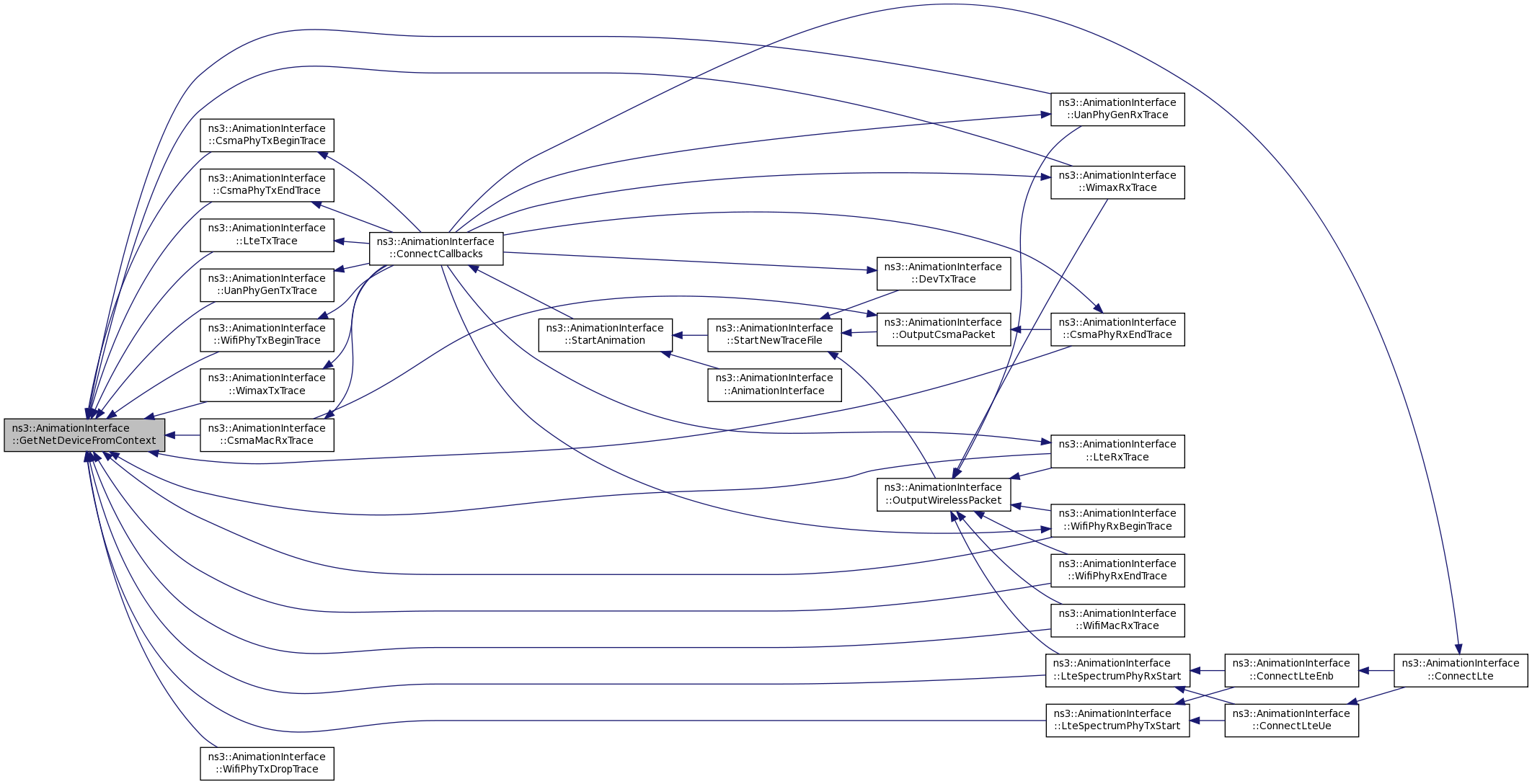

Ptr< NetDevice >	GetNetDeviceFromContext (std::string context)

std::string	GetPacketMetadata (Ptr< const Packet > p)

Vector	GetPosition (Ptr< Node > n)

std::string	GetPreamble (void)

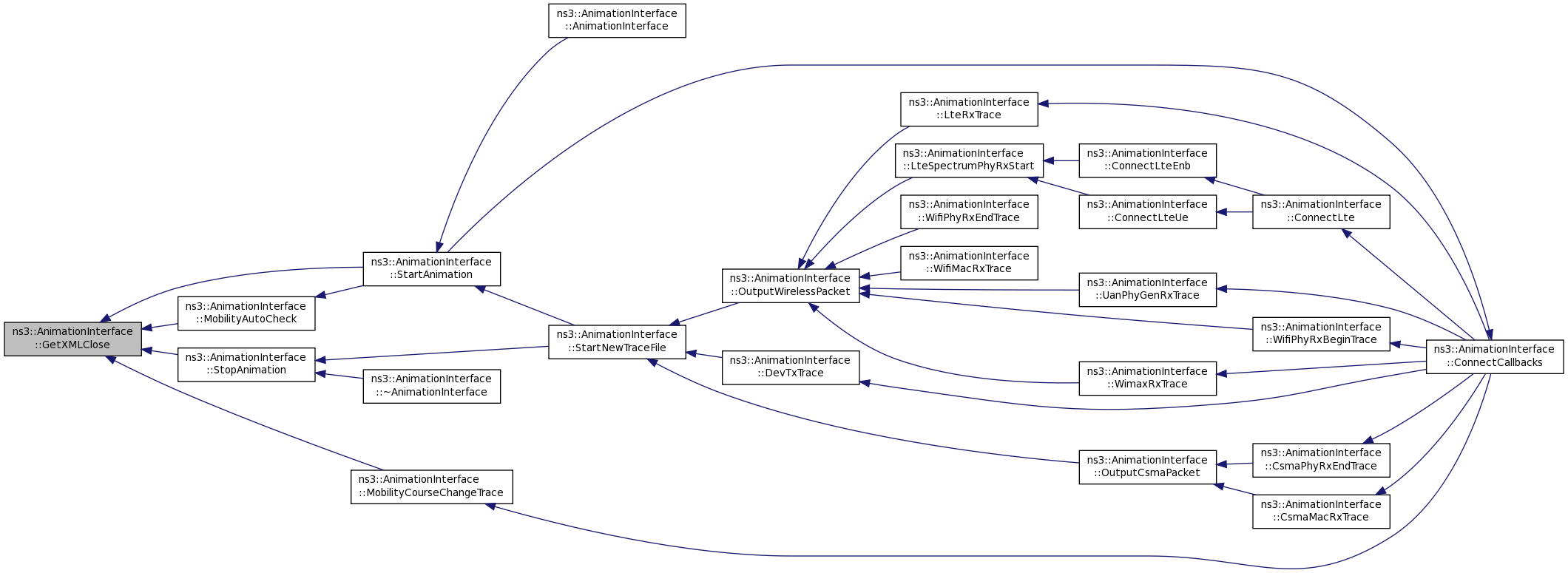

std::string	GetXMLClose (std::string name)

std::string	GetXMLOpen_anim (uint32_t lp)

std::string	GetXMLOpen_packet (uint32_t fromLp, uint32_t fromId, double fbTx, double lbTx, std::string auxInfo="")

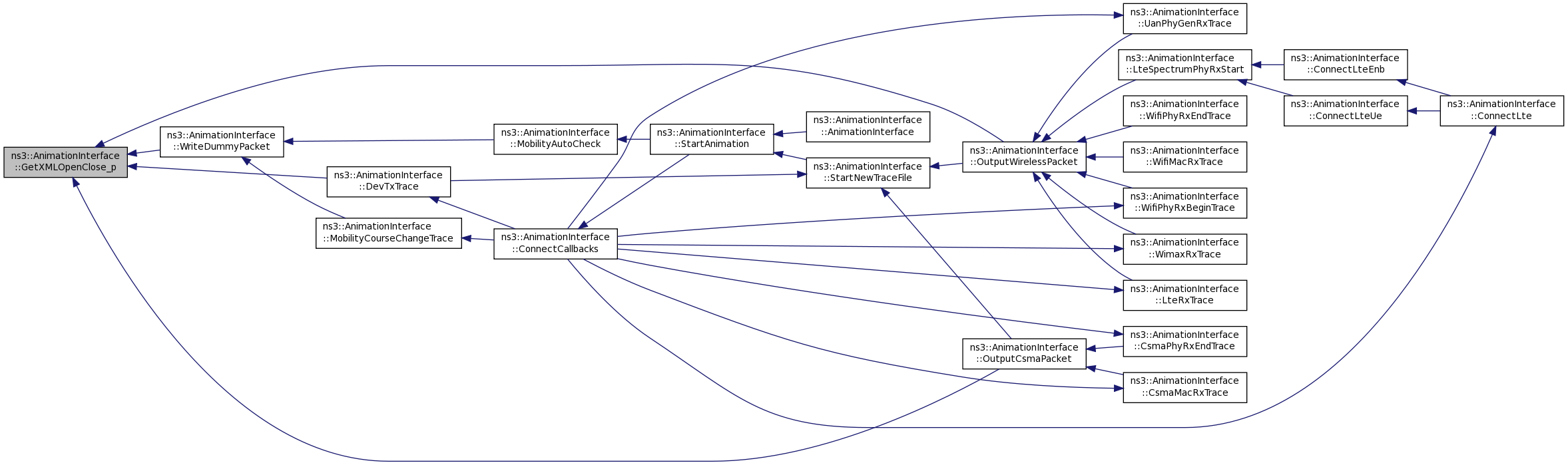

std::string	GetXMLOpen_topology (double minX, double minY, double maxX, double maxY)

std::string	GetXMLOpen_wpacket (uint32_t fromLp, uint32_t fromId, double fbTx, double lbTx, double range)

std::string	GetXMLOpenClose_link (uint32_t fromLp, uint32_t fromId, uint32_t toLp, uint32_t toId)

std::string	GetXMLOpenClose_linkupdate (uint32_t fromId, uint32_t toId, std::string)

std::string	GetXMLOpenClose_meta (std::string metaInfo)

std::string	GetXMLOpenClose_node (uint32_t lp, uint32_t id, double locX, double locY)

std::string	GetXMLOpenClose_node (uint32_t lp, uint32_t id, double locX, double locY, struct Rgb rgb)

std::string	GetXMLOpenClose_nodeupdate (uint32_t id, bool visible=true)

std::string	GetXMLOpenClose_NonP2pLinkProperties (uint32_t id, std::string ipv4Address, std::string channelType)

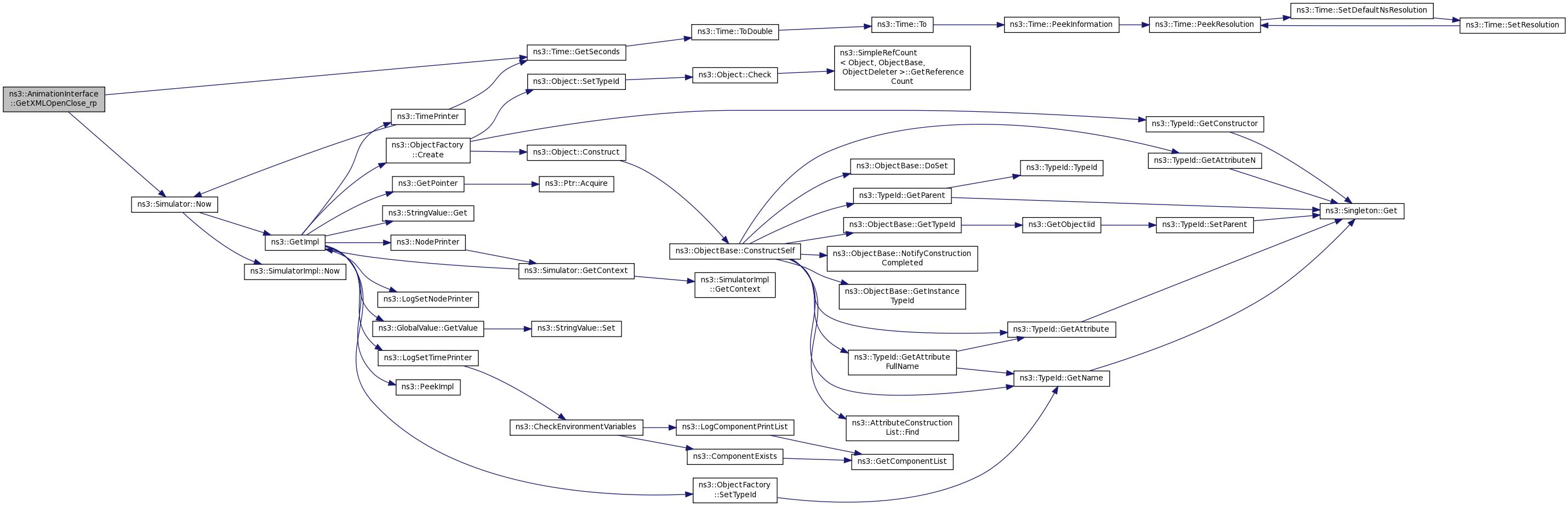

std::string	GetXMLOpenClose_p (std::string pktType, uint32_t fId, double fbTx, double lbTx, uint32_t tId, double fbRx, double lbRx, std::string metaInfo="", std::string auxInfo="")

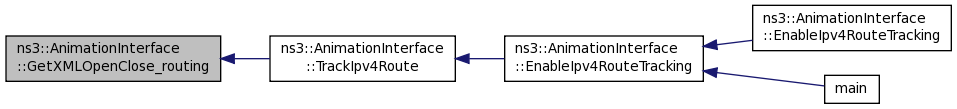

std::string	GetXMLOpenClose_routing (uint32_t id, std::string routingInfo)

std::string	GetXMLOpenClose_rp (uint32_t nodeId, std::string destination, Ipv4RoutePathElements rpElements)

std::string	GetXMLOpenClose_rx (uint32_t toLp, uint32_t toId, double fbRx, double lbRx)

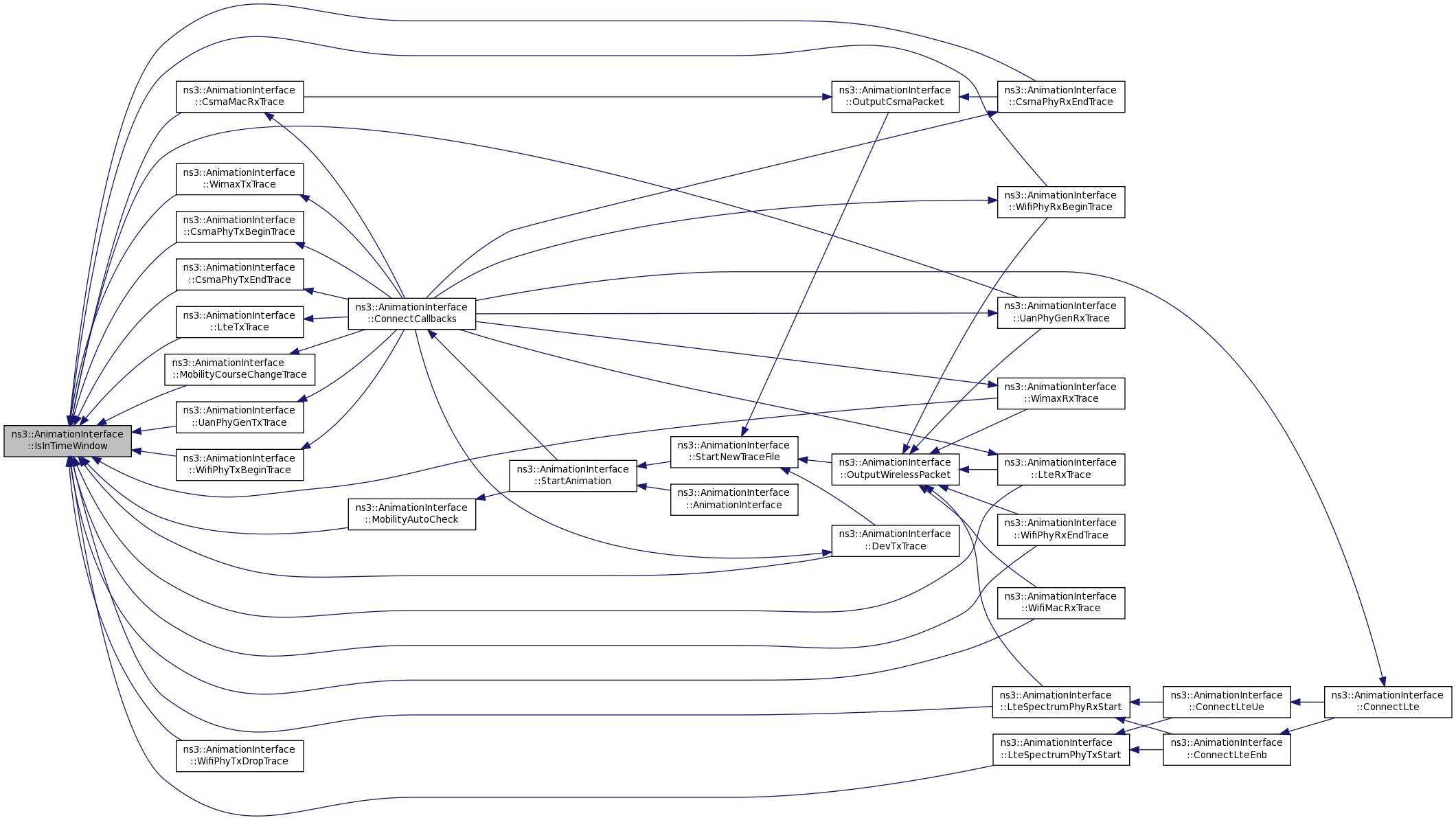

bool	IsInTimeWindow ()

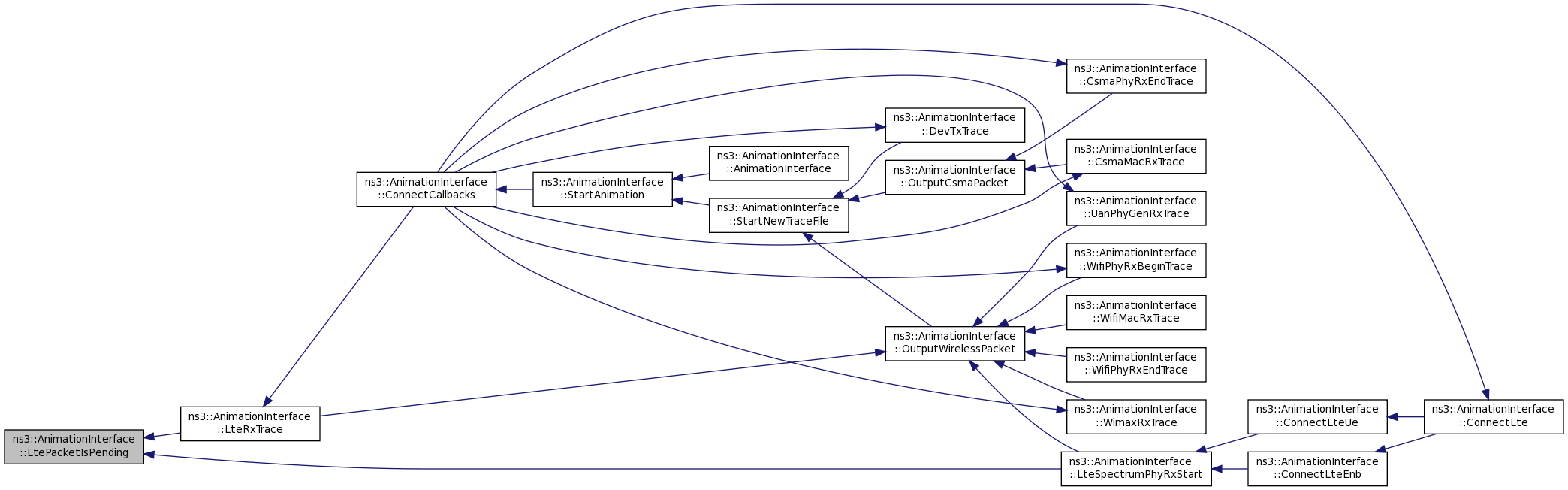

bool	LtePacketIsPending (uint64_t AnimUid)

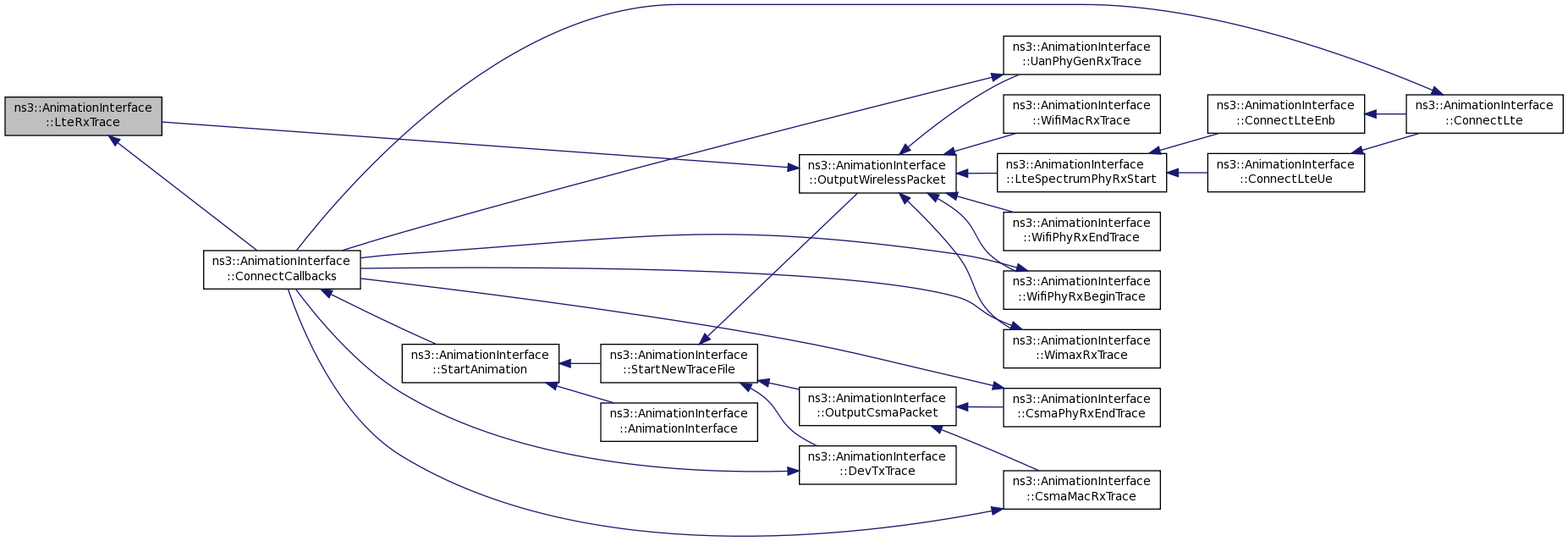

void	LteRxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)

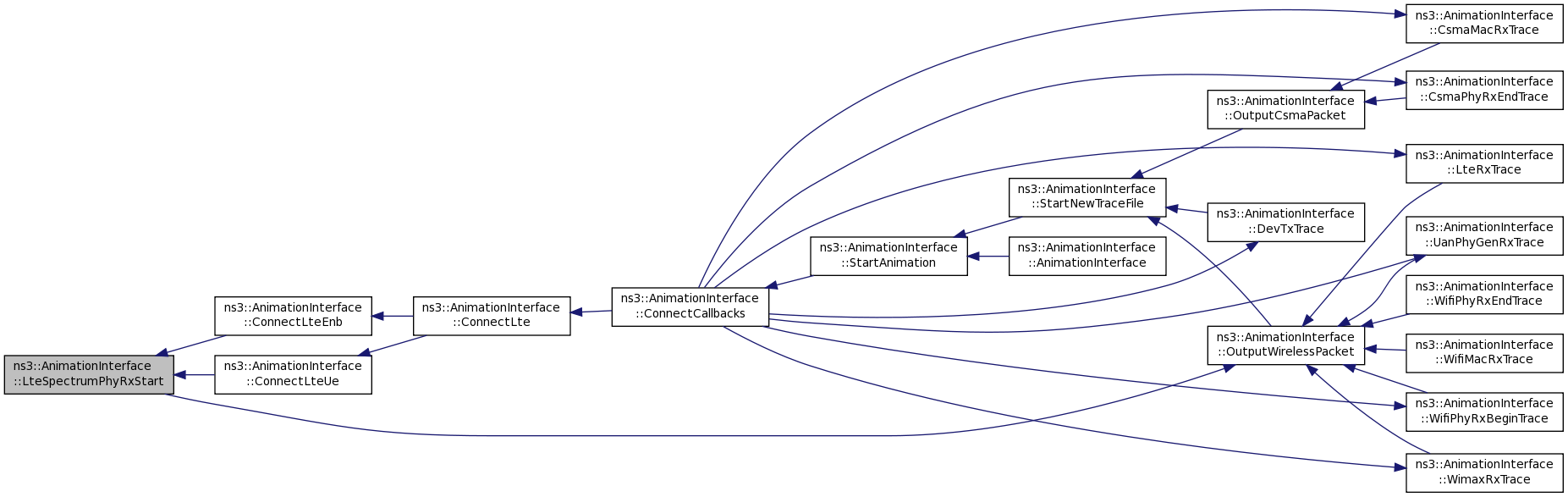

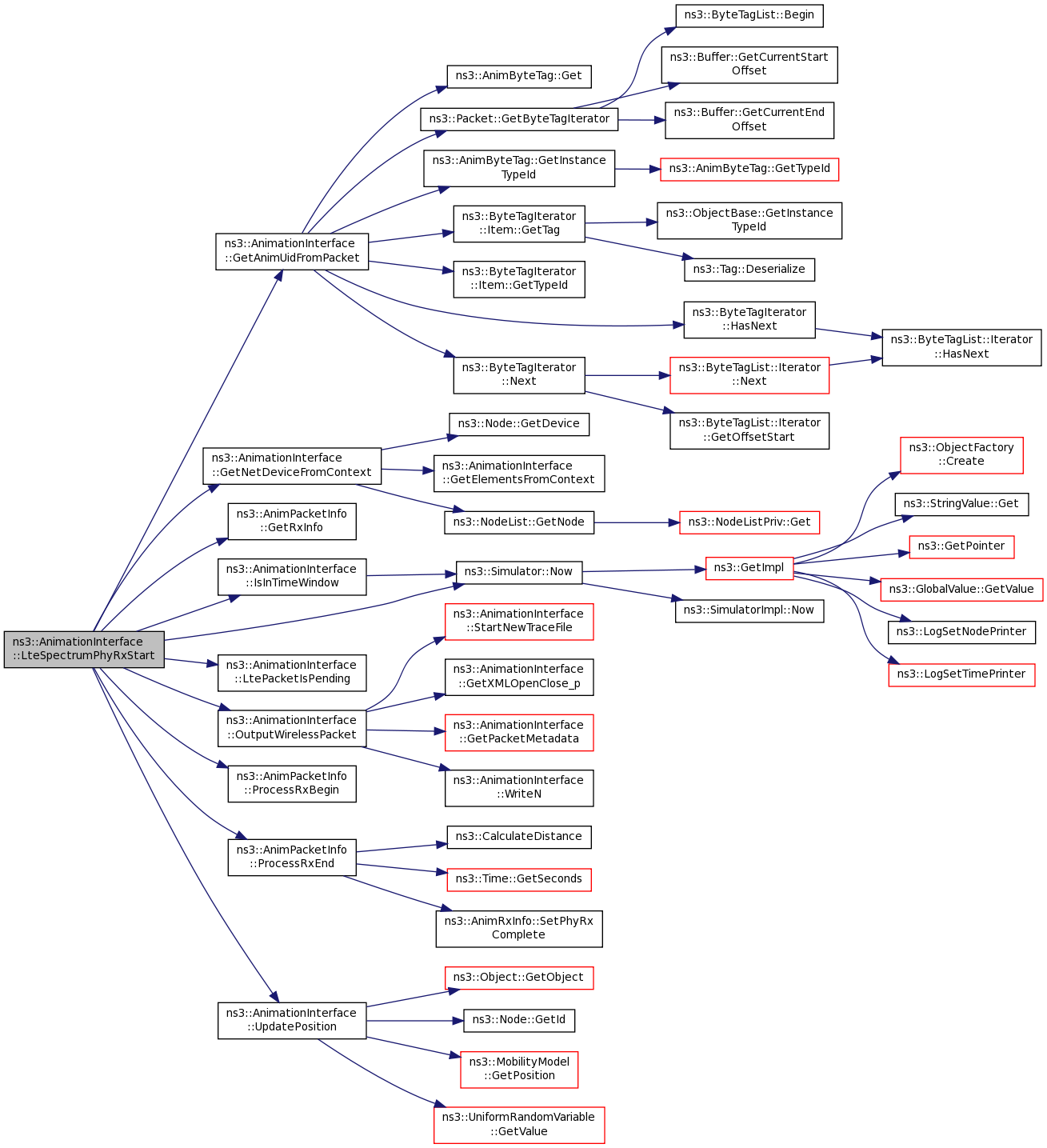

void	LteSpectrumPhyRxStart (std::string context, Ptr< const PacketBurst > pb)

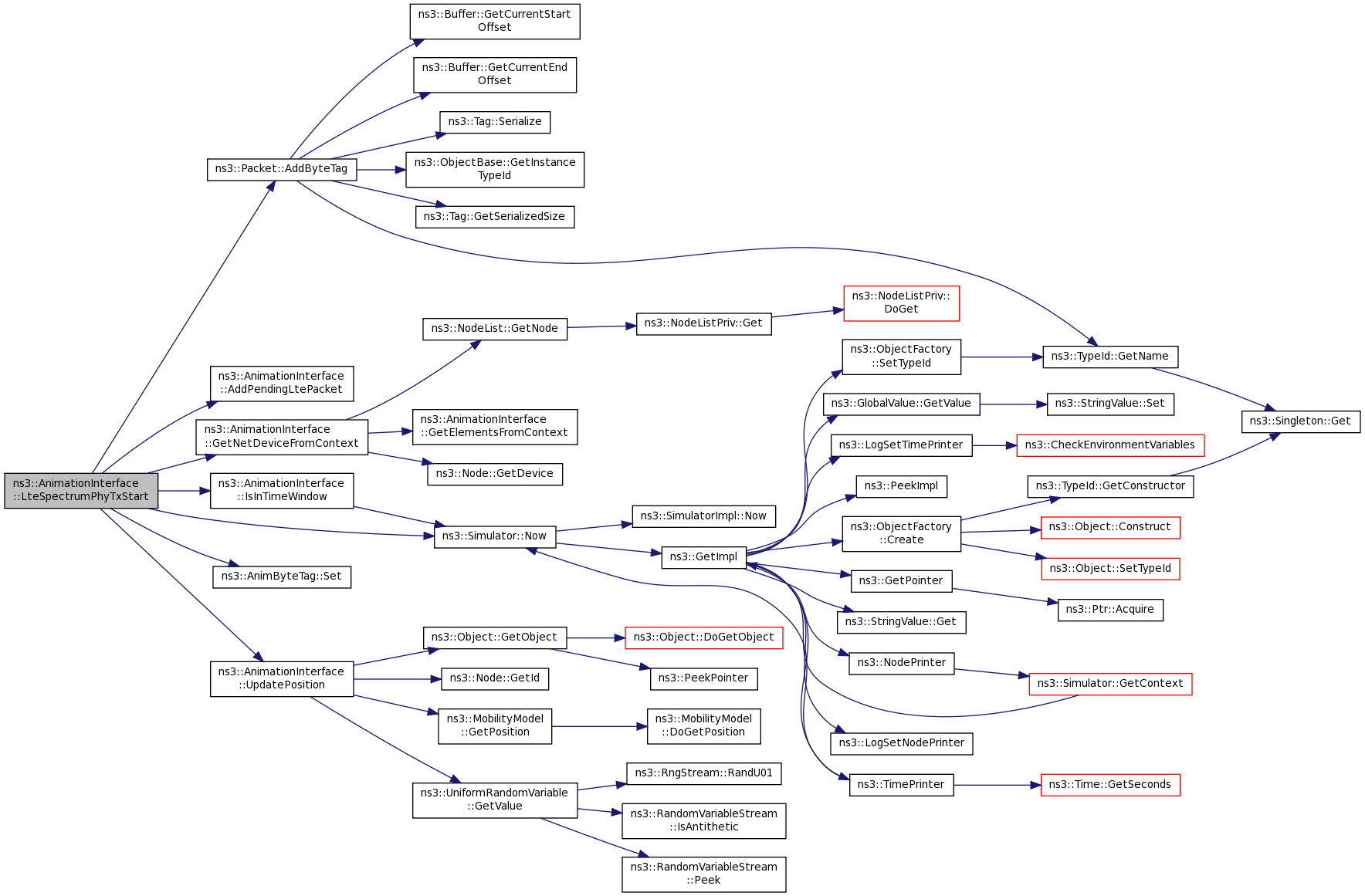

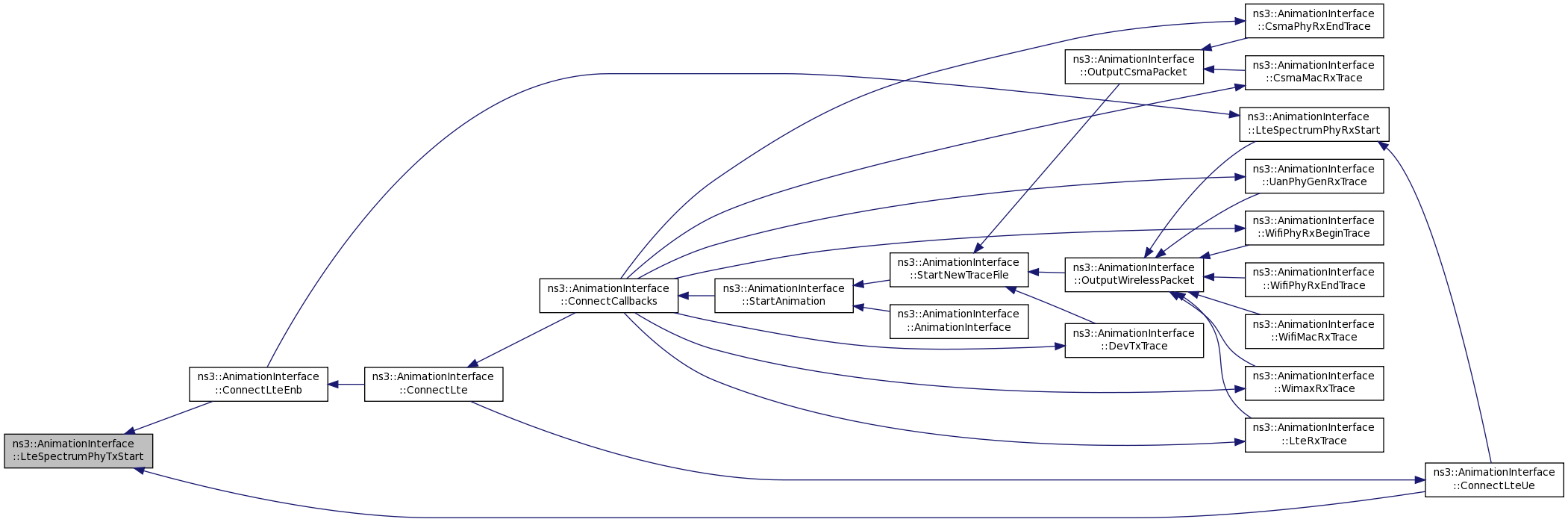

void	LteSpectrumPhyTxStart (std::string context, Ptr< const PacketBurst > pb)

void	LteTxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)

void	MobilityAutoCheck ()

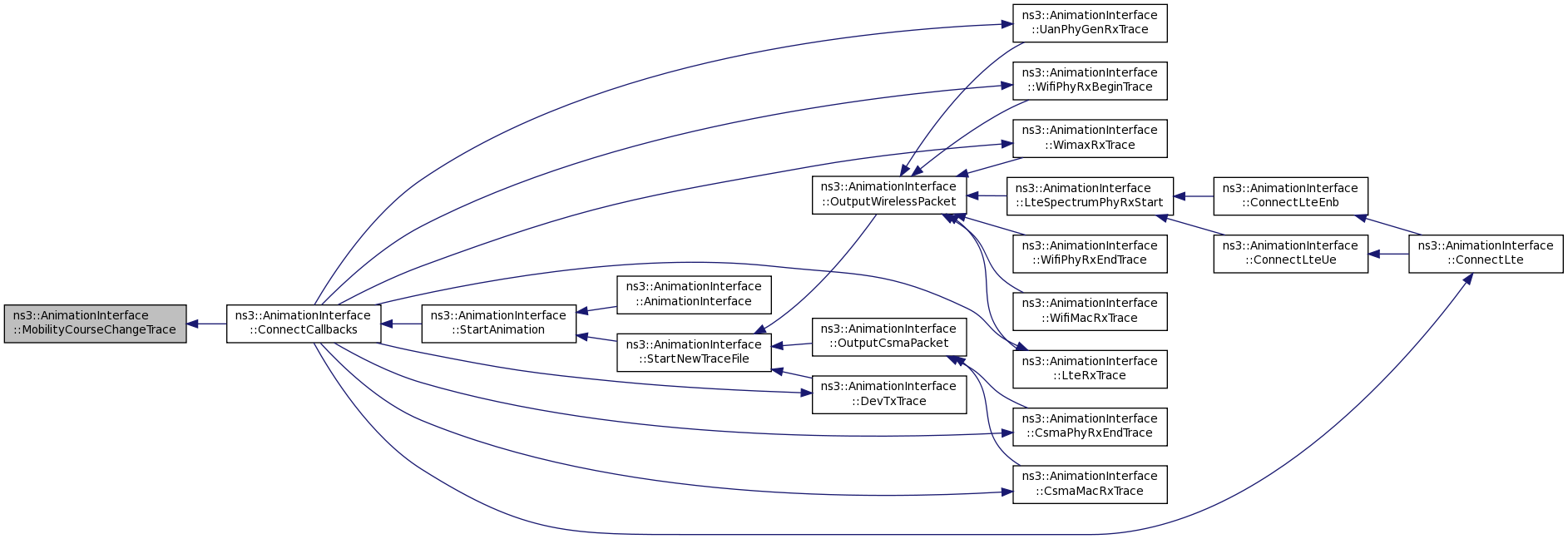

void	MobilityCourseChangeTrace (Ptr< const MobilityModel > mob)

bool	NodeHasMoved (Ptr< Node > n, Vector newLocation)

void	OutputCsmaPacket (Ptr< const Packet > p, AnimPacketInfo &pktInfo, AnimRxInfo pktrxInfo)

void	OutputWirelessPacket (Ptr< const Packet > p, AnimPacketInfo &pktInfo, AnimRxInfo pktrxInfo)

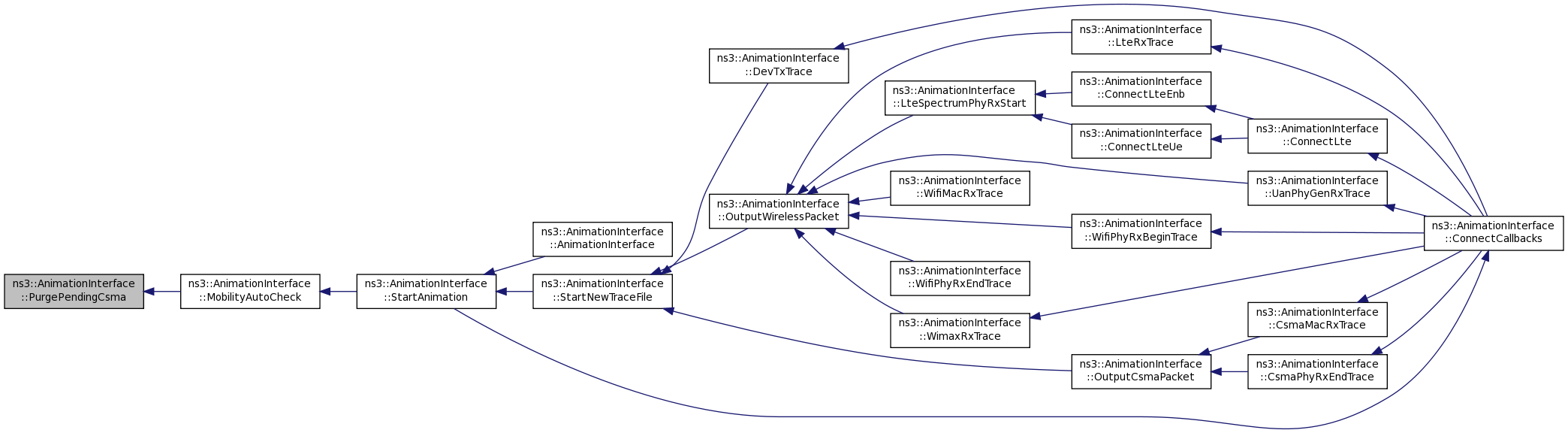

void	PurgePendingCsma ()

void	PurgePendingLte ()

void	PurgePendingWifi ()

void	PurgePendingWimax ()

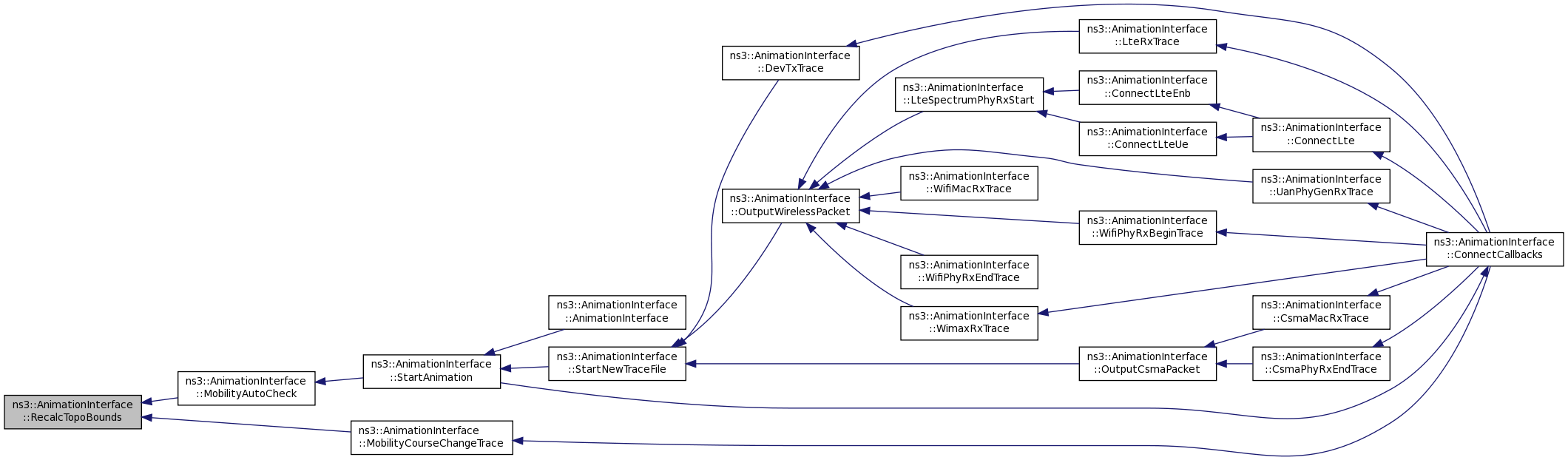

void	RecalcTopoBounds (Vector v)

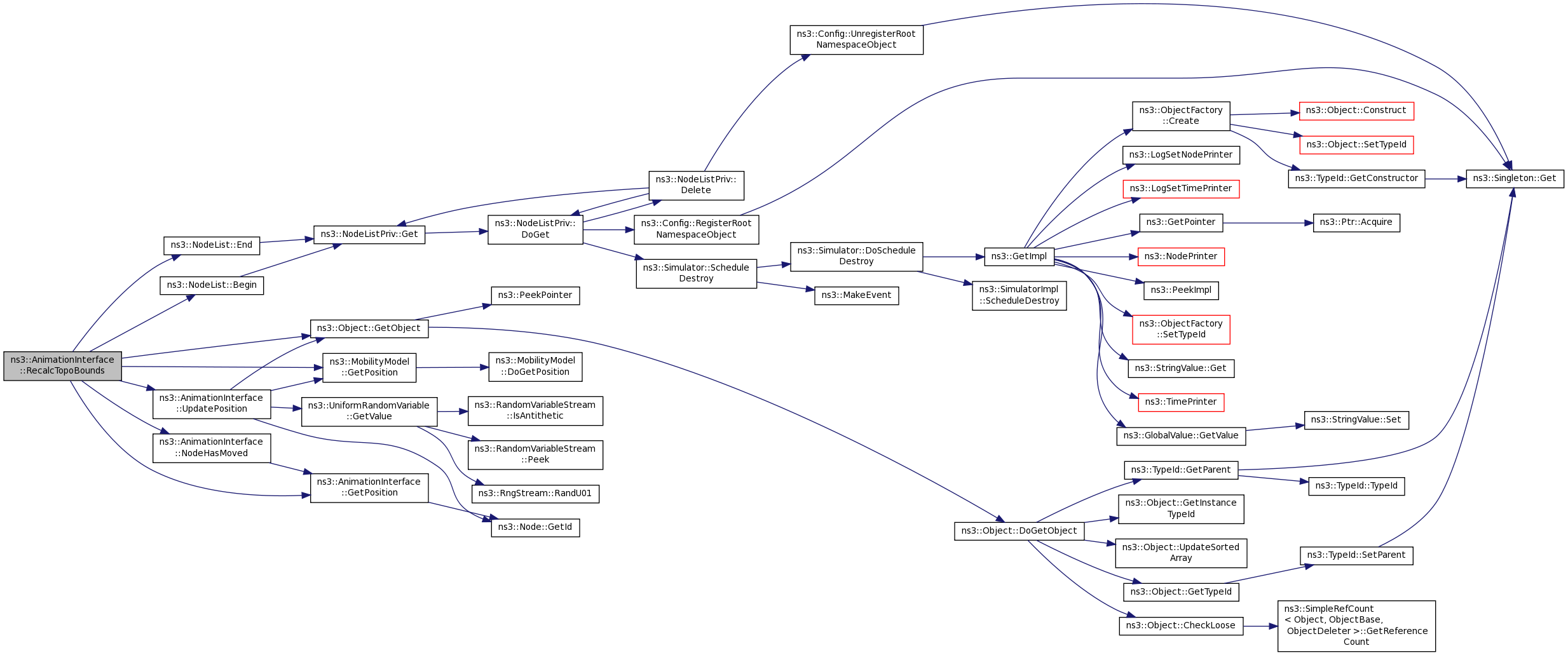

std::vector< Ptr< Node > >	RecalcTopoBounds ()

void	RecursiveIpv4RoutePathSearch (std::string fromIpv4, std::string toIpv4, Ipv4RoutePathElements &)

bool	SetOutputFile (const std::string &fn)
	Specify that animation commands are to be written to the specified output file. More...

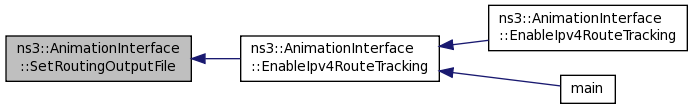

bool	SetRoutingOutputFile (const std::string &fn)

void	SetXMLOutput ()
	Specify that animation commands are to be written in XML format. More...

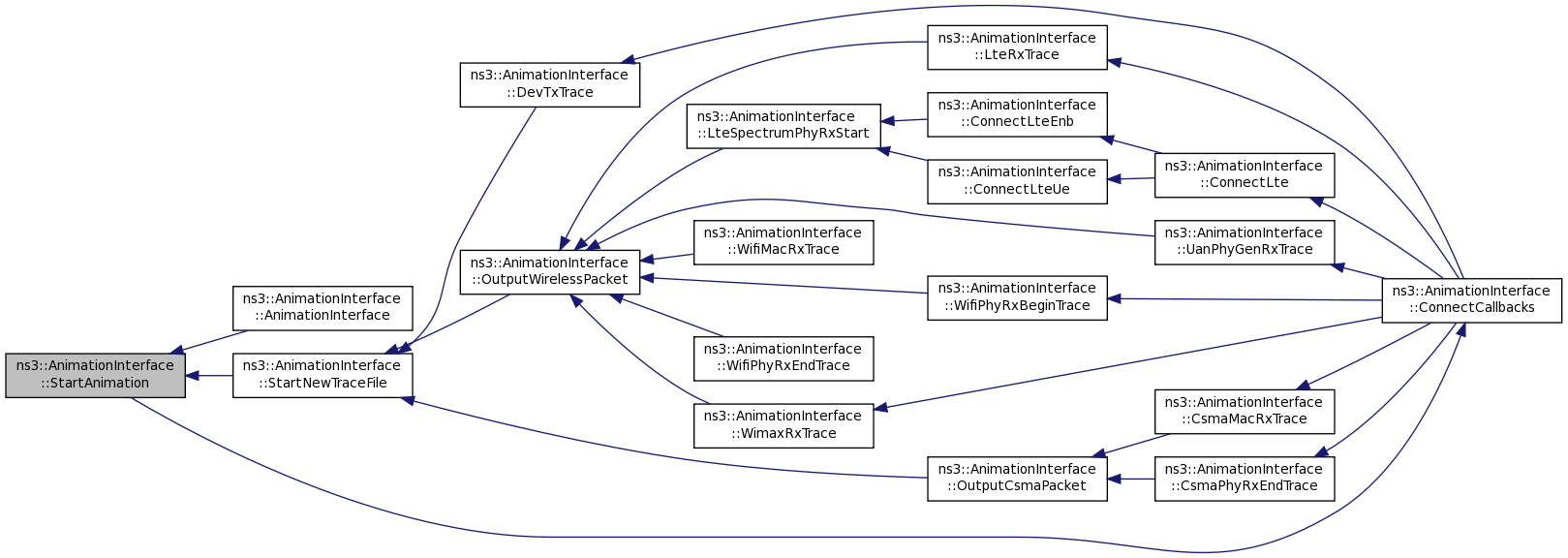

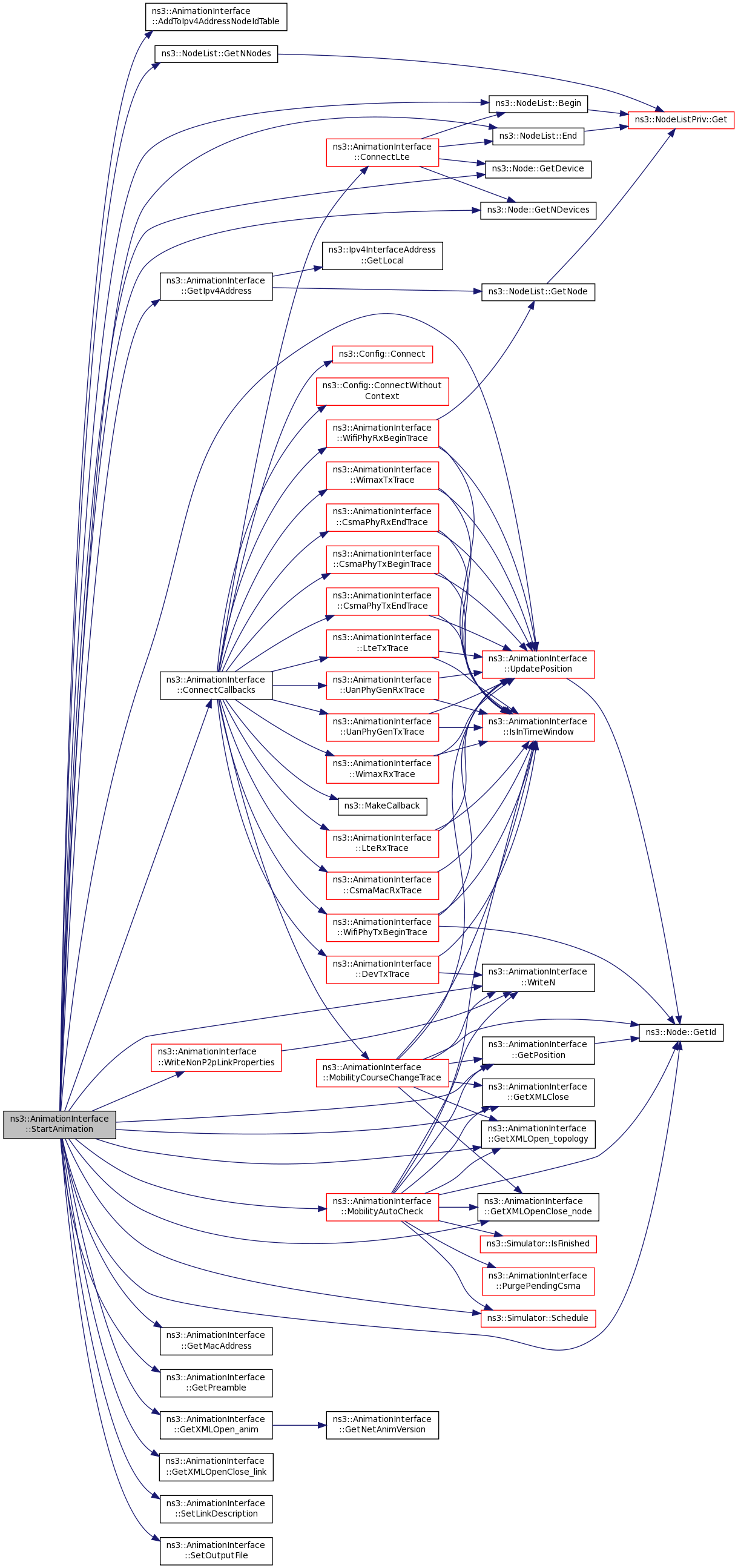

void	StartAnimation (bool restart=false)
	Writes the topology information and sets up the appropriate animation packet tx callback. More...

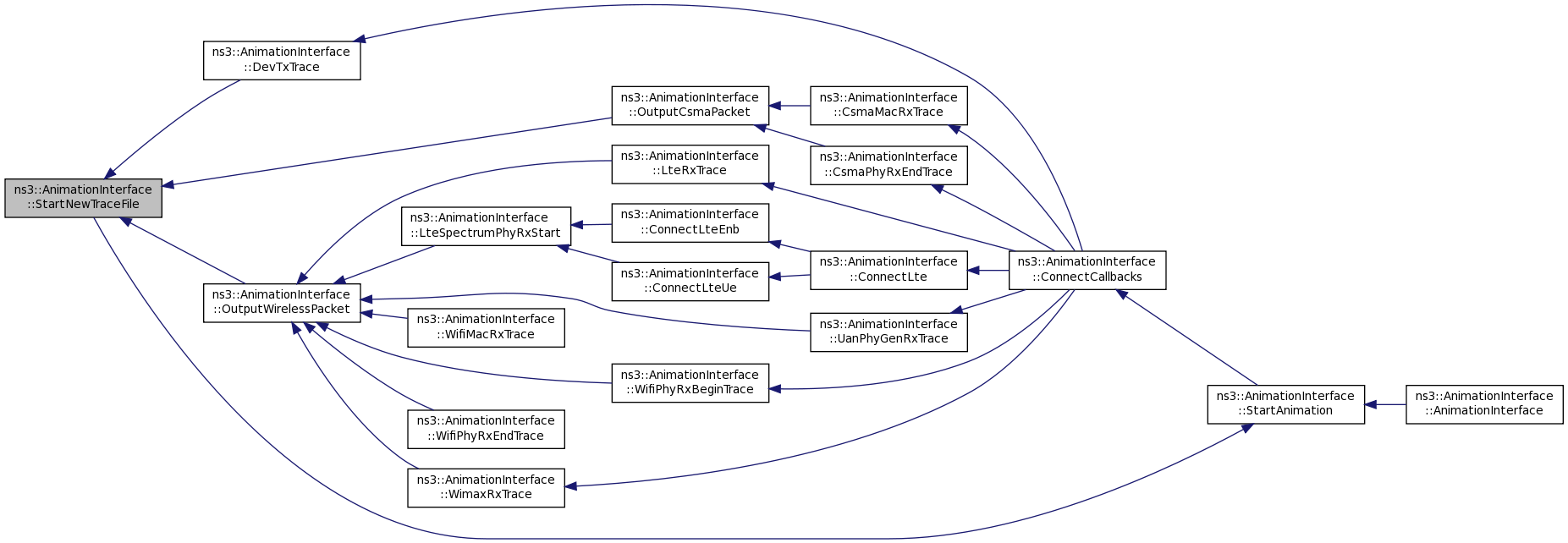

void	StartNewTraceFile ()

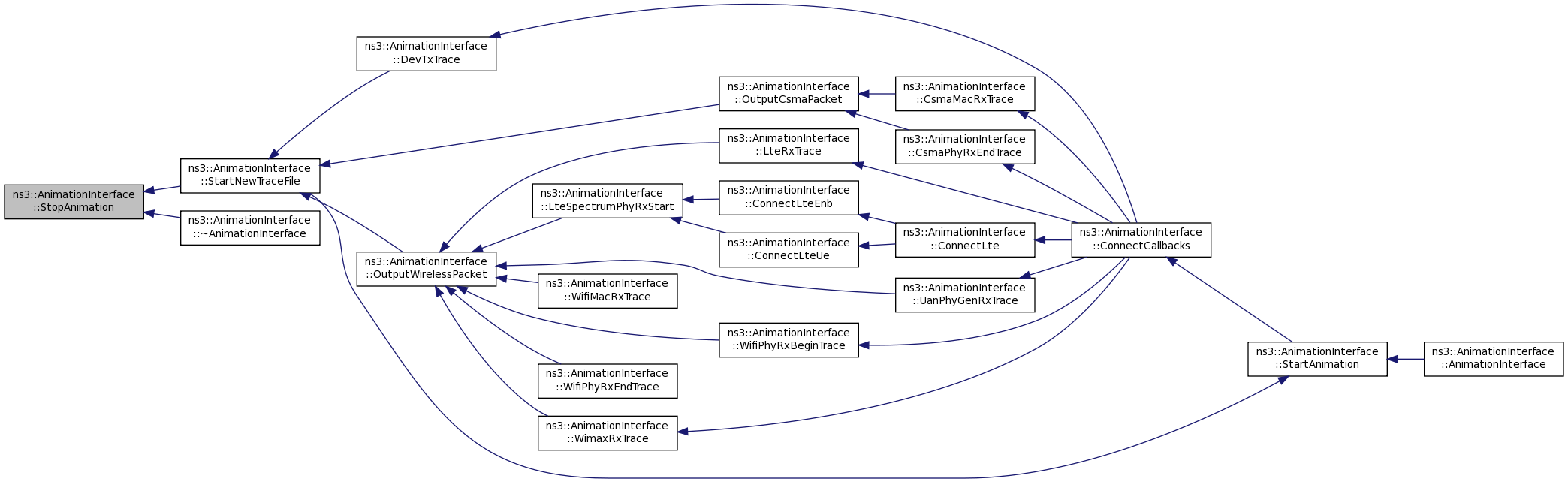

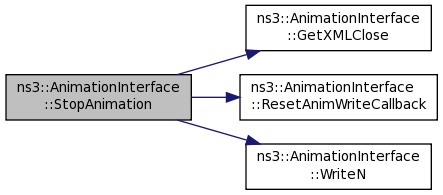

void	StopAnimation (bool onlyAnimation=false)
	Closes the interface to the animator. More...

void	TrackIpv4Route ()

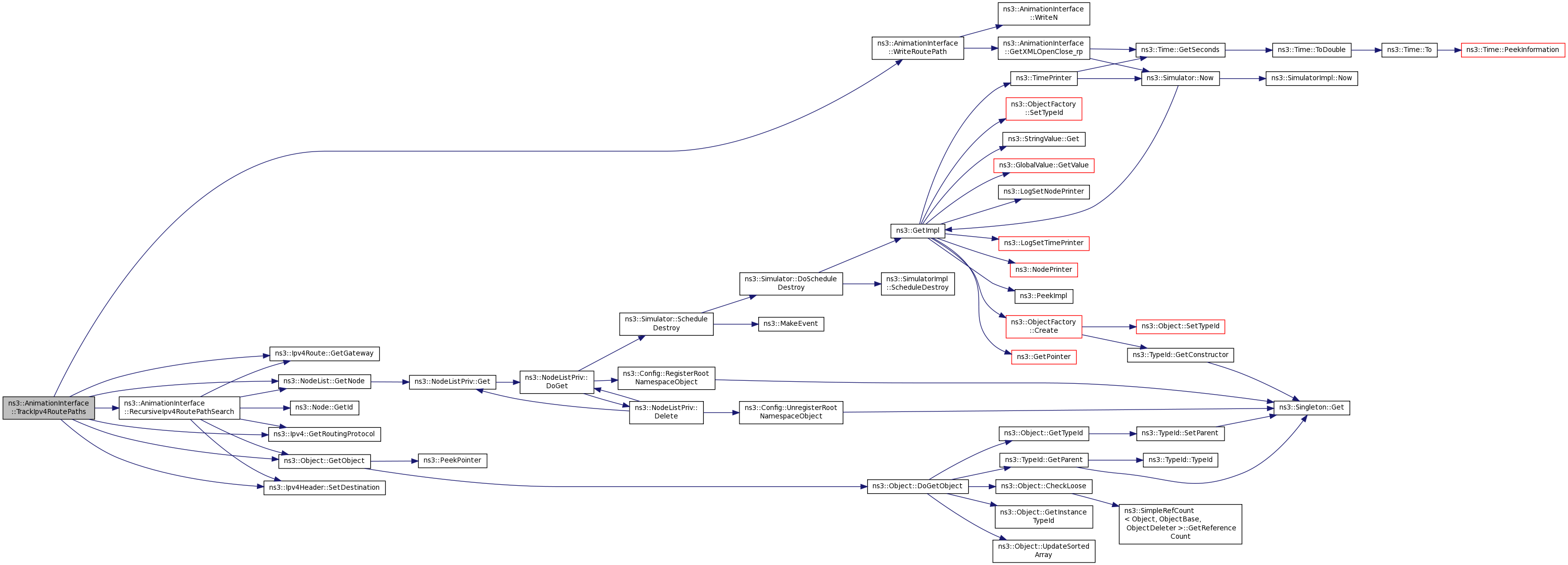

void	TrackIpv4RoutePaths ()

bool	UanPacketIsPending (uint64_t AnimUid)

void	UanPhyGenRxTrace (std::string context, Ptr< const Packet >)

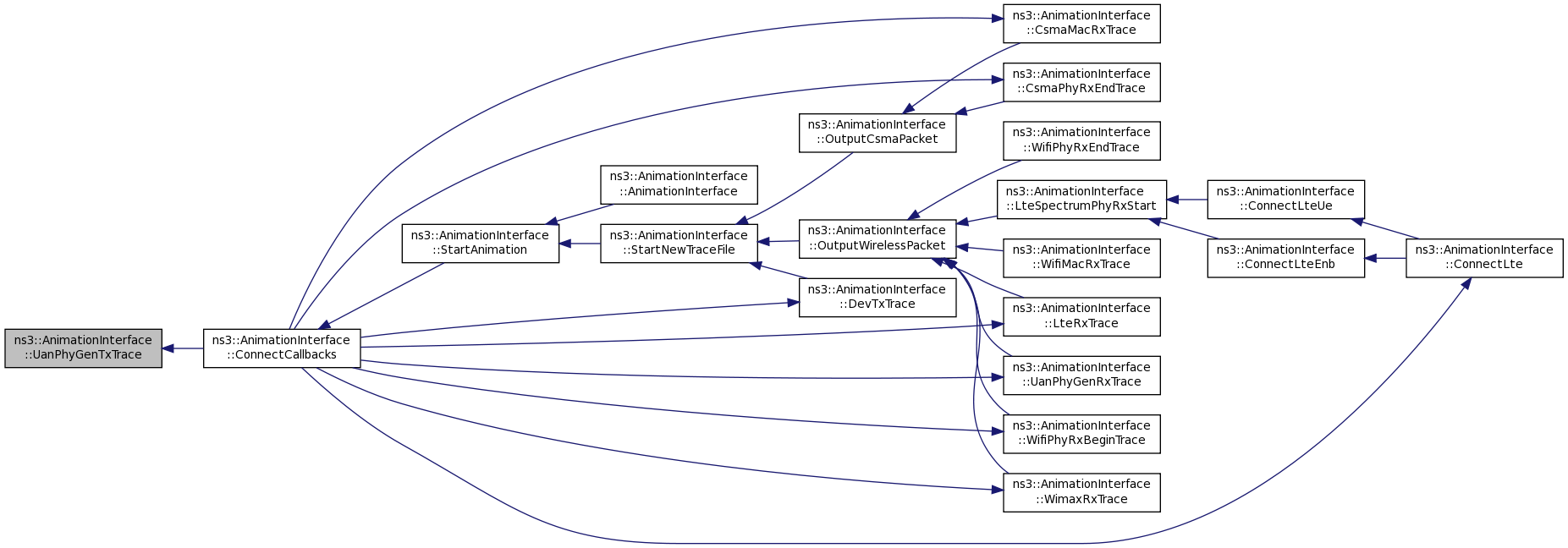

void	UanPhyGenTxTrace (std::string context, Ptr< const Packet >)

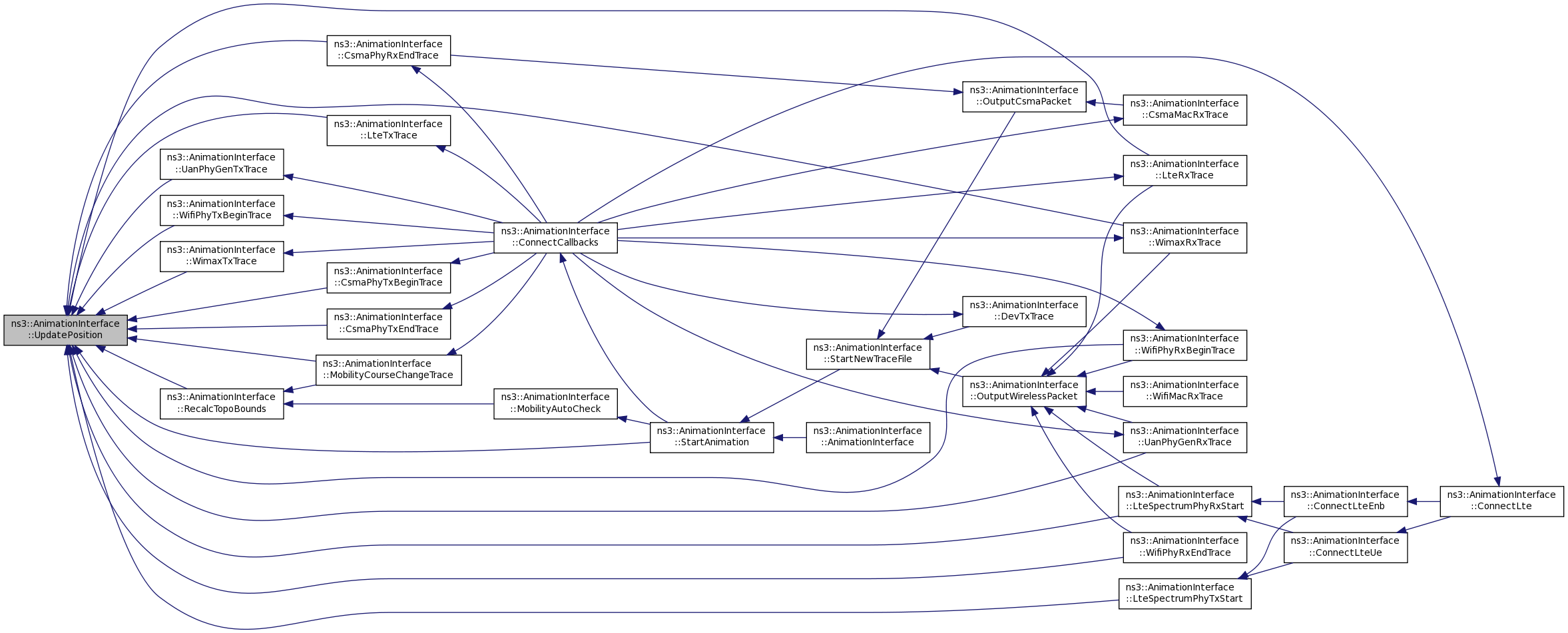

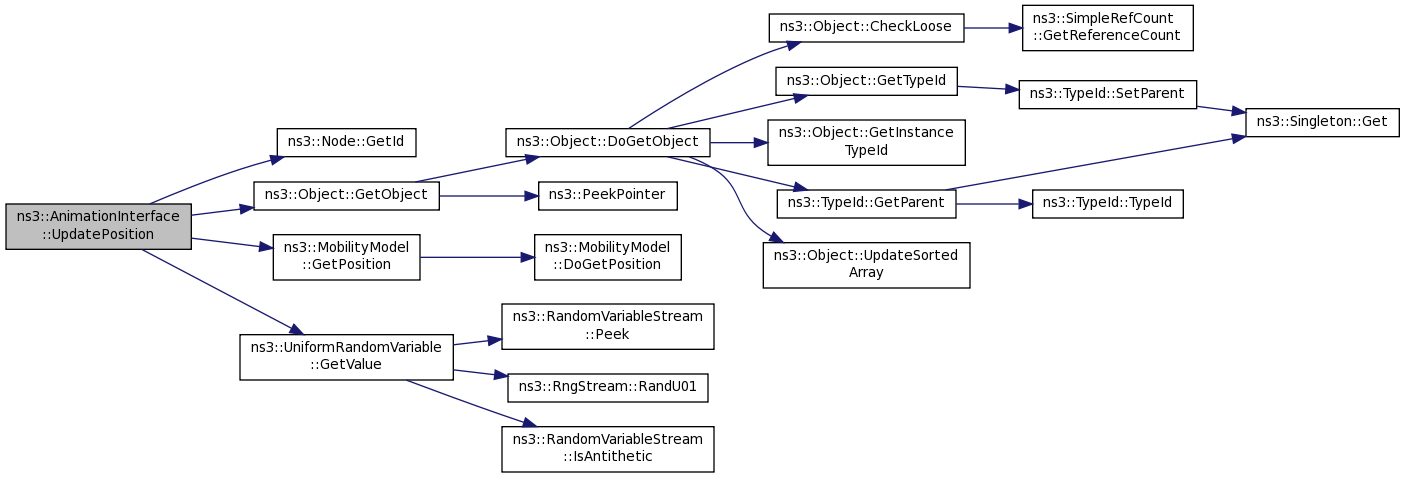

Vector	UpdatePosition (Ptr< Node > n)

Vector	UpdatePosition (Ptr< Node > n, Vector v)

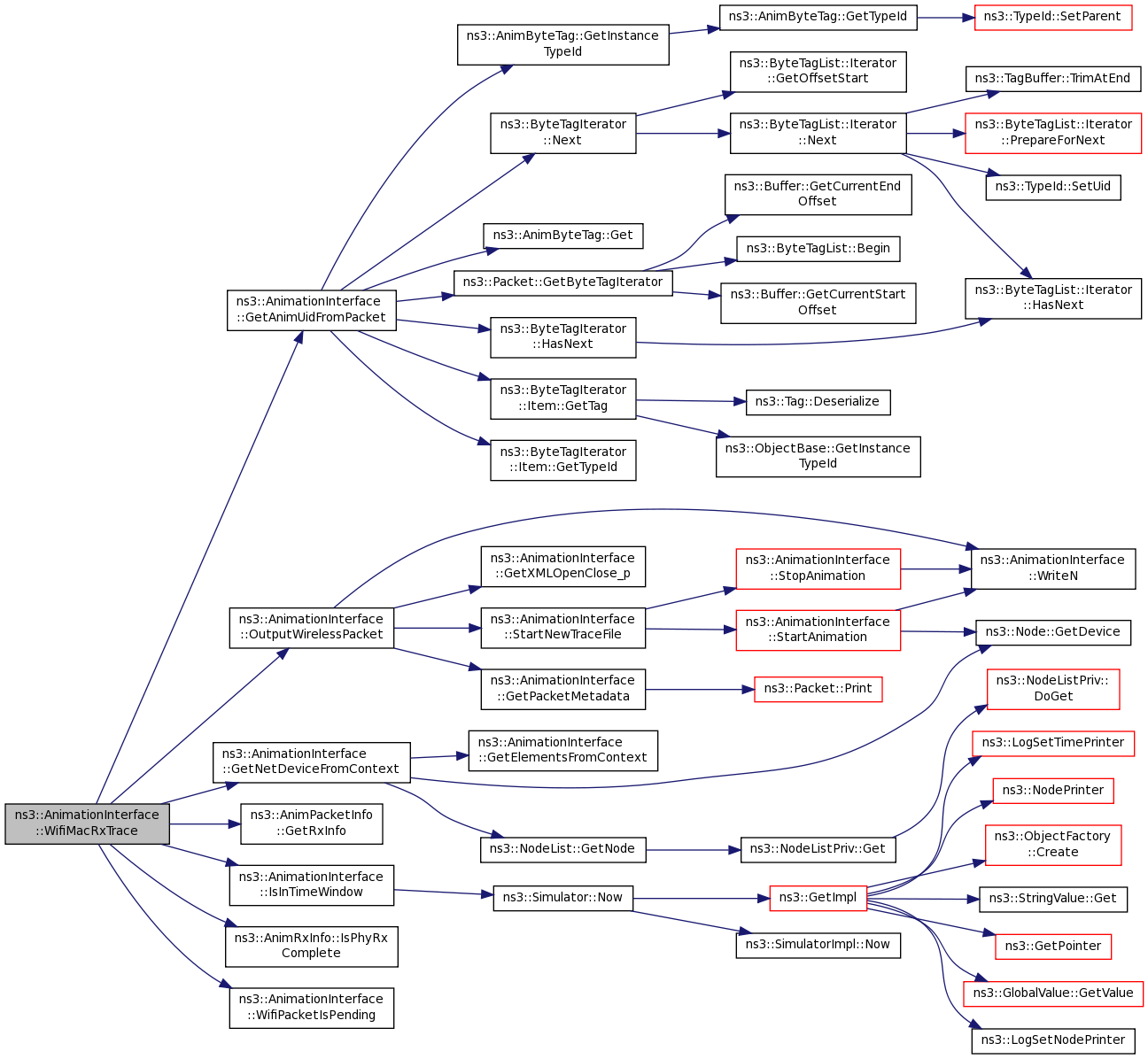

void	WifiMacRxTrace (std::string context, Ptr< const Packet > p)

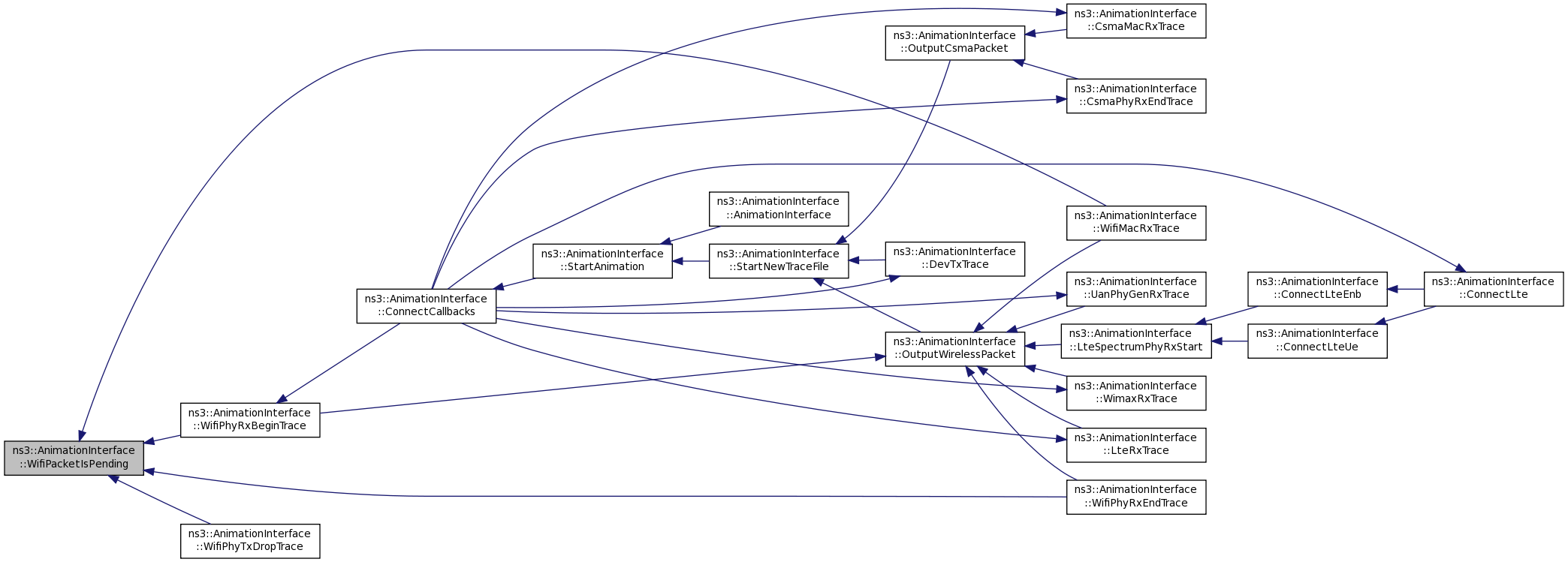

bool	WifiPacketIsPending (uint64_t AnimUid)

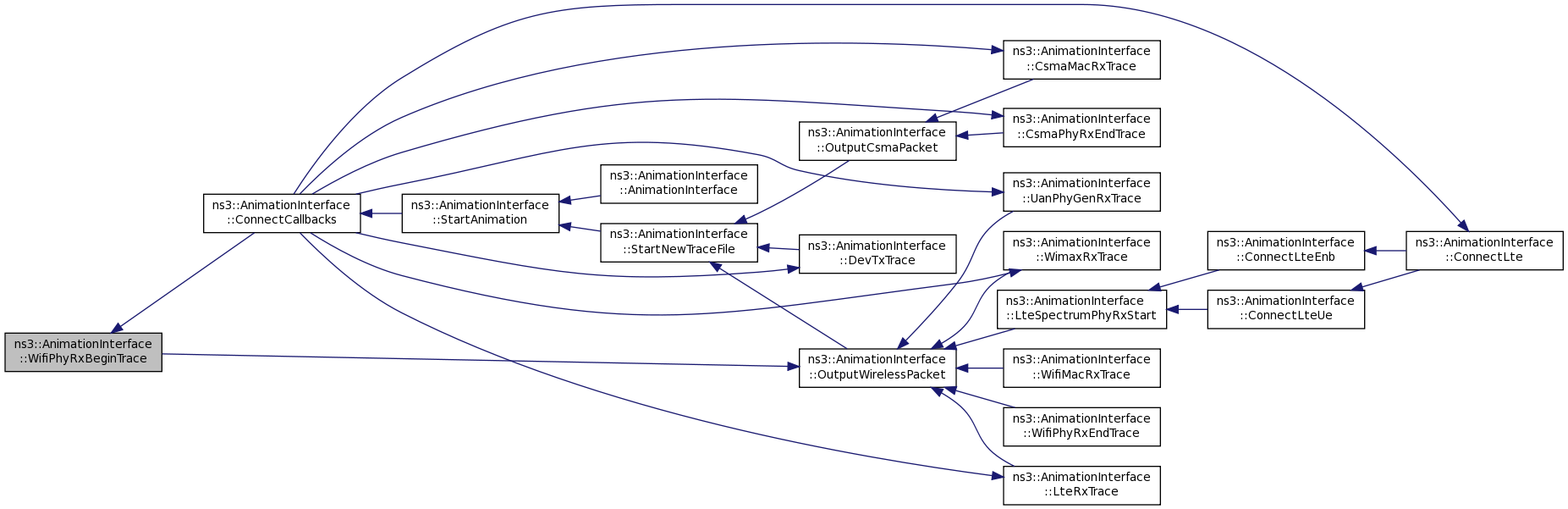

void	WifiPhyRxBeginTrace (std::string context, Ptr< const Packet > p)

void	WifiPhyRxDropTrace (std::string context, Ptr< const Packet > p)

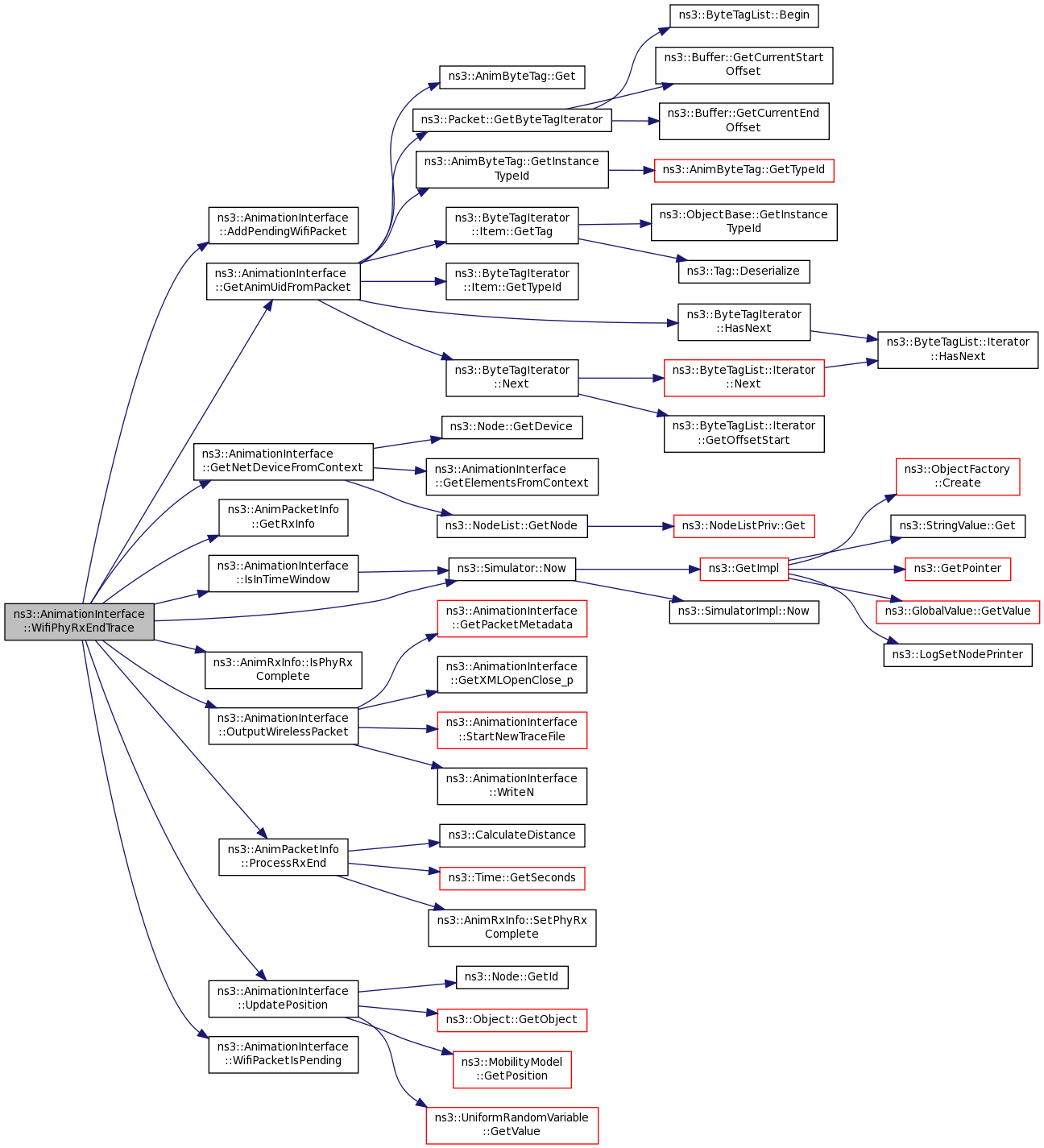

void	WifiPhyRxEndTrace (std::string context, Ptr< const Packet > p)

void	WifiPhyTxBeginTrace (std::string context, Ptr< const Packet > p)

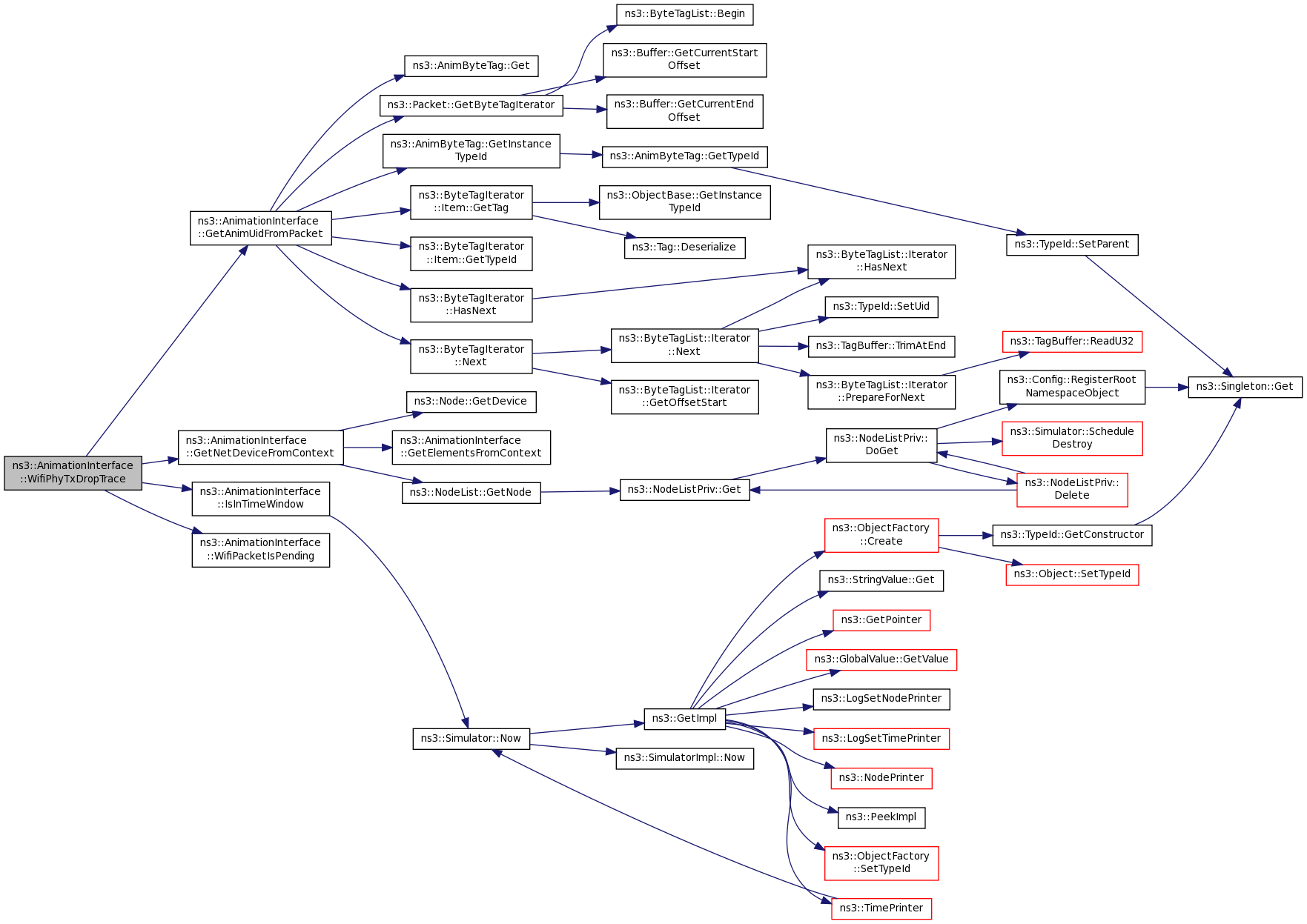

void	WifiPhyTxDropTrace (std::string context, Ptr< const Packet > p)

void	WifiPhyTxEndTrace (std::string context, Ptr< const Packet > p)

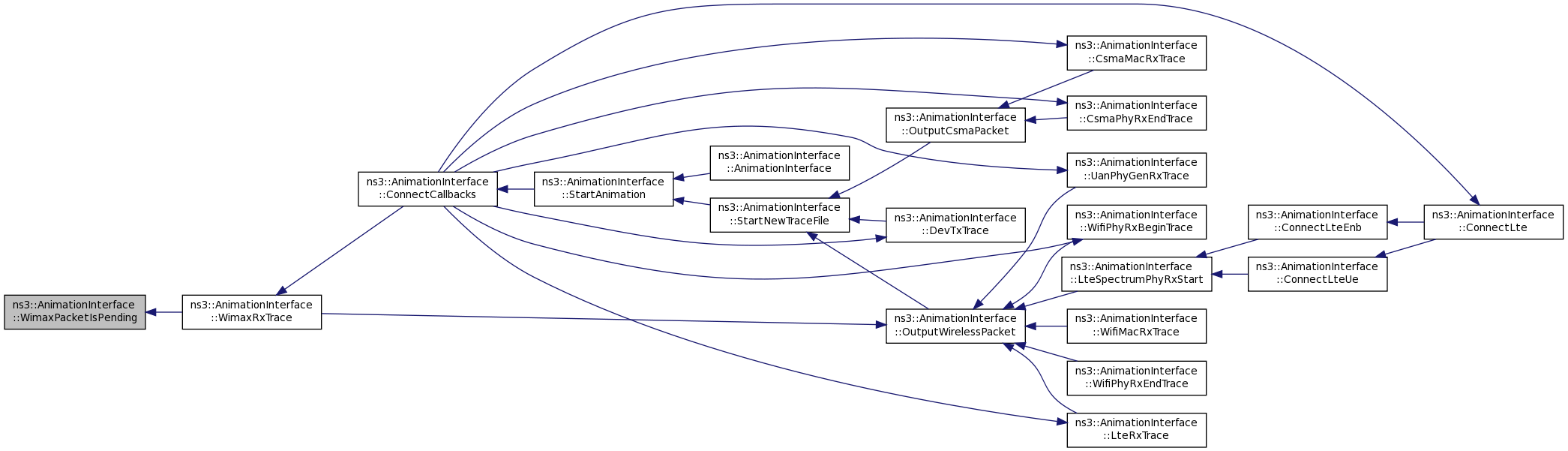

bool	WimaxPacketIsPending (uint64_t AnimUid)

void	WimaxRxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)

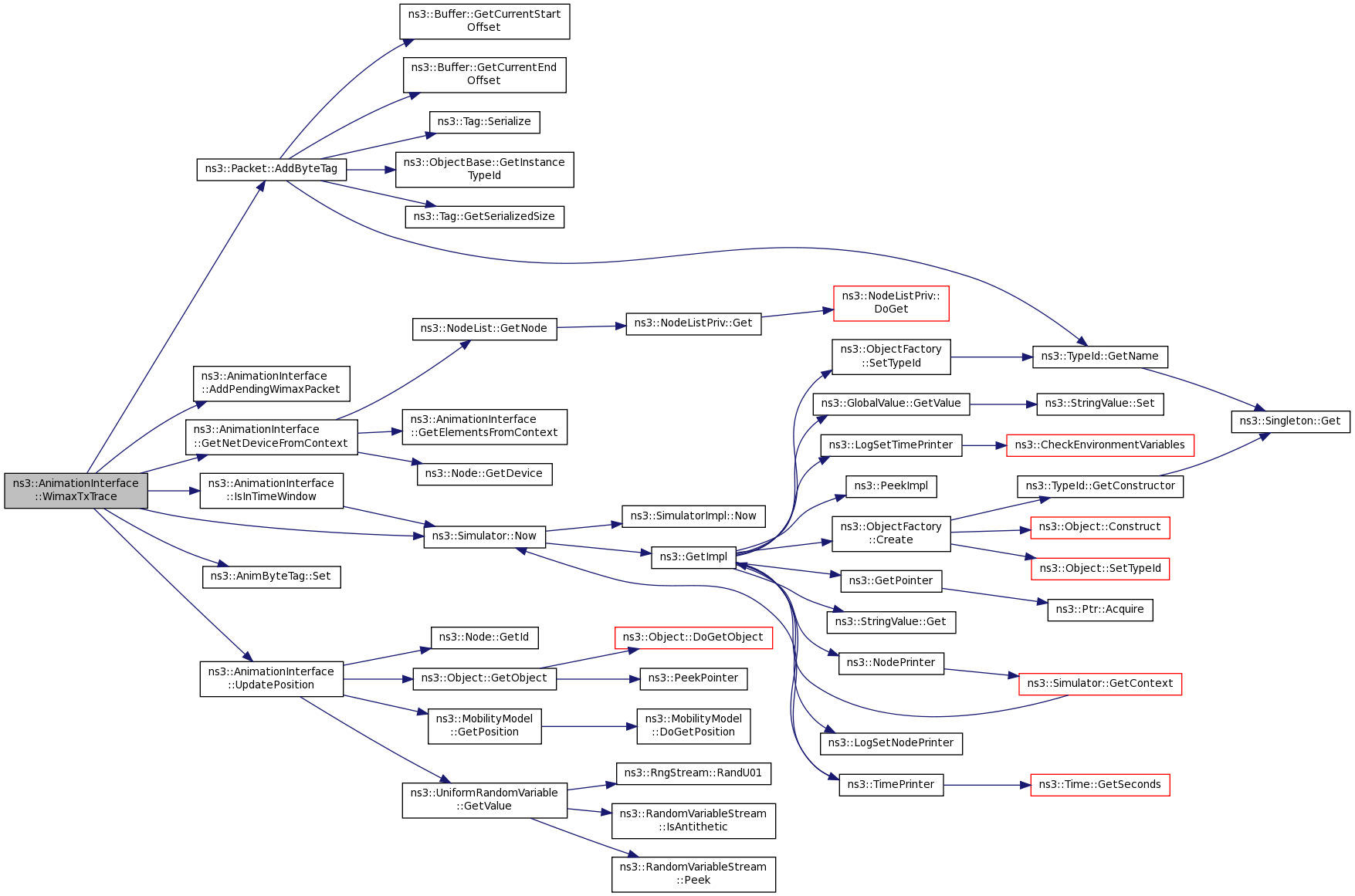

void	WimaxTxTrace (std::string context, Ptr< const Packet > p, const Mac48Address &)

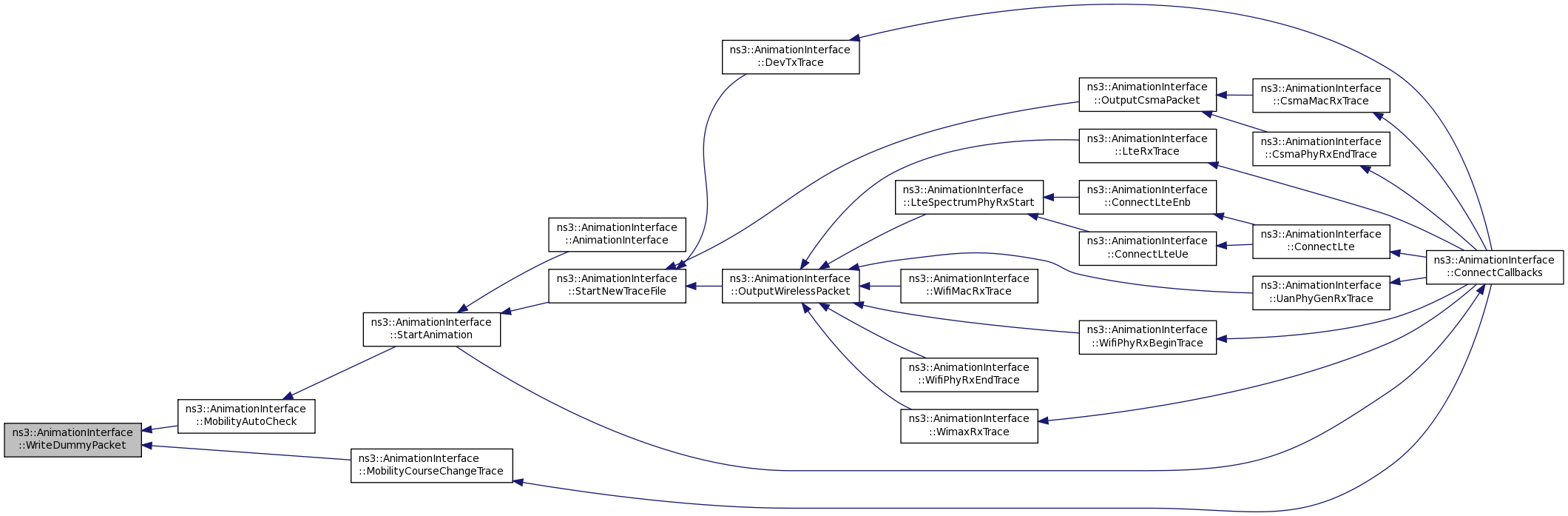

void	WriteDummyPacket ()

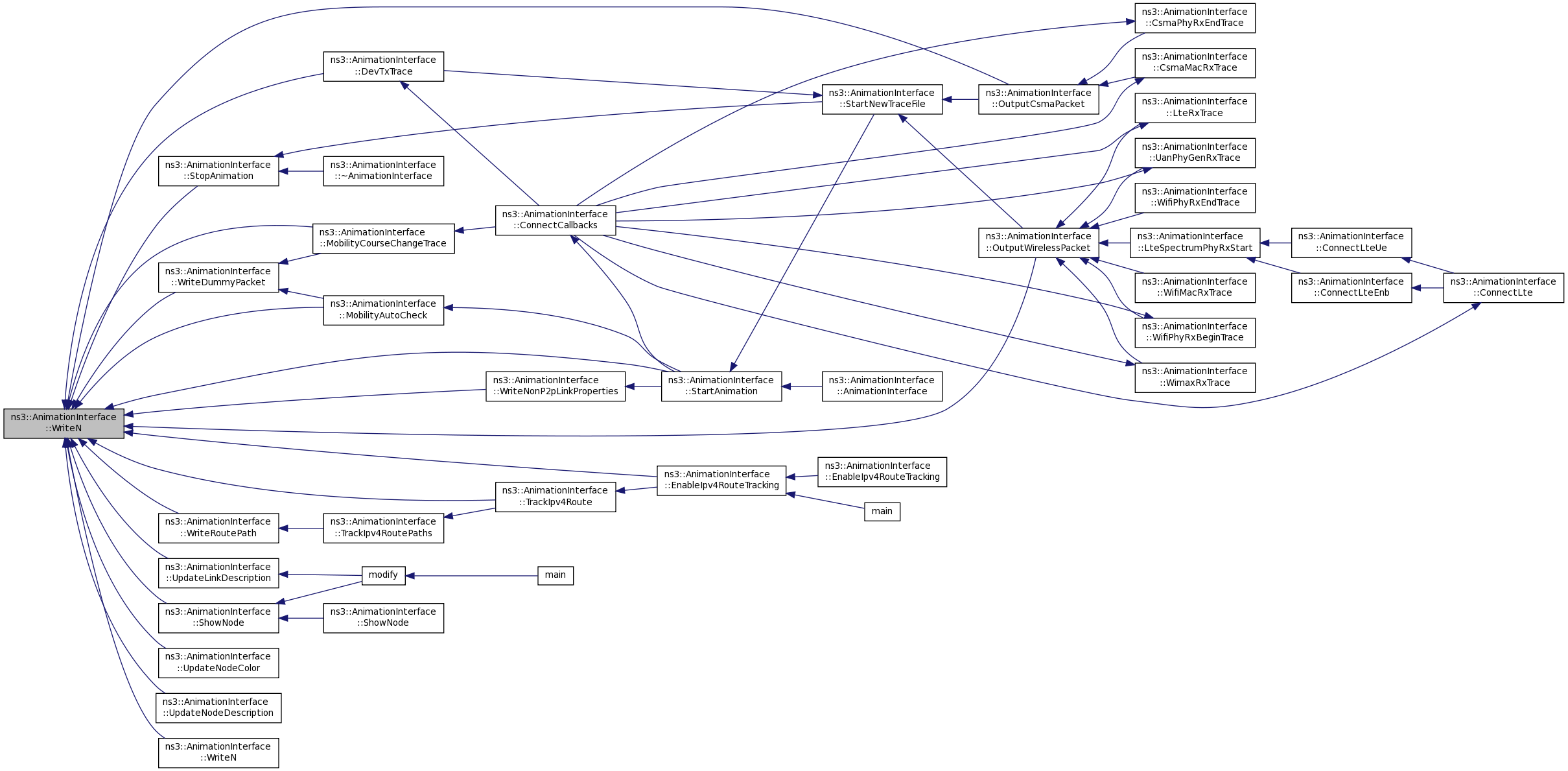

int	WriteN (const char , uint32_t, FILE f)

int	WriteN (const std::string &, FILE *f)

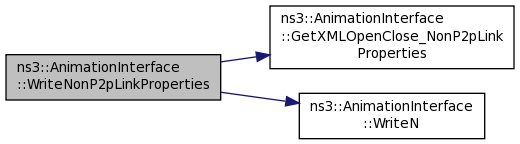

void	WriteNonP2pLinkProperties (uint32_t id, std::string ipv4Address, std::string channelType)

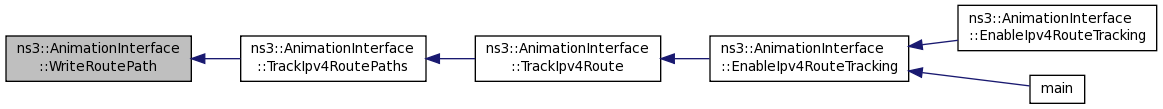

void	WriteRoutePath (uint32_t nodeId, std::string destination, Ipv4RoutePathElements rpElements)

Private Attributes
uint64_t	gAnimUid

uint64_t	m_currentPktCount

bool	m_enablePacketMetadata

FILE *	m_f

std::vector < Ipv4RouteTrackElement >	m_ipv4RouteTrackElements

std::map< std::string, uint32_t >	m_ipv4ToNodeIdMap

std::map< std::string, uint32_t >	m_macToNodeIdMap

uint64_t	m_maxPktsPerFile

Time	m_mobilityPollInterval

std::map< uint32_t, Vector >	m_nodeLocation

std::string	m_originalFileName

std::string	m_outputFileName

bool	m_outputFileSet

std::map< uint64_t, AnimPacketInfo >	m_pendingCsmaPackets

std::map< uint64_t, AnimPacketInfo >	m_pendingLtePackets

std::map< uint64_t, AnimPacketInfo >	m_pendingUanPackets

std::map< uint64_t, AnimPacketInfo >	m_pendingWifiPackets

std::map< uint64_t, AnimPacketInfo >	m_pendingWimaxPackets

bool	m_randomPosition

FILE *	m_routingF

std::string	m_routingFileName

NodeContainer	m_routingNc

Time	m_routingPollInterval

Time	m_routingStopTime

bool	m_started

Time	m_startTime

Time	m_stopTime

double	m_topoMaxX

double	m_topoMaxY

double	m_topoMinX

double	m_topoMinY

Ptr< UniformRandomVariable >	m_uniformRandomVariable
	Provides uniform random variables. More...

AnimWriteCallback	m_writeCallback

bool	m_xml

Static Private Attributes
static std::map < P2pLinkNodeIdPair, LinkProperties, LinkPairCompare >	linkProperties

static std::map< uint32_t, Rgb >	nodeColors

static std::map< uint32_t, std::string >	nodeDescriptions

static Rectangle *	userBoundary = 0

Detailed Description

Interface to network animator.

Provides functions that facilitate communications with an external or internal network animator.

Definition at line 105 of file animation-interface.h.

Member Typedef Documentation

typedef void(* ns3::AnimationInterface::AnimWriteCallback)(const char *str)

typedef for WriteCallBack used for listening to AnimationInterface write messages

Definition at line 205 of file animation-interface.h.

typedef std::vector<Ipv4RoutePathElement> ns3::AnimationInterface::Ipv4RoutePathElements

private

Definition at line 603 of file animation-interface.h.

Constructor & Destructor Documentation

ns3::AnimationInterface::AnimationInterface	(	const std::string	filename,
		uint64_t	maxPktsPerFile = `MAX_PKTS_PER_TRACE_FILE`,
		bool	usingXML = `true`
	)

Constructor.

Parameters

filename	The Filename for the trace file used by the Animator
maxPktsPerFile	The maximum number of packets per trace file. AnimationInterface will create trace files with the following filenames : filename, filename-1, filename-2..., filename-N where each file contains packet info for 'maxPktPerFile' number of packets
usingXML	Set to true if XML output traces are required

Definition at line 65 of file animation-interface.cc.

References ns3::initialized, m_uniformRandomVariable, and StartAnimation().

Here is the call graph for this function:

ns3::AnimationInterface::~AnimationInterface ( )

Destructor for the animator interface.

Definition at line 80 of file animation-interface.cc.

References StopAnimation(), and userBoundary.

Here is the call graph for this function:

Member Function Documentation

void ns3::AnimationInterface::AddPendingCsmaPacket	(	uint64_t	AnimUid,
		AnimPacketInfo &	pktinfo
	)

private

Definition at line 1055 of file animation-interface.cc.

References m_pendingCsmaPackets, ns3::AnimPacketInfo::m_txnd, and NS_ASSERT.

Referenced by CsmaPhyTxBeginTrace(), and CsmaPhyTxEndTrace().

Here is the caller graph for this function:

void ns3::AnimationInterface::AddPendingLtePacket	(	uint64_t	AnimUid,
		AnimPacketInfo &	pktinfo
	)

private

Definition at line 1049 of file animation-interface.cc.

References m_pendingLtePackets, ns3::AnimPacketInfo::m_txnd, and NS_ASSERT.

Referenced by LteSpectrumPhyTxStart(), and LteTxTrace().

Here is the caller graph for this function:

void ns3::AnimationInterface::AddPendingUanPacket	(	uint64_t	AnimUid,
		AnimPacketInfo &	pktinfo
	)

private

Definition at line 1032 of file animation-interface.cc.

References m_pendingUanPackets.

Referenced by UanPhyGenTxTrace().

Here is the caller graph for this function:

void ns3::AnimationInterface::AddPendingWifiPacket	(	uint64_t	AnimUid,
		AnimPacketInfo &	pktinfo
	)

private

Definition at line 1038 of file animation-interface.cc.

References m_pendingWifiPackets.

Referenced by WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), and WifiPhyTxBeginTrace().

Here is the caller graph for this function:

void ns3::AnimationInterface::AddPendingWimaxPacket	(	uint64_t	AnimUid,
		AnimPacketInfo &	pktinfo
	)

private

Definition at line 1043 of file animation-interface.cc.

References m_pendingWimaxPackets, ns3::AnimPacketInfo::m_txnd, and NS_ASSERT.

Referenced by WimaxTxTrace().

Here is the caller graph for this function:

AnimationInterface & ns3::AnimationInterface::AddSourceDestination	(	uint32_t	fromNodeId,
		std::string	destinationIpv4Address
	)

Helper function to print the routing path from a source node to destination IP.

Parameters

fromNodeId	The source node
destinationIpv4Address	The destination Ipv4 Address

Returns: reference to this AnimationInterface object

Definition at line 737 of file animation-interface.cc.

References m_ipv4RouteTrackElements.

void ns3::AnimationInterface::AddToIpv4AddressNodeIdTable	(	std::string	ipv4Address,
		uint32_t	nodeId
	)

private

Definition at line 732 of file animation-interface.cc.

References m_ipv4ToNodeIdMap.

Referenced by StartAnimation().

Here is the caller graph for this function:

int64_t ns3::AnimationInterface::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 1593 of file animation-interface.cc.

References m_uniformRandomVariable, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

void ns3::AnimationInterface::ConnectCallbacks ( )

private

Definition at line 816 of file animation-interface.cc.

References ns3::Config::Connect(), ConnectLte(), ns3::Config::ConnectWithoutContext(), CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), DevTxTrace(), LteRxTrace(), LteTxTrace(), ns3::MakeCallback(), MobilityCourseChangeTrace(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiPhyRxBeginTrace(), WifiPhyTxBeginTrace(), WimaxRxTrace(), and WimaxTxTrace().

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ConnectLte ( )

private

Definition at line 789 of file animation-interface.cc.

References ns3::NodeList::Begin(), ConnectLteEnb(), ConnectLteUe(), ns3::NodeList::End(), ns3::Node::GetDevice(), ns3::Node::GetNDevices(), and NS_ASSERT.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ConnectLteEnb	(	Ptr< Node >	n,
		Ptr< LteEnbNetDevice >	nd,
		uint32_t	devIndex
	)

private

Definition at line 745 of file animation-interface.cc.

References ns3::Node::GetId(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), and ns3::MakeCallback().

Referenced by ConnectLte().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ConnectLteUe	(	Ptr< Node >	n,
		Ptr< LteUeNetDevice >	nd,
		uint32_t	devIndex
	)

private

Definition at line 768 of file animation-interface.cc.

References ns3::Node::GetId(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), and ns3::MakeCallback().

Referenced by ConnectLte().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaMacRxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Todo:: NS_ASSERT (CsmaPacketIsPending (AnimUid) == true);

Definition at line 1485 of file animation-interface.cc.

References CsmaPacketIsPending(), GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), ns3::AnimRxInfo::IsPhyRxComplete(), m_pendingCsmaPackets, m_started, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_WARN, and OutputCsmaPacket().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::AnimationInterface::CsmaPacketIsPending ( uint64_t AnimUid )

private

Definition at line 412 of file animation-interface.cc.

References m_pendingCsmaPackets.

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), and CsmaPhyTxEndTrace().

Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaPhyRxEndTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Todo:: NS_ASSERT (CsmaPacketIsPending (AnimUid) == true);

Definition at line 1457 of file animation-interface.cc.

References CsmaPacketIsPending(), GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), ns3::AnimRxInfo::IsPhyRxComplete(), m_pendingCsmaPackets, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputCsmaPacket(), ns3::AnimPacketInfo::ProcessRxEnd(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaPhyTxBeginTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 1417 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), AddPendingCsmaPacket(), gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, ns3::AnimByteTag::Set(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::CsmaPhyTxEndTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Todo:: NS_ASSERT (CsmaPacketIsPending (AnimUid) == true);

Definition at line 1435 of file animation-interface.cc.

References AddPendingCsmaPacket(), CsmaPacketIsPending(), GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::Time::GetSeconds(), IsInTimeWindow(), ns3::AnimPacketInfo::m_lbTx, m_pendingCsmaPackets, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::DevTxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		Ptr< NetDevice >	tx,
		Ptr< NetDevice >	rx,
		Time	txTime,
		Time	rxTime
	)

private

Definition at line 984 of file animation-interface.cc.

References GetPacketMetadata(), ns3::Time::GetSeconds(), GetXMLOpenClose_p(), IsInTimeWindow(), m_currentPktCount, m_enablePacketMetadata, m_f, m_started, m_xml, ns3::Simulator::Now(), NS_ASSERT, StartNewTraceFile(), and WriteN().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

AnimationInterface & ns3::AnimationInterface::EnableIpv4RouteTracking	(	std::string	fileName,
		Time	startTime,
		Time	stopTime,
		Time	pollInterval = `Seconds(5)`
	)

Enable tracking of the Ipv4 routing table for all Nodes.

Parameters

fileName	Trace file for storing routing table information
startTime	Start time for capture
stopTime	End time for capture
pollInterval	The periodic interval at which routing table information is polled Default: 5s

Returns: reference to this AnimationInterface object

Definition at line 89 of file animation-interface.cc.

References GetXMLOpen_anim(), m_routingF, m_routingFileName, m_routingPollInterval, m_routingStopTime, ns3::Simulator::Schedule(), SetRoutingOutputFile(), stopTime, TrackIpv4Route(), and WriteN().

Referenced by EnableIpv4RouteTracking(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

AnimationInterface & ns3::AnimationInterface::EnableIpv4RouteTracking	(	std::string	fileName,
		Time	startTime,
		Time	stopTime,
		NodeContainer	nc,
		Time	pollInterval = `Seconds(5)`
	)

Enable tracking of the Ipv4 routing table for a set of Nodes.

Parameters

fileName	Trace file for storing routing table information
startTime	Start time for capture
stopTime	End time for capture
nc	A NodeContainer containing nodes for which Routing table has to be tracked
pollInterval	The periodic interval at which routing table information is polled Default: 5s

Returns: reference to this AnimationInterface object

Definition at line 100 of file animation-interface.cc.

References EnableIpv4RouteTracking(), and m_routingNc.

Here is the call graph for this function:

void ns3::AnimationInterface::EnablePacketMetadata ( bool enable )

Enable Packet metadata.

Parameters

enable if true enables writing the packet metadata to the XML trace file if false disables writing the packet metadata

Definition at line 365 of file animation-interface.cc.

References ns3::Packet::EnablePrinting(), and m_enablePacketMetadata.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

uint64_t ns3::AnimationInterface::GetAnimUidFromPacket ( Ptr< const Packet > p )

private

Definition at line 1061 of file animation-interface.cc.

References ns3::AnimByteTag::Get(), ns3::Packet::GetByteTagIterator(), ns3::AnimByteTag::GetInstanceTypeId(), ns3::ByteTagIterator::Item::GetTag(), ns3::ByteTagIterator::Item::GetTypeId(), ns3::ByteTagIterator::HasNext(), and ns3::ByteTagIterator::Next().

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxEndTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), UanPhyGenRxTrace(), WifiMacRxTrace(), WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), WifiPhyTxDropTrace(), and WimaxRxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

std::vector< std::string > ns3::AnimationInterface::GetElementsFromContext ( std::string context )

private

Definition at line 2108 of file animation-interface.cc.

Referenced by GetNetDeviceFromContext().

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetIpv4Address ( Ptr< NetDevice > nd )

private

Definition at line 595 of file animation-interface.cc.

References ns3::Ipv4InterfaceAddress::GetLocal(), ns3::NodeList::GetNode(), and NS_LOG_WARN.

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetIpv4RoutingTable ( Ptr< Node > n )

private

Definition at line 106 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::Object::GetObject(), ns3::Ipv4::GetRoutingProtocol(), NS_ASSERT, and NS_LOG_WARN.

Referenced by TrackIpv4Route().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetMacAddress ( Ptr< NetDevice > nd )

private

Definition at line 587 of file animation-interface.cc.

Referenced by StartAnimation().

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetNetAnimVersion ( )

private

Definition at line 316 of file animation-interface.cc.

Referenced by GetXMLOpen_anim().

Here is the caller graph for this function:

Ptr< NetDevice > ns3::AnimationInterface::GetNetDeviceFromContext ( std::string context )

private

Definition at line 1020 of file animation-interface.cc.

References ns3::Node::GetDevice(), GetElementsFromContext(), ns3::NodeList::GetNode(), and NS_ASSERT.

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiMacRxTrace(), WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), WifiPhyTxBeginTrace(), WifiPhyTxDropTrace(), WimaxRxTrace(), and WimaxTxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetPacketMetadata ( Ptr< const Packet > p )

private

Definition at line 1580 of file animation-interface.cc.

References ns3::Packet::Print().

Referenced by DevTxTrace(), OutputCsmaPacket(), and OutputWirelessPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

Vector ns3::AnimationInterface::GetPosition ( Ptr< Node > n )

private

Definition at line 468 of file animation-interface.cc.

References ns3::Node::GetId(), m_nodeLocation, and NS_FATAL_ERROR.

Referenced by MobilityAutoCheck(), MobilityCourseChangeTrace(), NodeHasMoved(), RecalcTopoBounds(), and StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetPreamble ( void )

private

Definition at line 1604 of file animation-interface.cc.

References s.

Referenced by StartAnimation().

Here is the caller graph for this function:

uint64_t ns3::AnimationInterface::GetTracePktCount ( )

Get trace file packet count (This used only for testing)

returns Number of packets recorded in the current trace file

Definition at line 1587 of file animation-interface.cc.

References m_currentPktCount.

std::string ns3::AnimationInterface::GetXMLClose ( std::string name )

inlineprivate

Definition at line 648 of file animation-interface.h.

Referenced by MobilityAutoCheck(), MobilityCourseChangeTrace(), StartAnimation(), and StopAnimation().

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpen_anim ( uint32_t lp )

private

Definition at line 1871 of file animation-interface.cc.

References GetNetAnimVersion().

Referenced by EnableIpv4RouteTracking(), and StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpen_packet	(	uint32_t	fromLp,
		uint32_t	fromId,
		double	fbTx,
		double	lbTx,
		std::string	auxInfo = `""`
	)

private

Definition at line 2002 of file animation-interface.cc.

std::string ns3::AnimationInterface::GetXMLOpen_topology	(	double	minX,
		double	minY,
		double	maxX,
		double	maxY
	)

private

Definition at line 1877 of file animation-interface.cc.

References userBoundary, ns3::Rectangle::xMax, ns3::Rectangle::xMin, ns3::Rectangle::yMax, and ns3::Rectangle::yMin.

Referenced by MobilityAutoCheck(), MobilityCourseChangeTrace(), and StartAnimation().

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpen_wpacket	(	uint32_t	fromLp,
		uint32_t	fromId,
		double	fbTx,
		double	lbTx,
		double	range
	)

private

Definition at line 2064 of file animation-interface.cc.

std::string ns3::AnimationInterface::GetXMLOpenClose_link	(	uint32_t	fromLp,
		uint32_t	fromId,
		uint32_t	toLp,
		uint32_t	toId
	)

private

Definition at line 1971 of file animation-interface.cc.

References ns3::LinkProperties::fromNodeDescription, ns3::LinkProperties::linkDescription, linkProperties, and ns3::LinkProperties::toNodeDescription.

Referenced by StartAnimation().

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_linkupdate	(	uint32_t	fromId,
		uint32_t	toId,
		std::string	linkDescription
	)

private

Definition at line 1957 of file animation-interface.cc.

References ns3::Time::GetSeconds(), and ns3::Simulator::Now().

Referenced by UpdateLinkDescription().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_meta ( std::string metaInfo )

private

Definition at line 2087 of file animation-interface.cc.

std::string ns3::AnimationInterface::GetXMLOpenClose_node	(	uint32_t	lp,
		uint32_t	id,
		double	locX,
		double	locY
	)

private

Definition at line 1921 of file animation-interface.cc.

References nodeDescriptions.

Referenced by MobilityAutoCheck(), MobilityCourseChangeTrace(), and StartAnimation().

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_node	(	uint32_t	lp,
		uint32_t	id,
		double	locX,
		double	locY,
		struct Rgb	rgb
	)

private

Definition at line 1937 of file animation-interface.cc.

References ns3::Rgb::b, ns3::Rgb::g, nodeDescriptions, and ns3::Rgb::r.

std::string ns3::AnimationInterface::GetXMLOpenClose_nodeupdate	(	uint32_t	id,
		bool	visible = `true`
	)

private

Definition at line 1894 of file animation-interface.cc.

References ns3::Rgb::b, ns3::Rgb::g, ns3::Time::GetSeconds(), nodeColors, nodeDescriptions, ns3::Simulator::Now(), and ns3::Rgb::r.

Referenced by ShowNode(), UpdateNodeColor(), and UpdateNodeDescription().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_NonP2pLinkProperties	(	uint32_t	id,
		std::string	ipv4Address,
		std::string	channelType
	)

private

Definition at line 2096 of file animation-interface.cc.

Referenced by WriteNonP2pLinkProperties().

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_p	(	std::string	pktType,
		uint32_t	fId,
		double	fbTx,
		double	lbTx,
		uint32_t	tId,
		double	fbRx,
		double	lbRx,
		std::string	metaInfo = `""`,
		std::string	auxInfo = `""`
	)

private

Definition at line 2041 of file animation-interface.cc.

Referenced by DevTxTrace(), OutputCsmaPacket(), OutputWirelessPacket(), and WriteDummyPacket().

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_routing	(	uint32_t	id,
		std::string	routingInfo
	)

private

Definition at line 2013 of file animation-interface.cc.

References ns3::Time::GetSeconds(), and ns3::Simulator::Now().

Referenced by TrackIpv4Route().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_rp	(	uint32_t	nodeId,
		std::string	destination,
		Ipv4RoutePathElements	rpElements
	)

private

Definition at line 2023 of file animation-interface.cc.

References ns3::Time::GetSeconds(), ns3::Ipv4RoutePathElement::nextHop, ns3::Ipv4RoutePathElement::nodeId, and ns3::Simulator::Now().

Referenced by WriteRoutePath().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::AnimationInterface::GetXMLOpenClose_rx	(	uint32_t	toLp,
		uint32_t	toId,
		double	fbRx,
		double	lbRx
	)

private

Definition at line 2076 of file animation-interface.cc.

bool ns3::AnimationInterface::IsInitialized ( void )

static

Check if AnimationInterface is initialized.

Returns: true if AnimationInterface was already initialized

Definition at line 372 of file animation-interface.cc.

References ns3::initialized.

bool ns3::AnimationInterface::IsInTimeWindow ( )

private

Definition at line 393 of file animation-interface.cc.

References m_startTime, m_stopTime, and ns3::Simulator::Now().

Referenced by CsmaMacRxTrace(), CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), DevTxTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), MobilityAutoCheck(), MobilityCourseChangeTrace(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiMacRxTrace(), WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), WifiPhyTxBeginTrace(), WifiPhyTxDropTrace(), WimaxRxTrace(), and WimaxTxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::AnimationInterface::IsStarted ( void )

Is AnimationInterface started.

Returns: true if AnimationInterface was started

Definition at line 377 of file animation-interface.cc.

References m_started.

bool ns3::AnimationInterface::LtePacketIsPending ( uint64_t AnimUid )

private

Definition at line 423 of file animation-interface.cc.

References m_pendingLtePackets.

Referenced by LteRxTrace(), and LteSpectrumPhyRxStart().

Here is the caller graph for this function:

void ns3::AnimationInterface::LteRxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		const Mac48Address &	m
	)

private

Todo:: 0.001 is used until Lte implements RxBegin and RxEnd traces

Definition at line 1325 of file animation-interface.cc.

References gAnimUid, GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), LtePacketIsPending(), m_pendingLtePackets, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacket(), ns3::AnimPacketInfo::ProcessRxBegin(), ns3::AnimPacketInfo::ProcessRxEnd(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::LteSpectrumPhyRxStart	(	std::string	context,
		Ptr< const PacketBurst >	pb
	)

private

Todo:: 0.001 is used until Lte implements RxBegin and RxEnd traces

Definition at line 1380 of file animation-interface.cc.

References gAnimUid, GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), list, LtePacketIsPending(), m_pendingLtePackets, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacket(), ns3::AnimPacketInfo::ProcessRxBegin(), ns3::AnimPacketInfo::ProcessRxEnd(), and UpdatePosition().

Referenced by ConnectLteEnb(), and ConnectLteUe().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::LteSpectrumPhyTxStart	(	std::string	context,
		Ptr< const PacketBurst >	pb
	)

private

Todo:: 0.0001 is used until Lte implements TxBegin and TxEnd traces

Definition at line 1348 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), AddPendingLtePacket(), gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), list, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, ns3::AnimByteTag::Set(), and UpdatePosition().

Referenced by ConnectLteEnb(), and ConnectLteUe().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::LteTxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		const Mac48Address &	m
	)

private

Todo:: 0.0001 is used until Lte implements TxBegin and TxEnd traces

Definition at line 1306 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), AddPendingLtePacket(), gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, ns3::AnimByteTag::Set(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::MobilityAutoCheck ( )

private

Definition at line 1553 of file animation-interface.cc.

References ns3::Node::GetId(), GetPosition(), GetXMLClose(), GetXMLOpen_topology(), GetXMLOpenClose_node(), ns3::Simulator::IsFinished(), IsInTimeWindow(), m_f, m_mobilityPollInterval, m_started, m_topoMaxX, m_topoMaxY, m_topoMinX, m_topoMinY, NS_ASSERT, PurgePendingCsma(), PurgePendingLte(), PurgePendingWifi(), PurgePendingWimax(), RecalcTopoBounds(), ns3::Simulator::Schedule(), WriteDummyPacket(), WriteN(), ns3::Vector3D::x, and ns3::Vector3D::y.

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::MobilityCourseChangeTrace ( Ptr< const MobilityModel > mob )

private

Definition at line 1512 of file animation-interface.cc.

References ns3::Node::GetId(), GetPosition(), GetXMLClose(), GetXMLOpen_topology(), GetXMLOpenClose_node(), IsInTimeWindow(), m_f, m_started, m_topoMaxX, m_topoMaxY, m_topoMinX, m_topoMinY, nodeColors, NS_ASSERT, RecalcTopoBounds(), UpdatePosition(), WriteDummyPacket(), WriteN(), ns3::Vector3D::x, and ns3::Vector3D::y.

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::AnimationInterface::NodeHasMoved	(	Ptr< Node >	n,
		Vector	newLocation
	)

private

Definition at line 1538 of file animation-interface.cc.

References GetPosition(), ns3::Vector3D::x, and ns3::Vector3D::y.

Referenced by RecalcTopoBounds().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::OutputCsmaPacket	(	Ptr< const Packet >	p,
		AnimPacketInfo &	pktInfo,
		AnimRxInfo	pktrxInfo
	)

private

Definition at line 1680 of file animation-interface.cc.

References GetPacketMetadata(), GetXMLOpenClose_p(), m_enablePacketMetadata, m_f, ns3::AnimRxInfo::m_fbRx, ns3::AnimPacketInfo::m_fbTx, ns3::AnimRxInfo::m_lbRx, ns3::AnimPacketInfo::m_lbTx, ns3::AnimRxInfo::m_rxnd, ns3::AnimPacketInfo::m_txnd, m_xml, NS_ASSERT, StartNewTraceFile(), and WriteN().

Referenced by CsmaMacRxTrace(), and CsmaPhyRxEndTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::OutputWirelessPacket	(	Ptr< const Packet >	p,
		AnimPacketInfo &	pktInfo,
		AnimRxInfo	pktrxInfo
	)

private

Definition at line 1661 of file animation-interface.cc.

References ns3::AnimPacketInfo::firstlastbitDelta, GetPacketMetadata(), GetXMLOpenClose_p(), m_enablePacketMetadata, m_f, ns3::AnimRxInfo::m_fbRx, ns3::AnimPacketInfo::m_fbTx, ns3::AnimRxInfo::m_lbRx, ns3::AnimRxInfo::m_rxnd, ns3::AnimPacketInfo::m_txnd, ns3::AnimPacketInfo::m_txNodeId, m_xml, NS_ASSERT, StartNewTraceFile(), and WriteN().

Referenced by LteRxTrace(), LteSpectrumPhyRxStart(), UanPhyGenRxTrace(), WifiMacRxTrace(), WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), and WimaxRxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::PurgePendingCsma ( )

private

Definition at line 560 of file animation-interface.cc.

References ns3::Time::GetSeconds(), ns3::AnimPacketInfo::m_fbTx, m_pendingCsmaPackets, ns3::Simulator::Now(), and PURGE_INTERVAL.

Referenced by MobilityAutoCheck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::PurgePendingLte ( )

private

Definition at line 534 of file animation-interface.cc.

References ns3::Time::GetSeconds(), ns3::AnimPacketInfo::m_fbTx, m_pendingLtePackets, ns3::Simulator::Now(), and PURGE_INTERVAL.

Referenced by MobilityAutoCheck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::PurgePendingWifi ( )

private

Definition at line 479 of file animation-interface.cc.

References ns3::Time::GetSeconds(), ns3::AnimPacketInfo::m_fbTx, m_pendingWifiPackets, ns3::Simulator::Now(), and PURGE_INTERVAL.

Referenced by MobilityAutoCheck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::PurgePendingWimax ( )

private

Definition at line 506 of file animation-interface.cc.

References ns3::Time::GetSeconds(), ns3::AnimPacketInfo::m_fbTx, m_pendingWimaxPackets, ns3::Simulator::Now(), and PURGE_INTERVAL.

Referenced by MobilityAutoCheck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::RecalcTopoBounds ( Vector v )

private

Definition at line 918 of file animation-interface.cc.

References m_topoMaxX, m_topoMaxY, m_topoMinX, m_topoMinY, ns3::Vector3D::x, and ns3::Vector3D::y.

std::vector< Ptr< Node > > ns3::AnimationInterface::RecalcTopoBounds ( )

private

Definition at line 887 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Object::GetObject(), ns3::MobilityModel::GetPosition(), GetPosition(), NodeHasMoved(), NS_ASSERT, and UpdatePosition().

Referenced by MobilityAutoCheck(), and MobilityCourseChangeTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::RecursiveIpv4RoutePathSearch	(	std::string	fromIpv4,
		std::string	toIpv4,
		Ipv4RoutePathElements &	rpElements
	)

private

Definition at line 123 of file animation-interface.cc.

References ns3::Socket::ERROR_NOROUTETOHOST, ns3::Ipv4Route::GetGateway(), ns3::Node::GetId(), ns3::NodeList::GetNode(), ns3::Object::GetObject(), ns3::Ipv4::GetRoutingProtocol(), m_ipv4ToNodeIdMap, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_INFO, NS_LOG_WARN, and ns3::Ipv4Header::SetDestination().

Referenced by TrackIpv4RoutePaths().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ResetAnimWriteCallback ( )

Reset the write callback function.

Definition at line 388 of file animation-interface.cc.

References m_writeCallback.

Referenced by StopAnimation().

Here is the caller graph for this function:

void ns3::AnimationInterface::SetAnimWriteCallback ( AnimWriteCallback cb )

Set a callback function to listen to AnimationInterface write events.

Parameters

cb	Address of callback function

Definition at line 383 of file animation-interface.cc.

References m_writeCallback.

void ns3::AnimationInterface::SetBoundary	(	double	minX,
		double	minY,
		double	maxX,
		double	maxY
	)

static

Helper function to set the topology boundary rectangle.

Parameters

minX	X value of the lower left corner
minY	Y value of the lower left corner
maxX	X value of the upper right corner
maxX	Y value of the upper right corner

Definition at line 1709 of file animation-interface.cc.

References ns3::initialized, NS_ASSERT, NS_FATAL_ERROR, userBoundary, ns3::Rectangle::xMax, ns3::Rectangle::xMin, ns3::Rectangle::yMax, and ns3::Rectangle::yMin.

Referenced by main().

Here is the caller graph for this function:

void ns3::AnimationInterface::SetConstantPosition	(	Ptr< Node >	n,
		double	x,
		double	y,
		double	z = `0`
	)

static

Helper function to set Constant Position for a given node.

Parameters

n	Ptr to the node
x	X co-ordinate of the node
y	Y co-ordinate of the node
z	Z co-ordinate of the node

Definition at line 1694 of file animation-interface.cc.

References ns3::Object::AggregateObject(), ns3::Node::GetId(), ns3::Object::GetObject(), NS_ASSERT, and NS_LOG_INFO.

Referenced by ns3::AnimationInterfaceTestCase::DoRun(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::SetLinkDescription	(	uint32_t	fromNode,
		uint32_t	toNode,
		std::string	linkDescription,
		std::string	fromNodeDescription = `""`,
		std::string	toNodeDescription = `""`
	)

static

Helper function to set the description for a link.

Parameters

fromNode	Node Id of the "from Node" of the p2p link
toNode	Node Id of the "to Node" of the p2p link
linkDescription	Description of the link such as link bandwidth
fromNodeDescription	Description at the "from Node" end such as IP address
toNodeDescription	Description at the "to Node" end such as Ip address

Definition at line 1797 of file animation-interface.cc.

References ns3::P2pLinkNodeIdPair::fromNode, linkProperties, and ns3::P2pLinkNodeIdPair::toNode.

Referenced by SetLinkDescription(), and StartAnimation().

Here is the caller graph for this function:

void ns3::AnimationInterface::SetLinkDescription	(	Ptr< Node >	fromNode,
		Ptr< Node >	toNode,
		std::string	linkDescription,
		std::string	fromNodeDescription = `""`,
		std::string	toNodeDescription = `""`
	)

static

Helper function to set the description for a link.

Parameters

fromNode	Ptr to the "from Node" of the p2p link
toNode	Ptr the "to Node" of the p2p link
linkDescription	Description of the link such as link bandwidth
fromNodeDescription	Description at the "from Node" end such as IP address
toNodeDescription	Description at the "to Node" end such as Ip address

Definition at line 1821 of file animation-interface.cc.

References ns3::Node::GetId(), NS_ASSERT, and SetLinkDescription().

Here is the call graph for this function:

void ns3::AnimationInterface::SetMobilityPollInterval ( Time t )

Set mobility poll interval:WARNING: setting a low interval can cause slowness.

Parameters

t	Time interval between fetching mobility/position information Default: 0.25s

Definition at line 428 of file animation-interface.cc.

References m_mobilityPollInterval.

void ns3::AnimationInterface::SetNodeColor	(	Ptr< Node >	n,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b
	)

static

Helper function to set the node color.

Parameters

n	Ptr to the node
r	Red component value (0-255)
g	Green component value (0-255)
b	Blue component value (0-255)

Definition at line 1725 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::initialized, nodeColors, NS_ASSERT, NS_FATAL_ERROR, and NS_LOG_INFO.

Referenced by main(), and SetNodeColor().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::SetNodeColor	(	NodeContainer	nc,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b
	)

static

Helper function to set the color of nodes in a container.

Parameters

n	Ptr to the node
r	Red component value (0-255)
g	Green component value (0-255)
b	Blue component value (0-255)

Definition at line 1768 of file animation-interface.cc.

References ns3::NodeContainer::Get(), ns3::NodeContainer::GetN(), NS_ASSERT, and SetNodeColor().

Here is the call graph for this function:

void ns3::AnimationInterface::SetNodeDescription	(	Ptr< Node >	n,
		std::string	descr
	)

static

Helper function to set a brief description for a given node.

Parameters

n	Ptr to the node
descr	A string to briefly describe the node

Definition at line 1832 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::initialized, nodeDescriptions, NS_ASSERT, and NS_FATAL_ERROR.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::SetNodeDescription	(	NodeContainer	nc,
		std::string	descr
	)

static

Helper function to set a brief description for nodes in a Node Container.

Parameters

nc	NodeContainer containing the nodes
descr	A string to briefly describe the nodes

Definition at line 1856 of file animation-interface.cc.

References ns3::NodeContainer::Get(), ns3::Node::GetId(), ns3::NodeContainer::GetN(), ns3::initialized, nodeDescriptions, NS_ASSERT, and NS_FATAL_ERROR.

Here is the call graph for this function:

bool ns3::AnimationInterface::SetOutputFile ( const std::string & fn )

private

Specify that animation commands are to be written to the specified output file.

This call is used to write the animation information to a text file that can later be used as input to the network animator tool.

Parameters

fn	The name of the output file.

Returns: true if successful open.

Definition at line 331 of file animation-interface.cc.

References m_f, m_outputFileName, m_outputFileSet, NS_FATAL_ERROR, and NS_LOG_INFO.

Referenced by StartAnimation().

Here is the caller graph for this function:

void ns3::AnimationInterface::SetRandomPosition ( bool setRandPos )

Set random position if a Mobility Model does not exists for the node.

Parameters

setRandPos True if a random position can be set for a node without a Mobililty model

Definition at line 433 of file animation-interface.cc.

References m_randomPosition.

bool ns3::AnimationInterface::SetRoutingOutputFile ( const std::string & fn )

private

Definition at line 349 of file animation-interface.cc.

References m_routingF, and NS_FATAL_ERROR.

Referenced by EnableIpv4RouteTracking().

Here is the caller graph for this function:

void ns3::AnimationInterface::SetStartTime ( Time t )

Specify the time at which capture should start.

Parameters

t	The time at which AnimationInterface should begin capture of traffic info

Returns: none

Definition at line 321 of file animation-interface.cc.

References m_startTime.

void ns3::AnimationInterface::SetStopTime ( Time t )

Specify the time at which capture should stop.

Parameters

t	The time at which AnimationInterface should stop capture of traffic info

Returns: none

Definition at line 326 of file animation-interface.cc.

References m_stopTime.

void ns3::AnimationInterface::SetXMLOutput ( )

private

Specify that animation commands are to be written in XML format.

Returns: none

Definition at line 292 of file animation-interface.cc.

References m_xml, and NS_LOG_INFO.

void ns3::AnimationInterface::ShowNode	(	uint32_t	nodeId,
		bool	show = `true`
	)

Helper function to show/hide a node.

Parameters

nodeId	Id of the node
show	Set to true to show node, set to false to hide

Definition at line 1735 of file animation-interface.cc.

References ns3::NodeList::GetNode(), GetXMLOpenClose_nodeupdate(), m_f, NS_ASSERT, NS_LOG_INFO, and WriteN().

Referenced by modify(), and ShowNode().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::ShowNode	(	Ptr< Node >	n,
		bool	show = `true`
	)

Helper function to show/hide a node.

Parameters

n	Ptr to the node
show	Set to true to show node, set to false to hide

Definition at line 1745 of file animation-interface.cc.

References ShowNode().

Here is the call graph for this function:

void ns3::AnimationInterface::StartAnimation ( bool restart = false )

private

Writes the topology information and sets up the appropriate animation packet tx callback.

Writes the topology information to the appropriate output, depending on prior calls to SetOutputFile, SetServerPort, or SetInternalAnimation. Then creates the callbacks needed for the animator to start processing packets.

Parameters

restart True when restarting animation

Definition at line 615 of file animation-interface.cc.

References AddToIpv4AddressNodeIdTable(), ns3::NodeList::Begin(), ConnectCallbacks(), ns3::NodeList::End(), ns3::Node::GetDevice(), ns3::Node::GetId(), GetIpv4Address(), GetMacAddress(), ns3::Node::GetNDevices(), ns3::NodeList::GetNNodes(), GetPosition(), GetPreamble(), GetXMLClose(), GetXMLOpen_anim(), GetXMLOpen_topology(), GetXMLOpenClose_link(), GetXMLOpenClose_node(), linkProperties, m_currentPktCount, m_f, m_mobilityPollInterval, m_outputFileName, m_started, m_topoMaxX, m_topoMaxY, m_topoMinX, m_topoMinY, m_xml, MobilityAutoCheck(), nodeColors, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_INFO, ns3::Simulator::Schedule(), SetLinkDescription(), SetOutputFile(), UpdatePosition(), WriteN(), WriteNonP2pLinkProperties(), ns3::Vector3D::x, and ns3::Vector3D::y.

Referenced by AnimationInterface(), and StartNewTraceFile().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::StartNewTraceFile ( )

private

Definition at line 299 of file animation-interface.cc.

References m_currentPktCount, m_maxPktsPerFile, m_originalFileName, m_outputFileName, StartAnimation(), and StopAnimation().

Referenced by DevTxTrace(), OutputCsmaPacket(), and OutputWirelessPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::StopAnimation ( bool onlyAnimation = false )

private

Closes the interface to the animator.

Definition at line 853 of file animation-interface.cc.

References GetXMLClose(), m_f, m_outputFileSet, m_routingF, m_started, m_xml, NS_LOG_INFO, ResetAnimWriteCallback(), and WriteN().

Referenced by StartNewTraceFile(), and ~AnimationInterface().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::TrackIpv4Route ( )

private

Definition at line 265 of file animation-interface.cc.

References ns3::NodeList::Begin(), ns3::NodeContainer::Begin(), ns3::NodeList::End(), ns3::NodeContainer::End(), ns3::Node::GetId(), GetIpv4RoutingTable(), ns3::NodeContainer::GetN(), GetXMLOpenClose_routing(), m_routingF, m_routingNc, m_routingPollInterval, m_routingStopTime, ns3::Simulator::Now(), NS_LOG_INFO, ns3::Simulator::Schedule(), TrackIpv4RoutePaths(), and WriteN().

Referenced by EnableIpv4RouteTracking().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::TrackIpv4RoutePaths ( )

private

Definition at line 192 of file animation-interface.cc.

References ns3::Ipv4RouteTrackElement::destination, ns3::Ipv4RouteTrackElement::fromNodeId, ns3::Ipv4Route::GetGateway(), ns3::NodeList::GetNode(), ns3::Object::GetObject(), ns3::Ipv4::GetRoutingProtocol(), m_ipv4RouteTrackElements, m_ipv4ToNodeIdMap, NS_FATAL_ERROR, NS_LOG_INFO, NS_LOG_WARN, RecursiveIpv4RoutePathSearch(), ns3::Ipv4Header::SetDestination(), and WriteRoutePath().

Referenced by TrackIpv4Route().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::AnimationInterface::UanPacketIsPending ( uint64_t AnimUid )

private

Definition at line 402 of file animation-interface.cc.

References m_pendingUanPackets.

Referenced by UanPhyGenRxTrace().

Here is the caller graph for this function:

void ns3::AnimationInterface::UanPhyGenRxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 1105 of file animation-interface.cc.

References GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsInTimeWindow(), m_pendingUanPackets, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacket(), UanPacketIsPending(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UanPhyGenTxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 1086 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), AddPendingUanPacket(), gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, ns3::AnimByteTag::Set(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateLinkDescription	(	uint32_t	fromNode,
		uint32_t	toNode,
		std::string	linkDescription
	)

Helper function to update the description for a link.

Parameters

fromNode	Node Id of the "from Node" of the p2p link
toNode	Node Id of the "to Node" of the p2p link
linkDescription	Description of the link such as link bandwidth

Definition at line 1779 of file animation-interface.cc.

References GetXMLOpenClose_linkupdate(), m_f, and WriteN().

Referenced by modify().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateLinkDescription	(	Ptr< Node >	fromNode,
		Ptr< Node >	toNode,
		std::string	linkDescription
	)

Helper function to update the description for a link.

Parameters

fromNode	Ptr to the "from Node" of the p2p link
toNode	Ptr to the "to Node" of the p2p link
linkDescription	Description of the link such as link bandwidth

Definition at line 1787 of file animation-interface.cc.

References ns3::Node::GetId(), GetXMLOpenClose_linkupdate(), m_f, NS_ASSERT, and WriteN().

Here is the call graph for this function:

void ns3::AnimationInterface::UpdateNodeColor	(	Ptr< Node >	n,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b
	)

Helper function to update the node color.

Parameters

n	Ptr to the node
r	Red component value (0-255)
g	Green component value (0-255)
b	Blue component value (0-255)

Definition at line 1750 of file animation-interface.cc.

References ns3::Node::GetId().

Referenced by modify().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateNodeColor	(	uint32_t	nodeId,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b
	)

Helper function to update the node color.

Parameters

nodeId	Id of the node
r	Red component value (0-255)
g	Green component value (0-255)
b	Blue component value (0-255)

Definition at line 1755 of file animation-interface.cc.

References ns3::NodeList::GetNode(), GetXMLOpenClose_nodeupdate(), m_f, nodeColors, NS_ASSERT, NS_LOG_INFO, and WriteN().

Here is the call graph for this function:

void ns3::AnimationInterface::UpdateNodeDescription	(	Ptr< Node >	n,
		std::string	descr
	)

Helper function to update the description for a given node.

Parameters

n	Ptr to the node
descr	A string to briefly describe the node

Definition at line 1840 of file animation-interface.cc.

References ns3::Node::GetId().

Referenced by modify().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::UpdateNodeDescription	(	uint32_t	nodeId,
		std::string	descr
	)

Helper function to update the description for a given node.

Parameters

nodeId	Id of the node
descr	A string to briefly describe the node

Definition at line 1845 of file animation-interface.cc.

References ns3::NodeList::GetNode(), GetXMLOpenClose_nodeupdate(), m_f, nodeDescriptions, NS_ASSERT, and WriteN().

Here is the call graph for this function:

Vector ns3::AnimationInterface::UpdatePosition ( Ptr< Node > n )

private

Definition at line 438 of file animation-interface.cc.

References ns3::Node::GetId(), ns3::Object::GetObject(), ns3::MobilityModel::GetPosition(), ns3::UniformRandomVariable::GetValue(), m_nodeLocation, m_randomPosition, m_topoMaxX, m_topoMaxY, m_topoMinX, m_topoMinY, m_uniformRandomVariable, and NS_LOG_UNCOND.

Referenced by CsmaPhyRxEndTrace(), CsmaPhyTxBeginTrace(), CsmaPhyTxEndTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), MobilityCourseChangeTrace(), RecalcTopoBounds(), StartAnimation(), UanPhyGenRxTrace(), UanPhyGenTxTrace(), WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), WifiPhyTxBeginTrace(), WimaxRxTrace(), and WimaxTxTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

Vector ns3::AnimationInterface::UpdatePosition	(	Ptr< Node >	n,
		Vector	v
	)

private

Definition at line 462 of file animation-interface.cc.

References ns3::Node::GetId(), and m_nodeLocation.

Here is the call graph for this function:

void ns3::AnimationInterface::WifiMacRxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Todo:: NS_ASSERT (WifiPacketIsPending (AnimUid) == true);

Definition at line 1238 of file animation-interface.cc.

References GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), ns3::AnimRxInfo::IsPhyRxComplete(), m_pendingWifiPackets, m_started, NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacket(), and WifiPacketIsPending().

Here is the call graph for this function:

bool ns3::AnimationInterface::WifiPacketIsPending ( uint64_t AnimUid )

private

Definition at line 407 of file animation-interface.cc.

References m_pendingWifiPackets.

Referenced by WifiMacRxTrace(), WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), and WifiPhyTxDropTrace().

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiPhyRxBeginTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Todo:: NS_ASSERT (WifiPacketIsPending (AnimUid) == true);

Definition at line 1172 of file animation-interface.cc.

References AddPendingWifiPacket(), ns3::WifiMacHeader::GetAddr2(), GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::NodeList::GetNode(), IsInTimeWindow(), m_macToNodeIdMap, m_pendingWifiPackets, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacket(), ns3::Packet::PeekHeader(), UpdatePosition(), and WifiPacketIsPending().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiPhyRxDropTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 1263 of file animation-interface.cc.

void ns3::AnimationInterface::WifiPhyRxEndTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Todo:: NS_ASSERT (WifiPacketIsPending (AnimUid) == true);

Definition at line 1211 of file animation-interface.cc.

References AddPendingWifiPacket(), GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), ns3::AnimRxInfo::IsPhyRxComplete(), m_pendingWifiPackets, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, NS_LOG_WARN, OutputWirelessPacket(), ns3::AnimPacketInfo::ProcessRxEnd(), UpdatePosition(), and WifiPacketIsPending().

Here is the call graph for this function:

void ns3::AnimationInterface::WifiPhyTxBeginTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 1127 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), AddPendingWifiPacket(), gAnimUid, ns3::Node::GetId(), GetNetDeviceFromContext(), IsInTimeWindow(), m_macToNodeIdMap, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, ns3::AnimByteTag::Set(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WifiPhyTxDropTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 1157 of file animation-interface.cc.

References GetAnimUidFromPacket(), GetNetDeviceFromContext(), IsInTimeWindow(), m_pendingWifiPackets, m_started, NS_ASSERT, NS_LOG_INFO, and WifiPacketIsPending().

Here is the call graph for this function:

void ns3::AnimationInterface::WifiPhyTxEndTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

private

Definition at line 1152 of file animation-interface.cc.

bool ns3::AnimationInterface::WimaxPacketIsPending ( uint64_t AnimUid )

private

Definition at line 418 of file animation-interface.cc.

References m_pendingWimaxPackets.

Referenced by WimaxRxTrace().

Here is the caller graph for this function:

void ns3::AnimationInterface::WimaxRxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		const Mac48Address &	m
	)

private

Todo:: 0.001 is used until Wimax implements RxBegin and RxEnd traces

Definition at line 1287 of file animation-interface.cc.

References GetAnimUidFromPacket(), GetNetDeviceFromContext(), ns3::AnimPacketInfo::GetRxInfo(), IsInTimeWindow(), m_pendingWimaxPackets, m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, OutputWirelessPacket(), ns3::AnimPacketInfo::ProcessRxBegin(), ns3::AnimPacketInfo::ProcessRxEnd(), UpdatePosition(), and WimaxPacketIsPending().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WimaxTxTrace	(	std::string	context,
		Ptr< const Packet >	p,
		const Mac48Address &	m
	)

private

Todo:: 0.0001 is used until Wimax implements TxBegin and TxEnd traces

Definition at line 1268 of file animation-interface.cc.

References ns3::Packet::AddByteTag(), AddPendingWimaxPacket(), gAnimUid, GetNetDeviceFromContext(), IsInTimeWindow(), m_started, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_INFO, ns3::AnimByteTag::Set(), and UpdatePosition().

Referenced by ConnectCallbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteDummyPacket ( )

private

Definition at line 947 of file animation-interface.cc.

References ns3::Time::GetSeconds(), GetXMLOpenClose_p(), m_f, ns3::Simulator::Now(), and WriteN().

Referenced by MobilityAutoCheck(), and MobilityCourseChangeTrace().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::AnimationInterface::WriteN	(	const char *	data,
		uint32_t	count,
		FILE *	f
	)

private

Definition at line 927 of file animation-interface.cc.

References data.

Referenced by DevTxTrace(), EnableIpv4RouteTracking(), MobilityAutoCheck(), MobilityCourseChangeTrace(), OutputCsmaPacket(), OutputWirelessPacket(), ShowNode(), StartAnimation(), StopAnimation(), TrackIpv4Route(), UpdateLinkDescription(), UpdateNodeColor(), UpdateNodeDescription(), WriteDummyPacket(), WriteN(), WriteNonP2pLinkProperties(), and WriteRoutePath().

Here is the caller graph for this function:

int ns3::AnimationInterface::WriteN	(	const std::string &	st,
		FILE *	f
	)

private

Definition at line 878 of file animation-interface.cc.

References m_writeCallback, and WriteN().

Here is the call graph for this function:

void ns3::AnimationInterface::WriteNonP2pLinkProperties	(	uint32_t	id,
		std::string	ipv4Address,
		std::string	channelType
	)

private

Definition at line 977 of file animation-interface.cc.

References GetXMLOpenClose_NonP2pLinkProperties(), m_f, and WriteN().

Referenced by StartAnimation().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AnimationInterface::WriteRoutePath	(	uint32_t	nodeId,
		std::string	destination,
		Ipv4RoutePathElements	rpElements
	)

private

Definition at line 961 of file animation-interface.cc.

References GetXMLOpenClose_rp(), m_routingF, NS_LOG_INFO, and WriteN().

Referenced by TrackIpv4RoutePaths().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint64_t ns3::AnimationInterface::gAnimUid

private

Definition at line 432 of file animation-interface.h.

Referenced by CsmaPhyTxBeginTrace(), LteRxTrace(), LteSpectrumPhyRxStart(), LteSpectrumPhyTxStart(), LteTxTrace(), UanPhyGenTxTrace(), WifiPhyTxBeginTrace(), and WimaxTxTrace().

std::map< P2pLinkNodeIdPair, LinkProperties, LinkPairCompare > ns3::AnimationInterface::linkProperties

staticprivate

Definition at line 614 of file animation-interface.h.

Referenced by GetXMLOpenClose_link(), SetLinkDescription(), and StartAnimation().

uint64_t ns3::AnimationInterface::m_currentPktCount

private

Definition at line 615 of file animation-interface.h.

Referenced by DevTxTrace(), GetTracePktCount(), StartAnimation(), and StartNewTraceFile().

bool ns3::AnimationInterface::m_enablePacketMetadata

private

Definition at line 436 of file animation-interface.h.

Referenced by DevTxTrace(), EnablePacketMetadata(), OutputCsmaPacket(), and OutputWirelessPacket().

FILE* ns3::AnimationInterface::m_f

private

Definition at line 424 of file animation-interface.h.

Referenced by DevTxTrace(), MobilityAutoCheck(), MobilityCourseChangeTrace(), OutputCsmaPacket(), OutputWirelessPacket(), SetOutputFile(), ShowNode(), StartAnimation(), StopAnimation(), UpdateLinkDescription(), UpdateNodeColor(), UpdateNodeDescription(), WriteDummyPacket(), and WriteNonP2pLinkProperties().

std::vector<Ipv4RouteTrackElement> ns3::AnimationInterface::m_ipv4RouteTrackElements

private

Definition at line 602 of file animation-interface.h.

Referenced by AddSourceDestination(), and TrackIpv4RoutePaths().

std::map<std::string, uint32_t> ns3::AnimationInterface::m_ipv4ToNodeIdMap

private

Definition at line 600 of file animation-interface.h.

Referenced by AddToIpv4AddressNodeIdTable(), RecursiveIpv4RoutePathSearch(), and TrackIpv4RoutePaths().

std::map<std::string, uint32_t> ns3::AnimationInterface::m_macToNodeIdMap

private

Definition at line 599 of file animation-interface.h.

Referenced by WifiPhyRxBeginTrace(), and WifiPhyTxBeginTrace().

uint64_t ns3::AnimationInterface::m_maxPktsPerFile

private

Definition at line 439 of file animation-interface.h.

Referenced by StartNewTraceFile().

Time ns3::AnimationInterface::m_mobilityPollInterval

private

Definition at line 429 of file animation-interface.h.

Referenced by MobilityAutoCheck(), SetMobilityPollInterval(), and StartAnimation().

std::map<uint32_t, Vector> ns3::AnimationInterface::m_nodeLocation

private

Definition at line 577 of file animation-interface.h.

Referenced by GetPosition(), and UpdatePosition().

std::string ns3::AnimationInterface::m_originalFileName

private

Definition at line 440 of file animation-interface.h.

Referenced by StartNewTraceFile().

std::string ns3::AnimationInterface::m_outputFileName

private

Definition at line 430 of file animation-interface.h.

Referenced by SetOutputFile(), StartAnimation(), and StartNewTraceFile().

bool ns3::AnimationInterface::m_outputFileSet

private

Definition at line 431 of file animation-interface.h.

Referenced by SetOutputFile(), and StopAnimation().

std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::m_pendingCsmaPackets

private

Definition at line 567 of file animation-interface.h.

Referenced by AddPendingCsmaPacket(), CsmaMacRxTrace(), CsmaPacketIsPending(), CsmaPhyRxEndTrace(), CsmaPhyTxEndTrace(), and PurgePendingCsma().

std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::m_pendingLtePackets

private

Definition at line 563 of file animation-interface.h.

Referenced by AddPendingLtePacket(), LtePacketIsPending(), LteRxTrace(), LteSpectrumPhyRxStart(), and PurgePendingLte().

std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::m_pendingUanPackets

private

Definition at line 571 of file animation-interface.h.

Referenced by AddPendingUanPacket(), UanPacketIsPending(), and UanPhyGenRxTrace().

std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::m_pendingWifiPackets

private

Definition at line 555 of file animation-interface.h.

Referenced by AddPendingWifiPacket(), PurgePendingWifi(), WifiMacRxTrace(), WifiPacketIsPending(), WifiPhyRxBeginTrace(), WifiPhyRxEndTrace(), and WifiPhyTxDropTrace().

std::map<uint64_t, AnimPacketInfo> ns3::AnimationInterface::m_pendingWimaxPackets

private

Definition at line 559 of file animation-interface.h.

Referenced by AddPendingWimaxPacket(), PurgePendingWimax(), WimaxPacketIsPending(), and WimaxRxTrace().

bool ns3::AnimationInterface::m_randomPosition

private

Definition at line 433 of file animation-interface.h.

Referenced by SetRandomPosition(), and UpdatePosition().

FILE* ns3::AnimationInterface::m_routingF

private

Definition at line 425 of file animation-interface.h.

Referenced by EnableIpv4RouteTracking(), SetRoutingOutputFile(), StopAnimation(), TrackIpv4Route(), and WriteRoutePath().

std::string ns3::AnimationInterface::m_routingFileName

private

Definition at line 442 of file animation-interface.h.

Referenced by EnableIpv4RouteTracking().

NodeContainer ns3::AnimationInterface::m_routingNc

private

Definition at line 444 of file animation-interface.h.

Referenced by EnableIpv4RouteTracking(), and TrackIpv4Route().

Time ns3::AnimationInterface::m_routingPollInterval

private

Definition at line 443 of file animation-interface.h.

Referenced by EnableIpv4RouteTracking(), and TrackIpv4Route().

Time ns3::AnimationInterface::m_routingStopTime

private

Definition at line 441 of file animation-interface.h.

Referenced by EnableIpv4RouteTracking(), and TrackIpv4Route().

bool ns3::AnimationInterface::m_started

private

Time ns3::AnimationInterface::m_startTime

private

Definition at line 437 of file animation-interface.h.

Referenced by IsInTimeWindow(), and SetStartTime().

Time ns3::AnimationInterface::m_stopTime

private

Definition at line 438 of file animation-interface.h.

Referenced by IsInTimeWindow(), and SetStopTime().

double ns3::AnimationInterface::m_topoMaxX

private

Definition at line 630 of file animation-interface.h.

Referenced by MobilityAutoCheck(), MobilityCourseChangeTrace(), RecalcTopoBounds(), StartAnimation(), and UpdatePosition().

double ns3::AnimationInterface::m_topoMaxY

private

Definition at line 631 of file animation-interface.h.

Referenced by MobilityAutoCheck(), MobilityCourseChangeTrace(), RecalcTopoBounds(), StartAnimation(), and UpdatePosition().

double ns3::AnimationInterface::m_topoMinX

private

Definition at line 628 of file animation-interface.h.

Referenced by MobilityAutoCheck(), MobilityCourseChangeTrace(), RecalcTopoBounds(), StartAnimation(), and UpdatePosition().

double ns3::AnimationInterface::m_topoMinY

private

Definition at line 629 of file animation-interface.h.

Referenced by MobilityAutoCheck(), MobilityCourseChangeTrace(), RecalcTopoBounds(), StartAnimation(), and UpdatePosition().

Ptr<UniformRandomVariable> ns3::AnimationInterface::m_uniformRandomVariable

private

Provides uniform random variables.

Definition at line 657 of file animation-interface.h.

Referenced by AnimationInterface(), AssignStreams(), and UpdatePosition().

AnimWriteCallback ns3::AnimationInterface::m_writeCallback

private

Definition at line 434 of file animation-interface.h.

Referenced by ResetAnimWriteCallback(), SetAnimWriteCallback(), and WriteN().

bool ns3::AnimationInterface::m_xml

private

Definition at line 428 of file animation-interface.h.

Referenced by DevTxTrace(), OutputCsmaPacket(), OutputWirelessPacket(), SetXMLOutput(), StartAnimation(), and StopAnimation().

std::map< uint32_t, Rgb > ns3::AnimationInterface::nodeColors

staticprivate

Definition at line 612 of file animation-interface.h.

Referenced by GetXMLOpenClose_nodeupdate(), MobilityCourseChangeTrace(), SetNodeColor(), StartAnimation(), and UpdateNodeColor().

std::map< uint32_t, std::string > ns3::AnimationInterface::nodeDescriptions

staticprivate

Definition at line 613 of file animation-interface.h.

Referenced by GetXMLOpenClose_node(), GetXMLOpenClose_nodeupdate(), SetNodeDescription(), and UpdateNodeDescription().

Rectangle * ns3::AnimationInterface::userBoundary = 0

staticprivate

Definition at line 632 of file animation-interface.h.

Referenced by GetXMLOpen_topology(), SetBoundary(), and ~AnimationInterface().

The documentation for this class was generated from the following files:

src/netanim/model/animation-interface.h
src/netanim/model/animation-interface.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
