ns3::DoubleProbe Class Reference

#include <double-probe.h>

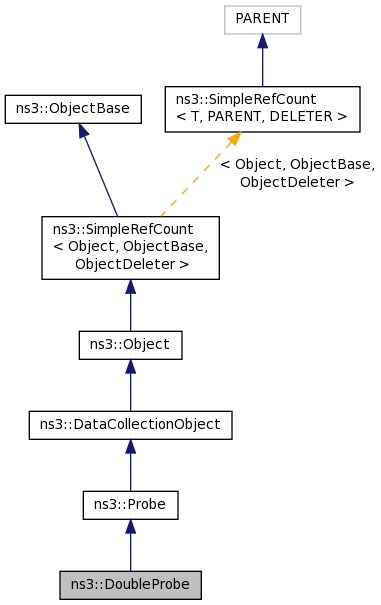

Inheritance diagram for ns3::DoubleProbe:

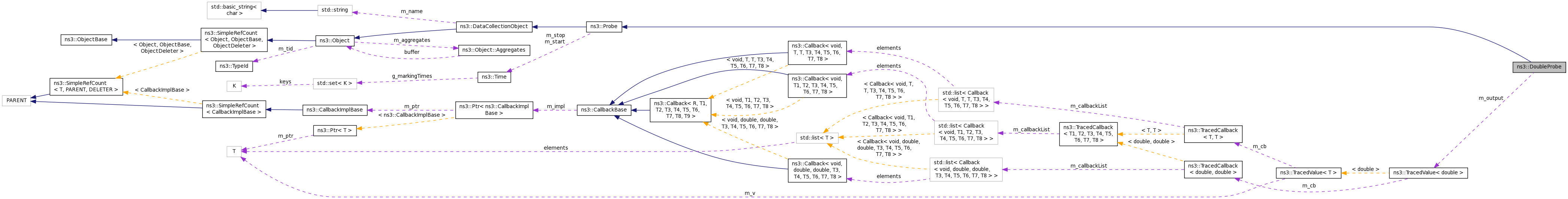

Collaboration diagram for ns3::DoubleProbe:

Public Member Functions
	DoubleProbe ()
virtual	~DoubleProbe ()
virtual bool	ConnectByObject (std::string traceSource, Ptr< Object > obj)
	connect to a trace source attribute provided by a given object More...
virtual void	ConnectByPath (std::string path)
	connect to a trace source provided by a config path More...
double	GetValue (void) const
void	SetValue (double value)
Public Member Functions inherited from ns3::Probe
	Probe ()
virtual	~Probe ()
virtual bool	IsEnabled (void) const
Public Member Functions inherited from ns3::DataCollectionObject
	DataCollectionObject ()
virtual	~DataCollectionObject ()
void	Disable (void)
void	Enable (void)
	Set the status of an individual object. More...
std::string	GetName (void) const
	Get the object's name. More...
void	SetName (std::string name)
	Set the object's name. All spaces are replaced by underscores. More...
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
static void	SetValueByPath (std::string path, double value)
	Set a probe value by its name in the Config system. More...
Static Public Member Functions inherited from ns3::Probe
static TypeId	GetTypeId ()
Static Public Member Functions inherited from ns3::DataCollectionObject
static TypeId	GetTypeId ()
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Member Functions
void	TraceSink (double oldData, double newData)
	Method to connect to an underlying ns3::TraceSource of type double. More...

Private Attributes
TracedValue< double >	m_output

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)
Protected Attributes inherited from ns3::Probe
Time	m_start
	Time when logging starts. More...
Time	m_stop
	Time when logging stops. More...
Protected Attributes inherited from ns3::DataCollectionObject
bool	m_enabled
	Object's activation state. More...
std::string	m_name
	Name of the object within the data collection framework. More...

Detailed Description

This class is designed to probe an underlying ns3 TraceSource exporting a double. This probe exports a trace source "Output" of type double. The Output trace source emits a value when either the trace source emits a new value, or when SetValue () is called.

The current value of the probe can be polled with the GetValue () method.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.

TraceSources

• Output: The double that serves as output for this probe

Definition at line 45 of file double-probe.h.

Constructor & Destructor Documentation

ns3::DoubleProbe::DoubleProbe

(

)

Definition at line 50 of file double-probe.cc.

References m_output, and NS_LOG_FUNCTION.

ns3::DoubleProbe::~DoubleProbe ( )

virtual

Definition at line 56 of file double-probe.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

bool ns3::DoubleProbe::ConnectByObject ( std::string  traceSource, Ptr< Object >  obj  )

virtual

connect to a trace source attribute provided by a given object

Parameters

traceSource	the name of the attribute TraceSource to connect to
obj	ns3::Object to connect to

Returns

true if the trace source was successfully connected

Implements ns3::Probe.

Definition at line 84 of file double-probe.cc.

References ns3::Names::FindPath(), ns3::MakeCallback(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::ObjectBase::TraceConnectWithoutContext(), and TraceSink().

Referenced by ProbeTestCase1::DoRun(), and main().

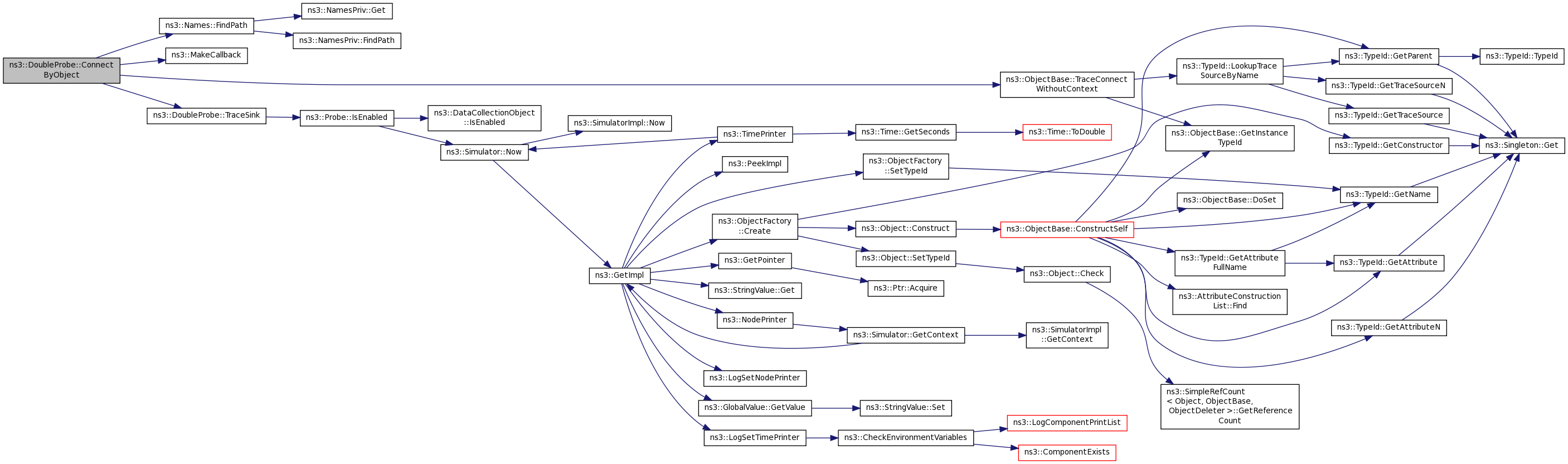

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DoubleProbe::ConnectByPath ( std::string  path )

virtual

connect to a trace source provided by a config path

Parameters

path	Config path to bind to

Note, if an invalid path is provided, the probe will not be connected to anything.

Implements ns3::Probe.

Definition at line 93 of file double-probe.cc.

References ns3::Config::ConnectWithoutContext(), ns3::MakeCallback(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and TraceSink().

Referenced by ProbeTestCase1::DoRun(), and main().

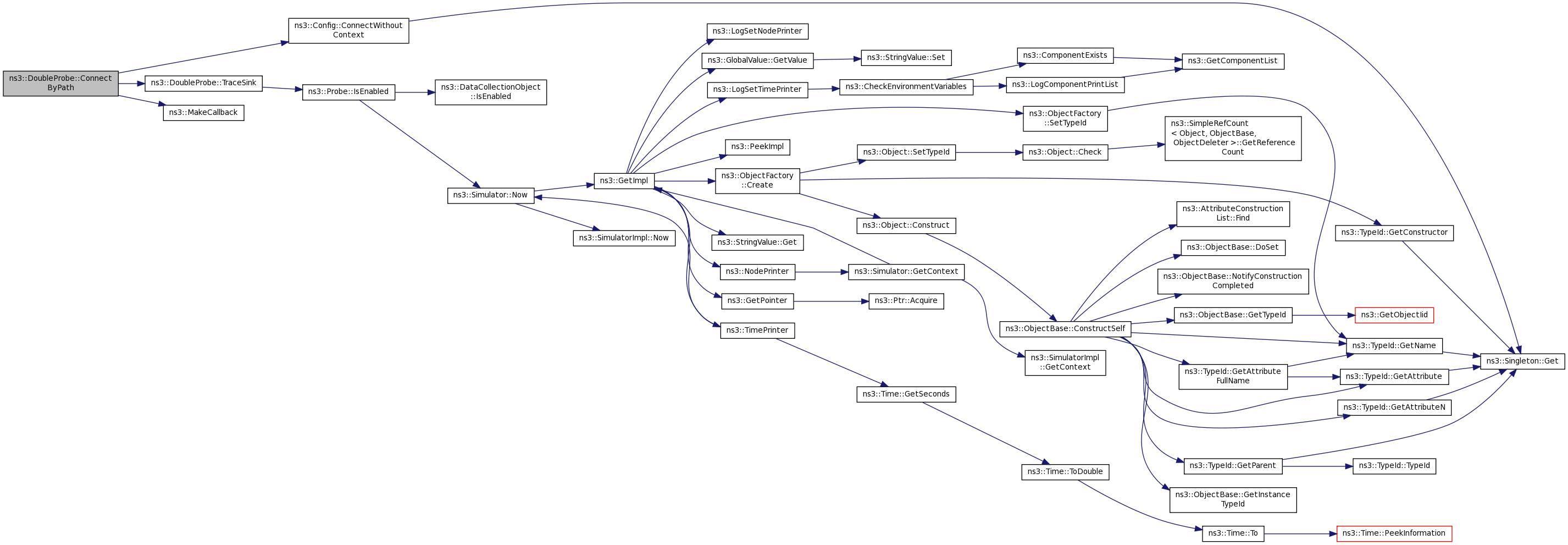

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::DoubleProbe::GetTypeId ( void  )

static

Definition at line 38 of file double-probe.cc.

References m_output, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

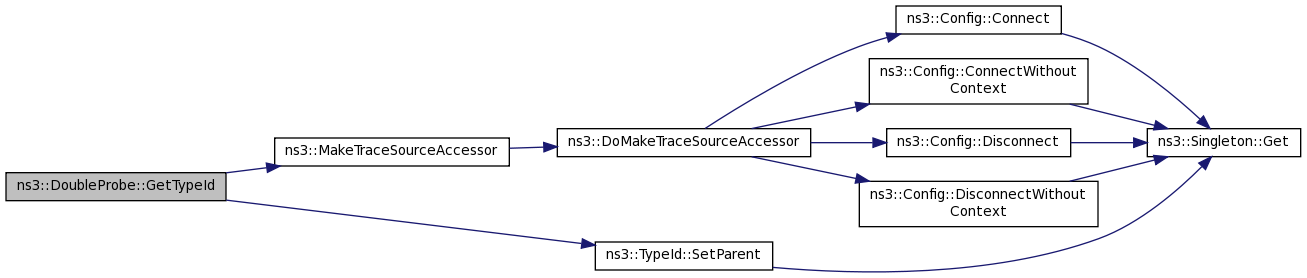

Here is the call graph for this function:

double ns3::DoubleProbe::GetValue

(

void

)

const

Returns

the most recent value

Definition at line 62 of file double-probe.cc.

References m_output, and NS_LOG_FUNCTION.

void ns3::DoubleProbe::SetValue

(

double

value

)

Parameters

value

set the traced double to a new value

Definition at line 68 of file double-probe.cc.

References m_output, and NS_LOG_FUNCTION.

void ns3::DoubleProbe::SetValueByPath ( std::string  path, double  value  )

static

Set a probe value by its name in the Config system.

Parameters

path	Config path to access the probe
value	set the traced double to a new value

Definition at line 75 of file double-probe.cc.

References NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by Emitter::Count().

Here is the caller graph for this function:

void ns3::DoubleProbe::TraceSink ( double  oldData, double  newData  )

private

Method to connect to an underlying ns3::TraceSource of type double.

Parameters

oldData	previous value of the double
newData	new value of the double

Internal:

Definition at line 101 of file double-probe.cc.

References ns3::Probe::IsEnabled(), m_output, and NS_LOG_FUNCTION.

Referenced by ConnectByObject(), and ConnectByPath().

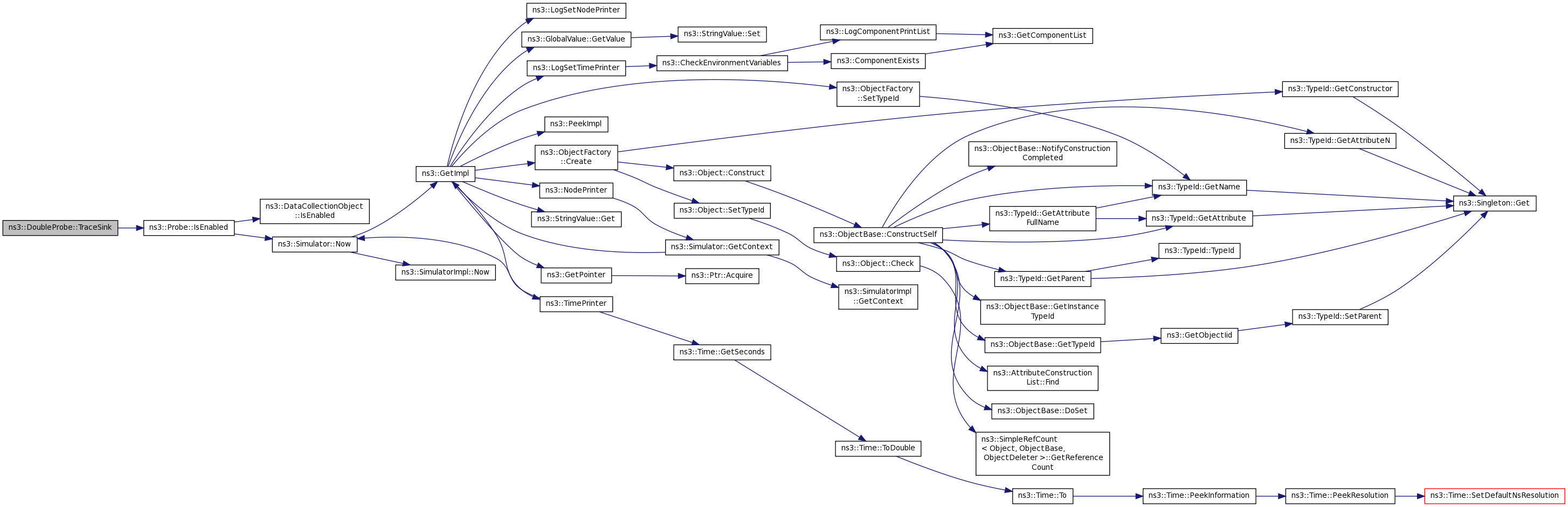

Here is the call graph for this function:

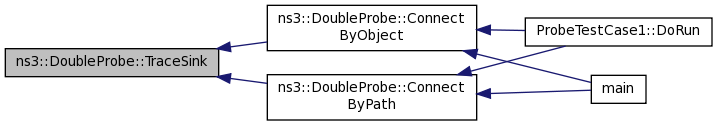

Here is the caller graph for this function:

Member Data Documentation

TracedValue<double> ns3::DoubleProbe::m_output

private

Definition at line 100 of file double-probe.h.

Referenced by DoubleProbe(), GetTypeId(), GetValue(), SetValue(), and TraceSink().

---

The documentation for this class was generated from the following files:

• src/stats/model/double-probe.h
• src/stats/model/double-probe.cc
