This class implements a tag that carries socket ancillary data to the socket interface. This is used like socket option of IP_PKTINFO/IPV6_PKTINFO in RFC 3542 More...
#include <ipv6-packet-info-tag.h>
Public Member Functions | |
Ipv6PacketInfoTag () | |
virtual void | Deserialize (TagBuffer i) |
Ipv6Address | GetAddress (void) const |
uint8_t | GetHoplimit (void) const |
virtual TypeId | GetInstanceTypeId (void) const |
uint32_t | GetRecvIf (void) const |
virtual uint32_t | GetSerializedSize (void) const |
uint8_t | GetTrafficClass (void) const |
virtual void | Print (std::ostream &os) const |
virtual void | Serialize (TagBuffer i) const |
void | SetAddress (Ipv6Address addr) |
void | SetHoplimit (uint8_t ttl) |
void | SetRecvIf (uint32_t ifindex) |
void | SetTrafficClass (uint8_t tclass) |
Public Member Functions inherited from ns3::ObjectBase | |
virtual | ~ObjectBase () |
void | GetAttribute (std::string name, AttributeValue &value) const |
bool | GetAttributeFailSafe (std::string name, AttributeValue &attribute) const |
void | SetAttribute (std::string name, const AttributeValue &value) |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Static Public Member Functions | |
static TypeId | GetTypeId (void) |
Static Public Member Functions inherited from ns3::Tag | |
static TypeId | GetTypeId (void) |
Static Public Member Functions inherited from ns3::ObjectBase | |
static TypeId | GetTypeId (void) |
Private Attributes | |
Ipv6Address | m_addr |
uint8_t | m_hoplimit |
uint8_t | m_ifindex |
uint8_t | m_tclass |
Additional Inherited Members | |
Protected Member Functions inherited from ns3::ObjectBase | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
virtual void | NotifyConstructionCompleted (void) |
This class implements a tag that carries socket ancillary data to the socket interface. This is used like socket option of IP_PKTINFO/IPV6_PKTINFO in RFC 3542
This tag in the send direction is presently not enabled but we would accept a patch along those lines in the future. To include the nexthop in the send direction would increase the size of the tag beyond 20 bytes, so in that case, we recommend that an additional tag be used to carry the IPv6 next hop address.
Definition at line 44 of file ipv6-packet-info-tag.h.
ns3::Ipv6PacketInfoTag::Ipv6PacketInfoTag | ( | ) |
Definition at line 28 of file ipv6-packet-info-tag.cc.
|

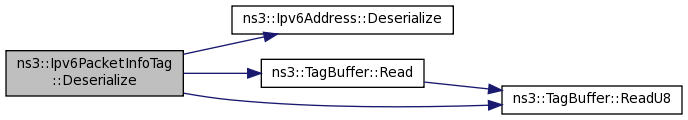

virtual |
i | the buffer to read data from. |
Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.
Implements ns3::Tag.
Definition at line 119 of file ipv6-packet-info-tag.cc.
References ns3::Ipv6Address::Deserialize(), m_addr, m_hoplimit, m_ifindex, m_tclass, ns3::TagBuffer::Read(), and ns3::TagBuffer::ReadU8().
Ipv6Address ns3::Ipv6PacketInfoTag::GetAddress | ( | void | ) | const |
Definition at line 43 of file ipv6-packet-info-tag.cc.
References m_addr.
uint8_t ns3::Ipv6PacketInfoTag::GetHoplimit | ( | void | ) | const |
Definition at line 67 of file ipv6-packet-info-tag.cc.
References m_hoplimit.
|
virtual |
This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
Implements ns3::ObjectBase.
Definition at line 95 of file ipv6-packet-info-tag.cc.
References GetTypeId().
uint32_t ns3::Ipv6PacketInfoTag::GetRecvIf | ( | void | ) | const |
Definition at line 55 of file ipv6-packet-info-tag.cc.
References m_ifindex.
|
virtual |
This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.
Implements ns3::Tag.
Definition at line 101 of file ipv6-packet-info-tag.cc.
uint8_t ns3::Ipv6PacketInfoTag::GetTrafficClass | ( | void | ) | const |
Definition at line 79 of file ipv6-packet-info-tag.cc.
References m_tclass.
|
static |
Definition at line 86 of file ipv6-packet-info-tag.cc.
References ns3::TypeId::SetParent().
Referenced by GetInstanceTypeId().
|
virtual |
os | the stream to print to |
This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.
Implements ns3::Tag.
Definition at line 129 of file ipv6-packet-info-tag.cc.
References m_addr, m_hoplimit, m_ifindex, and m_tclass.
|

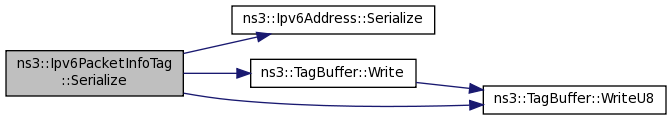

virtual |
i | the buffer to write data into. |
Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.
Implements ns3::Tag.
Definition at line 109 of file ipv6-packet-info-tag.cc.
References m_addr, m_hoplimit, m_ifindex, m_tclass, ns3::Ipv6Address::Serialize(), ns3::TagBuffer::Write(), and ns3::TagBuffer::WriteU8().
void ns3::Ipv6PacketInfoTag::SetAddress | ( | Ipv6Address | addr | ) |
Definition at line 37 of file ipv6-packet-info-tag.cc.
References m_addr.
void ns3::Ipv6PacketInfoTag::SetHoplimit | ( | uint8_t | ttl | ) |
Definition at line 61 of file ipv6-packet-info-tag.cc.
References m_hoplimit.

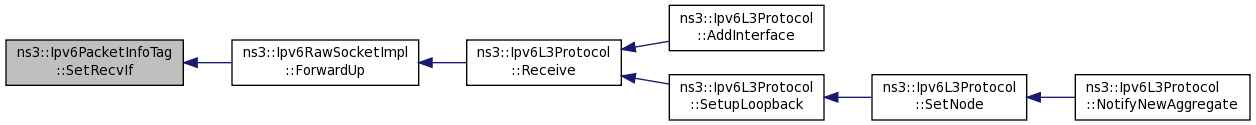

void ns3::Ipv6PacketInfoTag::SetRecvIf | ( | uint32_t | ifindex | ) |
Definition at line 49 of file ipv6-packet-info-tag.cc.
References m_ifindex.
Referenced by ns3::Ipv6RawSocketImpl::ForwardUp().
void ns3::Ipv6PacketInfoTag::SetTrafficClass | ( | uint8_t | tclass | ) |
Definition at line 73 of file ipv6-packet-info-tag.cc.
References m_tclass.
|
private |
Definition at line 86 of file ipv6-packet-info-tag.h.
Referenced by Deserialize(), GetAddress(), Print(), Serialize(), and SetAddress().
|
private |
Definition at line 88 of file ipv6-packet-info-tag.h.
Referenced by Deserialize(), GetHoplimit(), Print(), Serialize(), and SetHoplimit().
|
private |
Definition at line 87 of file ipv6-packet-info-tag.h.
Referenced by Deserialize(), GetRecvIf(), Print(), Serialize(), and SetRecvIf().
|
private |
Definition at line 89 of file ipv6-packet-info-tag.h.
Referenced by Deserialize(), GetTrafficClass(), Print(), Serialize(), and SetTrafficClass().
