#include <mac-stats-calculator.h>

Inheritance diagram for ns3::MacStatsCalculator:

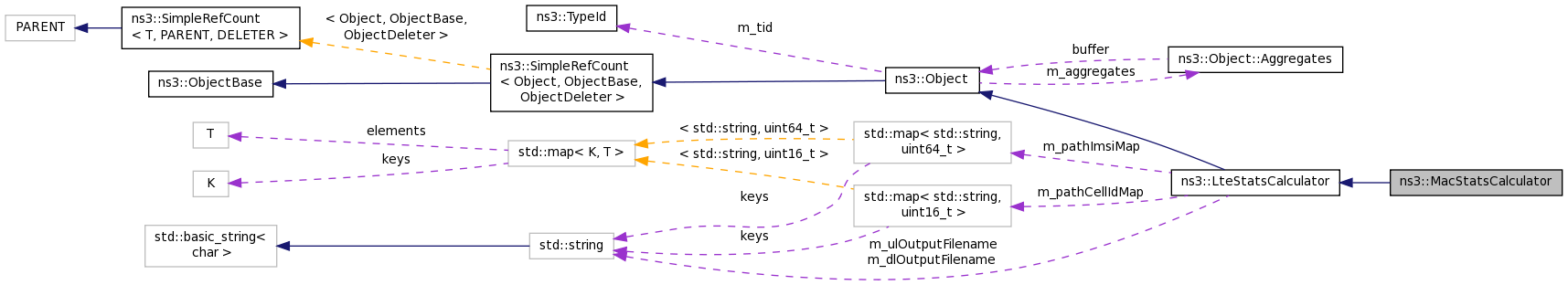

Collaboration diagram for ns3::MacStatsCalculator:

Public Member Functions
	MacStatsCalculator ()

virtual	~MacStatsCalculator ()

void	DlScheduling (uint16_t cellId, uint64_t imsi, uint32_t frameNo, uint32_t subframeNo, uint16_t rnti, uint8_t mcsTb1, uint16_t sizeTb1, uint8_t mcsTb2, uint16_t sizeTb2)

std::string	GetDlOutputFilename (void)

std::string	GetUlOutputFilename (void)

void	SetDlOutputFilename (std::string outputFilename)

void	SetUlOutputFilename (std::string outputFilename)

void	UlScheduling (uint16_t cellId, uint64_t imsi, uint32_t frameNo, uint32_t subframeNo, uint16_t rnti, uint8_t mcs, uint16_t sizeTb)

Public Member Functions inherited from ns3::LteStatsCalculator
	LteStatsCalculator ()

virtual	~LteStatsCalculator ()

bool	ExistsCellIdPath (std::string path)

bool	ExistsImsiPath (std::string path)

uint16_t	GetCellIdPath (std::string path)

std::string	GetDlOutputFilename (void)

uint64_t	GetImsiPath (std::string path)

std::string	GetUlOutputFilename (void)

void	SetCellIdPath (std::string path, uint16_t cellId)

void	SetDlOutputFilename (std::string outputFilename)

void	SetImsiPath (std::string path, uint64_t imsi)

void	SetUlOutputFilename (std::string outputFilename)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static void	DlSchedulingCallback (Ptr< MacStatsCalculator > macStats, std::string path, uint32_t frameNo, uint32_t subframeNo, uint16_t rnti, uint8_t mcsTb1, uint16_t sizeTb1, uint8_t mcsTb2, uint16_t sizeTb2)

static TypeId	GetTypeId (void)

static void	UlSchedulingCallback (Ptr< MacStatsCalculator > macStats, std::string path, uint32_t frameNo, uint32_t subframeNo, uint16_t rnti, uint8_t mcs, uint16_t size)

Static Public Member Functions inherited from ns3::LteStatsCalculator
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Attributes
bool	m_dlFirstWrite

bool	m_ulFirstWrite

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Static Protected Member Functions inherited from ns3::LteStatsCalculator
static uint16_t	FindCellIdFromEnbMac (std::string path, uint16_t rnti)

static uint16_t	FindCellIdFromEnbRlcPath (std::string path)

static uint64_t	FindImsiForEnb (std::string path, uint16_t rnti)

static uint64_t	FindImsiForUe (std::string path, uint16_t rnti)

static uint64_t	FindImsiFromEnbMac (std::string path, uint16_t rnti)

static uint64_t	FindImsiFromEnbRlcPath (std::string path)

static uint64_t	FindImsiFromLteNetDevice (std::string path)

static uint64_t	FindImsiFromUePhy (std::string path)

Detailed Description

Takes care of storing the information generated at MAC layer. Metrics saved are:

Timestamp (in seconds)
Frame index
Subframe index
C-RNTI
MCS for transport block 1
Size of transport block 1
MCS for transport block 2 (0 if not used)
Size of transport block 2 (0 if not used)

Doxygen introspection did not find any typical Config paths.

Attributes

DlOutputFilename: Name of the file where the downlink results will be saved.
- Set with class: StringValue
- Underlying type: std::string
- Initial value: DlMacStats.txt
- Flags: construct write
UlOutputFilename: Name of the file where the uplink results will be saved.
- Set with class: StringValue
- Underlying type: std::string
- Initial value: UlMacStats.txt
- Flags: construct write

No TraceSources are defined for this type.

Definition at line 43 of file mac-stats-calculator.h.

Constructor & Destructor Documentation

ns3::MacStatsCalculator::MacStatsCalculator ( )

Constructor

Definition at line 32 of file mac-stats-calculator.cc.

References NS_LOG_FUNCTION.

ns3::MacStatsCalculator::~MacStatsCalculator ( )

virtual

Destructor

Definition at line 40 of file mac-stats-calculator.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::MacStatsCalculator::DlScheduling	(	uint16_t	cellId,
		uint64_t	imsi,
		uint32_t	frameNo,
		uint32_t	subframeNo,
		uint16_t	rnti,
		uint8_t	mcsTb1,
		uint16_t	sizeTb1,
		uint8_t	mcsTb2,
		uint16_t	sizeTb2
	)

Notifies the stats calculator that an downlink scheduling has occurred.

Parameters

cellId	Cell ID of the attached Enb
imsi	IMSI of the scheduled UE
frameNo	Frame number
subframeNo	Subframe number
rnti	C-RNTI scheduled
mcsTb1	MCS for transport block 1
sizeTb1	Size of transport block 1
mcsTb2	MCS for transport block 2 (0 if not used)
sizeTb2	Size of transport block 2 (0 if not used)

Definition at line 90 of file mac-stats-calculator.cc.

References GetDlOutputFilename(), ns3::Time::GetNanoSeconds(), m_dlFirstWrite, ns3::Simulator::Now(), NS_LOG_ERROR, NS_LOG_FUNCTION, and NS_LOG_INFO.

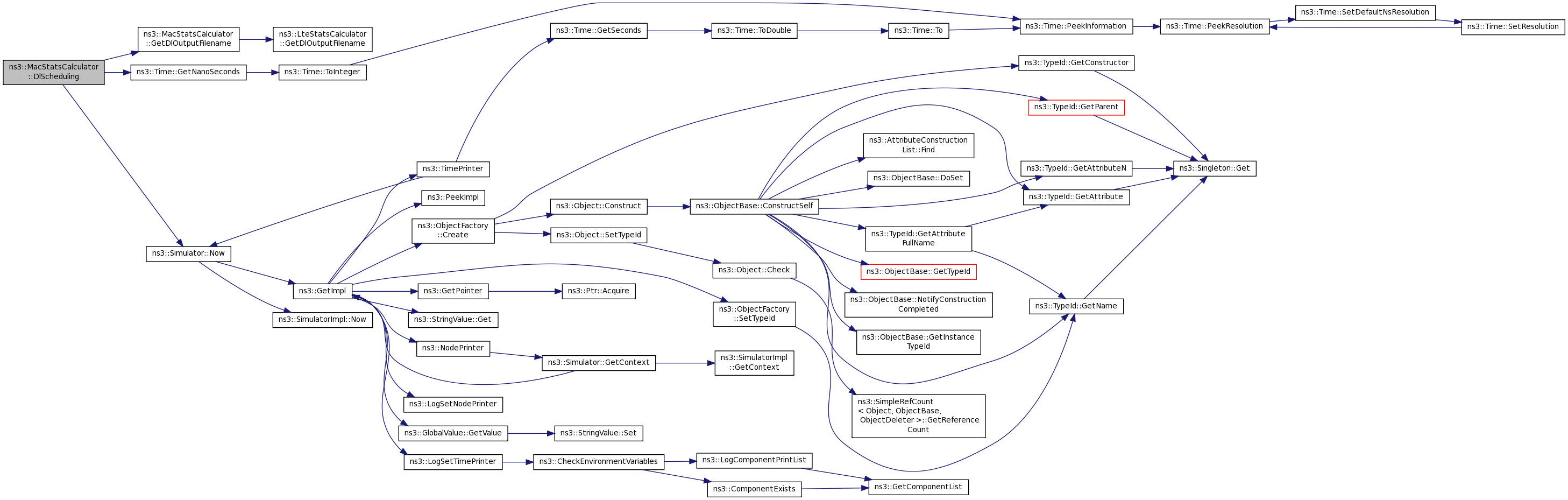

Here is the call graph for this function:

void ns3::MacStatsCalculator::DlSchedulingCallback	(	Ptr< MacStatsCalculator >	macStats,
		std::string	path,
		uint32_t	frameNo,
		uint32_t	subframeNo,
		uint16_t	rnti,
		uint8_t	mcsTb1,
		uint16_t	sizeTb1,
		uint8_t	mcsTb2,
		uint16_t	sizeTb2
	)

static

Trace sink for the ns3::LteEnbMac::DlScheduling trace source

Parameters

macStats
path
frameNo
subframeNo
rnti
mcsTb1
sizeTb1
mcsTb2
sizeTb2

Definition at line 174 of file mac-stats-calculator.cc.

References ns3::LteStatsCalculator::FindCellIdFromEnbMac(), ns3::LteStatsCalculator::FindImsiFromEnbMac(), and NS_LOG_FUNCTION.

Referenced by ns3::LteHelper::EnableDlMacTraces().

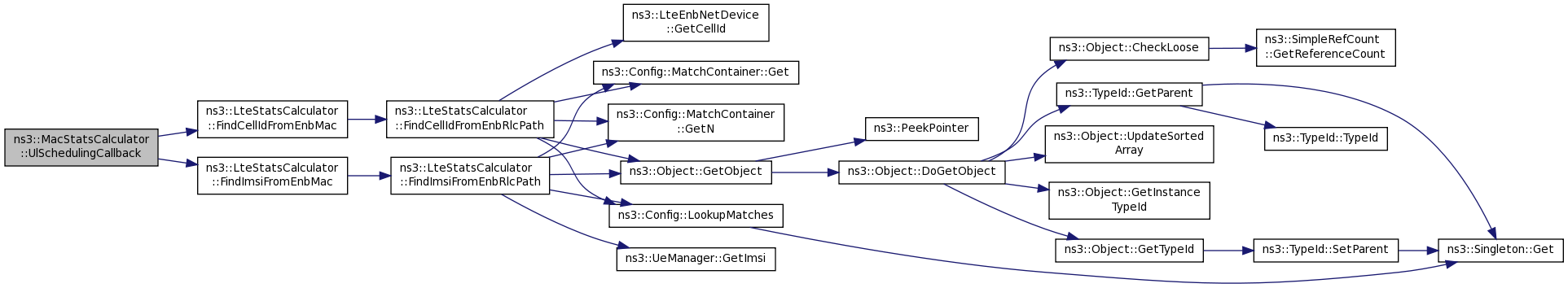

Here is the call graph for this function:

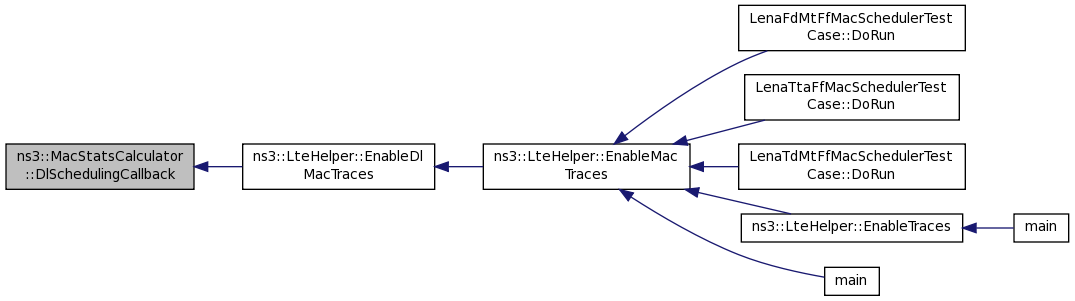

Here is the caller graph for this function:

std::string ns3::MacStatsCalculator::GetDlOutputFilename ( void )

Get the name of the file where the downlink statistics will be stored.

Definition at line 84 of file mac-stats-calculator.cc.

References ns3::LteStatsCalculator::GetDlOutputFilename().

Referenced by DlScheduling().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::MacStatsCalculator::GetTypeId ( void )

static

Inherited from ns3::Object

Definition at line 46 of file mac-stats-calculator.cc.

References SetDlOutputFilename(), ns3::TypeId::SetParent(), and SetUlOutputFilename().

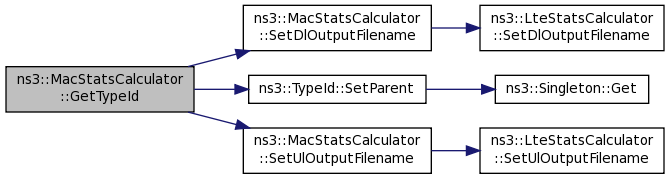

Here is the call graph for this function:

std::string ns3::MacStatsCalculator::GetUlOutputFilename ( void )

Get the name of the file where the uplink statistics will be stored.

Definition at line 72 of file mac-stats-calculator.cc.

References ns3::LteStatsCalculator::GetUlOutputFilename().

Referenced by UlScheduling().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::MacStatsCalculator::SetDlOutputFilename ( std::string outputFilename )

Set the name of the file where the downlink statistics will be stored.

Parameters

outputFilename string with the name of the file

Definition at line 78 of file mac-stats-calculator.cc.

References ns3::LteStatsCalculator::SetDlOutputFilename().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::MacStatsCalculator::SetUlOutputFilename ( std::string outputFilename )

Set the name of the file where the uplink statistics will be stored.

Parameters

outputFilename string with the name of the file

Definition at line 66 of file mac-stats-calculator.cc.

References ns3::LteStatsCalculator::SetUlOutputFilename().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::MacStatsCalculator::UlScheduling	(	uint16_t	cellId,
		uint64_t	imsi,
		uint32_t	frameNo,
		uint32_t	subframeNo,
		uint16_t	rnti,
		uint8_t	mcs,
		uint16_t	sizeTb
	)

Notifies the stats calculator that an uplink scheduling has occurred.

Parameters

cellId	Cell ID of the attached Enb
imsi	IMSI of the scheduled UE
frameNo	Frame number
subframeNo	Subframe number
rnti	C-RNTI scheduled
mcsTb	MCS for transport block
sizeTb	Size of transport block

Definition at line 133 of file mac-stats-calculator.cc.

References ns3::Time::GetNanoSeconds(), GetUlOutputFilename(), m_ulFirstWrite, ns3::Simulator::Now(), NS_LOG_ERROR, NS_LOG_FUNCTION, and NS_LOG_INFO.

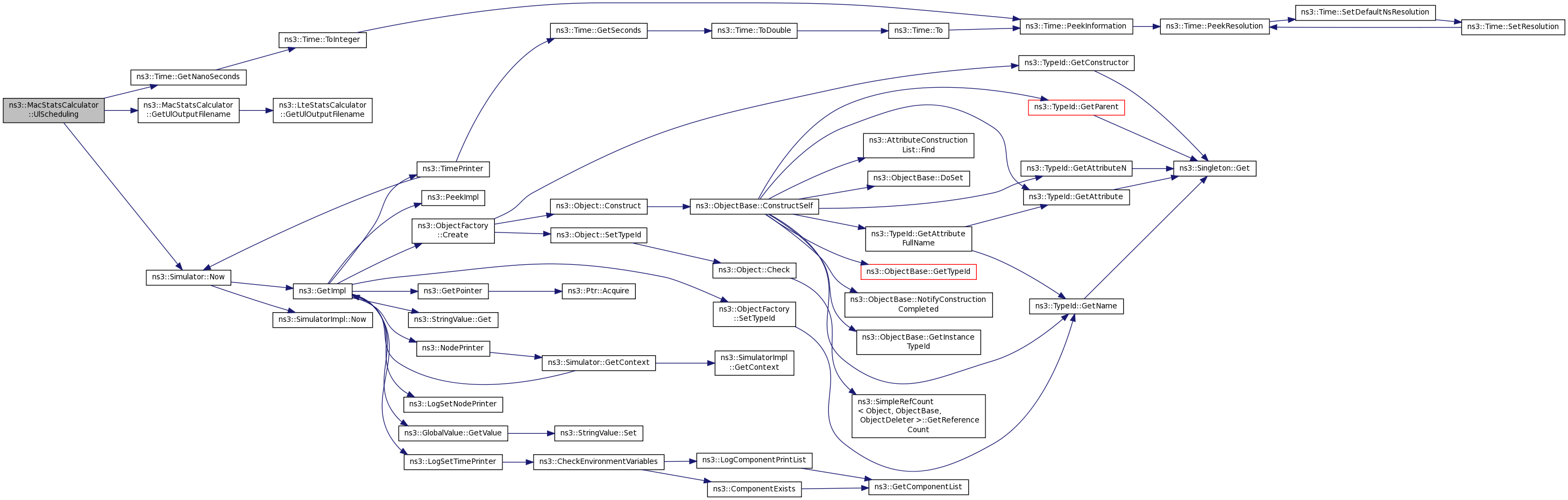

Here is the call graph for this function:

void ns3::MacStatsCalculator::UlSchedulingCallback	(	Ptr< MacStatsCalculator >	macStats,
		std::string	path,
		uint32_t	frameNo,
		uint32_t	subframeNo,
		uint16_t	rnti,
		uint8_t	mcs,
		uint16_t	size
	)
