ns3::SimpleChannel Class Reference
Channel

A simple channel, for simple things and testing. More...

#include <simple-channel.h>

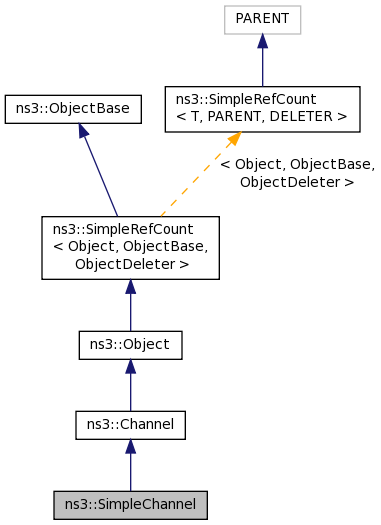

+ Inheritance diagram for ns3::SimpleChannel:

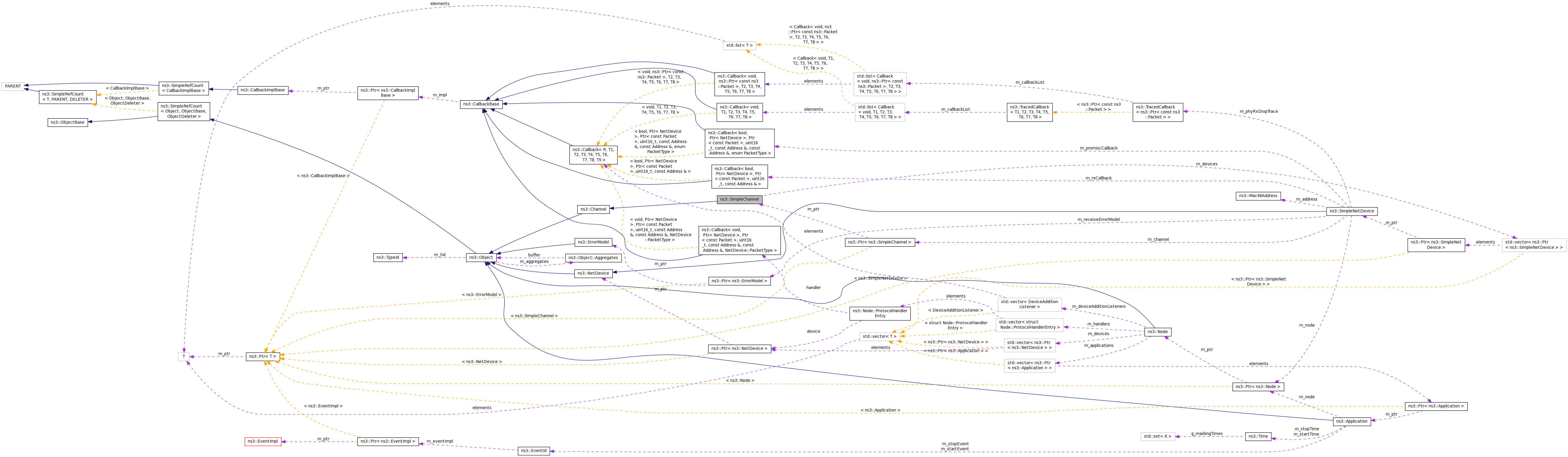

+ Collaboration diagram for ns3::SimpleChannel:

Public Member Functions

 SimpleChannel ()

void Add (Ptr< SimpleNetDevice > device)

virtual Ptr< NetDevice > GetDevice (uint32_t i) const

virtual uint32_t GetNDevices (void) const

void Send (Ptr< Packet > p, uint16_t protocol, Mac48Address to, Mac48Address from, Ptr< SimpleNetDevice > sender)

- Public Member Functions inherited from ns3::Channel
 Channel ()

virtual ~Channel ()

uint32_t GetId (void) const

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()

 SimpleRefCount (const SimpleRefCount &o)

uint32_t GetReferenceCount (void) const

SimpleRefCount & operator= (const SimpleRefCount &o)

void Ref (void) const

void Unref (void) const

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Channel
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)


Private Attributes

std::vector< Ptr
< SimpleNetDevice > > 		m_devices


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)

virtual void DoInitialize (void)

virtual void NotifyNewAggregate (void)

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)


Detailed Description

A simple channel, for simple things and testing.

Config Paths

ns3::SimpleChannel is accessible through the following paths with Config::Set and Config::Connect:

  • /ChannelList/[i]/$ns3::SimpleChannel

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 36 of file simple-channel.h.

Constructor & Destructor Documentation

ns3::SimpleChannel::SimpleChannel ( )

Definition at line 43 of file simple-channel.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::SimpleChannel::Add ( Ptr< SimpleNetDevice >  device)

Definition at line 67 of file simple-channel.cc.

References m_devices, and NS_LOG_FUNCTION.

Ptr< NetDevice > ns3::SimpleChannel::GetDevice ( uint32_t  i) const
virtual
Parameters
iindex of NetDevice to retrieve
Returns
one of the NetDevices connected to this channel.

This method must be implemented by subclasses.

Implements ns3::Channel.

Definition at line 80 of file simple-channel.cc.

References m_devices, and NS_LOG_FUNCTION.

uint32_t ns3::SimpleChannel::GetNDevices ( void  ) const
virtual
Returns
the number of NetDevices connected to this Channel.

This method must be implemented by subclasses.

Implements ns3::Channel.

Definition at line 74 of file simple-channel.cc.

References m_devices, and NS_LOG_FUNCTION.

TypeId ns3::SimpleChannel::GetTypeId ( void  )
static

Definition at line 34 of file simple-channel.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

void ns3::SimpleChannel::Send ( Ptr< Packet >  p,
uint16_t  protocol,
Mac48Address  to,
Mac48Address  from,
Ptr< SimpleNetDevice >  sender
)

Definition at line 49 of file simple-channel.cc.

References ns3::Packet::Copy(), m_devices, NS_LOG_FUNCTION, ns3::SimpleNetDevice::Receive(), and ns3::Simulator::ScheduleWithContext().

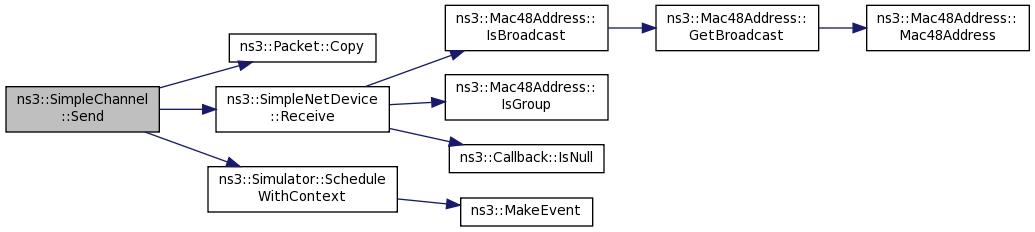

+ Here is the call graph for this function:

Member Data Documentation

std::vector<Ptr<SimpleNetDevice> > ns3::SimpleChannel::m_devices
private

Definition at line 52 of file simple-channel.h.

Referenced by Add(), GetDevice(), GetNDevices(), and Send().

The documentation for this class was generated from the following files:
