ns3::SqliteDataOutput Class Reference
Statistics

#include <sqlite-data-output.h>

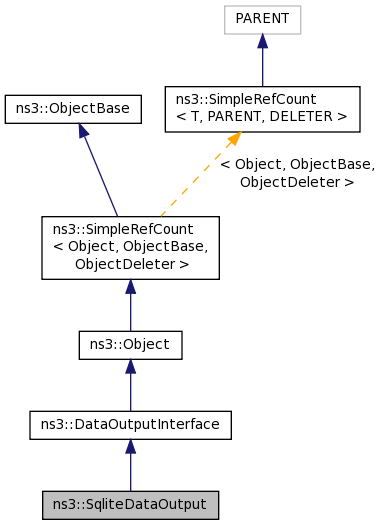

+ Inheritance diagram for ns3::SqliteDataOutput:

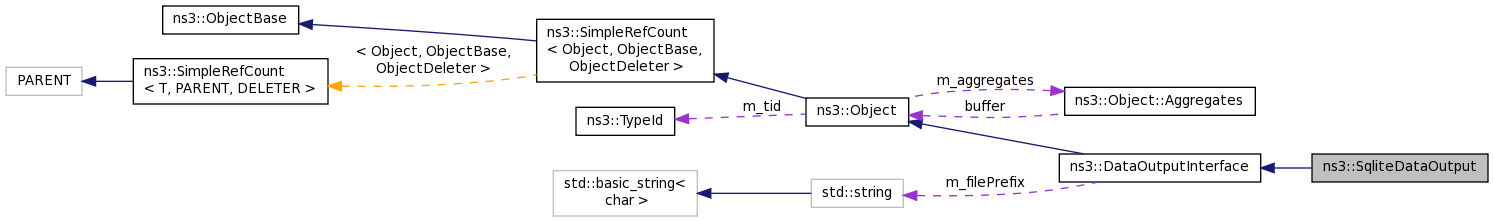

+ Collaboration diagram for ns3::SqliteDataOutput:

Classes

class  SqliteOutputCallback


Public Member Functions

 SqliteDataOutput ()

virtual ~SqliteDataOutput ()

virtual void Output (DataCollector &dc)

- Public Member Functions inherited from ns3::DataOutputInterface
 DataOutputInterface ()

virtual ~DataOutputInterface ()

std::string GetFilePrefix () const

void SetFilePrefix (const std::string prefix)

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()

 SimpleRefCount (const SimpleRefCount &o)

uint32_t GetReferenceCount (void) const

SimpleRefCount & operator= (const SimpleRefCount &o)

void Ref (void) const

void Unref (void) const

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Protected Member Functions

virtual void DoDispose ()

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)

virtual void NotifyNewAggregate (void)

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)


Private Member Functions

int Exec (std::string exe)


Private Attributes

sqlite3 * m_db


Additional Inherited Members

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)

- Protected Attributes inherited from ns3::DataOutputInterface
std::string m_filePrefix


Detailed Description

Definition at line 40 of file sqlite-data-output.h.

Constructor & Destructor Documentation

SqliteDataOutput::SqliteDataOutput ( )

Definition at line 38 of file sqlite-data-output.cc.

References ns3::DataOutputInterface::m_filePrefix, and NS_LOG_FUNCTION_NOARGS.

SqliteDataOutput::~SqliteDataOutput ( )
virtual

Definition at line 43 of file sqlite-data-output.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

void SqliteDataOutput::DoDispose ( void  )
protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::DataOutputInterface.

Definition at line 48 of file sqlite-data-output.cc.

References ns3::DataOutputInterface::DoDispose(), and NS_LOG_FUNCTION_NOARGS.

+ Here is the call graph for this function:

int SqliteDataOutput::Exec ( std::string  exe)
private

Definition at line 57 of file sqlite-data-output.cc.

References m_db, NS_LOG_ERROR, and NS_LOG_INFO.

Referenced by Output().

+ Here is the caller graph for this function:

void SqliteDataOutput::Output ( DataCollector &  dc)
virtual
Todo:
Better error reporting, management!

Implements ns3::DataOutputInterface.

Definition at line 101 of file sqlite-data-output.cc.

References ns3::DataCollector::DataCalculatorBegin(), ns3::DataCollector::DataCalculatorEnd(), Exec(), ns3::DataCollector::GetDescription(), ns3::DataCollector::GetExperimentLabel(), ns3::DataCollector::GetInputLabel(), ns3::DataCollector::GetRunLabel(), ns3::DataCollector::GetStrategyLabel(), m_db, ns3::DataOutputInterface::m_filePrefix, ns3::DataCollector::MetadataBegin(), ns3::DataCollector::MetadataEnd(), and NS_LOG_ERROR.

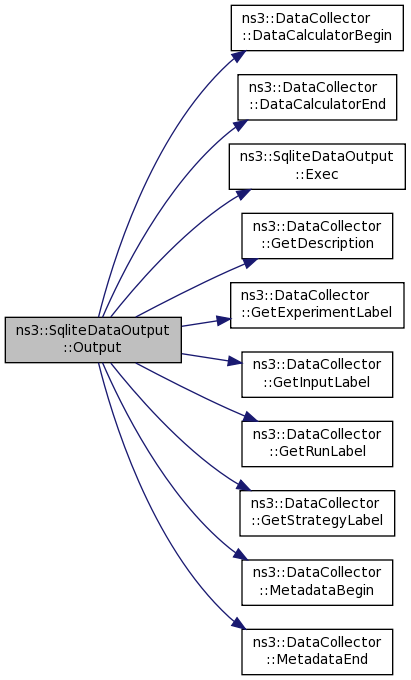

+ Here is the call graph for this function:

Member Data Documentation

sqlite3* ns3::SqliteDataOutput::m_db
private

Definition at line 87 of file sqlite-data-output.h.

Referenced by Exec(), and Output().

The documentation for this class was generated from the following files:
