A Udp server. Receives UDP packets from a remote host. UDP packets carry a 32bits sequence number followed by a 64bits time stamp in their payloads. The application uses, the sequence number to determine if a packet is lost, and the time stamp to compute the delay. More...

#include <udp-server.h>

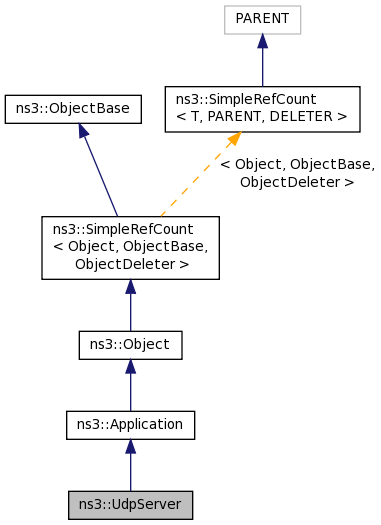

Inheritance diagram for ns3::UdpServer:

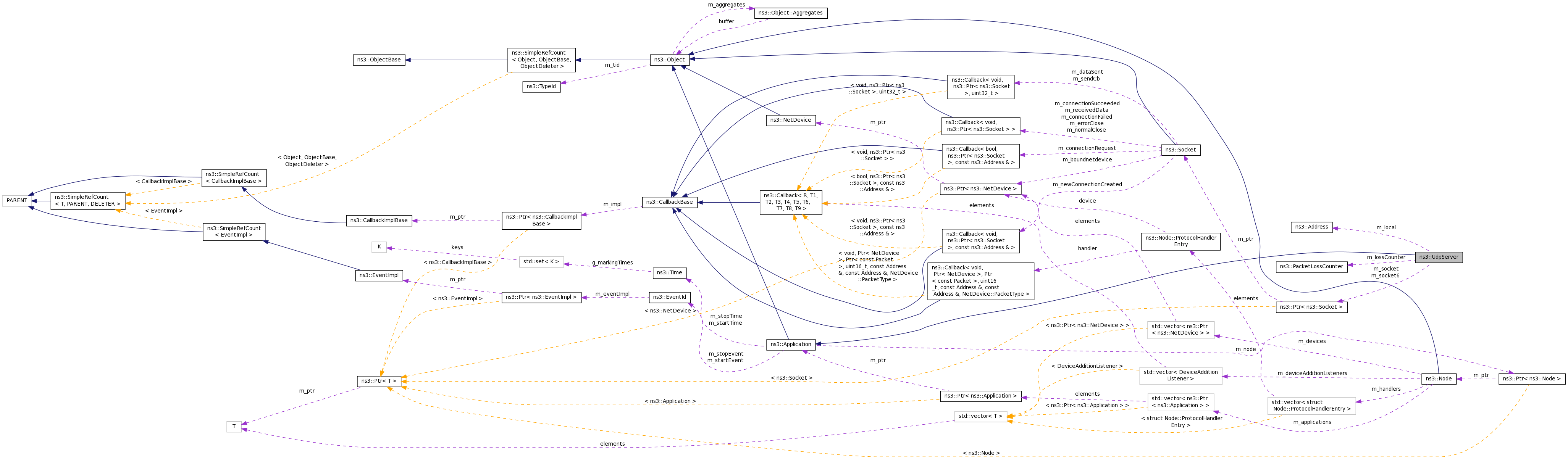

Collaboration diagram for ns3::UdpServer:

Public Member Functions
	UdpServer ()

virtual	~UdpServer ()

uint32_t	GetLost (void) const

uint16_t	GetPacketWindowSize () const

uint32_t	GetReceived (void) const
	returns the number of received packets More...

void	SetPacketWindowSize (uint16_t size)
	Set the size of the window used for checking loss. This value should be a multiple of 8. More...

Public Member Functions inherited from ns3::Application
	Application ()

virtual	~Application ()

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time. More...

void	SetStopTime (Time stop)
	Specify application stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Protected Member Functions
virtual void	DoDispose (void)

Protected Member Functions inherited from ns3::Application
virtual void	DoInitialize (void)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Private Member Functions
void	HandleRead (Ptr< Socket > socket)

virtual void	StartApplication (void)
	Application specific startup code. More...

virtual void	StopApplication (void)
	Application specific shutdown code. More...

Private Attributes
Address	m_local

PacketLossCounter	m_lossCounter

uint16_t	m_port

uint32_t	m_received

Ptr< Socket >	m_socket

Ptr< Socket >	m_socket6

Additional Inherited Members
Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node

EventId	m_startEvent

Time	m_startTime

EventId	m_stopEvent

Time	m_stopTime

Detailed Description

A Udp server. Receives UDP packets from a remote host. UDP packets carry a 32bits sequence number followed by a 64bits time stamp in their payloads. The application uses, the sequence number to determine if a packet is lost, and the time stamp to compute the delay.

Config Paths

ns3::UdpServer is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/ApplicationList/[i]/$ns3::UdpServer

Attributes

Port: Port on which we listen for incoming packets.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 100
- Flags: construct write read
PacketWindowSize: The size of the window used to compute the packet loss. This value should be a multiple of 8.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 8:256
- Initial value: 32
- Flags: construct write read

Attributes defined in parent class ns3::Application

StartTime: Time at which the application will start
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 45 of file udp-server.h.

Constructor & Destructor Documentation

ns3::UdpServer::UdpServer ( )

Definition at line 64 of file udp-server.cc.

References m_received, and NS_LOG_FUNCTION.

ns3::UdpServer::~UdpServer ( )

virtual

Definition at line 71 of file udp-server.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::UdpServer::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Application.

Definition at line 105 of file udp-server.cc.

References ns3::Application::DoDispose(), and NS_LOG_FUNCTION.

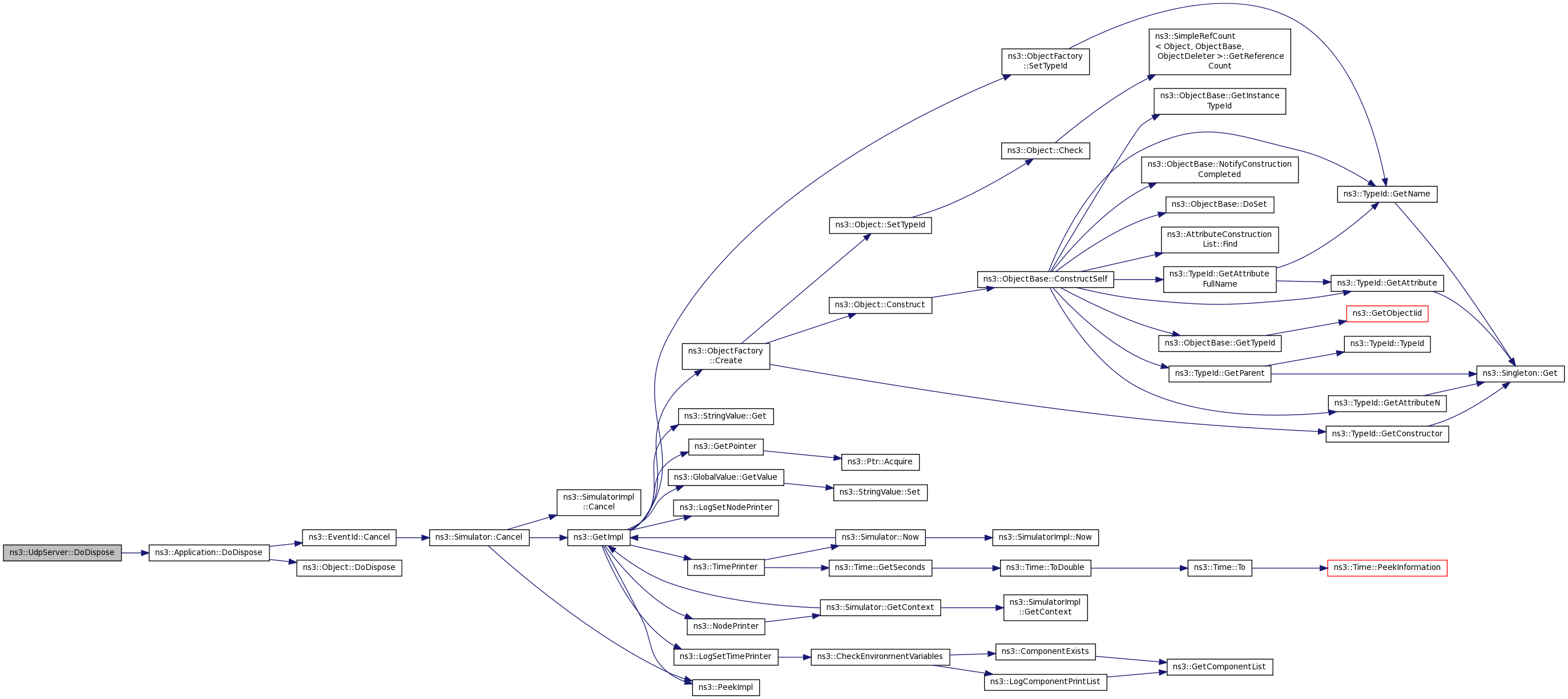

Here is the call graph for this function:
