#include <wifi-mac-header.h>

Inheritance diagram for ns3::WifiMacHeader:

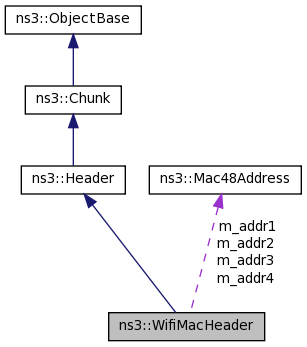

Collaboration diagram for ns3::WifiMacHeader:

Public Types
enum	AddressType { ADDR1, ADDR2, ADDR3, ADDR4 }

enum	QosAckPolicy { NORMAL_ACK = 0, NO_ACK = 1, NO_EXPLICIT_ACK = 2, BLOCK_ACK = 3 }

Public Member Functions
	WifiMacHeader ()

	~WifiMacHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

Mac48Address	GetAddr1 (void) const

Mac48Address	GetAddr2 (void) const

Mac48Address	GetAddr3 (void) const

Mac48Address	GetAddr4 (void) const

Time	GetDuration (void) const

uint16_t	GetFragmentNumber (void) const

virtual TypeId	GetInstanceTypeId (void) const

enum QosAckPolicy	GetQosAckPolicy (void) const

uint8_t	GetQosTid (void) const

uint8_t	GetQosTxopLimit (void) const

uint16_t	GetRawDuration (void) const

uint16_t	GetSequenceControl (void) const

uint16_t	GetSequenceNumber (void) const

virtual uint32_t	GetSerializedSize (void) const

uint32_t	GetSize (void) const

enum WifiMacType	GetType (void) const

const char *	GetTypeString (void) const

bool	IsAck (void) const

bool	IsAction () const

bool	IsAssocReq (void) const

bool	IsAssocResp (void) const

bool	IsAuthentication (void) const

bool	IsBeacon (void) const

bool	IsBlockAck (void) const

bool	IsBlockAckReq (void) const

bool	IsCfpoll (void) const

bool	IsCtl (void) const

bool	IsCts (void) const

bool	IsData (void) const

bool	IsDeauthentication (void) const

bool	IsDisassociation (void) const

bool	IsFromDs (void) const

bool	IsMgt (void) const

bool	IsMoreFragments (void) const

bool	IsMultihopAction () const

bool	IsProbeReq (void) const

bool	IsProbeResp (void) const

bool	IsQosAck (void) const

bool	IsQosAmsdu (void) const

bool	IsQosBlockAck (void) const

bool	IsQosData (void) const

bool	IsQosEosp (void) const

bool	IsQosNoAck (void) const

bool	IsReassocReq (void) const

bool	IsReassocResp (void) const

bool	IsRetry (void) const

bool	IsRts (void) const

bool	IsToDs (void) const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetAction ()

void	SetAddr1 (Mac48Address address)

void	SetAddr2 (Mac48Address address)

void	SetAddr3 (Mac48Address address)

void	SetAddr4 (Mac48Address address)

void	SetAssocReq (void)

void	SetAssocResp (void)

void	SetBeacon (void)

void	SetBlockAck (void)

void	SetBlockAckReq (void)

void	SetDsFrom (void)

void	SetDsNotFrom (void)

void	SetDsNotTo (void)

void	SetDsTo (void)

void	SetDuration (Time duration)

void	SetFragmentNumber (uint8_t frag)

void	SetId (uint16_t id)

void	SetMoreFragments (void)

void	SetMultihopAction ()

void	SetNoMoreFragments (void)

void	SetNoOrder (void)

void	SetNoRetry (void)

void	SetOrder (void)

void	SetProbeReq (void)

void	SetProbeResp (void)

void	SetQosAckPolicy (enum QosAckPolicy)

void	SetQosAmsdu (void)

void	SetQosBlockAck (void)

void	SetQosEosp ()

void	SetQosNoAck (void)

void	SetQosNoAmsdu (void)

void	SetQosNoEosp ()

void	SetQosNormalAck (void)

void	SetQosTid (uint8_t tid)

void	SetQosTxopLimit (uint8_t txop)

void	SetRawDuration (uint16_t duration)

void	SetRetry (void)

void	SetSequenceNumber (uint16_t seq)

void	SetType (enum WifiMacType type)

void	SetTypeData (void)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Member Functions
uint16_t	GetFrameControl (void) const

uint16_t	GetQosControl (void) const

void	PrintFrameControl (std::ostream &os) const

void	SetFrameControl (uint16_t control)

void	SetQosControl (uint16_t qos)

void	SetSequenceControl (uint16_t seq)

Private Attributes
Mac48Address	m_addr1

Mac48Address	m_addr2

Mac48Address	m_addr3

Mac48Address	m_addr4

uint8_t	m_amsduPresent

uint8_t	m_ctrlFromDs

uint8_t	m_ctrlMoreData

uint8_t	m_ctrlMoreFrag

uint8_t	m_ctrlOrder

uint8_t	m_ctrlRetry

uint8_t	m_ctrlSubtype

uint8_t	m_ctrlToDs

uint8_t	m_ctrlType

uint8_t	m_ctrlWep

uint16_t	m_duration

uint8_t	m_qosAckPolicy

uint8_t	m_qosEosp

uint16_t	m_qosStuff

uint8_t	m_qosTid

uint8_t	m_seqFrag

uint16_t	m_seqSeq

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

Implements the IEEE 802.11 MAC header

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 77 of file wifi-mac-header.h.

Member Enumeration Documentation

enum ns3::WifiMacHeader::AddressType

Enumerator
ADDR1
ADDR2
ADDR3
ADDR4

Definition at line 88 of file wifi-mac-header.h.

enum ns3::WifiMacHeader::QosAckPolicy

Enumerator
NORMAL_ACK
NO_ACK
NO_EXPLICIT_ACK
BLOCK_ACK

Definition at line 80 of file wifi-mac-header.h.

Constructor & Destructor Documentation

ns3::WifiMacHeader::WifiMacHeader ( )

Definition at line 48 of file wifi-mac-header.cc.

ns3::WifiMacHeader::~WifiMacHeader ( )

Definition at line 56 of file wifi-mac-header.cc.

Member Function Documentation

uint32_t ns3::WifiMacHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 1130 of file wifi-mac-header.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_addr1, m_addr2, m_addr3, m_addr4, m_ctrlFromDs, m_ctrlSubtype, m_ctrlToDs, m_ctrlType, m_duration, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadLsbtohU16(), SetFrameControl(), SetQosControl(), SetSequenceControl(), visualizer.core::start(), ns3::SUBTYPE_CTL_ACK, ns3::SUBTYPE_CTL_BACKREQ, ns3::SUBTYPE_CTL_BACKRESP, ns3::SUBTYPE_CTL_CTS, ns3::SUBTYPE_CTL_RTS, ns3::TYPE_CTL, ns3::TYPE_DATA, and ns3::TYPE_MGT.

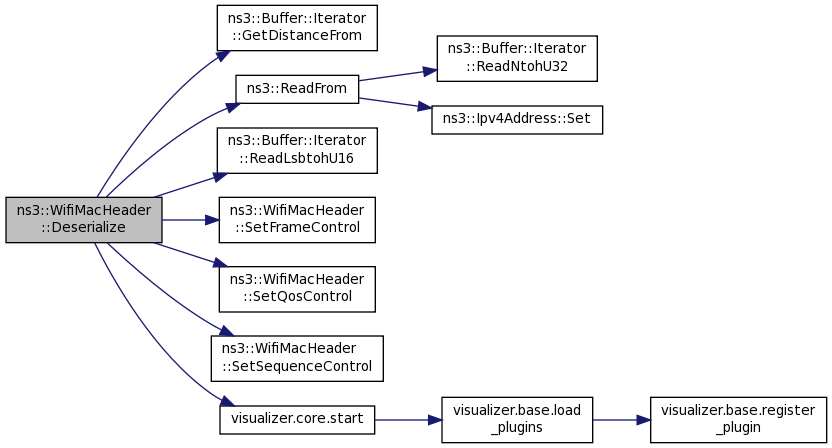

Here is the call graph for this function:

Mac48Address ns3::WifiMacHeader::GetAddr1 ( void ) const

Definition at line 416 of file wifi-mac-header.cc.

References m_addr1.

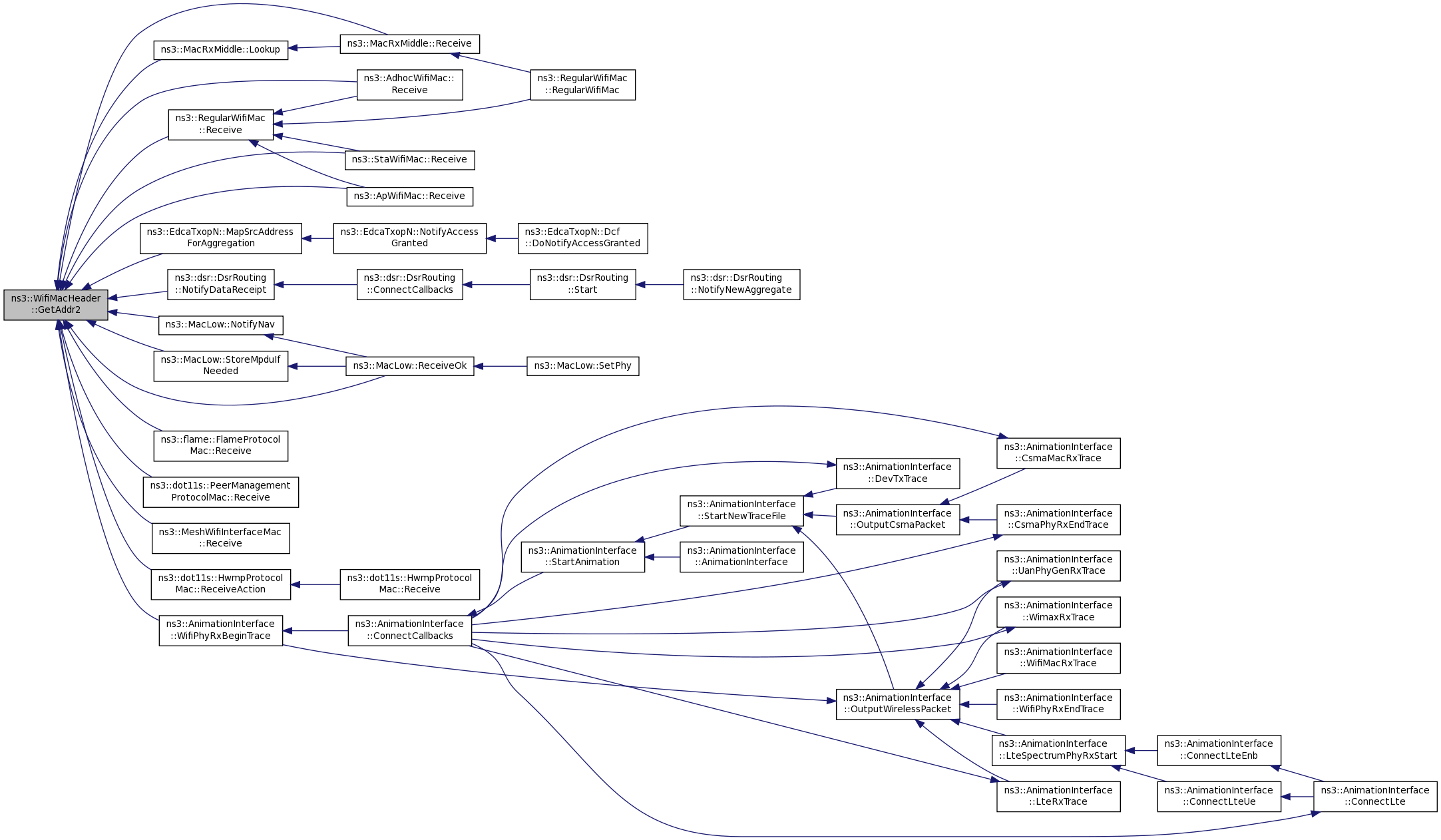

Mac48Address ns3::WifiMacHeader::GetAddr2 ( void ) const

Definition at line 421 of file wifi-mac-header.cc.

References m_addr2.

Referenced by ns3::MacRxMiddle::Lookup(), ns3::EdcaTxopN::MapSrcAddressForAggregation(), ns3::dsr::DsrRouting::NotifyDataReceipt(), ns3::MacLow::NotifyNav(), ns3::flame::FlameProtocolMac::Receive(), ns3::dot11s::PeerManagementProtocolMac::Receive(), ns3::MacRxMiddle::Receive(), ns3::AdhocWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::RegularWifiMac::Receive(), ns3::dot11s::HwmpProtocolMac::ReceiveAction(), ns3::MacLow::ReceiveOk(), ns3::MacLow::StoreMpduIfNeeded(), and ns3::AnimationInterface::WifiPhyRxBeginTrace().

Here is the caller graph for this function:

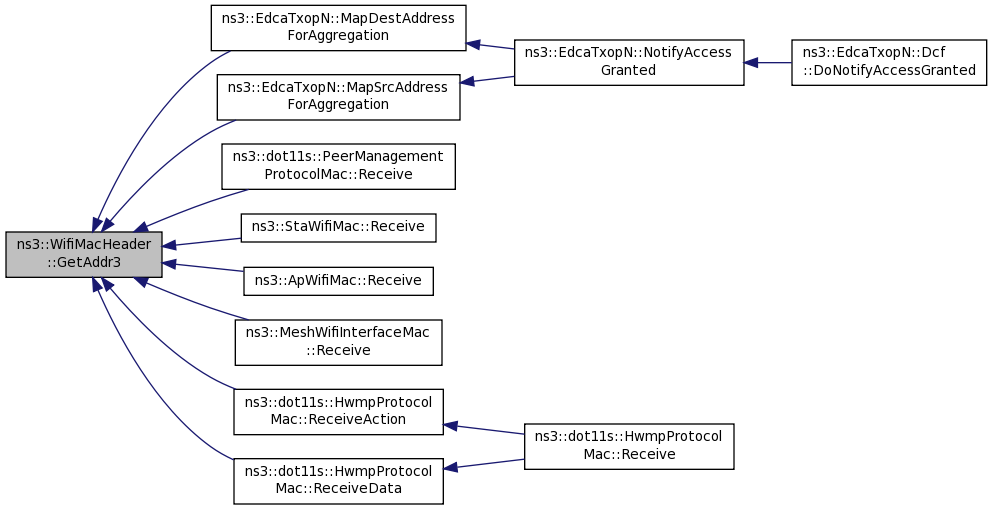

Mac48Address ns3::WifiMacHeader::GetAddr3 ( void ) const

Definition at line 426 of file wifi-mac-header.cc.

References m_addr3.

Referenced by ns3::EdcaTxopN::MapDestAddressForAggregation(), ns3::EdcaTxopN::MapSrcAddressForAggregation(), ns3::dot11s::PeerManagementProtocolMac::Receive(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::dot11s::HwmpProtocolMac::ReceiveAction(), and ns3::dot11s::HwmpProtocolMac::ReceiveData().

Here is the caller graph for this function:

Mac48Address ns3::WifiMacHeader::GetAddr4 ( void ) const

Definition at line 431 of file wifi-mac-header.cc.

References m_addr4.

Referenced by ns3::MeshWifiInterfaceMac::Receive(), and ns3::dot11s::HwmpProtocolMac::ReceiveData().

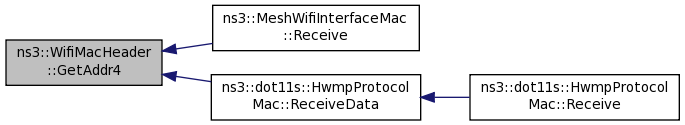

Here is the caller graph for this function:

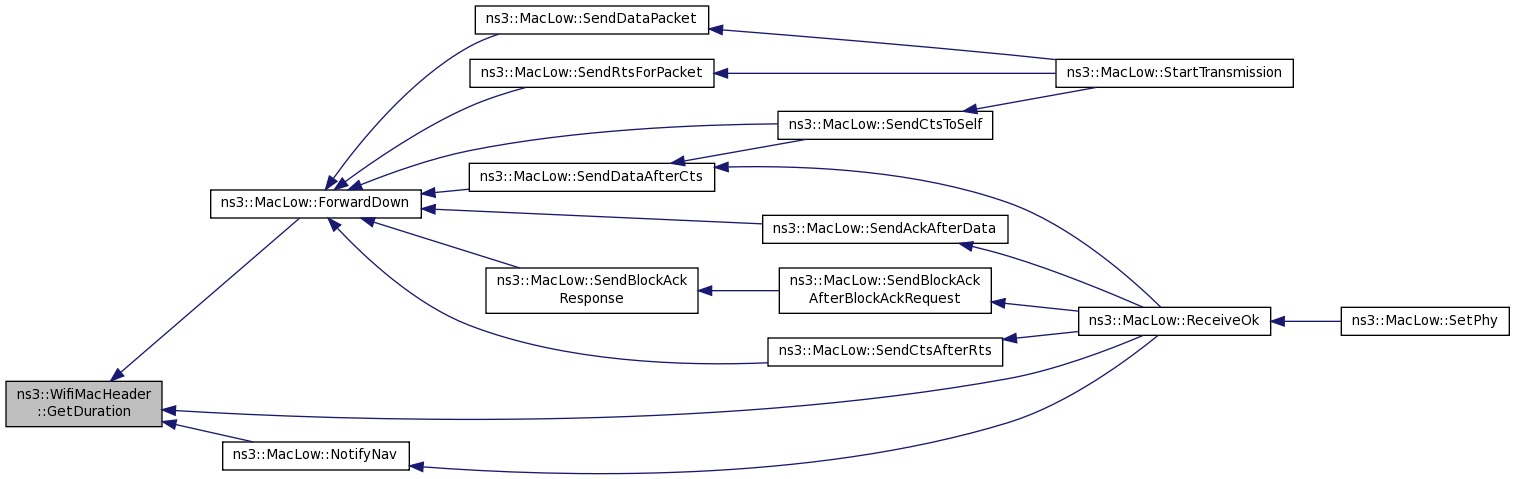

Time ns3::WifiMacHeader::GetDuration ( void ) const

Definition at line 707 of file wifi-mac-header.cc.

References m_duration.

Referenced by ns3::MacLow::ForwardDown(), ns3::MacLow::NotifyNav(), and ns3::MacLow::ReceiveOk().

Here is the caller graph for this function:

uint16_t ns3::WifiMacHeader::GetFragmentNumber ( void ) const

Definition at line 722 of file wifi-mac-header.cc.

References m_seqFrag.

Referenced by ns3::MacRxMiddle::HandleFragments(), ns3::MacRxMiddle::Receive(), and ns3::BlockAckCache::UpdateWithMpdu().

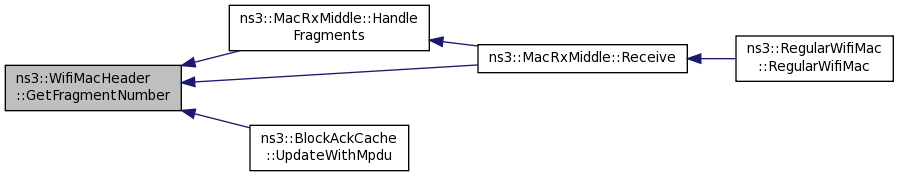

Here is the caller graph for this function:

uint16_t ns3::WifiMacHeader::GetFrameControl ( void ) const

private

Definition at line 803 of file wifi-mac-header.cc.

References m_ctrlFromDs, m_ctrlMoreData, m_ctrlMoreFrag, m_ctrlOrder, m_ctrlRetry, m_ctrlSubtype, m_ctrlToDs, m_ctrlType, and m_ctrlWep.

Referenced by Serialize().

Here is the caller graph for this function:

TypeId ns3::WifiMacHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 965 of file wifi-mac-header.cc.

References GetTypeId().

Here is the call graph for this function:

enum WifiMacHeader::QosAckPolicy ns3::WifiMacHeader::GetQosAckPolicy ( void ) const

Definition at line 773 of file wifi-mac-header.cc.

References BLOCK_ACK, m_qosAckPolicy, NO_ACK, NO_EXPLICIT_ACK, NORMAL_ACK, and NS_ASSERT.

uint16_t ns3::WifiMacHeader::GetQosControl ( void ) const

private

Definition at line 819 of file wifi-mac-header.cc.

References m_amsduPresent, m_qosAckPolicy, m_qosEosp, m_qosStuff, and m_qosTid.

Referenced by Serialize().

Here is the caller graph for this function:

uint8_t ns3::WifiMacHeader::GetQosTid ( void ) const

Definition at line 767 of file wifi-mac-header.cc.

References IsQosData(), m_qosTid, and NS_ASSERT.

Referenced by ns3::EdcaTxopN::CompleteTx(), ns3::ApWifiMac::DeaggregateAmsduAndForward(), ns3::BlockAckManager::GetNextPacket(), ns3::MacTxMiddle::GetNextSequenceNumberfor(), ns3::MacRxMiddle::Lookup(), ns3::WifiRemoteStationManager::Lookup(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::MacLow::ReceiveOk(), ns3::EdcaTxopN::SetupBlockAckIfNeeded(), ns3::MacLow::StoreMpduIfNeeded(), ns3::BlockAckManager::StorePacket(), and ns3::EdcaTxopN::VerifyBlockAck().

Here is the call graph for this function:

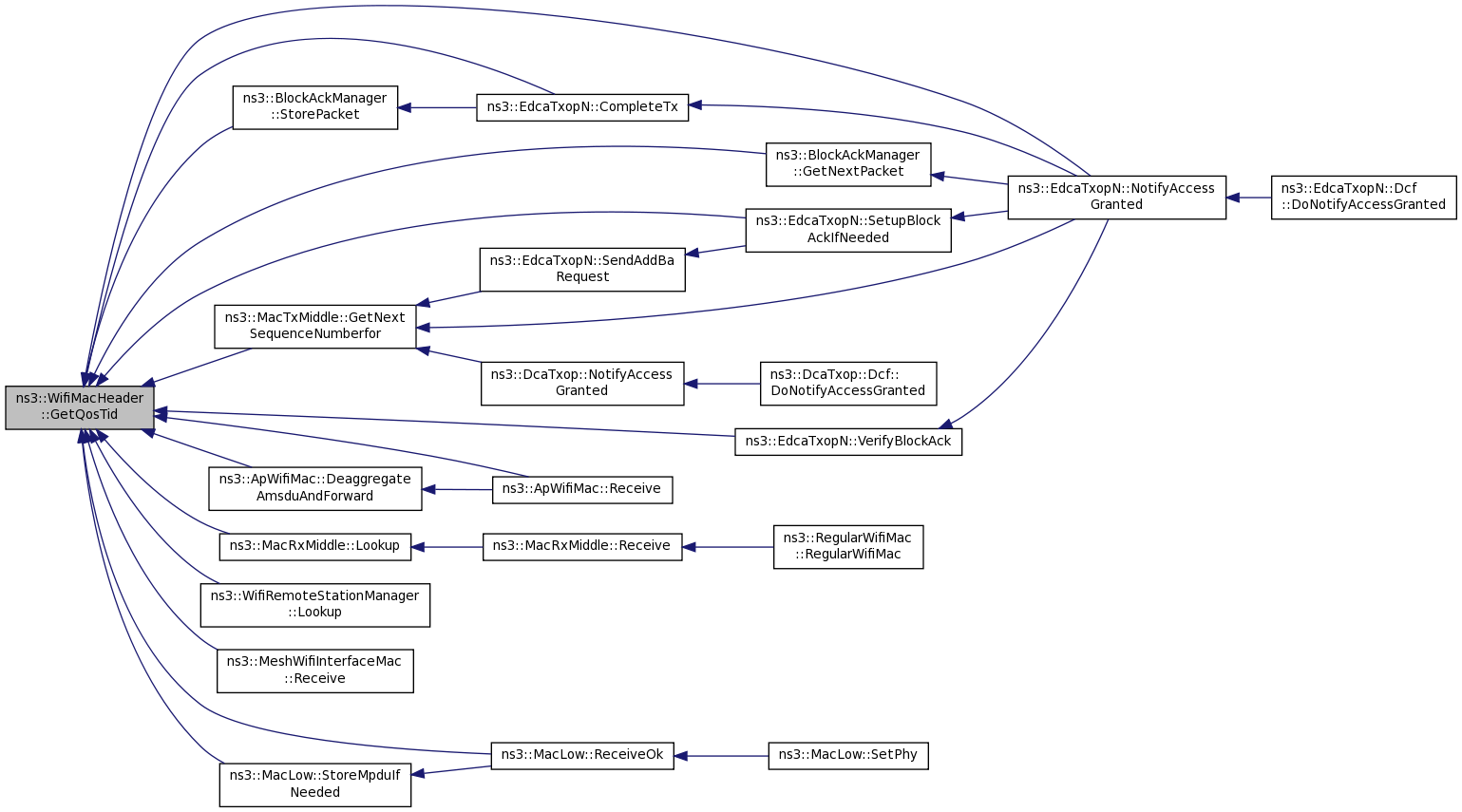

Here is the caller graph for this function:

uint8_t ns3::WifiMacHeader::GetQosTxopLimit ( void ) const

Definition at line 796 of file wifi-mac-header.cc.

References IsQosData(), m_qosStuff, and NS_ASSERT.

Here is the call graph for this function:

uint16_t ns3::WifiMacHeader::GetRawDuration ( void ) const

Definition at line 702 of file wifi-mac-header.cc.

References m_duration.

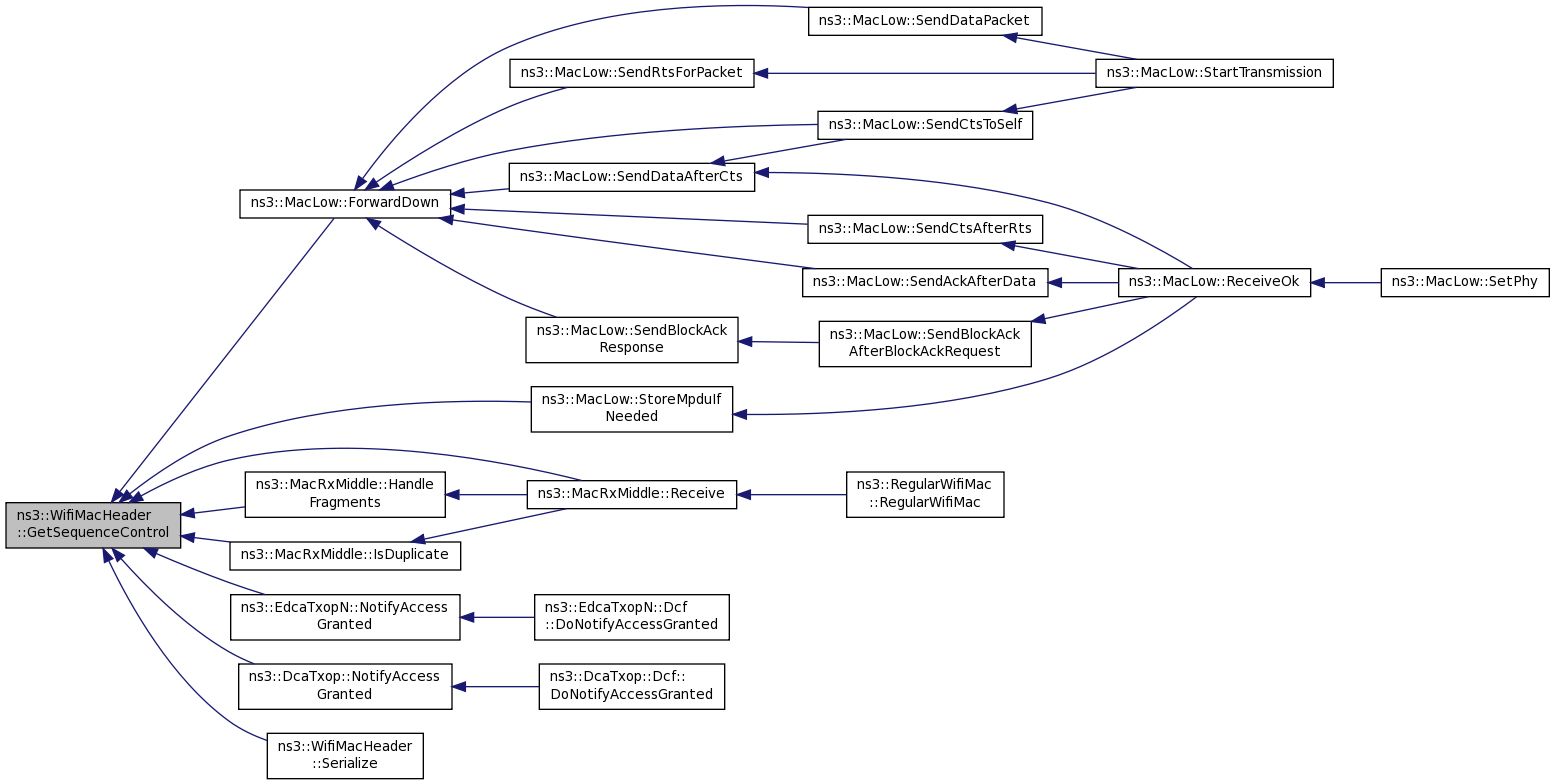

uint16_t ns3::WifiMacHeader::GetSequenceControl ( void ) const

Definition at line 712 of file wifi-mac-header.cc.

References m_seqFrag, and m_seqSeq.

Referenced by ns3::MacLow::ForwardDown(), ns3::MacRxMiddle::HandleFragments(), ns3::MacRxMiddle::IsDuplicate(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), ns3::MacRxMiddle::Receive(), Serialize(), and ns3::MacLow::StoreMpduIfNeeded().

Here is the caller graph for this function:

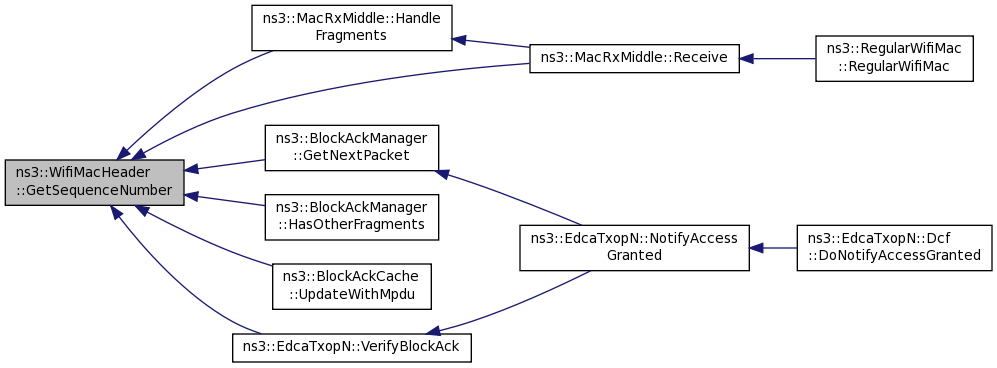

uint16_t ns3::WifiMacHeader::GetSequenceNumber ( void ) const

Definition at line 717 of file wifi-mac-header.cc.

References m_seqSeq.

Referenced by ns3::BlockAckManager::GetNextPacket(), ns3::MacRxMiddle::HandleFragments(), ns3::BlockAckManager::HasOtherFragments(), ns3::MacRxMiddle::Receive(), ns3::BlockAckCache::UpdateWithMpdu(), and ns3::EdcaTxopN::VerifyBlockAck().

Here is the caller graph for this function:

uint32_t ns3::WifiMacHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 1073 of file wifi-mac-header.cc.

References GetSize().

Referenced by ns3::MacLow::NotifyNav(), ns3::EdcaTxopN::PushFront(), ns3::DcaTxop::Queue(), and ns3::EdcaTxopN::Queue().

Here is the call graph for this function:

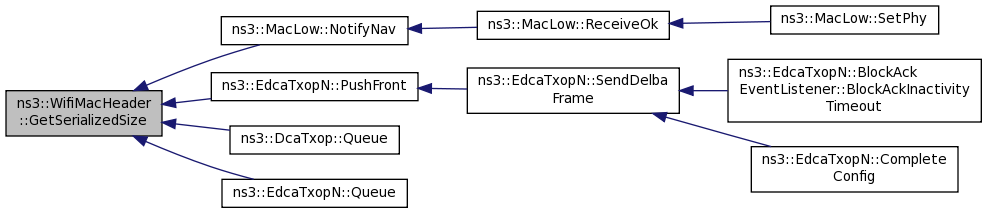

Here is the caller graph for this function:

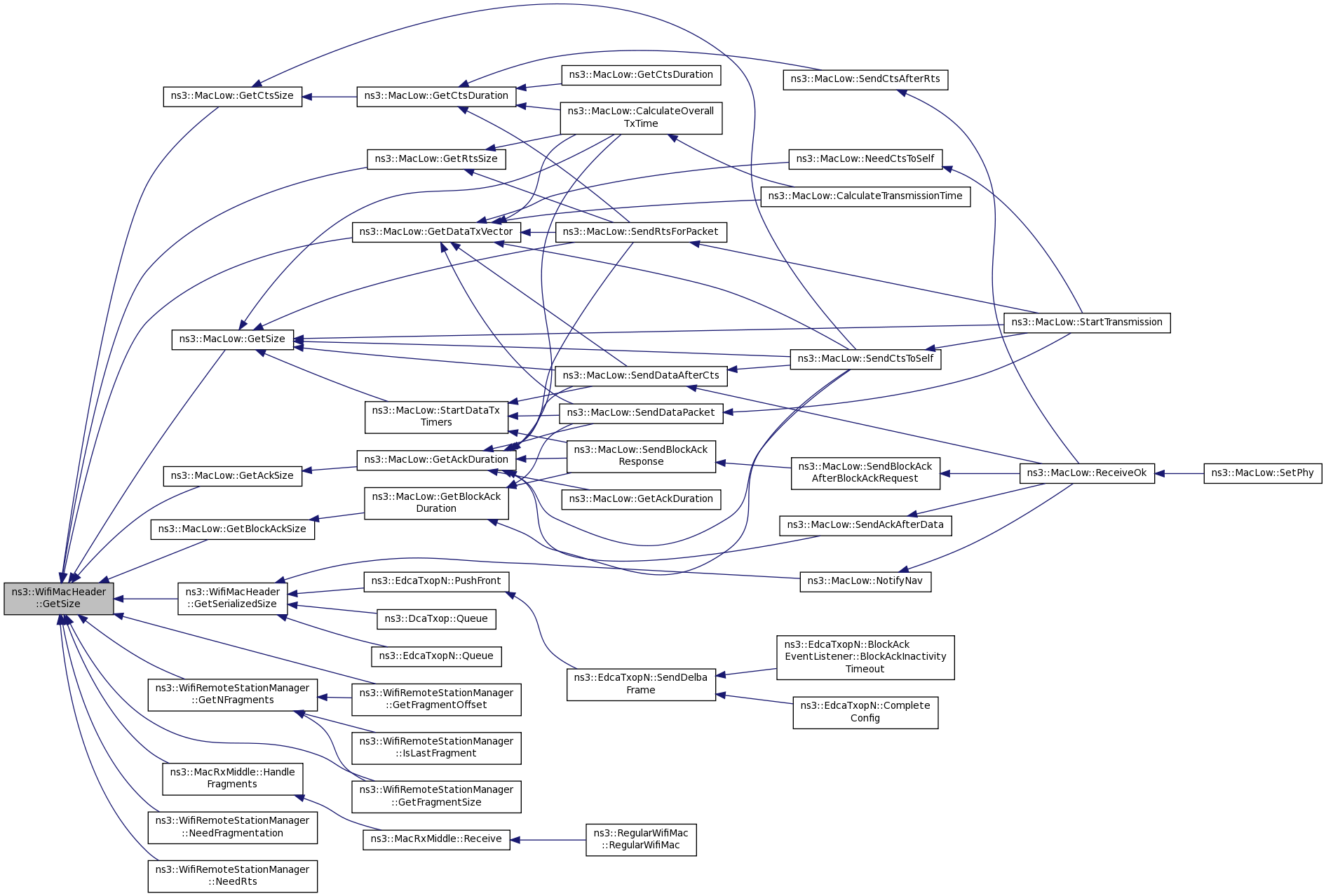

uint32_t ns3::WifiMacHeader::GetSize ( void ) const

Definition at line 860 of file wifi-mac-header.cc.

References m_ctrlFromDs, m_ctrlSubtype, m_ctrlToDs, m_ctrlType, ns3::SUBTYPE_CTL_ACK, ns3::SUBTYPE_CTL_BACKREQ, ns3::SUBTYPE_CTL_BACKRESP, ns3::SUBTYPE_CTL_CTLWRAPPER, ns3::SUBTYPE_CTL_CTS, ns3::SUBTYPE_CTL_RTS, ns3::TYPE_CTL, ns3::TYPE_DATA, and ns3::TYPE_MGT.

Referenced by ns3::MacLow::GetAckSize(), ns3::MacLow::GetBlockAckSize(), ns3::MacLow::GetCtsSize(), ns3::MacLow::GetDataTxVector(), ns3::WifiRemoteStationManager::GetFragmentOffset(), ns3::WifiRemoteStationManager::GetFragmentSize(), ns3::WifiRemoteStationManager::GetNFragments(), ns3::MacLow::GetRtsSize(), GetSerializedSize(), ns3::MacLow::GetSize(), ns3::MacRxMiddle::HandleFragments(), ns3::WifiRemoteStationManager::NeedFragmentation(), and ns3::WifiRemoteStationManager::NeedRts().

Here is the caller graph for this function:

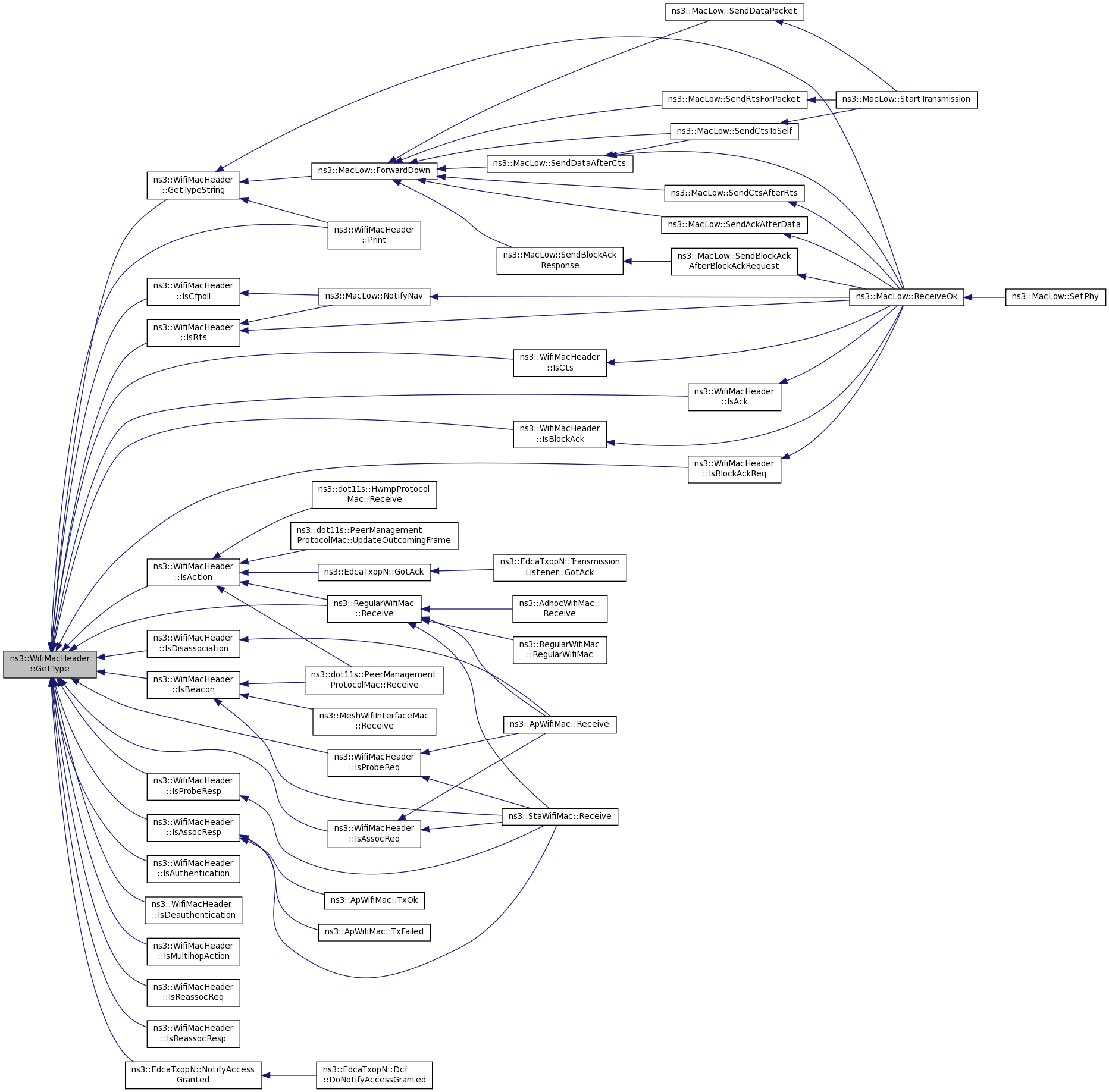

enum WifiMacType ns3::WifiMacHeader::GetType ( void ) const

Definition at line 437 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, NS_ASSERT, ns3::SUBTYPE_CTL_ACK, ns3::SUBTYPE_CTL_BACKREQ, ns3::SUBTYPE_CTL_BACKRESP, ns3::SUBTYPE_CTL_CTS, ns3::SUBTYPE_CTL_RTS, ns3::TYPE_CTL, ns3::TYPE_DATA, ns3::TYPE_MGT, ns3::WIFI_MAC_CTL_ACK, ns3::WIFI_MAC_CTL_BACKREQ, ns3::WIFI_MAC_CTL_BACKRESP, ns3::WIFI_MAC_CTL_CTS, ns3::WIFI_MAC_CTL_RTS, ns3::WIFI_MAC_DATA, ns3::WIFI_MAC_DATA_CFACK, ns3::WIFI_MAC_DATA_CFACK_CFPOLL, ns3::WIFI_MAC_DATA_CFPOLL, ns3::WIFI_MAC_DATA_NULL, ns3::WIFI_MAC_DATA_NULL_CFACK, ns3::WIFI_MAC_DATA_NULL_CFACK_CFPOLL, ns3::WIFI_MAC_DATA_NULL_CFPOLL, ns3::WIFI_MAC_MGT_ACTION, ns3::WIFI_MAC_MGT_ACTION_NO_ACK, ns3::WIFI_MAC_MGT_ASSOCIATION_REQUEST, ns3::WIFI_MAC_MGT_ASSOCIATION_RESPONSE, ns3::WIFI_MAC_MGT_AUTHENTICATION, ns3::WIFI_MAC_MGT_BEACON, ns3::WIFI_MAC_MGT_DEAUTHENTICATION, ns3::WIFI_MAC_MGT_DISASSOCIATION, ns3::WIFI_MAC_MGT_MULTIHOP_ACTION, ns3::WIFI_MAC_MGT_PROBE_REQUEST, ns3::WIFI_MAC_MGT_PROBE_RESPONSE, ns3::WIFI_MAC_MGT_REASSOCIATION_REQUEST, ns3::WIFI_MAC_MGT_REASSOCIATION_RESPONSE, ns3::WIFI_MAC_QOSDATA, ns3::WIFI_MAC_QOSDATA_CFACK, ns3::WIFI_MAC_QOSDATA_CFACK_CFPOLL, ns3::WIFI_MAC_QOSDATA_CFPOLL, ns3::WIFI_MAC_QOSDATA_NULL, ns3::WIFI_MAC_QOSDATA_NULL_CFACK_CFPOLL, and ns3::WIFI_MAC_QOSDATA_NULL_CFPOLL.

Referenced by GetTypeString(), IsAck(), IsAction(), IsAssocReq(), IsAssocResp(), IsAuthentication(), IsBeacon(), IsBlockAck(), IsBlockAckReq(), IsCfpoll(), IsCts(), IsDeauthentication(), IsDisassociation(), IsMultihopAction(), IsProbeReq(), IsProbeResp(), IsReassocReq(), IsReassocResp(), IsRts(), ns3::EdcaTxopN::NotifyAccessGranted(), Print(), and ns3::RegularWifiMac::Receive().

Here is the caller graph for this function:

TypeId ns3::WifiMacHeader::GetTypeId ( void )

static

Definition at line 955 of file wifi-mac-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

const char * ns3::WifiMacHeader::GetTypeString ( void ) const

Definition at line 902 of file wifi-mac-header.cc.

References ns3::DATA, FOO, and GetType().

Referenced by ns3::MacLow::ForwardDown(), Print(), and ns3::MacLow::ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsAck ( void ) const

Definition at line 625 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_CTL_ACK.

Referenced by ns3::MacLow::ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsAction ( void ) const

Definition at line 680 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_ACTION.

Referenced by ns3::EdcaTxopN::GotAck(), ns3::dot11s::PeerManagementProtocolMac::Receive(), ns3::dot11s::HwmpProtocolMac::Receive(), ns3::RegularWifiMac::Receive(), and ns3::dot11s::PeerManagementProtocolMac::UpdateOutcomingFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsAssocReq ( void ) const

Definition at line 630 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_ASSOCIATION_REQUEST.

Referenced by ns3::StaWifiMac::Receive(), and ns3::ApWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsAssocResp ( void ) const

Definition at line 635 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_ASSOCIATION_RESPONSE.

Referenced by ns3::StaWifiMac::Receive(), ns3::ApWifiMac::TxFailed(), and ns3::ApWifiMac::TxOk().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsAuthentication ( void ) const

Definition at line 670 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_AUTHENTICATION.

Here is the call graph for this function:

bool ns3::WifiMacHeader::IsBeacon ( void ) const

Definition at line 660 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_BEACON.

Referenced by ns3::dot11s::PeerManagementProtocolMac::Receive(), ns3::StaWifiMac::Receive(), and ns3::MeshWifiInterfaceMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsBlockAck ( void ) const

Definition at line 695 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_CTL_BACKRESP.

Referenced by ns3::MacLow::ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsBlockAckReq ( void ) const

Definition at line 690 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_CTL_BACKREQ.

Referenced by ns3::MacLow::ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsCfpoll ( void ) const

Definition at line 595 of file wifi-mac-header.cc.

References GetType(), ns3::WIFI_MAC_DATA_CFACK_CFPOLL, ns3::WIFI_MAC_DATA_CFPOLL, ns3::WIFI_MAC_DATA_NULL_CFACK_CFPOLL, ns3::WIFI_MAC_DATA_NULL_CFPOLL, ns3::WIFI_MAC_QOSDATA_CFACK_CFPOLL, ns3::WIFI_MAC_QOSDATA_CFPOLL, ns3::WIFI_MAC_QOSDATA_NULL_CFACK_CFPOLL, and ns3::WIFI_MAC_QOSDATA_NULL_CFPOLL.

Referenced by ns3::MacLow::NotifyNav().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsCtl ( void ) const

Definition at line 585 of file wifi-mac-header.cc.

References m_ctrlType, and ns3::TYPE_CTL.

Referenced by ns3::AdhocWifiMac::Receive(), ns3::StaWifiMac::Receive(), and ns3::MacLow::ReceiveOk().

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsCts ( void ) const

Definition at line 620 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_CTL_CTS.

Referenced by ns3::MacLow::ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsData ( void ) const

Definition at line 574 of file wifi-mac-header.cc.

References m_ctrlType, and ns3::TYPE_DATA.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted(), ns3::flame::FlameProtocolMac::Receive(), ns3::MacRxMiddle::Receive(), ns3::dot11s::HwmpProtocolMac::Receive(), ns3::AdhocWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::dot11s::HwmpProtocolMac::ReceiveData(), ns3::MacLow::ReceiveOk(), ns3::flame::FlameProtocolMac::UpdateOutcomingFrame(), and ns3::dot11s::HwmpProtocolMac::UpdateOutcomingFrame().

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsDeauthentication ( void ) const

Definition at line 675 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_DEAUTHENTICATION.

Here is the call graph for this function:

bool ns3::WifiMacHeader::IsDisassociation ( void ) const

Definition at line 665 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_DISASSOCIATION.

Referenced by ns3::ApWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsFromDs ( void ) const

Definition at line 563 of file wifi-mac-header.cc.

References m_ctrlFromDs.

Referenced by ns3::StaWifiMac::Receive(), and ns3::ApWifiMac::Receive().

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsMgt ( void ) const

Definition at line 590 of file wifi-mac-header.cc.

References m_ctrlType, and ns3::TYPE_MGT.

Referenced by ns3::MacRxMiddle::Receive(), ns3::ApWifiMac::Receive(), ns3::RegularWifiMac::Receive(), and ns3::MacLow::ReceiveOk().

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsMoreFragments ( void ) const

Definition at line 732 of file wifi-mac-header.cc.

References m_ctrlMoreFrag.

Referenced by ns3::MacRxMiddle::HandleFragments().

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsMultihopAction ( void ) const

Definition at line 685 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_MULTIHOP_ACTION.

Here is the call graph for this function:

bool ns3::WifiMacHeader::IsProbeReq ( void ) const

Definition at line 650 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_PROBE_REQUEST.

Referenced by ns3::StaWifiMac::Receive(), and ns3::ApWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsProbeResp ( void ) const

Definition at line 655 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_PROBE_RESPONSE.

Referenced by ns3::StaWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsQosAck ( void ) const

Definition at line 749 of file wifi-mac-header.cc.

References IsQosData(), m_qosAckPolicy, and NS_ASSERT.

Referenced by ns3::MacLow::ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsQosAmsdu ( void ) const

Definition at line 761 of file wifi-mac-header.cc.

References IsQosData(), m_amsduPresent, and NS_ASSERT.

Referenced by ns3::EdcaTxopN::GotAck(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::AdhocWifiMac::Receive(), ns3::StaWifiMac::Receive(), and ns3::ApWifiMac::Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsQosBlockAck ( void ) const

Definition at line 737 of file wifi-mac-header.cc.

References IsQosData(), m_qosAckPolicy, and NS_ASSERT.

Referenced by ns3::EdcaTxopN::CompleteTx(), ns3::EdcaTxopN::NotifyAccessGranted(), and ns3::MacLow::ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsQosData ( void ) const

Definition at line 580 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_DATA.

Referenced by ns3::EdcaTxopN::CompleteTx(), ns3::MacTxMiddle::GetNextSequenceNumberfor(), GetQosTid(), GetQosTxopLimit(), IsQosAck(), IsQosAmsdu(), IsQosBlockAck(), IsQosEosp(), IsQosNoAck(), ns3::MacRxMiddle::Lookup(), ns3::WifiRemoteStationManager::Lookup(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::AdhocWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::MacLow::ReceiveOk(), and ns3::BlockAckManager::StorePacket().

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsQosEosp ( void ) const

Definition at line 755 of file wifi-mac-header.cc.

References IsQosData(), m_qosEosp, and NS_ASSERT.

Here is the call graph for this function:

bool ns3::WifiMacHeader::IsQosNoAck ( void ) const

Definition at line 743 of file wifi-mac-header.cc.

References IsQosData(), m_qosAckPolicy, and NS_ASSERT.

Referenced by ns3::MacLow::ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsReassocReq ( void ) const

Definition at line 640 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_REASSOCIATION_REQUEST.

Here is the call graph for this function:

bool ns3::WifiMacHeader::IsReassocResp ( void ) const

Definition at line 645 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_MGT_REASSOCIATION_RESPONSE.

Here is the call graph for this function:

bool ns3::WifiMacHeader::IsRetry ( void ) const

Definition at line 727 of file wifi-mac-header.cc.

References m_ctrlRetry.

Referenced by ns3::EdcaTxopN::CompleteTx(), ns3::MacRxMiddle::IsDuplicate(), and ns3::EdcaTxopN::NotifyAccessGranted().

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsRts ( void ) const

Definition at line 615 of file wifi-mac-header.cc.

References GetType(), and ns3::WIFI_MAC_CTL_RTS.

Referenced by ns3::MacLow::NotifyNav(), and ns3::MacLow::ReceiveOk().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiMacHeader::IsToDs ( void ) const

Definition at line 568 of file wifi-mac-header.cc.

References m_ctrlToDs.

Referenced by ns3::StaWifiMac::Receive(), and ns3::ApWifiMac::Receive().

Here is the caller graph for this function:

void ns3::WifiMacHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 980 of file wifi-mac-header.cc.

References GetType(), GetTypeString(), m_addr1, m_addr2, m_addr3, m_addr4, m_ctrlFromDs, m_ctrlToDs, m_duration, m_seqFrag, m_seqSeq, NS_FATAL_ERROR, PrintFrameControl(), ns3::WIFI_MAC_CTL_ACK, ns3::WIFI_MAC_CTL_BACKREQ, ns3::WIFI_MAC_CTL_BACKRESP, ns3::WIFI_MAC_CTL_CTLWRAPPER, ns3::WIFI_MAC_CTL_CTS, ns3::WIFI_MAC_CTL_RTS, ns3::WIFI_MAC_DATA, ns3::WIFI_MAC_DATA_CFACK, ns3::WIFI_MAC_DATA_CFACK_CFPOLL, ns3::WIFI_MAC_DATA_CFPOLL, ns3::WIFI_MAC_DATA_NULL, ns3::WIFI_MAC_DATA_NULL_CFACK, ns3::WIFI_MAC_DATA_NULL_CFACK_CFPOLL, ns3::WIFI_MAC_DATA_NULL_CFPOLL, ns3::WIFI_MAC_MGT_ACTION, ns3::WIFI_MAC_MGT_ACTION_NO_ACK, ns3::WIFI_MAC_MGT_ASSOCIATION_REQUEST, ns3::WIFI_MAC_MGT_ASSOCIATION_RESPONSE, ns3::WIFI_MAC_MGT_AUTHENTICATION, ns3::WIFI_MAC_MGT_BEACON, ns3::WIFI_MAC_MGT_DEAUTHENTICATION, ns3::WIFI_MAC_MGT_DISASSOCIATION, ns3::WIFI_MAC_MGT_MULTIHOP_ACTION, ns3::WIFI_MAC_MGT_PROBE_REQUEST, ns3::WIFI_MAC_MGT_PROBE_RESPONSE, ns3::WIFI_MAC_MGT_REASSOCIATION_REQUEST, ns3::WIFI_MAC_MGT_REASSOCIATION_RESPONSE, ns3::WIFI_MAC_QOSDATA, ns3::WIFI_MAC_QOSDATA_CFACK, ns3::WIFI_MAC_QOSDATA_CFACK_CFPOLL, ns3::WIFI_MAC_QOSDATA_CFPOLL, ns3::WIFI_MAC_QOSDATA_NULL, ns3::WIFI_MAC_QOSDATA_NULL_CFACK_CFPOLL, and ns3::WIFI_MAC_QOSDATA_NULL_CFPOLL.

Here is the call graph for this function:

void ns3::WifiMacHeader::PrintFrameControl ( std::ostream & os ) const

private

Definition at line 971 of file wifi-mac-header.cc.

References m_ctrlFromDs, m_ctrlMoreData, m_ctrlMoreFrag, m_ctrlRetry, and m_ctrlToDs.

Referenced by Print().

Here is the caller graph for this function:

void ns3::WifiMacHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 1078 of file wifi-mac-header.cc.

References GetFrameControl(), GetQosControl(), GetSequenceControl(), m_addr1, m_addr2, m_addr3, m_addr4, m_ctrlFromDs, m_ctrlSubtype, m_ctrlToDs, m_ctrlType, m_duration, NS_ASSERT, ns3::SUBTYPE_CTL_ACK, ns3::SUBTYPE_CTL_BACKREQ, ns3::SUBTYPE_CTL_BACKRESP, ns3::SUBTYPE_CTL_CTS, ns3::SUBTYPE_CTL_RTS, ns3::TYPE_CTL, ns3::TYPE_DATA, ns3::TYPE_MGT, ns3::Buffer::Iterator::WriteHtolsbU16(), and ns3::WriteTo().

Here is the call graph for this function:

void ns3::WifiMacHeader::SetAction ( void )

Definition at line 151 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_MGT.

Referenced by ns3::dot11s::HwmpProtocolMac::ForwardPerr(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::RegularWifiMac::SendAddBaResponse(), ns3::EdcaTxopN::SendDelbaFrame(), ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), ns3::dot11s::HwmpProtocolMac::SendPrep(), and ns3::dot11s::HwmpProtocolMac::SendPreq().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetAddr1 ( Mac48Address address )

Definition at line 82 of file wifi-mac-header.cc.

References first::address, and m_addr1.

Referenced by ns3::MeshWifiBeacon::CreateHeader(), ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::dot11s::HwmpProtocolMac::ForwardPerr(), ns3::MacLow::SendAckAfterData(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::RegularWifiMac::SendAddBaResponse(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsAfterRts(), ns3::MacLow::SendCtsToSelf(), ns3::EdcaTxopN::SendDelbaFrame(), ns3::ApWifiMac::SendOneBeacon(), ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), ns3::dot11s::HwmpProtocolMac::SendPrep(), ns3::dot11s::HwmpProtocolMac::SendPreq(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), ns3::MacLow::SendRtsForPacket(), ns3::flame::FlameProtocolMac::UpdateOutcomingFrame(), and ns3::dot11s::HwmpProtocolMac::UpdateOutcomingFrame().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetAddr2 ( Mac48Address address )

Definition at line 87 of file wifi-mac-header.cc.

References first::address, and m_addr2.

Referenced by ns3::MeshWifiBeacon::CreateHeader(), ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::dot11s::HwmpProtocolMac::ForwardPerr(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::RegularWifiMac::SendAddBaResponse(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::MacLow::SendBlockAckResponse(), ns3::EdcaTxopN::SendDelbaFrame(), ns3::ApWifiMac::SendOneBeacon(), ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), ns3::dot11s::HwmpProtocolMac::SendPrep(), ns3::dot11s::HwmpProtocolMac::SendPreq(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), and ns3::MacLow::SendRtsForPacket().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetAddr3 ( Mac48Address address )

Definition at line 92 of file wifi-mac-header.cc.

References first::address, and m_addr3.

Referenced by ns3::MeshWifiBeacon::CreateHeader(), ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::dot11s::HwmpProtocolMac::ForwardPerr(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::RegularWifiMac::SendAddBaResponse(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::EdcaTxopN::SendDelbaFrame(), ns3::ApWifiMac::SendOneBeacon(), ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), ns3::dot11s::HwmpProtocolMac::SendPrep(), ns3::dot11s::HwmpProtocolMac::SendPreq(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetAddr4 ( Mac48Address address )

Definition at line 97 of file wifi-mac-header.cc.

References first::address, and m_addr4.

Referenced by ns3::MeshWifiInterfaceMac::ForwardDown().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetAssocReq ( void )

Definition at line 102 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_MGT.

Referenced by ns3::StaWifiMac::SendAssociationRequest().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetAssocResp ( void )

Definition at line 108 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_MGT.

Referenced by ns3::ApWifiMac::SendAssocResp().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetBeacon ( void )

Definition at line 126 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_MGT.

Referenced by ns3::MeshWifiBeacon::CreateHeader(), and ns3::ApWifiMac::SendOneBeacon().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetBlockAck ( void )

Definition at line 138 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_CTL.

void ns3::WifiMacHeader::SetBlockAckReq ( void )

Definition at line 132 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_CTL.

void ns3::WifiMacHeader::SetDsFrom ( void )

Definition at line 61 of file wifi-mac-header.cc.

References m_ctrlFromDs.

Referenced by ns3::ApWifiMac::ForwardDown(), ns3::MeshWifiInterfaceMac::ForwardDown(), and ns3::dot11s::AirtimeLinkMetricCalculator::SetHeaderTid().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetDsNotFrom ( void )

Definition at line 66 of file wifi-mac-header.cc.

References m_ctrlFromDs.

Referenced by ns3::MeshWifiBeacon::CreateHeader(), ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::dot11s::HwmpProtocolMac::ForwardPerr(), ns3::MacLow::SendAckAfterData(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::RegularWifiMac::SendAddBaResponse(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsAfterRts(), ns3::MacLow::SendCtsToSelf(), ns3::EdcaTxopN::SendDelbaFrame(), ns3::ApWifiMac::SendOneBeacon(), ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), ns3::dot11s::HwmpProtocolMac::SendPrep(), ns3::dot11s::HwmpProtocolMac::SendPreq(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), and ns3::MacLow::SendRtsForPacket().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetDsNotTo ( void )

Definition at line 76 of file wifi-mac-header.cc.

References m_ctrlToDs.

Referenced by ns3::MeshWifiBeacon::CreateHeader(), ns3::AdhocWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::dot11s::HwmpProtocolMac::ForwardPerr(), ns3::MacLow::SendAckAfterData(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::RegularWifiMac::SendAddBaResponse(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsAfterRts(), ns3::MacLow::SendCtsToSelf(), ns3::EdcaTxopN::SendDelbaFrame(), ns3::ApWifiMac::SendOneBeacon(), ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), ns3::dot11s::HwmpProtocolMac::SendPrep(), ns3::dot11s::HwmpProtocolMac::SendPreq(), ns3::StaWifiMac::SendProbeRequest(), ns3::ApWifiMac::SendProbeResp(), and ns3::MacLow::SendRtsForPacket().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetDsTo ( void )

Definition at line 71 of file wifi-mac-header.cc.

References m_ctrlToDs.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::MeshWifiInterfaceMac::ForwardDown(), and ns3::dot11s::AirtimeLinkMetricCalculator::SetHeaderTid().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetDuration ( Time duration )

Definition at line 314 of file wifi-mac-header.cc.

References ns3::Time::GetMicroSeconds(), m_duration, and NS_ASSERT.

Referenced by ns3::MacLow::SendAckAfterData(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsAfterRts(), ns3::MacLow::SendCtsToSelf(), ns3::MacLow::SendDataAfterCts(), ns3::MacLow::SendDataPacket(), and ns3::MacLow::SendRtsForPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetFragmentNumber ( uint8_t frag )

Definition at line 329 of file wifi-mac-header.cc.

References m_seqFrag.

Referenced by ns3::EdcaTxopN::GetFragmentPacket(), ns3::DcaTxop::GetFragmentPacket(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), and ns3::EdcaTxopN::SendAddBaRequest().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetFrameControl ( uint16_t control )

private

Definition at line 831 of file wifi-mac-header.cc.

References m_ctrlFromDs, m_ctrlMoreData, m_ctrlMoreFrag, m_ctrlOrder, m_ctrlRetry, m_ctrlSubtype, m_ctrlToDs, m_ctrlType, and m_ctrlWep.

Referenced by Deserialize().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetId ( uint16_t id )

Definition at line 321 of file wifi-mac-header.cc.

References m_duration.

void ns3::WifiMacHeader::SetMoreFragments ( void )

Definition at line 337 of file wifi-mac-header.cc.

References m_ctrlMoreFrag.

Referenced by ns3::EdcaTxopN::GetFragmentPacket(), and ns3::DcaTxop::GetFragmentPacket().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetMultihopAction ( void )

Definition at line 157 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_MGT.

void ns3::WifiMacHeader::SetNoMoreFragments ( void )

Definition at line 333 of file wifi-mac-header.cc.

References m_ctrlMoreFrag.

Referenced by ns3::EdcaTxopN::GetFragmentPacket(), ns3::DcaTxop::GetFragmentPacket(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), ns3::MacLow::SendAckAfterData(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsAfterRts(), ns3::MacLow::SendCtsToSelf(), and ns3::MacLow::SendRtsForPacket().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetNoOrder ( void )

Definition at line 345 of file wifi-mac-header.cc.

References m_ctrlOrder.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::StaWifiMac::SendAssociationRequest(), ns3::ApWifiMac::SendAssocResp(), ns3::ApWifiMac::SendOneBeacon(), ns3::StaWifiMac::SendProbeRequest(), and ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetNoRetry ( void )

Definition at line 353 of file wifi-mac-header.cc.

References m_ctrlRetry.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), ns3::MacLow::SendAckAfterData(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsAfterRts(), ns3::MacLow::SendCtsToSelf(), and ns3::MacLow::SendRtsForPacket().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetOrder ( void )

Definition at line 341 of file wifi-mac-header.cc.

References m_ctrlOrder.

void ns3::WifiMacHeader::SetProbeReq ( void )

Definition at line 114 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_MGT.

Referenced by ns3::StaWifiMac::SendProbeRequest().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetProbeResp ( void )

Definition at line 120 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_MGT.

Referenced by ns3::ApWifiMac::SendProbeResp().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetQosAckPolicy ( enum QosAckPolicy policy )

Definition at line 369 of file wifi-mac-header.cc.

References BLOCK_ACK, m_qosAckPolicy, NO_ACK, NO_EXPLICIT_ACK, and NORMAL_ACK.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::BlockAckManager::GetNextPacket(), and ns3::EdcaTxopN::VerifyBlockAck().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetQosAmsdu ( void )

Definition at line 402 of file wifi-mac-header.cc.

References m_amsduPresent.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetQosBlockAck ( void )

Definition at line 393 of file wifi-mac-header.cc.

References m_qosAckPolicy.

void ns3::WifiMacHeader::SetQosControl ( uint16_t qos )

private

Definition at line 850 of file wifi-mac-header.cc.

References m_amsduPresent, m_qosAckPolicy, m_qosEosp, m_qosStuff, and m_qosTid.

Referenced by Deserialize().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetQosEosp ( )

Definition at line 361 of file wifi-mac-header.cc.

References m_qosEosp.

void ns3::WifiMacHeader::SetQosNoAck ( void )

Definition at line 398 of file wifi-mac-header.cc.

References m_qosAckPolicy.

void ns3::WifiMacHeader::SetQosNoAmsdu ( void )

Definition at line 406 of file wifi-mac-header.cc.

References m_amsduPresent.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), and ns3::MeshWifiInterfaceMac::ForwardDown().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetQosNoEosp ( )

Definition at line 365 of file wifi-mac-header.cc.

References m_qosEosp.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), and ns3::MeshWifiInterfaceMac::ForwardDown().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetQosNormalAck ( void )

Definition at line 388 of file wifi-mac-header.cc.

References m_qosAckPolicy.

void ns3::WifiMacHeader::SetQosTid ( uint8_t tid )

Definition at line 357 of file wifi-mac-header.cc.

References m_qosTid.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::MeshWifiInterfaceMac::ForwardDown(), and ns3::dot11s::AirtimeLinkMetricCalculator::SetHeaderTid().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetQosTxopLimit ( uint8_t txop )

Definition at line 410 of file wifi-mac-header.cc.

References m_qosStuff.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), and ns3::MeshWifiInterfaceMac::ForwardDown().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetRawDuration ( uint16_t duration )

Definition at line 309 of file wifi-mac-header.cc.

References m_duration.

void ns3::WifiMacHeader::SetRetry ( void )

Definition at line 349 of file wifi-mac-header.cc.

References m_ctrlRetry.

Referenced by ns3::BlockAckManager::GetNextPacket(), ns3::EdcaTxopN::MissedAck(), ns3::DcaTxop::MissedAck(), and ns3::EdcaTxopN::MissedBlockAck().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetSequenceControl ( uint16_t seq )

private

Definition at line 844 of file wifi-mac-header.cc.

References m_seqFrag, and m_seqSeq.

Referenced by Deserialize().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetSequenceNumber ( uint16_t seq )

Definition at line 325 of file wifi-mac-header.cc.

References m_seqSeq.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), and ns3::EdcaTxopN::SendAddBaRequest().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetType ( enum WifiMacType type )

Definition at line 163 of file wifi-mac-header.cc.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::MacLow::GetAckSize(), ns3::MacLow::GetBlockAckSize(), ns3::MacLow::GetCtsSize(), ns3::MacLow::GetRtsSize(), ns3::MacLow::NotifyNav(), ns3::MacLow::SendAckAfterData(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::MacLow::SendBlockAckResponse(), ns3::MacLow::SendCtsAfterRts(), ns3::MacLow::SendCtsToSelf(), and ns3::MacLow::SendRtsForPacket().

Here is the caller graph for this function:

void ns3::WifiMacHeader::SetTypeData ( void )

Definition at line 145 of file wifi-mac-header.cc.

References m_ctrlSubtype, m_ctrlType, and ns3::TYPE_DATA.

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::MeshWifiInterfaceMac::ForwardDown(), and ns3::dot11s::AirtimeLinkMetricCalculator::SetHeaderTid().

Here is the caller graph for this function:

Member Data Documentation

Mac48Address ns3::WifiMacHeader::m_addr1

private

Definition at line 215 of file wifi-mac-header.h.

Referenced by Deserialize(), GetAddr1(), Print(), Serialize(), and SetAddr1().

Mac48Address ns3::WifiMacHeader::m_addr2

private

Definition at line 216 of file wifi-mac-header.h.

Referenced by Deserialize(), GetAddr2(), Print(), Serialize(), and SetAddr2().

Mac48Address ns3::WifiMacHeader::m_addr3

private

Definition at line 217 of file wifi-mac-header.h.

Referenced by Deserialize(), GetAddr3(), Print(), Serialize(), and SetAddr3().

Mac48Address ns3::WifiMacHeader::m_addr4

private

Definition at line 220 of file wifi-mac-header.h.

Referenced by Deserialize(), GetAddr4(), Print(), Serialize(), and SetAddr4().

uint8_t ns3::WifiMacHeader::m_amsduPresent

private

Definition at line 224 of file wifi-mac-header.h.

Referenced by GetQosControl(), IsQosAmsdu(), SetQosAmsdu(), SetQosControl(), and SetQosNoAmsdu().

uint8_t ns3::WifiMacHeader::m_ctrlFromDs

private

Definition at line 208 of file wifi-mac-header.h.

Referenced by Deserialize(), GetFrameControl(), GetSize(), IsFromDs(), Print(), PrintFrameControl(), Serialize(), SetDsFrom(), SetDsNotFrom(), SetFrameControl(), and SetType().

uint8_t ns3::WifiMacHeader::m_ctrlMoreData

private

Definition at line 211 of file wifi-mac-header.h.

Referenced by GetFrameControl(), PrintFrameControl(), and SetFrameControl().

uint8_t ns3::WifiMacHeader::m_ctrlMoreFrag

private

Definition at line 209 of file wifi-mac-header.h.

Referenced by GetFrameControl(), IsMoreFragments(), PrintFrameControl(), SetFrameControl(), SetMoreFragments(), and SetNoMoreFragments().

uint8_t ns3::WifiMacHeader::m_ctrlOrder

private

Definition at line 213 of file wifi-mac-header.h.

Referenced by GetFrameControl(), SetFrameControl(), SetNoOrder(), and SetOrder().

uint8_t ns3::WifiMacHeader::m_ctrlRetry

private

Definition at line 210 of file wifi-mac-header.h.

Referenced by GetFrameControl(), IsRetry(), PrintFrameControl(), SetFrameControl(), SetNoRetry(), and SetRetry().

uint8_t ns3::WifiMacHeader::m_ctrlSubtype

private

Definition at line 206 of file wifi-mac-header.h.

Referenced by Deserialize(), GetFrameControl(), GetSize(), GetType(), IsQosData(), Serialize(), SetAction(), SetAssocReq(), SetAssocResp(), SetBeacon(), SetBlockAck(), SetBlockAckReq(), SetFrameControl(), SetMultihopAction(), SetProbeReq(), SetProbeResp(), SetType(), and SetTypeData().

uint8_t ns3::WifiMacHeader::m_ctrlToDs

private

Definition at line 207 of file wifi-mac-header.h.

Referenced by Deserialize(), GetFrameControl(), GetSize(), IsToDs(), Print(), PrintFrameControl(), Serialize(), SetDsNotTo(), SetDsTo(), SetFrameControl(), and SetType().

uint8_t ns3::WifiMacHeader::m_ctrlType

private

Definition at line 205 of file wifi-mac-header.h.

Referenced by Deserialize(), GetFrameControl(), GetSize(), GetType(), IsCtl(), IsData(), IsMgt(), IsQosData(), Serialize(), SetAction(), SetAssocReq(), SetAssocResp(), SetBeacon(), SetBlockAck(), SetBlockAckReq(), SetFrameControl(), SetMultihopAction(), SetProbeReq(), SetProbeResp(), SetType(), and SetTypeData().

uint8_t ns3::WifiMacHeader::m_ctrlWep

private

Definition at line 212 of file wifi-mac-header.h.

Referenced by GetFrameControl(), and SetFrameControl().

uint16_t ns3::WifiMacHeader::m_duration

private

Definition at line 214 of file wifi-mac-header.h.

Referenced by Deserialize(), GetDuration(), GetRawDuration(), Print(), Serialize(), SetDuration(), SetId(), and SetRawDuration().

uint8_t ns3::WifiMacHeader::m_qosAckPolicy

private

Definition at line 223 of file wifi-mac-header.h.

Referenced by GetQosAckPolicy(), GetQosControl(), IsQosAck(), IsQosBlockAck(), IsQosNoAck(), SetQosAckPolicy(), SetQosBlockAck(), SetQosControl(), SetQosNoAck(), and SetQosNormalAck().

uint8_t ns3::WifiMacHeader::m_qosEosp

private

Definition at line 222 of file wifi-mac-header.h.

Referenced by GetQosControl(), IsQosEosp(), SetQosControl(), SetQosEosp(), and SetQosNoEosp().

uint16_t ns3::WifiMacHeader::m_qosStuff

private

Definition at line 225 of file wifi-mac-header.h.

Referenced by GetQosControl(), GetQosTxopLimit(), SetQosControl(), and SetQosTxopLimit().

uint8_t ns3::WifiMacHeader::m_qosTid

private

Definition at line 221 of file wifi-mac-header.h.

Referenced by GetQosControl(), GetQosTid(), SetQosControl(), and SetQosTid().

uint8_t ns3::WifiMacHeader::m_seqFrag

private

Definition at line 218 of file wifi-mac-header.h.

Referenced by GetFragmentNumber(), GetSequenceControl(), Print(), SetFragmentNumber(), and SetSequenceControl().

uint16_t ns3::WifiMacHeader::m_seqSeq

private

Definition at line 219 of file wifi-mac-header.h.

Referenced by GetSequenceControl(), GetSequenceNumber(), Print(), SetSequenceControl(), and SetSequenceNumber().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-mac-header.h
src/wifi/model/wifi-mac-header.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
