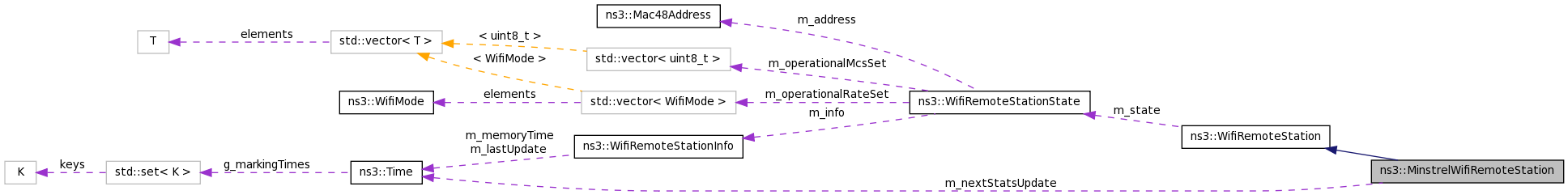

Inheritance diagram for ns3::MinstrelWifiRemoteStation: Collaboration diagram for ns3::MinstrelWifiRemoteStation:Public Attributes | |
| uint32_t | m_col |
| uint32_t | m_currentRate |
| current rate we are using More... | |
| uint32_t | m_err |
| retry errors More... | |
| uint32_t | m_index |
| bool | m_initialized |
| for initializing tables More... | |
| bool | m_isSampling |
| a flag to indicate we are currently sampling More... | |
| uint32_t | m_longRetry |
| long retries such as data packets More... | |
| uint32_t | m_maxProbRate |
| rate with highest prob of success More... | |
| uint32_t | m_maxTpRate |
| the current throughput rate More... | |
| uint32_t | m_maxTpRate2 |
| second highest throughput rate More... | |
| Time | m_nextStatsUpdate |
| 10 times every second More... | |
| int | m_packetCount |
| total number of packets as of now More... | |
| uint32_t | m_retry |
| total retries short + long More... | |
| int | m_sampleCount |
| how many packets we have sample so far More... | |
| uint32_t | m_sampleRate |
| current sample rate More... | |
| bool | m_sampleRateSlower |
| a flag to indicate sample rate is slower More... | |
| uint32_t | m_shortRetry |
| short retries such as control packts More... | |
| uint32_t | m_txrate |
| current transmit rate More... | |
| Public Attributes inherited from ns3::WifiRemoteStation | |
| uint32_t | m_slrc |
| uint32_t | m_ssrc |
| WifiRemoteStationState * | m_state |
| uint8_t | m_tid |
Definition at line 49 of file minstrel-wifi-manager.cc.
| uint32_t ns3::MinstrelWifiRemoteStation::m_col |
To keep track of the current position in the our random sample table going row by row from 1st column until the 10th column(Minstrel defines 10) then we wrap back to the row 1 col 1. note: there are many other ways to do this.
Definition at line 59 of file minstrel-wifi-manager.cc.
Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::GetNextSample(), and ns3::MinstrelWifiManager::InitSampleTable().
| uint32_t ns3::MinstrelWifiRemoteStation::m_currentRate |
current rate we are using
Definition at line 70 of file minstrel-wifi-manager.cc.
Referenced by ns3::MinstrelWifiManager::DoCreateStation(), and ns3::MinstrelWifiManager::UpdateStats().
| uint32_t ns3::MinstrelWifiRemoteStation::m_err |
retry errors
Definition at line 75 of file minstrel-wifi-manager.cc.
Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportFinalDataFailed(), and ns3::MinstrelWifiManager::DoReportFinalRtsFailed().
| uint32_t ns3::MinstrelWifiRemoteStation::m_index |
Definition at line 59 of file minstrel-wifi-manager.cc.
Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::GetNextSample(), and ns3::MinstrelWifiManager::InitSampleTable().
| bool ns3::MinstrelWifiRemoteStation::m_initialized |
for initializing tables
Definition at line 78 of file minstrel-wifi-manager.cc.
Referenced by ns3::MinstrelWifiManager::CheckInit(), ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoGetDataTxVector(), ns3::MinstrelWifiManager::DoReportDataFailed(), ns3::MinstrelWifiManager::DoReportDataOk(), and ns3::MinstrelWifiManager::UpdateStats().
| bool ns3::MinstrelWifiRemoteStation::m_isSampling |
a flag to indicate we are currently sampling
Definition at line 67 of file minstrel-wifi-manager.cc.
Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), ns3::MinstrelWifiManager::DoReportDataOk(), ns3::MinstrelWifiManager::DoReportFinalDataFailed(), and ns3::MinstrelWifiManager::FindRate().
| uint32_t ns3::MinstrelWifiRemoteStation::m_longRetry |
long retries such as data packets
Definition at line 73 of file minstrel-wifi-manager.cc.
Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), and ns3::MinstrelWifiManager::UpdateRetry().
| uint32_t ns3::MinstrelWifiRemoteStation::m_maxProbRate |
rate with highest prob of success
Definition at line 62 of file minstrel-wifi-manager.cc.
Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), and ns3::MinstrelWifiManager::UpdateStats().
| uint32_t ns3::MinstrelWifiRemoteStation::m_maxTpRate |
the current throughput rate
Definition at line 60 of file minstrel-wifi-manager.cc.
Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), ns3::MinstrelWifiManager::FindRate(), and ns3::MinstrelWifiManager::UpdateStats().
| uint32_t ns3::MinstrelWifiRemoteStation::m_maxTpRate2 |
second highest throughput rate
Definition at line 61 of file minstrel-wifi-manager.cc.
Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), ns3::MinstrelWifiManager::FindRate(), and ns3::MinstrelWifiManager::UpdateStats().
| Time ns3::MinstrelWifiRemoteStation::m_nextStatsUpdate |
10 times every second
Definition at line 51 of file minstrel-wifi-manager.cc.
Referenced by ns3::MinstrelWifiManager::DoCreateStation(), and ns3::MinstrelWifiManager::UpdateStats().
| int ns3::MinstrelWifiRemoteStation::m_packetCount |
total number of packets as of now
Definition at line 64 of file minstrel-wifi-manager.cc.
Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataOk(), and ns3::MinstrelWifiManager::FindRate().
| uint32_t ns3::MinstrelWifiRemoteStation::m_retry |
total retries short + long
Definition at line 74 of file minstrel-wifi-manager.cc.
Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataOk(), ns3::MinstrelWifiManager::DoReportFinalDataFailed(), and ns3::MinstrelWifiManager::UpdateRetry().
| int ns3::MinstrelWifiRemoteStation::m_sampleCount |
how many packets we have sample so far
Definition at line 65 of file minstrel-wifi-manager.cc.
Referenced by ns3::MinstrelWifiManager::DoCreateStation(), and ns3::MinstrelWifiManager::FindRate().
| uint32_t ns3::MinstrelWifiRemoteStation::m_sampleRate |
current sample rate
Definition at line 68 of file minstrel-wifi-manager.cc.
Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), and ns3::MinstrelWifiManager::FindRate().
| bool ns3::MinstrelWifiRemoteStation::m_sampleRateSlower |
a flag to indicate sample rate is slower
Definition at line 69 of file minstrel-wifi-manager.cc.
Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), ns3::MinstrelWifiManager::DoReportDataOk(), ns3::MinstrelWifiManager::DoReportFinalDataFailed(), and ns3::MinstrelWifiManager::FindRate().
| uint32_t ns3::MinstrelWifiRemoteStation::m_shortRetry |
short retries such as control packts
Definition at line 72 of file minstrel-wifi-manager.cc.
Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportRtsFailed(), and ns3::MinstrelWifiManager::UpdateRetry().
| uint32_t ns3::MinstrelWifiRemoteStation::m_txrate |
current transmit rate
Definition at line 76 of file minstrel-wifi-manager.cc.
Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoGetDataTxVector(), ns3::MinstrelWifiManager::DoGetRtsTxVector(), ns3::MinstrelWifiManager::DoReportDataFailed(), ns3::MinstrelWifiManager::DoReportDataOk(), ns3::MinstrelWifiManager::DoReportFinalDataFailed(), ns3::MinstrelWifiManager::DoReportRtsFailed(), ns3::MinstrelWifiManager::FindRate(), and ns3::MinstrelWifiManager::UpdateStats().
