LteFrTestCase Class Reference

#include <lte-test-frequency-reuse.h>

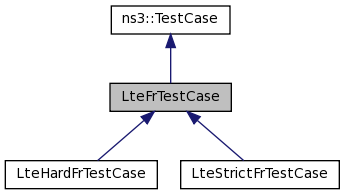

Inheritance diagram for LteFrTestCase:

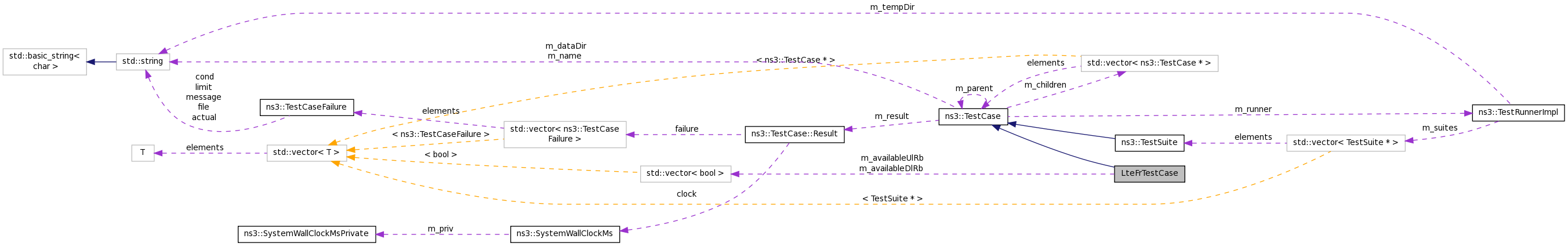

Collaboration diagram for LteFrTestCase:

Public Member Functions
	LteFrTestCase (std::string name, uint32_t userNum, uint8_t dlBandwidth, uint8_t ulBandwidth, std::vector< bool > availableDlRb, std::vector< bool > availableUlRb)
virtual	~LteFrTestCase ()
void	DlDataRxStart (Ptr< const SpectrumValue > spectrumValue)
void	UlDataRxStart (Ptr< const SpectrumValue > spectrumValue)
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Protected Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase) NS_DEPRECATED
	Add an individual child TestCase case to this TestCase. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
bool	GetErrorStatus (void) const NS_DEPRECATED
TestCase *	GetParent () const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
void	SetDataDir (std::string directory)
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)

Protected Attributes
std::vector< bool >	m_availableDlRb
std::vector< bool >	m_availableUlRb
uint8_t	m_dlBandwidth
uint8_t	m_ulBandwidth
bool	m_usedMutedDlRbg
bool	m_usedMutedUlRbg
uint32_t	m_userNum

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Detailed Description

Definition at line 43 of file lte-test-frequency-reuse.h.

Constructor & Destructor Documentation

LteFrTestCase::LteFrTestCase	(	std::string	name,
		uint32_t	userNum,
		uint8_t	dlBandwidth,
		uint8_t	ulBandwidth,
		std::vector< bool >	availableDlRb,
		std::vector< bool >	availableUlRb
	)

Definition at line 178 of file lte-test-frequency-reuse.cc.

LteFrTestCase::~LteFrTestCase ( )

virtual

Definition at line 192 of file lte-test-frequency-reuse.cc.

Member Function Documentation

void LteFrTestCase::DlDataRxStart

(

Ptr< const SpectrumValue >

spectrumValue

)

Definition at line 199 of file lte-test-frequency-reuse.cc.

References ns3::SpectrumValue::ConstValuesBegin(), ns3::SpectrumValue::ConstValuesEnd(), m_availableDlRb, m_dlBandwidth, m_usedMutedDlRbg, and NS_LOG_DEBUG.

Referenced by DlDataRxStartNofitication().

Here is the call graph for this function:

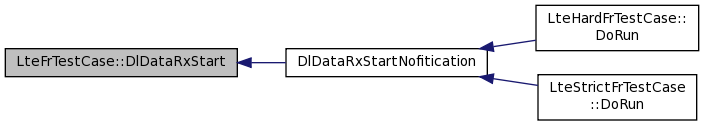

Here is the caller graph for this function:

void LteFrTestCase::DoRun ( void  )

protectedvirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Reimplemented in LteStrictFrTestCase, and LteHardFrTestCase.

Definition at line 238 of file lte-test-frequency-reuse.cc.

void LteFrTestCase::UlDataRxStart

(

Ptr< const SpectrumValue >

spectrumValue

)

Definition at line 218 of file lte-test-frequency-reuse.cc.

References ns3::SpectrumValue::ConstValuesBegin(), ns3::SpectrumValue::ConstValuesEnd(), m_availableUlRb, m_ulBandwidth, m_usedMutedUlRbg, and NS_LOG_DEBUG.

Referenced by UlDataRxStartNofitication().

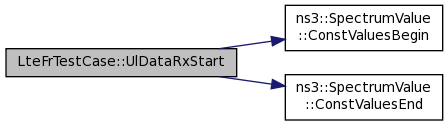

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

std::vector<bool> LteFrTestCase::m_availableDlRb

protected

Definition at line 61 of file lte-test-frequency-reuse.h.

Referenced by DlDataRxStart().

std::vector<bool> LteFrTestCase::m_availableUlRb

protected

Definition at line 64 of file lte-test-frequency-reuse.h.

Referenced by UlDataRxStart().

uint8_t LteFrTestCase::m_dlBandwidth

protected

Definition at line 58 of file lte-test-frequency-reuse.h.

Referenced by DlDataRxStart(), LteHardFrTestCase::DoRun(), and LteStrictFrTestCase::DoRun().

uint8_t LteFrTestCase::m_ulBandwidth

protected

Definition at line 59 of file lte-test-frequency-reuse.h.

Referenced by LteHardFrTestCase::DoRun(), LteStrictFrTestCase::DoRun(), and UlDataRxStart().

bool LteFrTestCase::m_usedMutedDlRbg

protected

Definition at line 62 of file lte-test-frequency-reuse.h.

Referenced by DlDataRxStart(), LteHardFrTestCase::DoRun(), and LteStrictFrTestCase::DoRun().

bool LteFrTestCase::m_usedMutedUlRbg

protected

Definition at line 65 of file lte-test-frequency-reuse.h.

Referenced by LteHardFrTestCase::DoRun(), LteStrictFrTestCase::DoRun(), and UlDataRxStart().

uint32_t LteFrTestCase::m_userNum

protected

Definition at line 57 of file lte-test-frequency-reuse.h.

Referenced by LteHardFrTestCase::DoRun(), and LteStrictFrTestCase::DoRun().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-frequency-reuse.h
• src/lte/test/lte-test-frequency-reuse.cc
