ns3::AodvHelper Class Reference

Helper class that adds AODV routing to nodes. More...

#include <aodv-helper.h>

Inheritance diagram for ns3::AodvHelper:

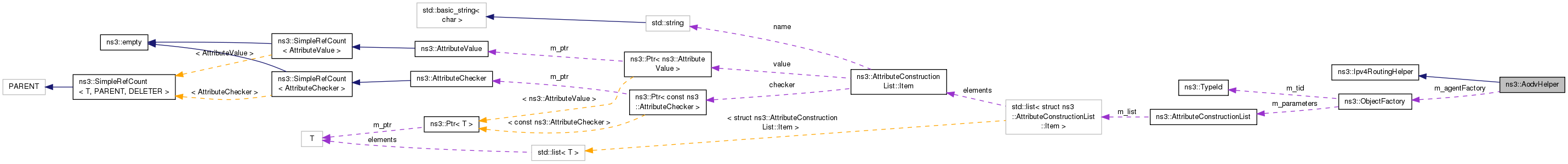

Collaboration diagram for ns3::AodvHelper:

Public Member Functions
	AodvHelper ()
int64_t	AssignStreams (NodeContainer c, int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...
AodvHelper *	Copy (void) const
virtual Ptr< Ipv4RoutingProtocol >	Create (Ptr< Node > node) const
void	Set (std::string name, const AttributeValue &value)
Public Member Functions inherited from ns3::Ipv4RoutingHelper
virtual	~Ipv4RoutingHelper ()

Private Attributes
ObjectFactory	m_agentFactory
	the factory to create AODV routing object More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::Ipv4RoutingHelper
template<class T >
static Ptr< T >	GetRouting (Ptr< Ipv4RoutingProtocol > protocol)
	Request a specified routing protocol <T> from Ipv4RoutingProtocol protocol. More...
static void	PrintNeighborCacheAllAt (Time printTime, Ptr< OutputStreamWrapper > stream)
	prints the neighbor cache of all nodes at a particular time. More...
static void	PrintNeighborCacheAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream)
	prints the neighbor cache of all nodes at regular intervals specified by user. More...
static void	PrintNeighborCacheAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream)
	prints the neighbor cache of a node at a particular time. More...
static void	PrintNeighborCacheEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream)
	prints the neighbor cache of a node at regular intervals specified by user. More...
static void	PrintRoutingTableAllAt (Time printTime, Ptr< OutputStreamWrapper > stream)
	prints the routing tables of all nodes at a particular time. More...
static void	PrintRoutingTableAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream)
	prints the routing tables of all nodes at regular intervals specified by user. More...
static void	PrintRoutingTableAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream)
	prints the routing tables of a node at a particular time. More...
static void	PrintRoutingTableEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream)
	prints the routing tables of a node at regular intervals specified by user. More...

Detailed Description

Helper class that adds AODV routing to nodes.

Definition at line 35 of file aodv-helper.h.

Constructor & Destructor Documentation

ns3::AodvHelper::AodvHelper

(

)

Definition at line 30 of file aodv-helper.cc.

References m_agentFactory, and ns3::ObjectFactory::SetTypeId().

Referenced by Copy().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Function Documentation

int64_t ns3::AodvHelper::AssignStreams	(	NodeContainer	c,
		int64_t	stream
	)

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned. The Install() method of the InternetStackHelper should have previously been called by the user.

Parameters

stream	first stream index to use
c	NodeContainer of the set of nodes for which AODV should be modified to use a fixed stream

Returns

the number of stream indices assigned by this helper

Definition at line 57 of file aodv-helper.cc.

References ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), ns3::Object::GetObject(), list, and NS_ASSERT_MSG.

Referenced by Bug772ChainTest::CreateDevices(), and ChainRegressionTest::CreateDevices().

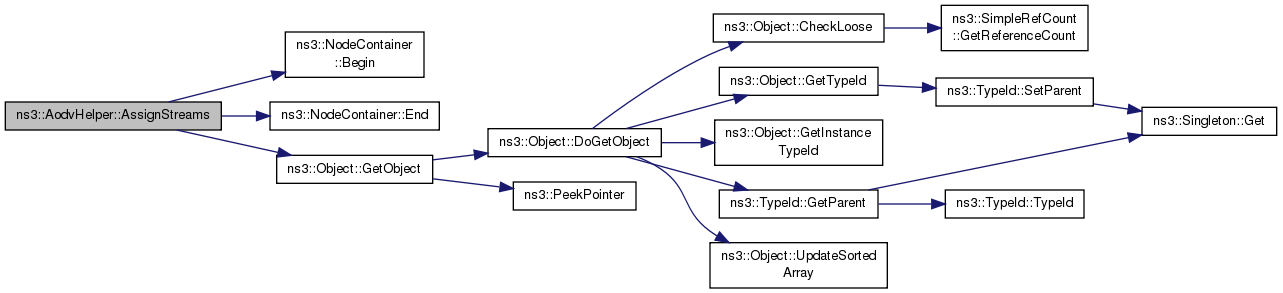

Here is the call graph for this function:

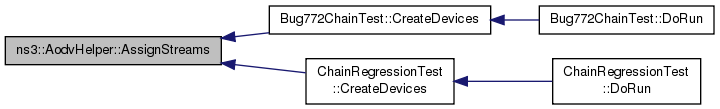

Here is the caller graph for this function:

AodvHelper * ns3::AodvHelper::Copy ( void  ) const

virtual

Returns

pointer to clone of this OlsrHelper

Internal:

This method is mainly for internal use by the other helpers; clients are expected to free the dynamic memory allocated by this method

Implements ns3::Ipv4RoutingHelper.

Definition at line 37 of file aodv-helper.cc.

References AodvHelper().

Here is the call graph for this function:

Ptr< Ipv4RoutingProtocol > ns3::AodvHelper::Create ( Ptr< Node >  node ) const

virtual

Parameters

node	the node on which the routing protocol will run

Returns

a newly-created routing protocol

This method will be called by ns3::InternetStackHelper::Install

Todo:

support installing AODV on the subset of all available IP interfaces

Implements ns3::Ipv4RoutingHelper.

Definition at line 43 of file aodv-helper.cc.

References ns3::Object::AggregateObject(), ns3::ObjectFactory::Create(), and m_agentFactory.

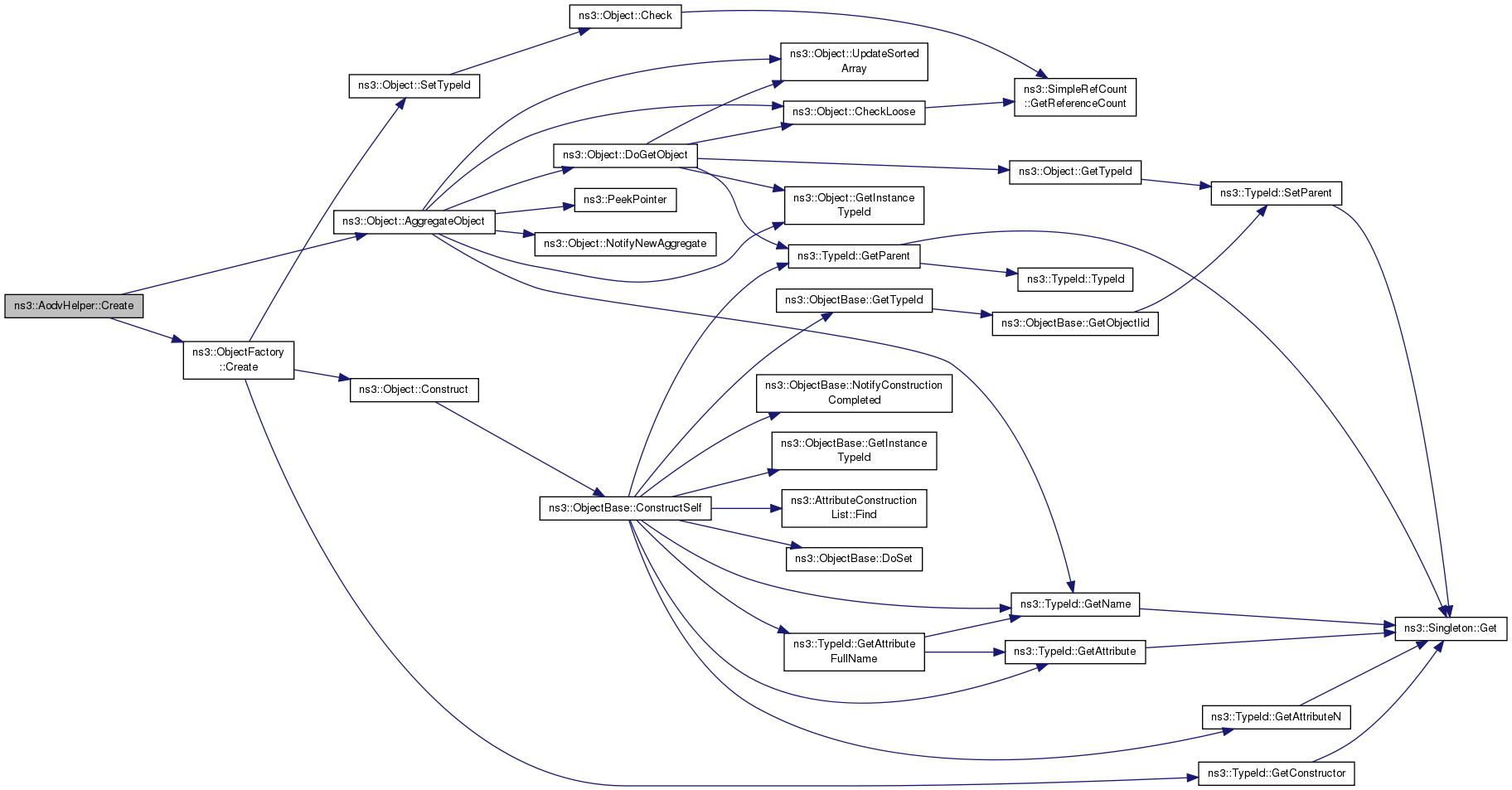

Here is the call graph for this function:

void ns3::AodvHelper::Set	(	std::string	name,
		const AttributeValue &	value
	)

Parameters

name	the name of the attribute to set
value	the value of the attribute to set.

This method controls the attributes of ns3::aodv::RoutingProtocol

Definition at line 51 of file aodv-helper.cc.

References m_agentFactory, and ns3::ObjectFactory::Set().

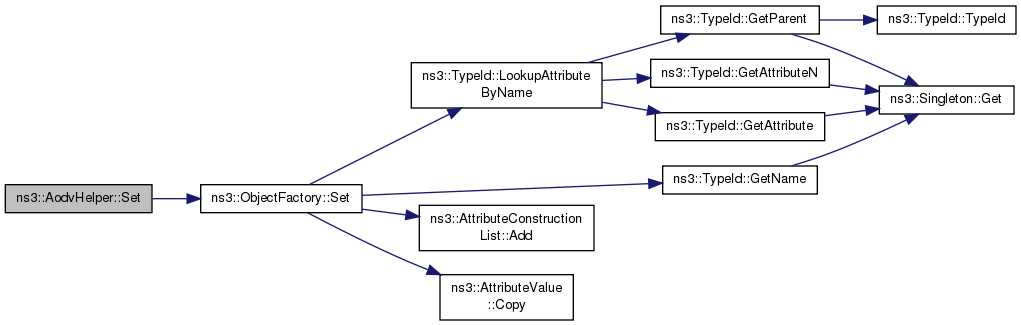

Here is the call graph for this function:

Member Data Documentation

ObjectFactory ns3::AodvHelper::m_agentFactory

private

the factory to create AODV routing object

Definition at line 80 of file aodv-helper.h.

Referenced by AodvHelper(), Create(), and Set().

---

The documentation for this class was generated from the following files:

• src/aodv/helper/aodv-helper.h
• src/aodv/helper/aodv-helper.cc
