store information on active data radio bearer instance More...

#include "lte-radio-bearer-info.h"

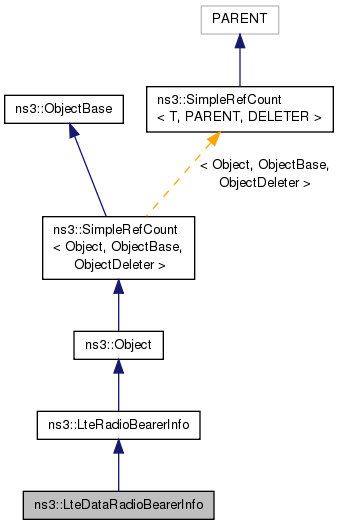

Inheritance diagram for ns3::LteDataRadioBearerInfo:

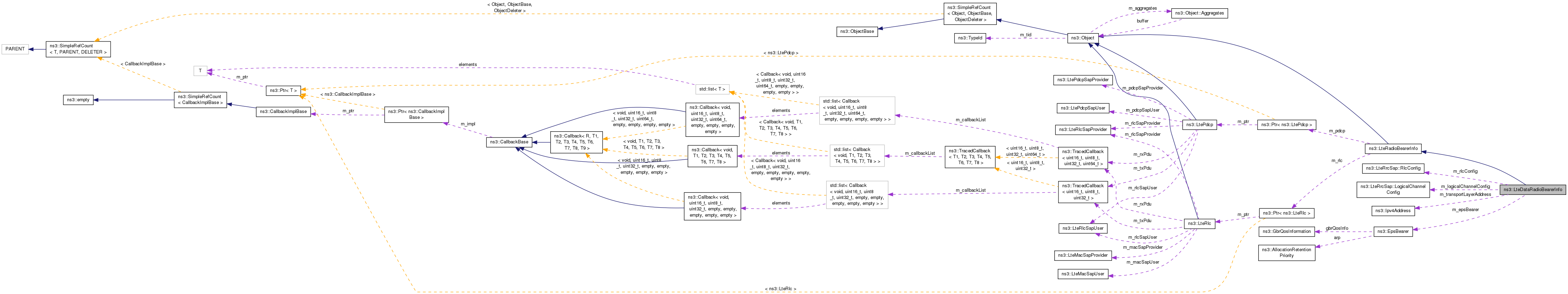

Collaboration diagram for ns3::LteDataRadioBearerInfo:

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::LteRadioBearerInfo
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Public Attributes
uint8_t	m_drbIdentity

EpsBearer	m_epsBearer

uint8_t	m_epsBearerIdentity

uint32_t	m_gtpTeid
	S1-bearer GTP tunnel endpoint identifier, see 36.423 9.2.1. More...

LteRrcSap::LogicalChannelConfig	m_logicalChannelConfig

uint8_t	m_logicalChannelIdentity

LteRrcSap::RlcConfig	m_rlcConfig

Ipv4Address	m_transportLayerAddress
	IP Address of the SGW, see 36.423 9.2.1. More...

Public Attributes inherited from ns3::LteRadioBearerInfo
Ptr< LtePdcp >	m_pdcp

Ptr< LteRlc >	m_rlc

Additional Inherited Members
Public Member Functions inherited from ns3::LteRadioBearerInfo
	LteRadioBearerInfo (void)

virtual	~LteRadioBearerInfo (void)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

store information on active data radio bearer instance

Config Paths

ns3::LteDataRadioBearerInfo is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]"

Attributes

DrbIdentity: The id of this Data Radio Bearer
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Flags: read
EpsBearerIdentity: The id of the EPS bearer corresponding to this Data Radio Bearer
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Flags: read
logicalChannelIdentity: The id of the Logical Channel corresponding to this Data Radio Bearer
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Flags: read
LteRlc: RLC instance of the radio bearer.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteRlc>
- Initial value: 0
- Flags: construct write read
LtePdcp: PDCP instance of the radio bearer.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LtePdcp>
- Initial value: 0
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 18446744073709551615 bytes (on a 64-bit architecture).

Definition at line 71 of file lte-radio-bearer-info.h.

Member Function Documentation

TypeId ns3::LteDataRadioBearerInfo::GetTypeId ( void )

static

Definition at line 56 of file lte-radio-bearer-info.cc.

References ns3::TypeId::ATTR_GET, m_drbIdentity, m_epsBearerIdentity, m_logicalChannelIdentity, ns3::LteRadioBearerInfo::m_pdcp, ns3::LteRadioBearerInfo::m_rlc, ns3::MakePointerAccessor(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

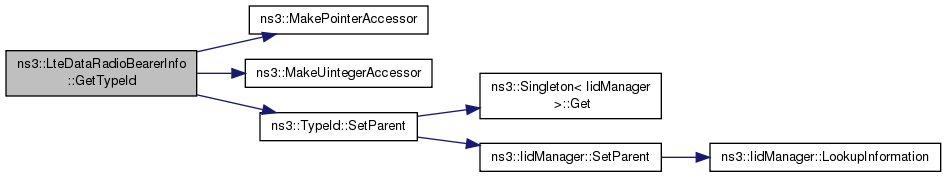

Here is the call graph for this function:

Member Data Documentation

uint8_t ns3::LteDataRadioBearerInfo::m_drbIdentity

Definition at line 79 of file lte-radio-bearer-info.h.

Referenced by LteX2HandoverTestCase::CheckConnected(), LteRrcConnectionEstablishmentTestCase::CheckConnected(), LteX2HandoverMeasuresTestCase::CheckConnected(), and GetTypeId().

EpsBearer ns3::LteDataRadioBearerInfo::m_epsBearer

Definition at line 77 of file lte-radio-bearer-info.h.

uint8_t ns3::LteDataRadioBearerInfo::m_epsBearerIdentity

Definition at line 78 of file lte-radio-bearer-info.h.

Referenced by LteX2HandoverTestCase::CheckConnected(), LteRrcConnectionEstablishmentTestCase::CheckConnected(), LteX2HandoverMeasuresTestCase::CheckConnected(), and GetTypeId().

uint32_t ns3::LteDataRadioBearerInfo::m_gtpTeid

S1-bearer GTP tunnel endpoint identifier, see 36.423 9.2.1.

Definition at line 83 of file lte-radio-bearer-info.h.

LteRrcSap::LogicalChannelConfig ns3::LteDataRadioBearerInfo::m_logicalChannelConfig

Definition at line 82 of file lte-radio-bearer-info.h.

uint8_t ns3::LteDataRadioBearerInfo::m_logicalChannelIdentity

Definition at line 81 of file lte-radio-bearer-info.h.

Referenced by LteX2HandoverTestCase::CheckConnected(), LteRrcConnectionEstablishmentTestCase::CheckConnected(), LteX2HandoverMeasuresTestCase::CheckConnected(), and GetTypeId().

LteRrcSap::RlcConfig ns3::LteDataRadioBearerInfo::m_rlcConfig

Definition at line 80 of file lte-radio-bearer-info.h.

Ipv4Address ns3::LteDataRadioBearerInfo::m_transportLayerAddress

IP Address of the SGW, see 36.423 9.2.1.

Definition at line 84 of file lte-radio-bearer-info.h.

The documentation for this class was generated from the following files:

src/lte/model/lte-radio-bearer-info.h
src/lte/model/lte-radio-bearer-info.cc
