The aim of the QosTag is to provide means for an Application to specify the TID which will be used by a QoS-aware WifiMac for a given traffic flow. More...

#include "qos-tag.h"

Inheritance diagram for ns3::QosTag:

Collaboration diagram for ns3::QosTag:

Public Member Functions
	QosTag ()
	Create a QosTag with the default TID = 0 (best effort traffic) More...

	QosTag (uint8_t tid)
	Create a QosTag with the given Traffic ID. More...

virtual void	Deserialize (TagBuffer i)

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

virtual uint32_t	GetSerializedSize () const

uint8_t	GetTid (void) const
	Return the Type ID. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (TagBuffer i) const

void	SetTid (uint8_t tid)
	Set the TID to the given value. More...

void	SetUserPriority (UserPriority up)
	Set the TID to the value that corresponds to the requested UserPriority. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_tid
	Traffic ID. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The aim of the QosTag is to provide means for an Application to specify the TID which will be used by a QoS-aware WifiMac for a given traffic flow.

Introspection did not find any typical Config paths.

Note that the current QosTag class was designed to be completely mac/wifi specific without any attempt at being generic.

Attributes

tid: The tid that indicates AC which packet belongs
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Flags: read

No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 61 of file qos-tag.h.

Constructor & Destructor Documentation

ns3::QosTag::QosTag ( )

Create a QosTag with the default TID = 0 (best effort traffic)

Definition at line 50 of file qos-tag.cc.

ns3::QosTag::QosTag ( uint8_t tid )

Create a QosTag with the given Traffic ID.

Parameters

tid	the given Traffic ID

Definition at line 54 of file qos-tag.cc.

Member Function Documentation

void ns3::QosTag::Deserialize ( TagBuffer i )

virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 84 of file qos-tag.cc.

References m_tid, and ns3::TagBuffer::ReadU8().

Here is the call graph for this function:

TypeId ns3::QosTag::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 45 of file qos-tag.cc.

References GetTypeId().

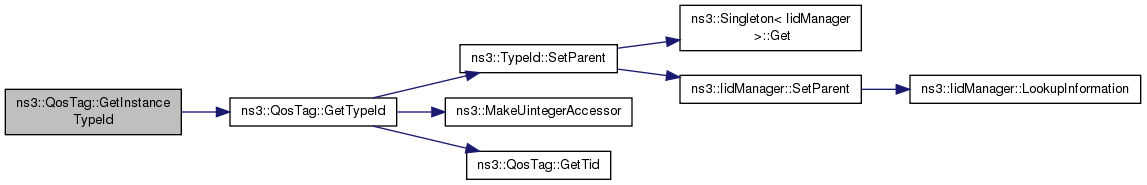

Here is the call graph for this function:

uint32_t ns3::QosTag::GetSerializedSize ( ) const

virtual

Returns: the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 72 of file qos-tag.cc.

uint8_t ns3::QosTag::GetTid ( void ) const

Return the Type ID.

Returns: type ID

Definition at line 90 of file qos-tag.cc.

References m_tid.

Referenced by ns3::MeshWifiInterfaceMac::ForwardDown(), GetTypeId(), and ns3::QosUtilsGetTidForPacket().

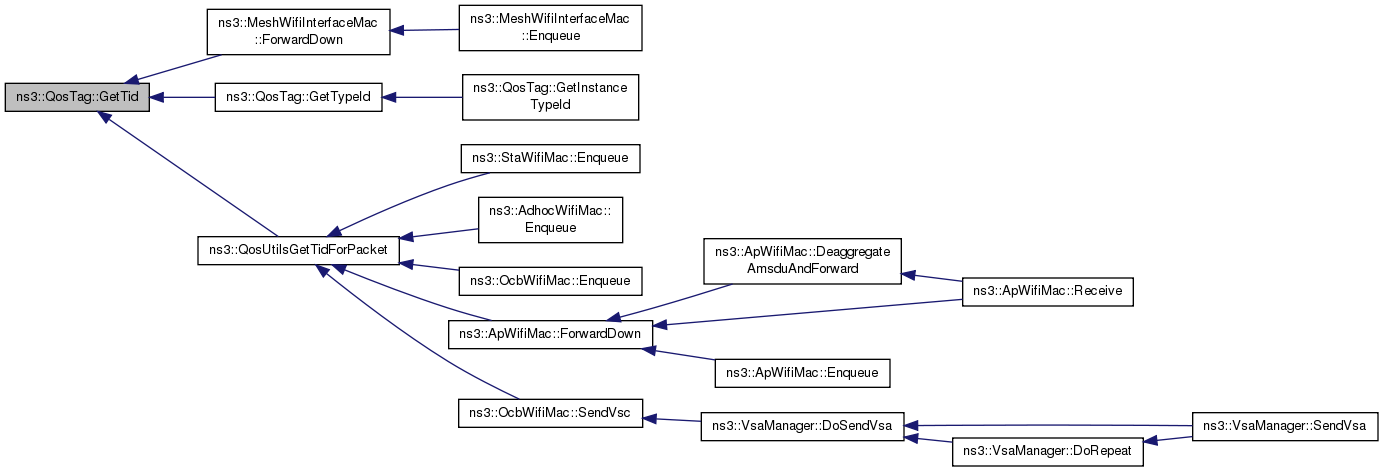

Here is the caller graph for this function:

TypeId ns3::QosTag::GetTypeId ( void )

static

Definition at line 30 of file qos-tag.cc.

References GetTid(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

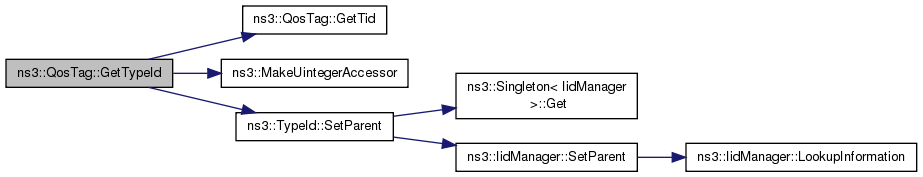

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::QosTag::Print ( std::ostream & os ) const

virtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 96 of file qos-tag.cc.

References m_tid.

void ns3::QosTag::Serialize ( TagBuffer i ) const

virtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 78 of file qos-tag.cc.

References m_tid, and ns3::TagBuffer::WriteU8().

Here is the call graph for this function:

void ns3::QosTag::SetTid ( uint8_t tid )

Set the TID to the given value.

This assumes that the application is aware of the QoS support provided by the MAC layer, and is therefore able to set the correct TID.

Parameters

tid	the value of the TID to set

Definition at line 60 of file qos-tag.cc.

References m_tid.

void ns3::QosTag::SetUserPriority ( UserPriority up )

Set the TID to the value that corresponds to the requested UserPriority.

Note that, since the mapping of UserPriority to TID is defined for EDCA only, you should call this method only when EDCA is used. When using HDCA, QosTag(uint8_t tid) should be used instead.

Parameters

up	the requested UserPriority

Definition at line 66 of file qos-tag.cc.

References m_tid.

Member Data Documentation

uint8_t ns3::QosTag::m_tid

private

Traffic ID.

Definition at line 113 of file qos-tag.h.

Referenced by Deserialize(), GetTid(), Print(), Serialize(), SetTid(), and SetUserPriority().

The documentation for this class was generated from the following files:

src/wifi/model/qos-tag.h
src/wifi/model/qos-tag.cc
