802.11 PHY layer modelThis PHY implements a model of 802.11a. More...

#include "yans-wifi-phy.h"

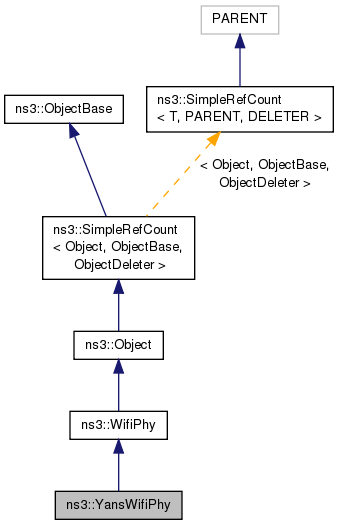

Inheritance diagram for ns3::YansWifiPhy:

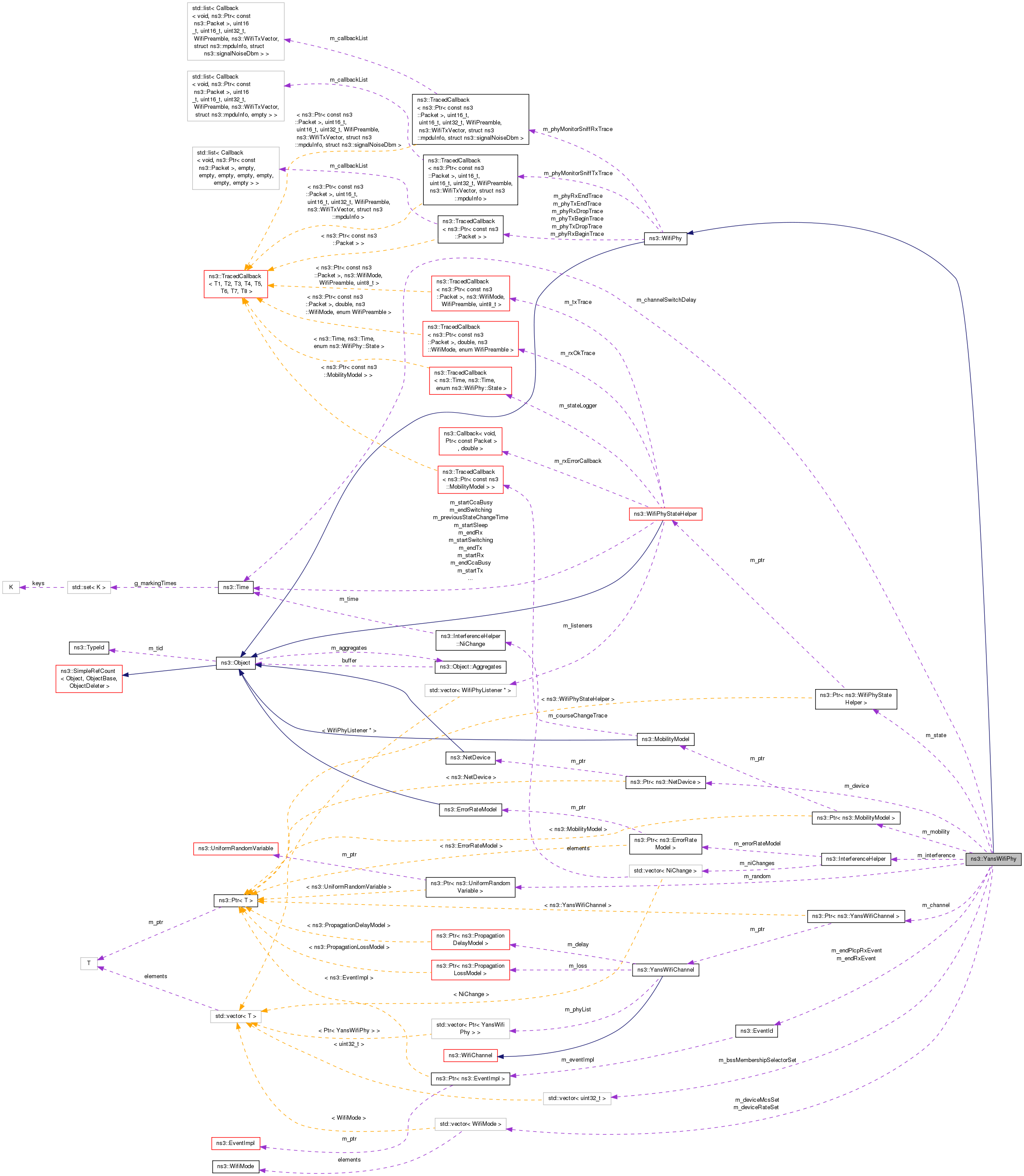

Collaboration diagram for ns3::YansWifiPhy:

Public Member Functions
	YansWifiPhy ()

virtual	~YansWifiPhy ()

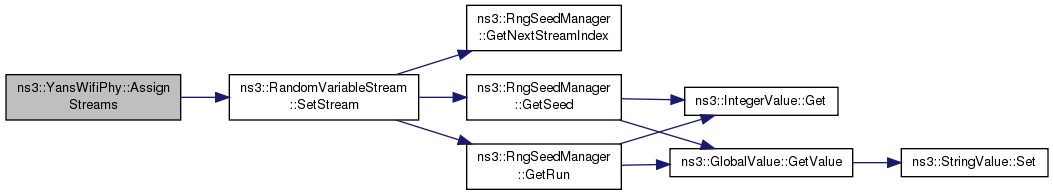

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual double	CalculateSnr (WifiMode txMode, double ber) const

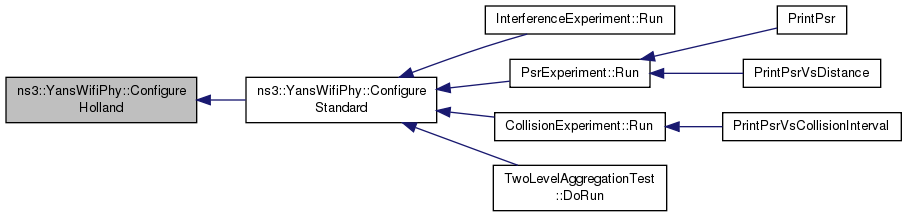

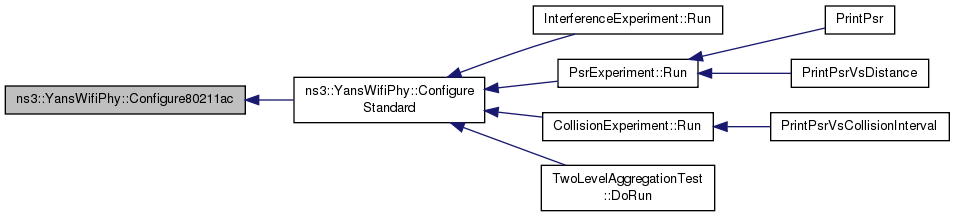

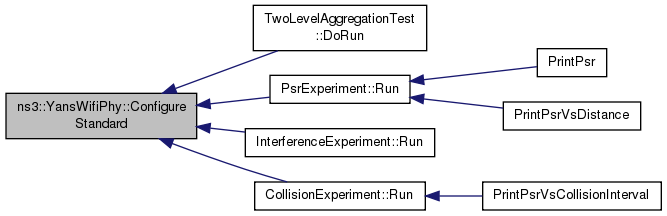

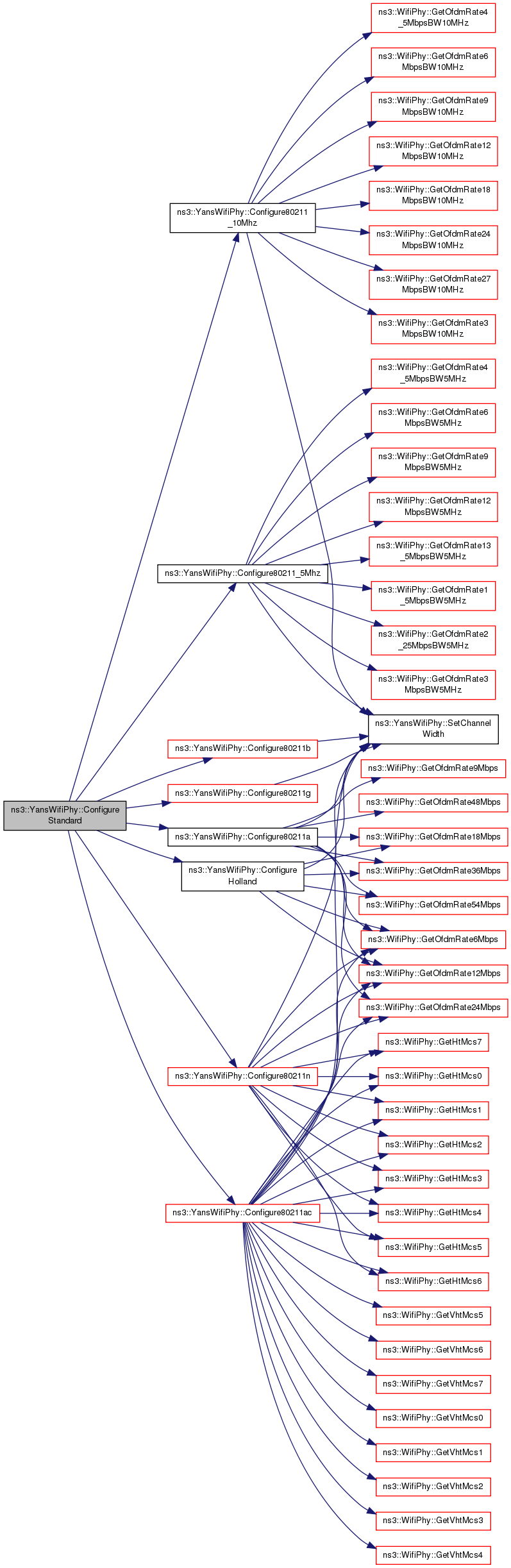

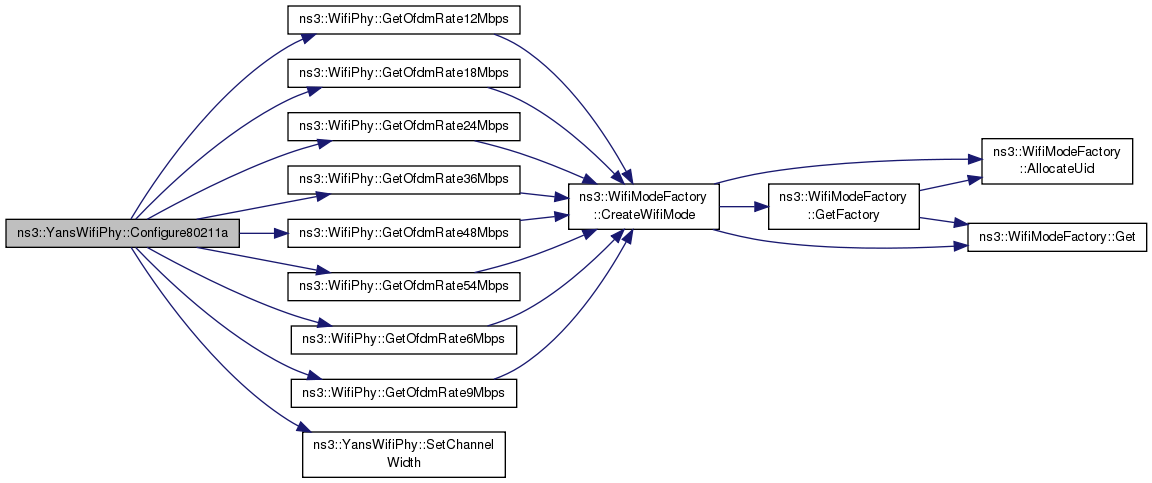

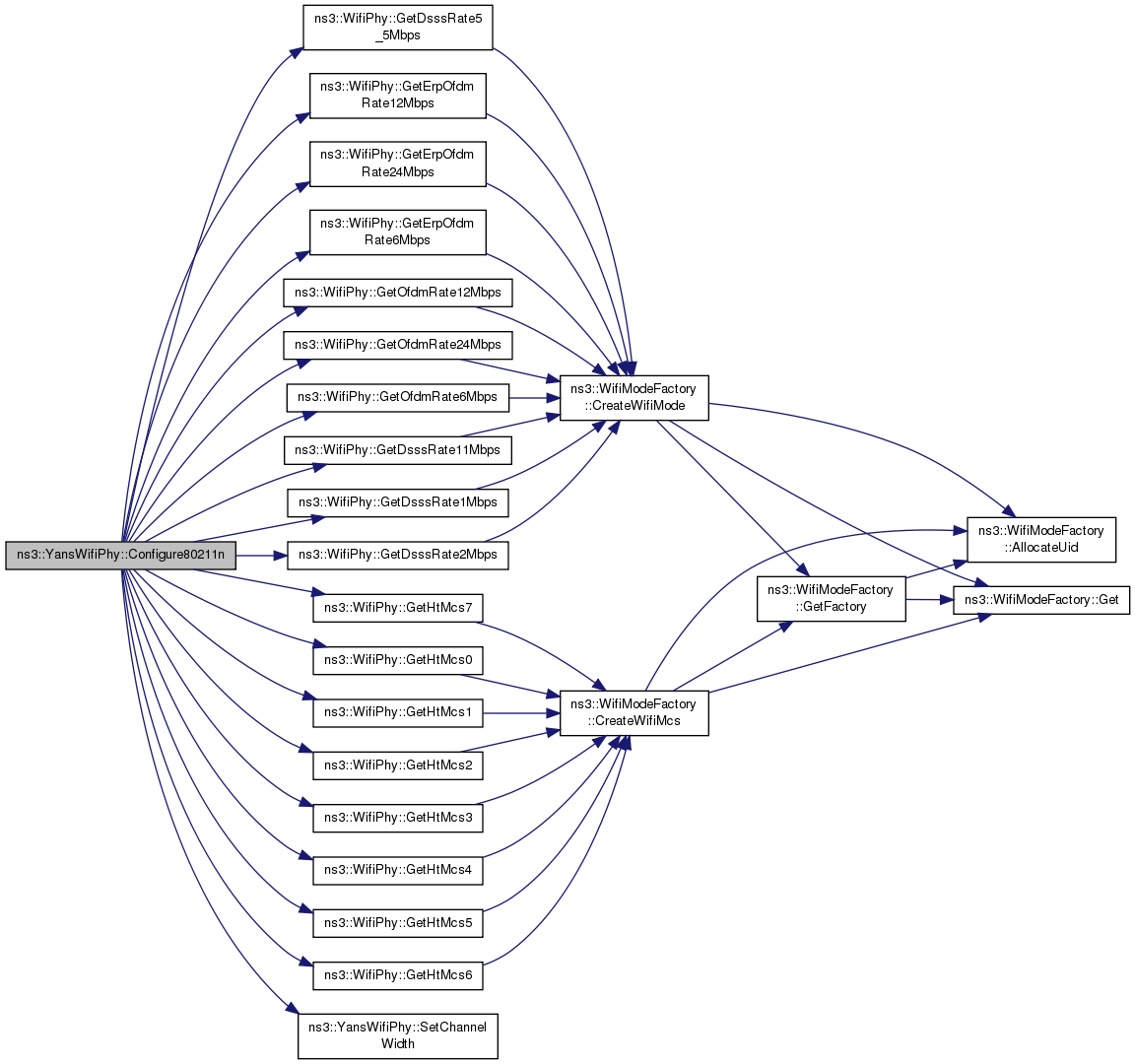

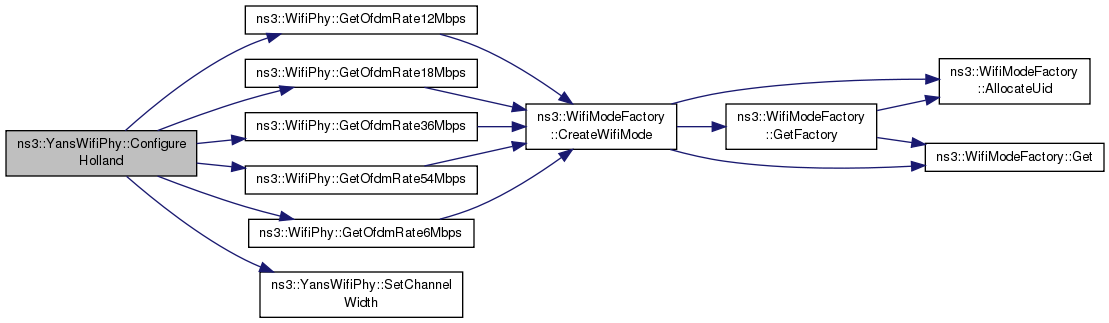

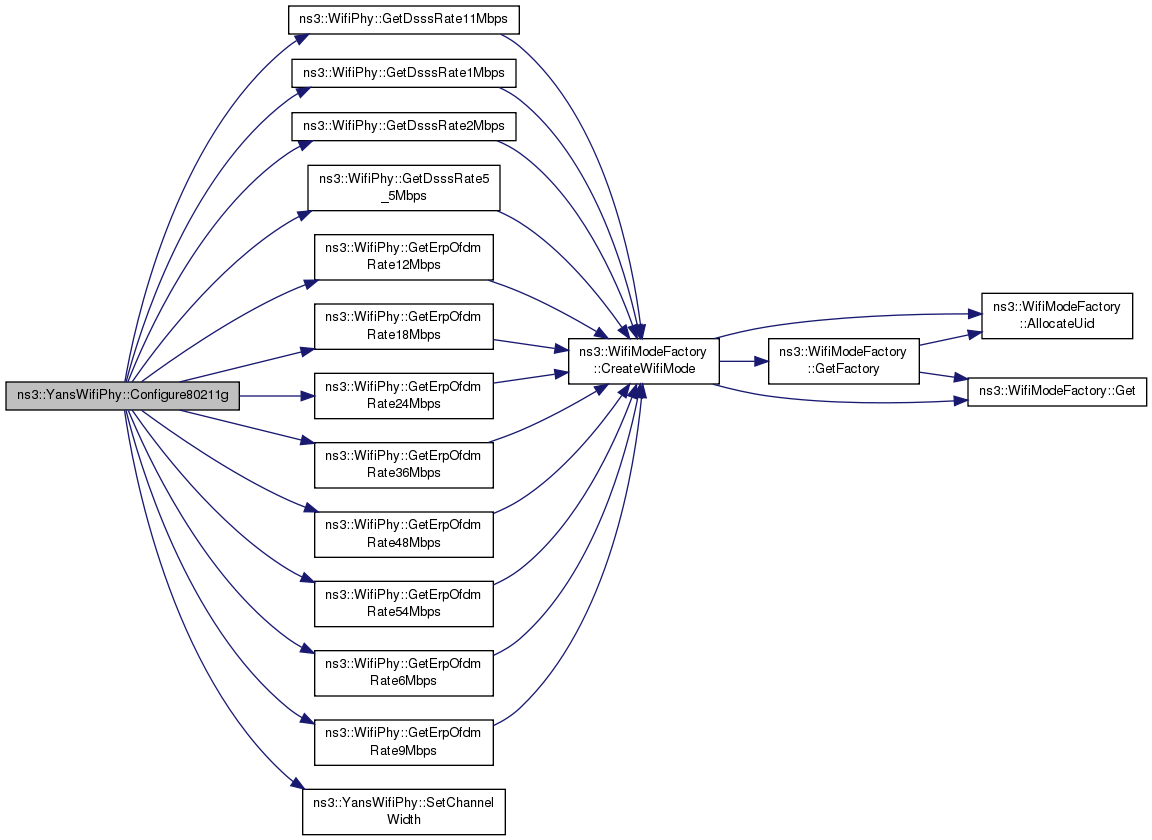

virtual void	ConfigureStandard (enum WifiPhyStandard standard)
	Configure the PHY-level parameters for different Wi-Fi standard. More...

virtual uint32_t	GetBssMembershipSelector (uint32_t selector) const
	The WifiPhy::BssMembershipSelector() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

double	GetCcaMode1Threshold (void) const
	Return the CCA threshold (dBm). More...

virtual Ptr< WifiChannel >	GetChannel (void) const
	Return the WifiChannel this WifiPhy is connected to. More...

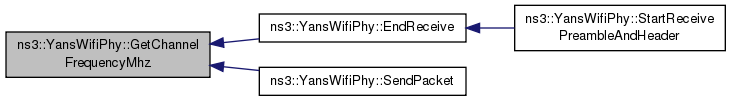

double	GetChannelFrequencyMhz () const
	Return current center channel frequency in MHz. More...

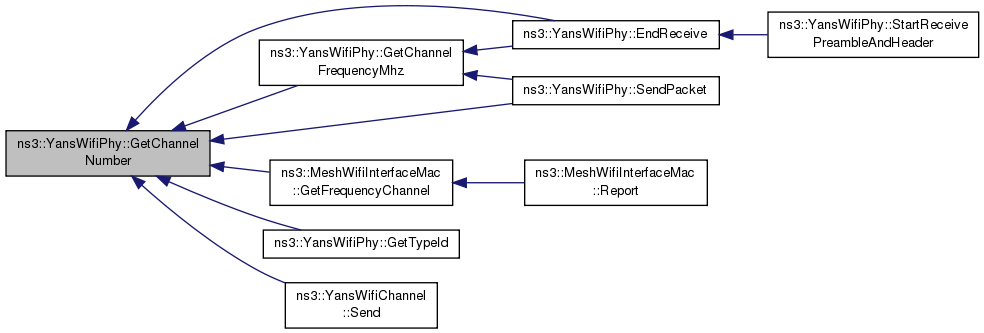

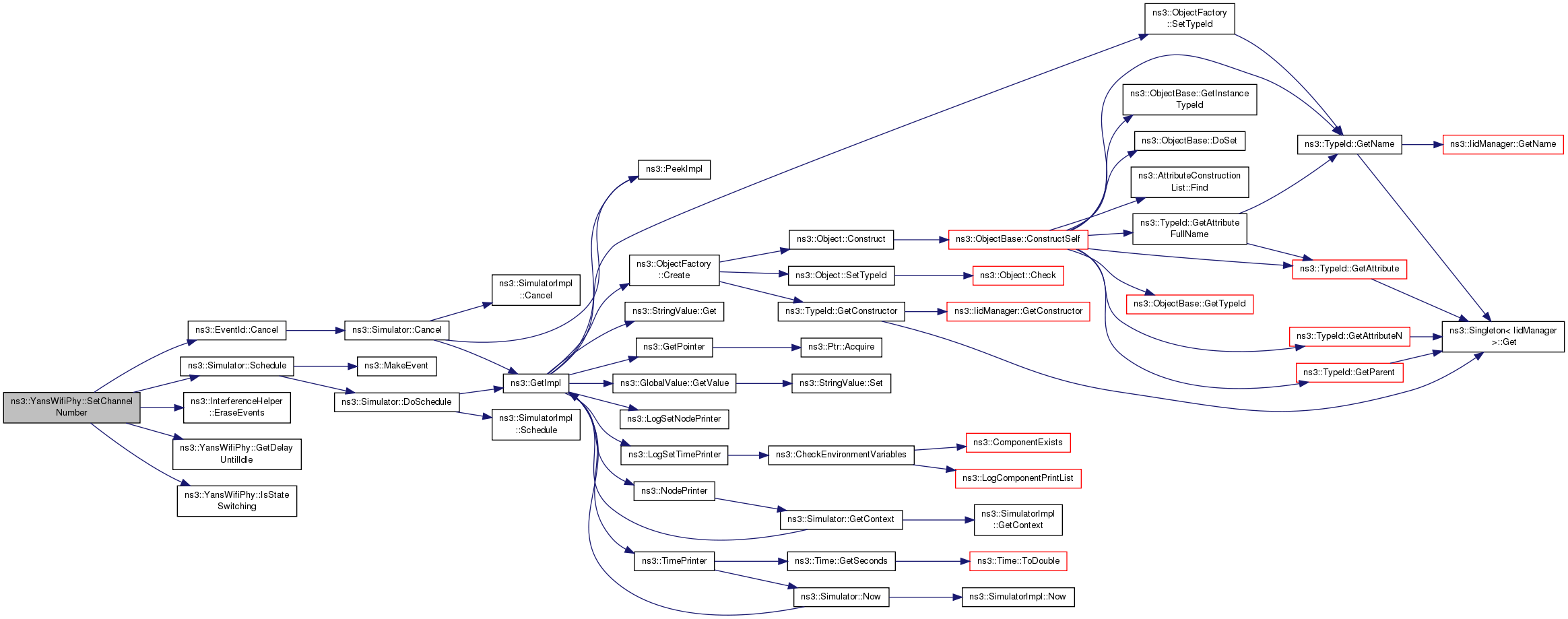

uint16_t	GetChannelNumber (void) const
	Return the current channel number. More...

Time	GetChannelSwitchDelay (void) const

virtual uint32_t	GetChannelWidth (void) const
	Return channel width. More...

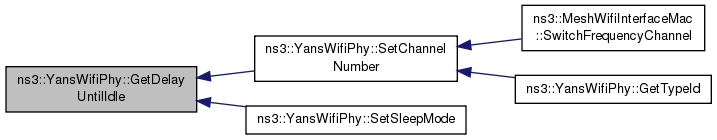

virtual Time	GetDelayUntilIdle (void)

Ptr< NetDevice >	GetDevice (void) const
	Return the device this PHY is associated with. More...

double	GetEdThreshold (void) const
	Return the energy detection threshold (dBm). More...

Ptr< ErrorRateModel >	GetErrorRateModel (void) const
	Return the error rate model this PHY is using. More...

virtual uint32_t	GetFrequency (void) const

virtual bool	GetGreenfield (void) const
	Return whether Greenfield is supported. More...

virtual bool	GetGuardInterval (void) const
	Return whether guard interval is being used. More...

virtual Time	GetLastRxStartTime (void) const
	Return the start time of the last received packet. More...

virtual bool	GetLdpc (void) const
	Return if LDPC is supported. More...

virtual WifiMode	GetMcs (uint8_t mcs) const
	The WifiPhy::GetMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of MCS indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet. More...

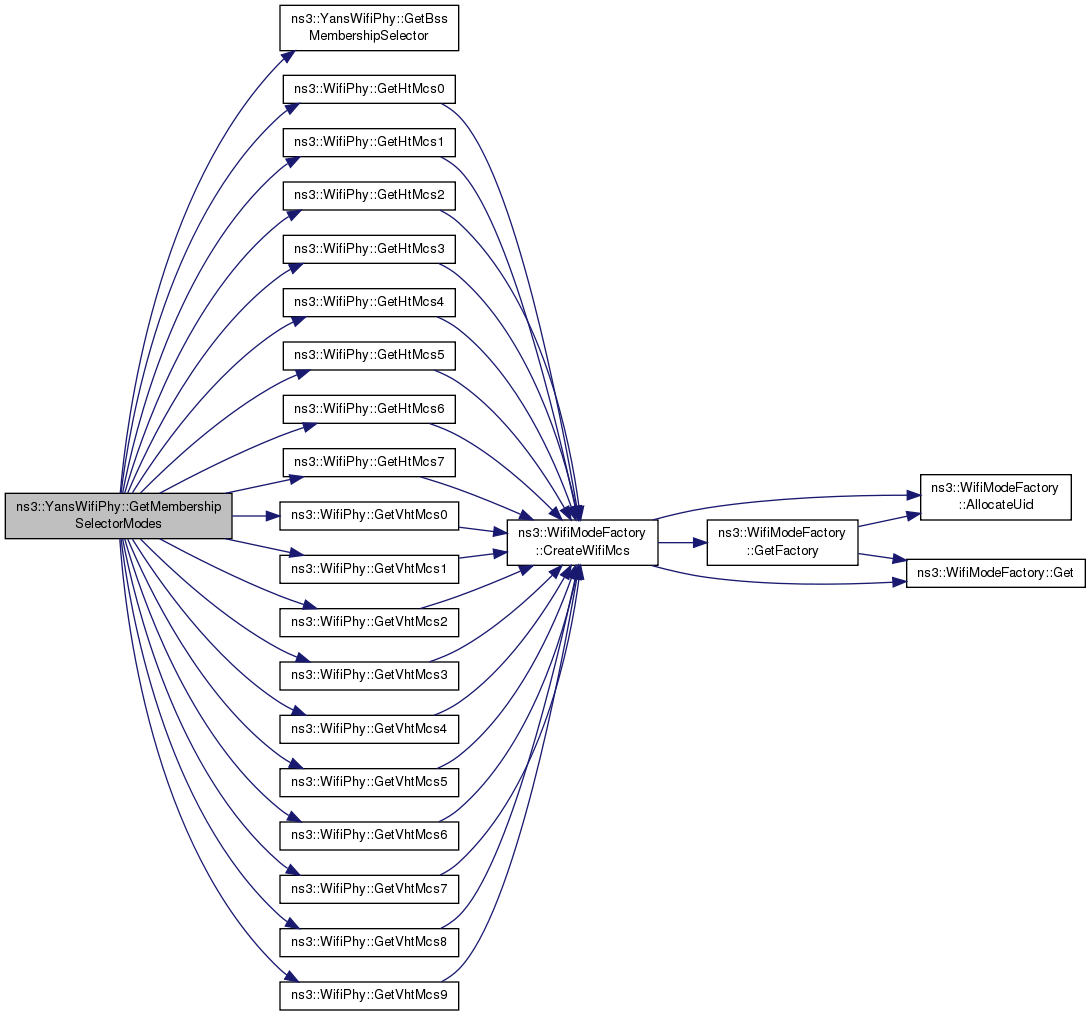

virtual WifiModeList	GetMembershipSelectorModes (uint32_t selector)
	The WifiPhy::GetMembershipSelectorModes() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

Ptr< MobilityModel >	GetMobility (void)
	Return the mobility model this PHY is associated with. More...

virtual WifiMode	GetMode (uint32_t mode) const
	The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet. More...

virtual uint32_t	GetNBssMembershipSelectors (void) const
	The WifiPhy::NBssMembershipSelectors() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet. More...

virtual uint8_t	GetNMcs (void) const

virtual uint32_t	GetNModes (void) const
	The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet. More...

virtual uint32_t	GetNTxPower (void) const
	Return the number of available transmission power levels. More...

virtual uint32_t	GetNumberOfReceiveAntennas (void) const

virtual uint32_t	GetNumberOfTransmitAntennas (void) const

double	GetRxGain (void) const
	Return the reception gain (dB). More...

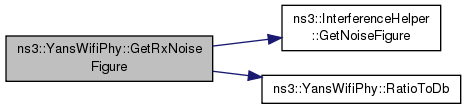

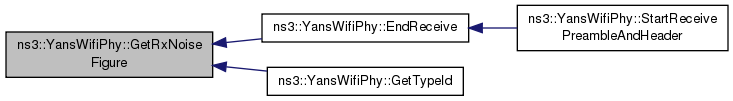

double	GetRxNoiseFigure (void) const
	Return the RX noise figure (dBm). More...

virtual Time	GetStateDuration (void)

virtual bool	GetStbc (void) const
	Return whether STBC is supported. More...

double	GetTxGain (void) const
	Return the transmission gain (dB). More...

virtual double	GetTxPowerEnd (void) const
	Return the maximum available transmission power level (dBm). More...

virtual double	GetTxPowerStart (void) const
	Return the minimum available transmission power level (dBm). More...

virtual bool	IsMcsSupported (WifiMode mcs)

virtual bool	IsModeSupported (WifiMode mode) const
	Check if the given WifiMode is supported by the PHY. More...

virtual bool	IsStateBusy (void)

virtual bool	IsStateCcaBusy (void)

virtual bool	IsStateIdle (void)

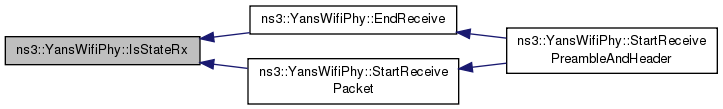

virtual bool	IsStateRx (void)

virtual bool	IsStateSleep (void)

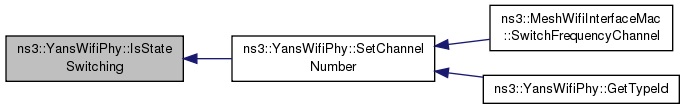

virtual bool	IsStateSwitching (void)

virtual bool	IsStateTx (void)

virtual void	RegisterListener (WifiPhyListener *listener)

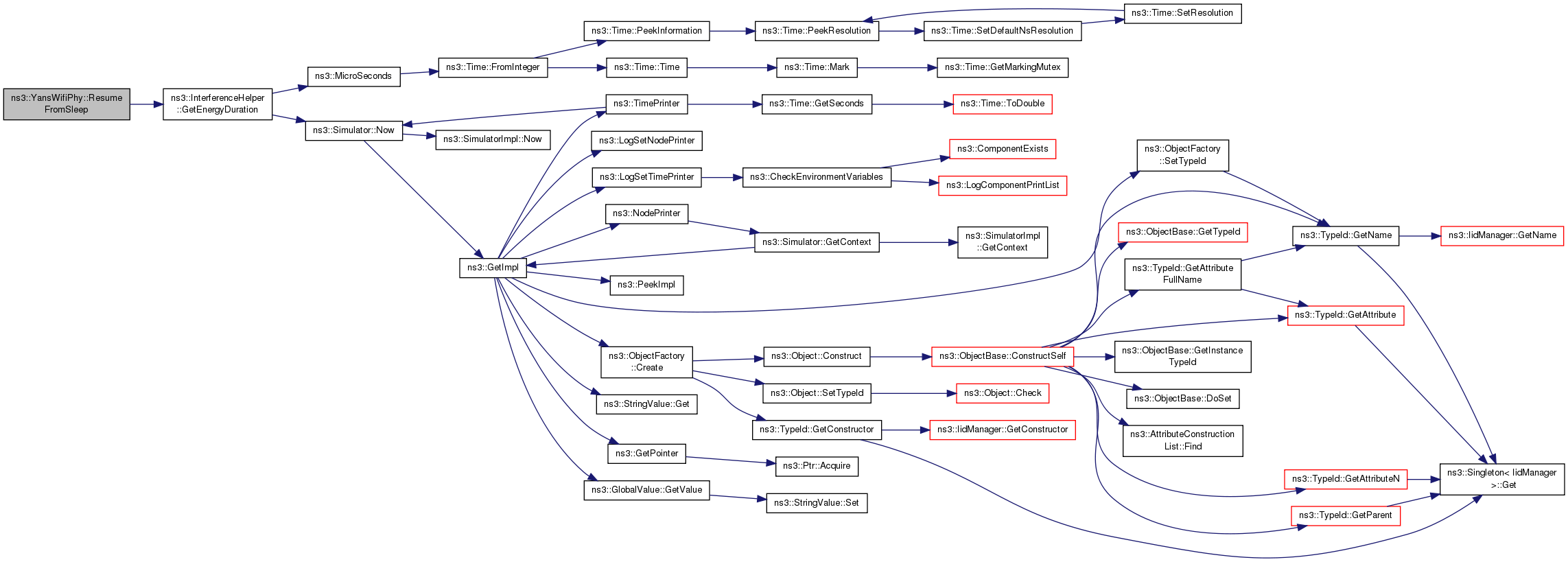

virtual void	ResumeFromSleep (void)
	Resume from sleep mode. More...

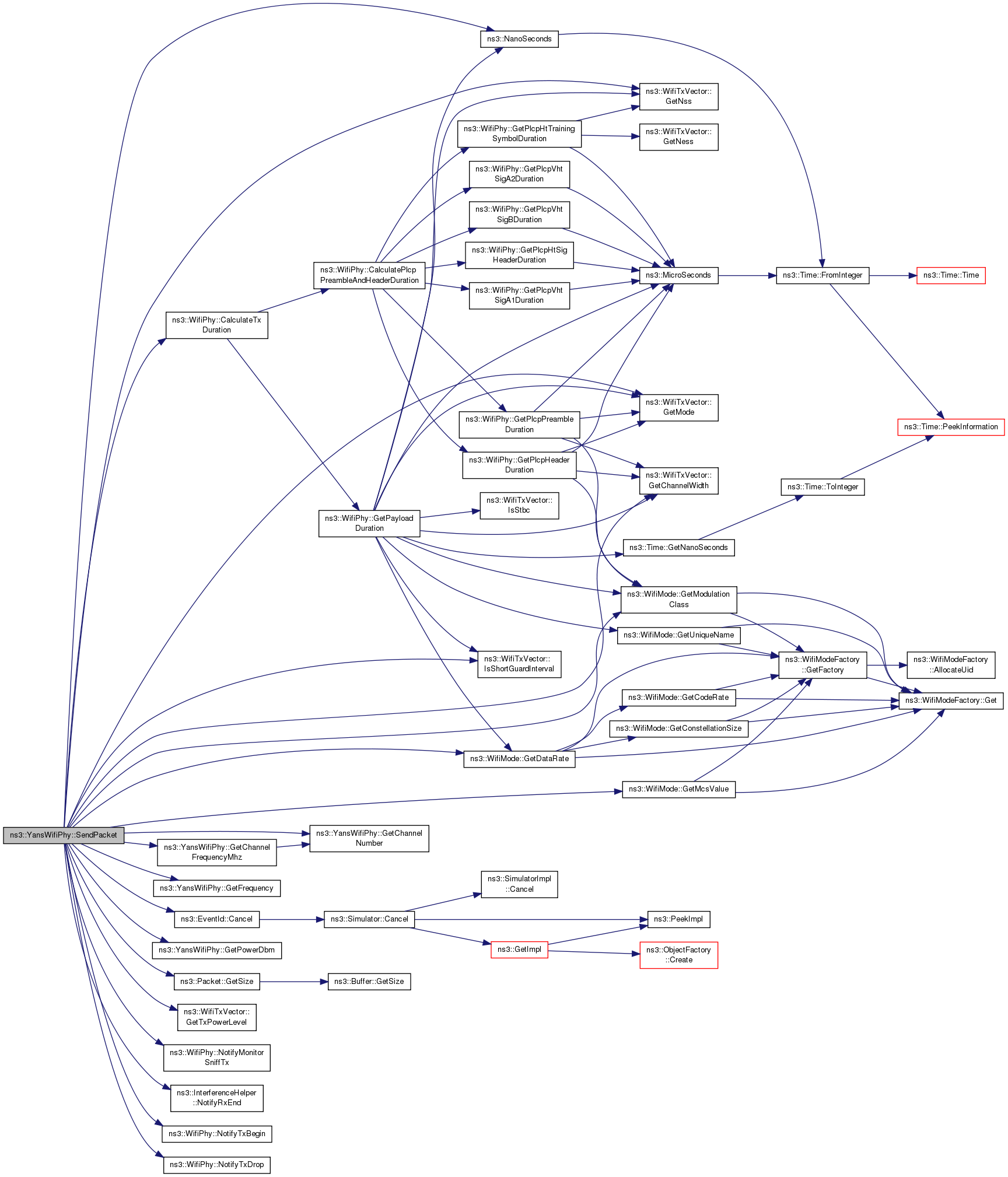

virtual void	SendPacket (Ptr< const Packet > packet, WifiTxVector txVector, enum WifiPreamble preamble, uint8_t packetType, uint32_t mpduReferenceNumber)

void	SetCcaMode1Threshold (double threshold)
	Sets the CCA threshold (dBm). More...

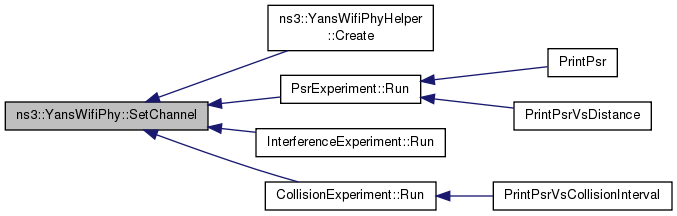

void	SetChannel (Ptr< YansWifiChannel > channel)
	Set the YansWifiChannel this YansWifiPhy is to be connected to. More...

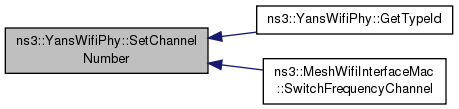

void	SetChannelNumber (uint16_t id)
	Set the current channel number. More...

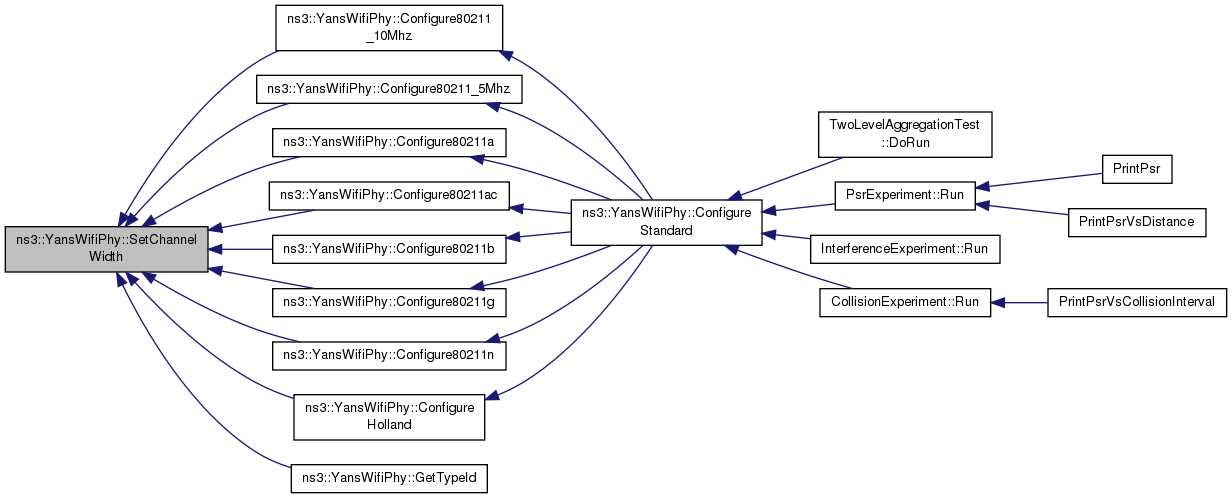

virtual void	SetChannelWidth (uint32_t channelwidth)
	Set channel width. More...

void	SetDevice (Ptr< NetDevice > device)
	Sets the device this PHY is associated with. More...

void	SetEdThreshold (double threshold)
	Sets the energy detection threshold (dBm). More...

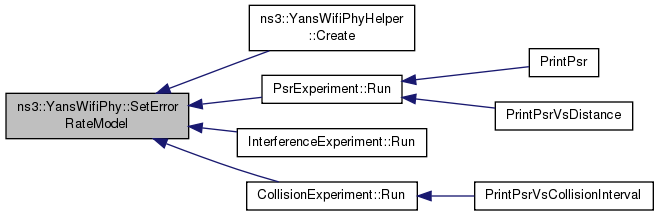

void	SetErrorRateModel (Ptr< ErrorRateModel > rate)
	Sets the error rate model. More...

virtual void	SetFrequency (uint32_t freq)

virtual void	SetGreenfield (bool greenfield)
	Enable or disable Greenfield support. More...

virtual void	SetGuardInterval (bool guardInterval)
	Enable or disable short/long guard interval. More...

virtual void	SetLdpc (bool ldpc)
	Enable or disable LDPC. More...

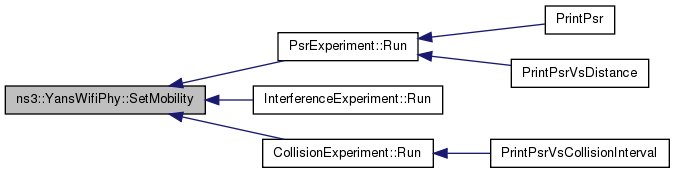

void	SetMobility (Ptr< MobilityModel > mobility)
	assign a mobility model to this device More...

void	SetNTxPower (uint32_t n)
	Sets the number of transmission power levels available between the minimum level and the maximum level. More...

virtual void	SetNumberOfReceiveAntennas (uint32_t rx)

virtual void	SetNumberOfTransmitAntennas (uint32_t tx)

virtual void	SetReceiveErrorCallback (WifiPhy::RxErrorCallback callback)

virtual void	SetReceiveOkCallback (WifiPhy::RxOkCallback callback)

void	SetRxGain (double gain)
	Sets the reception gain (dB). More...

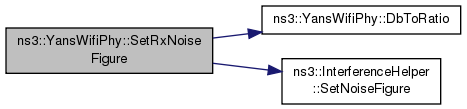

void	SetRxNoiseFigure (double noiseFigureDb)
	Sets the RX loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. More...

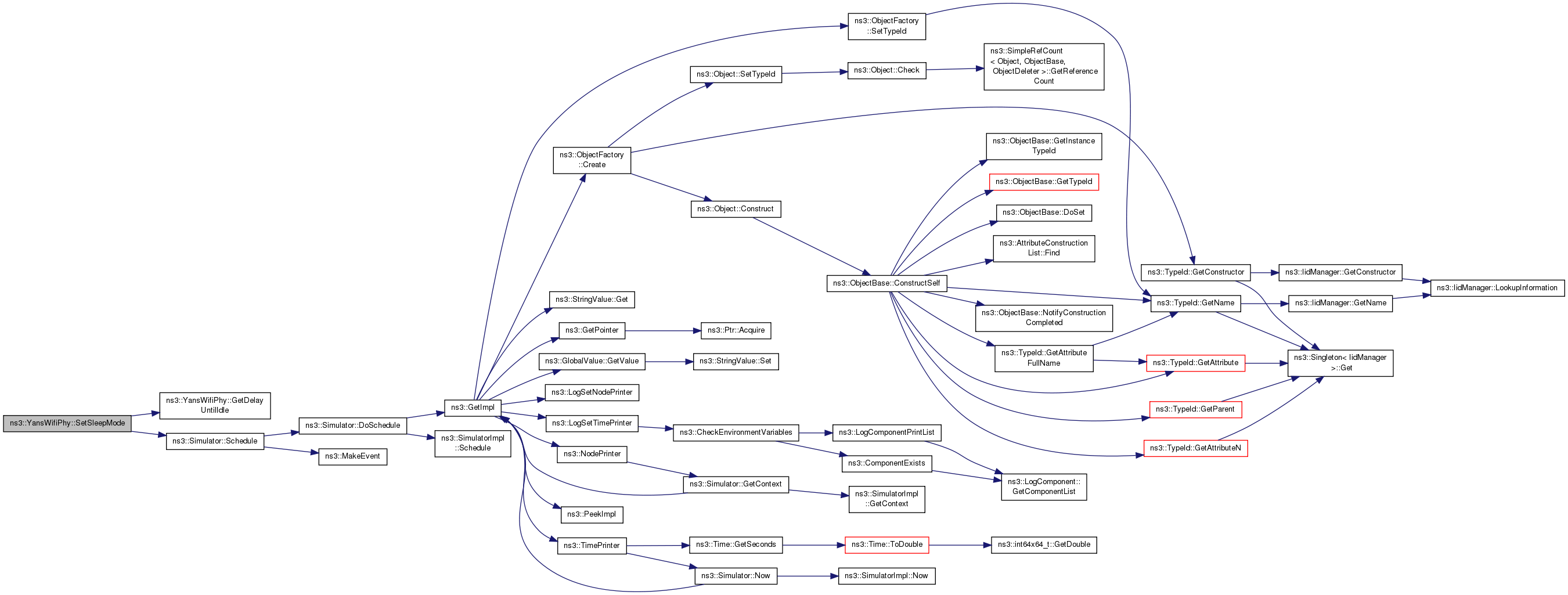

virtual void	SetSleepMode (void)
	Put in sleep mode. More...

virtual void	SetStbc (bool stbc)
	Enable or disable STBC. More...

void	SetTxGain (double gain)
	Sets the transmission gain (dB). More...

void	SetTxPowerEnd (double end)
	Sets the maximum available transmission power level (dBm). More...

void	SetTxPowerStart (double start)
	Sets the minimum available transmission power level (dBm). More...

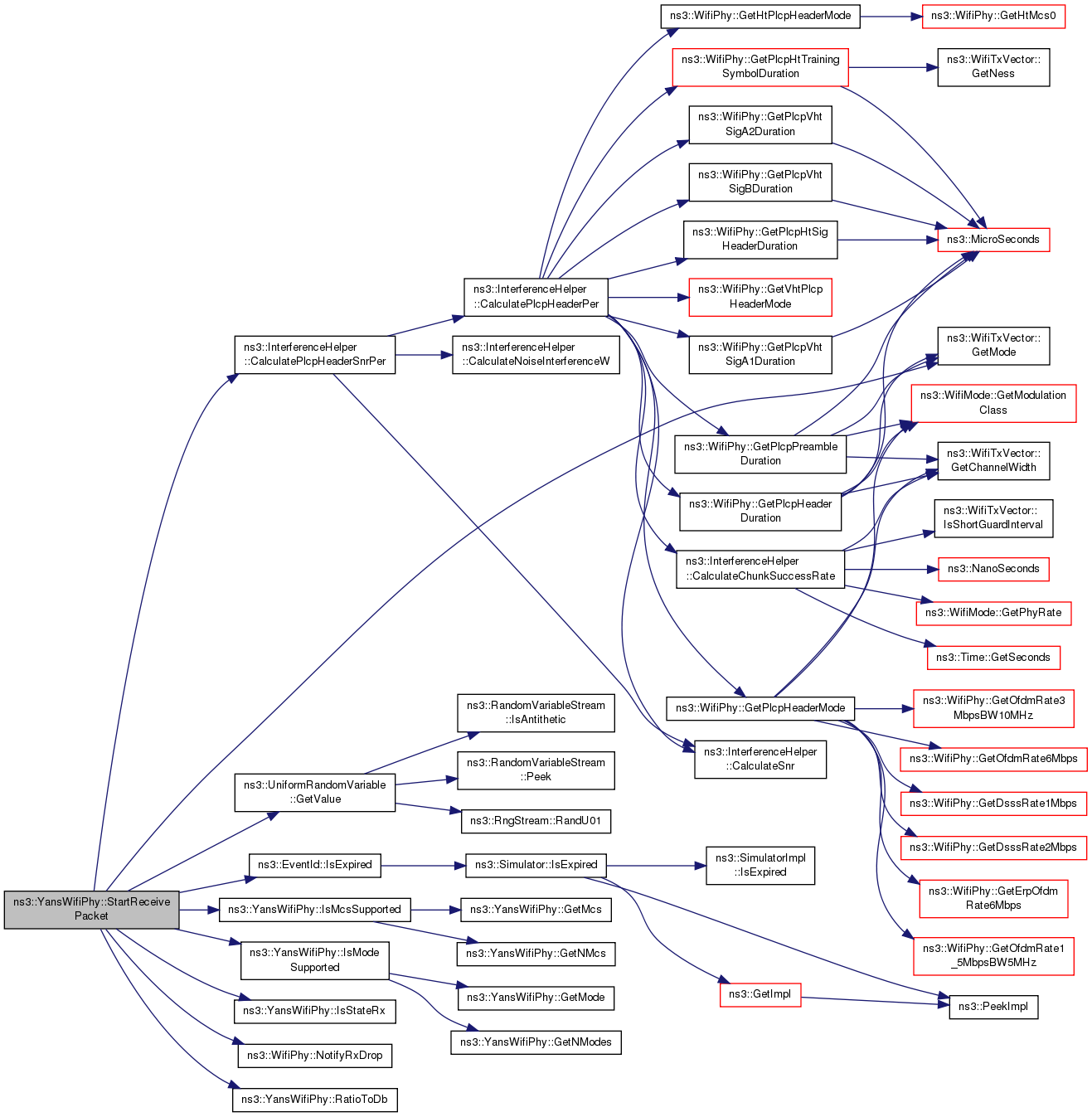

void	StartReceivePacket (Ptr< Packet > packet, WifiTxVector txVector, WifiPreamble preamble, struct mpduInfo aMpdu, Ptr< InterferenceHelper::Event > event)
	Starting receiving the payload of a packet (i.e. More...

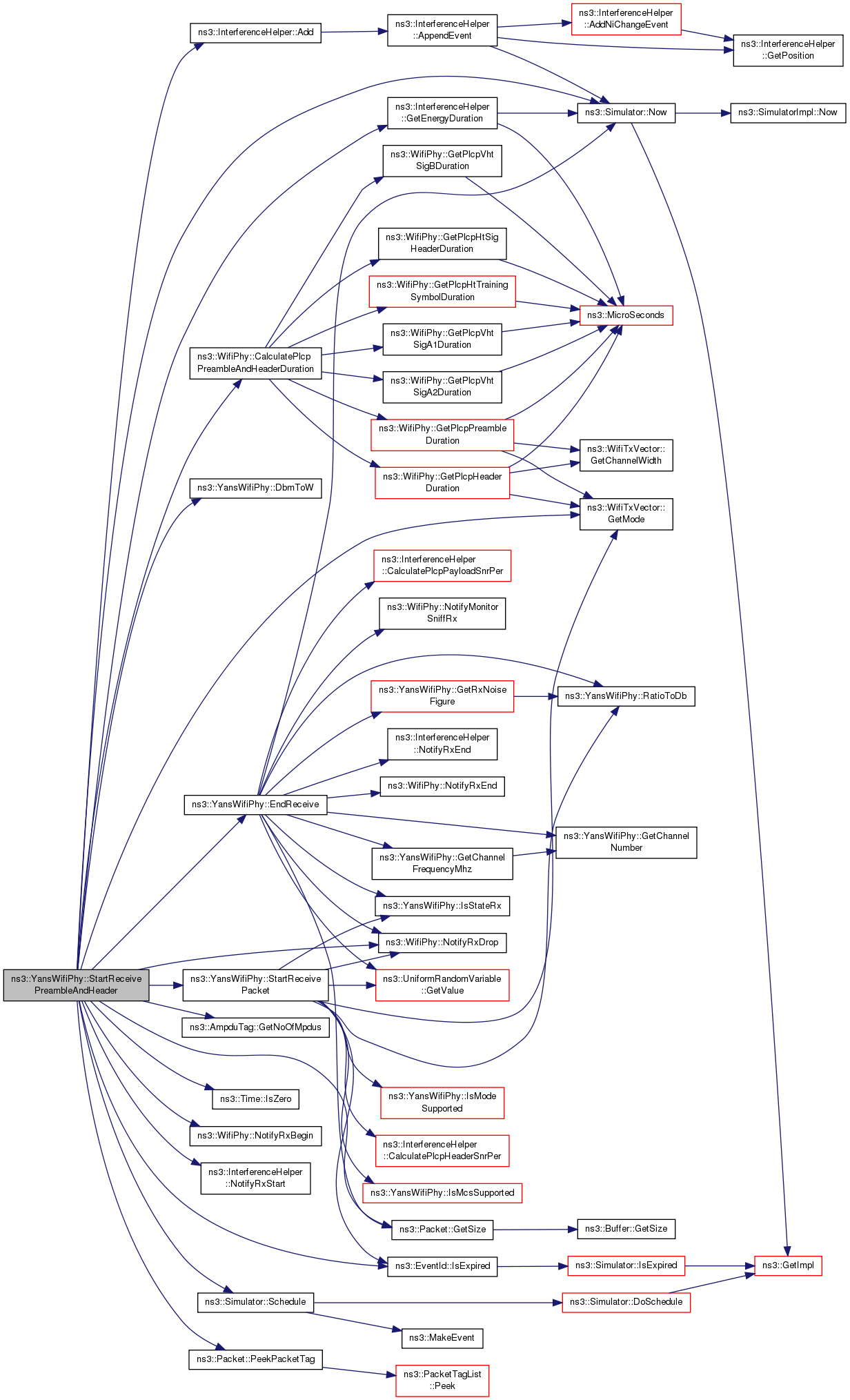

void	StartReceivePreambleAndHeader (Ptr< Packet > packet, double rxPowerDbm, WifiTxVector txVector, WifiPreamble preamble, struct mpduInfo aMpdu, Time rxDuration)
	Starting receiving the plcp of a packet (i.e. More...

virtual void	UnregisterListener (WifiPhyListener *listener)

Public Member Functions inherited from ns3::WifiPhy
	WifiPhy ()

virtual	~WifiPhy ()

Time	CalculatePlcpPreambleAndHeaderDuration (WifiTxVector txVector, enum WifiPreamble preamble)

Time	CalculateTxDuration (uint32_t size, WifiTxVector txVector, enum WifiPreamble preamble, double frequency, uint8_t packetType, uint8_t incFlag)

Time	GetPayloadDuration (uint32_t size, WifiTxVector txVector, WifiPreamble preamble, double frequency, uint8_t packetType, uint8_t incFlag)

void	NotifyMonitorSniffRx (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, WifiPreamble preamble, WifiTxVector txVector, struct mpduInfo aMpdu, struct signalNoiseDbm signalNoise)
	Public method used to fire a MonitorSniffer trace for a wifi packet being received. More...

void	NotifyMonitorSniffTx (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, WifiPreamble preamble, WifiTxVector txVector, struct mpduInfo aMpdu)
	Public method used to fire a MonitorSniffer trace for a wifi packet being transmitted. More...

void	NotifyRxBegin (Ptr< const Packet > packet)
	Public method used to fire a PhyRxBegin trace. More...

void	NotifyRxDrop (Ptr< const Packet > packet)
	Public method used to fire a PhyRxDrop trace. More...

void	NotifyRxEnd (Ptr< const Packet > packet)
	Public method used to fire a PhyRxEnd trace. More...

void	NotifyTxBegin (Ptr< const Packet > packet)
	Public method used to fire a PhyTxBegin trace. More...

void	NotifyTxDrop (Ptr< const Packet > packet)
	Public method used to fire a PhyTxDrop trace. More...

void	NotifyTxEnd (Ptr< const Packet > packet)
	Public method used to fire a PhyTxEnd trace. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::WifiPhy
static WifiMode	GetDsssRate11Mbps ()
	Return a WifiMode for DSSS at 11Mbps. More...

static WifiMode	GetDsssRate1Mbps ()
	Return a WifiMode for DSSS at 1Mbps. More...

static WifiMode	GetDsssRate2Mbps ()
	Return a WifiMode for DSSS at 2Mbps. More...

static WifiMode	GetDsssRate5_5Mbps ()
	Return a WifiMode for DSSS at 5.5Mbps. More...

static WifiMode	GetErpOfdmRate12Mbps ()
	Return a WifiMode for ERP-OFDM at 12Mbps. More...

static WifiMode	GetErpOfdmRate18Mbps ()
	Return a WifiMode for ERP-OFDM at 18Mbps. More...

static WifiMode	GetErpOfdmRate24Mbps ()
	Return a WifiMode for ERP-OFDM at 24Mbps. More...

static WifiMode	GetErpOfdmRate36Mbps ()
	Return a WifiMode for ERP-OFDM at 36Mbps. More...

static WifiMode	GetErpOfdmRate48Mbps ()
	Return a WifiMode for ERP-OFDM at 48Mbps. More...

static WifiMode	GetErpOfdmRate54Mbps ()
	Return a WifiMode for ERP-OFDM at 54Mbps. More...

static WifiMode	GetErpOfdmRate6Mbps ()
	Return a WifiMode for ERP-OFDM at 6Mbps. More...

static WifiMode	GetErpOfdmRate9Mbps ()
	Return a WifiMode for ERP-OFDM at 9Mbps. More...

static WifiMode	GetHtMcs0 ()
	Return MCS 0 from HT MCS values. More...

static WifiMode	GetHtMcs1 ()
	Return MCS 1 from HT MCS values. More...

static WifiMode	GetHtMcs10 ()
	Return MCS 10 from HT MCS values. More...

static WifiMode	GetHtMcs11 ()
	Return MCS 11 from HT MCS values. More...

static WifiMode	GetHtMcs12 ()
	Return MCS 12 from HT MCS values. More...

static WifiMode	GetHtMcs13 ()
	Return MCS 13 from HT MCS values. More...

static WifiMode	GetHtMcs14 ()
	Return MCS 14 from HT MCS values. More...

static WifiMode	GetHtMcs15 ()
	Return MCS 15 from HT MCS values. More...

static WifiMode	GetHtMcs16 ()
	Return MCS 16 from HT MCS values. More...

static WifiMode	GetHtMcs17 ()
	Return MCS 17 from HT MCS values. More...

static WifiMode	GetHtMcs18 ()
	Return MCS 18 from HT MCS values. More...

static WifiMode	GetHtMcs19 ()
	Return MCS 19 from HT MCS values. More...

static WifiMode	GetHtMcs2 ()
	Return MCS 2 from HT MCS values. More...

static WifiMode	GetHtMcs20 ()
	Return MCS 20 from HT MCS values. More...

static WifiMode	GetHtMcs21 ()
	Return MCS 21 from HT MCS values. More...

static WifiMode	GetHtMcs22 ()
	Return MCS 22 from HT MCS values. More...

static WifiMode	GetHtMcs23 ()
	Return MCS 23 from HT MCS values. More...

static WifiMode	GetHtMcs24 ()
	Return MCS 24 from HT MCS values. More...

static WifiMode	GetHtMcs25 ()
	Return MCS 25 from HT MCS values. More...

static WifiMode	GetHtMcs26 ()
	Return MCS 26 from HT MCS values. More...

static WifiMode	GetHtMcs27 ()
	Return MCS 27 from HT MCS values. More...

static WifiMode	GetHtMcs28 ()
	Return MCS 28 from HT MCS values. More...

static WifiMode	GetHtMcs29 ()
	Return MCS 29 from HT MCS values. More...

static WifiMode	GetHtMcs3 ()
	Return MCS 3 from HT MCS values. More...

static WifiMode	GetHtMcs30 ()
	Return MCS 30 from HT MCS values. More...

static WifiMode	GetHtMcs31 ()
	Return MCS 31 from HT MCS values. More...

static WifiMode	GetHtMcs4 ()
	Return MCS 4 from HT MCS values. More...

static WifiMode	GetHtMcs5 ()
	Return MCS 5 from HT MCS values. More...

static WifiMode	GetHtMcs6 ()
	Return MCS 6 from HT MCS values. More...

static WifiMode	GetHtMcs7 ()
	Return MCS 7 from HT MCS values. More...

static WifiMode	GetHtMcs8 ()
	Return MCS 8 from HT MCS values. More...

static WifiMode	GetHtMcs9 ()
	Return MCS 9 from HT MCS values. More...

static WifiMode	GetHtPlcpHeaderMode (WifiMode payloadMode)

static WifiMode	GetOfdmRate12Mbps ()
	Return a WifiMode for OFDM at 12Mbps. More...

static WifiMode	GetOfdmRate12MbpsBW10MHz ()
	Return a WifiMode for OFDM at 12Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate12MbpsBW5MHz ()
	Return a WifiMode for OFDM at 12Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate13_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 13.5Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate18Mbps ()
	Return a WifiMode for OFDM at 18Mbps. More...

static WifiMode	GetOfdmRate18MbpsBW10MHz ()
	Return a WifiMode for OFDM at 18Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate1_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 1.5Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate24Mbps ()
	Return a WifiMode for OFDM at 24Mbps. More...

static WifiMode	GetOfdmRate24MbpsBW10MHz ()
	Return a WifiMode for OFDM at 24Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate27MbpsBW10MHz ()
	Return a WifiMode for OFDM at 27Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate2_25MbpsBW5MHz ()
	Return a WifiMode for OFDM at 2.25Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate36Mbps ()
	Return a WifiMode for OFDM at 36Mbps. More...

static WifiMode	GetOfdmRate3MbpsBW10MHz ()
	Return a WifiMode for OFDM at 3Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate3MbpsBW5MHz ()
	Return a WifiMode for OFDM at 3Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate48Mbps ()
	Return a WifiMode for OFDM at 48Mbps. More...

static WifiMode	GetOfdmRate4_5MbpsBW10MHz ()
	Return a WifiMode for OFDM at 4.5Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate4_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 4.5Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate54Mbps ()
	Return a WifiMode for OFDM at 54Mbps. More...

static WifiMode	GetOfdmRate6Mbps ()
	Return a WifiMode for OFDM at 6Mbps. More...

static WifiMode	GetOfdmRate6MbpsBW10MHz ()
	Return a WifiMode for OFDM at 6Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate6MbpsBW5MHz ()
	Return a WifiMode for OFDM at 6Mbps with 5MHz channel spacing. More...

static WifiMode	GetOfdmRate9Mbps ()
	Return a WifiMode for OFDM at 9Mbps. More...

static WifiMode	GetOfdmRate9MbpsBW10MHz ()
	Return a WifiMode for OFDM at 9Mbps with 10MHz channel spacing. More...

static WifiMode	GetOfdmRate9MbpsBW5MHz ()
	Return a WifiMode for OFDM at 9Mbps with 5MHz channel spacing. More...

static Time	GetPlcpHeaderDuration (WifiTxVector txVector, WifiPreamble preamble)

static WifiMode	GetPlcpHeaderMode (WifiMode payloadMode, WifiPreamble preamble, WifiTxVector txVector)

static Time	GetPlcpHtSigHeaderDuration (WifiPreamble preamble)

static Time	GetPlcpHtTrainingSymbolDuration (WifiPreamble preamble, WifiTxVector txVector)

static Time	GetPlcpPreambleDuration (WifiTxVector txVector, WifiPreamble preamble)

static Time	GetPlcpVhtSigA1Duration (WifiPreamble preamble)

static Time	GetPlcpVhtSigA2Duration (WifiPreamble preamble)

static Time	GetPlcpVhtSigBDuration (WifiPreamble preamble)

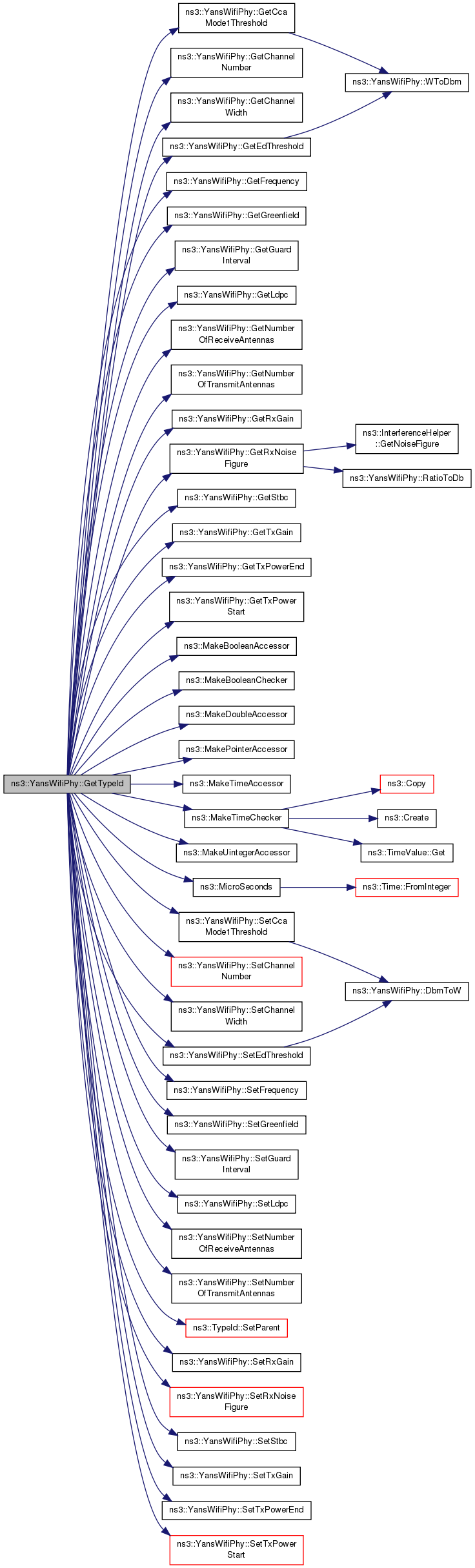

static TypeId	GetTypeId (void)

static WifiMode	GetVhtMcs0 ()
	Return MCS 0 from VHT MCS values. More...

static WifiMode	GetVhtMcs1 ()
	Return MCS 1 from VHT MCS values. More...

static WifiMode	GetVhtMcs2 ()
	Return MCS 2 from VHT MCS values. More...

static WifiMode	GetVhtMcs3 ()
	Return MCS 3 from VHT MCS values. More...

static WifiMode	GetVhtMcs4 ()
	Return MCS 4 from VHT MCS values. More...

static WifiMode	GetVhtMcs5 ()
	Return MCS 5 from VHT MCS values. More...

static WifiMode	GetVhtMcs6 ()
	Return MCS 6 from VHT MCS values. More...

static WifiMode	GetVhtMcs7 ()
	Return MCS 7 from VHT MCS values. More...

static WifiMode	GetVhtMcs8 ()
	Return MCS 8 from VHT MCS values. More...

static WifiMode	GetVhtMcs9 ()
	Return MCS 9 from VHT MCS values. More...

static WifiMode	GetVhtPlcpHeaderMode (WifiMode payloadMode)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions

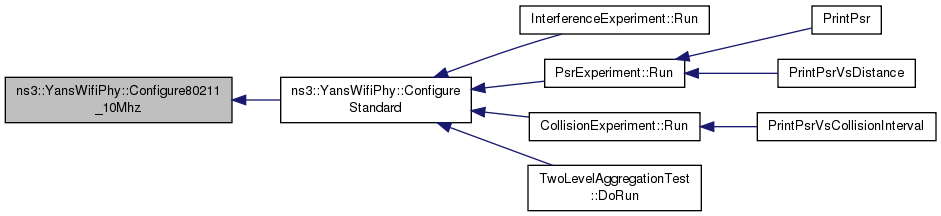

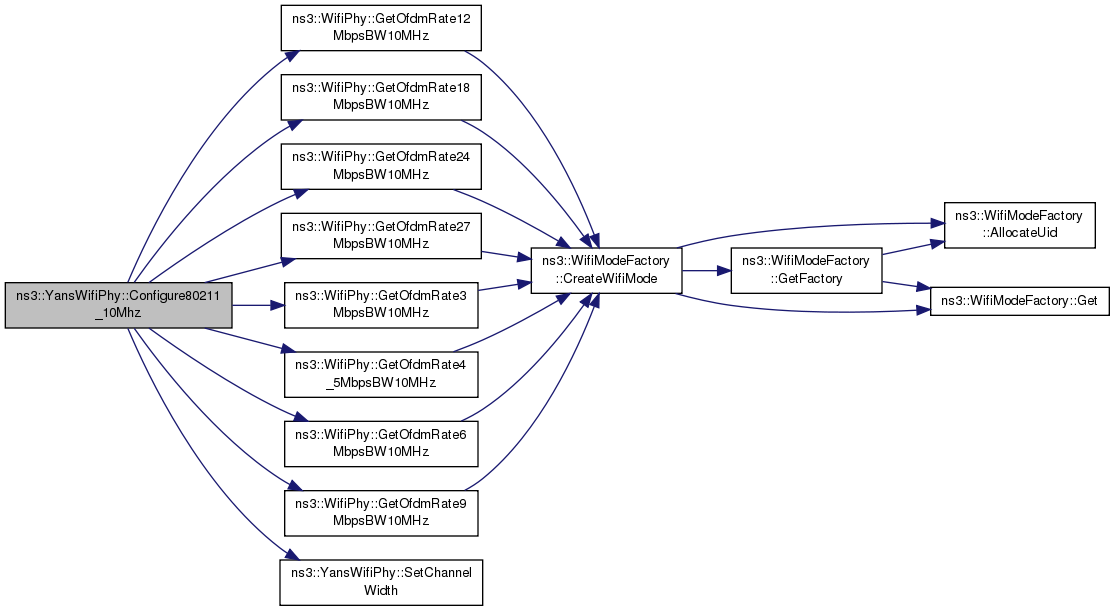

void	Configure80211_10Mhz (void)
	Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11a standard with 10MHz channel spacing. More...

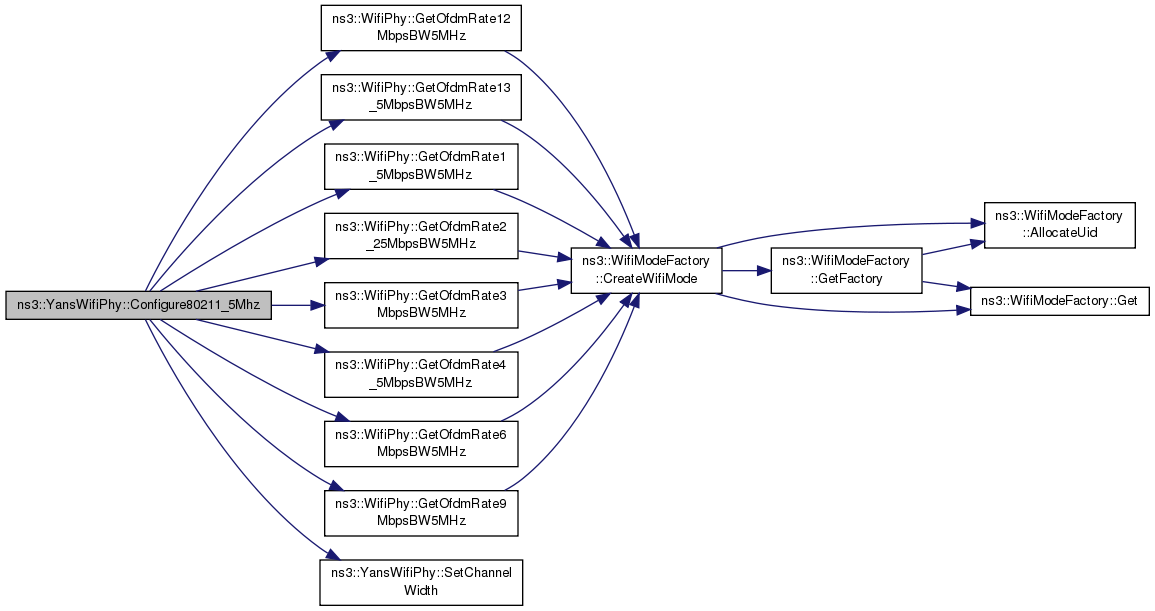

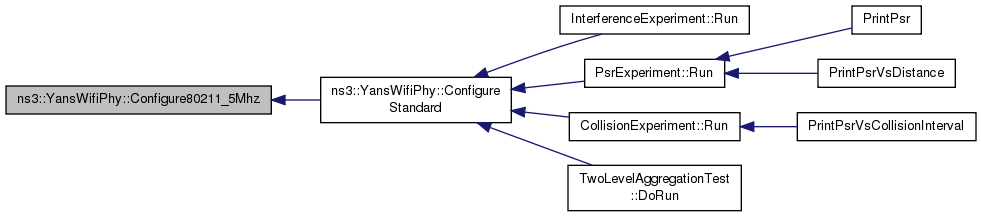

void	Configure80211_5Mhz ()
	Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11a standard with 5MHz channel spacing. More...

void	Configure80211a (void)
	Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11a standard. More...

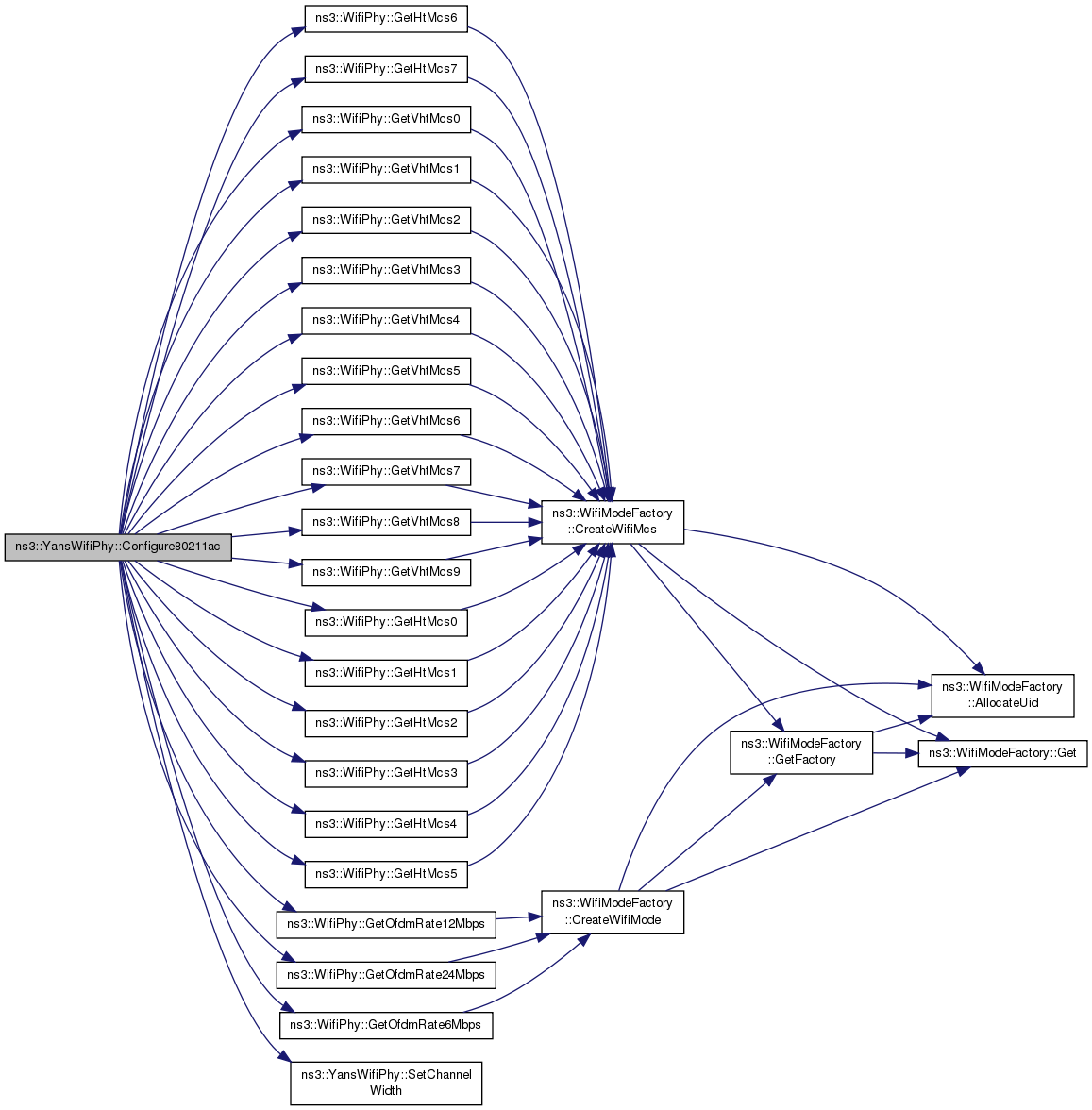

void	Configure80211ac (void)
	Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11ac standard. More...

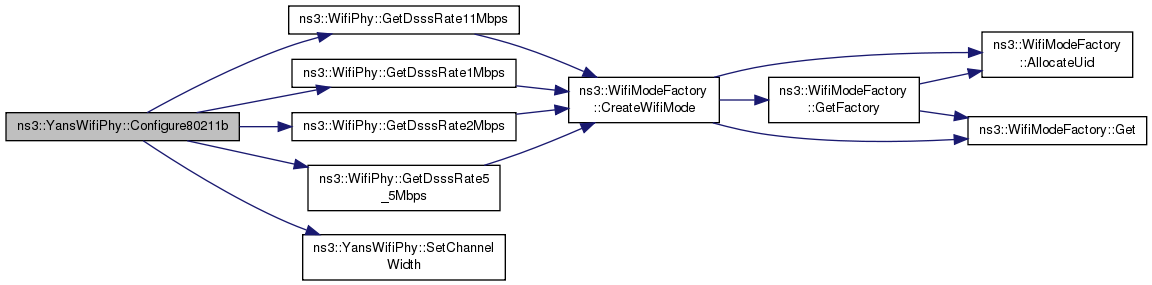

void	Configure80211b (void)
	Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11b standard. More...

void	Configure80211g (void)
	Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11g standard. More...

void	Configure80211n (void)
	Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11n standard. More...

void	ConfigureHolland (void)

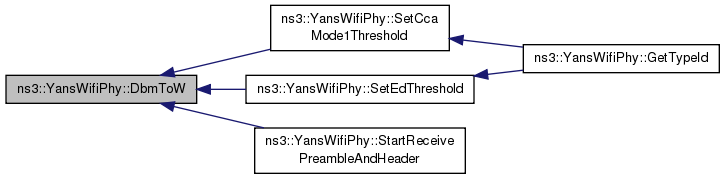

double	DbmToW (double dbm) const
	Convert from dBm to Watts. More...

double	DbToRatio (double db) const
	Convert from dB to ratio. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

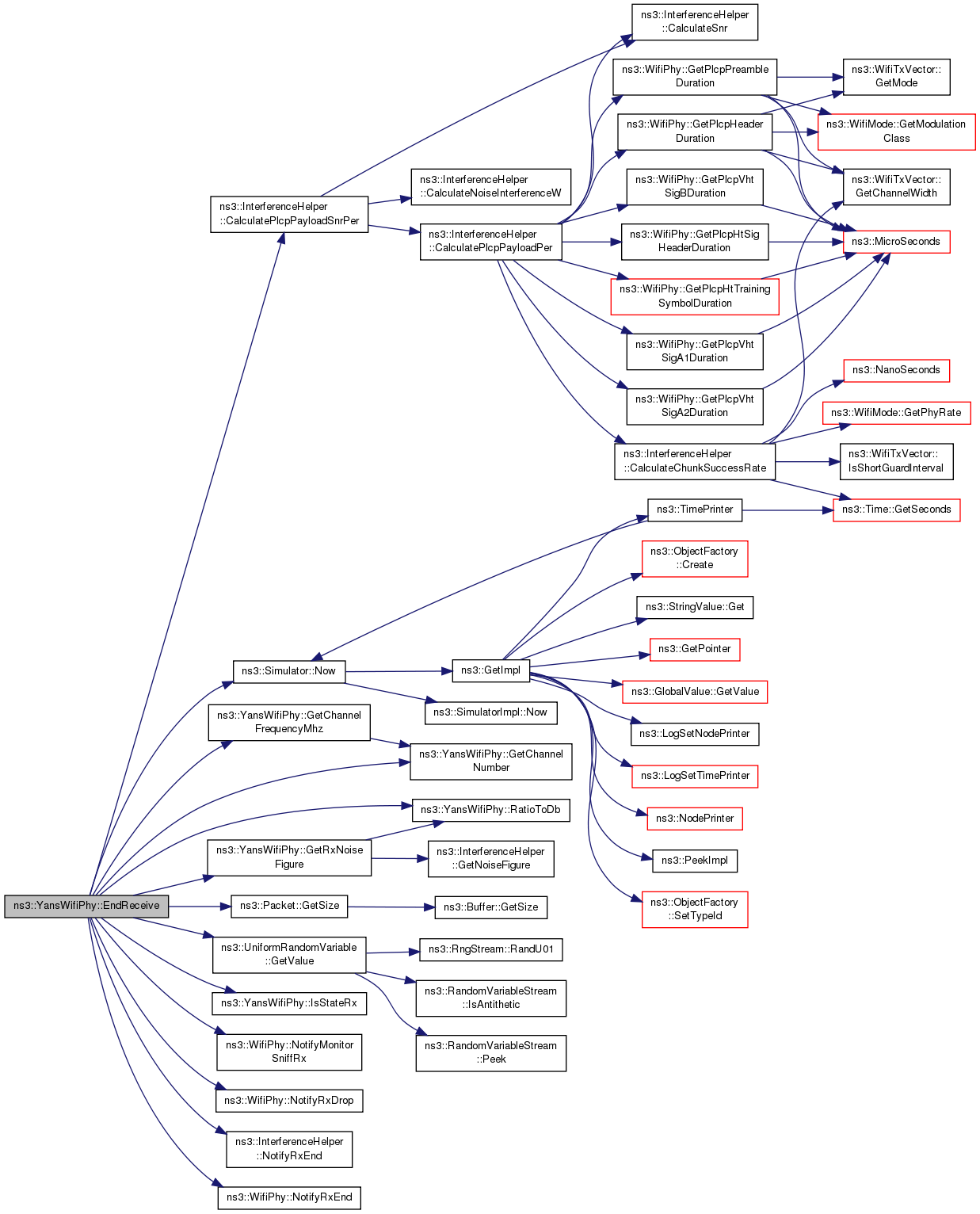

void	EndReceive (Ptr< Packet > packet, enum WifiPreamble preamble, struct mpduInfo aMpdu, Ptr< InterferenceHelper::Event > event)
	The last bit of the packet has arrived. More...

double	GetEdThresholdW (void) const
	Return the energy detection threshold. More...

double	GetPowerDbm (uint8_t power) const
	Get the power of the given power level in dBm. More...

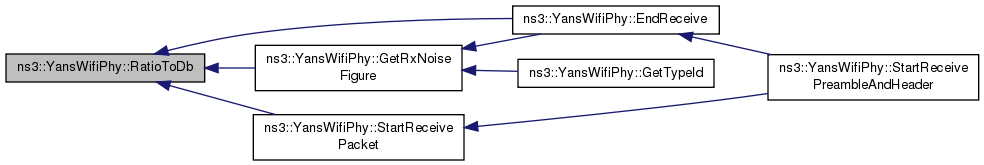

double	RatioToDb (double ratio) const
	Convert from ratio to dB. More...

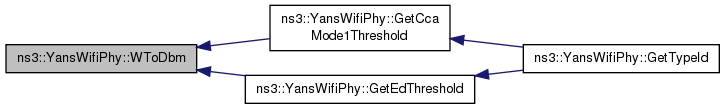

double	WToDbm (double w) const
	Convert from Watts to dBm. More...

Private Attributes
std::vector< uint32_t >	m_bssMembershipSelectorSet

double	m_ccaMode1ThresholdW
	Clear channel assessment (CCA) threshold in watts. More...

Ptr< YansWifiChannel >	m_channel
	YansWifiChannel that this YansWifiPhy is connected to. More...

uint16_t	m_channelNumber
	Operating channel number. More...

double	m_channelStartingFrequency
	Standard-dependent center frequency of 0-th channel in MHz. More...

Time	m_channelSwitchDelay
	Time required to switch between channel. More...

uint32_t	m_channelWidth
	Channel width. More...

Ptr< NetDevice >	m_device
	Pointer to the device. More...

WifiModeList	m_deviceMcsSet

WifiModeList	m_deviceRateSet
	This vector holds the set of transmission modes that this WifiPhy(-derived class) can support. More...

double	m_edThresholdW
	Energy detection threshold in watts. More...

EventId	m_endPlcpRxEvent

EventId	m_endRxEvent

bool	m_greenfield
	Flag if GreenField format is supported. More...

bool	m_guardInterval
	Flag if short guard interval is used. More...

bool	m_initialized
	Flag for runtime initialization. More...

InterferenceHelper	m_interference
	Pointer to InterferenceHelper. More...

bool	m_ldpc
	Flag if LDPC is used. More...

Ptr< MobilityModel >	m_mobility
	Pointer to the mobility model. More...

uint16_t	m_mpdusNum
	carries the number of expected mpdus that are part of an A-MPDU More...

uint32_t	m_nTxPower
	Number of available transmission power levels. More...

uint32_t	m_numberOfReceivers
	Number of receivers. More...

uint32_t	m_numberOfTransmitters
	Number of transmitters. More...

bool	m_plcpSuccess
	Flag if the PLCP of the packet or the first MPDU in an A-MPDU has been received. More...

Ptr< UniformRandomVariable >	m_random
	Provides uniform random variables. More...

double	m_rxGainDb
	Reception gain (dB) More...

Ptr< WifiPhyStateHelper >	m_state
	Pointer to WifiPhyStateHelper. More...

bool	m_stbc
	Flag if STBC is used. More...

double	m_txGainDb
	Transmission gain (dB) More...

double	m_txPowerBaseDbm
	Minimum transmission power (dBm) More...

double	m_txPowerEndDbm
	Maximum transmission power (dBm) More...

Additional Inherited Members
Public Types inherited from ns3::WifiPhy
typedef void(*	MonitorSnifferRxCallback) (Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, WifiPreamble preamble, WifiTxVector txVector, struct mpduInfo aMpdu, struct signalNoiseDbm signalNoise)
	TracedCallback signature for monitor mode receive events. More...

typedef void(*	MonitorSnifferTxCallback) (const Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, WifiPreamble preamble, WifiTxVector txVector, struct mpduInfo aMpdu)
	TracedCallback signature for monitor mode transmit events. More...

typedef Callback< void, Ptr< const Packet >, double >	RxErrorCallback
	arg1: packet received unsuccessfully arg2: snr of packet More...

typedef Callback< void, Ptr< Packet >, double, WifiTxVector, enum WifiPreamble >	RxOkCallback
	arg1: packet received successfully arg2: snr of packet arg3: TXVECTOR of packet arg4: type of preamble used for packet. More...

enum	State { IDLE, CCA_BUSY, TX, RX, SWITCHING, SLEEP }
	The state of the PHY layer. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

802.11 PHY layer model

This PHY implements a model of 802.11a.

The model implemented here is based on the model described in "Yet Another Network Simulator", (http://cutebugs.net/files/wns2-yans.pdf).

This PHY model depends on a channel loss and delay model as provided by the ns3::PropagationLossModel and ns3::PropagationDelayModel classes, both of which are members of the ns3::YansWifiChannel class.

Config Paths

ns3::YansWifiPhy is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/$ns3::YansWifiPhy"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/$ns3::YansWifiPhy"

Attributes

EnergyDetectionThreshold: The energy of a received signal should be higher than this threshold (dbm) to allow the PHY layer to detect the signal.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -96
- Flags: construct write read
CcaMode1Threshold: The energy of a received signal should be higher than this threshold (dbm) to allow the PHY layer to declare CCA BUSY state.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -99
- Flags: construct write read
TxGain: Transmission gain (dB).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
RxGain: Reception gain (dB).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
TxPowerLevels: Number of transmission power levels available between TxPowerStart and TxPowerEnd included.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read
TxPowerEnd: Maximum available transmission level (dbm).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 16.0206
- Flags: construct write read
TxPowerStart: Minimum available transmission level (dbm).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 16.0206
- Flags: construct write read
RxNoiseFigure: Loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. According to Wikipedia (http://en.wikipedia.org/wiki/Noise_figure), this is "the difference in decibels (dB) between the noise output of the actual receiver to the noise output of an ideal receiver with the same overall gain and bandwidth when the receivers are connected to sources at the standard noise temperature T0 (usually 290 K)".
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 7
- Flags: construct write read
State: The state of the PHY layer.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WifiPhyStateHelper>
- Initial value: 0
- Flags: construct write read
ChannelSwitchDelay: Delay between two short frames transmitted on different frequencies.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +250000.0ns
- Flags: construct write read
ChannelNumber: Channel center frequency = Channel starting frequency + 5 MHz * nch.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 1
- Flags: construct write read
Frequency: The operating frequency.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2407
- Flags: construct write read
Transmitters: The number of transmitters.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read
Receivers: The number of receivers.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read
ShortGuardEnabled: Whether or not short guard interval is enabled.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
LdpcEnabled: Whether or not LDPC is enabled.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
STBCEnabled: Whether or not STBC is enabled.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
GreenfieldEnabled: Whether or not Greenfield is enabled.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
ChannelWidth: Whether 5MHz, 10MHz, 20MHz, 22MHz, 40MHz, 80 MHz or 160 MHz.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 20
- Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::WifiPhy

PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium
Callback signature: ns3::Packet::TracedCallback
PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel. NOTE: the only official WifiPhy implementation available to this date (YansWifiPhy) never fires this trace source.
Callback signature: ns3::Packet::TracedCallback
PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
Callback signature: ns3::Packet::TracedCallback
PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device
Callback signature: ns3::Packet::TracedCallback
PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device
Callback signature: ns3::Packet::TracedCallback
PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception
Callback signature: ns3::Packet::TracedCallback
MonitorSnifferRx: Trace source simulating a wifi device in monitor mode sniffing all received frames
Callback signature: ns3::WifiPhy::MonitorSnifferRxTracedCallback
MonitorSnifferTx: Trace source simulating the capability of a wifi device in monitor mode to sniff all frames being transmitted
Callback signature: ns3::WifiPhy::MonitorSnifferTxTracedCallback

Size of this type is 496 bytes (on a 64-bit architecture).

Definition at line 66 of file yans-wifi-phy.h.

Constructor & Destructor Documentation

ns3::YansWifiPhy::YansWifiPhy ( )

Definition at line 180 of file yans-wifi-phy.cc.

References m_random, m_state, and NS_LOG_FUNCTION.

ns3::YansWifiPhy::~YansWifiPhy ( )

virtual

Definition at line 194 of file yans-wifi-phy.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

int64_t ns3::YansWifiPhy::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::WifiPhy.

Definition at line 1190 of file yans-wifi-phy.cc.

References m_random, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

double ns3::YansWifiPhy::CalculateSnr	(	WifiMode	txMode,
		double	ber
	)		const

virtual

Parameters

txMode	the transmission mode
ber	the probability of bit error rate

Returns: the minimum snr which is required to achieve the requested ber for the specified transmission mode. (W/W)

Implements ns3::WifiPhy.

Definition at line 401 of file yans-wifi-phy.cc.

References ns3::InterferenceHelper::GetErrorRateModel(), and m_interference.

Here is the call graph for this function:

void ns3::YansWifiPhy::Configure80211_10Mhz ( void )

private

Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11a standard with 10MHz channel spacing.

Definition at line 900 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetOfdmRate12MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate18MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate24MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate27MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate3MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate4_5MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate6MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate9MbpsBW10MHz(), m_channelStartingFrequency, m_deviceRateSet, NS_LOG_FUNCTION, and SetChannelWidth().

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::Configure80211_5Mhz ( void )

private

Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11a standard with 5MHz channel spacing.

Definition at line 917 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetOfdmRate12MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate13_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate1_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate2_25MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate3MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate4_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate6MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate9MbpsBW5MHz(), m_channelStartingFrequency, m_deviceRateSet, NS_LOG_FUNCTION, and SetChannelWidth().

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::Configure80211a ( void )

private

Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11a standard.

Definition at line 849 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetOfdmRate12Mbps(), ns3::WifiPhy::GetOfdmRate18Mbps(), ns3::WifiPhy::GetOfdmRate24Mbps(), ns3::WifiPhy::GetOfdmRate36Mbps(), ns3::WifiPhy::GetOfdmRate48Mbps(), ns3::WifiPhy::GetOfdmRate54Mbps(), ns3::WifiPhy::GetOfdmRate6Mbps(), ns3::WifiPhy::GetOfdmRate9Mbps(), m_channelStartingFrequency, m_deviceRateSet, NS_LOG_FUNCTION, and SetChannelWidth().

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::Configure80211ac ( void )

private

Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11ac standard.

Definition at line 982 of file yans-wifi-phy.cc.

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::Configure80211b ( void )

private

Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11b standard.

Definition at line 866 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetDsssRate11Mbps(), ns3::WifiPhy::GetDsssRate1Mbps(), ns3::WifiPhy::GetDsssRate2Mbps(), ns3::WifiPhy::GetDsssRate5_5Mbps(), m_channelStartingFrequency, m_deviceRateSet, NS_LOG_FUNCTION, and SetChannelWidth().

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::Configure80211g ( void )

private

Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11g standard.

Definition at line 879 of file yans-wifi-phy.cc.

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::Configure80211n ( void )

private

Configure YansWifiPhy with appropriate channel frequency and supported rates for 802.11n standard.

Definition at line 948 of file yans-wifi-phy.cc.

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::ConfigureHolland ( void )

private

Definition at line 934 of file yans-wifi-phy.cc.

References ns3::WifiPhy::GetOfdmRate12Mbps(), ns3::WifiPhy::GetOfdmRate18Mbps(), ns3::WifiPhy::GetOfdmRate36Mbps(), ns3::WifiPhy::GetOfdmRate54Mbps(), ns3::WifiPhy::GetOfdmRate6Mbps(), m_channelStartingFrequency, m_deviceRateSet, NS_LOG_FUNCTION, and SetChannelWidth().

Referenced by ConfigureStandard().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::ConfigureStandard ( enum WifiPhyStandard standard )

virtual

Configure the PHY-level parameters for different Wi-Fi standard.

Parameters

standard the Wi-Fi standard

Implements ns3::WifiPhy.

Definition at line 219 of file yans-wifi-phy.cc.

Referenced by TwoLevelAggregationTest::DoRun(), PsrExperiment::Run(), InterferenceExperiment::Run(), and CollisionExperiment::Run().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::YansWifiPhy::DbmToW ( double dbm ) const

private

Convert from dBm to Watts.

Parameters

dbm	the power in dBm

Returns: the equivalent Watts for the given dBm

Definition at line 1095 of file yans-wifi-phy.cc.

Referenced by SetCcaMode1Threshold(), SetEdThreshold(), and StartReceivePreambleAndHeader().

Here is the caller graph for this function:

double ns3::YansWifiPhy::DbToRatio ( double db ) const

private

Convert from dB to ratio.

Parameters

db

Returns: ratio

Definition at line 1088 of file yans-wifi-phy.cc.

Referenced by SetRxNoiseFigure().

Here is the caller graph for this function:

void ns3::YansWifiPhy::DoDispose ( void )

privatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 200 of file yans-wifi-phy.cc.

References m_channel, m_device, m_deviceMcsSet, m_deviceRateSet, m_mobility, m_state, and NS_LOG_FUNCTION.

void ns3::YansWifiPhy::DoInitialize ( void )

privatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 212 of file yans-wifi-phy.cc.

References m_initialized, and NS_LOG_FUNCTION.

void ns3::YansWifiPhy::EndReceive	(	Ptr< Packet >	packet,
		enum WifiPreamble	preamble,
		struct mpduInfo	aMpdu,
		Ptr< InterferenceHelper::Event >	event
	)

private

The last bit of the packet has arrived.

Parameters

packet	the packet that the last bit has arrived
preamble	the preamble of the arriving packet
aMpdu	the type of the packet (0 is not A-MPDU, 1 is a MPDU that is part of an A-MPDU and 2 is the last MPDU in an A-MPDU) and the A-MPDU reference number (must be a different value for each A-MPDU but the same for each subframe within one A-MPDU)
event	the corresponding event of the first time the packet arrives

Definition at line 1138 of file yans-wifi-phy.cc.

References ns3::InterferenceHelper::CalculatePlcpPayloadSnrPer(), GetChannelFrequencyMhz(), GetChannelNumber(), GetRxNoiseFigure(), ns3::Packet::GetSize(), ns3::UniformRandomVariable::GetValue(), IsStateRx(), m_interference, m_plcpSuccess, m_random, m_state, ns3::signalNoiseDbm::noise, ns3::WifiPhy::NotifyMonitorSniffRx(), ns3::WifiPhy::NotifyRxDrop(), ns3::InterferenceHelper::NotifyRxEnd(), ns3::WifiPhy::NotifyRxEnd(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::mpduInfo::packetType, RatioToDb(), ns3::signalNoiseDbm::signal, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_VHT, and ns3::WIFI_PREAMBLE_NONE.

Referenced by StartReceivePreambleAndHeader().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::YansWifiPhy::GetBssMembershipSelector ( uint32_t selector ) const

virtual

The WifiPhy::BssMembershipSelector() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet.

Parameters

selector index in array of supported memberships

Returns: the memebership selector whose index is specified.

Implements ns3::WifiPhy.

Definition at line 1301 of file yans-wifi-phy.cc.

References m_bssMembershipSelectorSet.

Referenced by GetMembershipSelectorModes().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetCcaMode1Threshold ( void ) const

Return the CCA threshold (dBm).

Returns: the CCA threshold in dBm

Definition at line 370 of file yans-wifi-phy.cc.

References m_ccaMode1ThresholdW, and WToDbm().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< WifiChannel > ns3::YansWifiPhy::GetChannel ( void ) const

virtual

Return the WifiChannel this WifiPhy is connected to.

Returns: the WifiChannel this WifiPhy is connected to

Implements ns3::WifiPhy.

Definition at line 407 of file yans-wifi-phy.cc.

References m_channel.

double ns3::YansWifiPhy::GetChannelFrequencyMhz ( ) const

Return current center channel frequency in MHz.

Returns: the current center channel frequency in MHz

Definition at line 485 of file yans-wifi-phy.cc.

References GetChannelNumber(), and m_channelStartingFrequency.

Referenced by EndReceive(), and SendPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::YansWifiPhy::GetChannelNumber ( void ) const

virtual

Return the current channel number.

Returns: the current channel number

Implements ns3::WifiPhy.

Definition at line 473 of file yans-wifi-phy.cc.

References m_channelNumber.

Referenced by EndReceive(), GetChannelFrequencyMhz(), ns3::MeshWifiInterfaceMac::GetFrequencyChannel(), GetTypeId(), ns3::YansWifiChannel::Send(), and SendPacket().

Here is the caller graph for this function:

Time ns3::YansWifiPhy::GetChannelSwitchDelay ( void ) const

virtual

Returns: the required time for channel switch operation of this WifiPhy

Implements ns3::WifiPhy.

Definition at line 479 of file yans-wifi-phy.cc.

References m_channelSwitchDelay.

uint32_t ns3::YansWifiPhy::GetChannelWidth ( void ) const

virtual

Return channel width.

Returns: channel width

Implements ns3::WifiPhy.

Definition at line 1289 of file yans-wifi-phy.cc.

References m_channelWidth.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::YansWifiPhy::GetDelayUntilIdle ( void )

virtual

Returns: the predicted delay until this PHY can become WifiPhy::IDLE.

The PHY will never become WifiPhy::IDLE before the delay returned by this method but it could become really idle later.

Implements ns3::WifiPhy.

Definition at line 1076 of file yans-wifi-phy.cc.

References m_state.

Referenced by SetChannelNumber(), and SetSleepMode().

Here is the caller graph for this function:

Ptr< NetDevice > ns3::YansWifiPhy::GetDevice ( void ) const

Return the device this PHY is associated with.

Returns: the device this PHY is associated with

Definition at line 382 of file yans-wifi-phy.cc.

References m_device.

double ns3::YansWifiPhy::GetEdThreshold ( void ) const

Return the energy detection threshold (dBm).

Returns: the energy detection threshold in dBm

Definition at line 364 of file yans-wifi-phy.cc.

References m_edThresholdW, and WToDbm().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetEdThresholdW ( void ) const

private

Return the energy detection threshold.

Returns: the energy detection threshold.

Definition at line 1114 of file yans-wifi-phy.cc.

References m_edThresholdW.

Ptr< ErrorRateModel > ns3::YansWifiPhy::GetErrorRateModel ( void ) const

Return the error rate model this PHY is using.

Returns: the error rate model this PHY is using

Definition at line 376 of file yans-wifi-phy.cc.

References ns3::InterferenceHelper::GetErrorRateModel(), and m_interference.

Here is the call graph for this function:

uint32_t ns3::YansWifiPhy::GetFrequency ( void ) const

virtual

Returns: the operating frequency on this node

Implements ns3::WifiPhy.

Definition at line 1246 of file yans-wifi-phy.cc.

References m_channelStartingFrequency.

Referenced by GetTypeId(), and SendPacket().

Here is the caller graph for this function:

bool ns3::YansWifiPhy::GetGreenfield ( void ) const

virtual

Return whether Greenfield is supported.

Returns: true if Greenfield is supported, false otherwise

Implements ns3::WifiPhy.

Definition at line 1276 of file yans-wifi-phy.cc.

References m_greenfield.

Referenced by GetTypeId().

Here is the caller graph for this function:

bool ns3::YansWifiPhy::GetGuardInterval ( void ) const

virtual

Return whether guard interval is being used.

Returns: true if guard interval is being used, false otherwise

Implements ns3::WifiPhy.

Definition at line 1234 of file yans-wifi-phy.cc.

References m_guardInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::YansWifiPhy::GetLastRxStartTime ( void ) const

virtual

Return the start time of the last received packet.

Returns: the start time of the last received packet

Implements ns3::WifiPhy.

Definition at line 1082 of file yans-wifi-phy.cc.

References m_state.

bool ns3::YansWifiPhy::GetLdpc ( void ) const

virtual

Return if LDPC is supported.

Returns: true if LDPC is supported, false otherwise

Implements ns3::WifiPhy.

Definition at line 1264 of file yans-wifi-phy.cc.

References m_ldpc.

Referenced by GetTypeId().

Here is the caller graph for this function:

WifiMode ns3::YansWifiPhy::GetMcs ( uint8_t mcs ) const

virtual

The WifiPhy::GetMcs() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indexes that this WifiPhy(-derived class) can support - a set of MCS indexes which we call the DeviceMcsSet, and which is stored as WifiPhy::m_deviceMcsSet.

Parameters

mcs	index in array of supported MCS

Returns: the MCS index whose index is specified.

Implements ns3::WifiPhy.

Definition at line 1347 of file yans-wifi-phy.cc.

References m_deviceMcsSet.

Referenced by IsMcsSupported().

Here is the caller graph for this function:

WifiModeList ns3::YansWifiPhy::GetMembershipSelectorModes ( uint32_t selector )

virtual

The WifiPhy::GetMembershipSelectorModes() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet.

Parameters

selector index in array of supported memberships

Returns: a WifiModeList that contains the WifiModes associrated with the selected index.

See also: WifiPhy::GetMembershipSelectorModes()

Implements ns3::WifiPhy.

Definition at line 1307 of file yans-wifi-phy.cc.

Here is the call graph for this function:

Ptr< MobilityModel > ns3::YansWifiPhy::GetMobility ( void )

Return the mobility model this PHY is associated with.

This method will return either the mobility model that has been explicitly set by a call to YansWifiPhy::SetMobility(), or else will return the mobility model (if any) that has been aggregated to the node.

Returns: the mobility model this PHY is associated with

Definition at line 388 of file yans-wifi-phy.cc.

References m_device, and m_mobility.

Referenced by ns3::YansWifiChannel::Send().

Here is the caller graph for this function:

WifiMode ns3::YansWifiPhy::GetMode ( uint32_t mode ) const

virtual

The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet.

It is important to note that the DeviceRateSet is a superset (not necessarily proper) of the OperationalRateSet (which is logically, if not actually, a property of the associated WifiRemoteStationManager), which itself is a superset (again, not necessarily proper) of the BSSBasicRateSet.

Parameters

mode	index in array of supported modes

Returns: the mode whose index is specified.

See also: WifiPhy::GetNModes()

Implements ns3::WifiPhy.

Definition at line 812 of file yans-wifi-phy.cc.

References m_deviceRateSet.

Referenced by IsModeSupported().

Here is the caller graph for this function:

uint32_t ns3::YansWifiPhy::GetNBssMembershipSelectors ( void ) const

virtual

The WifiPhy::NBssMembershipSelectors() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored as WifiPhy::m_bssMembershipSelectorSet.

Returns: the memebership selector whose index is specified.

Implements ns3::WifiPhy.

Definition at line 1295 of file yans-wifi-phy.cc.

References m_bssMembershipSelectorSet.

uint8_t ns3::YansWifiPhy::GetNMcs ( void ) const

virtual

Returns: the number of MCS supported by this phy

Implements ns3::WifiPhy.

Definition at line 1341 of file yans-wifi-phy.cc.

References m_deviceMcsSet.

Referenced by IsMcsSupported().

Here is the caller graph for this function:

uint32_t ns3::YansWifiPhy::GetNModes ( void ) const

virtual

The WifiPhy::GetNModes() and WifiPhy::GetMode() methods are used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the DeviceRateSet, and which is stored as WifiPhy::m_deviceRateSet.

It is important to note that the DeviceRateSet is a superset (not necessarily proper) of the OperationalRateSet (which is logically, if not actually, a property of the associated WifiRemoteStationManager), which itself is a superset (again, not necessarily proper) of the BSSBasicRateSet.

Returns: the number of transmission modes supported by this PHY.

See also: WifiPhy::GetMode()

Implements ns3::WifiPhy.

Definition at line 806 of file yans-wifi-phy.cc.

References m_deviceRateSet.

Referenced by IsModeSupported().

Here is the caller graph for this function:

uint32_t ns3::YansWifiPhy::GetNTxPower ( void ) const

virtual

Return the number of available transmission power levels.

Returns: the number of available transmission power levels

Implements ns3::WifiPhy.

Definition at line 843 of file yans-wifi-phy.cc.

References m_nTxPower.

uint32_t ns3::YansWifiPhy::GetNumberOfReceiveAntennas ( void ) const

virtual

Returns: the number of receivers on this node.

Implements ns3::WifiPhy.

Definition at line 1258 of file yans-wifi-phy.cc.

References m_numberOfReceivers.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint32_t ns3::YansWifiPhy::GetNumberOfTransmitAntennas ( void ) const

virtual

Returns: the number of transmitters on this node.

Implements ns3::WifiPhy.

Definition at line 1252 of file yans-wifi-phy.cc.

References m_numberOfTransmitters.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetPowerDbm ( uint8_t power ) const

private

Get the power of the given power level in dBm.

In YansWifiPhy implementation, the power levels are equally spaced (in dBm).

Parameters

power the power level

Returns: the transmission power in dBm at the given power level

Definition at line 1120 of file yans-wifi-phy.cc.

References m_nTxPower, m_txPowerBaseDbm, m_txPowerEndDbm, NS_ASSERT, and NS_ASSERT_MSG.

Referenced by SendPacket().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetRxGain ( void ) const

Return the reception gain (dB).

Returns: the reception gain in dB

Definition at line 358 of file yans-wifi-phy.cc.

References m_rxGainDb.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetRxNoiseFigure ( void ) const

Return the RX noise figure (dBm).

Returns: the RX noise figure in dBm

Definition at line 334 of file yans-wifi-phy.cc.

References ns3::InterferenceHelper::GetNoiseFigure(), m_interference, and RatioToDb().

Referenced by EndReceive(), and GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::YansWifiPhy::GetStateDuration ( void )

virtual

Returns: the amount of time since the current state has started.

Implements ns3::WifiPhy.

Definition at line 1070 of file yans-wifi-phy.cc.

References m_state.

bool ns3::YansWifiPhy::GetStbc ( void ) const

virtual

Return whether STBC is supported.

Returns: true if STBC is supported, false otherwise

Implements ns3::WifiPhy.

Definition at line 1270 of file yans-wifi-phy.cc.

References m_stbc.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetTxGain ( void ) const

Return the transmission gain (dB).

Returns: the transmission gain in dB

Definition at line 352 of file yans-wifi-phy.cc.

References m_txGainDb.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetTxPowerEnd ( void ) const

virtual

Return the maximum available transmission power level (dBm).

Returns: the maximum available transmission power level (dBm)

Implements ns3::WifiPhy.

Definition at line 346 of file yans-wifi-phy.cc.

References m_txPowerEndDbm.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::YansWifiPhy::GetTxPowerStart ( void ) const

virtual

Return the minimum available transmission power level (dBm).

Returns: the minimum available transmission power level (dBm)

Implements ns3::WifiPhy.

Definition at line 340 of file yans-wifi-phy.cc.

References m_txPowerBaseDbm.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::YansWifiPhy::GetTypeId ( void )

static

Definition at line 51 of file yans-wifi-phy.cc.

References GetCcaMode1Threshold(), GetChannelNumber(), GetChannelWidth(), GetEdThreshold(), GetFrequency(), GetGreenfield(), GetGuardInterval(), GetLdpc(), GetNumberOfReceiveAntennas(), GetNumberOfTransmitAntennas(), GetRxGain(), GetRxNoiseFigure(), GetStbc(), GetTxGain(), GetTxPowerEnd(), GetTxPowerStart(), m_channelSwitchDelay, m_nTxPower, m_state, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeDoubleAccessor(), ns3::MakePointerAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeUintegerAccessor(), ns3::MicroSeconds(), SetCcaMode1Threshold(), SetChannelNumber(), SetChannelWidth(), SetEdThreshold(), SetFrequency(), SetGreenfield(), SetGuardInterval(), SetLdpc(), SetNumberOfReceiveAntennas(), SetNumberOfTransmitAntennas(), ns3::TypeId::SetParent(), SetRxGain(), SetRxNoiseFigure(), SetStbc(), SetTxGain(), SetTxPowerEnd(), and SetTxPowerStart().

Here is the call graph for this function:

bool ns3::YansWifiPhy::IsMcsSupported ( WifiMode mcs )

virtual

Definition at line 830 of file yans-wifi-phy.cc.

References GetMcs(), and GetNMcs().

Referenced by StartReceivePacket().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::YansWifiPhy::IsModeSupported ( WifiMode mode ) const

virtual

Check if the given WifiMode is supported by the PHY.

Parameters

mode	the wifi mode to check

Returns: true if the given mode is supported, false otherwise

Implements ns3::WifiPhy.

Definition at line 818 of file yans-wifi-phy.cc.

References GetMode(), and GetNModes().

Referenced by StartReceivePacket().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::YansWifiPhy::IsStateBusy ( void )

virtual

Returns: true of the current state of the PHY layer is not WifiPhy::IDLE, false otherwise.

Implements ns3::WifiPhy.

Definition at line 1040 of file yans-wifi-phy.cc.

References m_state.

bool ns3::YansWifiPhy::IsStateCcaBusy ( void )

virtual

Returns: true of the current state of the PHY layer is WifiPhy::CCA_BUSY, false otherwise.

Implements ns3::WifiPhy.

Definition at line 1028 of file yans-wifi-phy.cc.

References m_state.

bool ns3::YansWifiPhy::IsStateIdle ( void )

virtual

Returns: true of the current state of the PHY layer is WifiPhy::IDLE, false otherwise.

Implements ns3::WifiPhy.

Definition at line 1034 of file yans-wifi-phy.cc.

References m_state.

bool ns3::YansWifiPhy::IsStateRx ( void )

virtual

Returns: true of the current state of the PHY layer is WifiPhy::RX, false otherwise.

Implements ns3::WifiPhy.

Definition at line 1046 of file yans-wifi-phy.cc.

References m_state.

Referenced by EndReceive(), and StartReceivePacket().

Here is the caller graph for this function:

bool ns3::YansWifiPhy::IsStateSleep ( void )

virtual

Returns: true if the current state of the PHY layer is WifiPhy::SLEEP, false otherwise.

Implements ns3::WifiPhy.

Definition at line 1064 of file yans-wifi-phy.cc.

References m_state.

bool ns3::YansWifiPhy::IsStateSwitching ( void )

virtual

Returns: true of the current state of the PHY layer is WifiPhy::SWITCHING, false otherwise.

Implements ns3::WifiPhy.

Definition at line 1058 of file yans-wifi-phy.cc.

References m_state.

Referenced by SetChannelNumber().

Here is the caller graph for this function:

bool ns3::YansWifiPhy::IsStateTx ( void )

virtual

Returns: true of the current state of the PHY layer is WifiPhy::TX, false otherwise.

Implements ns3::WifiPhy.

Definition at line 1052 of file yans-wifi-phy.cc.

References m_state.

double ns3::YansWifiPhy::RatioToDb ( double ratio ) const

private

Convert from ratio to dB.

Parameters

ratio

Returns: dB

Definition at line 1108 of file yans-wifi-phy.cc.

Referenced by EndReceive(), GetRxNoiseFigure(), and StartReceivePacket().

Here is the caller graph for this function:

void ns3::YansWifiPhy::RegisterListener ( WifiPhyListener * listener )

virtual

Parameters

listener the new listener

Add the input listener to the list of objects to be notified of PHY-level events.

Implements ns3::WifiPhy.

Definition at line 1016 of file yans-wifi-phy.cc.

References m_state.

void ns3::YansWifiPhy::ResumeFromSleep ( void )

virtual

Resume from sleep mode.

Implements ns3::WifiPhy.

Definition at line 523 of file yans-wifi-phy.cc.

References ns3::WifiPhy::CCA_BUSY, ns3::InterferenceHelper::GetEnergyDuration(), ns3::WifiPhy::IDLE, m_ccaMode1ThresholdW, m_interference, m_state, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiPhy::RX, ns3::WifiPhy::SLEEP, ns3::WifiPhy::SWITCHING, and ns3::WifiPhy::TX.

Here is the call graph for this function:

void ns3::YansWifiPhy::SendPacket	(	Ptr< const Packet >	packet,
		WifiTxVector	txVector,
		enum WifiPreamble	preamble,
		uint8_t	packetType,
		uint32_t	mpduReferenceNumber
	)

virtual

Parameters

packet	the packet to send
txVector	the TXVECTOR that has tx parameters such as mode, the transmission mode to use to send this packet, and txPowerLevel, a power level to use to send this packet. The real transmission power is calculated as txPowerMin + txPowerLevel * (txPowerMax - txPowerMin) / nTxLevels
preamble	the type of preamble to use to send this packet.
packetType	the type of the packet 0 is not A-MPDU, 1 is a MPDU that is part of an A-MPDU and 2 is the last MPDU in an A-MPDU
mpduReferenceNumber	the A-MPDU reference number (must be a different value for each A-MPDU but the same for each subframe within one A-MPDU)

Implements ns3::WifiPhy.

Definition at line 760 of file yans-wifi-phy.cc.

References ns3::WifiPhy::CalculateTxDuration(), ns3::EventId::Cancel(), GetChannelFrequencyMhz(), GetChannelNumber(), ns3::WifiTxVector::GetChannelWidth(), ns3::WifiMode::GetDataRate(), GetFrequency(), ns3::WifiMode::GetMcsValue(), ns3::WifiTxVector::GetMode(), ns3::WifiMode::GetModulationClass(), ns3::WifiTxVector::GetNss(), GetPowerDbm(), ns3::Packet::GetSize(), ns3::WifiTxVector::GetTxPowerLevel(), ns3::WifiTxVector::IsShortGuardInterval(), m_channel, m_endPlcpRxEvent, m_endRxEvent, m_interference, m_state, m_txGainDb, ns3::NanoSeconds(), ns3::WifiPhy::NotifyMonitorSniffTx(), ns3::InterferenceHelper::NotifyRxEnd(), ns3::WifiPhy::NotifyTxBegin(), ns3::WifiPhy::NotifyTxDrop(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::mpduInfo::packetType, ns3::mpduInfo::referenceNumber, ns3::WIFI_MOD_CLASS_HT, and ns3::WIFI_MOD_CLASS_VHT.

Here is the call graph for this function:

void ns3::YansWifiPhy::SetCcaMode1Threshold ( double threshold )

Sets the CCA threshold (dBm).

The energy of a received signal should be higher than this threshold to allow the PHY layer to declare CCA BUSY state.

Parameters

threshold the CCA threshold in dBm

Definition at line 309 of file yans-wifi-phy.cc.

References DbmToW(), m_ccaMode1ThresholdW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetChannel ( Ptr< YansWifiChannel > channel )

Set the YansWifiChannel this YansWifiPhy is to be connected to.

Parameters

channel the YansWifiChannel this YansWifiPhy is to be connected to

Definition at line 413 of file yans-wifi-phy.cc.

References third::channel, and m_channel.

Referenced by ns3::YansWifiPhyHelper::Create(), PsrExperiment::Run(), InterferenceExperiment::Run(), and CollisionExperiment::Run().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetChannelNumber ( uint16_t id )

virtual

Set the current channel number.

Parameters

id	the channel number

Implements ns3::WifiPhy.

Definition at line 420 of file yans-wifi-phy.cc.

References ns3::EventId::Cancel(), ns3::WifiPhy::CCA_BUSY, ns3::InterferenceHelper::EraseEvents(), GetDelayUntilIdle(), ns3::WifiPhy::IDLE, IsStateSwitching(), m_channelNumber, m_channelSwitchDelay, m_endPlcpRxEvent, m_endRxEvent, m_initialized, m_interference, m_state, NS_ASSERT, NS_LOG_DEBUG, ns3::WifiPhy::RX, ns3::Simulator::Schedule(), ns3::WifiPhy::SLEEP, and ns3::WifiPhy::TX.

Referenced by GetTypeId(), and ns3::MeshWifiInterfaceMac::SwitchFrequencyChannel().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetChannelWidth ( uint32_t channelwidth )

virtual

Set channel width.

Parameters

channel width

Implements ns3::WifiPhy.

Definition at line 1282 of file yans-wifi-phy.cc.

References m_channelWidth, and NS_ASSERT_MSG.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211ac(), Configure80211b(), Configure80211g(), Configure80211n(), ConfigureHolland(), and GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetDevice ( Ptr< NetDevice > device )

Sets the device this PHY is associated with.

Parameters

device the device this PHY is associated with

Definition at line 322 of file yans-wifi-phy.cc.

References m_device.

Referenced by ns3::YansWifiPhyHelper::Create().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetEdThreshold ( double threshold )

Sets the energy detection threshold (dBm).

The energy of a received signal should be higher than this threshold (dbm) to allow the PHY layer to detect the signal.

Parameters

threshold the energy detction threshold in dBm

Definition at line 302 of file yans-wifi-phy.cc.

References DbmToW(), m_edThresholdW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetErrorRateModel ( Ptr< ErrorRateModel > rate )

Sets the error rate model.

Parameters

rate	the error rate model

Definition at line 316 of file yans-wifi-phy.cc.

References m_interference, and ns3::InterferenceHelper::SetErrorRateModel().

Referenced by ns3::YansWifiPhyHelper::Create(), PsrExperiment::Run(), InterferenceExperiment::Run(), and CollisionExperiment::Run().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetFrequency ( uint32_t freq )

virtual

Parameters

freq	the operating frequency on this node (2.4 GHz or 5GHz).

Implements ns3::WifiPhy.

Definition at line 1198 of file yans-wifi-phy.cc.

References m_channelStartingFrequency.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetGreenfield ( bool greenfield )

virtual

Enable or disable Greenfield support.

Parameters

greenfield Enable or disable Greenfield

Implements ns3::WifiPhy.

Definition at line 1228 of file yans-wifi-phy.cc.

References m_greenfield.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetGuardInterval ( bool guardInterval )

virtual

Enable or disable short/long guard interval.

Parameters

guardInterval Enable or disable guard interval

Implements ns3::WifiPhy.

Definition at line 1240 of file yans-wifi-phy.cc.

References m_guardInterval.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetLdpc ( bool ldpc )

virtual

Enable or disable LDPC.

Parameters

ldpc	Enable or disable LDPC

Implements ns3::WifiPhy.

Definition at line 1216 of file yans-wifi-phy.cc.

References m_ldpc.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetMobility ( Ptr< MobilityModel > mobility )

assign a mobility model to this device

This method allows a user to specify a mobility model that should be associated with this physical layer. Calling this method is optional and only necessary if the user wants to override the mobility model that is aggregated to the node.

Parameters

mobility the mobility model this PHY is associated with

Definition at line 328 of file yans-wifi-phy.cc.

References m_mobility, and third::mobility.

Referenced by PsrExperiment::Run(), InterferenceExperiment::Run(), and CollisionExperiment::Run().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetNTxPower ( uint32_t n )

Sets the number of transmission power levels available between the minimum level and the maximum level.

Transmission power levels are equally separated (in dBm) with the minimum and the maximum included.

Parameters

n	the number of available levels

Definition at line 281 of file yans-wifi-phy.cc.

References m_nTxPower, and NS_LOG_FUNCTION.

void ns3::YansWifiPhy::SetNumberOfReceiveAntennas ( uint32_t rx )

virtual

Parameters

rx	the number of receivers on this node.

Implements ns3::WifiPhy.

Definition at line 1210 of file yans-wifi-phy.cc.

References m_numberOfReceivers.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetNumberOfTransmitAntennas ( uint32_t tx )

virtual

Parameters

tx	the number of transmitters on this node.

Implements ns3::WifiPhy.

Definition at line 1204 of file yans-wifi-phy.cc.

References m_numberOfTransmitters.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetReceiveErrorCallback ( WifiPhy::RxErrorCallback callback )

virtual

Parameters

callback the callback to invoke upon erroneous packet reception.

Implements ns3::WifiPhy.

Definition at line 559 of file yans-wifi-phy.cc.

References m_state.

void ns3::YansWifiPhy::SetReceiveOkCallback ( WifiPhy::RxOkCallback callback )

virtual

Parameters

callback the callback to invoke upon successful packet reception.

Implements ns3::WifiPhy.

Definition at line 553 of file yans-wifi-phy.cc.

References m_state.

void ns3::YansWifiPhy::SetRxGain ( double gain )

Sets the reception gain (dB).

Parameters

gain	the reception gain in dB

Definition at line 295 of file yans-wifi-phy.cc.

References m_rxGainDb, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetRxNoiseFigure ( double noiseFigureDb )

Sets the RX loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver.

Parameters

noiseFigureDb noise figure in dB

Definition at line 260 of file yans-wifi-phy.cc.

References DbToRatio(), m_interference, NS_LOG_FUNCTION, and ns3::InterferenceHelper::SetNoiseFigure().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetSleepMode ( void )

virtual

Put in sleep mode.

Implements ns3::WifiPhy.

Definition at line 491 of file yans-wifi-phy.cc.

References ns3::WifiPhy::CCA_BUSY, GetDelayUntilIdle(), ns3::WifiPhy::IDLE, m_state, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiPhy::RX, ns3::Simulator::Schedule(), ns3::WifiPhy::SLEEP, ns3::WifiPhy::SWITCHING, and ns3::WifiPhy::TX.

Here is the call graph for this function:

void ns3::YansWifiPhy::SetStbc ( bool stbc )

virtual

Enable or disable STBC.

Parameters

stbc	Enable or disable STBC

Implements ns3::WifiPhy.

Definition at line 1222 of file yans-wifi-phy.cc.

References m_stbc.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetTxGain ( double gain )

Sets the transmission gain (dB).

Parameters

gain	the transmission gain in dB

Definition at line 288 of file yans-wifi-phy.cc.

References m_txGainDb, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetTxPowerEnd ( double end )

Sets the maximum available transmission power level (dBm).

Parameters

end	the maximum transmission power level (dBm)

Definition at line 274 of file yans-wifi-phy.cc.

References m_txPowerEndDbm, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::YansWifiPhy::SetTxPowerStart ( double start )

Sets the minimum available transmission power level (dBm).

Parameters

start the minimum transmission power level (dBm)

Definition at line 267 of file yans-wifi-phy.cc.

References m_txPowerBaseDbm, NS_LOG_FUNCTION, and visualizer.core::start().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::StartReceivePacket	(	Ptr< Packet >	packet,
		WifiTxVector	txVector,
		WifiPreamble	preamble,
		struct mpduInfo	aMpdu,
		Ptr< InterferenceHelper::Event >	event
	)

Starting receiving the payload of a packet (i.e.

the first bit of the packet has arrived).

Parameters

packet	the arriving packet
txVector	the TXVECTOR of the arriving packet
preamble	the preamble of the arriving packet
aMpdu	the type of the packet (0 is not A-MPDU, 1 is a MPDU that is part of an A-MPDU and 2 is the last MPDU in an A-MPDU) and the A-MPDU reference number (must be a different value for each A-MPDU but the same for each subframe within one A-MPDU)
event	the corresponding event of the first time the packet arrives

Definition at line 720 of file yans-wifi-phy.cc.

References ns3::InterferenceHelper::CalculatePlcpHeaderSnrPer(), ns3::WifiTxVector::GetMode(), ns3::UniformRandomVariable::GetValue(), ns3::EventId::IsExpired(), IsMcsSupported(), IsModeSupported(), IsStateRx(), m_endPlcpRxEvent, m_interference, m_plcpSuccess, m_random, ns3::WifiPhy::NotifyRxDrop(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::mpduInfo::packetType, and RatioToDb().

Referenced by StartReceivePreambleAndHeader().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::YansWifiPhy::StartReceivePreambleAndHeader	(	Ptr< Packet >	packet,
		double	rxPowerDbm,
		WifiTxVector	txVector,
		WifiPreamble	preamble,
		struct mpduInfo	aMpdu,
		Time	rxDuration
	)

Starting receiving the plcp of a packet (i.e.

the first bit of the preamble has arrived).

Parameters

packet	the arriving packet
rxPowerDbm	the receive power in dBm
txVector	the TXVECTOR of the arriving packet
preamble	the preamble of the arriving packet
aMpdu	the type of the packet (0 is not A-MPDU, 1 is a MPDU that is part of an A-MPDU and 2 is the last MPDU in an A-MPDU) and the A-MPDU reference number (must be a different value for each A-MPDU but the same for each subframe within one A-MPDU)
rxDuration	the duration needed for the reception of the packet

Definition at line 565 of file yans-wifi-phy.cc.

References ns3::InterferenceHelper::Add(), ns3::WifiPhy::CalculatePlcpPreambleAndHeaderDuration(), ns3::WifiPhy::CCA_BUSY, DbmToW(), EndReceive(), ns3::InterferenceHelper::GetEnergyDuration(), ns3::WifiTxVector::GetMode(), ns3::AmpduTag::GetNoOfMpdus(), ns3::Packet::GetSize(), ns3::WifiPhy::IDLE, ns3::EventId::IsExpired(), ns3::Time::IsZero(), m_ccaMode1ThresholdW, m_edThresholdW, m_endPlcpRxEvent, m_endRxEvent, m_interference, m_mpdusNum, m_plcpSuccess, m_rxGainDb, m_state, ns3::WifiPhy::NotifyRxBegin(), ns3::WifiPhy::NotifyRxDrop(), ns3::InterferenceHelper::NotifyRxStart(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::mpduInfo::packetType, ns3::Packet::PeekPacketTag(), ns3::WifiPhy::RX, ns3::Simulator::Schedule(), ns3::WifiPhy::SLEEP, StartReceivePacket(), ns3::WifiPhy::SWITCHING, ns3::WifiPhy::TX, and ns3::WIFI_PREAMBLE_NONE.

Here is the call graph for this function:

void ns3::YansWifiPhy::UnregisterListener ( WifiPhyListener * listener )

virtual

Parameters

listener the listener to be unregistered

Remove the input listener from the list of objects to be notified of PHY-level events.

Implements ns3::WifiPhy.

Definition at line 1022 of file yans-wifi-phy.cc.

References m_state.

double ns3::YansWifiPhy::WToDbm ( double w ) const

private

Convert from Watts to dBm.

Parameters

w	the power in Watts

Returns: the equivalent dBm for the given Watts

Definition at line 1102 of file yans-wifi-phy.cc.

Referenced by GetCcaMode1Threshold(), and GetEdThreshold().

Here is the caller graph for this function:

Member Data Documentation

std::vector<uint32_t> ns3::YansWifiPhy::m_bssMembershipSelectorSet

private

Definition at line 572 of file yans-wifi-phy.h.

Referenced by Configure80211ac(), Configure80211n(), GetBssMembershipSelector(), and GetNBssMembershipSelectors().

double ns3::YansWifiPhy::m_ccaMode1ThresholdW

private

Clear channel assessment (CCA) threshold in watts.

Definition at line 512 of file yans-wifi-phy.h.

Referenced by GetCcaMode1Threshold(), ResumeFromSleep(), SetCcaMode1Threshold(), and StartReceivePreambleAndHeader().

Ptr<YansWifiChannel> ns3::YansWifiPhy::m_channel

private

YansWifiChannel that this YansWifiPhy is connected to.

Definition at line 519 of file yans-wifi-phy.h.

Referenced by DoDispose(), GetChannel(), SendPacket(), and SetChannel().

uint16_t ns3::YansWifiPhy::m_channelNumber

private

Operating channel number.

Definition at line 520 of file yans-wifi-phy.h.

Referenced by GetChannelNumber(), and SetChannelNumber().

double ns3::YansWifiPhy::m_channelStartingFrequency

private

Standard-dependent center frequency of 0-th channel in MHz.

Definition at line 577 of file yans-wifi-phy.h.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211ac(), Configure80211b(), Configure80211g(), Configure80211n(), ConfigureHolland(), ConfigureStandard(), GetChannelFrequencyMhz(), GetFrequency(), and SetFrequency().

Time ns3::YansWifiPhy::m_channelSwitchDelay

private

Time required to switch between channel.

Definition at line 580 of file yans-wifi-phy.h.

Referenced by GetChannelSwitchDelay(), GetTypeId(), and SetChannelNumber().

uint32_t ns3::YansWifiPhy::m_channelWidth

private

Channel width.

Definition at line 530 of file yans-wifi-phy.h.

Referenced by GetChannelWidth(), and SetChannelWidth().

Ptr<NetDevice> ns3::YansWifiPhy::m_device

private

Pointer to the device.

Definition at line 521 of file yans-wifi-phy.h.

Referenced by DoDispose(), GetDevice(), GetMobility(), and SetDevice().

WifiModeList ns3::YansWifiPhy::m_deviceMcsSet

private

Definition at line 570 of file yans-wifi-phy.h.

Referenced by Configure80211ac(), Configure80211n(), DoDispose(), GetMcs(), and GetNMcs().

WifiModeList ns3::YansWifiPhy::m_deviceRateSet

private

This vector holds the set of transmission modes that this WifiPhy(-derived class) can support.

In conversation we call this the DeviceRateSet (not a term you'll find in the standard), and it is a superset of standard-defined parameters such as the OperationalRateSet, and the BSSBasicRateSet (which, themselves, have a superset/subset relationship).

Mandatory rates relevant to this WifiPhy can be found by iterating over this vector looking for WifiMode objects for which WifiMode::IsMandatory() is true.

A quick note is appropriate here (well, here is as good a place as any I can find)...

In the standard there is no text that explicitly precludes production of a device that does not support some rates that are mandatory (according to the standard) for PHYs that the device happens to fully or partially support.

This approach is taken by some devices which choose to only support, for example, 6 and 9 Mbps ERP-OFDM rates for cost and power consumption reasons (i.e., these devices don't need to be designed for and waste current on the increased linearity requirement of higher-order constellations when 6 and 9 Mbps more than meet their data requirements). The wording of the standard allows such devices to have an OperationalRateSet which includes 6 and 9 Mbps ERP-OFDM rates, despite 12 and 24 Mbps being "mandatory" rates for the ERP-OFDM PHY.

Now this doesn't actually have any impact on code, yet. It is, however, something that we need to keep in mind for the future. Basically, the key point is that we can't be making assumptions like "the Operational Rate Set will contain all the mandatory rates".

Definition at line 569 of file yans-wifi-phy.h.

Referenced by Configure80211_10Mhz(), Configure80211_5Mhz(), Configure80211a(), Configure80211ac(), Configure80211b(), Configure80211g(), Configure80211n(), ConfigureHolland(), DoDispose(), GetMode(), and GetNModes().
