LteInterferenceTestCase Class Reference

#include "lte-test-interference.h"

Inheritance diagram for LteInterferenceTestCase:

Collaboration diagram for LteInterferenceTestCase:

Public Member Functions
	LteInterferenceTestCase (std::string name, double d1, double d2, double dlSinr, double ulSinr, double dlSe, double ulSe, uint16_t dlMcs, uint16_t ulMcs)
	TestCase. More...
virtual	~LteInterferenceTestCase ()
void	DlScheduling (uint32_t frameNo, uint32_t subframeNo, uint16_t rnti, uint8_t mcsTb1, uint16_t sizeTb1, uint8_t mcsTb2, uint16_t sizeTb2)
void	UlScheduling (uint32_t frameNo, uint32_t subframeNo, uint16_t rnti, uint8_t mcs, uint16_t sizeTb)
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Private Attributes
double	m_d1
double	m_d2
uint16_t	m_dlMcs
double	m_expectedDlSinrDb
double	m_expectedUlSinrDb
uint16_t	m_ulMcs

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Definition at line 41 of file lte-test-interference.h.

Constructor & Destructor Documentation

LteInterferenceTestCase::LteInterferenceTestCase	(	std::string	name,
		double	d1,
		double	d2,
		double	dlSinr,
		double	ulSinr,
		double	dlSe,
		double	ulSe,
		uint16_t	dlMcs,
		uint16_t	ulMcs
	)

TestCase.

Definition at line 98 of file lte-test-interference.cc.

LteInterferenceTestCase::~LteInterferenceTestCase ( )

virtual

Definition at line 109 of file lte-test-interference.cc.

Member Function Documentation

void LteInterferenceTestCase::DlScheduling	(	uint32_t	frameNo,
		uint32_t	subframeNo,
		uint16_t	rnti,
		uint8_t	mcsTb1,
		uint16_t	sizeTb1,
		uint8_t	mcsTb2,
		uint16_t	sizeTb2
	)

Definition at line 246 of file lte-test-interference.cc.

References m_dlMcs, ns3::MilliSeconds(), ns3::Now(), NS_LOG_FUNCTION, and NS_TEST_ASSERT_MSG_EQ.

Referenced by LteTestDlSchedulingCallback().

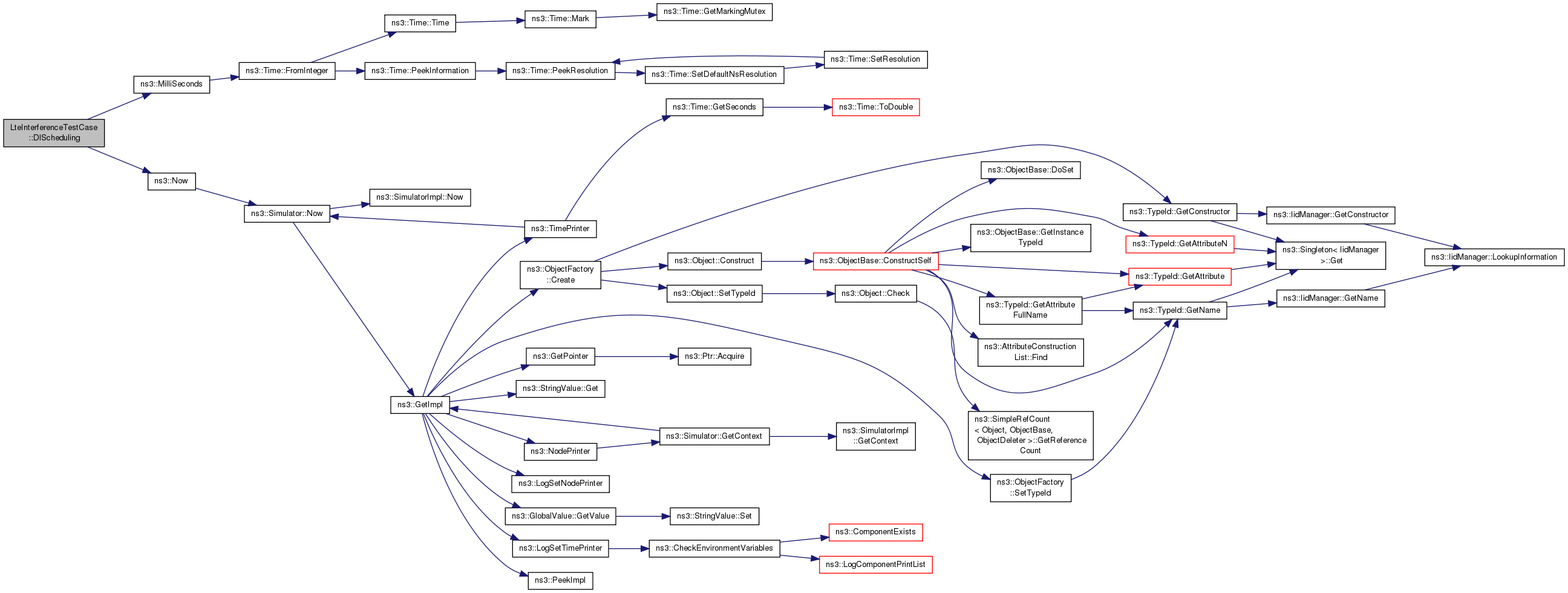

Here is the call graph for this function:

Here is the caller graph for this function:

void LteInterferenceTestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 114 of file lte-test-interference.cc.

References ns3::LteHelper::ActivateDataRadioBearer(), ns3::ListPositionAllocator::Add(), ns3::LteHelper::Attach(), ns3::Config::Connect(), ns3::NodeContainer::Create(), ns3::NetDeviceContainer::Get(), ns3::LtePhy::GetDownlinkSpectrumPhy(), ns3::TestCase::GetName(), ns3::Object::GetObject(), ns3::LtePhy::GetUplinkSpectrumPhy(), ns3::MobilityHelper::Install(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), LteTestDlSchedulingCallback(), LteTestUlSchedulingCallback(), m_d1, m_d2, m_dlMcs, m_expectedDlSinrDb, m_expectedUlSinrDb, m_ulMcs, ns3::MakeBoundCallback(), ns3::MakeCallback(), third::mobility, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::MobilityHelper::SetMobilityModel(), ns3::MobilityHelper::SetPositionAllocator(), ns3::LteHelper::SetSchedulerAttribute(), and ns3::LteHelper::SetSchedulerType().

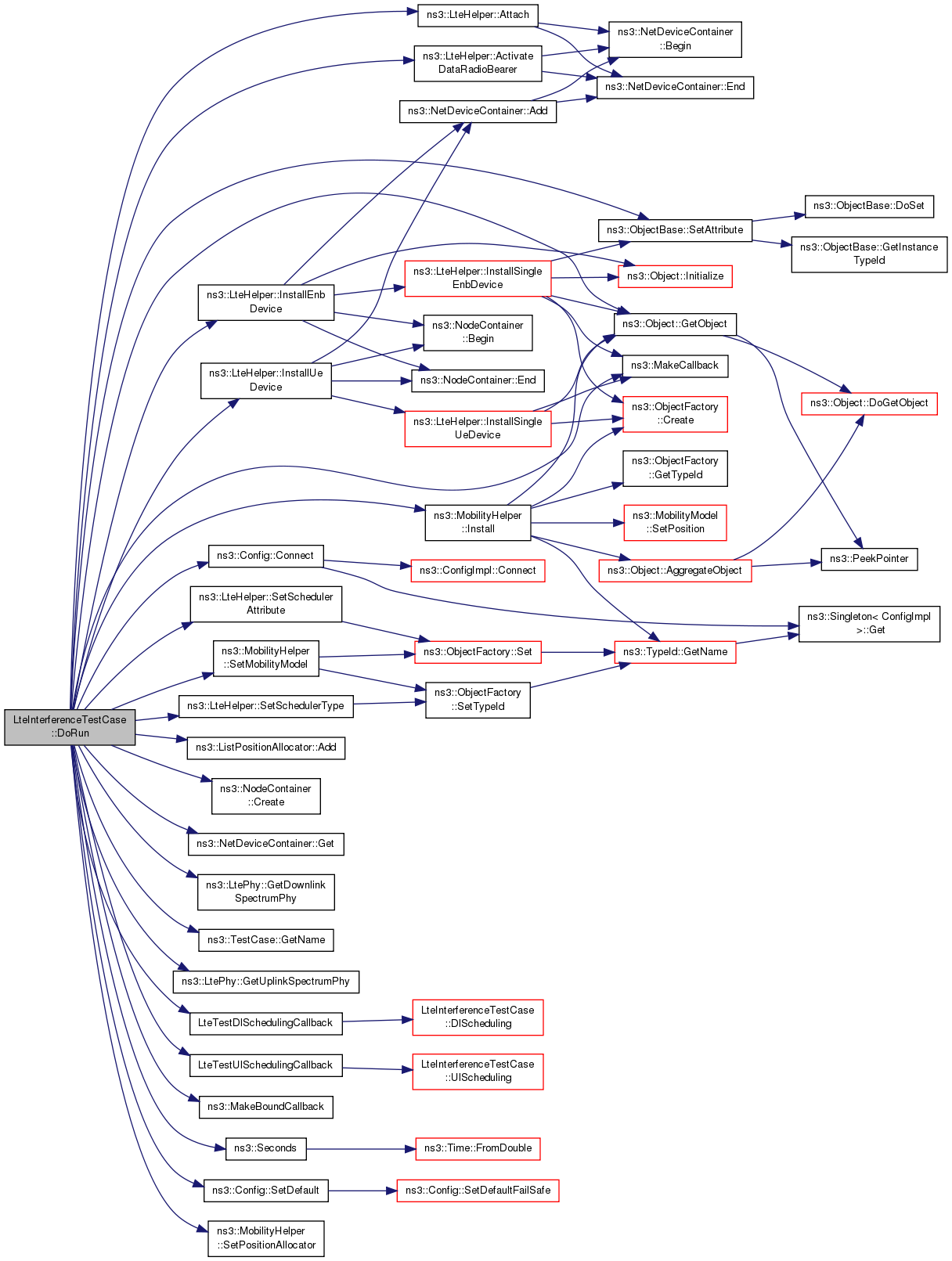

Here is the call graph for this function:

void LteInterferenceTestCase::UlScheduling	(	uint32_t	frameNo,
		uint32_t	subframeNo,
		uint16_t	rnti,
		uint8_t	mcs,
		uint16_t	sizeTb
	)

Definition at line 258 of file lte-test-interference.cc.

References m_ulMcs, ns3::MilliSeconds(), ns3::Now(), NS_LOG_FUNCTION, and NS_TEST_ASSERT_MSG_EQ.

Referenced by LteTestUlSchedulingCallback().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

double LteInterferenceTestCase::m_d1

private

Definition at line 57 of file lte-test-interference.h.

Referenced by DoRun().

double LteInterferenceTestCase::m_d2

private

Definition at line 58 of file lte-test-interference.h.

Referenced by DoRun().

uint16_t LteInterferenceTestCase::m_dlMcs

private

Definition at line 61 of file lte-test-interference.h.

Referenced by DlScheduling(), and DoRun().

double LteInterferenceTestCase::m_expectedDlSinrDb

private

Definition at line 59 of file lte-test-interference.h.

Referenced by DoRun().

double LteInterferenceTestCase::m_expectedUlSinrDb

private

Definition at line 60 of file lte-test-interference.h.

Referenced by DoRun().

uint16_t LteInterferenceTestCase::m_ulMcs

private

Definition at line 62 of file lte-test-interference.h.

Referenced by DoRun(), and UlScheduling().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-interference.h
• src/lte/test/lte-test-interference.cc
