handle packet fragmentation and retransmissions. More...

#include "dca-txop.h"

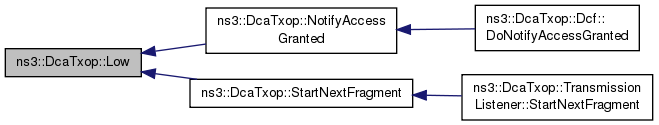

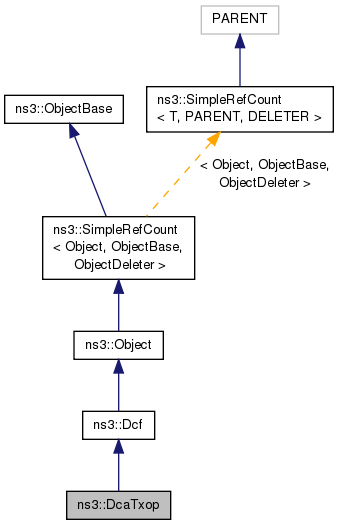

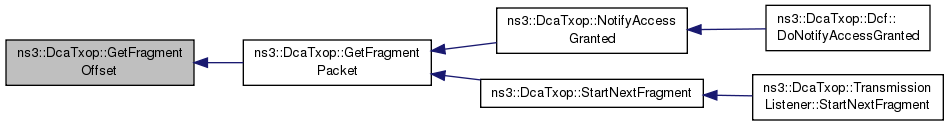

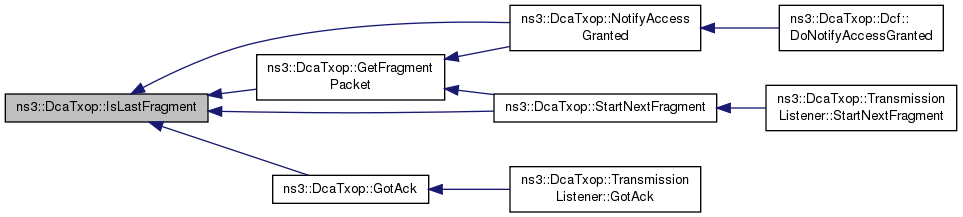

Inheritance diagram for ns3::DcaTxop:

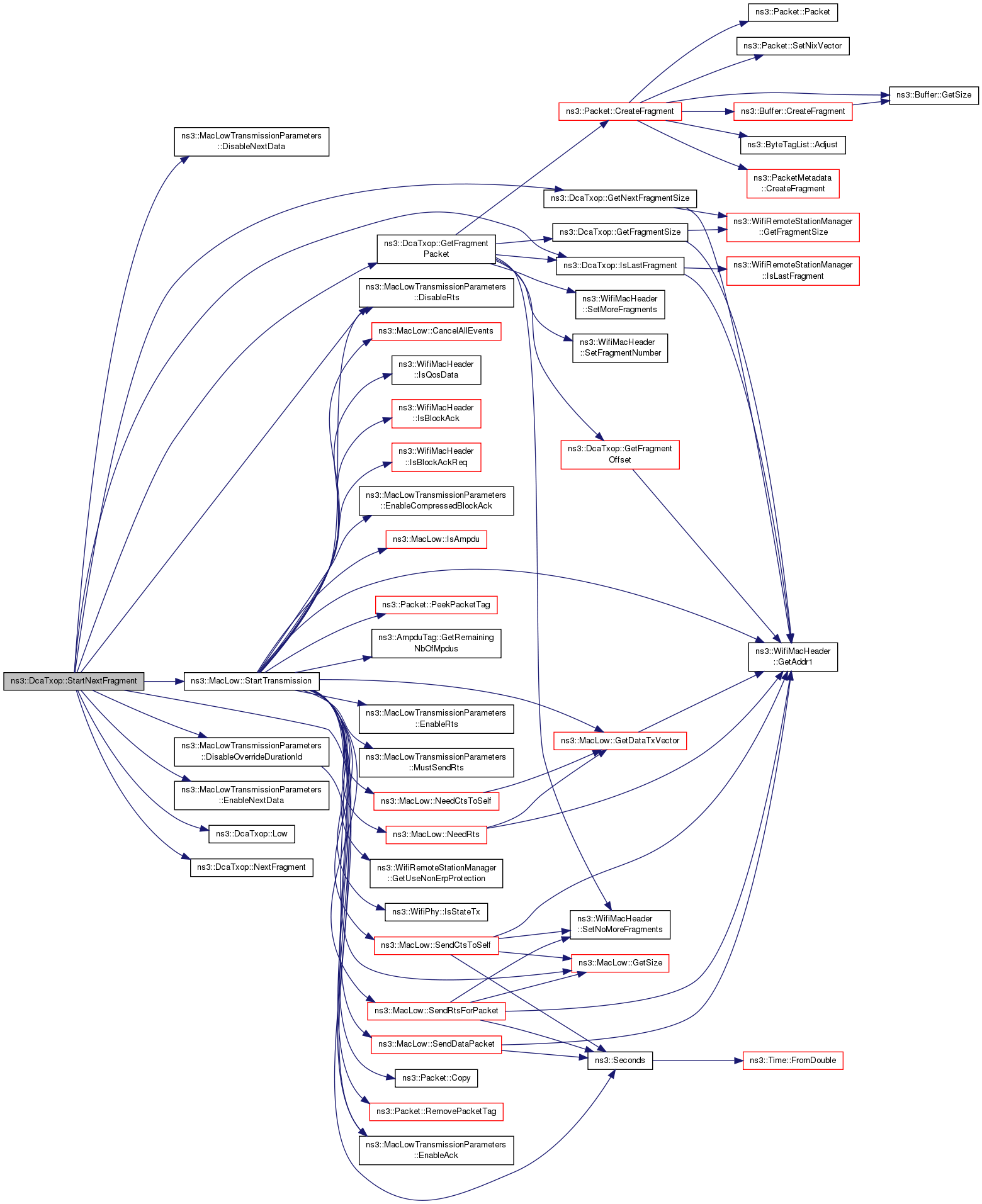

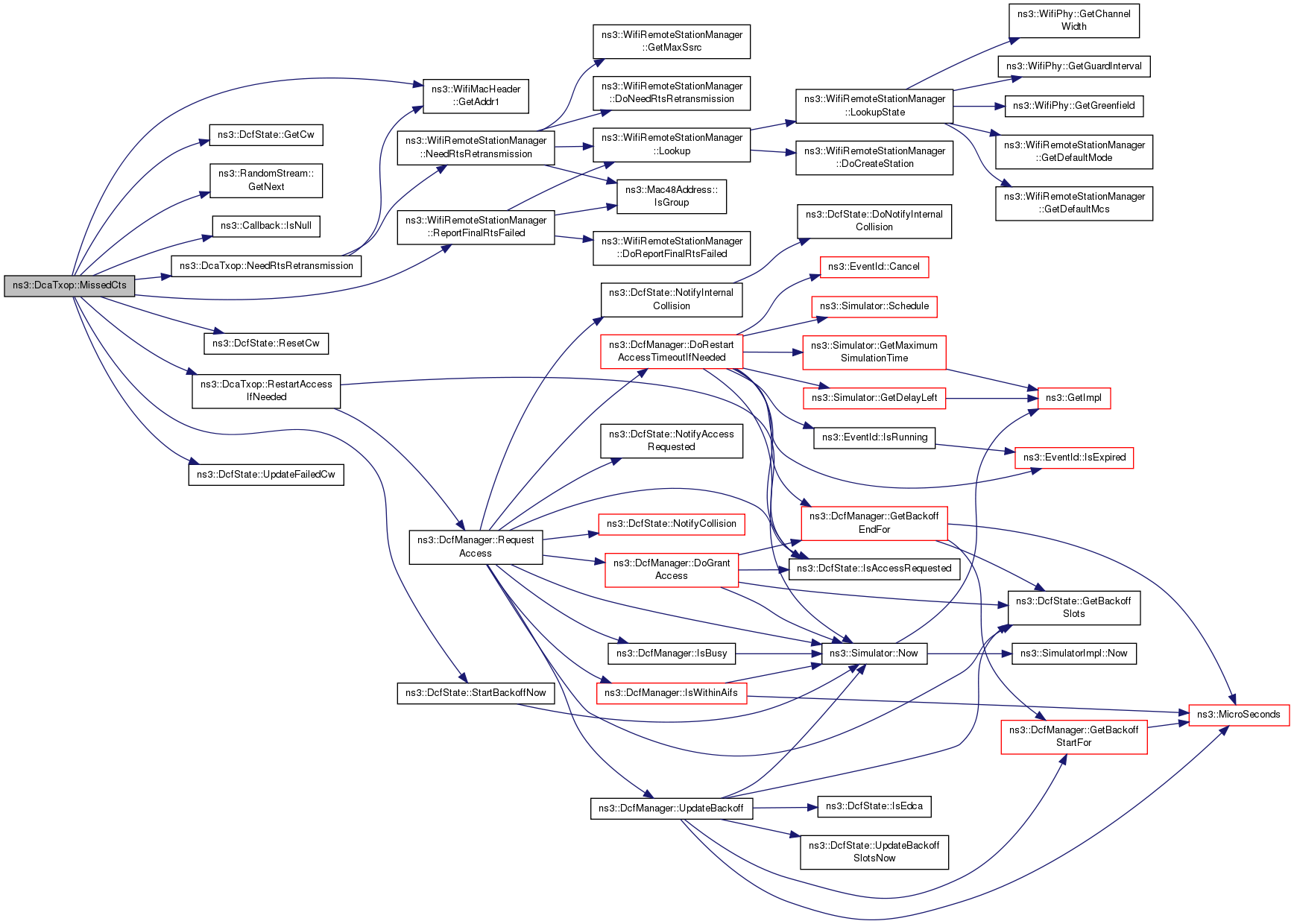

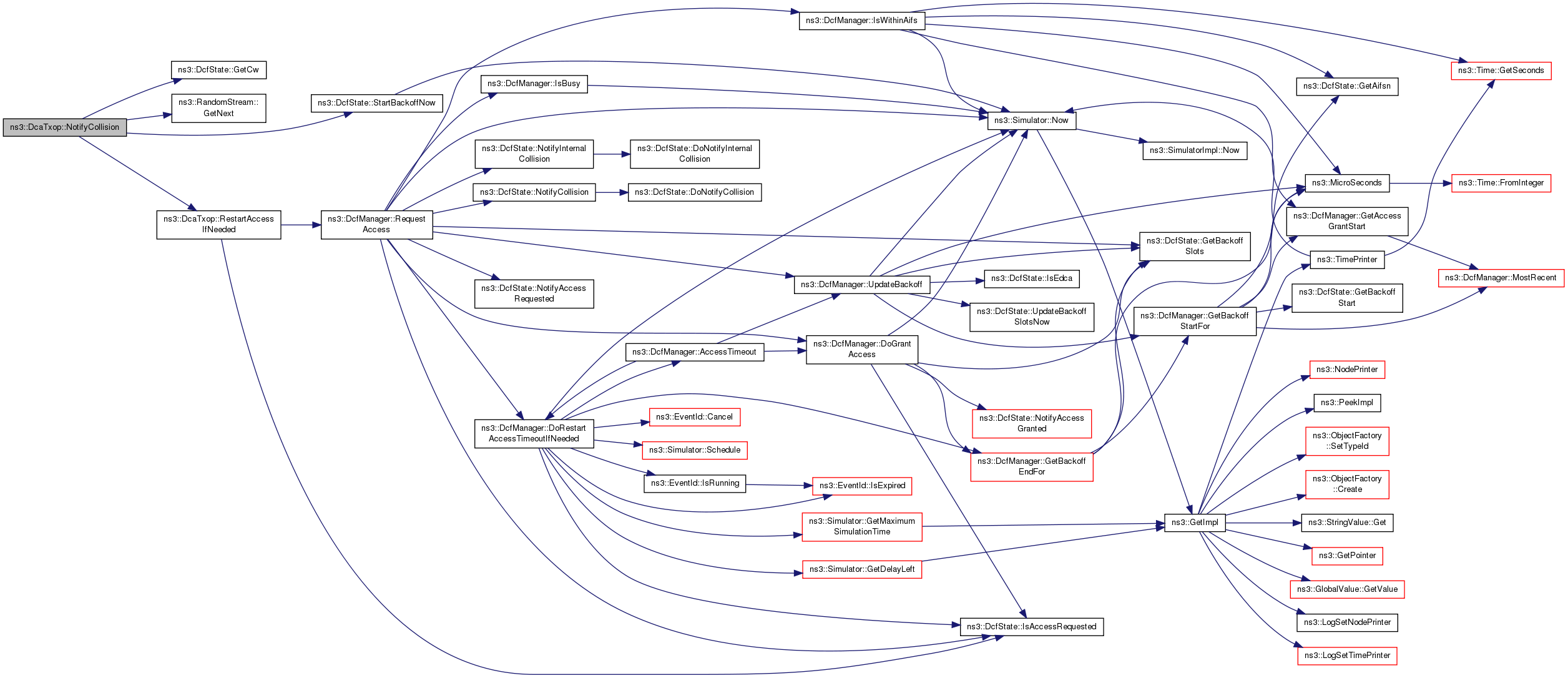

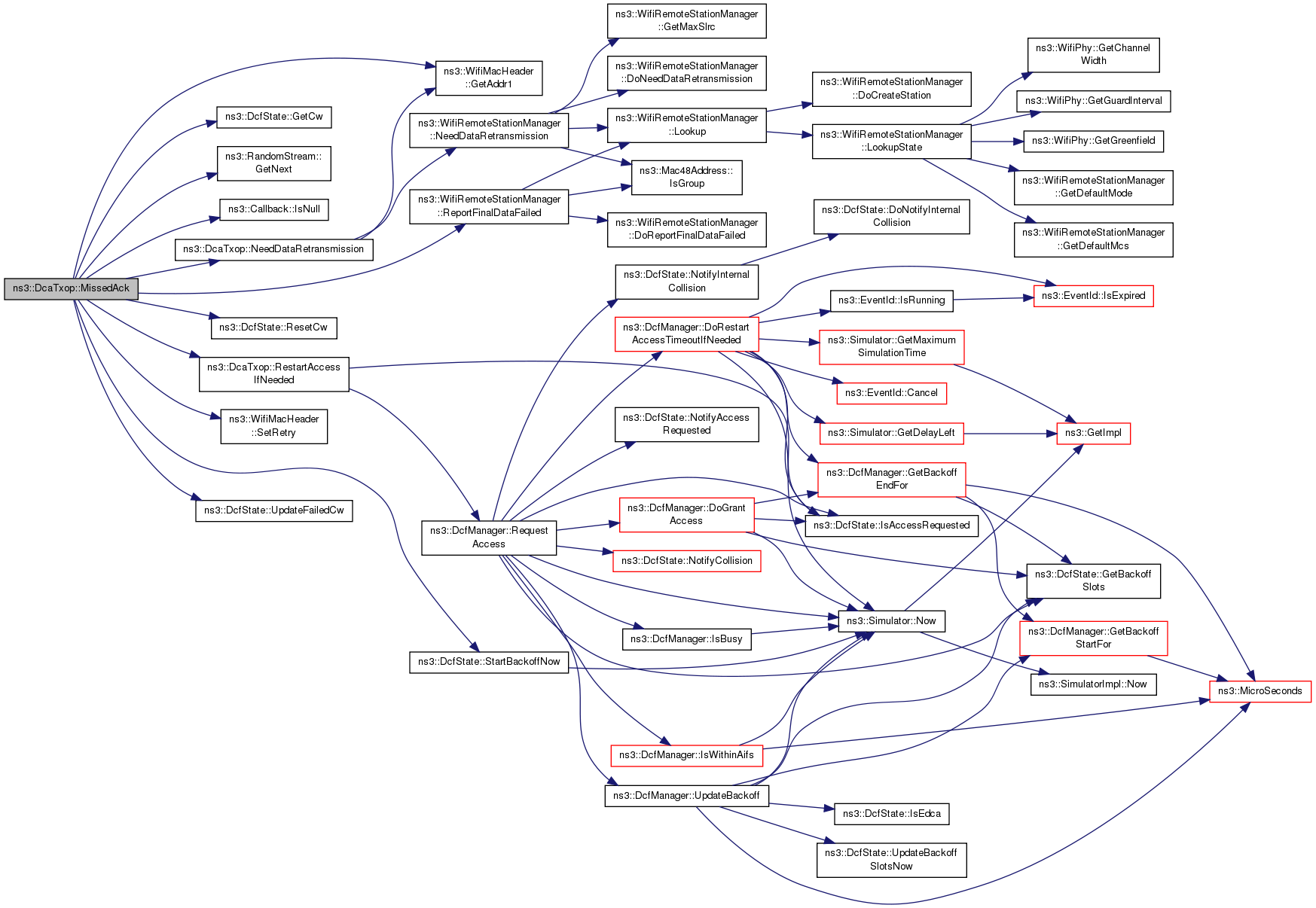

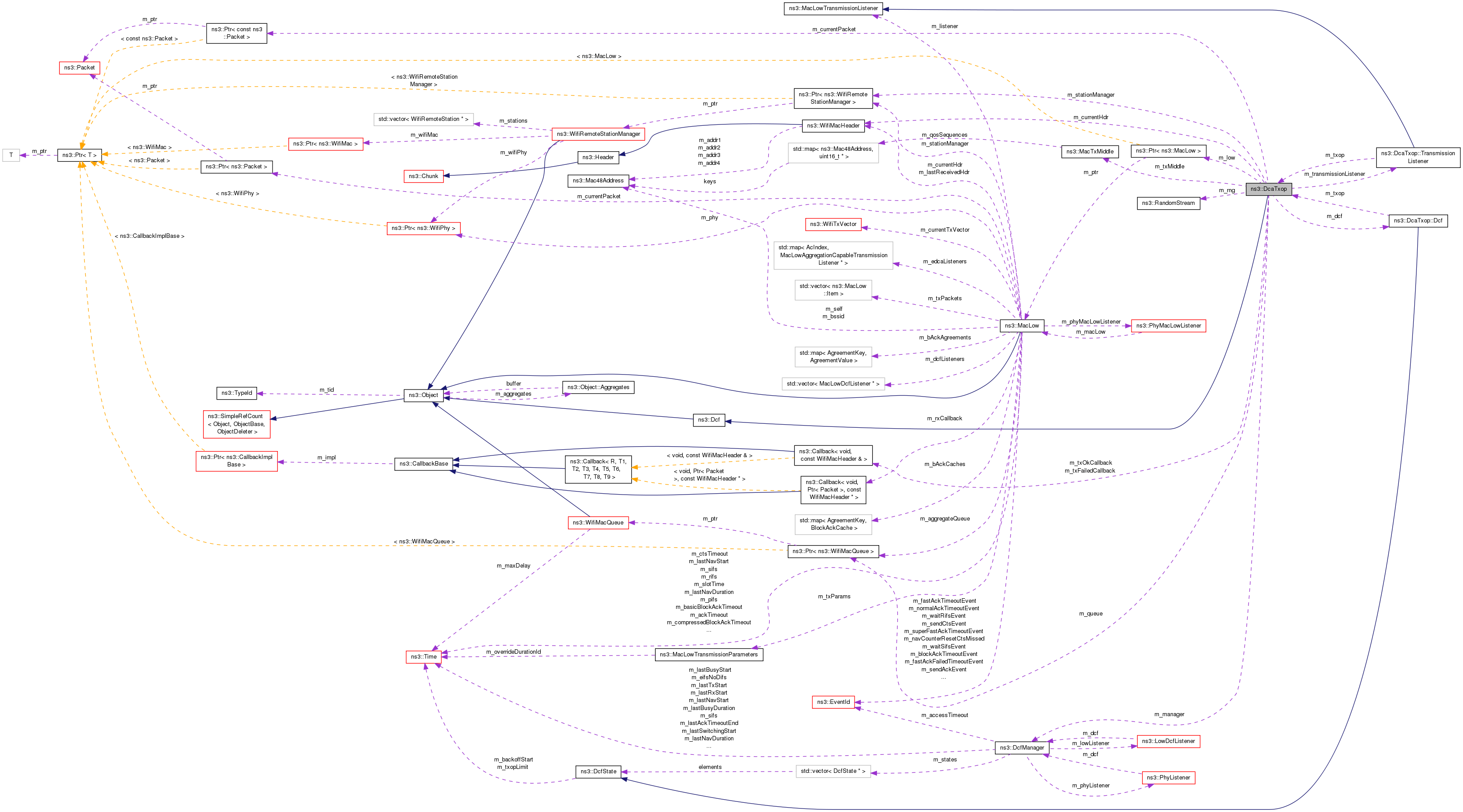

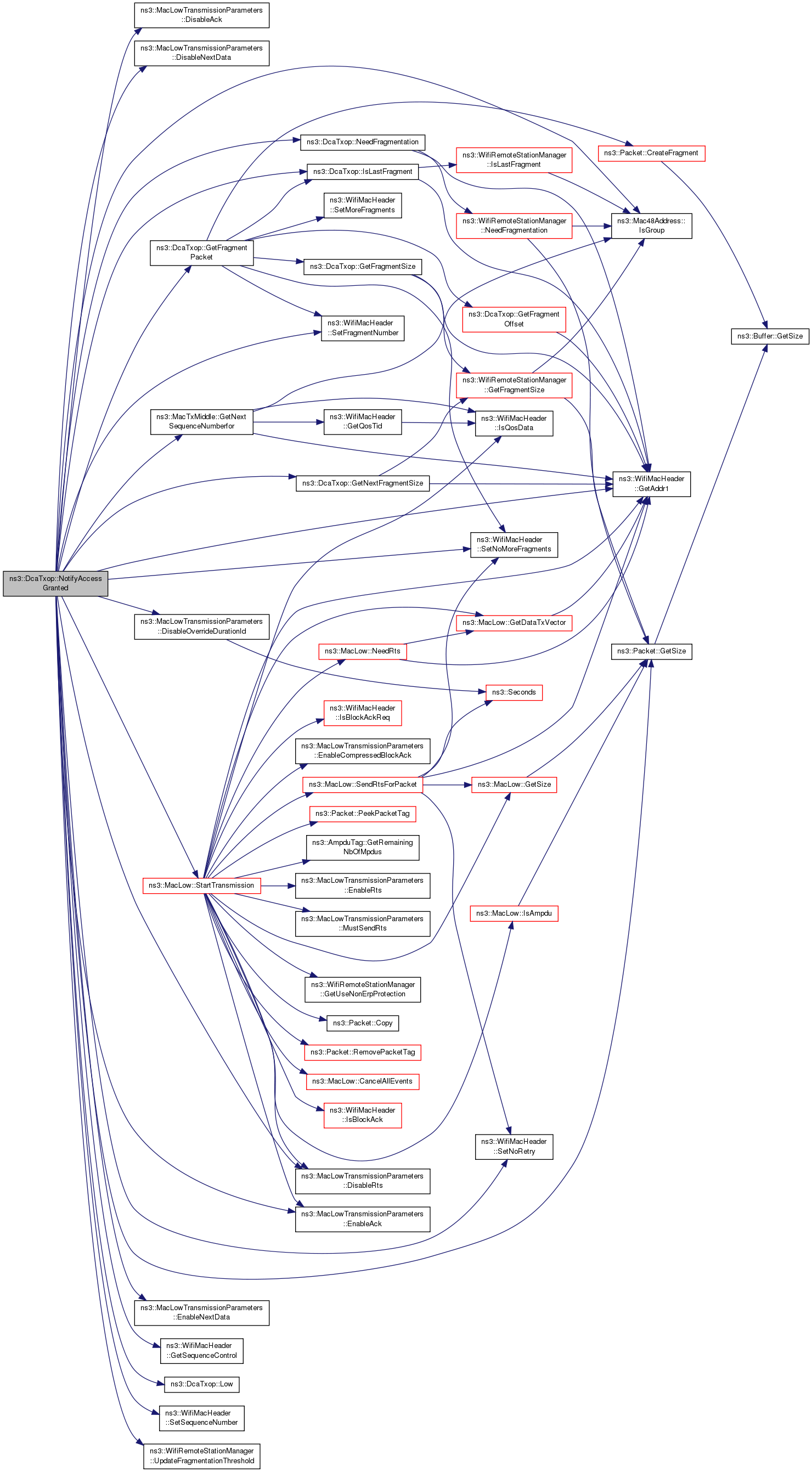

Collaboration diagram for ns3::DcaTxop:

Classes
class	Dcf

class	TransmissionListener
	Listener for MacLow events. More...

Public Types
typedef Callback< void, const WifiMacHeader & >	TxFailed
	typedef for a callback to invoke when a packet transmission was failed. More...

typedef Callback< void, const WifiMacHeader & >	TxOk
	typedef for a callback to invoke when a packet transmission was completed successfully. More...

Public Member Functions
	DcaTxop ()

	~DcaTxop ()

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual uint32_t	GetAifsn (void) const
	Return the number of slots that make up an AIFS. More...

virtual uint32_t	GetMaxCw (void) const
	Return the maximum contention window size. More...

virtual uint32_t	GetMinCw (void) const
	Return the minimum contention window size. More...

Ptr< WifiMacQueue >	GetQueue () const
	Return the packet queue associated with this DcaTxop. More...

virtual Time	GetTxopLimit (void) const
	Return the TXOP limit. More...

void	Queue (Ptr< const Packet > packet, const WifiMacHeader &hdr)

virtual void	SetAifsn (uint32_t aifsn)

void	SetLow (Ptr< MacLow > low)
	Set MacLow associated with this DcaTxop. More...

void	SetManager (DcfManager *manager)
	Set DcfManager this DcaTxop is associated to. More...

virtual void	SetMaxCw (uint32_t maxCw)
	Set the maximum contention window size. More...

virtual void	SetMinCw (uint32_t minCw)
	Set the minimum contention window size. More...

void	SetTxFailedCallback (TxFailed callback)

void	SetTxMiddle (MacTxMiddle *txMiddle)
	Set MacTxMiddle this DcaTxop is associated to. More...

void	SetTxOkCallback (TxOk callback)

virtual void	SetTxopLimit (Time txopLimit)

void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > remoteManager)
	Set WifiRemoteStationsManager this DcaTxop is associated to. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

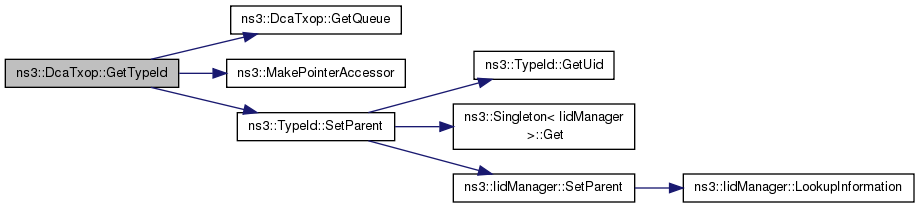

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Dcf
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
	DcaTxop (const DcaTxop &o)

void	Cancel (void)
	Cancel the transmission. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

void	DoInitialize ()
	Initialize() implementation. More...

void	EndTxNoAck (void)
	Event handler when a transmission that does not require an ACK has completed. More...

uint32_t	GetFragmentOffset (void)
	Calculate the offset for the current fragment. More...

Ptr< Packet >	GetFragmentPacket (WifiMacHeader *hdr)
	Get the next fragment from the packet with appropriate Wifi header for the fragment. More...

uint32_t	GetFragmentSize (void)
	Calculate the size of the current fragment. More...

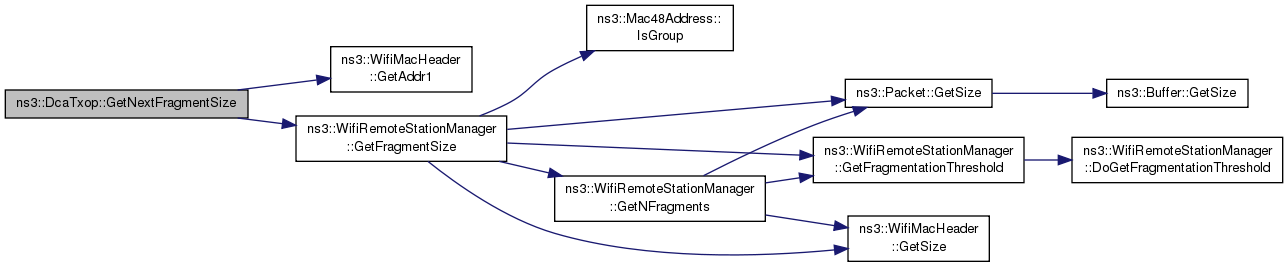

uint32_t	GetNextFragmentSize (void)
	Calculate the size of the next fragment. More...

void	GotAck (double snr, WifiMode txMode)
	Event handler when an ACK is received. More...

void	GotCts (double snr, WifiMode txMode)
	Event handler when a CTS is received. More...

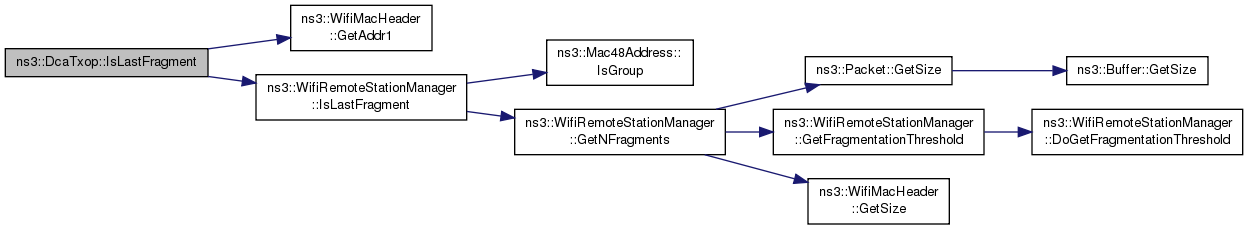

bool	IsLastFragment (void)
	Check if the curren fragment is the last fragment. More...

Ptr< MacLow >	Low (void)
	Return the MacLow associated with this DcaTxop. More...

void	MissedAck (void)
	Event handler when an ACK is missed. More...

void	MissedCts (void)
	Event handler when a CTS timeout has occurred. More...

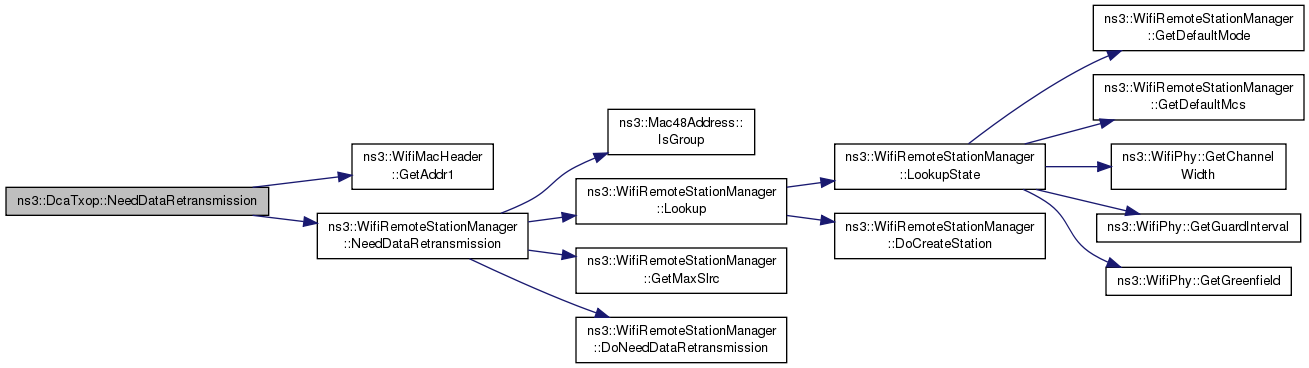

bool	NeedDataRetransmission (void)
	Check if DATA should be re-transmitted if ACK was missed. More...

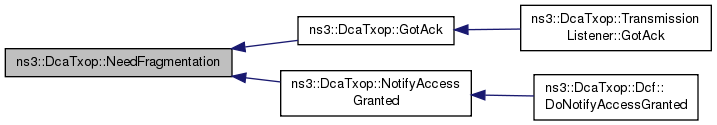

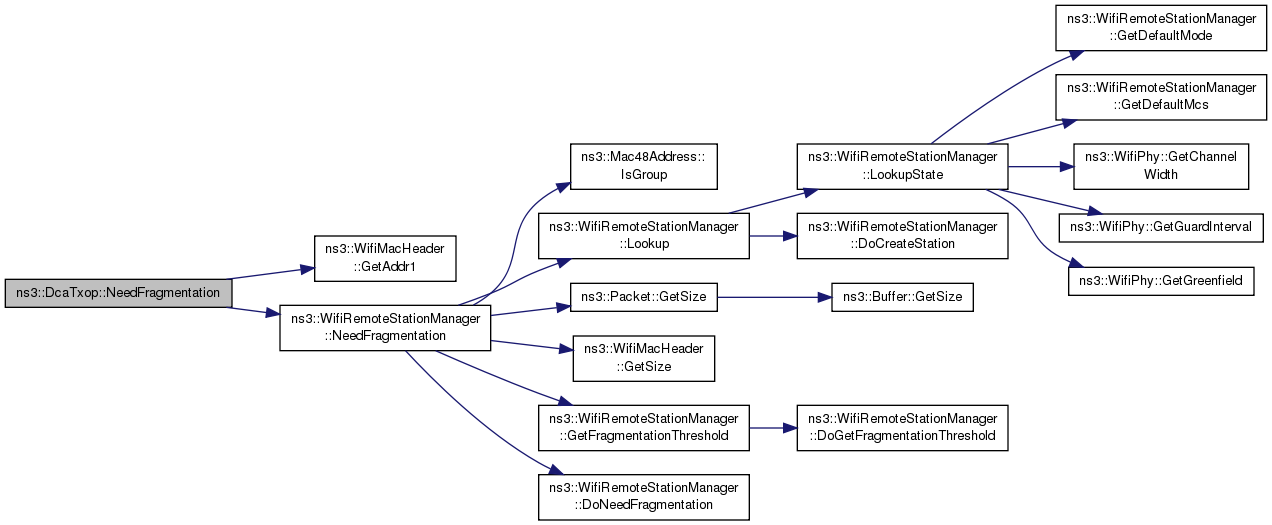

bool	NeedFragmentation (void)
	Check if the current packet should be fragmented. More...

bool	NeedRtsRetransmission (void)
	Check if RTS should be re-transmitted if CTS was missed. More...

bool	NeedsAccess (void) const
	Check if the DCF requires access. More...

void	NextFragment (void)
	Continue to the next fragment. More...

void	NotifyAccessGranted (void)
	Notify the DCF that access has been granted. More...

void	NotifyChannelSwitching (void)
	When a channel switching occurs, enqueued packets are removed. More...

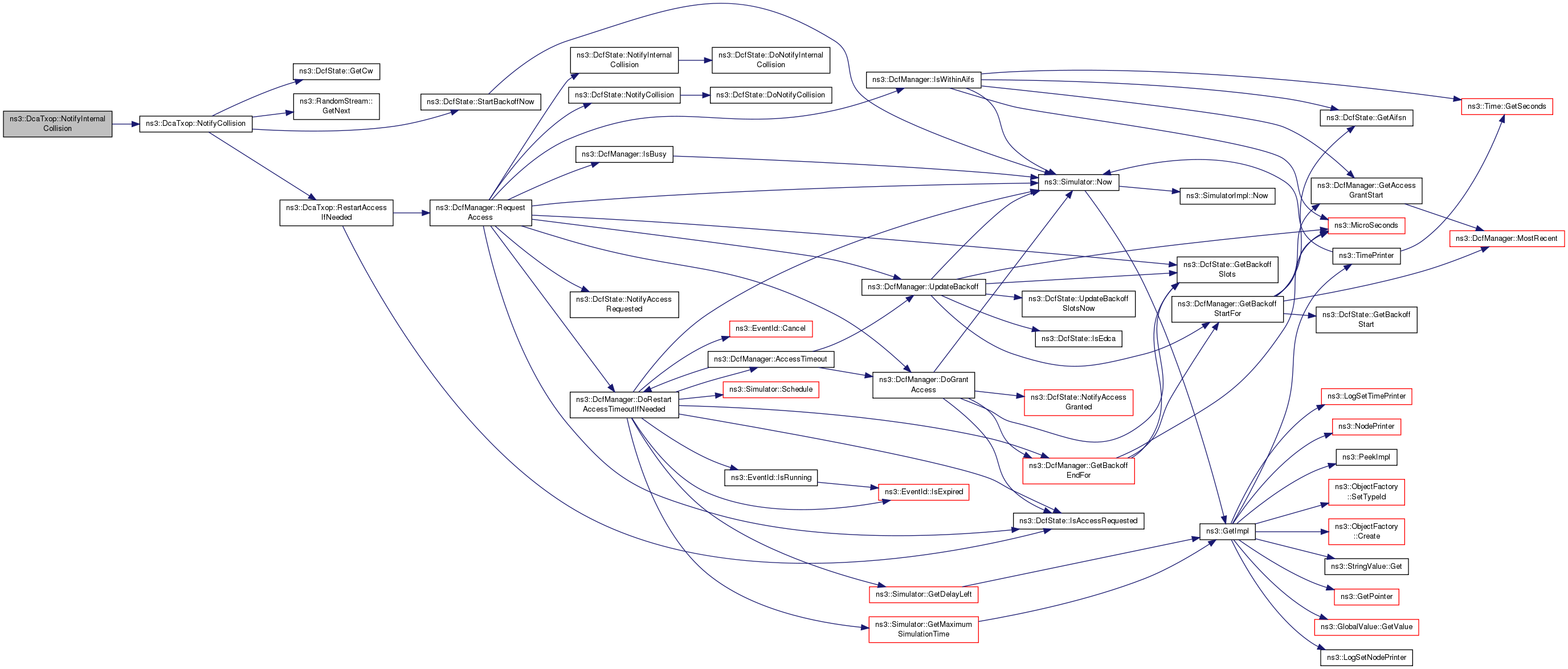

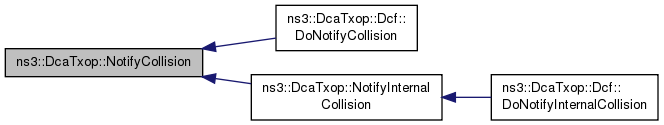

void	NotifyCollision (void)
	Notify the DCF that collision has occurred. More...

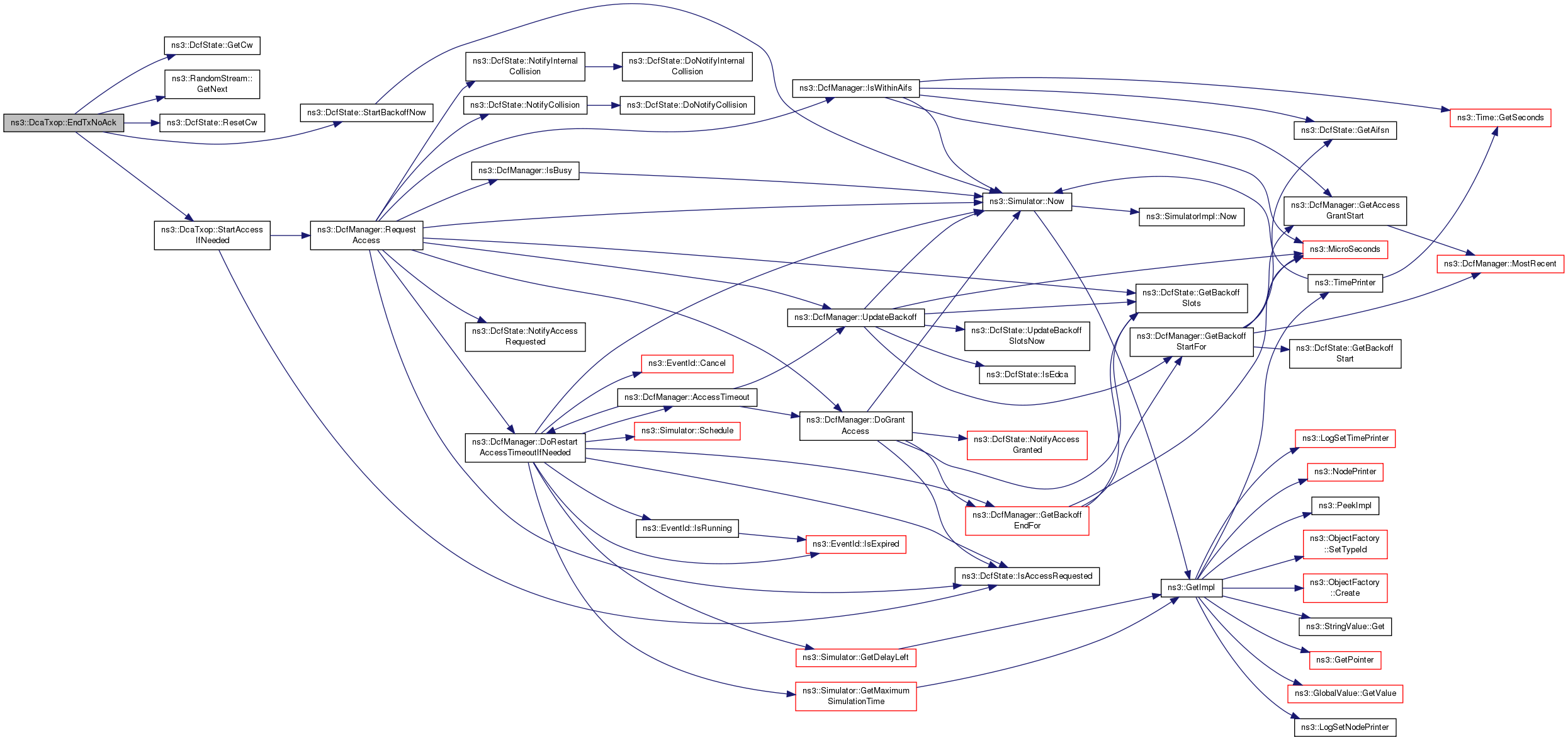

void	NotifyInternalCollision (void)
	Notify the DCF that internal collision has occurred. More...

void	NotifySleep (void)
	When sleep operation occurs, if there is a pending packet transmission, it will be reinserted to the front of the queue. More...

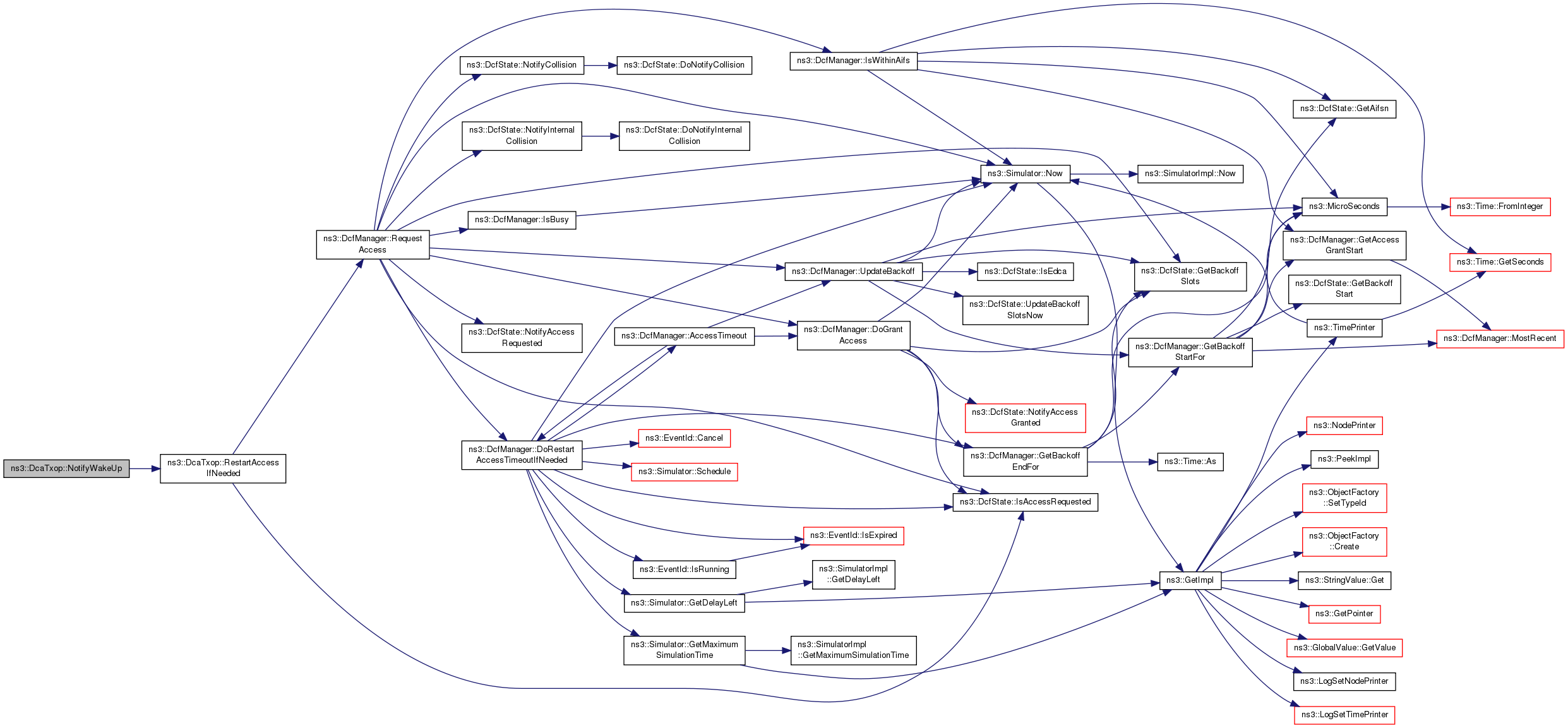

void	NotifyWakeUp (void)
	When wake up operation occurs, channel access will be restarted. More...

DcaTxop &	operator= (const DcaTxop &)

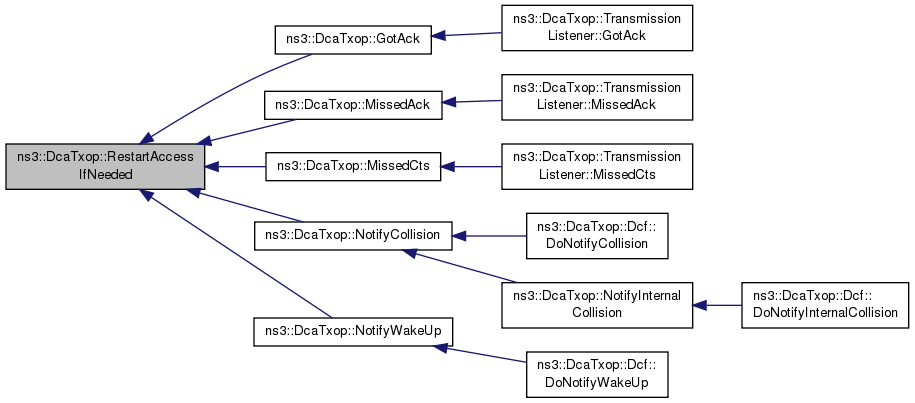

void	RestartAccessIfNeeded (void)
	Restart access request if needed. More...

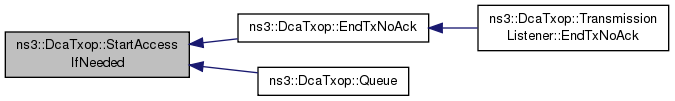

void	StartAccessIfNeeded (void)
	Request access from DCF manager if needed. More...

void	StartNextFragment (void)
	Start transmission for the next fragment. More...

Private Attributes
bool	m_accessOngoing

WifiMacHeader	m_currentHdr

Ptr< const Packet >	m_currentPacket

Dcf *	m_dcf

uint8_t	m_fragmentNumber

Ptr< MacLow >	m_low

DcfManager *	m_manager

Ptr< WifiMacQueue >	m_queue

RandomStream *	m_rng

Ptr< WifiRemoteStationManager >	m_stationManager

TransmissionListener *	m_transmissionListener

TxFailed	m_txFailedCallback

MacTxMiddle *	m_txMiddle

TxOk	m_txOkCallback

Friends
class	Dcf

class	TransmissionListener

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

handle packet fragmentation and retransmissions.

This class implements the packet fragmentation and retransmission policy. It uses the ns3::MacLow and ns3::DcfManager helper classes to respectively send packets and decide when to send them. Packets are stored in a ns3::WifiMacQueue until they can be sent.

The policy currently implemented uses a simple fragmentation threshold: any packet bigger than this threshold is fragmented in fragments whose size is smaller than the threshold.

The retransmission policy is also very simple: every packet is retransmitted until it is either successfully transmitted or it has been retransmitted up until the ssrc or slrc thresholds.

The rts/cts policy is similar to the fragmentation policy: when a packet is bigger than a threshold, the rts/cts protocol is used.

Config Paths

ns3::DcaTxop is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/DcaTxop"

Attributes

Queue: The WifiMacQueue object
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WifiMacQueue>
- Flags: read

Attributes defined in parent class ns3::Dcf

MinCw: The minimum value of the contention window.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 15
- Flags: construct write read
MaxCw: The maximum value of the contention window.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1023
- Flags: construct write read
Aifsn: The AIFSN: the default value conforms to simple DCA.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2
- Flags: construct write read
TxopLimit: The TXOP limit: the default value conforms to simple DCA.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 192 bytes (on a 64-bit architecture).

Definition at line 67 of file dca-txop.h.

Member Typedef Documentation

typedef Callback<void, const WifiMacHeader&> ns3::DcaTxop::TxFailed

typedef for a callback to invoke when a packet transmission was failed.

Definition at line 81 of file dca-txop.h.

typedef Callback<void, const WifiMacHeader&> ns3::DcaTxop::TxOk

typedef for a callback to invoke when a packet transmission was completed successfully.

Definition at line 76 of file dca-txop.h.

Constructor & Destructor Documentation

ns3::DcaTxop::DcaTxop ( )

Definition at line 159 of file dca-txop.cc.

References Dcf, m_dcf, m_queue, m_rng, m_transmissionListener, NS_LOG_FUNCTION, and TransmissionListener.

ns3::DcaTxop::~DcaTxop ( )

Definition at line 170 of file dca-txop.cc.

References NS_LOG_FUNCTION.

ns3::DcaTxop::DcaTxop ( const DcaTxop & o )

private

Member Function Documentation

int64_t ns3::DcaTxop::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 306 of file dca-txop.cc.

References ns3::RandomStream::AssignStreams(), m_rng, and NS_LOG_FUNCTION.

Referenced by AssignWifiRandomStreams().

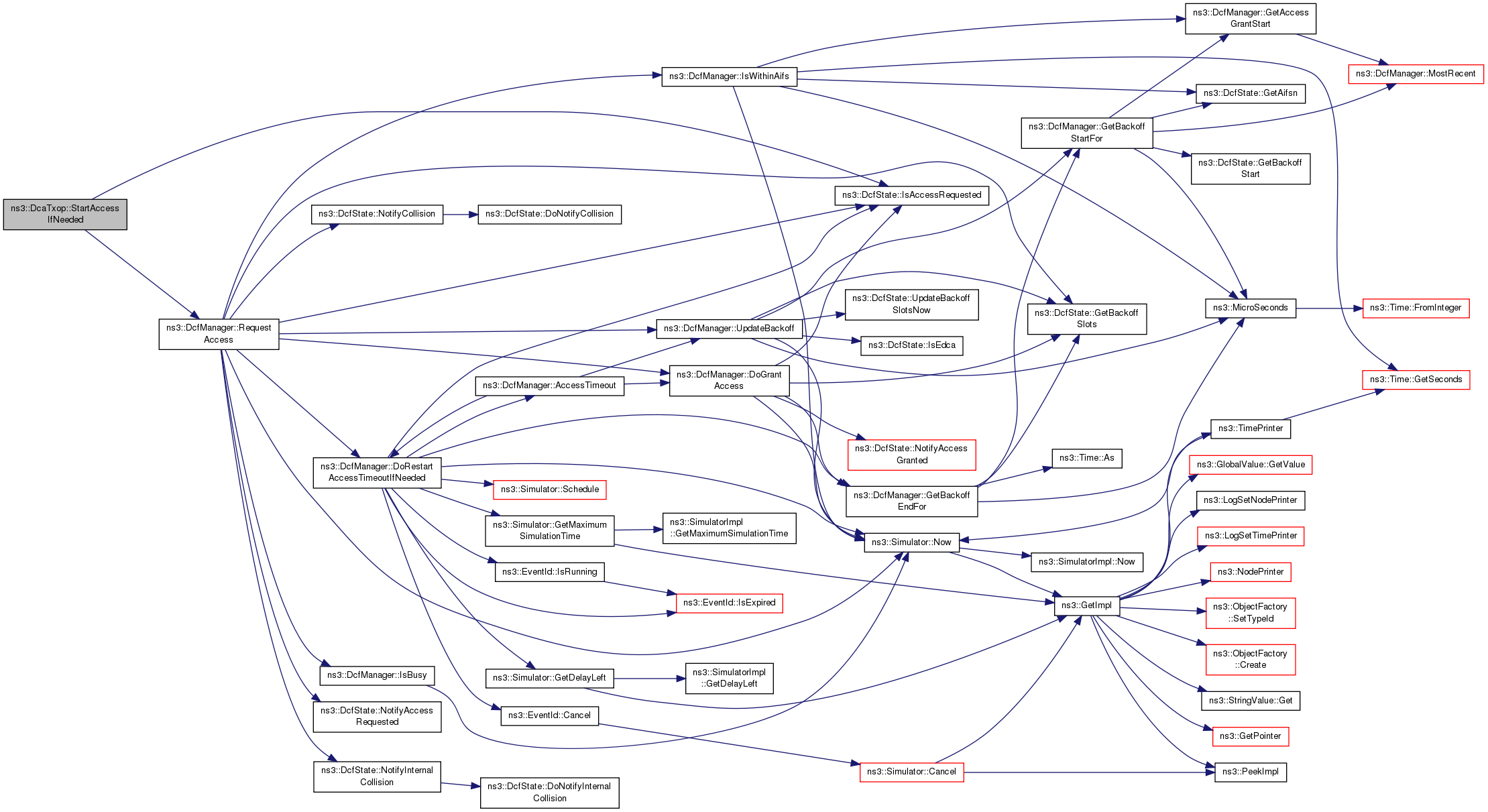

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::Cancel ( void )

private

Cancel the transmission.

This happens in only one case: in an AP, you have two DcaTxop:

one is used exclusively for beacons and has a high priority.
the other is used for everything else and has a normal priority.

If the normal queue tries to send a unicast data frame, but if the tx fails (ack timeout), it starts a backoff. If the beacon queue gets a tx oportunity during this backoff, it will trigger a call to this Cancel function.

Since we are already doing a backoff, we will get access to the medium when we can, we have nothing to do here. We just ignore the cancel event and wait until we are given again a tx oportunity.

Note that this is really non-trivial because each of these frames is assigned a sequence number from the same sequence counter (because this is a non-802.11e device) so, the scheme described here fails to ensure in-order delivery of frames at the receiving side. This, however, does not matter in this case because we assume that the receiving side does not update its <seq,ad> tupple for packets whose destination address is a broadcast address.

Definition at line 662 of file dca-txop.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::DcaTxop::TransmissionListener::Cancel().

Here is the caller graph for this function:

void ns3::DcaTxop::DoDispose ( void )

privatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 176 of file dca-txop.cc.

References m_dcf, m_low, m_queue, m_rng, m_stationManager, m_transmissionListener, m_txMiddle, and NS_LOG_FUNCTION.

void ns3::DcaTxop::DoInitialize ( void )

privatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 345 of file dca-txop.cc.

References ns3::Object::DoInitialize(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_dcf, m_rng, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), and ns3::DcfState::StartBackoffNow().

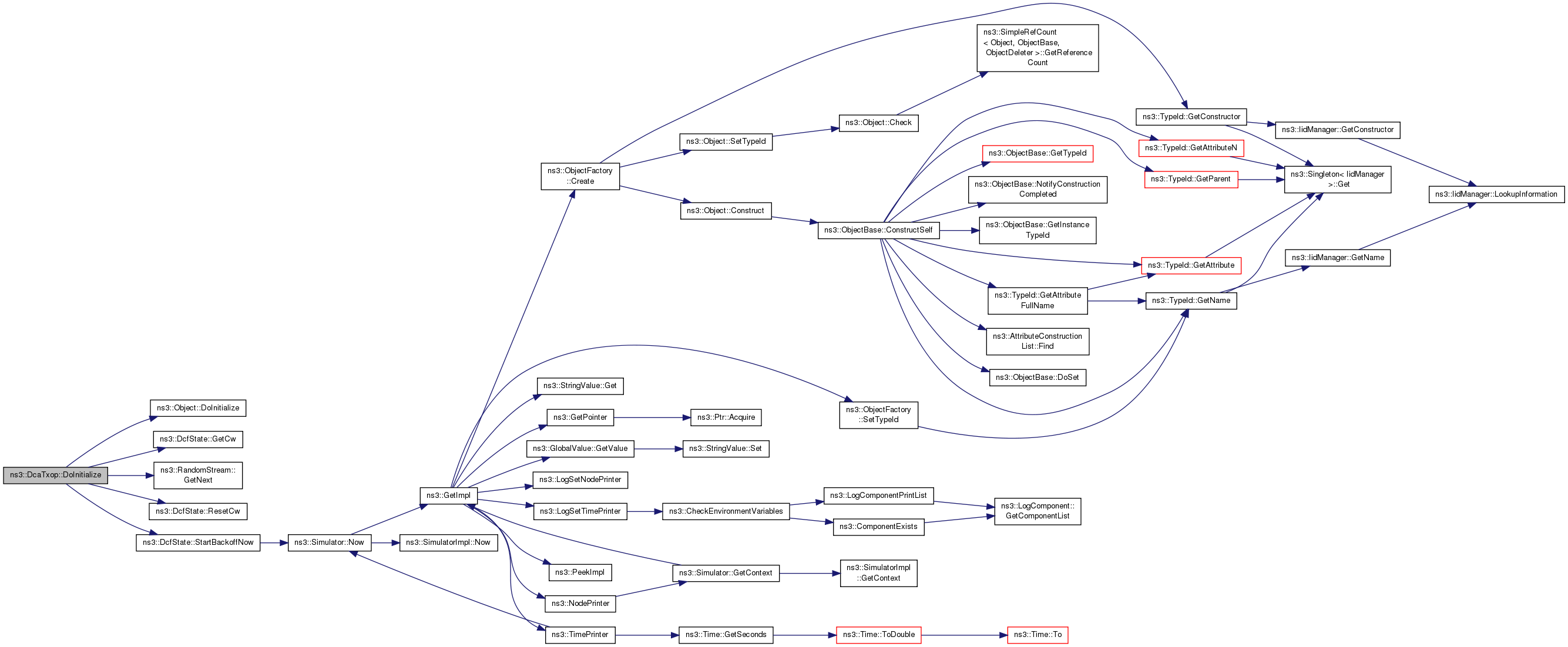

Here is the call graph for this function:

void ns3::DcaTxop::EndTxNoAck ( void )

private

Event handler when a transmission that does not require an ACK has completed.

Definition at line 694 of file dca-txop.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_currentPacket, m_dcf, m_rng, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), StartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::DcaTxop::TransmissionListener::EndTxNoAck().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::DcaTxop::GetAifsn ( void ) const

virtual

Return the number of slots that make up an AIFS.

Returns: the number of slots that make up an AIFS

Implements ns3::Dcf.

Definition at line 282 of file dca-txop.cc.

References ns3::DcfState::GetAifsn(), m_dcf, and NS_LOG_FUNCTION.

Here is the call graph for this function:

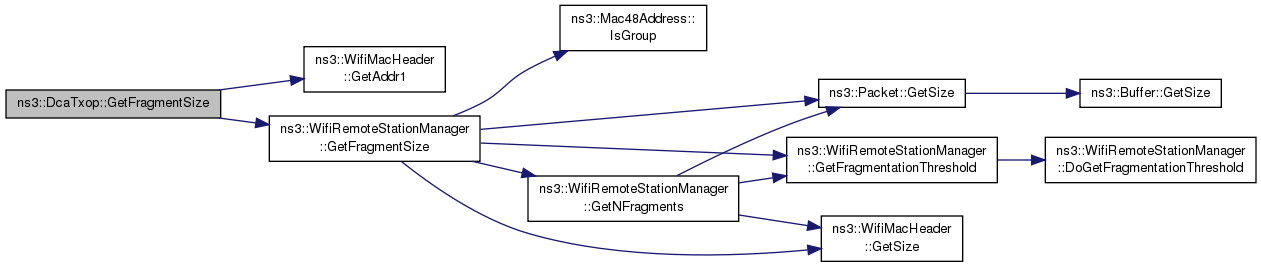

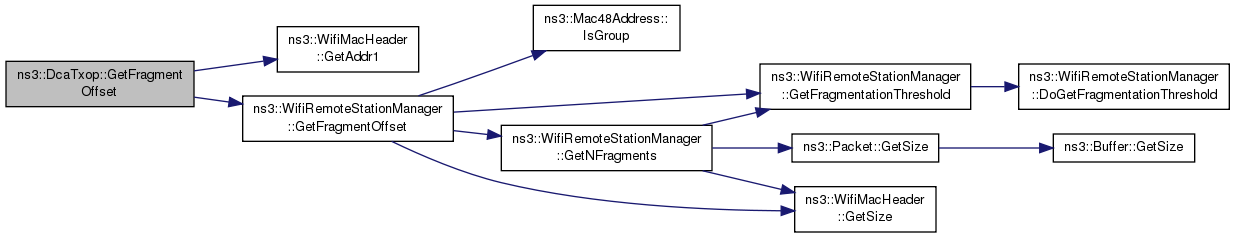

uint32_t ns3::DcaTxop::GetFragmentOffset ( void )

private

Calculate the offset for the current fragment.

Returns: the offset for the current fragment

Definition at line 409 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetFragmentOffset(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

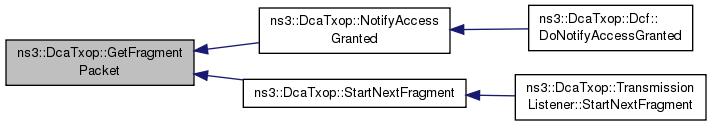

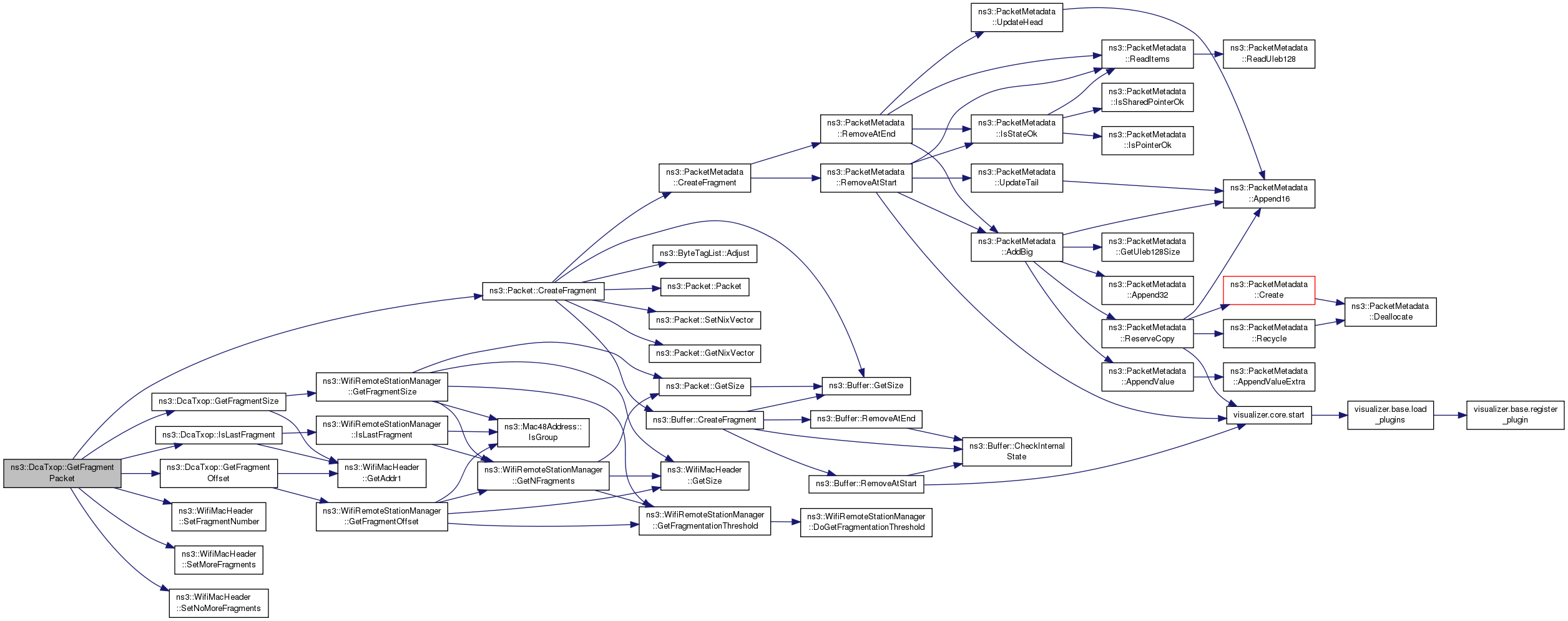

Ptr< Packet > ns3::DcaTxop::GetFragmentPacket ( WifiMacHeader * hdr )

private

Get the next fragment from the packet with appropriate Wifi header for the fragment.

Parameters

hdr

Returns: the fragment with the current fragment number

Definition at line 417 of file dca-txop.cc.

References ns3::Packet::CreateFragment(), GetFragmentOffset(), GetFragmentSize(), IsLastFragment(), m_currentHdr, m_currentPacket, m_fragmentNumber, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetMoreFragments(), and ns3::WifiMacHeader::SetNoMoreFragments().

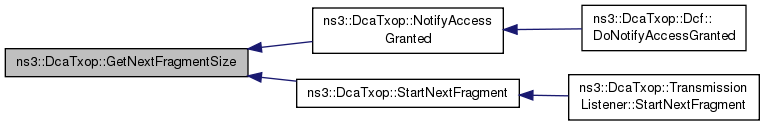

Referenced by NotifyAccessGranted(), and StartNextFragment().

Here is the call graph for this function:

Here is the caller graph for this function:

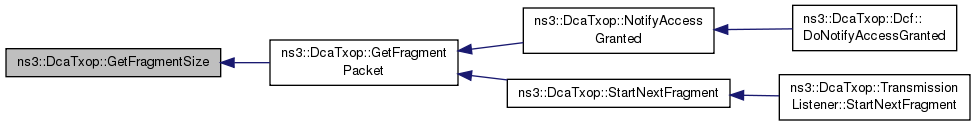

uint32_t ns3::DcaTxop::GetFragmentSize ( void )

private

Calculate the size of the current fragment.

Returns: the size of the current fragment

Definition at line 385 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetFragmentSize(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::DcaTxop::GetMaxCw ( void ) const

virtual

Return the maximum contention window size.

Returns: the maximum contention window size

Implements ns3::Dcf.

Definition at line 275 of file dca-txop.cc.

References ns3::DcfState::GetCwMax(), m_dcf, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::DcaTxop::GetMinCw ( void ) const

virtual

Return the minimum contention window size.

Returns: the minimum contention window size

Implements ns3::Dcf.

Definition at line 268 of file dca-txop.cc.

References ns3::DcfState::GetCwMin(), m_dcf, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::DcaTxop::GetNextFragmentSize ( void )

private

Calculate the size of the next fragment.

Returns: the size of the next fragment

Definition at line 401 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::GetFragmentSize(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by NotifyAccessGranted(), and StartNextFragment().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< WifiMacQueue > ns3::DcaTxop::GetQueue ( void ) const

Return the packet queue associated with this DcaTxop.

Returns: WifiMacQueue

Definition at line 233 of file dca-txop.cc.

References m_queue, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::DcaTxop::GetTxopLimit ( void ) const

virtual

Return the TXOP limit.

Returns: the TXOP limit

Implements ns3::Dcf.

Definition at line 289 of file dca-txop.cc.

References ns3::DcfState::GetTxopLimit(), m_dcf, and NS_LOG_FUNCTION.

Here is the call graph for this function:

TypeId ns3::DcaTxop::GetTypeId ( void )

static

Definition at line 145 of file dca-txop.cc.

References GetQueue(), ns3::MakePointerAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

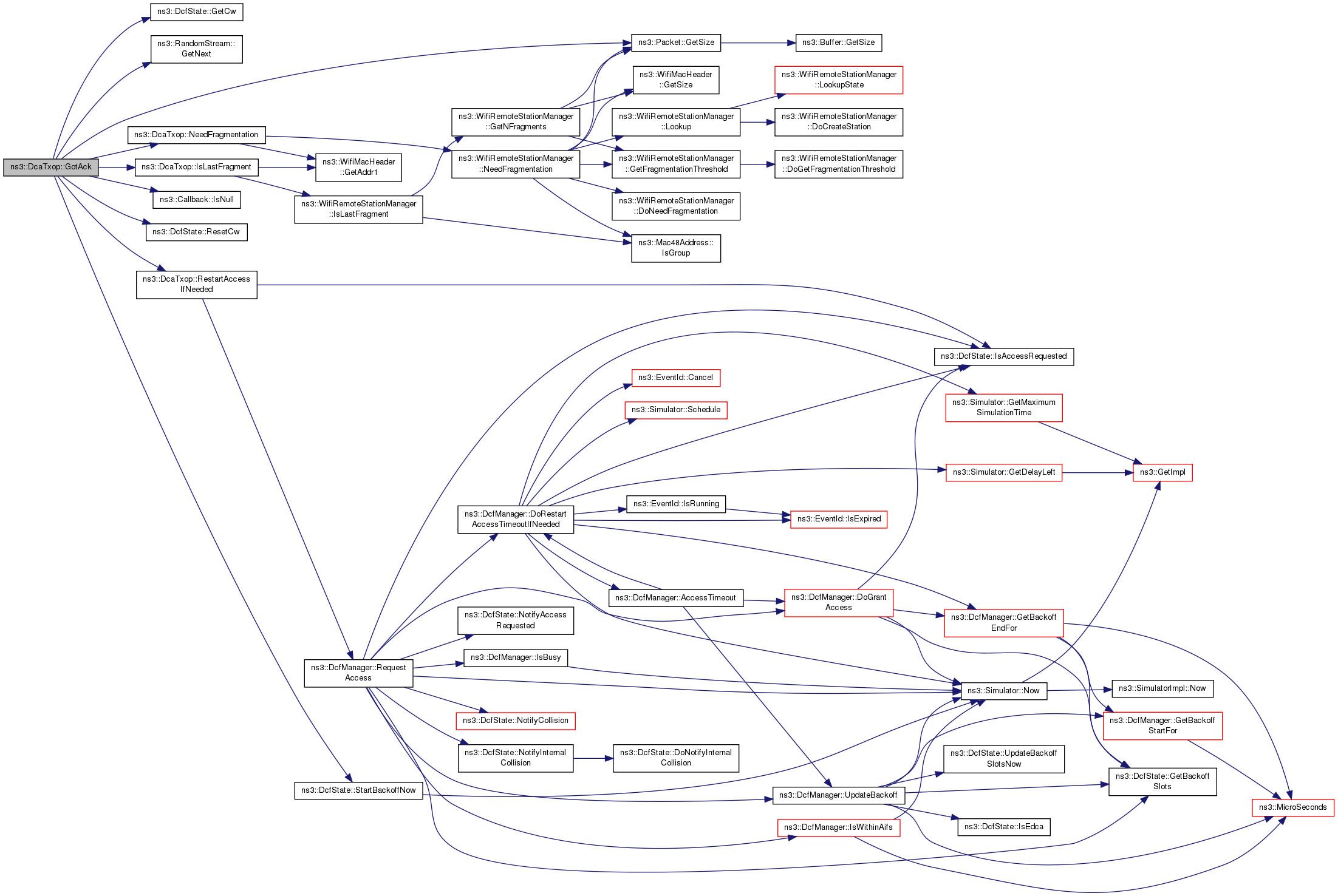

void ns3::DcaTxop::GotAck	(	double	snr,
		WifiMode	txMode
	)

private

Event handler when an ACK is received.

Parameters

snr
txMode

Definition at line 584 of file dca-txop.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Packet::GetSize(), IsLastFragment(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_dcf, m_rng, m_txOkCallback, NeedFragmentation(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::DcaTxop::TransmissionListener::GotAck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::GotCts	(	double	snr,
		WifiMode	txMode
	)

private

Event handler when a CTS is received.

Parameters

snr
txMode

Definition at line 552 of file dca-txop.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::DcaTxop::TransmissionListener::GotCts().

Here is the caller graph for this function:

bool ns3::DcaTxop::IsLastFragment ( void )

private

Check if the curren fragment is the last fragment.

Returns: true if the curren fragment is the last fragment, false otherwise

Definition at line 393 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiRemoteStationManager::IsLastFragment(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_stationManager, and NS_LOG_FUNCTION.

Referenced by GetFragmentPacket(), GotAck(), NotifyAccessGranted(), and StartNextFragment().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< MacLow > ns3::DcaTxop::Low ( void )

private

Return the MacLow associated with this DcaTxop.

Returns: MacLow

Definition at line 338 of file dca-txop.cc.

References m_low, and NS_LOG_FUNCTION.

Referenced by NotifyAccessGranted(), and StartNextFragment().

Here is the caller graph for this function:

void ns3::DcaTxop::MissedAck ( void )

private

Event handler when an ACK is missed.

Definition at line 611 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_dcf, m_rng, m_stationManager, m_txFailedCallback, NeedDataRetransmission(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::ReportFinalDataFailed(), ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), ns3::WifiMacHeader::SetRetry(), ns3::DcfState::StartBackoffNow(), and ns3::DcfState::UpdateFailedCw().

Referenced by ns3::DcaTxop::TransmissionListener::MissedAck().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::MissedCts ( void )

private

Event handler when a CTS timeout has occurred.

Definition at line 559 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_currentHdr, m_currentPacket, m_dcf, m_rng, m_stationManager, m_txFailedCallback, NeedRtsRetransmission(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::ReportFinalRtsFailed(), ns3::DcfState::ResetCw(), RestartAccessIfNeeded(), ns3::DcfState::StartBackoffNow(), and ns3::DcfState::UpdateFailedCw().

Referenced by ns3::DcaTxop::TransmissionListener::MissedCts().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::DcaTxop::NeedDataRetransmission ( void )

private

Check if DATA should be re-transmitted if ACK was missed.

Returns: true if DATA should be re-transmitted, false otherwise

Definition at line 362 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, ns3::WifiRemoteStationManager::NeedDataRetransmission(), and NS_LOG_FUNCTION.

Referenced by MissedAck().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::DcaTxop::NeedFragmentation ( void )

private

Check if the current packet should be fragmented.

Returns: true if the current packet should be fragmented, false otherwise

Definition at line 370 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, ns3::WifiRemoteStationManager::NeedFragmentation(), and NS_LOG_FUNCTION.

Referenced by GotAck(), and NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::DcaTxop::NeedRtsRetransmission ( void )

private

Check if RTS should be re-transmitted if CTS was missed.

Returns: true if RTS should be re-transmitted, false otherwise

Definition at line 354 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_currentHdr, m_currentPacket, m_stationManager, ns3::WifiRemoteStationManager::NeedRtsRetransmission(), and NS_LOG_FUNCTION.

Referenced by MissedCts().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::DcaTxop::NeedsAccess ( void ) const

private

Check if the DCF requires access.

Returns: true if the DCF requires access, false otherwise

Definition at line 438 of file dca-txop.cc.

References m_currentPacket, m_queue, and NS_LOG_FUNCTION.

void ns3::DcaTxop::NextFragment ( void )

private

Continue to the next fragment.

This method simply increments the internal variable that keep track of the current fragment number.

Definition at line 378 of file dca-txop.cc.

References m_fragmentNumber, and NS_LOG_FUNCTION.

Referenced by StartNextFragment().

Here is the caller graph for this function:

void ns3::DcaTxop::NotifyAccessGranted ( void )

private

Notify the DCF that access has been granted.

Definition at line 444 of file dca-txop.cc.

References ns3::MacLowTransmissionParameters::DisableAck(), ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableNextData(), ns3::WifiMacHeader::GetAddr1(), GetFragmentPacket(), GetNextFragmentSize(), ns3::MacTxMiddle::GetNextSequenceNumberfor(), ns3::WifiMacHeader::GetSequenceControl(), ns3::Packet::GetSize(), ns3::Mac48Address::IsGroup(), IsLastFragment(), Low(), m_currentHdr, m_currentPacket, m_fragmentNumber, m_queue, m_stationManager, m_transmissionListener, m_txMiddle, NeedFragmentation(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetFragmentNumber(), ns3::WifiMacHeader::SetNoMoreFragments(), ns3::WifiMacHeader::SetNoRetry(), ns3::WifiMacHeader::SetSequenceNumber(), ns3::MacLow::StartTransmission(), and ns3::WifiRemoteStationManager::UpdateFragmentationThreshold().

Referenced by ns3::DcaTxop::Dcf::DoNotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::NotifyChannelSwitching ( void )

private

When a channel switching occurs, enqueued packets are removed.

Definition at line 526 of file dca-txop.cc.

References m_currentPacket, m_queue, and NS_LOG_FUNCTION.

Referenced by ns3::DcaTxop::Dcf::DoNotifyChannelSwitching().

Here is the caller graph for this function:

void ns3::DcaTxop::NotifyCollision ( void )

private

Notify the DCF that collision has occurred.

Definition at line 518 of file dca-txop.cc.

References ns3::DcfState::GetCw(), ns3::RandomStream::GetNext(), m_dcf, m_rng, NS_LOG_FUNCTION, RestartAccessIfNeeded(), and ns3::DcfState::StartBackoffNow().

Referenced by ns3::DcaTxop::Dcf::DoNotifyCollision(), and NotifyInternalCollision().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::NotifyInternalCollision ( void )

private

Notify the DCF that internal collision has occurred.

Definition at line 511 of file dca-txop.cc.

References NotifyCollision(), and NS_LOG_FUNCTION.

Referenced by ns3::DcaTxop::Dcf::DoNotifyInternalCollision().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::NotifySleep ( void )

private

When sleep operation occurs, if there is a pending packet transmission, it will be reinserted to the front of the queue.

Definition at line 534 of file dca-txop.cc.

References m_currentHdr, m_currentPacket, m_queue, and NS_LOG_FUNCTION.

Referenced by ns3::DcaTxop::Dcf::DoNotifySleep().

Here is the caller graph for this function:

void ns3::DcaTxop::NotifyWakeUp ( void )

private

When wake up operation occurs, channel access will be restarted.

Definition at line 545 of file dca-txop.cc.

References NS_LOG_FUNCTION, and RestartAccessIfNeeded().

Referenced by ns3::DcaTxop::Dcf::DoNotifyWakeUp().

Here is the call graph for this function:

Here is the caller graph for this function:

DcaTxop& ns3::DcaTxop::operator= ( const DcaTxop & )

private

void ns3::DcaTxop::Queue	(	Ptr< const Packet >	packet,
		const WifiMacHeader &	hdr
	)

Parameters

packet	packet to send
hdr	header of packet to send.

Store the packet in the internal queue until it can be sent safely.

Definition at line 296 of file dca-txop.cc.

References ns3::WifiMacHeader::GetAddr1(), m_queue, m_stationManager, NS_LOG_FUNCTION, ns3::WifiRemoteStationManager::PrepareForQueue(), and StartAccessIfNeeded().

Here is the call graph for this function:

void ns3::DcaTxop::RestartAccessIfNeeded ( void )

private

Restart access request if needed.

Definition at line 314 of file dca-txop.cc.

References ns3::DcfState::IsAccessRequested(), m_currentPacket, m_dcf, m_manager, m_queue, NS_LOG_FUNCTION, and ns3::DcfManager::RequestAccess().

Referenced by GotAck(), MissedAck(), MissedCts(), NotifyCollision(), and NotifyWakeUp().

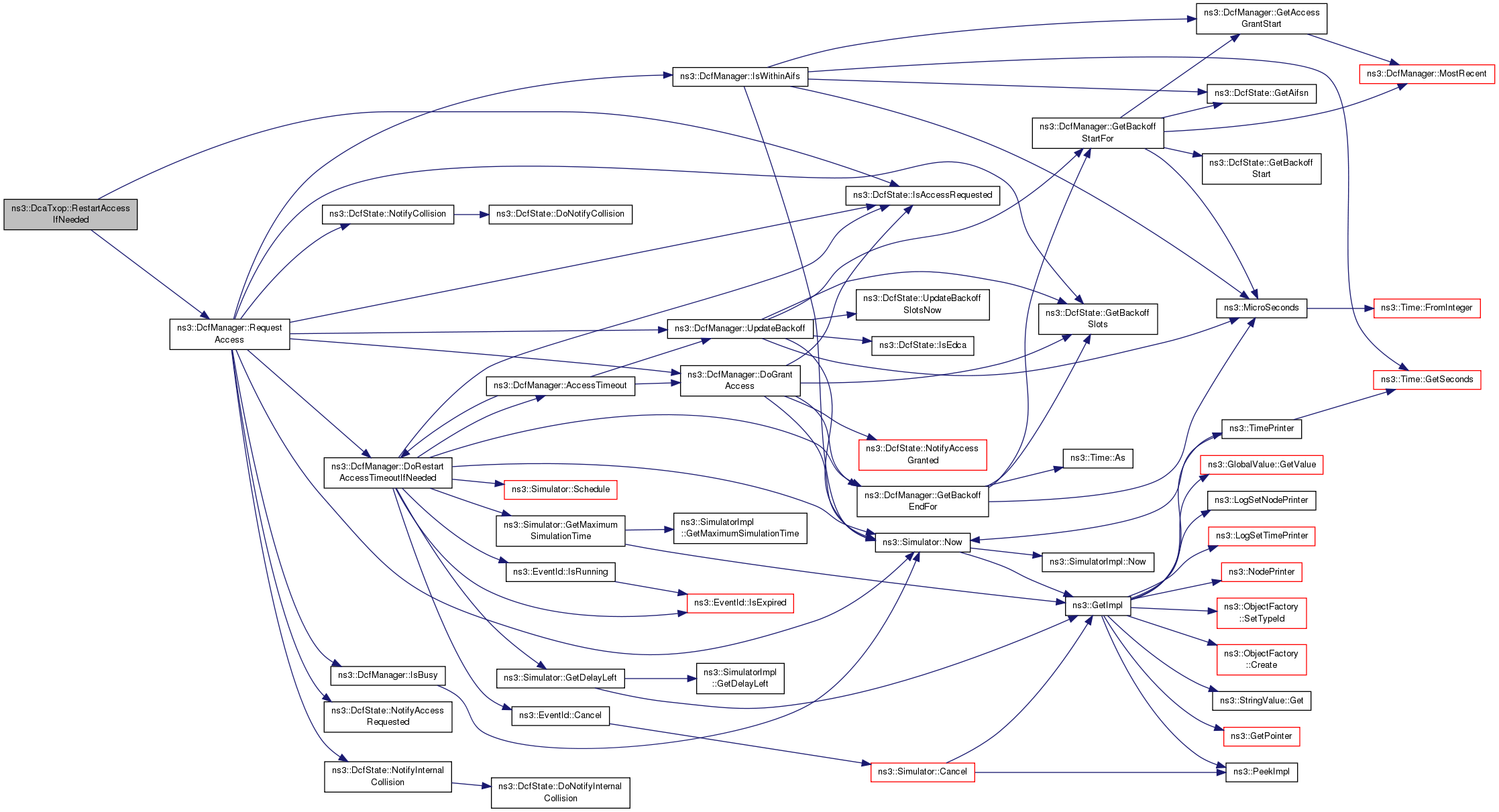

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::SetAifsn ( uint32_t aifsn )

virtual

Parameters

aifsn the number of slots which make up an AIFS for a specific DCF. a DIFS corresponds to an AIFSN = 2.

Calling this method after DcfManager::Add has been called is not recommended.

Implements ns3::Dcf.

Definition at line 254 of file dca-txop.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetAifsn().

Here is the call graph for this function:

void ns3::DcaTxop::SetLow ( Ptr< MacLow > low )

Set MacLow associated with this DcaTxop.

Parameters

low MacLow

Definition at line 205 of file dca-txop.cc.

References m_low, and NS_LOG_FUNCTION.

void ns3::DcaTxop::SetManager ( DcfManager * manager )

Set DcfManager this DcaTxop is associated to.

Parameters

manager DcfManager

Definition at line 192 of file dca-txop.cc.

References ns3::DcfManager::Add(), m_dcf, m_manager, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::DcaTxop::SetMaxCw ( uint32_t maxCw )

virtual

Set the maximum contention window size.

Parameters

maxCw the maximum contention window size

Implements ns3::Dcf.

Definition at line 247 of file dca-txop.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetCwMax().

Here is the call graph for this function:

void ns3::DcaTxop::SetMinCw ( uint32_t minCw )

virtual

Set the minimum contention window size.

Parameters

minCw the minimum contention window size

Implements ns3::Dcf.

Definition at line 240 of file dca-txop.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetCwMin().

Here is the call graph for this function:

void ns3::DcaTxop::SetTxFailedCallback ( TxFailed callback )

Parameters

callback the callback to invoke when a packet transmission was completed unsuccessfully.

Definition at line 226 of file dca-txop.cc.

References m_txFailedCallback, and NS_LOG_FUNCTION.

void ns3::DcaTxop::SetTxMiddle ( MacTxMiddle * txMiddle )

Set MacTxMiddle this DcaTxop is associated to.

Parameters

txMiddle MacTxMiddle

Definition at line 199 of file dca-txop.cc.

References m_txMiddle.

void ns3::DcaTxop::SetTxOkCallback ( TxOk callback )

Parameters

callback the callback to invoke when a packet transmission was completed successfully.

Definition at line 219 of file dca-txop.cc.

References m_txOkCallback, and NS_LOG_FUNCTION.

void ns3::DcaTxop::SetTxopLimit ( Time txopLimit )

virtual

Implements ns3::Dcf.

Definition at line 261 of file dca-txop.cc.

References m_dcf, NS_LOG_FUNCTION, and ns3::DcfState::SetTxopLimit().

Here is the call graph for this function:

void ns3::DcaTxop::SetWifiRemoteStationManager ( Ptr< WifiRemoteStationManager > remoteManager )

Set WifiRemoteStationsManager this DcaTxop is associated to.

Parameters

remoteManager WifiRemoteStationManager

Definition at line 212 of file dca-txop.cc.

References m_stationManager, and NS_LOG_FUNCTION.

void ns3::DcaTxop::StartAccessIfNeeded ( void )

private

Request access from DCF manager if needed.

Definition at line 326 of file dca-txop.cc.

References ns3::DcfState::IsAccessRequested(), m_currentPacket, m_dcf, m_manager, m_queue, NS_LOG_FUNCTION, and ns3::DcfManager::RequestAccess().

Referenced by EndTxNoAck(), and Queue().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DcaTxop::StartNextFragment ( void )

private

Start transmission for the next fragment.

This is called for fragment only.

Definition at line 638 of file dca-txop.cc.

References ns3::MacLowTransmissionParameters::DisableNextData(), ns3::MacLowTransmissionParameters::DisableOverrideDurationId(), ns3::MacLowTransmissionParameters::DisableRts(), ns3::MacLowTransmissionParameters::EnableAck(), ns3::MacLowTransmissionParameters::EnableNextData(), GetFragmentPacket(), GetNextFragmentSize(), IsLastFragment(), Low(), m_transmissionListener, NextFragment(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::MacLow::StartTransmission().

Referenced by ns3::DcaTxop::TransmissionListener::StartNextFragment().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class Dcf

friend

Definition at line 163 of file dca-txop.h.

Referenced by DcaTxop().

friend class TransmissionListener

friend

Definition at line 165 of file dca-txop.h.

Referenced by DcaTxop().

Member Data Documentation

bool ns3::DcaTxop::m_accessOngoing

private

Definition at line 335 of file dca-txop.h.

WifiMacHeader ns3::DcaTxop::m_currentHdr

private

Definition at line 337 of file dca-txop.h.

Referenced by GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), GotAck(), IsLastFragment(), MissedAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRtsRetransmission(), NotifyAccessGranted(), and NotifySleep().

Ptr<const Packet> ns3::DcaTxop::m_currentPacket

private

Definition at line 336 of file dca-txop.h.

Referenced by EndTxNoAck(), GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), GotAck(), IsLastFragment(), MissedAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRtsRetransmission(), NeedsAccess(), NotifyAccessGranted(), NotifyChannelSwitching(), NotifySleep(), RestartAccessIfNeeded(), and StartAccessIfNeeded().

Dcf* ns3::DcaTxop::m_dcf

private

Definition at line 324 of file dca-txop.h.

Referenced by DcaTxop(), DoDispose(), DoInitialize(), EndTxNoAck(), GetAifsn(), GetMaxCw(), GetMinCw(), GetTxopLimit(), GotAck(), MissedAck(), MissedCts(), NotifyCollision(), RestartAccessIfNeeded(), SetAifsn(), SetManager(), SetMaxCw(), SetMinCw(), SetTxopLimit(), and StartAccessIfNeeded().

uint8_t ns3::DcaTxop::m_fragmentNumber

private

Definition at line 338 of file dca-txop.h.

Referenced by GetFragmentOffset(), GetFragmentPacket(), GetFragmentSize(), GetNextFragmentSize(), IsLastFragment(), NextFragment(), and NotifyAccessGranted().

Ptr<MacLow> ns3::DcaTxop::m_low

private

Definition at line 330 of file dca-txop.h.

Referenced by DoDispose(), Low(), and SetLow().

DcfManager* ns3::DcaTxop::m_manager

private

Definition at line 325 of file dca-txop.h.

Referenced by RestartAccessIfNeeded(), SetManager(), and StartAccessIfNeeded().

Ptr<WifiMacQueue> ns3::DcaTxop::m_queue

private

Definition at line 328 of file dca-txop.h.

Referenced by DcaTxop(), DoDispose(), GetQueue(), NeedsAccess(), NotifyAccessGranted(), NotifyChannelSwitching(), NotifySleep(), Queue(), RestartAccessIfNeeded(), and StartAccessIfNeeded().

RandomStream* ns3::DcaTxop::m_rng

private

Definition at line 333 of file dca-txop.h.

Referenced by AssignStreams(), DcaTxop(), DoDispose(), DoInitialize(), EndTxNoAck(), GotAck(), MissedAck(), MissedCts(), and NotifyCollision().

Ptr<WifiRemoteStationManager> ns3::DcaTxop::m_stationManager

private

Definition at line 331 of file dca-txop.h.

Referenced by DoDispose(), GetFragmentOffset(), GetFragmentSize(), GetNextFragmentSize(), IsLastFragment(), MissedAck(), MissedCts(), NeedDataRetransmission(), NeedFragmentation(), NeedRtsRetransmission(), NotifyAccessGranted(), Queue(), and SetWifiRemoteStationManager().

TransmissionListener* ns3::DcaTxop::m_transmissionListener

private

Definition at line 332 of file dca-txop.h.

Referenced by DcaTxop(), DoDispose(), NotifyAccessGranted(), and StartNextFragment().

TxFailed ns3::DcaTxop::m_txFailedCallback

private

Definition at line 327 of file dca-txop.h.

Referenced by MissedAck(), MissedCts(), and SetTxFailedCallback().

MacTxMiddle* ns3::DcaTxop::m_txMiddle

private

Definition at line 329 of file dca-txop.h.

Referenced by DoDispose(), NotifyAccessGranted(), and SetTxMiddle().

TxOk ns3::DcaTxop::m_txOkCallback

private

Definition at line 326 of file dca-txop.h.

Referenced by GotAck(), and SetTxOkCallback().

The documentation for this class was generated from the following files:

src/wifi/model/dca-txop.h
src/wifi/model/dca-txop.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::Dcf

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
