This class uses a simple mechanism to assign channel access with following features: (1) only in the context of single-PHY device; (2) FCFS (First come First service) strategy, which seems against the description of the standard (preemptive strategy). More...

#include "default-channel-scheduler.h"

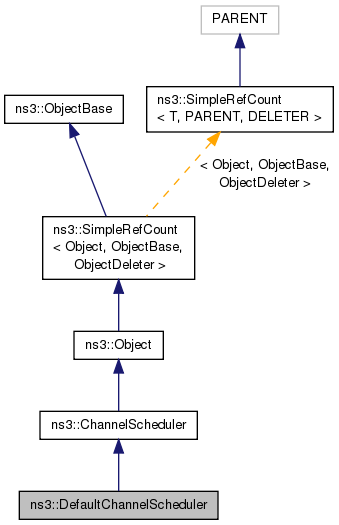

Inheritance diagram for ns3::DefaultChannelScheduler:

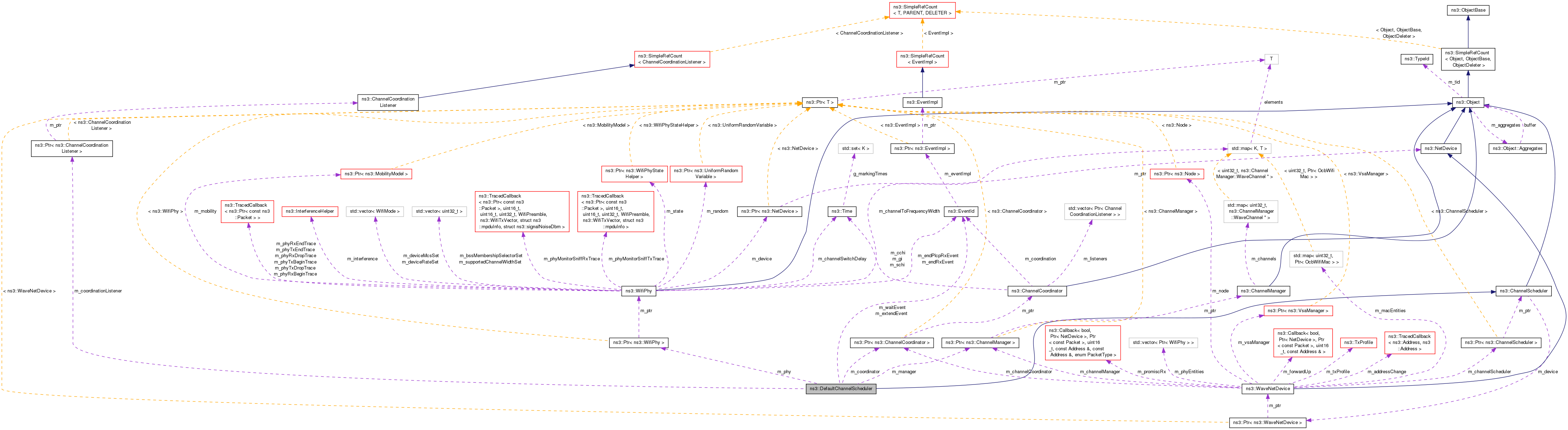

Collaboration diagram for ns3::DefaultChannelScheduler:

Public Member Functions
	DefaultChannelScheduler ()

virtual	~DefaultChannelScheduler ()

virtual enum ChannelAccess	GetAssignedAccessType (uint32_t channelNumber) const

void	NotifyCchSlotStart (Time duration)

void	NotifyGuardSlotStart (Time duration, bool cchi)

void	NotifySchSlotStart (Time duration)

virtual void	SetWaveNetDevice (Ptr< WaveNetDevice > device)

Public Member Functions inherited from ns3::ChannelScheduler
	ChannelScheduler ()

virtual	~ChannelScheduler ()

bool	IsAlternatingAccessAssigned (uint32_t channelNumber) const

bool	IsCchAccessAssigned (void) const

bool	IsChannelAccessAssigned (uint32_t channelNumber) const

bool	IsContinuousAccessAssigned (uint32_t channelNumber) const

bool	IsDefaultCchAccessAssigned (void) const

bool	IsExtendedAccessAssigned (uint32_t channelNumber) const

bool	IsSchAccessAssigned (void) const

bool	StartSch (const SchInfo &schInfo)

bool	StopSch (uint32_t channelNumber)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ChannelScheduler
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual bool	AssignAlternatingAccess (uint32_t channelNumber, bool immediate)

virtual bool	AssignContinuousAccess (uint32_t channelNumber, bool immediate)

virtual bool	AssignDefaultCchAccess (void)
	This method will assign default CCH access for CCH. More...

virtual bool	AssignExtendedAccess (uint32_t channelNumber, uint32_t extends, bool immediate)

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual bool	ReleaseAccess (uint32_t channelNumber)

void	SwitchToNextChannel (uint32_t curChannelNumber, uint32_t nextChannelNumber)

Private Attributes
enum ChannelAccess	m_channelAccess

uint32_t	m_channelNumber
	when m_channelAccess is ContinuousAccess, m_channelNumber is continuous channel number; when m_channelAccess is AlternatingAccess, m_channelNumber is SCH channel number, another alternating channel is CCH; when m_channelAccess is ExtendedAccess, m_channelNumber is extended access, extends is the number of extends access. More...

Ptr< ChannelCoordinationListener >	m_coordinationListener

Ptr< ChannelCoordinator >	m_coordinator

uint32_t	m_extend

EventId	m_extendEvent

Ptr< ChannelManager >	m_manager

Ptr< WifiPhy >	m_phy

uint32_t	m_waitChannelNumber

EventId	m_waitEvent

uint32_t	m_waitExtend

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::ChannelScheduler
Ptr< WaveNetDevice >	m_device

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This class uses a simple mechanism to assign channel access with following features: (1) only in the context of single-PHY device; (2) FCFS (First come First service) strategy, which seems against the description of the standard (preemptive strategy).

Config Paths

ns3::DefaultChannelScheduler is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/ChannelScheduler/$ns3::DefaultChannelScheduler"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 144 bytes (on a 64-bit architecture).

Definition at line 32 of file default-channel-scheduler.h.

Constructor & Destructor Documentation

ns3::DefaultChannelScheduler::DefaultChannelScheduler ( )

Definition at line 65 of file default-channel-scheduler.cc.

References NS_LOG_FUNCTION.

ns3::DefaultChannelScheduler::~DefaultChannelScheduler ( )

virtual

Definition at line 75 of file default-channel-scheduler.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

bool ns3::DefaultChannelScheduler::AssignAlternatingAccess	(	uint32_t	channelNumber,
		bool	immediate
	)

privatevirtual

Parameters

channelNumber	the specific channel
immediate	indicate whether channel switch to channel

Returns: whether the channel access is assigned successfully

This method will assign alternating access for SCHs and CCH.

Implements ns3::ChannelScheduler.

Definition at line 137 of file default-channel-scheduler.cc.

References ns3::AlternatingAccess, CCH, ns3::ContinuousAccess, ns3::ExtendedAccess, ns3::ChannelCoordinator::IsSchInterval(), m_channelAccess, m_channelNumber, m_coordinator, ns3::NoAccess, NS_ASSERT, NS_LOG_FUNCTION, and SwitchToNextChannel().

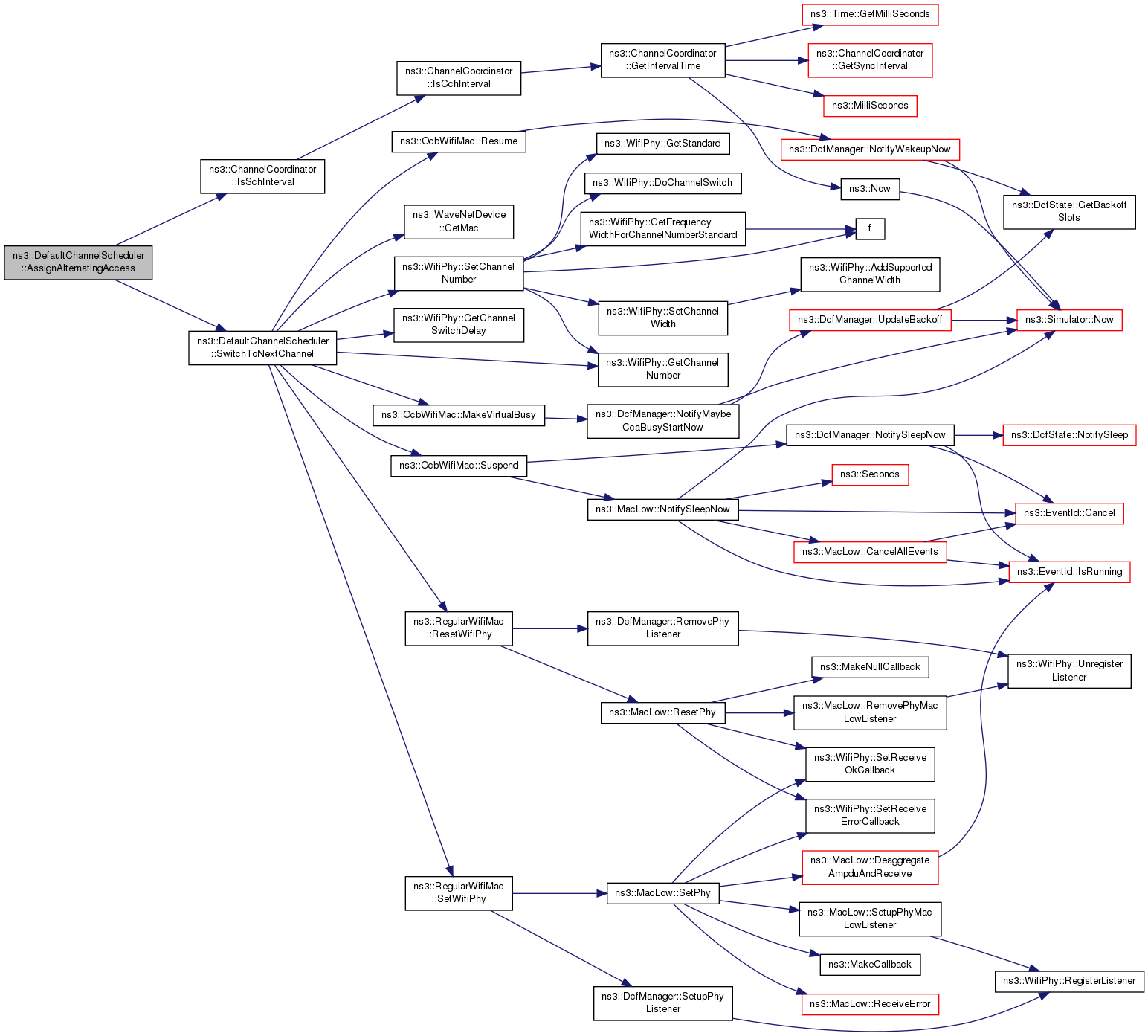

Here is the call graph for this function:

bool ns3::DefaultChannelScheduler::AssignContinuousAccess	(	uint32_t	channelNumber,
		bool	immediate
	)

privatevirtual

Parameters

channelNumber	the specific channel
immediate	indicate whether channel switch to channel

Returns: whether the channel access is assigned successfully

This method will assign continuous SCH access CCH.

Implements ns3::ChannelScheduler.

Definition at line 174 of file default-channel-scheduler.cc.

References ns3::AlternatingAccess, ns3::EventId::Cancel(), ns3::ContinuousAccess, ns3::ExtendedAccess, ns3::EventId::IsExpired(), ns3::ChannelCoordinator::IsSchInterval(), m_channelAccess, m_channelNumber, m_coordinator, m_waitChannelNumber, m_waitEvent, ns3::ChannelCoordinator::NeedTimeToSchInterval(), ns3::NoAccess, NS_ASSERT, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and SwitchToNextChannel().

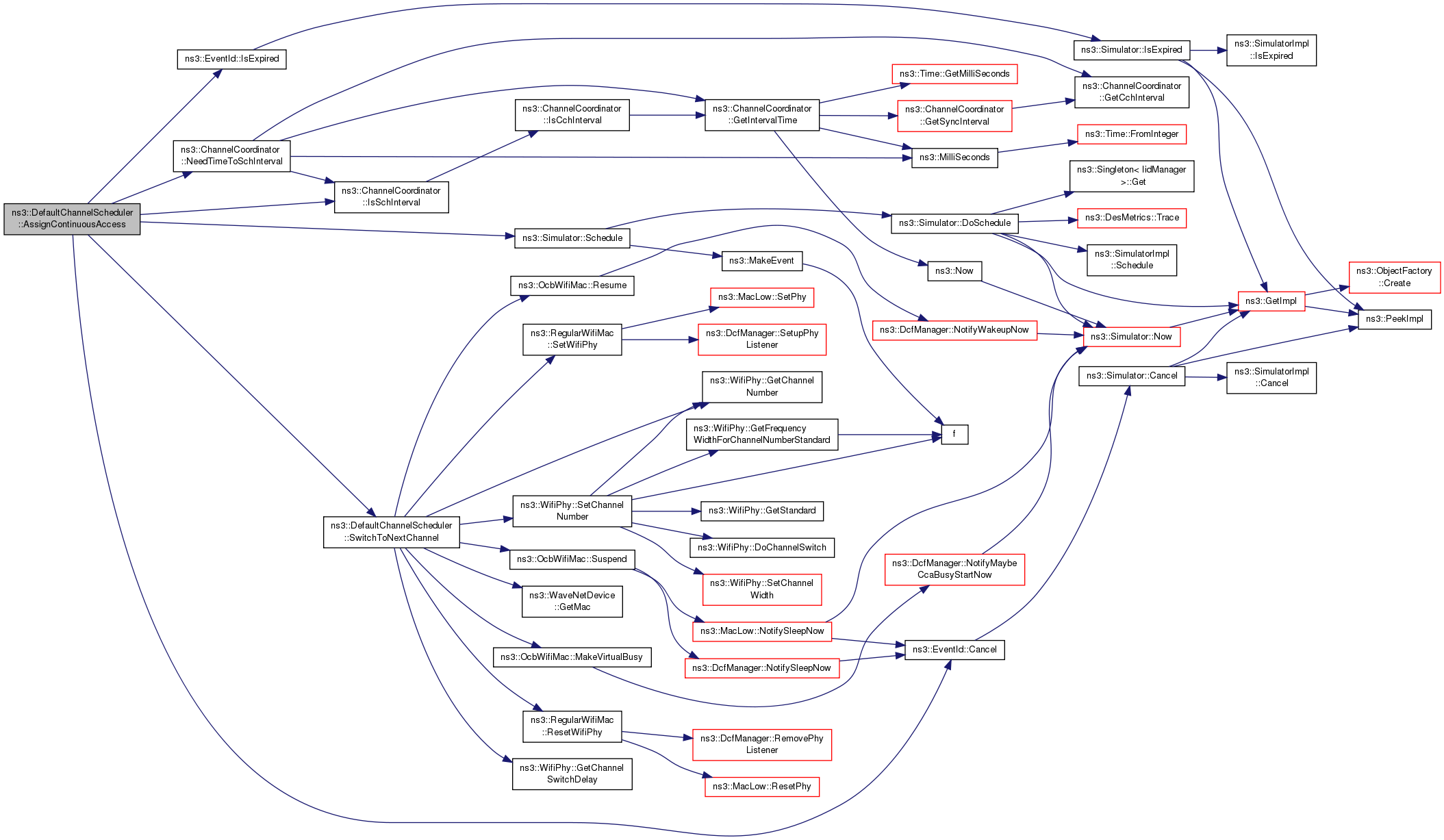

Here is the call graph for this function:

bool ns3::DefaultChannelScheduler::AssignDefaultCchAccess ( void )

privatevirtual

This method will assign default CCH access for CCH.

Implements ns3::ChannelScheduler.

Definition at line 317 of file default-channel-scheduler.cc.

References CCH, ns3::DefaultCchAccess, EXTENDED_CONTINUOUS, ns3::WifiPhy::GetChannelSwitchDelay(), ns3::WaveNetDevice::GetMac(), m_channelAccess, m_channelNumber, ns3::ChannelScheduler::m_device, m_extend, m_phy, ns3::OcbWifiMac::MakeVirtualBusy(), ns3::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::OcbWifiMac::Resume(), ns3::WifiPhy::SetChannelNumber(), and ns3::RegularWifiMac::SetWifiPhy().

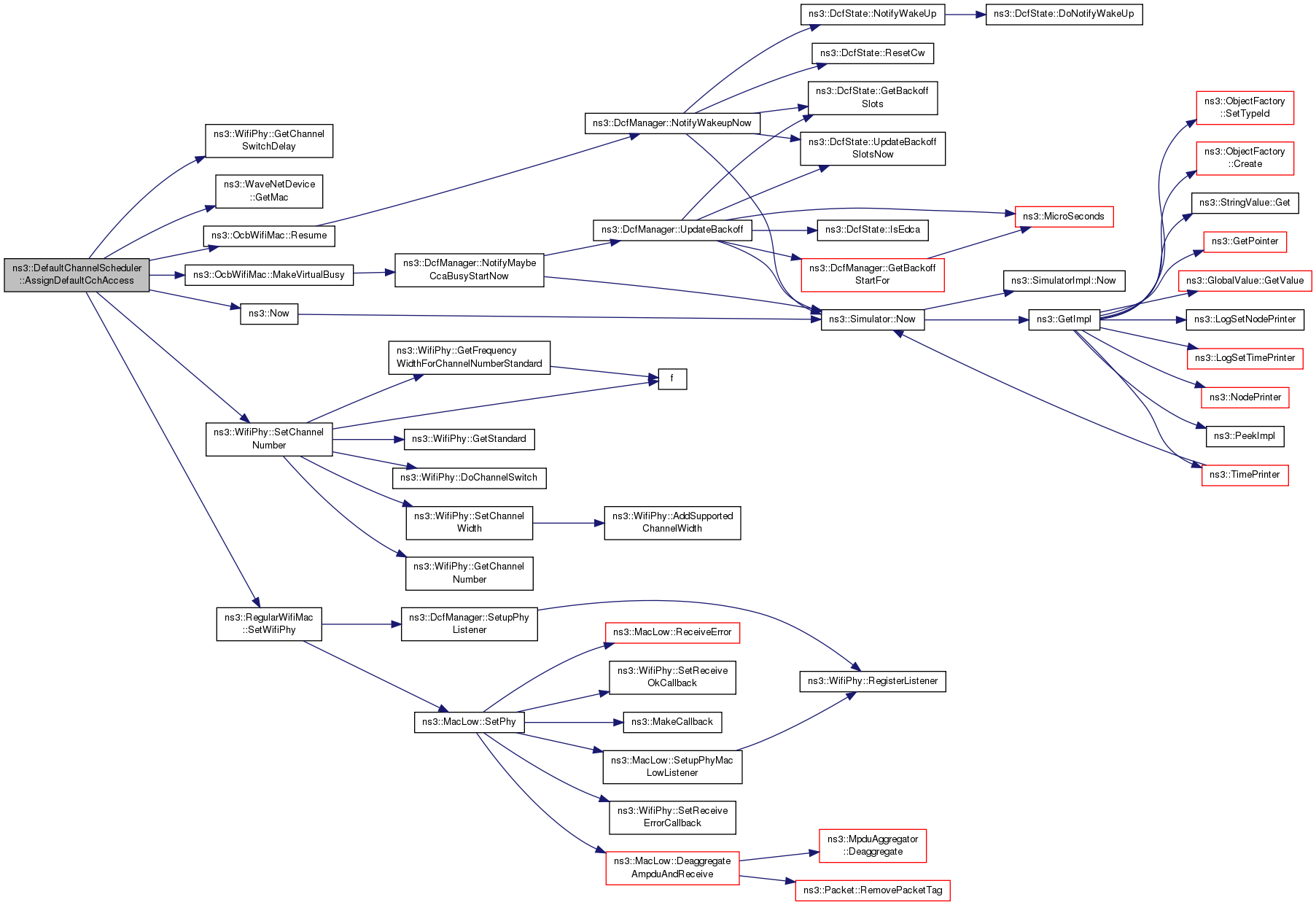

Here is the call graph for this function:

bool ns3::DefaultChannelScheduler::AssignExtendedAccess	(	uint32_t	channelNumber,
		uint32_t	extends,
		bool	immediate
	)

privatevirtual

Parameters

channelNumber	the specific channel
immediate	indicate whether channel switch to channel

Returns: whether the channel access is assigned successfully

This method will assign extended SCH access for SCHs.

Implements ns3::ChannelScheduler.

Definition at line 232 of file default-channel-scheduler.cc.

References ns3::AlternatingAccess, ns3::EventId::Cancel(), ns3::ContinuousAccess, ns3::ExtendedAccess, ns3::Simulator::GetDelayLeft(), ns3::Time::GetMilliSeconds(), ns3::ChannelCoordinator::GetSyncInterval(), ns3::EventId::IsExpired(), ns3::ChannelCoordinator::IsSchInterval(), m_channelAccess, m_channelNumber, m_coordinator, m_extend, m_extendEvent, m_waitChannelNumber, m_waitEvent, m_waitExtend, ns3::MilliSeconds(), ns3::ChannelCoordinator::NeedTimeToCchInterval(), ns3::ChannelCoordinator::NeedTimeToSchInterval(), ns3::NoAccess, NS_ASSERT, NS_LOG_FUNCTION, ReleaseAccess(), ns3::Simulator::Schedule(), and SwitchToNextChannel().

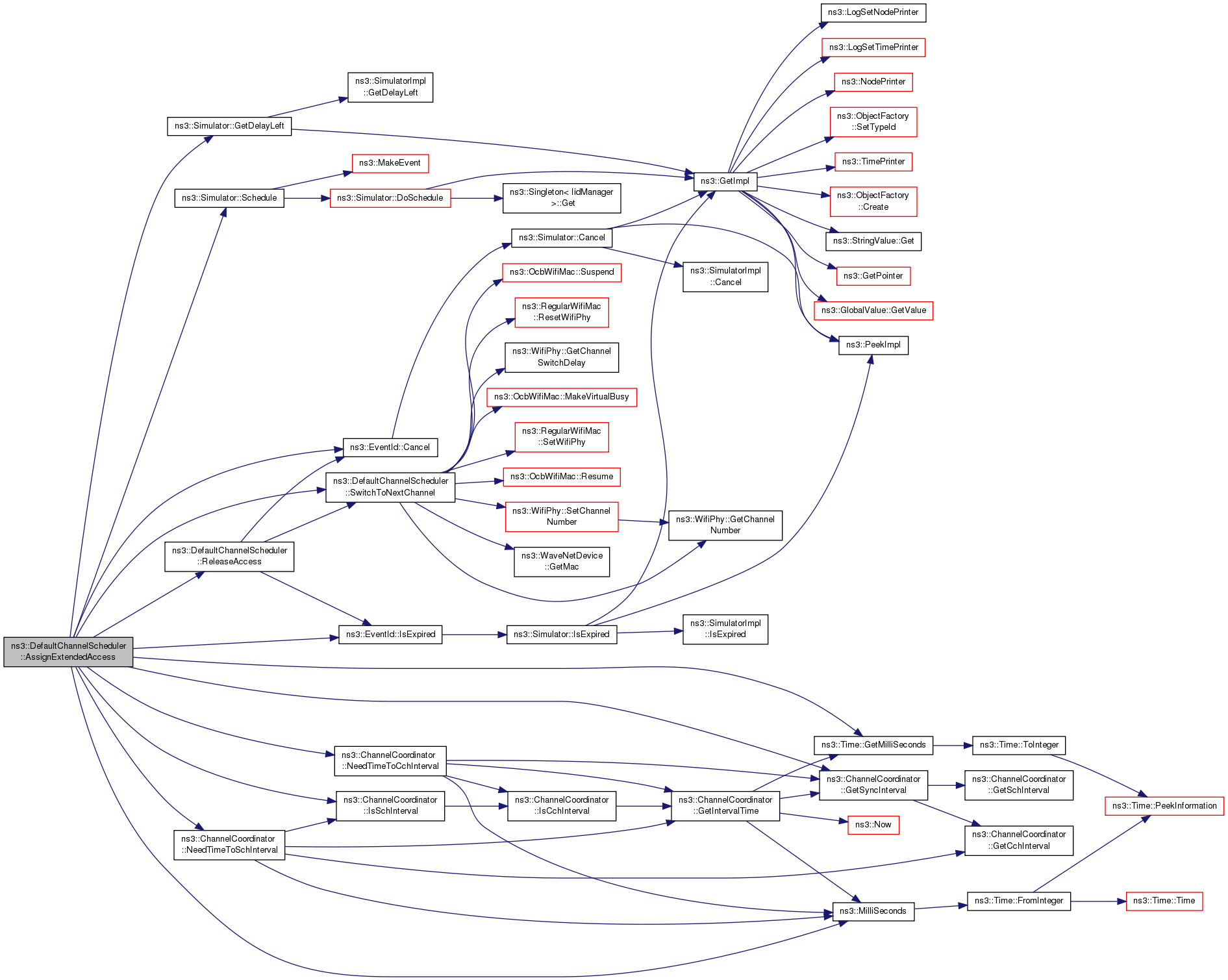

Here is the call graph for this function:

void ns3::DefaultChannelScheduler::DoDispose ( void )

privatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 88 of file default-channel-scheduler.cc.

References ns3::EventId::Cancel(), ns3::Object::DoDispose(), ns3::EventId::IsExpired(), m_coordinationListener, m_coordinator, m_extendEvent, m_waitEvent, and NS_LOG_FUNCTION.

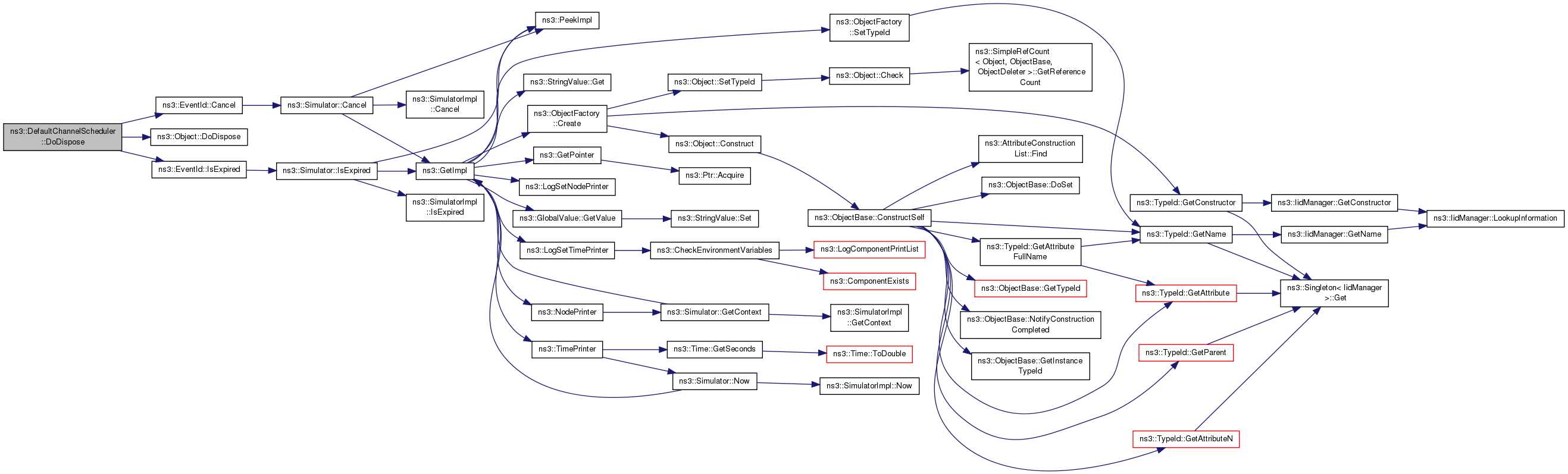

Here is the call graph for this function:

void ns3::DefaultChannelScheduler::DoInitialize ( void )

privatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::ChannelScheduler.

Definition at line 81 of file default-channel-scheduler.cc.

References ns3::ChannelScheduler::DoInitialize(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

enum ChannelAccess ns3::DefaultChannelScheduler::GetAssignedAccessType ( uint32_t channelNumber ) const

virtual

Parameters

channelNumber the specified channel number

Returns: the type of current assigned channel access for the specific channel.

Implements ns3::ChannelScheduler.

Definition at line 125 of file default-channel-scheduler.cc.

References ns3::AlternatingAccess, CCH, m_channelAccess, m_channelNumber, ns3::NoAccess, and NS_LOG_FUNCTION.

TypeId ns3::DefaultChannelScheduler::GetTypeId ( void )

static

Definition at line 55 of file default-channel-scheduler.cc.

References ns3::TypeId::SetParent().

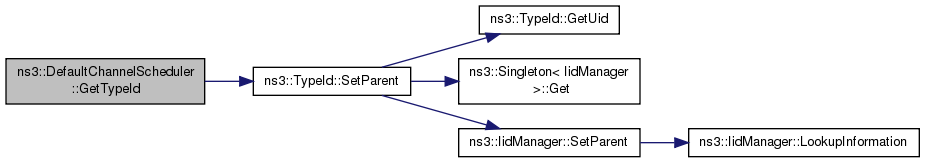

Here is the call graph for this function:

void ns3::DefaultChannelScheduler::NotifyCchSlotStart ( Time duration )

Definition at line 402 of file default-channel-scheduler.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::CoordinationListener::NotifyCchSlotStart().

Here is the caller graph for this function:

void ns3::DefaultChannelScheduler::NotifyGuardSlotStart	(	Time	duration,
		bool	cchi
	)

Definition at line 414 of file default-channel-scheduler.cc.

References ns3::AlternatingAccess, CCH, ns3::WaveNetDevice::GetMac(), m_channelAccess, m_channelNumber, ns3::ChannelScheduler::m_device, third::mac, ns3::OcbWifiMac::MakeVirtualBusy(), NS_LOG_FUNCTION, and SwitchToNextChannel().

Referenced by ns3::CoordinationListener::NotifyGuardSlotStart().

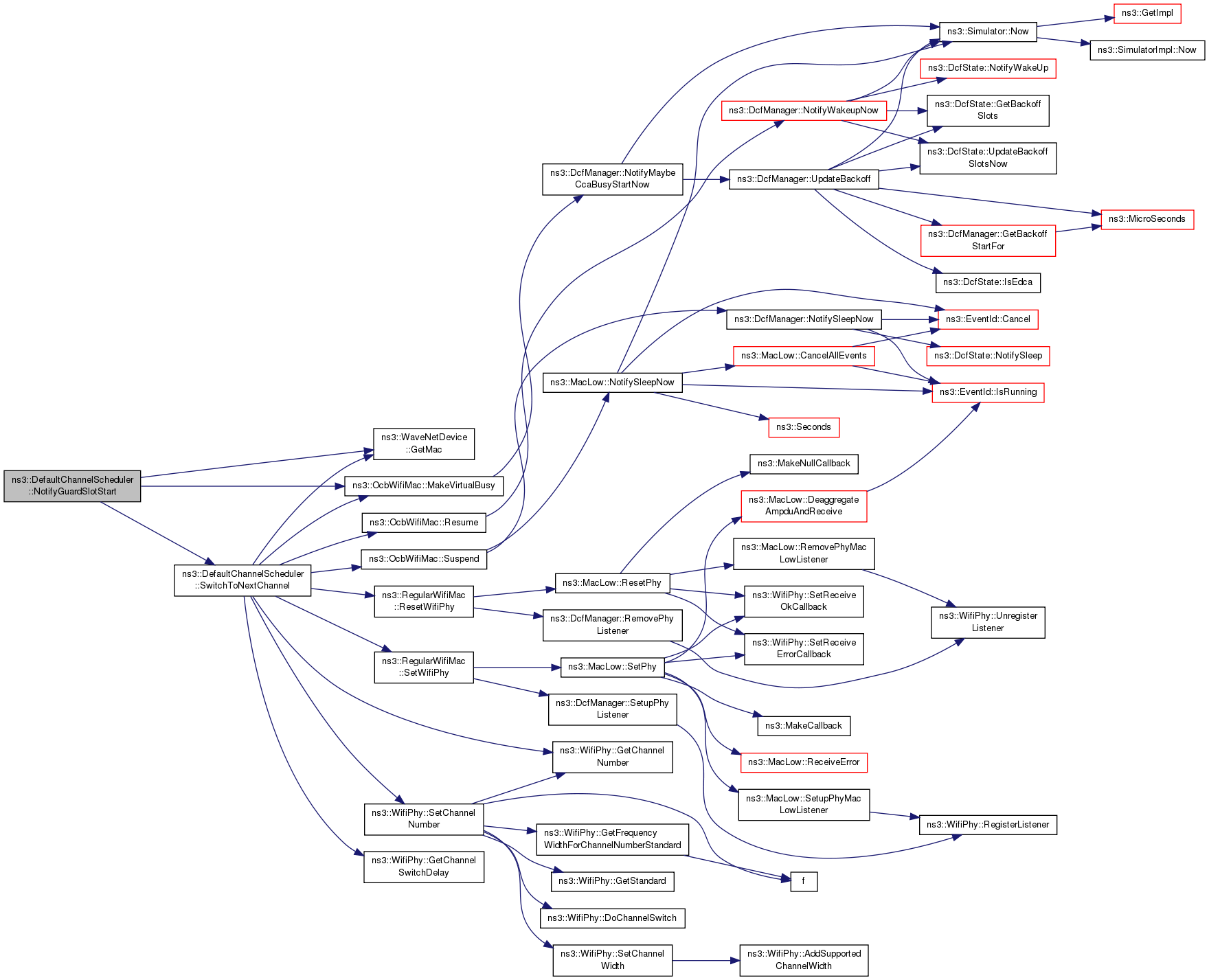

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DefaultChannelScheduler::NotifySchSlotStart ( Time duration )

Definition at line 408 of file default-channel-scheduler.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::CoordinationListener::NotifySchSlotStart().

Here is the caller graph for this function:

bool ns3::DefaultChannelScheduler::ReleaseAccess ( uint32_t channelNumber )

privatevirtual

Parameters

channelNumber indicating for which channel should release the assigned channel access resource.

Implements ns3::ChannelScheduler.

Definition at line 375 of file default-channel-scheduler.cc.

References ns3::EventId::Cancel(), CCH, ns3::DefaultCchAccess, EXTENDED_CONTINUOUS, ns3::EventId::IsExpired(), m_channelAccess, m_channelNumber, m_extend, m_extendEvent, m_waitChannelNumber, m_waitEvent, m_waitExtend, NS_ASSERT, NS_LOG_FUNCTION, and SwitchToNextChannel().

Referenced by AssignExtendedAccess().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::DefaultChannelScheduler::SetWaveNetDevice ( Ptr< WaveNetDevice > device )

virtual

Parameters

device enable channel scheduler associated with WaveNetDevice

Reimplemented from ns3::ChannelScheduler.

Definition at line 108 of file default-channel-scheduler.cc.

References ns3::WaveNetDevice::GetChannelCoordinator(), ns3::WaveNetDevice::GetPhy(), ns3::WaveNetDevice::GetPhys(), m_coordinationListener, m_coordinator, m_phy, NS_LOG_FUNCTION, NS_LOG_WARN, ns3::ChannelCoordinator::RegisterListener(), and ns3::ChannelScheduler::SetWaveNetDevice().

Here is the call graph for this function:

void ns3::DefaultChannelScheduler::SwitchToNextChannel	(	uint32_t	curChannelNumber,
		uint32_t	nextChannelNumber
	)

private

Parameters

curChannelNumber	switch from MAC activity for current channel
nextChannelNumber	switch to MAC activity for next channel

Definition at line 348 of file default-channel-scheduler.cc.

References ns3::WifiPhy::GetChannelNumber(), ns3::WifiPhy::GetChannelSwitchDelay(), ns3::WaveNetDevice::GetMac(), ns3::ChannelScheduler::m_device, m_phy, ns3::OcbWifiMac::MakeVirtualBusy(), NS_LOG_FUNCTION, ns3::RegularWifiMac::ResetWifiPhy(), ns3::OcbWifiMac::Resume(), ns3::WifiPhy::SetChannelNumber(), ns3::RegularWifiMac::SetWifiPhy(), and ns3::OcbWifiMac::Suspend().

Referenced by AssignAlternatingAccess(), AssignContinuousAccess(), AssignExtendedAccess(), NotifyGuardSlotStart(), and ReleaseAccess().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

enum ChannelAccess ns3::DefaultChannelScheduler::m_channelAccess

private

Definition at line 110 of file default-channel-scheduler.h.

Referenced by AssignAlternatingAccess(), AssignContinuousAccess(), AssignDefaultCchAccess(), AssignExtendedAccess(), GetAssignedAccessType(), NotifyGuardSlotStart(), and ReleaseAccess().

uint32_t ns3::DefaultChannelScheduler::m_channelNumber

private

when m_channelAccess is ContinuousAccess, m_channelNumber is continuous channel number; when m_channelAccess is AlternatingAccess, m_channelNumber is SCH channel number, another alternating channel is CCH; when m_channelAccess is ExtendedAccess, m_channelNumber is extended access, extends is the number of extends access.

when m_channelAccess is DefaultCchAccess, m_channelNumber is CCH.

Definition at line 107 of file default-channel-scheduler.h.

Referenced by AssignAlternatingAccess(), AssignContinuousAccess(), AssignDefaultCchAccess(), AssignExtendedAccess(), GetAssignedAccessType(), NotifyGuardSlotStart(), and ReleaseAccess().
