The same service flow manager class serves both for BS and SS though some functions are exclusive to only one of them. More...

#include "service-flow-manager.h"

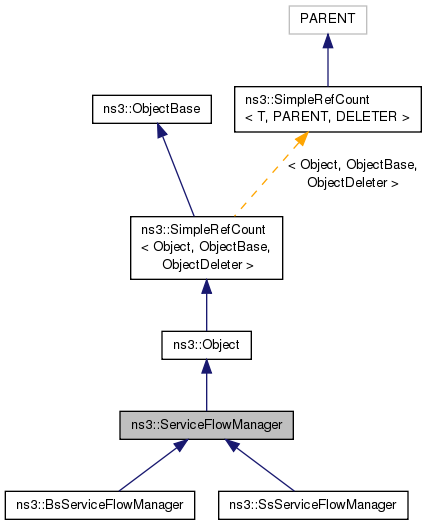

Inheritance diagram for ns3::ServiceFlowManager:

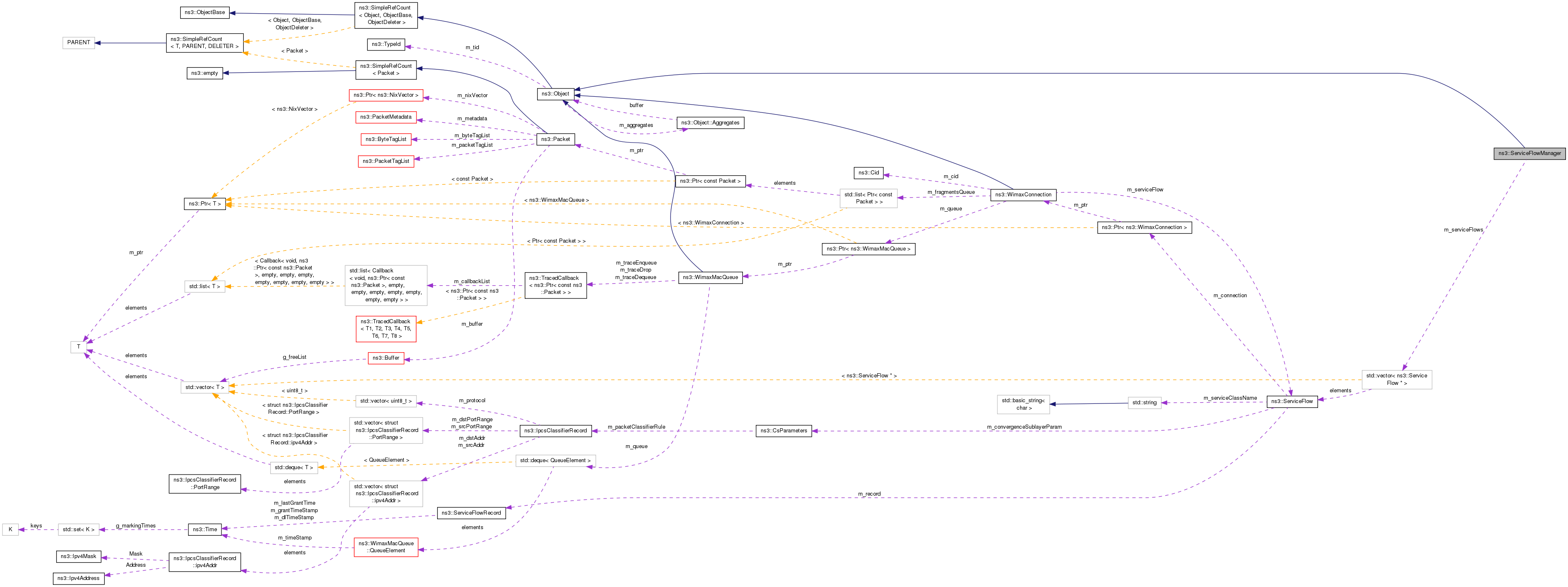

Collaboration diagram for ns3::ServiceFlowManager:

Public Types
enum	ConfirmationCode { CONFIRMATION_CODE_SUCCESS, CONFIRMATION_CODE_REJECT }

Public Member Functions
	ServiceFlowManager ()

	~ServiceFlowManager (void)

void	AddServiceFlow (ServiceFlow *serviceFlow)

bool	AreServiceFlowsAllocated ()

bool	AreServiceFlowsAllocated (std::vector< ServiceFlow * > *serviceFlows)

bool	AreServiceFlowsAllocated (std::vector< ServiceFlow * > serviceFlows)

ServiceFlow *	DoClassify (Ipv4Address SrcAddress, Ipv4Address DstAddress, uint16_t SrcPort, uint16_t DstPort, uint8_t Proto, ServiceFlow::Direction dir) const

void	DoDispose (void)
	Destructor implementation. More...

ServiceFlow *	GetNextServiceFlowToAllocate ()

uint32_t	GetNrServiceFlows (void) const

ServiceFlow *	GetServiceFlow (uint32_t sfid) const

ServiceFlow *	GetServiceFlow (Cid cid) const

std::vector< ServiceFlow * >	GetServiceFlows (enum ServiceFlow::SchedulingType schedulingType) const

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
std::vector< ServiceFlow * > *	m_serviceFlows

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The same service flow manager class serves both for BS and SS though some functions are exclusive to only one of them.

Config Paths

ns3::ServiceFlowManager is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager"
"/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 42 of file service-flow-manager.h.

Constructor & Destructor Documentation

ns3::ServiceFlowManager::ServiceFlowManager ( )

Definition at line 57 of file service-flow-manager.cc.

References m_serviceFlows.

ns3::ServiceFlowManager::~ServiceFlowManager ( void )

Definition at line 62 of file service-flow-manager.cc.

Member Function Documentation

void ns3::ServiceFlowManager::AddServiceFlow ( ServiceFlow * serviceFlow )

Definition at line 78 of file service-flow-manager.cc.

References m_serviceFlows.

Referenced by ns3::BsServiceFlowManager::AddServiceFlow(), and ns3::SsServiceFlowManager::AddServiceFlow().

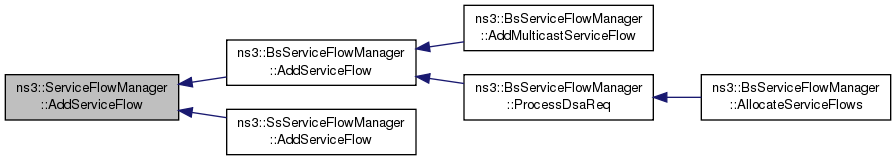

Here is the caller graph for this function:

bool ns3::ServiceFlowManager::AreServiceFlowsAllocated ( )

Returns: true if all service flows are allocated, false otherwise

Definition at line 148 of file service-flow-manager.cc.

References m_serviceFlows.

Referenced by AreServiceFlowsAllocated(), and ns3::BsServiceFlowManager::ProcessDsaAck().

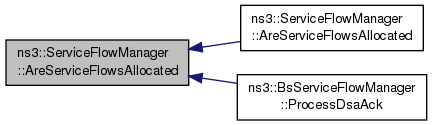

Here is the caller graph for this function:

bool ns3::ServiceFlowManager::AreServiceFlowsAllocated ( std::vector< ServiceFlow * > * serviceFlows )

Parameters

serviceFlows the list of the service flows to be checked

Returns: true if all service flows are allocated, false otherwise

Definition at line 154 of file service-flow-manager.cc.

References AreServiceFlowsAllocated().

Here is the call graph for this function:

bool ns3::ServiceFlowManager::AreServiceFlowsAllocated ( std::vector< ServiceFlow * > serviceFlows )

Parameters

serviceFlows the list of the service flows to be checked

Returns: true if all service flows are allocated, false otherwise

Definition at line 160 of file service-flow-manager.cc.

ServiceFlow * ns3::ServiceFlowManager::DoClassify	(	Ipv4Address	SrcAddress,
		Ipv4Address	DstAddress,
		uint16_t	SrcPort,
		uint16_t	DstPort,
		uint8_t	Proto,
		ServiceFlow::Direction	dir
	)		const

Parameters

SrcAddress	the source ip address
DstAddress	the destination ip address
SrcPort	the source port
DstPort	the destination port
Proto	the protocol
dir	the direction of the service flow

Returns: the service flow to which this ip flow is associated

Definition at line 83 of file service-flow-manager.cc.

References m_serviceFlows.

void ns3::ServiceFlowManager::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::SsServiceFlowManager.

Definition at line 67 of file service-flow-manager.cc.

References m_serviceFlows.

Referenced by ns3::BsServiceFlowManager::DoDispose(), and ns3::SsServiceFlowManager::DoDispose().

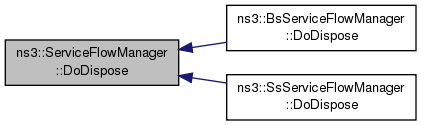

Here is the caller graph for this function:
