ns3::VsaInfo Struct Reference

#include "vsa-manager.h"

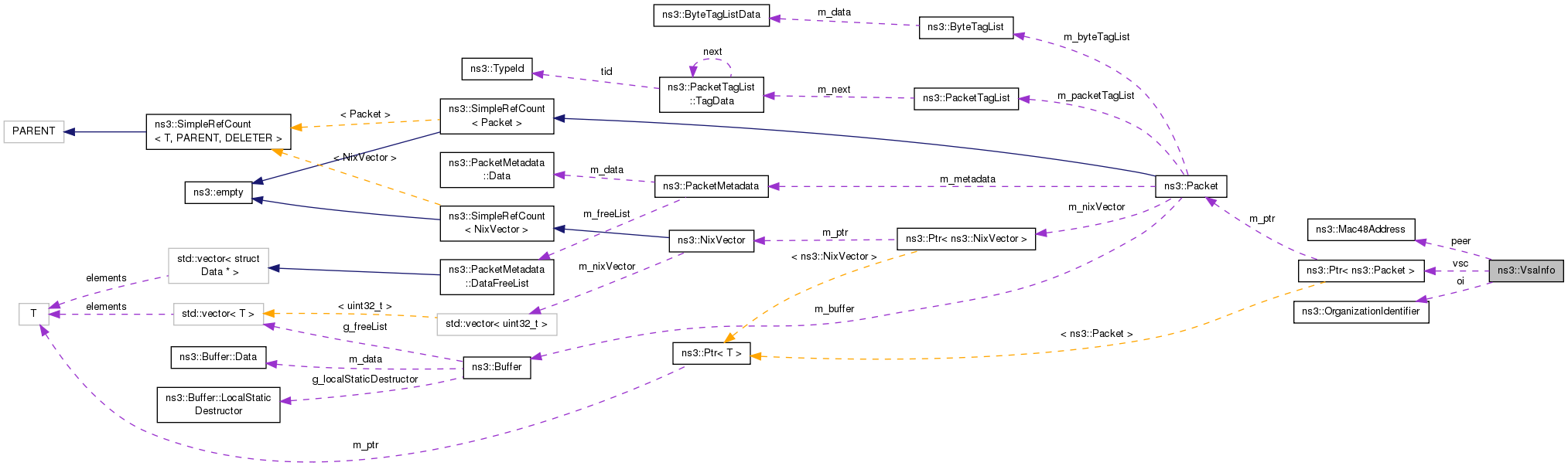

Collaboration diagram for ns3::VsaInfo:

Public Member Functions
	VsaInfo (Mac48Address peer, OrganizationIdentifier identifier, uint8_t manageId, Ptr< Packet > vscPacket, uint32_t channel, uint8_t repeat, enum VsaTransmitInterval interval)

Public Attributes
uint32_t	channelNumber
uint8_t	managementId
OrganizationIdentifier	oi
Mac48Address	peer
uint8_t	repeatRate
enum VsaTransmitInterval	sendInterval
Ptr< Packet >	vsc

Detailed Description

Parameters

peer	The address of the peer MAC entity to which the VSA is sent.
oi	Identifies the source of the data when the source is not an IEEE 1609 entity. See IEEE Std 802.11p.
managementId	Identifies the source of the data when the source is an IEEE 1609 entity. Values are specified in IEEE P1609.0. Valid range: 0-15
vsc	pointer to Information that will be sent as vendor specific content.
vscLength	the length of vendor specific content
channelNumber	The channel on which the transmissions are to occur. While section 7.2 of the standard specifies that channel identification comprises Country String, Operating Class, and Channel Number, the channel number is enough for simulation.
repeatRate	The number of Vendor Specific Action frames to be transmitted per 5 s. A value of 0 indicates a single message is to be sent. If Destination MAC Address is an individual address, Repeat Rate is ignored.
channelInterval	The channel interval in which the transmissions are to occur.

Definition at line 59 of file vsa-manager.h.

Constructor & Destructor Documentation

ns3::VsaInfo::VsaInfo ( Mac48Address  peer, OrganizationIdentifier  identifier, uint8_t  manageId, Ptr< Packet >  vscPacket, uint32_t  channel, uint8_t  repeat, enum VsaTransmitInterval  interval  )

inline

Definition at line 69 of file vsa-manager.h.

Member Data Documentation

uint32_t ns3::VsaInfo::channelNumber

Definition at line 65 of file vsa-manager.h.

Referenced by ChannelRoutingTestCase::DoRun(), ns3::VsaManager::SendVsa(), and ns3::WaveNetDevice::StartVsa().

uint8_t ns3::VsaInfo::managementId

Definition at line 63 of file vsa-manager.h.

Referenced by ns3::VsaManager::SendVsa(), and ns3::WaveNetDevice::StartVsa().

OrganizationIdentifier ns3::VsaInfo::oi

Definition at line 62 of file vsa-manager.h.

Referenced by ns3::VsaManager::SendVsa(), and ns3::WaveNetDevice::StartVsa().

Mac48Address ns3::VsaInfo::peer

Definition at line 61 of file vsa-manager.h.

Referenced by ns3::VsaManager::SendVsa().

uint8_t ns3::VsaInfo::repeatRate

Definition at line 66 of file vsa-manager.h.

Referenced by ns3::VsaManager::SendVsa().

enum VsaTransmitInterval ns3::VsaInfo::sendInterval

Definition at line 67 of file vsa-manager.h.

Referenced by ns3::VsaManager::SendVsa().

Ptr<Packet> ns3::VsaInfo::vsc

Definition at line 64 of file vsa-manager.h.

Referenced by ns3::VsaManager::SendVsa(), and ns3::WaveNetDevice::StartVsa().

---

The documentation for this struct was generated from the following file:

• src/wave/model/vsa-manager.h
