ns3::ArpCache::Entry Class Reference

A record that that holds information about an ArpCache entry. More...

#include <arp-cache.h>

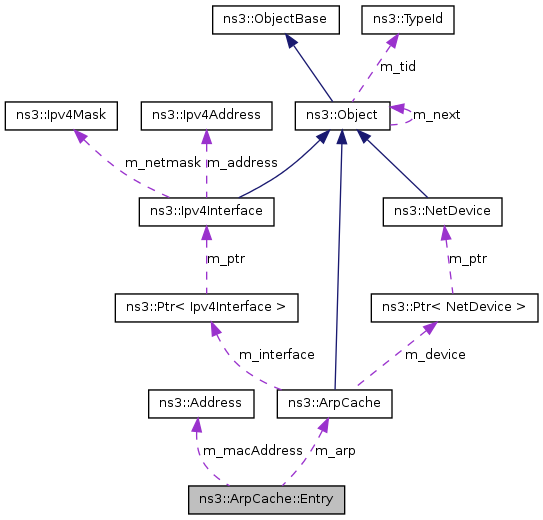

Collaboration diagram for ns3::ArpCache::Entry:

List of all members.

Public Member Functions
	Entry (ArpCache *arp)
	Constructor.
void	MarkDead (void)
	Changes the state of this entry to dead.
void	MarkAlive (Address macAddress)
void	MarkWaitReply (Ptr< Packet > waiting)
bool	UpdateWaitReply (Ptr< Packet > waiting)
bool	IsDead (void)
bool	IsAlive (void)
bool	IsWaitReply (void)
Address	GetMacAddress (void)
bool	IsExpired (void)
Ptr< Packet >	DequeuePending (void)

---

Detailed Description

A record that that holds information about an ArpCache entry.

---

Constructor & Destructor Documentation

ns3::ArpCache::Entry::Entry

(

ArpCache *

arp

)

Constructor.

Parameters:

arp

The ArpCache this entry belongs to

---

Member Function Documentation

Ptr<Packet> ns3::ArpCache::Entry::DequeuePending

(

void

)

Returns:

0 is no packet is pending, the next packet to send if packets are pending.

Address ns3::ArpCache::Entry::GetMacAddress

(

void

)

Returns:

The MacAddress of this entry

bool ns3::ArpCache::Entry::IsAlive

(

void

)

Returns:

True if the state of this entry is alive; false otherwise.

bool ns3::ArpCache::Entry::IsDead

(

void

)

Returns:

True if the state of this entry is dead; false otherwise.

bool ns3::ArpCache::Entry::IsExpired

(

void

)

Returns:

True if this entry has timedout; false otherwise.

bool ns3::ArpCache::Entry::IsWaitReply

(

void

)

Returns:

True if the state of this entry is wait_reply; false otherwise.

void ns3::ArpCache::Entry::MarkAlive

(

Address

macAddress

)

Parameters:

macAddress

void ns3::ArpCache::Entry::MarkWaitReply

(

Ptr< Packet >

waiting

)

Parameters:

waiting

bool ns3::ArpCache::Entry::UpdateWaitReply

(

Ptr< Packet >

waiting

)

Parameters:

waiting

Returns:

---

The documentation for this class was generated from the following file:

• src/internet-stack/arp-cache.h
