ns3::AcousticModemEnergyModelHelper Class Reference

Assign AcousticModemEnergyModel to uan devices. More...

#include <acoustic-modem-energy-model-helper.h>

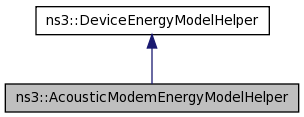

Inheritance diagram for ns3::AcousticModemEnergyModelHelper:

[legend]

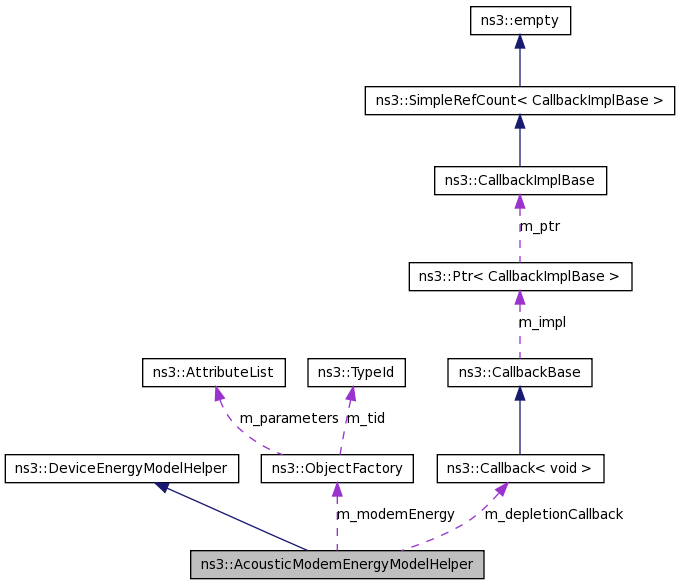

Collaboration diagram for ns3::AcousticModemEnergyModelHelper:

[legend]

List of all members.

Public Member Functions
	AcousticModemEnergyModelHelper ()
	~AcousticModemEnergyModelHelper ()
void	Set (std::string name, const AttributeValue &v)
void	SetDepletionCallback (AcousticModemEnergyModel::AcousticModemEnergyDepletionCallback callback)

---

Detailed Description

Assign AcousticModemEnergyModel to uan devices.

This installer installs AcousticModemEnergyModel for only UanNetDevice objects.

---

Constructor & Destructor Documentation

ns3::AcousticModemEnergyModelHelper::AcousticModemEnergyModelHelper

(

)

Construct a helper which is used to add a radio energy model to a node

ns3::AcousticModemEnergyModelHelper::~AcousticModemEnergyModelHelper

(

)

Destroy an AcousticModemEnergy Helper

---

Member Function Documentation

void ns3::AcousticModemEnergyModelHelper::Set	(	std::string	name,
		const AttributeValue &	v
	)			[virtual]

Parameters:

	name	the name of the attribute to set
	v	the value of the attribute

Sets an attribute of the underlying energy model object.

Implements ns3::DeviceEnergyModelHelper.

void ns3::AcousticModemEnergyModelHelper::SetDepletionCallback

(

AcousticModemEnergyModel::AcousticModemEnergyDepletionCallback

callback

)

Parameters:

callback

Callback function for energy depletion handling.

Sets the callback to be invoked when energy is depleted.

---

The documentation for this class was generated from the following file:

• src/devices/uan/helper/acoustic-modem-energy-model-helper.h
