ns3::ConstantRateWifiManager Class Reference

use constant rates for data and control transmissions More...

#include <constant-rate-wifi-manager.h>

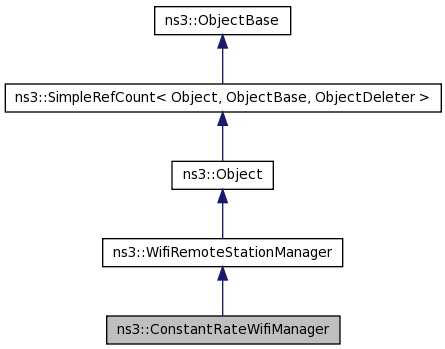

Inheritance diagram for ns3::ConstantRateWifiManager:
Inheritance graph
[legend]

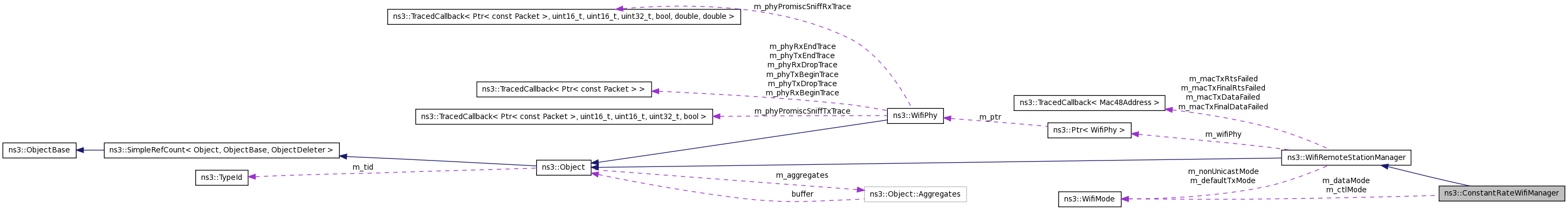

Collaboration diagram for ns3::ConstantRateWifiManager:
Collaboration graph
[legend]

List of all members.

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::ConstantRateWifiManager.

Detailed Description

use constant rates for data and control transmissions

This class uses always the same transmission rate for every packet sent.

Member Function Documentation

static TypeId ns3::ConstantRateWifiManager::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::ConstantRateWifiManager.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiNetDevice/RemoteStationManager/$ns3::ConstantRateWifiManager
  • /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiRemoteStationManager/$ns3::ConstantRateWifiManager

Attributes defined for this type:

  • DataMode: The transmission mode to use for every data packet transmission
    • Set with class: WifiModeValue
    • Underlying type: WifiMode
    • Initial value: OfdmRate6Mbps
    • Flags: construct write read
  • ControlMode: The transmission mode to use for every control packet transmission.
    • Set with class: WifiModeValue
    • Underlying type: WifiMode
    • Initial value: OfdmRate6Mbps
    • Flags: construct write read

Attributes defined in parent class ns3::WifiRemoteStationManager:

  • IsLowLatency: If true, we attempt to modelize a so-called low-latency device: a device where decisions about tx parameters can be made on a per-packet basis and feedback about the transmission of each packet is obtained before sending the next. Otherwise, we modelize a high-latency device, that is a device where we cannot update our decision about tx parameters after every packet transmission.
  • MaxSsrc: The maximum number of retransmission attempts for an RTS. This value will not have any effect on some rate control algorithms.
  • MaxSlrc: The maximum number of retransmission attempts for a DATA packet. This value will not have any effect on some rate control algorithms.
  • RtsCtsThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is bigger than this value, we use an RTS/CTS handshake before sending the data, as per IEEE Std. 802.11-2007, Section 9.2.6. This value will not have any effect on some rate control algorithms.
  • FragmentationThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is biggerthan this value, we fragment it such that the size of the fragments are equal or smaller than this value, as per IEEE Std. 802.11-2007, Section 9.4. This value will not have any effect on some rate control algorithms.
  • NonUnicastMode: Wifi mode used for non-unicast transmissions.
    • Set with class: WifiModeValue
    • Underlying type: WifiMode
    • Initial value: Invalid-WifiMode
    • Flags: construct write read

No TraceSources defined for this type.
TraceSources defined in parent class ns3::WifiRemoteStationManager:

  • MacTxRtsFailed: The transmission of a RTS by the MAC layer has failed
  • MacTxDataFailed: The transmission of a data packet by the MAC layer has failed
  • MacTxFinalRtsFailed: The transmission of a RTS has exceeded the maximum number of attempts
  • MacTxFinalDataFailed: The transmission of a data packet has exceeded the maximum number of attempts

Reimplemented from ns3::WifiRemoteStationManager.

The documentation for this class was generated from the following files:
