ns3::CqiIdealControlMessage Class Reference

#include <ideal-control-messages.h>

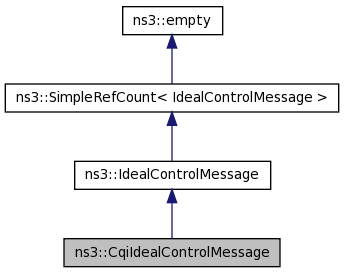

Inheritance diagram for ns3::CqiIdealControlMessage:

[legend]

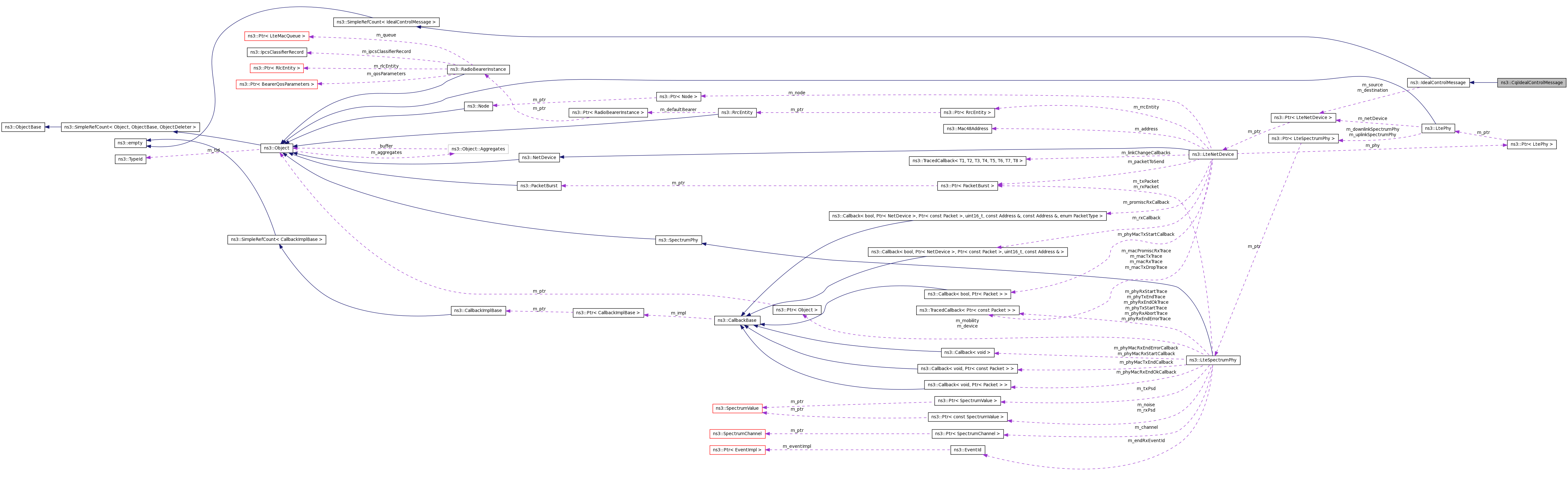

Collaboration diagram for ns3::CqiIdealControlMessage:

[legend]

List of all members.

Classes
struct	CqiFeedback
Public Types
typedef std::list< struct CqiFeedback >	CqiFeedbacks
Public Member Functions
void	AddNewRecord (int subChannel, double cqi)
	add a CQI feedback record into the message.
CqiFeedbacks *	GetMessage (void)
	Get cqi informations.

---

Detailed Description

The CqiIdealControlMessage defines an ideal list of feedback about the channel quality sent by the UE to the eNodeB.

---

Member Typedef Documentation

typedef std::list<struct CqiFeedback> ns3::CqiIdealControlMessage::CqiFeedbacks

The ideal CQI feedback message

---

Member Function Documentation

void ns3::CqiIdealControlMessage::AddNewRecord	(	int	subChannel,
		double	cqi
	)

add a CQI feedback record into the message.

Parameters:

	subChannel	the scheduled sub channel
	cqi	the cqi feedback

CqiFeedbacks* ns3::CqiIdealControlMessage::GetMessage

(

void

)

Get cqi informations.

Returns:

cqi messages

---

The documentation for this class was generated from the following file:

• src/devices/lte/model/ideal-control-messages.h
