ns3::CsmaHelper Class Reference
build a set of CsmaNetDevice objects More...
#include <csma-helper.h>
Public Member Functions | |
| CsmaHelper () | |
| void | SetQueue (std::string type, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue()) |
| void | SetDeviceAttribute (std::string n1, const AttributeValue &v1) |
| void | SetChannelAttribute (std::string n1, const AttributeValue &v1) |
| NetDeviceContainer | Install (Ptr< Node > node) const |
| NetDeviceContainer | Install (std::string name) const |
| NetDeviceContainer | Install (Ptr< Node > node, Ptr< CsmaChannel > channel) const |
| NetDeviceContainer | Install (Ptr< Node > node, std::string channelName) const |
| NetDeviceContainer | Install (std::string nodeName, Ptr< CsmaChannel > channel) const |
| NetDeviceContainer | Install (std::string nodeName, std::string channelName) const |
| NetDeviceContainer | Install (const NodeContainer &c) const |
| NetDeviceContainer | Install (const NodeContainer &c, Ptr< CsmaChannel > channel) const |
| NetDeviceContainer | Install (const NodeContainer &c, std::string channelName) const |
Detailed Description
build a set of CsmaNetDevice objects

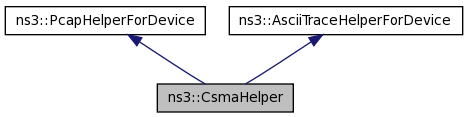

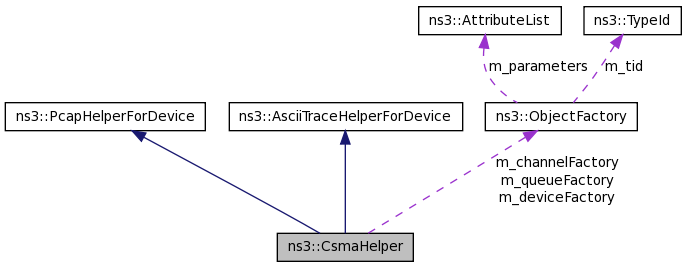

Normally we eschew multiple inheritance, however, the classes PcapUserHelperForDevice and AsciiTraceUserHelperForDevice are treated as "mixins". A mixin is a self-contained class that encapsulates a general attribute or a set of functionality that may be of interest to many other classes.
Constructor & Destructor Documentation
| ns3::CsmaHelper::CsmaHelper | ( | ) |
Construct a CsmaHelper.
Member Function Documentation
| NetDeviceContainer ns3::CsmaHelper::Install | ( | const NodeContainer & | c, | |
| std::string | channelName | |||
| ) | const |
For each Ptr<node> in the provided container, this method creates an ns3::CsmaNetDevice (with the attributes configured by CsmaHelper::SetDeviceAttribute); adds the device to the node; and attaches the provided channel to the device.
- Parameters:
-
c The NodeContainer holding the nodes to be changed. channelName The name of the channel to attach to the devices.
- Returns:
- A container holding the added net devices.
| NetDeviceContainer ns3::CsmaHelper::Install | ( | const NodeContainer & | c, | |
| Ptr< CsmaChannel > | channel | |||
| ) | const |
For each Ptr<node> in the provided container, this method creates an ns3::CsmaNetDevice (with the attributes configured by CsmaHelper::SetDeviceAttribute); adds the device to the node; and attaches the provided channel to the device.
- Parameters:
-
c The NodeContainer holding the nodes to be changed. channel The channel to attach to the devices.
- Returns:
- A container holding the added net devices.
| NetDeviceContainer ns3::CsmaHelper::Install | ( | const NodeContainer & | c | ) | const |
This method creates an ns3::CsmaChannel with the attributes configured by CsmaHelper::SetChannelAttribute. For each Ptr<node> in the provided container: it creates an ns3::CsmaNetDevice (with the attributes configured by CsmaHelper::SetDeviceAttribute); adds the device to the node; and attaches the channel to the device.
- Parameters:
-
c The NodeContainer holding the nodes to be changed.
- Returns:
- A container holding the added net devices.
| NetDeviceContainer ns3::CsmaHelper::Install | ( | std::string | nodeName, | |
| std::string | channelName | |||
| ) | const |
This method creates an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device.
- Parameters:
-
nodeName The name of the node to install the device in channelName The name of the channel to attach to the device.
- Returns:
- A container holding the added net device.
| NetDeviceContainer ns3::CsmaHelper::Install | ( | std::string | nodeName, | |
| Ptr< CsmaChannel > | channel | |||
| ) | const |
This method creates an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device.
- Parameters:
-
nodeName The name of the node to install the device in channel The channel to attach to the device.
- Returns:
- A container holding the added net device.
| NetDeviceContainer ns3::CsmaHelper::Install | ( | Ptr< Node > | node, | |
| std::string | channelName | |||
| ) | const |
This method creates an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device.
- Parameters:
-
node The node to install the device in channelName The name of the channel to attach to the device.
- Returns:
- A container holding the added net device.
| NetDeviceContainer ns3::CsmaHelper::Install | ( | Ptr< Node > | node, | |
| Ptr< CsmaChannel > | channel | |||
| ) | const |
This method creates an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the provided channel to the device.
- Parameters:
-
node The node to install the device in channel The channel to attach to the device.
- Returns:
- A container holding the added net device.
| NetDeviceContainer ns3::CsmaHelper::Install | ( | std::string | name | ) | const |
This method creates an ns3::CsmaChannel with the attributes configured by CsmaHelper::SetChannelAttribute, an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the channel to the device.
- Parameters:
-
name The name of the node to install the device in
- Returns:
- A container holding the added net device.
| NetDeviceContainer ns3::CsmaHelper::Install | ( | Ptr< Node > | node | ) | const |
This method creates an ns3::CsmaChannel with the attributes configured by CsmaHelper::SetChannelAttribute, an ns3::CsmaNetDevice with the attributes configured by CsmaHelper::SetDeviceAttribute and then adds the device to the node and attaches the channel to the device.
- Parameters:
-
node The node to install the device in
- Returns:
- A container holding the added net device.
| void ns3::CsmaHelper::SetChannelAttribute | ( | std::string | n1, | |
| const AttributeValue & | v1 | |||
| ) |
- Parameters:
-
n1 the name of the attribute to set v1 the value of the attribute to set
Set these attributes on each ns3::CsmaChannel created by CsmaHelper::Install
| void ns3::CsmaHelper::SetDeviceAttribute | ( | std::string | n1, | |
| const AttributeValue & | v1 | |||
| ) |
- Parameters:
-
n1 the name of the attribute to set v1 the value of the attribute to set
Set these attributes on each ns3::CsmaNetDevice created by CsmaHelper::Install
| void ns3::CsmaHelper::SetQueue | ( | std::string | type, | |
| std::string | n1 = "", |
|||
| const AttributeValue & | v1 = EmptyAttributeValue(), |
|||
| std::string | n2 = "", |
|||
| const AttributeValue & | v2 = EmptyAttributeValue(), |
|||
| std::string | n3 = "", |
|||
| const AttributeValue & | v3 = EmptyAttributeValue(), |
|||
| std::string | n4 = "", |
|||
| const AttributeValue & | v4 = EmptyAttributeValue() | |||
| ) |
- Parameters:
-
type the type of queue n1 the name of the attribute to set on the queue v1 the value of the attribute to set on the queue n2 the name of the attribute to set on the queue v2 the value of the attribute to set on the queue n3 the name of the attribute to set on the queue v3 the value of the attribute to set on the queue n4 the name of the attribute to set on the queue v4 the value of the attribute to set on the queue
Set the type of queue to create and associated to each CsmaNetDevice created through CsmaHelper::Install.
The documentation for this class was generated from the following file:
- src/helper/csma-helper.h
