ns3::FlowMonitorHelper Class Reference

Helper to enable IPv4 flow monitoring on a set of Nodes. More...

#include <flow-monitor-helper.h>

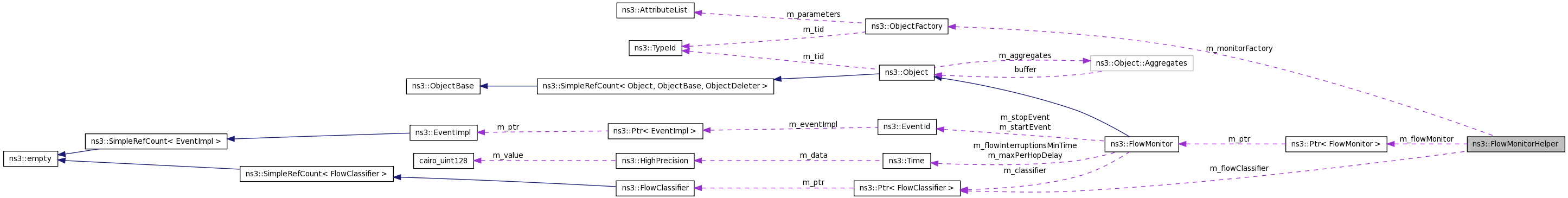

Collaboration diagram for ns3::FlowMonitorHelper:

Public Member Functions
	FlowMonitorHelper ()
	Construct a FlowMonitorHelper class which makes it easier to configure and use the FlowMonitor.
void	SetMonitorAttribute (std::string n1, const AttributeValue &v1)
	Set an attribute for the to-be-created FlowMonitor object.
Ptr< FlowMonitor >	Install (NodeContainer nodes)
	Enable flow monitoring on a set of nodes.
Ptr< FlowMonitor >	Install (Ptr< Node > node)
	Enable flow monitoring on a single node.
Ptr< FlowMonitor >	InstallAll ()
	Enable flow monitoring on all nodes.
Ptr< FlowMonitor >	GetMonitor ()
	Retrieve the FlowMonitor object created by the Install* methods.
Ptr< FlowClassifier >	GetClassifier ()
	Retrieve the FlowClassifier object created by the Install* methods.

Detailed Description

Helper to enable IPv4 flow monitoring on a set of Nodes.

Ptr<FlowMonitor> ns3::FlowMonitorHelper::Install ( Ptr< Node > node )

Enable flow monitoring on a single node.

Parameters:

node

A Ptr<Node> to the node on which to enable flow monitoring.

Ptr<FlowMonitor> ns3::FlowMonitorHelper::Install ( NodeContainer nodes )

Enable flow monitoring on a set of nodes.

Parameters:

nodes

A NodeContainer holding the set of nodes to work with.

The documentation for this class was generated from the following file:
