ns3::FriisSpectrumPropagationLossModel Class Reference

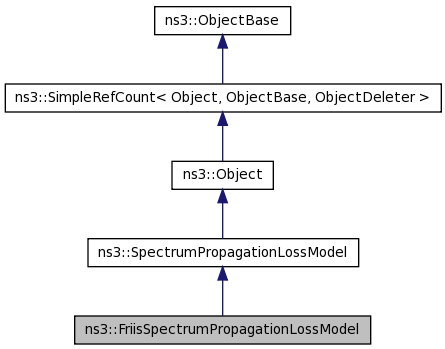

Inheritance diagram for ns3::FriisSpectrumPropagationLossModel:

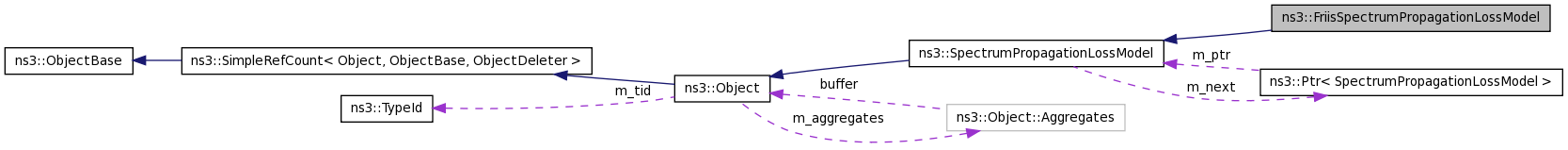

Collaboration diagram for ns3::FriisSpectrumPropagationLossModel:
Public Member Functions | |
| virtual Ptr< SpectrumValue > | DoCalcRxPowerSpectralDensity (Ptr< const SpectrumValue > txPsd, Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const |
| double | CalculateLoss (double f, double d) const |
Static Public Member Functions | |
| static TypeId | GetTypeId () |
| This method returns the TypeId associated to ns3::FriisSpectrumPropagationLossModel. | |
Protected Attributes | |
| double | m_propagationSpeed |
Member Function Documentation
| double ns3::FriisSpectrumPropagationLossModel::CalculateLoss | ( | double | f, | |
| double | d | |||
| ) | const |
Return the propagation loss L according to a simplified version of Friis' formula in which antenna gains are unitary:
4 * pi * d * f^2 L = ---------------------- C^2
where C = 3e8 m/s is the light speed in the vacuum. The intended use is to calculate Prx = Ptx * G
- Parameters:
-
f frequency in Hz d distance in m
- Returns:
- if Prx < Ptx then return Prx; else return Ptx
| virtual Ptr<SpectrumValue> ns3::FriisSpectrumPropagationLossModel::DoCalcRxPowerSpectralDensity | ( | Ptr< const SpectrumValue > | txPsd, | |
| Ptr< const MobilityModel > | a, | |||
| Ptr< const MobilityModel > | b | |||
| ) | const [virtual] |
- Parameters:
-
txPsd set of values vs frequency representing the transmission power. See SpectrumChannel for details. a sender mobility b receiver mobility
- Returns:
- set of values vs frequency representing the received power in the same units used for the txPower parameter.
Implements ns3::SpectrumPropagationLossModel.
| static TypeId ns3::FriisSpectrumPropagationLossModel::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::FriisSpectrumPropagationLossModel.
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::FriisSpectrumPropagationLossModel
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::SpectrumPropagationLossModel/$ns3::FriisSpectrumPropagationLossModel
No Attributes defined for this type.
No TraceSources defined for this type.
Reimplemented from ns3::SpectrumPropagationLossModel.
The documentation for this class was generated from the following files:
- src/common/friis-spectrum-propagation-loss.h
- doc/introspected-doxygen.h
