ns3::GlobalRoutingLSA Class Reference

a Link State Advertisement (LSA) for a router, used in global routing. More...

#include <global-router-interface.h>

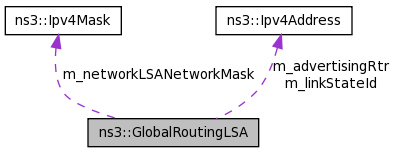

Collaboration diagram for ns3::GlobalRoutingLSA:

Public Types
enum	LSType { Unknown = 0, RouterLSA, NetworkLSA, SummaryLSA, SummaryLSA_ASBR, ASExternalLSAs }
	corresponds to LS type field of RFC 2328 OSPF LSA header More...
enum	SPFStatus { LSA_SPF_NOT_EXPLORED = 0, LSA_SPF_CANDIDATE, LSA_SPF_IN_SPFTREE }
	Enumeration of the possible values of the status flag in the Routing Link State Advertisements. More...
Public Member Functions
	GlobalRoutingLSA ()
	Create a blank Global Routing Link State Advertisement.
	GlobalRoutingLSA (SPFStatus status, Ipv4Address linkStateId, Ipv4Address advertisingRtr)
	Create an initialized Global Routing Link State Advertisement.
	GlobalRoutingLSA (GlobalRoutingLSA &lsa)
	Copy constructor for a Global Routing Link State Advertisement.
	~GlobalRoutingLSA ()
	Destroy an existing Global Routing Link State Advertisement.
GlobalRoutingLSA &	operator= (const GlobalRoutingLSA &lsa)
	Assignment operator for a Global Routing Link State Advertisement.
void	CopyLinkRecords (const GlobalRoutingLSA &lsa)
	Copy any Global Routing Link Records in a given Global Routing Link State Advertisement to the current LSA.
uint32_t	AddLinkRecord (GlobalRoutingLinkRecord *lr)
	Add a given Global Routing Link Record to the LSA.
uint32_t	GetNLinkRecords (void) const
	Return the number of Global Routing Link Records in the LSA.
GlobalRoutingLinkRecord *	GetLinkRecord (uint32_t n) const
	Return a pointer to the specified Global Routing Link Record.
void	ClearLinkRecords (void)
	Release all of the Global Routing Link Records present in the Global Routing Link State Advertisement and make the list of link records empty.
bool	IsEmpty (void) const
	Check to see if the list of Global Routing Link Records present in the Global Routing Link State Advertisement is empty.
void	Print (std::ostream &os) const
	Print the contents of the Global Routing Link State Advertisement and any Global Routing Link Records present in the list. Quite verbose.
LSType	GetLSType (void) const
	Return the LSType field of the LSA.
void	SetLSType (LSType typ)
	Set the LS type field of the LSA.
Ipv4Address	GetLinkStateId (void) const
	Get the Link State ID as defined by the OSPF spec. We always set it to the router ID of the router making the advertisement.
void	SetLinkStateId (Ipv4Address addr)
	Set the Link State ID is defined by the OSPF spec. We always set it to the router ID of the router making the advertisement.
Ipv4Address	GetAdvertisingRouter (void) const
	Get the Advertising Router as defined by the OSPF spec. We always set it to the router ID of the router making the advertisement.
void	SetAdvertisingRouter (Ipv4Address rtr)
	Set the Advertising Router as defined by the OSPF spec. We always set it to the router ID of the router making the advertisement.
void	SetNetworkLSANetworkMask (Ipv4Mask mask)
	For a Network LSA, set the Network Mask field that precedes the list of attached routers.
Ipv4Mask	GetNetworkLSANetworkMask (void) const
	For a Network LSA, get the Network Mask field that precedes the list of attached routers.
uint32_t	AddAttachedRouter (Ipv4Address addr)
	Add an attached router to the list in the NetworkLSA.
uint32_t	GetNAttachedRouters (void) const
	Return the number of attached routers listed in the NetworkLSA.
Ipv4Address	GetAttachedRouter (uint32_t n) const
	Return an Ipv4Address corresponding to the specified attached router.
SPFStatus	GetStatus (void) const
	Get the SPF status of the advertisement.
void	SetStatus (SPFStatus status)
	Set the SPF status of the advertisement.
Ptr< Node >	GetNode (void) const
	Get the Node pointer of the node that originated this LSA.
void	SetNode (Ptr< Node > node)
	Set the Node pointer of the node that originated this LSA.

Detailed Description

a Link State Advertisement (LSA) for a router, used in global routing.

Roughly equivalent to a global incarnation of the OSPF link state header combined with a list of Link Records. Since it's global, there's no need for age or sequence number. See RFC 2328, Appendix A.

Member Enumeration Documentation

enum ns3::GlobalRoutingLSA::LSType

corresponds to LS type field of RFC 2328 OSPF LSA header

Enumerator:

Unknown

Uninitialized Type

enum ns3::GlobalRoutingLSA::SPFStatus

Enumeration of the possible values of the status flag in the Routing Link State Advertisements.

Enumerator:

LSA_SPF_NOT_EXPLORED	New vertex not yet considered
LSA_SPF_CANDIDATE	Vertex is in the SPF candidate queue
LSA_SPF_IN_SPFTREE	Vertex is in the SPF tree

Constructor & Destructor Documentation

ns3::GlobalRoutingLSA::GlobalRoutingLSA ( )

Create a blank Global Routing Link State Advertisement.

On completion Ipv4Address variables initialized to 0.0.0.0 and the list of Link State Records is empty.

ns3::GlobalRoutingLSA::GlobalRoutingLSA	(	SPFStatus	status,
		Ipv4Address	linkStateId,
		Ipv4Address	advertisingRtr
	)

Create an initialized Global Routing Link State Advertisement.

On completion the list of Link State Records is empty.

Parameters:

	status	The status to of the new LSA.
	linkStateId	The Ipv4Address for the link state ID field.
	advertisingRtr	The Ipv4Address for the advertising router field.

ns3::GlobalRoutingLSA::GlobalRoutingLSA ( GlobalRoutingLSA & lsa )

Copy constructor for a Global Routing Link State Advertisement.

Takes a piece of memory and constructs a semantically identical copy of the given LSA.

Parameters:

lsa

The existing LSA to be used as the source.

ns3::GlobalRoutingLSA::~GlobalRoutingLSA ( )

Destroy an existing Global Routing Link State Advertisement.

Any Global Routing Link Records present in the list are freed.

Member Function Documentation

uint32_t ns3::GlobalRoutingLSA::AddAttachedRouter ( Ipv4Address addr )

Add an attached router to the list in the NetworkLSA.

Parameters:

addr

The Ipv4Address of the interface on the network link

Returns:: The number of addresses in the list.

uint32_t ns3::GlobalRoutingLSA::AddLinkRecord ( GlobalRoutingLinkRecord * lr )

Add a given Global Routing Link Record to the LSA.

Parameters:

lr

The Global Routing Link Record to be added.

Returns:: The number of link records in the list.

void ns3::GlobalRoutingLSA::CopyLinkRecords ( const GlobalRoutingLSA & lsa )

Copy any Global Routing Link Records in a given Global Routing Link State Advertisement to the current LSA.

Existing Link Records are not deleted -- this is a concatenation of Link Records.

See also:: ClearLinkRecords ()

Parameters:

lsa

The LSA to copy the Link Records from.

Ipv4Address ns3::GlobalRoutingLSA::GetAdvertisingRouter ( void ) const

Get the Advertising Router as defined by the OSPF spec. We always set it to the router ID of the router making the advertisement.

See also:: RoutingEnvironment::AllocateRouterId (); GlobalRouting::GetRouterId ()

Returns:: The Ipv4Address stored as the advertising router.

Ipv4Address ns3::GlobalRoutingLSA::GetAttachedRouter ( uint32_t n ) const

Return an Ipv4Address corresponding to the specified attached router.

Parameters:

n

The attached router number desired (number in the list).

Returns:: The Ipv4Address of the requested router

GlobalRoutingLinkRecord* ns3::GlobalRoutingLSA::GetLinkRecord ( uint32_t n ) const

Return a pointer to the specified Global Routing Link Record.

Parameters:

n

The LSA number desired.

Returns:: The number of link records in the list.

Ipv4Address ns3::GlobalRoutingLSA::GetLinkStateId ( void ) const

Get the Link State ID as defined by the OSPF spec. We always set it to the router ID of the router making the advertisement.

See also:: RoutingEnvironment::AllocateRouterId (); GlobalRouting::GetRouterId ()

Returns:: The Ipv4Address stored as the link state ID.

uint32_t ns3::GlobalRoutingLSA::GetNAttachedRouters ( void ) const

Return the number of attached routers listed in the NetworkLSA.

Returns:: The number of attached routers.

Ipv4Mask ns3::GlobalRoutingLSA::GetNetworkLSANetworkMask ( void ) const

For a Network LSA, get the Network Mask field that precedes the list of attached routers.

Returns:: the NetworkLSANetworkMask

uint32_t ns3::GlobalRoutingLSA::GetNLinkRecords ( void ) const

Return the number of Global Routing Link Records in the LSA.

Returns:: The number of link records in the list.

Ptr<Node> ns3::GlobalRoutingLSA::GetNode ( void ) const

Get the Node pointer of the node that originated this LSA.

Returns:: Node pointer

SPFStatus ns3::GlobalRoutingLSA::GetStatus ( void ) const

Get the SPF status of the advertisement.

See also:: SPFStatus

Returns:: The SPFStatus of the LSA.

bool ns3::GlobalRoutingLSA::IsEmpty ( void ) const

Check to see if the list of Global Routing Link Records present in the Global Routing Link State Advertisement is empty.

Returns:: True if the list is empty, false otherwise.

GlobalRoutingLSA& ns3::GlobalRoutingLSA::operator= ( const GlobalRoutingLSA & lsa )

Assignment operator for a Global Routing Link State Advertisement.

Takes an existing Global Routing Link State Advertisement and overwrites it to make a semantically identical copy of a given prototype LSA.

If there are any Global Routing Link Records present in the existing LSA, they are freed before the assignment happens.

Parameters:

lsa

The existing LSA to be used as the source.

Returns:: Reference to the overwritten LSA.

void ns3::GlobalRoutingLSA::SetAdvertisingRouter ( Ipv4Address rtr )

Set the Advertising Router as defined by the OSPF spec. We always set it to the router ID of the router making the advertisement.

Parameters:

rtr

ID of the router making advertisement

See also:: RoutingEnvironment::AllocateRouterId (); GlobalRouting::GetRouterId ()

void ns3::GlobalRoutingLSA::SetLinkStateId ( Ipv4Address addr )

Set the Link State ID is defined by the OSPF spec. We always set it to the router ID of the router making the advertisement.

Parameters:

addr

IPv4 address which will act as ID

See also:: RoutingEnvironment::AllocateRouterId (); GlobalRouting::GetRouterId ()

void ns3::GlobalRoutingLSA::SetNode ( Ptr< Node > node )

Set the Node pointer of the node that originated this LSA.

Parameters:

node

Node pointer

void ns3::GlobalRoutingLSA::SetStatus ( SPFStatus status )

Set the SPF status of the advertisement.

Parameters:

status

SPF status to set

See also:: SPFStatus

The documentation for this class was generated from the following file:

src/routing/global-routing/model/global-router-interface.h
