ns3::Icmpv4L4Protocol Class Reference

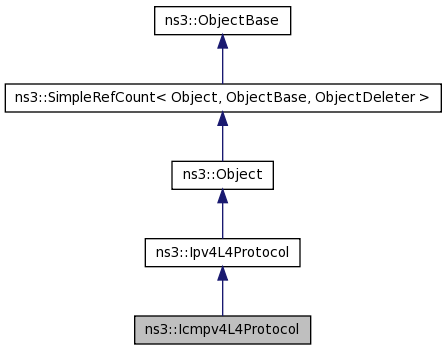

Inheritance diagram for ns3::Icmpv4L4Protocol:

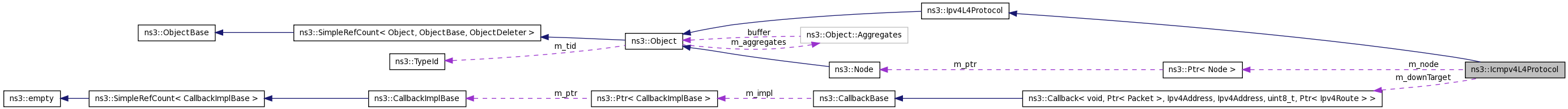

Collaboration diagram for ns3::Icmpv4L4Protocol:
Public Member Functions | |
| void | SetNode (Ptr< Node > node) |
| virtual int | GetProtocolNumber (void) const |
| virtual enum Ipv4L4Protocol::RxStatus | Receive (Ptr< Packet > p, Ipv4Header const &header, Ptr< Ipv4Interface > incomingInterface) |
| void | SendDestUnreachFragNeeded (Ipv4Header header, Ptr< const Packet > orgData, uint16_t nextHopMtu) |
| void | SendTimeExceededTtl (Ipv4Header header, Ptr< const Packet > orgData) |
| void | SendDestUnreachPort (Ipv4Header header, Ptr< const Packet > orgData) |
| virtual void | SetDownTarget (Ipv4L4Protocol::DownTargetCallback cb) |
| virtual Ipv4L4Protocol::DownTargetCallback | GetDownTarget (void) const |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::Icmpv4L4Protocol. | |
| static uint16_t | GetStaticProtocolNumber (void) |
Static Public Attributes | |
| static const uint8_t | PROT_NUMBER |
Protected Member Functions | |
| virtual void | NotifyNewAggregate () |
Member Function Documentation
| virtual Ipv4L4Protocol::DownTargetCallback ns3::Icmpv4L4Protocol::GetDownTarget | ( | void | ) | const [virtual] |
This method allows a caller to get the current down target callback set for this L4 protocol, for
- Returns:
- current Callback for the L4 protocol
Implements ns3::Ipv4L4Protocol.
| virtual int ns3::Icmpv4L4Protocol::GetProtocolNumber | ( | void | ) | const [virtual] |
- Returns:
- the protocol number of this protocol.
Implements ns3::Ipv4L4Protocol.
| static TypeId ns3::Icmpv4L4Protocol::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::Icmpv4L4Protocol.
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::Icmpv4L4Protocol
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::Ipv4L4Protocol/$ns3::Icmpv4L4Protocol
No Attributes defined for this type.
Attributes defined in parent class ns3::Ipv4L4Protocol:
-
ProtocolNumber: The Ipv4 protocol number.
- Set with class: ns3::UintegerValue
- Underlying type: int32_t 18446744071562067968:2147483647
- Flags: read
No TraceSources defined for this type.
Reimplemented from ns3::Ipv4L4Protocol.
| virtual void ns3::Icmpv4L4Protocol::NotifyNewAggregate | ( | ) | [protected, virtual] |
This method is invoked whenever two sets of objects are aggregated together. It is invoked exactly once for each object in both sets. This method can be overriden by subclasses who wish to be notified of aggregation events. These subclasses must chain up to their base class NotifyNewAggregate method. It is safe to call GetObject and AggregateObject from within this method.
Reimplemented from ns3::Object.
| virtual enum Ipv4L4Protocol::RxStatus ns3::Icmpv4L4Protocol::Receive | ( | Ptr< Packet > | p, | |
| Ipv4Header const & | header, | |||
| Ptr< Ipv4Interface > | incomingInterface | |||
| ) | [virtual] |
- Parameters:
-
p packet to forward up header IPv4 Header information incomingInterface the Ipv4Interface on which the packet arrived
Called from lower-level layers to send the packet up in the stack.
Implements ns3::Ipv4L4Protocol.
| virtual void ns3::Icmpv4L4Protocol::SetDownTarget | ( | Ipv4L4Protocol::DownTargetCallback | cb | ) | [virtual] |
This method allows a caller to set the current down target callback set for this L4 protocol
- Parameters:
-
cb current Callback for the L4 protocol
Implements ns3::Ipv4L4Protocol.
The documentation for this class was generated from the following files:
- src/internet-stack/icmpv4-l4-protocol.h
- doc/introspected-doxygen.h
