ns3::LteMacQueue Class Reference

#include <lte-mac-queue.h>

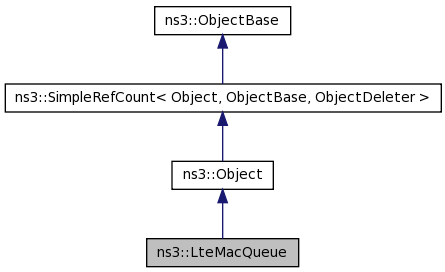

Inheritance diagram for ns3::LteMacQueue:

[legend]

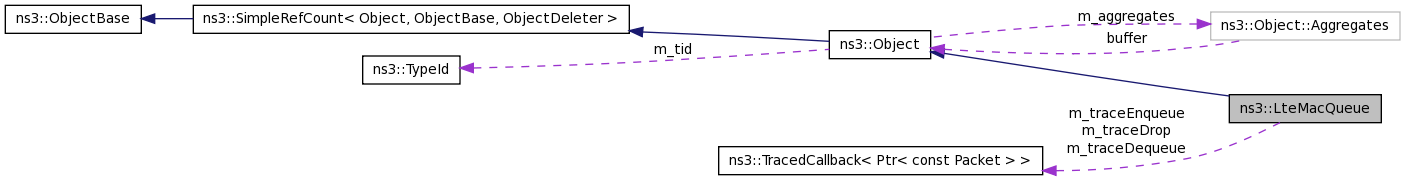

Collaboration diagram for ns3::LteMacQueue:

[legend]

List of all members.

Classes
struct	QueueElement
Public Member Functions
	LteMacQueue (uint32_t maxSize)
void	SetMaxSize (uint32_t maxSize)
	set the maximum queue size
uint32_t	GetMaxSize (void) const
bool	Enqueue (Ptr< Packet > packet)
	Enqueue a packet.
Ptr< Packet >	Dequeue (void)
	Dequeue a packet from the queue.
Ptr< Packet >	Dequeue (uint32_t availableByte)
	Dequeue a fragment of size availableByte from the queue.
Ptr< Packet >	Peek (void) const
	Same as Dequeue but does not pop from queue.
bool	IsEmpty (void) const
	Check if there are packets into the queue.
uint32_t	GetSize (void) const
	Get the size of the queue.
uint32_t	GetNBytes (void) const
	Get the number of bytes into the queue.
uint32_t	GetQueueLengthWithMACOverhead (void)
	Get the length of the queue with MAC + RLC + CRC overhead.
const LteMacQueue::PacketQueue &	GetPacketQueue (void) const
	Get the packet queue.
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::LteMacQueue.

---

Detailed Description

The MAC queue for each bearer

---

Constructor & Destructor Documentation

ns3::LteMacQueue::LteMacQueue

(

uint32_t

maxSize

)

Create the Mac queue defining its maximum size

Parameters:

maxSize

the maximum size of the queue

---

Member Function Documentation

Ptr<Packet> ns3::LteMacQueue::Dequeue

(

uint32_t

availableByte

)

Dequeue a fragment of size availableByte from the queue.

Parameters:

availableByte

the size of the fragment

Returns:

the first packet in the queue if its size is lower than availableByte, the first availableByte of the first packet otherwise

Ptr<Packet> ns3::LteMacQueue::Dequeue

(

void

)

Dequeue a packet from the queue.

Returns:

the first packet in the queue

bool ns3::LteMacQueue::Enqueue

(

Ptr< Packet >

packet

)

Enqueue a packet.

Parameters:

packet

the packet to enqueue

uint32_t ns3::LteMacQueue::GetMaxSize

(

void

)

const

Returns:

the maximum queue size

uint32_t ns3::LteMacQueue::GetNBytes

(

void

)

const

Get the number of bytes into the queue.

Returns:

the number of bytes into the queue

const LteMacQueue::PacketQueue& ns3::LteMacQueue::GetPacketQueue

(

void

)

const

Get the packet queue.

Returns:

the apcket queue

uint32_t ns3::LteMacQueue::GetQueueLengthWithMACOverhead

(

void

)

Get the length of the queue with MAC + RLC + CRC overhead.

Returns:

the length of the queue with MAC + RLC + CRC overhead

uint32_t ns3::LteMacQueue::GetSize

(

void

)

const

Get the size of the queue.

Returns:

the size of the queue

static TypeId ns3::LteMacQueue::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::LteMacQueue.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::RadioBearerInstance/TxQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::LteMacQueue
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::RadioBearerInstance/TxQueue

Attributes defined for this type:

• MaxSize: Maximum size
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 1024
  • Flags: construct write read

TraceSources defined for this type:

• Enqueue: Enqueue trace
• Dequeue: Dequeue trace
• Drop: Drop trace

Reimplemented from ns3::Object.

void ns3::LteMacQueue::SetMaxSize

(

uint32_t

maxSize

)

set the maximum queue size

Parameters:

maxSize

the max queue size

---

The documentation for this class was generated from the following files:

• src/devices/lte/model/lte-mac-queue.h
• doc/introspected-doxygen.h
