ns3::LtePhy Class Reference
#include <lte-phy.h>

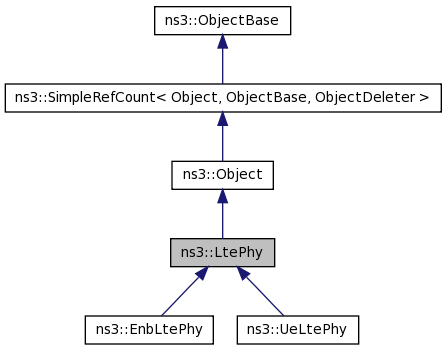

Inheritance diagram for ns3::LtePhy:

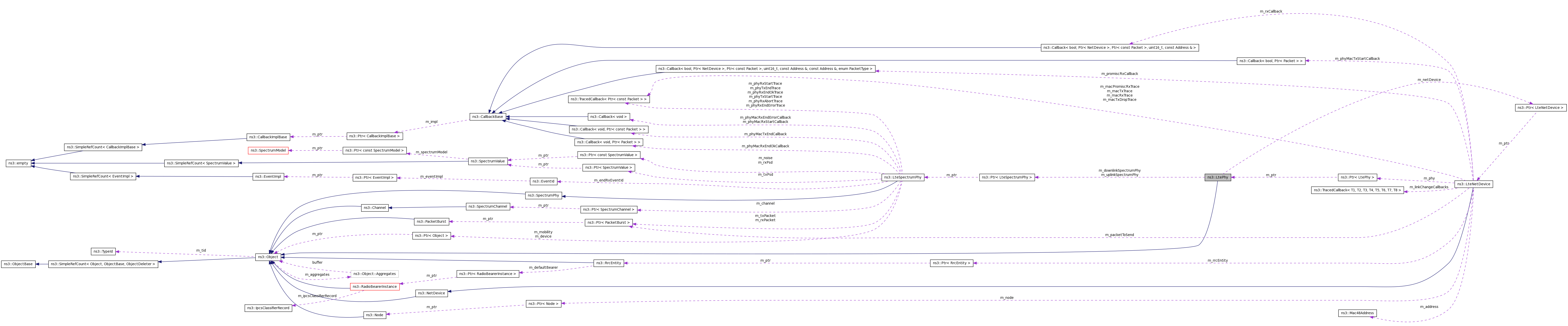

Collaboration diagram for ns3::LtePhy:
Public Member Functions | |
| void | SetDevice (Ptr< LteNetDevice > d) |
| Set the device where the phy layer is attached. | |
| Ptr< LteNetDevice > | GetDevice () |
| Get the device where the phy layer is attached. | |
| virtual bool | SendPacket (Ptr< PacketBurst > pb)=0 |
| Start a transmission. StartTx is called by the LTE device to start packet transmission. | |
| void | SetDownlinkSpectrumPhy (Ptr< LteSpectrumPhy > s) |
| void | SetUplinkSpectrumPhy (Ptr< LteSpectrumPhy > s) |
| Ptr< LteSpectrumPhy > | GetDownlinkSpectrumPhy () |
| Ptr< LteSpectrumPhy > | GetUplinkSpectrumPhy () |
| void | SetDownlinkChannel (Ptr< SpectrumChannel > c) |
| Ptr< SpectrumChannel > | GetDownlinkChannel () |
| void | SetUplinkChannel (Ptr< SpectrumChannel > c) |
| Ptr< SpectrumChannel > | GetUplinkChannel () |
| void | SetDownlinkSubChannels (std::vector< int > mask) |
| set a list of sub channel to use in the downlink. A sub channel is composed by a couple of resource bloks (180KHz x 1 ms) | |
| virtual void | DoSetDownlinkSubChannels () |
| do some operation after the set of a list of DL sub channels | |
| void | SetUplinkSubChannels (std::vector< int > mask) |
| set a list of sub channel to use in the uplink. A sub channel is composed by a couple of resource bloks (180KHz x 1 ms) | |
| virtual void | DoSetUplinkSubChannels () |
| do some operation after the set of a list of UL sub channels | |
| std::vector< int > | GetDownlinkSubChannels (void) |
| get a list of sub channel to use in the downlink | |
| std::vector< int > | GetUplinkSubChannels (void) |
| get a list of sub channel to use in the downlink | |
| virtual Ptr< SpectrumValue > | CreateTxPowerSpectralDensity ()=0 |
| Compute the TX Power Spectral Density. | |
| void | SetTxPower (double pw) |
| Set the power transmisison, expressed in dBm. | |
| double | GetTxPower (void) |
| Get the power transmission, expressed in dBm. | |
| void | DoDispose () |
| virtual void | SendIdealControlMessage (Ptr< IdealControlMessage > msg)=0 |
| Send SendIdealControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel. | |
| virtual void | ReceiveIdealControlMessage (Ptr< IdealControlMessage > msg)=0 |
| Receive SendIdealControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel. | |
| void | SetTti (double tti) |
| double | GetTti (void) const |
| void | SetNrFrames (uint32_t nrFrames) |
| uint32_t | GetNrFrames (void) const |
| void | SetNrSubFrames (uint32_t nrSubFrames) |
| uint32_t | GetNrSubFrames (void) const |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::LtePhy. | |
Detailed Description
The LtePhy models the physical layer of LTE. It is composed by two LteSpectrumPhy, one for the downlink and one for the uplink.
Member Function Documentation
| virtual Ptr<SpectrumValue> ns3::LtePhy::CreateTxPowerSpectralDensity | ( | ) | [pure virtual] |
Compute the TX Power Spectral Density.
- Returns:
- a Ptr to a created SpectrumValue
Implemented in ns3::EnbLtePhy, and ns3::UeLtePhy.
| void ns3::LtePhy::DoDispose | ( | ) | [virtual] |
This method is called by Object::Dispose or by the object's destructor, whichever comes first.
Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.
It is safe to call GetObject from within this method.
Reimplemented from ns3::Object.
| Ptr<LteNetDevice> ns3::LtePhy::GetDevice | ( | ) |
Get the device where the phy layer is attached.
- Returns:
- the pointer to the device
| Ptr<SpectrumChannel> ns3::LtePhy::GetDownlinkChannel | ( | ) |
Get the downlink channel
- Returns:
- a Ptr to the downlink SpectrumChannel
| Ptr<LteSpectrumPhy> ns3::LtePhy::GetDownlinkSpectrumPhy | ( | ) |
Get the LTE SpectrumPhy for the downlink
- Returns:
- a Ptr to the LTE SpectrumPhy for the downlink
| std::vector<int> ns3::LtePhy::GetDownlinkSubChannels | ( | void | ) |
get a list of sub channel to use in the downlink
- Returns:
| uint32_t ns3::LtePhy::GetNrFrames | ( | void | ) | const |
- Returns:
- the number of the current LTE frame.
| uint32_t ns3::LtePhy::GetNrSubFrames | ( | void | ) | const |
- Returns:
- the number of the current LTE sub-frame.
| double ns3::LtePhy::GetTti | ( | void | ) | const |
- Returns:
- transmission time interval
| double ns3::LtePhy::GetTxPower | ( | void | ) |
Get the power transmission, expressed in dBm.
- Returns:
- the power transmission
| static TypeId ns3::LtePhy::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::LtePhy.
This object is accessible through the following paths with Config::Set and Config::Connect:
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::LtePhy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::LteNetDevice/Phy
- /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::LtePhy
No Attributes defined for this type.
No TraceSources defined for this type.
Reimplemented from ns3::Object.
Reimplemented in ns3::EnbLtePhy, and ns3::UeLtePhy.
| Ptr<SpectrumChannel> ns3::LtePhy::GetUplinkChannel | ( | ) |
Get the uplink channel
- Returns:
- a Ptr to the uplink SpectrumChannel
| Ptr<LteSpectrumPhy> ns3::LtePhy::GetUplinkSpectrumPhy | ( | ) |
Get the LTE SpectrumPhy for the uplink
- Returns:
- a Ptr to the LTE SpectrumPhy for the
| std::vector<int> ns3::LtePhy::GetUplinkSubChannels | ( | void | ) |
get a list of sub channel to use in the downlink
- Returns:
| virtual void ns3::LtePhy::ReceiveIdealControlMessage | ( | Ptr< IdealControlMessage > | msg | ) | [pure virtual] |
Receive SendIdealControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.
- Parameters:
-
msg the Ideal Control Message to receive
Implemented in ns3::EnbLtePhy, and ns3::UeLtePhy.
| virtual void ns3::LtePhy::SendIdealControlMessage | ( | Ptr< IdealControlMessage > | msg | ) | [pure virtual] |
Send SendIdealControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.
- Parameters:
-
msg the Ideal Control Message to send
Implemented in ns3::EnbLtePhy, and ns3::UeLtePhy.
| virtual bool ns3::LtePhy::SendPacket | ( | Ptr< PacketBurst > | pb | ) | [pure virtual] |
Start a transmission. StartTx is called by the LTE device to start packet transmission.
- Parameters:
-
pb the packet of packets to be transmitted
- Returns:
- true if an error occurred and the transmission was not started, false otherwise.
Implemented in ns3::EnbLtePhy, and ns3::UeLtePhy.
| void ns3::LtePhy::SetDevice | ( | Ptr< LteNetDevice > | d | ) |
Set the device where the phy layer is attached.
- Parameters:
-
d the device
| void ns3::LtePhy::SetDownlinkChannel | ( | Ptr< SpectrumChannel > | c | ) |
Set the downlink channel
- Parameters:
-
c the downlink channel
| void ns3::LtePhy::SetDownlinkSpectrumPhy | ( | Ptr< LteSpectrumPhy > | s | ) |
Set the LTE SpectrumPhy for the downlink
- Parameters:
-
s the LTE SpectrumPhy
| void ns3::LtePhy::SetDownlinkSubChannels | ( | std::vector< int > | mask | ) |
set a list of sub channel to use in the downlink. A sub channel is composed by a couple of resource bloks (180KHz x 1 ms)
- Parameters:
-
mask a vector of intefer values. Each elements of this vector carries information about the corresponding DL sub channel. If the i-th value of mask is equal to 1 (0) it means that the corresponding sub channel is used (not used) for the downlink.
| void ns3::LtePhy::SetNrFrames | ( | uint32_t | nrFrames | ) |
- Parameters:
-
nrFrames the number of the current LTE frame.
| void ns3::LtePhy::SetNrSubFrames | ( | uint32_t | nrSubFrames | ) |
- Parameters:
-
nrSubFrames the number of the current LTE sub-frame.
| void ns3::LtePhy::SetTti | ( | double | tti | ) |
- Parameters:
-
tti transmission time interval
| void ns3::LtePhy::SetTxPower | ( | double | pw | ) |
Set the power transmisison, expressed in dBm.
- Parameters:
-
pw the power transmission
| void ns3::LtePhy::SetUplinkChannel | ( | Ptr< SpectrumChannel > | c | ) |
Set the uplink channel
- Parameters:
-
c the uplink channel
| void ns3::LtePhy::SetUplinkSpectrumPhy | ( | Ptr< LteSpectrumPhy > | s | ) |
Set the LTE SpectrumPhy for the uplink
- Parameters:
-
s the LTE SpectrumPhy
| void ns3::LtePhy::SetUplinkSubChannels | ( | std::vector< int > | mask | ) |
set a list of sub channel to use in the uplink. A sub channel is composed by a couple of resource bloks (180KHz x 1 ms)
- Parameters:
-
mask a vector of intefer values. Each elements of this vector carries information about the corresponding UL sub channel. If the i-th value of mask is equal to 1 (0) it means that the corresponding sub channel is used (not used) for the uplink.
The documentation for this class was generated from the following files:
- src/devices/lte/model/lte-phy.h
- doc/introspected-doxygen.h
