ns3::MacLowTransmissionParameters Class Reference

control how a packet is transmitted. More...

#include <mac-low.h>

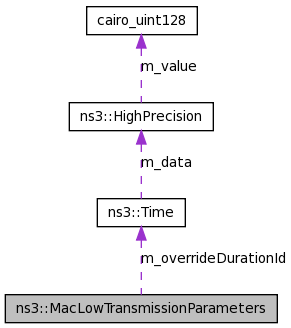

Collaboration diagram for ns3::MacLowTransmissionParameters:

[legend]

List of all members.

Public Member Functions
void	EnableAck (void)
void	EnableFastAck (void)
void	EnableSuperFastAck (void)
void	EnableBasicBlockAck (void)
void	EnableCompressedBlockAck (void)
void	EnableMultiTidBlockAck (void)
void	EnableRts (void)
void	EnableNextData (uint32_t size)
void	EnableOverrideDurationId (Time durationId)
void	DisableAck (void)
void	DisableRts (void)
void	DisableNextData (void)
void	DisableOverrideDurationId (void)
bool	MustWaitAck (void) const
bool	MustWaitNormalAck (void) const
bool	MustWaitFastAck (void) const
bool	MustWaitSuperFastAck (void) const
bool	MustWaitBasicBlockAck (void) const
bool	MustWaitCompressedBlockAck (void) const
bool	MustWaitMultiTidBlockAck (void) const
bool	MustSendRts (void) const
bool	HasDurationId (void) const
Time	GetDurationId (void) const
bool	HasNextPacket (void) const
uint32_t	GetNextPacketSize (void) const
Friends
std::ostream &	operator<< (std::ostream &os, const MacLowTransmissionParameters &params)

---

Detailed Description

control how a packet is transmitted.

The ns3::MacLow::StartTransmission method expects an instance of this class to describe how the packet should be transmitted.

---

Member Function Documentation

void ns3::MacLowTransmissionParameters::DisableAck

(

void

)

Do not wait for Ack after data transmission. Typically used for Broadcast and multicast frames.

void ns3::MacLowTransmissionParameters::DisableNextData

(

void

)

Do not attempt to send data burst after current transmission

void ns3::MacLowTransmissionParameters::DisableOverrideDurationId

(

void

)

Do not force the duration/id field of the packet: its value is automatically calculated by the MacLow before calling WifiPhy::Send.

void ns3::MacLowTransmissionParameters::DisableRts

(

void

)

Do not send rts and wait for cts before sending data.

void ns3::MacLowTransmissionParameters::EnableAck

(

void

)

Wait ACKTimeout for an ACK. If we get an ACK on time, call MacLowTransmissionListener::GotAck. Call MacLowTransmissionListener::MissedAck otherwise.

void ns3::MacLowTransmissionParameters::EnableBasicBlockAck

(

void

)

Wait BASICBLOCKACKTimeout for a Basic Block Ack Response frame.

void ns3::MacLowTransmissionParameters::EnableCompressedBlockAck

(

void

)

Wait COMPRESSEDBLOCKACKTimeout for a Compressed Block Ack Response frame.

void ns3::MacLowTransmissionParameters::EnableFastAck

(

void

)

• wait PIFS after end-of-tx. If idle, call MacLowTransmissionListener::MissedAck.
• if busy at end-of-tx+PIFS, wait end-of-rx
• if Ack ok at end-of-rx, call MacLowTransmissionListener::GotAck.
• if Ack not ok at end-of-rx, report call MacLowTransmissionListener::MissedAck at end-of-rx+SIFS.

This is really complicated but it is needed for proper HCCA support.

void ns3::MacLowTransmissionParameters::EnableMultiTidBlockAck

(

void

)

NOT IMPLEMENTED FOR NOW

void ns3::MacLowTransmissionParameters::EnableNextData

(

uint32_t

size

)

Parameters:

size

size of next data to send after current packet is sent.

Add the transmission duration of the next data to the durationId of the outgoing packet and call MacLowTransmissionListener::StartNext at the end of the current transmission + SIFS.

void ns3::MacLowTransmissionParameters::EnableOverrideDurationId

(

Time

durationId

)

Parameters:

durationId

the value to set in the duration/Id field of the outgoing packet.

Ignore all other durationId calculation and simply force the packet's durationId field to this value.

void ns3::MacLowTransmissionParameters::EnableRts

(

void

)

Send a RTS, and wait CTSTimeout for a CTS. If we get a CTS on time, call MacLowTransmissionListener::GotCts and send data. Otherwise, call MacLowTransmissionListener::MissedCts and do not send data.

void ns3::MacLowTransmissionParameters::EnableSuperFastAck

(

void

)

• if busy at end-of-tx+PIFS, call MacLowTransmissionListener::GotAck
• if idle at end-of-tx+PIFS, call MacLowTransmissionListener::MissedAck

Time ns3::MacLowTransmissionParameters::GetDurationId

(

void

)

const

Returns:

the duration/id forced by EnableOverrideDurationId

uint32_t ns3::MacLowTransmissionParameters::GetNextPacketSize

(

void

)

const

Returns:

the size specified by EnableNextData.

bool ns3::MacLowTransmissionParameters::HasDurationId

(

void

)

const

Returns:

true if a duration/id was forced with EnableOverrideDurationId, false otherwise.

bool ns3::MacLowTransmissionParameters::HasNextPacket

(

void

)

const

Returns:

true if EnableNextData was called, false otherwise.

bool ns3::MacLowTransmissionParameters::MustSendRts

(

void

)

const

Returns:

true if RTS should be sent and CTS waited for before sending data, false otherwise.

bool ns3::MacLowTransmissionParameters::MustWaitAck

(

void

)

const

Returns:

true if must wait for ACK after data transmission, false otherwise.

This methods returns true when any of MustWaitNormalAck, MustWaitFastAck, or MustWaitSuperFastAck return true.

bool ns3::MacLowTransmissionParameters::MustWaitBasicBlockAck

(

void

)

const

Returns:

true if block ack mechanism is used, false otherwise.

See also:

EnableBlockAck

bool ns3::MacLowTransmissionParameters::MustWaitCompressedBlockAck

(

void

)

const

Returns:

true if compressed block ack mechanism is used, false otherwise.

See also:

EnableCompressedBlockAck

bool ns3::MacLowTransmissionParameters::MustWaitFastAck

(

void

)

const

Returns:

true if fast ack protocol should be used, false otherwise.

See also:

EnableFastAck

bool ns3::MacLowTransmissionParameters::MustWaitMultiTidBlockAck

(

void

)

const

Returns:

true if multi-tid block ack mechanism is used, false otherwise.

See also:

EnableMultiTidBlockAck

bool ns3::MacLowTransmissionParameters::MustWaitNormalAck

(

void

)

const

Returns:

true if normal ACK protocol should be used, false otherwise.

See also:

EnableAck

bool ns3::MacLowTransmissionParameters::MustWaitSuperFastAck

(

void

)

const

Returns:

true if super fast ack protocol should be used, false otherwise.

See also:

EnableSuperFastAck

---

The documentation for this class was generated from the following file:

• src/devices/wifi/mac-low.h
