ns3::OfdmDownlinkFramePrefix Class Reference
Inheritance diagram for ns3::OfdmDownlinkFramePrefix:

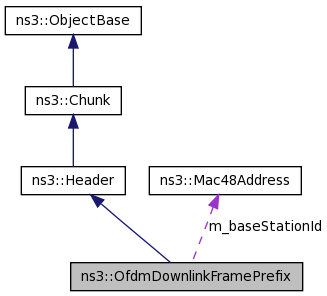

Collaboration diagram for ns3::OfdmDownlinkFramePrefix:
Public Member Functions | |
| void | SetBaseStationId (Mac48Address baseStationId) |
| void | SetFrameNumber (uint32_t frameNumber) |
| void | SetConfigurationChangeCount (uint8_t configurationChangeCount) |
| void | AddDlFramePrefixElement (DlFramePrefixIe dlFramePrefixElement) |
| void | SetHcs (uint8_t hcs) |
| Mac48Address | GetBaseStationId (void) const |
| uint32_t | GetFrameNumber (void) const |
| uint8_t | GetConfigurationChangeCount (void) const |
| std::vector< DlFramePrefixIe > | GetDlFramePrefixElements (void) const |
| uint8_t | GetHcs (void) const |
| std::string | GetName (void) const |
| void | Print (std::ostream &os) const |
| uint32_t | GetSerializedSize (void) const |
| void | Serialize (Buffer::Iterator start) const |
| uint32_t | Deserialize (Buffer::Iterator start) |
Member Function Documentation
| uint32_t ns3::OfdmDownlinkFramePrefix::Deserialize | ( | Buffer::Iterator | start | ) | [virtual] |
- Parameters:
-
start an iterator which points to where the header should written.
- Returns:
- the number of bytes read.
This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.
Implements ns3::Header.
| uint32_t ns3::OfdmDownlinkFramePrefix::GetSerializedSize | ( | void | ) | const [virtual] |
- Returns:
- the expected size of the header.
This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.
Implements ns3::Header.
| void ns3::OfdmDownlinkFramePrefix::Print | ( | std::ostream & | os | ) | const [virtual] |
- Parameters:
-
os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5
Implements ns3::Header.
| void ns3::OfdmDownlinkFramePrefix::Serialize | ( | Buffer::Iterator | start | ) | const [virtual] |
- Parameters:
-
start an iterator which points to where the header should be written.
This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.
Implements ns3::Header.
The documentation for this class was generated from the following file:
- src/devices/wimax/ofdm-downlink-frame-prefix.h
