ns3::OlsrHelper Class Reference

Helper class that adds OLSR routing to nodes. More...

#include <olsr-helper.h>

Inheritance diagram for ns3::OlsrHelper:

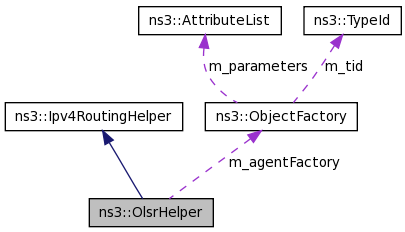

Collaboration diagram for ns3::OlsrHelper:

Public Member Functions
	OlsrHelper ()
	OlsrHelper (const OlsrHelper &)
	Construct an OlsrHelper from another previously initialized instance (Copy Constructor).
OlsrHelper *	Copy (void) const
	virtual constructor
void	ExcludeInterface (Ptr< Node > node, uint32_t interface)
virtual Ptr< Ipv4RoutingProtocol >	Create (Ptr< Node > node) const
void	Set (std::string name, const AttributeValue &value)

Detailed Description

Helper class that adds OLSR routing to nodes.

This class is expected to be used in conjunction with ns3::InternetStackHelper::SetRoutingHelper

ns3::OlsrHelper::OlsrHelper ( )

Create an OlsrHelper that makes life easier for people who want to install OLSR routing to nodes.

OlsrHelper* ns3::OlsrHelper::Copy ( void ) const [virtual]

virtual constructor

This method is mainly for internal use by the other helpers; clients are expected to free the dynamic memory allocated by this method

virtual Ptr<Ipv4RoutingProtocol> ns3::OlsrHelper::Create ( Ptr< Node > node ) const [virtual]

Parameters:

node

the node on which the routing protocol will run

void ns3::OlsrHelper::ExcludeInterface	(	Ptr< Node >	node,
		uint32_t	interface
	)

Parameters:

	node	the node for which an exception is to be defined
	interface	an interface of node on which OLSR is not to be installed

This method allows the user to specify an interface on which OLSR is not to be installed on

Parameters:

	name	the name of the attribute to set
	value	the value of the attribute to set.

This method controls the attributes of ns3::olsr::RoutingProtocol

The documentation for this class was generated from the following file:
