ns3::PointToPointHelper Class Reference

Build a set of PointToPointNetDevice objects. More...

#include <point-to-point-helper.h>

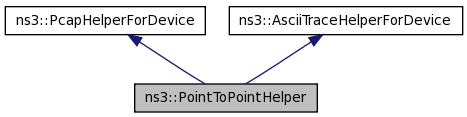

Inheritance diagram for ns3::PointToPointHelper:

[legend]

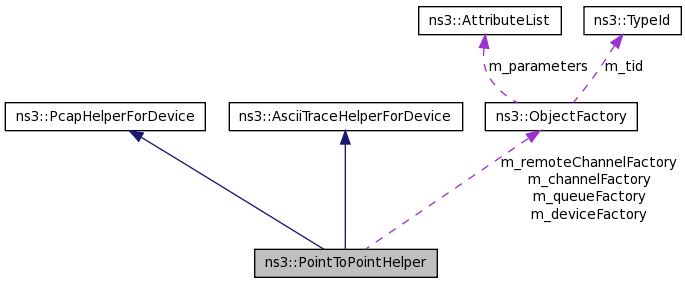

Collaboration diagram for ns3::PointToPointHelper:

[legend]

List of all members.

Public Member Functions
	PointToPointHelper ()
void	SetQueue (std::string type, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue())
void	SetDeviceAttribute (std::string name, const AttributeValue &value)
void	SetChannelAttribute (std::string name, const AttributeValue &value)
NetDeviceContainer	Install (NodeContainer c)
NetDeviceContainer	Install (Ptr< Node > a, Ptr< Node > b)
NetDeviceContainer	Install (Ptr< Node > a, std::string bName)
NetDeviceContainer	Install (std::string aName, Ptr< Node > b)
NetDeviceContainer	Install (std::string aNode, std::string bNode)

---

Detailed Description

Build a set of PointToPointNetDevice objects.

Normally we eschew multiple inheritance, however, the classes PcapUserHelperForDevice and AsciiTraceUserHelperForDevice are "mixins".

---

Constructor & Destructor Documentation

ns3::PointToPointHelper::PointToPointHelper

(

)

Create a PointToPointHelper to make life easier when creating point to point networks.

---

Member Function Documentation

NetDeviceContainer ns3::PointToPointHelper::Install	(	std::string	aNode,
		std::string	bNode
	)

Parameters:

	aNode	Name of first node
	bNode	Name of second node

Saves you from having to construct a temporary NodeContainer.

NetDeviceContainer ns3::PointToPointHelper::Install	(	std::string	aName,
		Ptr< Node >	b
	)

Parameters:

	aName	Name of first node
	b	second node

Saves you from having to construct a temporary NodeContainer.

NetDeviceContainer ns3::PointToPointHelper::Install	(	Ptr< Node >	a,
		std::string	bName
	)

Parameters:

	a	first node
	bName	name of second node

Saves you from having to construct a temporary NodeContainer.

NetDeviceContainer ns3::PointToPointHelper::Install	(	Ptr< Node >	a,
		Ptr< Node >	b
	)

Parameters:

	a	first node
	b	second node

Saves you from having to construct a temporary NodeContainer. Also, if MPI is enabled, for distributed simulations, appropriate remote point-to-point channels are created.

NetDeviceContainer ns3::PointToPointHelper::Install

(

NodeContainer

c

)

Parameters:

c

a set of nodes

This method creates a ns3::PointToPointChannel with the attributes configured by PointToPointHelper::SetChannelAttribute, then, for each node in the input container, we create a ns3::PointToPointNetDevice with the requested attributes, a queue for this ns3::NetDevice, and associate the resulting ns3::NetDevice with the ns3::Node and ns3::PointToPointChannel.

void ns3::PointToPointHelper::SetChannelAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Set an attribute value to be propagated to each Channel created by the helper.

Parameters:

	name	the name of the attribute to set
	value	the value of the attribute to set

Set these attribute on each ns3::PointToPointChannel created by PointToPointHelper::Install

void ns3::PointToPointHelper::SetDeviceAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Set an attribute value to be propagated to each NetDevice created by the helper.

Parameters:

	name	the name of the attribute to set
	value	the value of the attribute to set

Set these attributes on each ns3::PointToPointNetDevice created by PointToPointHelper::Install

void ns3::PointToPointHelper::SetQueue	(	std::string	type,
		std::string	n1 = "",
		const AttributeValue &	v1 = EmptyAttributeValue(),
		std::string	n2 = "",
		const AttributeValue &	v2 = EmptyAttributeValue(),
		std::string	n3 = "",
		const AttributeValue &	v3 = EmptyAttributeValue(),
		std::string	n4 = "",
		const AttributeValue &	v4 = EmptyAttributeValue()
	)

Each point to point net device must have a queue to pass packets through. This method allows one to set the type of the queue that is automatically created when the device is created and attached to a node.

Parameters:

	type	the type of queue
	n1	the name of the attribute to set on the queue
	v1	the value of the attribute to set on the queue
	n2	the name of the attribute to set on the queue
	v2	the value of the attribute to set on the queue
	n3	the name of the attribute to set on the queue
	v3	the value of the attribute to set on the queue
	n4	the name of the attribute to set on the queue
	v4	the value of the attribute to set on the queue

Set the type of queue to create and associated to each PointToPointNetDevice created through PointToPointHelper::Install.

---

The documentation for this class was generated from the following file:

• src/helper/point-to-point-helper.h
