ns3::RegularWifiMac Class Reference

base class for all MAC-level wifi objects. More...

#include <regular-wifi-mac.h>

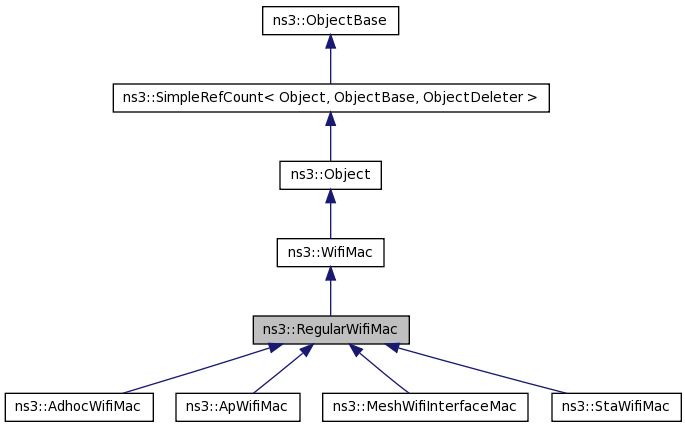

Inheritance diagram for ns3::RegularWifiMac:

[legend]

Collaboration diagram for ns3::RegularWifiMac:

[legend]

List of all members.

Public Types
typedef Callback< void, Ptr < Packet >, Mac48Address, Mac48Address >	ForwardUpCallback
Public Member Functions
void	SetSlot (Time slotTime)
void	SetSifs (Time sifs)
void	SetEifsNoDifs (Time eifsNoDifs)
void	SetPifs (Time pifs)
void	SetCtsTimeout (Time ctsTimeout)
void	SetAckTimeout (Time ackTimeout)
Time	GetPifs (void) const
Time	GetSifs (void) const
Time	GetSlot (void) const
Time	GetEifsNoDifs (void) const
Time	GetCtsTimeout (void) const
Time	GetAckTimeout (void) const
virtual Mac48Address	GetAddress (void) const
virtual Ssid	GetSsid (void) const
virtual void	SetAddress (Mac48Address address)
virtual void	SetSsid (Ssid ssid)
virtual void	SetBssid (Mac48Address bssid)
virtual Mac48Address	GetBssid (void) const
virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)
virtual bool	SupportsSendFrom (void) const
virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to)=0
virtual void	SetWifiPhy (Ptr< WifiPhy > phy)
virtual Ptr< WifiPhy >	GetWifiPhy () const
virtual void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)
virtual Ptr < WifiRemoteStationManager >	GetWifiRemoteStationManager () const
virtual void	SetForwardUpCallback (ForwardUpCallback upCallback)
virtual void	SetLinkUpCallback (Callback< void > linkUp)
virtual void	SetLinkDownCallback (Callback< void > linkDown)
virtual void	SetBasicBlockAckTimeout (Time blockAckTimeout)
virtual Time	GetBasicBlockAckTimeout (void) const
virtual void	SetCompressedBlockAckTimeout (Time blockAckTimeout)
virtual Time	GetCompressedBlockAckTimeout (void) const
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::RegularWifiMac.
Protected Types
typedef std::map< AcIndex, Ptr < EdcaTxopN > >	EdcaQueues
Protected Member Functions
virtual void	DoStart ()
virtual void	DoDispose ()
virtual void	FinishConfigureStandard (enum WifiPhyStandard standard)
void	SetTypeOfStation (TypeOfStation type)
virtual void	Receive (Ptr< Packet > packet, const WifiMacHeader *hdr)
virtual void	TxOk (const WifiMacHeader &hdr)
virtual void	TxFailed (const WifiMacHeader &hdr)
void	ForwardUp (Ptr< Packet > packet, Mac48Address from, Mac48Address to)
virtual void	DeaggregateAmsduAndForward (Ptr< Packet > aggregatedPacket, const WifiMacHeader *hdr)
virtual void	SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)
void	SetQosSupported (bool enable)
bool	GetQosSupported () const
Protected Attributes
MacRxMiddle *	m_rxMiddle
MacTxMiddle *	m_txMiddle
Ptr< MacLow >	m_low
DcfManager *	m_dcfManager
Ptr< WifiPhy >	m_phy
Ptr< WifiRemoteStationManager >	m_stationManager
ForwardUpCallback	m_forwardUp
Callback< void >	m_linkUp
Callback< void >	m_linkDown
Ssid	m_ssid
Ptr< DcaTxop >	m_dca
EdcaQueues	m_edca
bool	m_qosSupported

---

Detailed Description

base class for all MAC-level wifi objects.

This class encapsulates all the low-level MAC functionality DCA, EDCA, etc) and all the high-level MAC functionality (association/disassociation state machines).

---

Member Typedef Documentation

typedef std::map<AcIndex, Ptr<EdcaTxopN> > ns3::RegularWifiMac::EdcaQueues [protected]

This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function

typedef Callback<void, Ptr<Packet>, Mac48Address, Mac48Address> ns3::RegularWifiMac::ForwardUpCallback

This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack.

Parameters:

	packet	the packet that has been received.
	from	the MAC address of the device that sent the packet.
	to	the MAC address ot the device that the packet is destined for.

---

Member Function Documentation

virtual void ns3::RegularWifiMac::DeaggregateAmsduAndForward	(	Ptr< Packet >	aggregatedPacket,
		const WifiMacHeader *	hdr
	)			[protected, virtual]

This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack.

Parameters:

	aggregatedPacket	the Packet containing the A-MSDU.
	hdr	a pointer to the MAC header for aggregatedPacket.

virtual void ns3::RegularWifiMac::DoDispose

(

)

[protected, virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

virtual void ns3::RegularWifiMac::DoStart

(

)

[protected, virtual]

This method is called only once by Object::Start. If the user calls Object::Start multiple times, DoStart is called only the first time.

Subclasses are expected to override this method and _chain up_ to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

virtual void ns3::RegularWifiMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to
	)			[pure virtual]

Parameters:

	packet	the packet to send.
	to	the address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC.

Implements ns3::WifiMac.

Implemented in ns3::MeshWifiInterfaceMac, ns3::AdhocWifiMac, ns3::ApWifiMac, and ns3::StaWifiMac.

virtual void ns3::RegularWifiMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to,
		Mac48Address	from
	)			[virtual]

Parameters:

	packet	the packet to send.
	to	the address to which the packet should be sent.
	from	the address from which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source address.

Implements ns3::WifiMac.

Reimplemented in ns3::MeshWifiInterfaceMac, and ns3::ApWifiMac.

virtual void ns3::RegularWifiMac::FinishConfigureStandard

(

enum WifiPhyStandard

standard

)

[protected, virtual]

Parameters:

standard

the phy standard to be used

This method is called by ns3::WifiMac::ConfigureStandard to complete the configuration process for a requested phy standard.

This method may be overriden by a derived class (e.g., in order to apply DCF or EDCA parameters specific to the usage model it is dealing with), in which case the reimplementation may choose to deal with certain values in the WifiPhyStandard enumeration, and chain up to this implementation to deal with the remainder.

Implements ns3::WifiMac.

Reimplemented in ns3::MeshWifiInterfaceMac.

Time ns3::RegularWifiMac::GetAckTimeout

(

void

)

const [virtual]

Returns:

the current ACK timeout duration.

Implements ns3::WifiMac.

virtual Mac48Address ns3::RegularWifiMac::GetAddress

(

void

)

const [virtual]

Returns:

the MAC address associated to this MAC layer.

Implements ns3::WifiMac.

virtual Mac48Address ns3::RegularWifiMac::GetBssid

(

void

)

const [virtual]

Returns:

the bssid of the network this device belongs to.

Implements ns3::WifiMac.

Time ns3::RegularWifiMac::GetCtsTimeout

(

void

)

const [virtual]

Returns:

the current CTS timeout duration.

Implements ns3::WifiMac.

Time ns3::RegularWifiMac::GetEifsNoDifs

(

void

)

const [virtual]

Returns:

the current EIFS minus DIFS duration

Implements ns3::WifiMac.

Time ns3::RegularWifiMac::GetPifs

(

void

)

const [virtual]

Returns:

the current PIFS duration.

Implements ns3::WifiMac.

bool ns3::RegularWifiMac::GetQosSupported

(

)

const [protected]

Get accessor for the m_qosSupported member

Time ns3::RegularWifiMac::GetSifs

(

void

)

const [virtual]

Returns:

the current SIFS duration.

Implements ns3::WifiMac.

Time ns3::RegularWifiMac::GetSlot

(

void

)

const [virtual]

Returns:

the current slot duration.

Implements ns3::WifiMac.

virtual Ssid ns3::RegularWifiMac::GetSsid

(

void

)

const [virtual]

Returns:

the ssid which this MAC layer is going to try to stay in.

Implements ns3::WifiMac.

static TypeId ns3::RegularWifiMac::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::RegularWifiMac.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiMac/$ns3::RegularWifiMac
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac

Attributes defined for this type:

• QosSupported: This Boolean attribute is set to enable 802.11e/WMM-style QoS support at this STA
  • Set with class: BooleanValue
  • Underlying type: bool
  • Initial value: false
  • Flags: construct write read
• DcaTxop: The DcaTxop object
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::DcaTxop >
  • Flags: read
• VO_EdcaTxopN: Queue that manages packets belonging to AC_VO access class
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::EdcaTxopN >
  • Flags: read
• VI_EdcaTxopN: Queue that manages packets belonging to AC_VI access class
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::EdcaTxopN >
  • Flags: read
• BE_EdcaTxopN: Queue that manages packets belonging to AC_BE access class
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::EdcaTxopN >
  • Flags: read
• BK_EdcaTxopN: Queue that manages packets belonging to AC_BK access class
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::EdcaTxopN >
  • Flags: read

Attributes defined in parent class ns3::WifiMac:

• CtsTimeout: When this timeout expires, the RTS/CTS handshake has failed.
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 75000ns
  • Flags: construct write read
• AckTimeout: When this timeout expires, the DATA/ACK handshake has failed.
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 75000ns
  • Flags: construct write read
• BasicBlockAckTimeout: When this timeout expires, the BASIC_BLOCK_ACK_REQ/BASIC_BLOCK_ACK handshake has failed.
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 281000ns
  • Flags: construct write read
• CompressedBlockAckTimeout: When this timeout expires, the COMPRESSED_BLOCK_ACK_REQ/COMPRESSED_BLOCK_ACK handshake has failed.
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 99000ns
  • Flags: construct write read
• Sifs: The value of the SIFS constant.
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 16000ns
  • Flags: construct write read
• EifsNoDifs: The value of EIFS-DIFS
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 60000ns
  • Flags: construct write read
• Slot: The duration of a Slot.
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 9000ns
  • Flags: construct write read
• Pifs: The value of the PIFS constant.
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 25000ns
  • Flags: construct write read
• MaxPropagationDelay: The maximum propagation delay. Unused for now.
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 3333ns
  • Flags: construct write read
• Ssid: The ssid we want to belong to.
  • Set with class: SsidValue
  • Underlying type: Ssid
  • Initial value: default
  • Flags: construct write read

TraceSources defined for this type:

• TxOkHeader: The header of successfully transmitted packet
• TxErrHeader: The header of unsuccessfully transmitted packet

TraceSources defined in parent class ns3::WifiMac:

• MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
• MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission.
• MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
• MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
• MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.

Reimplemented from ns3::WifiMac.

Reimplemented in ns3::MeshWifiInterfaceMac, ns3::AdhocWifiMac, ns3::ApWifiMac, and ns3::StaWifiMac.

virtual Ptr<WifiPhy> ns3::RegularWifiMac::GetWifiPhy

(

)

const [virtual]

Returns:

the physical layer attached to this MAC.

virtual Ptr<WifiRemoteStationManager> ns3::RegularWifiMac::GetWifiRemoteStationManager

(

)

const [virtual]

Returns:

the station manager attached to this MAC.

virtual void ns3::RegularWifiMac::Receive	(	Ptr< Packet >	packet,
		const WifiMacHeader *	hdr
	)			[protected, virtual]

This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received. The implementation is intended to capture logic that is going to be common to all (or most) derived classes. Specifically, handling of Block Ack managment frames is dealt with here.

This method will need, however, to be overriden by derived classes so that they can perform their data handling before invoking the base version.

Parameters:

	packet	the packet that has been received.
	hdr	a pointer to the MAC header of the received frame.

virtual void ns3::RegularWifiMac::SendAddBaResponse	(	const MgtAddBaRequestHeader *	reqHdr,
		Mac48Address	originator
	)			[protected, virtual]

This method can be called to accept a received ADDBA Request. An ADDBA Response will be constructed and queued for transmission.

Parameters:

	reqHdr	a pointer to the received ADDBA Request header.
	originator	the MAC address of the originator.

void ns3::RegularWifiMac::SetAckTimeout

(

Time

ackTimeout

)

[virtual]

Parameters:

ackTimeout

the duration of an ACK timeout.

Implements ns3::WifiMac.

virtual void ns3::RegularWifiMac::SetAddress

(

Mac48Address

address

)

[virtual]

Parameters:

address

the current address of this MAC layer.

Implements ns3::WifiMac.

Reimplemented in ns3::AdhocWifiMac, and ns3::ApWifiMac.

virtual void ns3::RegularWifiMac::SetBssid

(

Mac48Address

bssid

)

[virtual]

Parameters:

bssid

the BSSID of the network that this device belongs to.

void ns3::RegularWifiMac::SetCtsTimeout

(

Time

ctsTimeout

)

[virtual]

Parameters:

ctsTimeout

the duration of a CTS timeout.

Implements ns3::WifiMac.

void ns3::RegularWifiMac::SetEifsNoDifs

(

Time

eifsNoDifs

)

[virtual]

Parameters:

eifsNoDifs

the duration of an EIFS minus DIFS.

This value is used to calculate the EIFS depending on AIFSN.

Implements ns3::WifiMac.

virtual void ns3::RegularWifiMac::SetForwardUpCallback

(

ForwardUpCallback

upCallback

)

[virtual]

Parameters:

upCallback

the callback to invoke when a packet must be forwarded up the stack.

virtual void ns3::RegularWifiMac::SetLinkDownCallback

(

Callback< void >

linkDown

)

[virtual]

Parameters:

linkDown

the callback to invoke when the link becomes down.

Implements ns3::WifiMac.

virtual void ns3::RegularWifiMac::SetLinkUpCallback

(

Callback< void >

linkUp

)

[virtual]

Parameters:

linkUp

the callback to invoke when the link becomes up.

Implements ns3::WifiMac.

Reimplemented in ns3::MeshWifiInterfaceMac, ns3::AdhocWifiMac, and ns3::ApWifiMac.

void ns3::RegularWifiMac::SetPifs

(

Time

pifs

)

[virtual]

Parameters:

pifs

the pifs duration.

Implements ns3::WifiMac.

void ns3::RegularWifiMac::SetQosSupported

(

bool

enable

)

[protected]

Set accessor for the m_qosSupported member

void ns3::RegularWifiMac::SetSifs

(

Time

sifs

)

[virtual]

Parameters:

sifs

the sifs duration

Implements ns3::WifiMac.

void ns3::RegularWifiMac::SetSlot

(

Time

slotTime

)

[virtual]

Parameters:

slotTime

the slot duration

Implements ns3::WifiMac.

virtual void ns3::RegularWifiMac::SetSsid

(

Ssid

ssid

)

[virtual]

Parameters:

ssid

the current ssid of this MAC layer.

Implements ns3::WifiMac.

void ns3::RegularWifiMac::SetTypeOfStation

(

TypeOfStation

type

)

[protected]

This method is invoked by a subclass to specify what type of station it is implementing. This is something that the channel access functions (instantiated within this class as EdcaTxopN's) need to know.

Parameters:

type

the type of station.

virtual void ns3::RegularWifiMac::SetWifiPhy

(

Ptr< WifiPhy >

phy

)

[virtual]

Parameters:

phy

the physical layer attached to this MAC.

Implements ns3::WifiMac.

virtual void ns3::RegularWifiMac::SetWifiRemoteStationManager

(

Ptr< WifiRemoteStationManager >

stationManager

)

[virtual]

Parameters:

stationManager

the station manager attached to this MAC.

Implements ns3::WifiMac.

Reimplemented in ns3::ApWifiMac.

---

Member Data Documentation

Ptr<DcaTxop> ns3::RegularWifiMac::m_dca [protected]

This holds a pointer to the DCF instance for this WifiMac - used for transmission of frames to non-QoS peers.

EdcaQueues ns3::RegularWifiMac::m_edca [protected]

This is a map from Access Category index to the corresponding channel access function

bool ns3::RegularWifiMac::m_qosSupported [protected]

This Boolean is set true iff this WifiMac is to model 802.11e/WMM style Quality of Service. It is exposed through the attribute system.

At the moment, this flag is the sole selection between QoS and non-QoS operation for the STA (whether IBSS, AP, or non-AP). Ultimately, we will want a QoS-enabled STA to be able to fall back to non-QoS operation with a non-QoS peer. This'll require further intelligence - i.e., per-association QoS state. Having a big switch seems like a good intermediate stage, however.

---

The documentation for this class was generated from the following files:

• src/devices/wifi/regular-wifi-mac.h
• doc/introspected-doxygen.h
